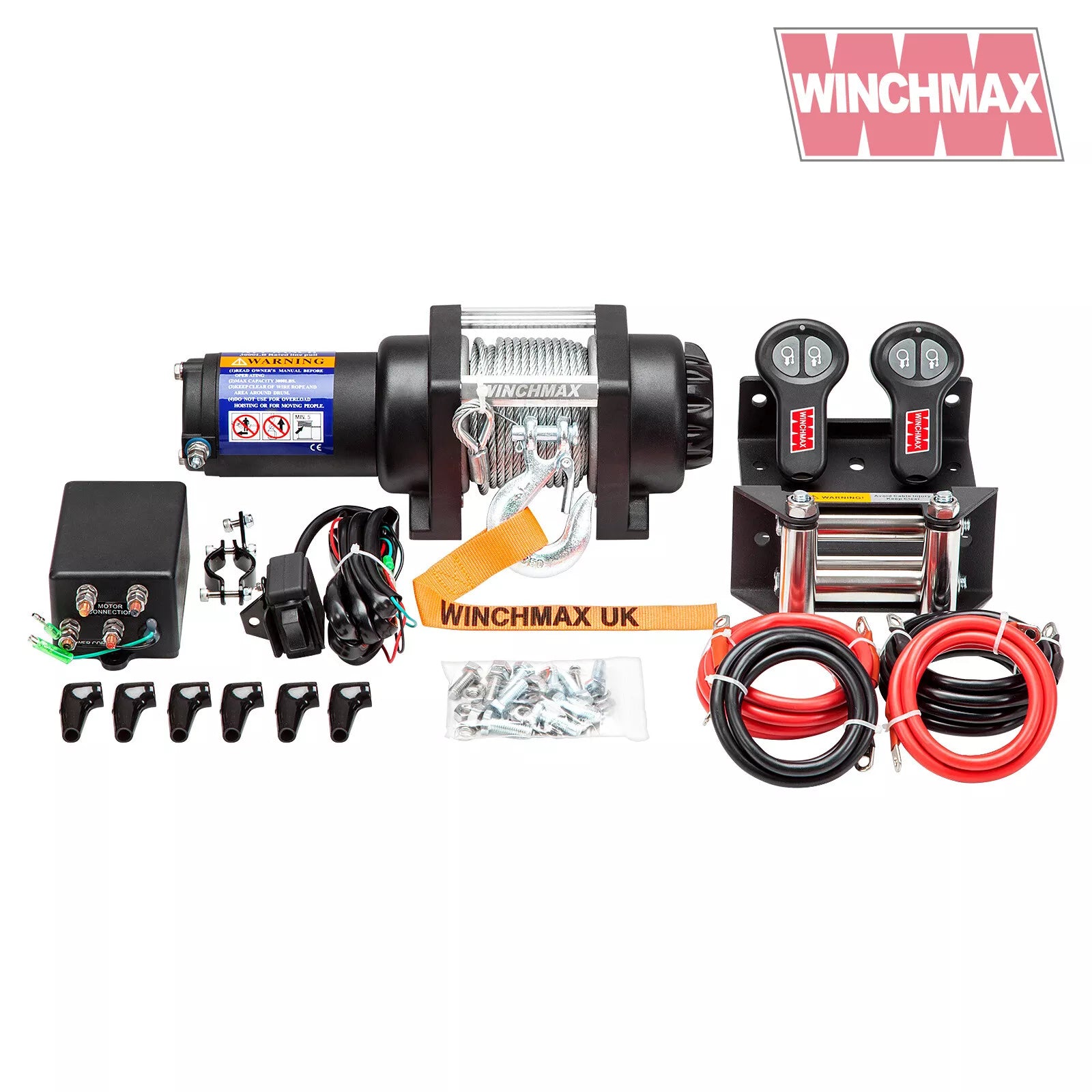

3,000lb (1,361kg) 24v Military Grade Winch. 15.5m x 5mm Steel Rope. Wireless Remote Control. Boat Trailer, Marine.

3,000lb Military Grade, Marine, Boat Trailer 24V Electric Winch, Twin Wireless Remote Control
Includes mounting plate

Ideal for use on boat trailers, ATVs, marine and corrosive environment applications

Features

• 3,000lb (1,361kg) straight-line pull 24v electric winch.
• Military-grade with improved anti-corrosion measures.
• Latest technology long-range wireless remote controls, twin handsets.
• Super powerful 24v permanent magnetic electric motor.
• Ultra-tough three-stage gearbox with hardened steel gears.
• 15.5m x 5mm stainless steel wire rope.
• Through-drum rope attachment with grub screw clamp for maximum security.
• 1/4 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
• Tough four roller fairlead with stainless steel rollers.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Power in/out rocker switch (with handlebar mount).
• Freewheel clutch.
• Stainless steel crossbars and fixings.
• Upgraded water seals.
• High tensile fixing bolt kit.
• Two 180cm battery power cables, Two 90cm motor power cables.
• Heavy-duty & built to last - gross weight 12kg.
• CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	3,000lb (1,361kg)
Motor	24v 1.5hp permanent magnetic motor
Control	Remote rocker switch, handlebar mount kit, in and out
Gear Train	3 stage planetary
Gear Reduction Ratio	136:1
Clutch	Cam activated free spool
Braking Action	Automatic in the drum
Drum Size	Diameter 50mm (2.0")  Length 75mm (2.9”)
Drum Finish	Aluminium
Cable	15.5m x 5mm stainless steel wire rope
Hook	Clevis hook 1/4 inch, zinc plated
Fairlead	4 Way stainless steel roller fairlead
Battery	Recommended 12Ah minimum for winching
Battery Leads	6 gauge, 1.7m (67”) 15mmsq - 4.2mm diameter
Finish	Matt black (low light paint)
Weight (GW)	12kg (26.5lb)
Overall Dimensions(LxWxH)	339 x 110 x 114 mm
Mounting Bolt Pattern	126 x 76 mm
Motor Current	15-200A
No Load Line Speed	8.3m/min (27.2 ft/min)
Wireless Remote	Long Range Wireless Remote Control x 2



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	3,000	1,361	8.85 (2.7)
2	2,561	1,162	19.22 (5.86)
3	2,234	1,013	31.11 (9.48)
4	1,981	899	44.52 (13.58)
5	1,779	807	50.0 (15.5)



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	27ft (8.3m)	10A
500 (227)	20ft (6.1m)	21A
1,000 (454)	16ft (4.9m)	32A
2,000 (907)	9ft (2.7m)	65A
3,000 (1361)	5ft (1.5m)	95A

PDf Documents

• 3000-50000WinchManualEU
• KeyholeRemoteGuide
