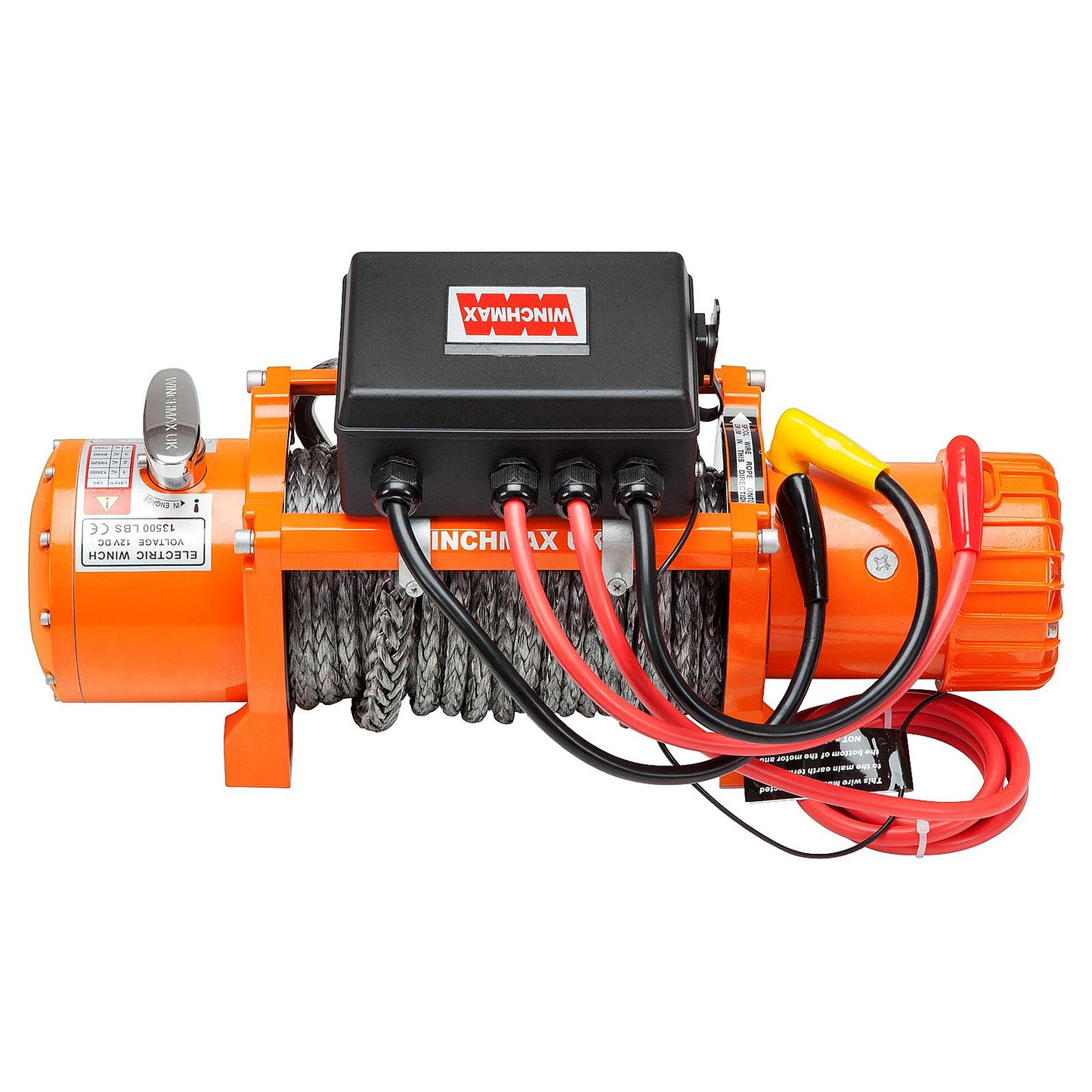

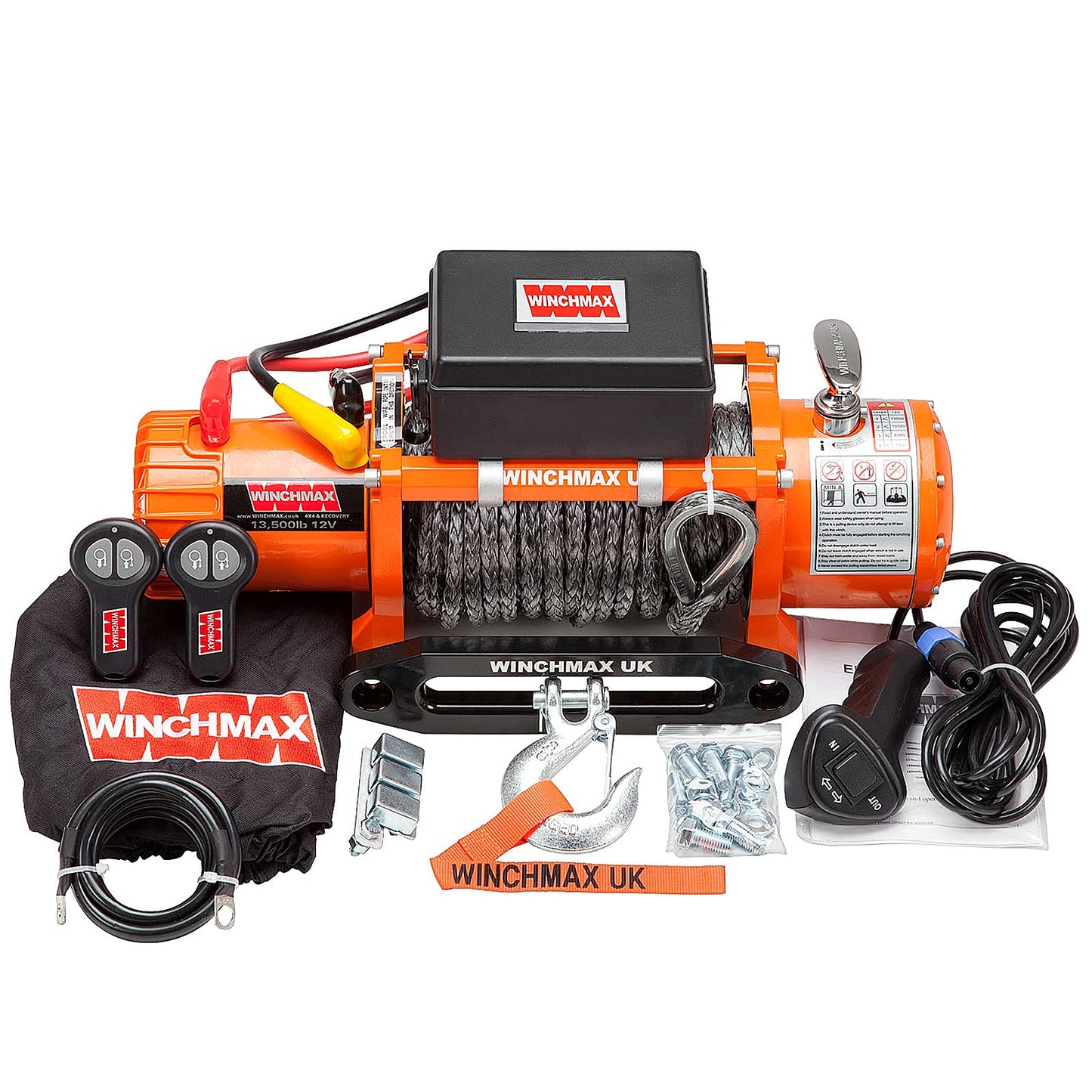

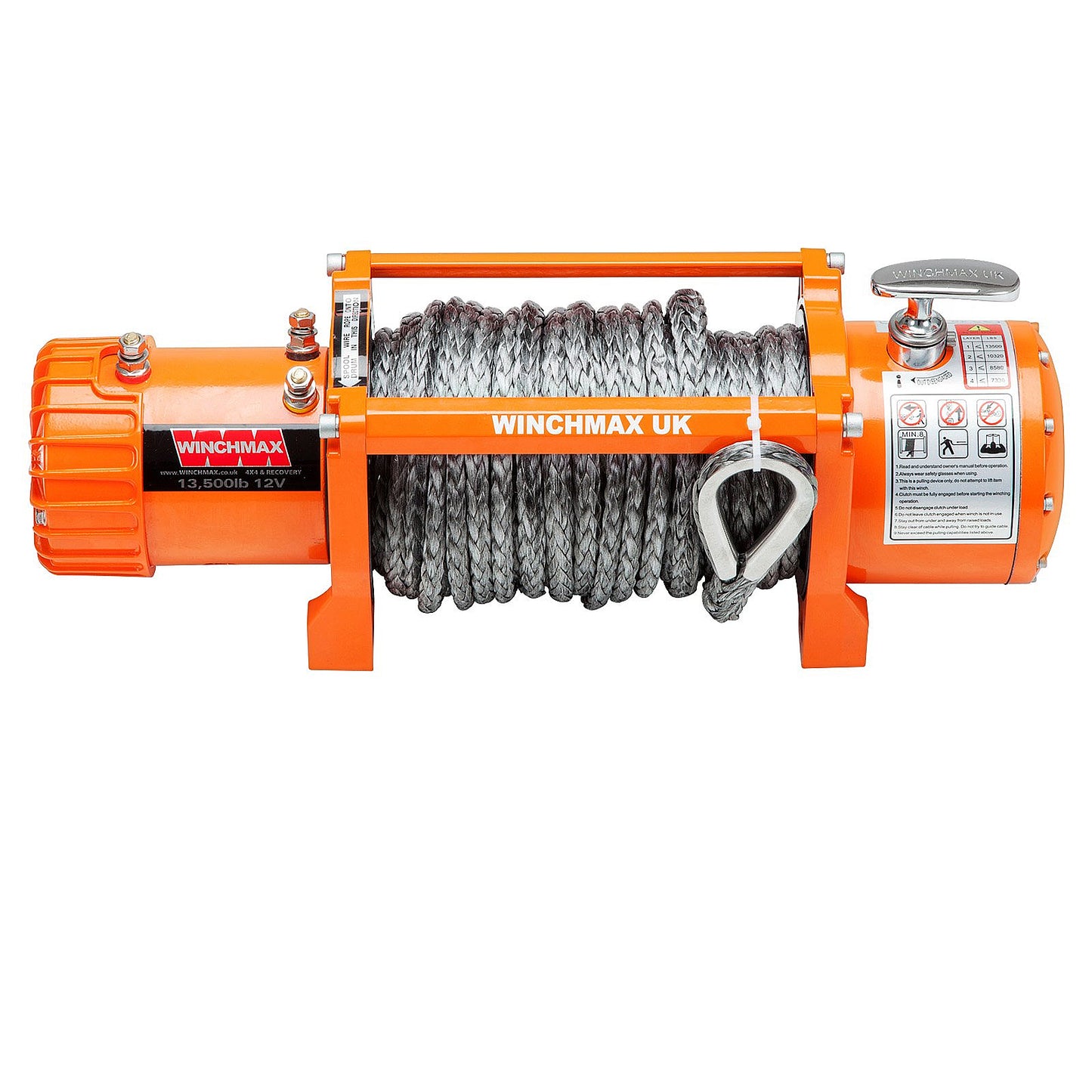

13,500lb (6,123kg) Original Orange 12v Electric Winch. 28m x 11mm Dyneema Rope, Twin Wireless Remote Control.

13,500lb (6,123kg) Original Orange 12v Electric Winch, Dyneema Rope, Twin Wireless Remote Control

Ideal for recovery trucks and 4x4s up to 3.5T

Features

• 13,500lb (6,123kg) straight-line pull 12v electric winch.

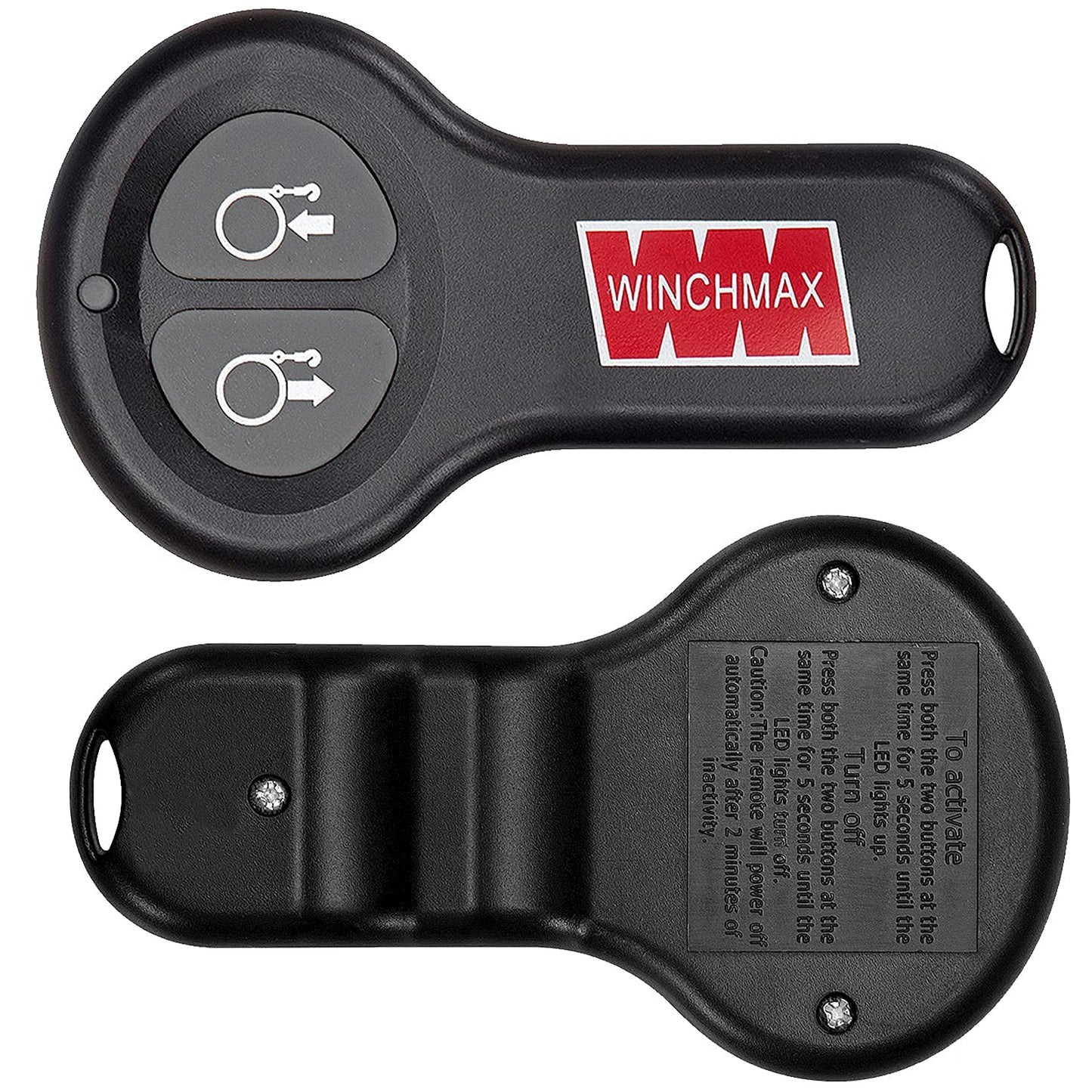

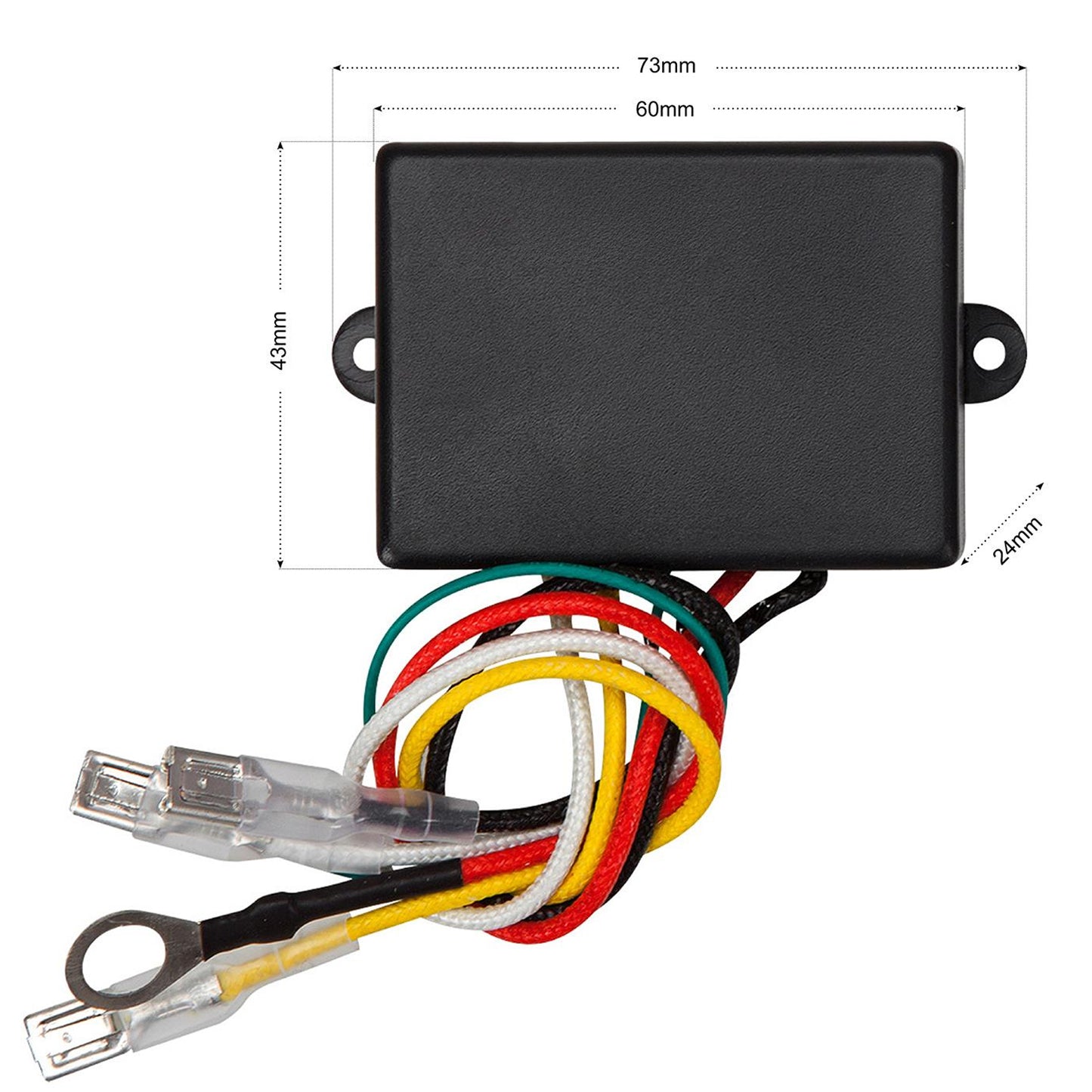

• Latest technology long-range wireless remote controls, twin handsets.
• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 28m of 11mm Dyneema SK75 multi-strand synthetic rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

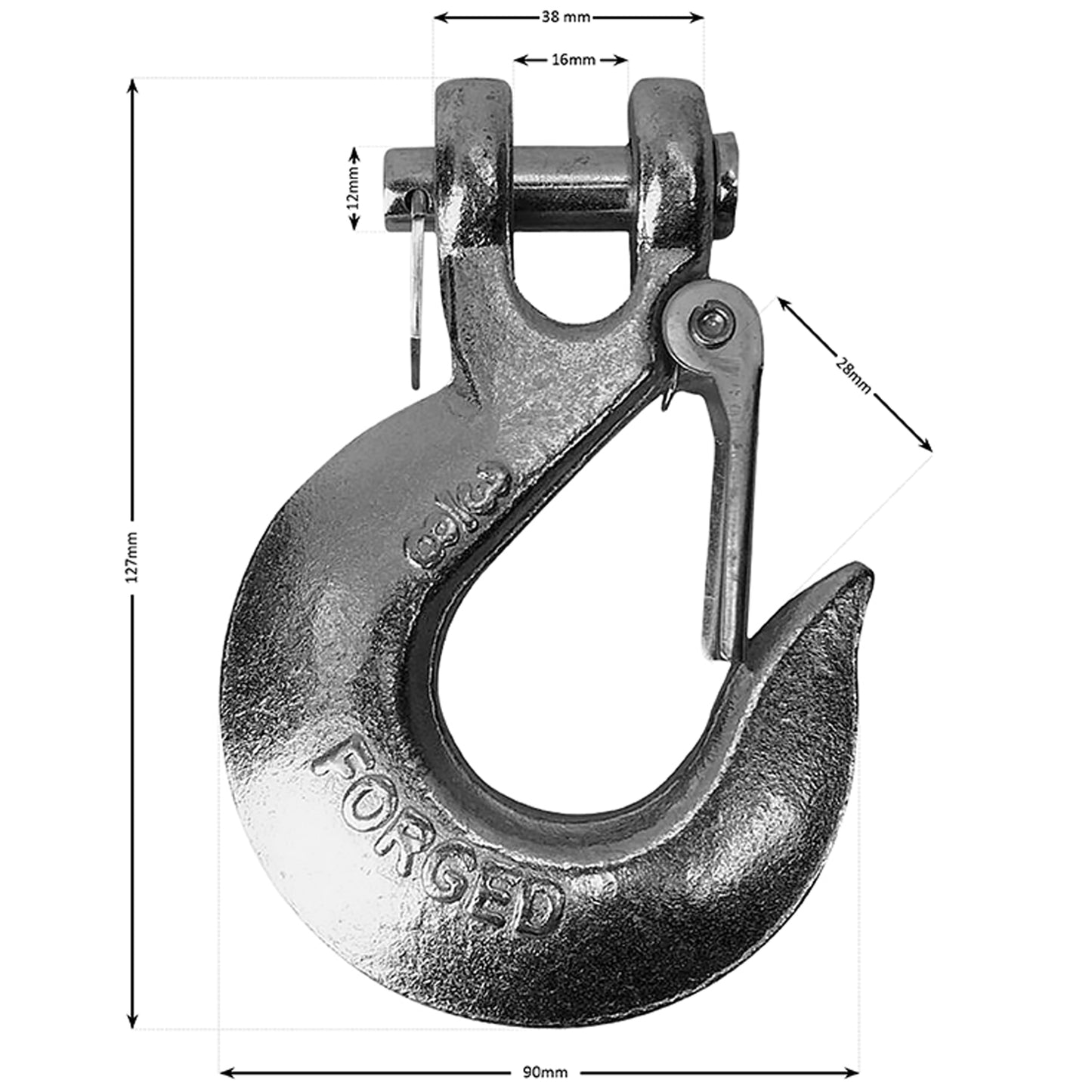

• 3/8 inch clevis hook with safety catch and hand saver.
• WINCHMAX aluminium hawse fairlead. Precision CNC milled, laser-etched.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Power in/out big grip wander lead with extra-long 4.5m cord.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.

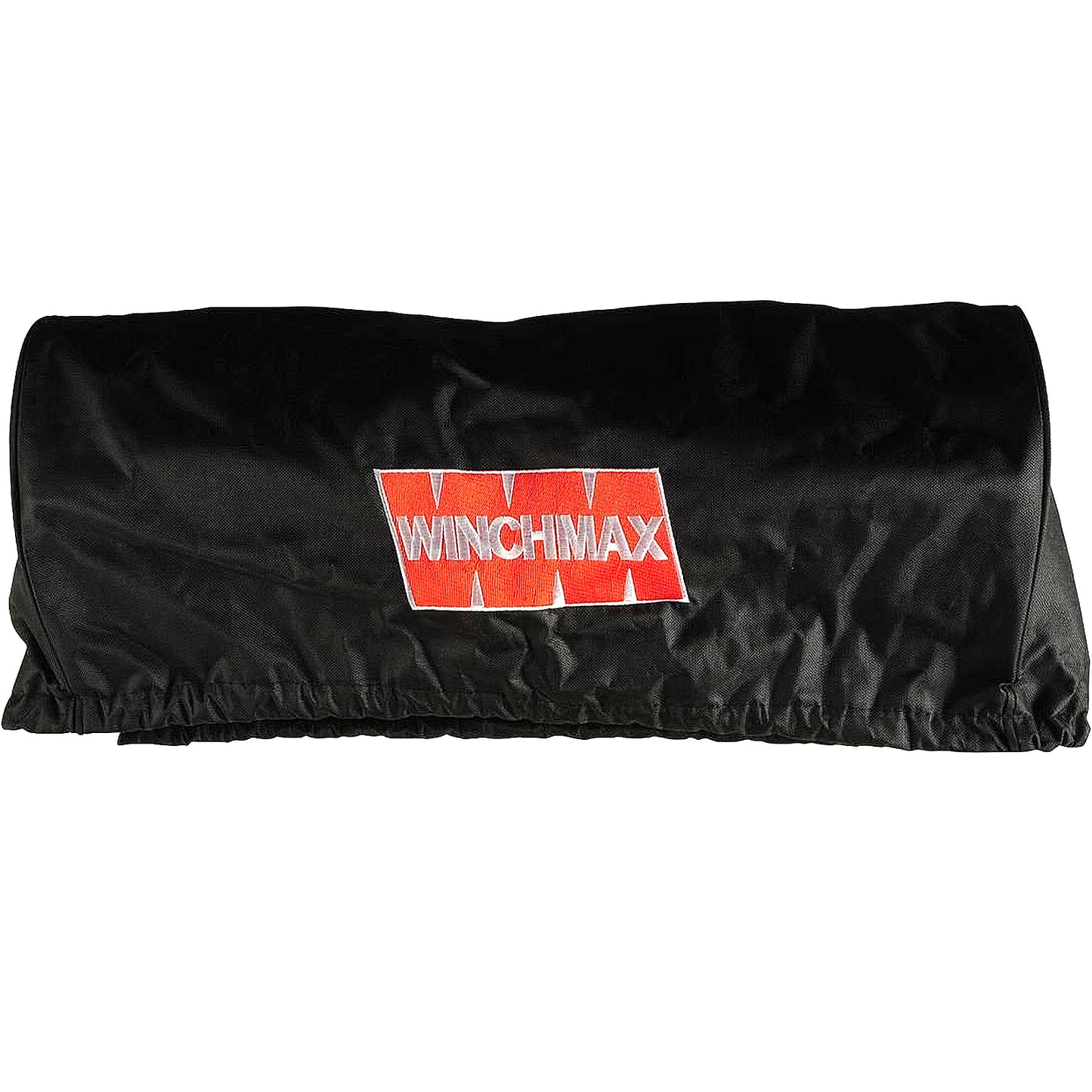

• Strong WINCHMAX branded cover to protect from water and road grime.
• Heavy-duty & built to last - gross weight 30kg.
• CE certified & built to ISO9001 quality management system requirements.

Don't forget Your Mounting plate.

WINCHMAX make the best mounting plates for quick and easy installation. Click here for our recommended mounting plates for this winch.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	13,500lb (6,123kg)
Motor	12v 6.8hp/5.1kw, series wound
Control	Remote Switch, 4.5m lead, in and out
Gear Train	3 stage planetary
Gear Reduction Ratio	265:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 64mm (2.5") Length 224mm (8.82”)
Cable	28m x 11mm Dyneema SK75 multi-strand rope
Hook	Competition hook with safety catch, black
Fairlead	One-piece billet aluminium hawse fairlead
Battery	Recommended 650CCA minimum for winching
Battery Leads	2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
Finish	Original Orange powder coated
Weight (GW)	30kg (88lb)

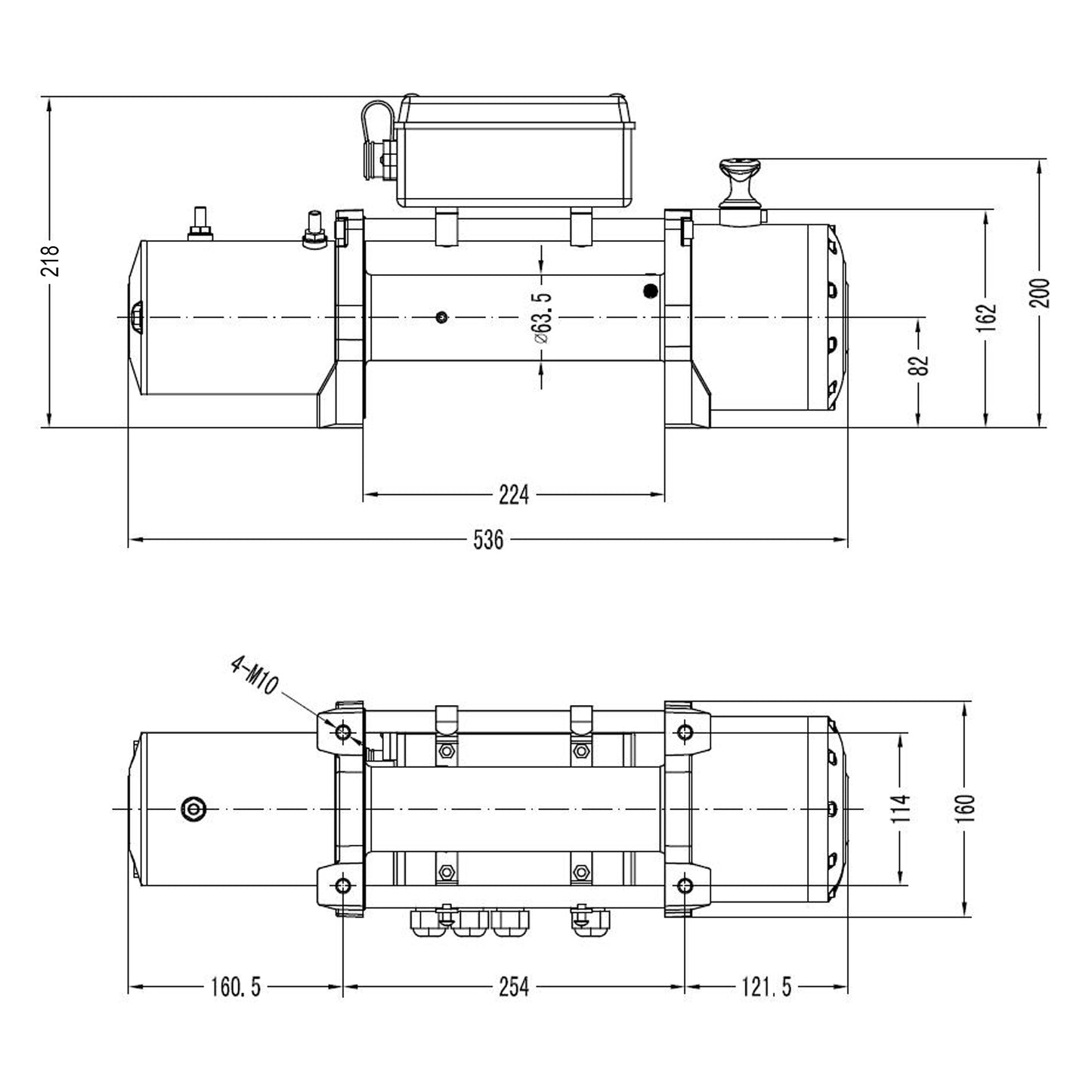

Overall Dimensions (LxWxH)	536 x 160 x 218mm (21.3" x 6.3" x 8.6")
Mounting Bolt Pattern	10.00” ±0.015" x 4.50” ±0.010" (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	13,500	6,123	20.4/6.22
2	10,010	4,540	41/12.0
3	8,840	4,009	71/21.0
4	7,410	3,361	85/24.0



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft (7.5m)	70A
3,000 (1363)	11.48ft (3.5m)	138A
6,000 (2727)	8.86ft (2.7m)	218A
9,000 (4090)	7.72ft (2.2m)	260A
13,500 (6123)	5.58ft (1.7m)	415A
