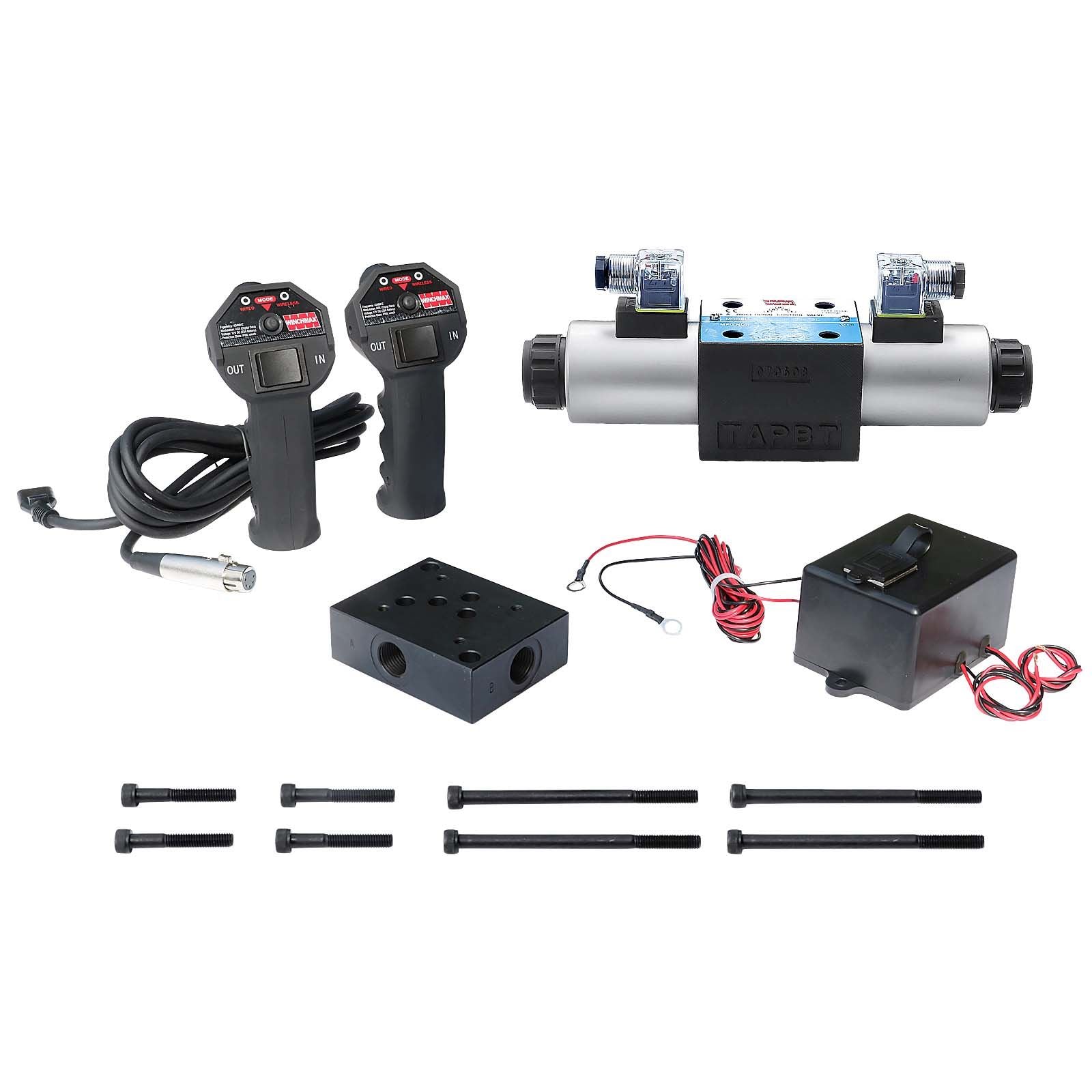

WINCHMAX. 12V CETOP5/NG10 Solenoid Valve, Manifold Subplate and Remote Controls.

WINCHMAX. 12V CETOP5/NG10 Solenoid Valve, Manifold Subplate and Remote Controls.

Code rapide: 1366
SKU: WMHYSOLVALVE5-12V,WMHYBLOCK5,WMZREMKIT12VT(M)
Prix habituel £186.95Inc VAT£155.79Exc VAT
Prix habituel Inc VAT £0.00Exc VAT
Prix promotionnel £186.95Inc VAT£155.79Exc VAT
En vente Épuisé

Besoin d'aide?

Appelez-nous au +44 (0) 1986 899264 et nous serons heureux de vous aider.

Certificat de conformité sur tous les produits
Order within
Days
:
h
:
m
:
s
for UK Next Working Day delivery on
Afficher tous les détails
  • CETOP5/NG10 High Flow Wireless Remote Control Operated Modular Directional Control Valve with Pressure Regulator Manifold Block.
    Wireless high-flow directional control for larger hydraulic winches or where higher speeds are desirable.

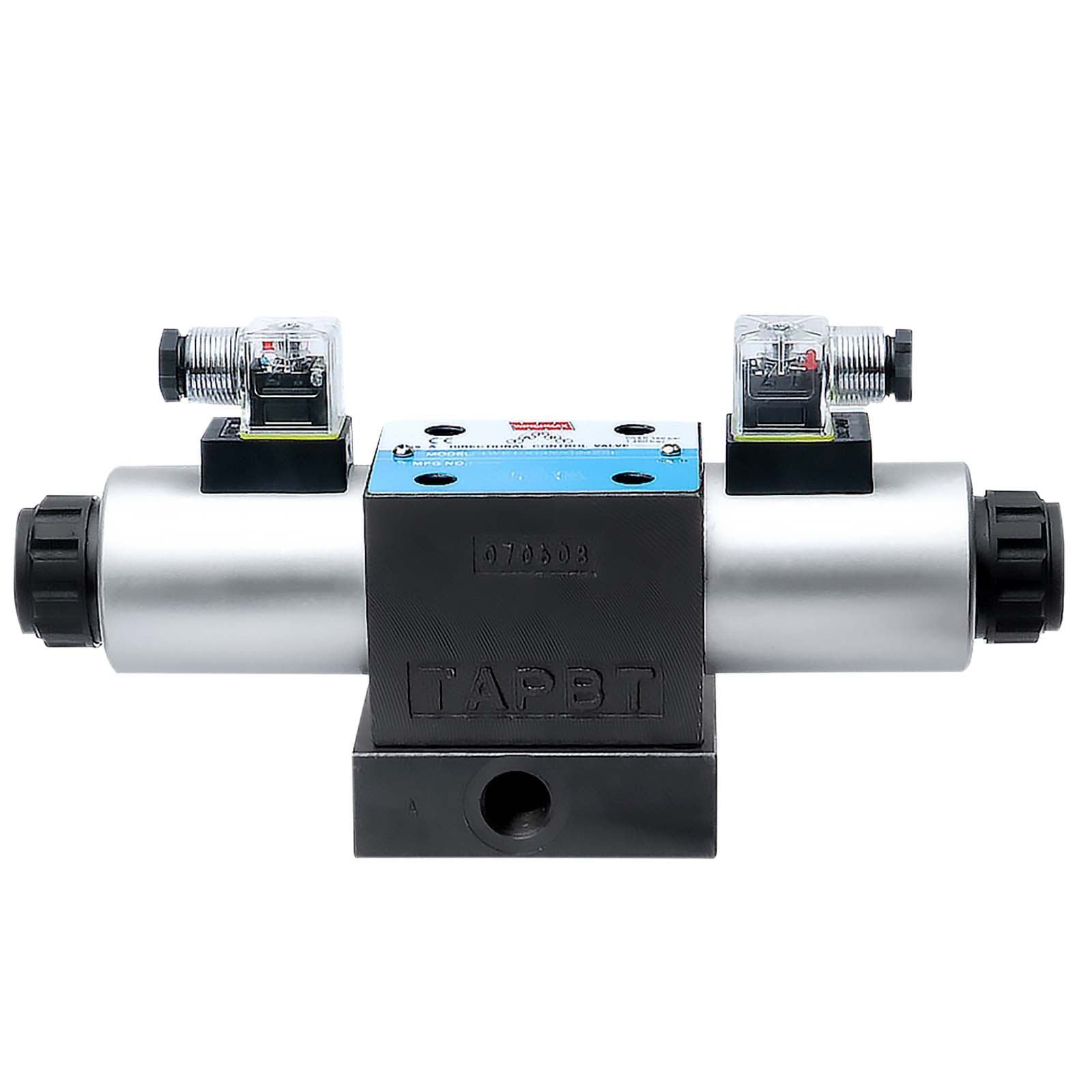

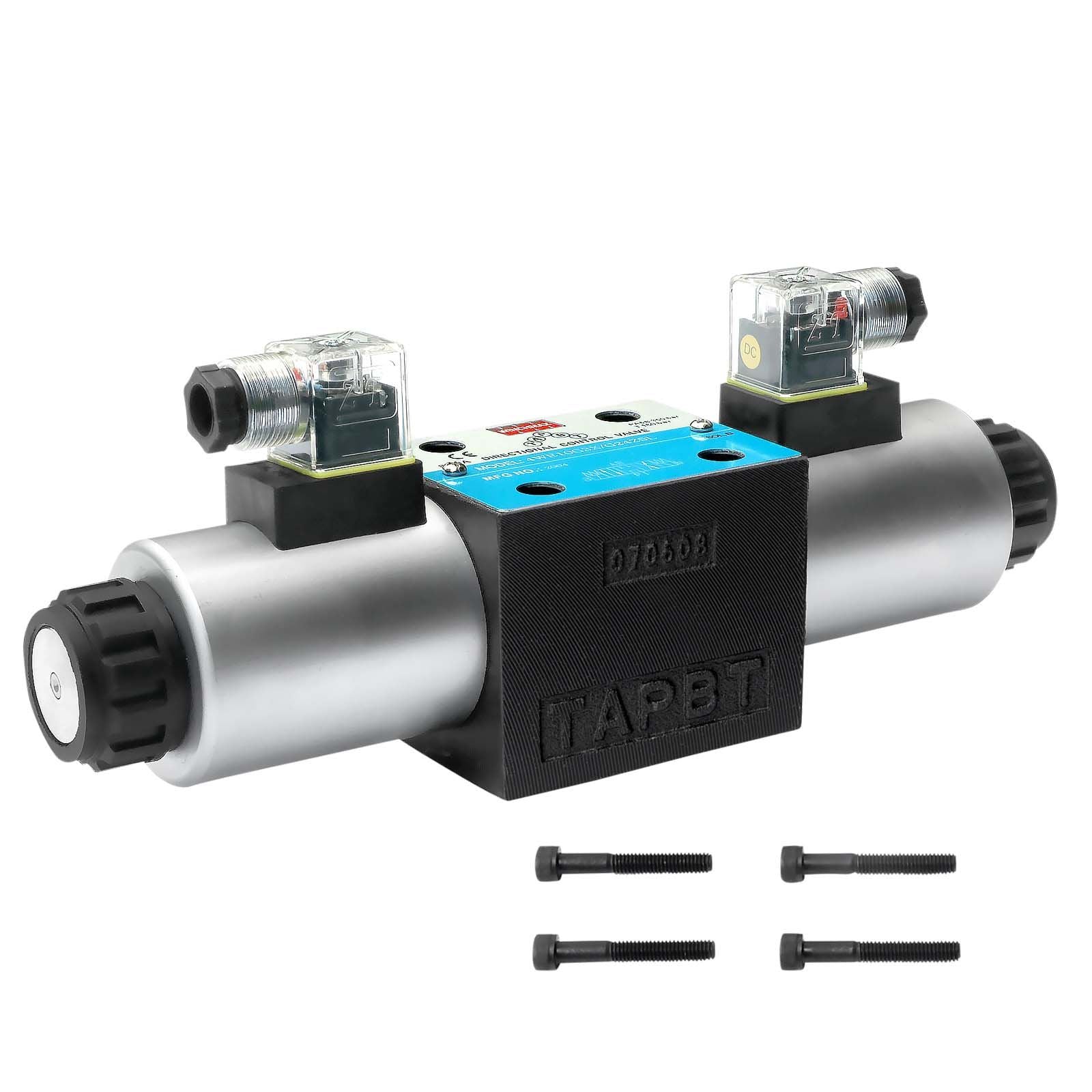

    Solenoid Operated Directional Hydraulic Control Valve, CETOP5/NG10 Three-Position 12V
    Solenoid-operated directional spool valve used to start, stop, and direct the oil flow.

    Features

    • Double 12V Coils.
    • High Flow up to 120l/min.
    • Removable DIN plug connector with clear cover, cable gland, and LED indicator.
    • Configuration; Spring-centred P open to Tank, A & B Blocked.
    • Max Pressure P, A, B, 31.5 Mpa (350 bar / 4500 psi).
    • Manual override feature.

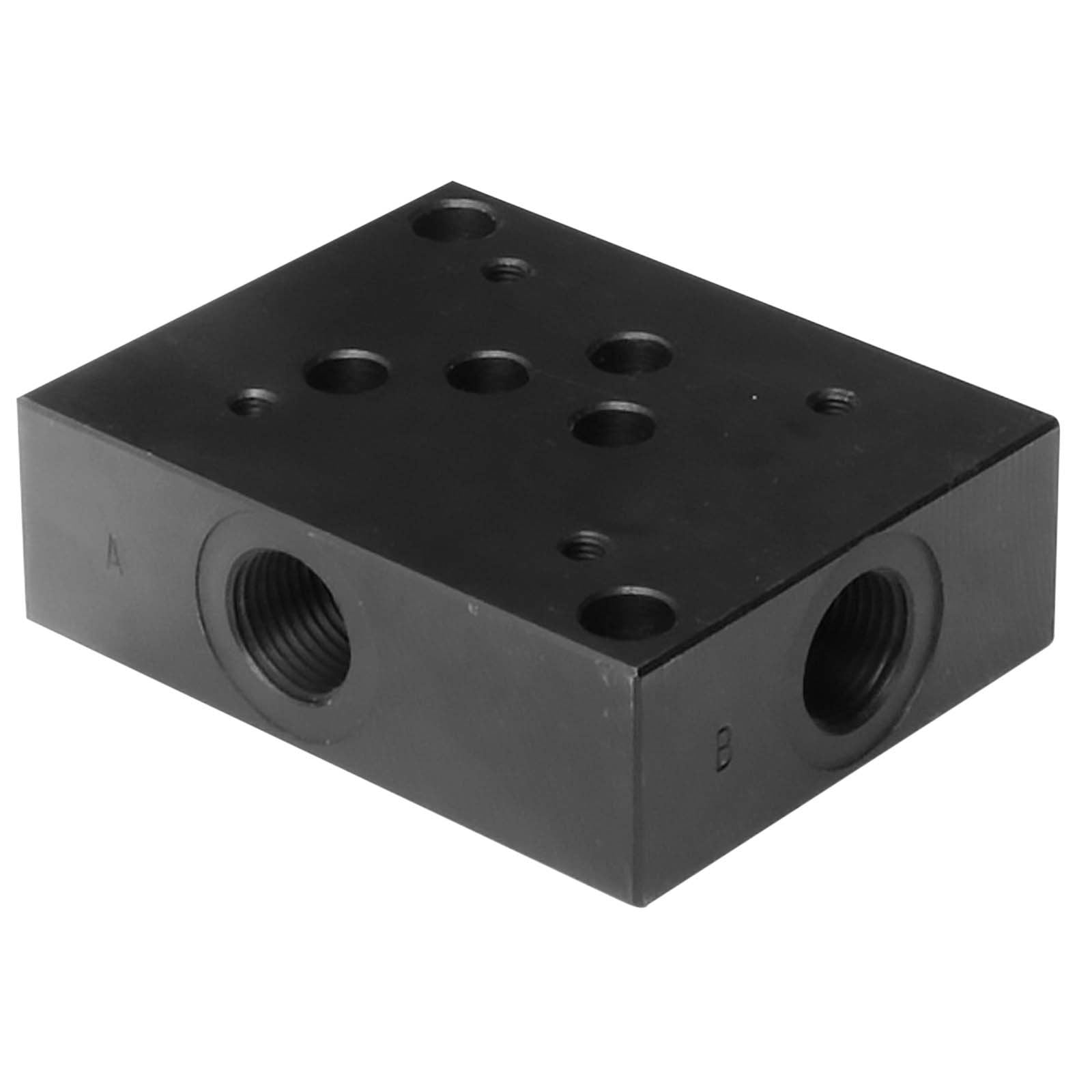

    Manifold Subplate Cetop5/NG10 Hydraulic
    These steel plate covers have been designed to replace valves on the steel manifold and work to provide a pressure blank, which will enable the remaining station to operate. A manifold subplate with reliable relief valves will improve your system’s overall safety and precise control.

    Features

    • Forged Steel Construction.
    • Side Ported P, T, A, B.
    • Port size 1/2 inch BSP

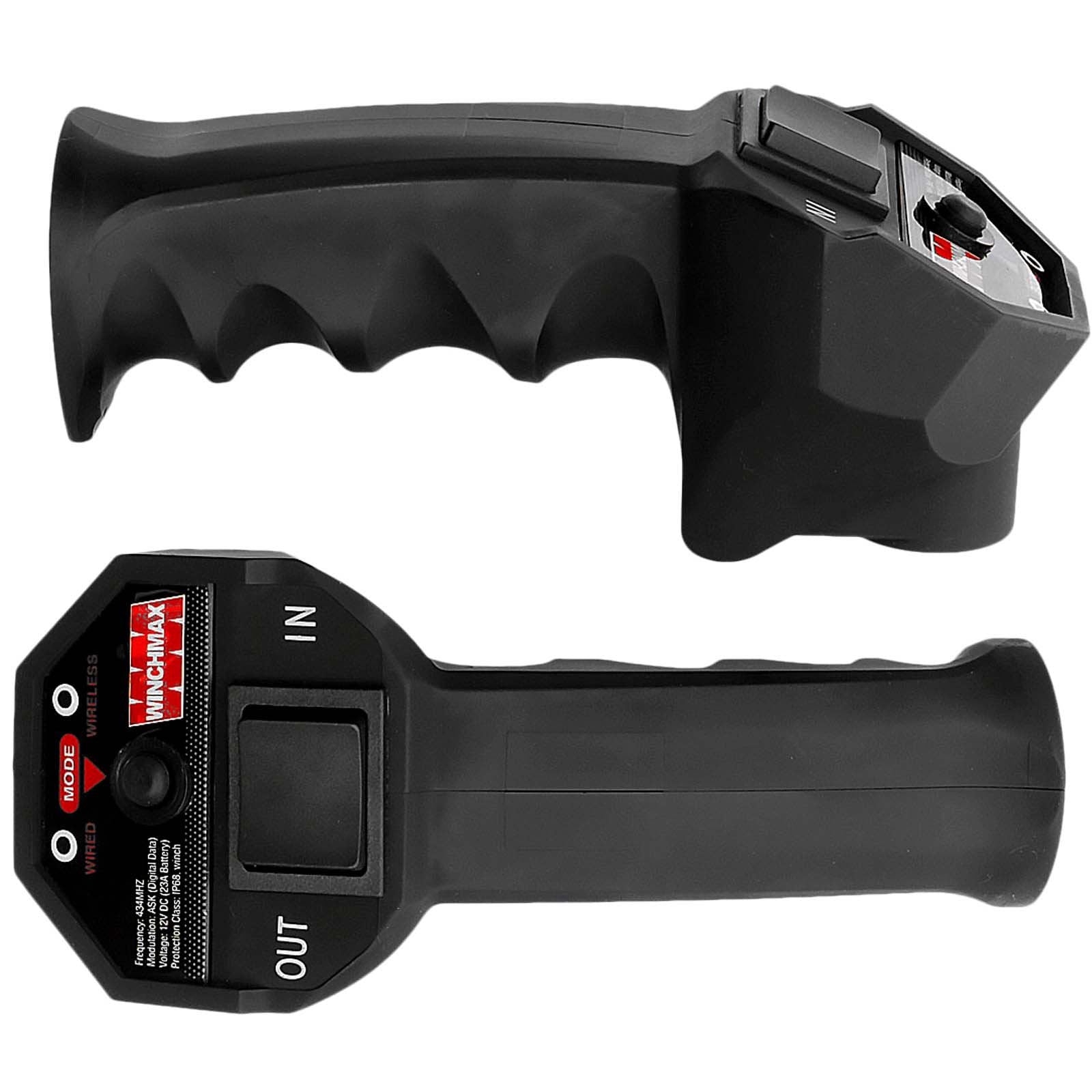

    Winch Remote Control, Wireless. Twin SL Handsets. Long Range Wireless with Enclosure, 12V
    Converts a 12V solenoid-operated direction valve on a hydraulic winch from manual switching to the long-range wireless remote control.

    This new and innovative design combines the mm precision control of a manual wander lead system with the convenience of a wireless system. The robust handheld controllers can be plugged into the control box in the usual way or disconnect the cable and with the press of a button, the handheld controller becomes fully wireless.

    Features

    • Supplied with two large grip handheld controllers.
    • Can be used tethered (with control cable supplied) or fully wireless.
    • Operating Range over 30m (100ft).
    • Improved components for better reliability, range, and battery life.
    • Control box housing a wireless receiver and fitted with a socket for optional wander lead connection.
    • 8m control box power supply leads fitted with ring terminals.
    • 250mm output cables to connect to the coils on an existing solenoid control valve.
    • Approximate control box size is 75mm x 105mm x 60mm, with two lugs for convenient fixing.
    • Easy to fit, full installation instructions supplied.

    Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
