Distanziali per ruote da 30 mm compatibili con Land Rover Defender, Disco1, Range Rover Classic. NERI. T1.

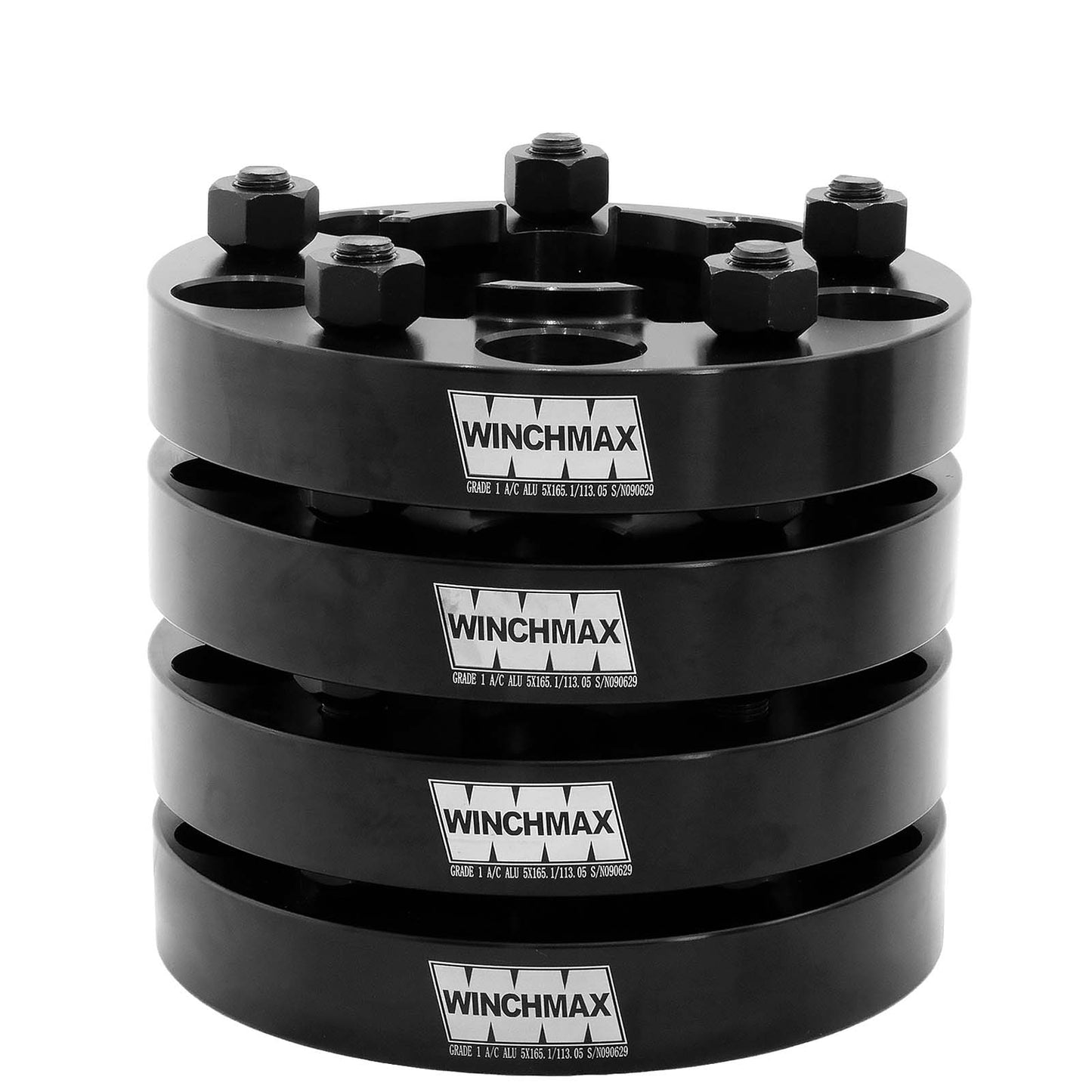

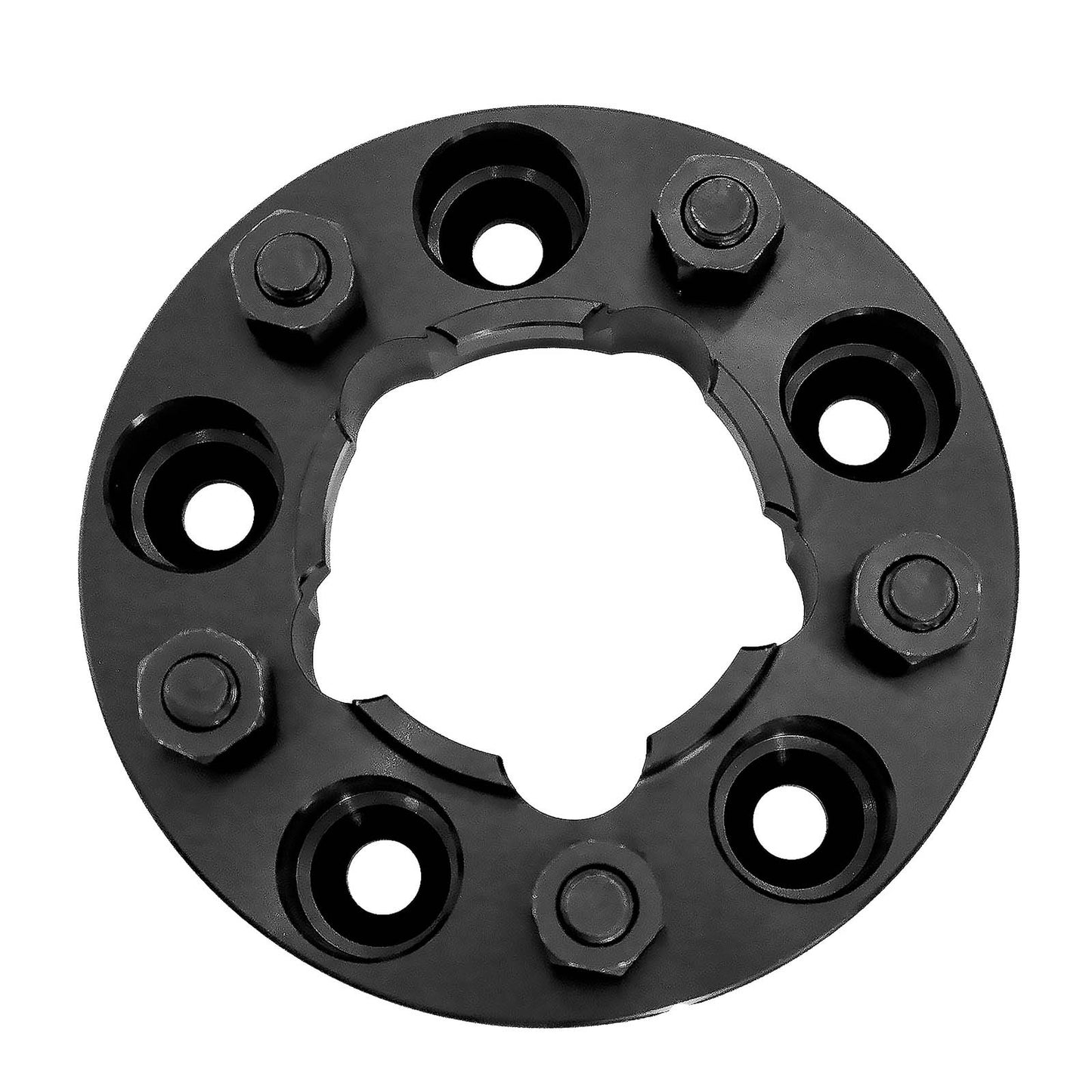

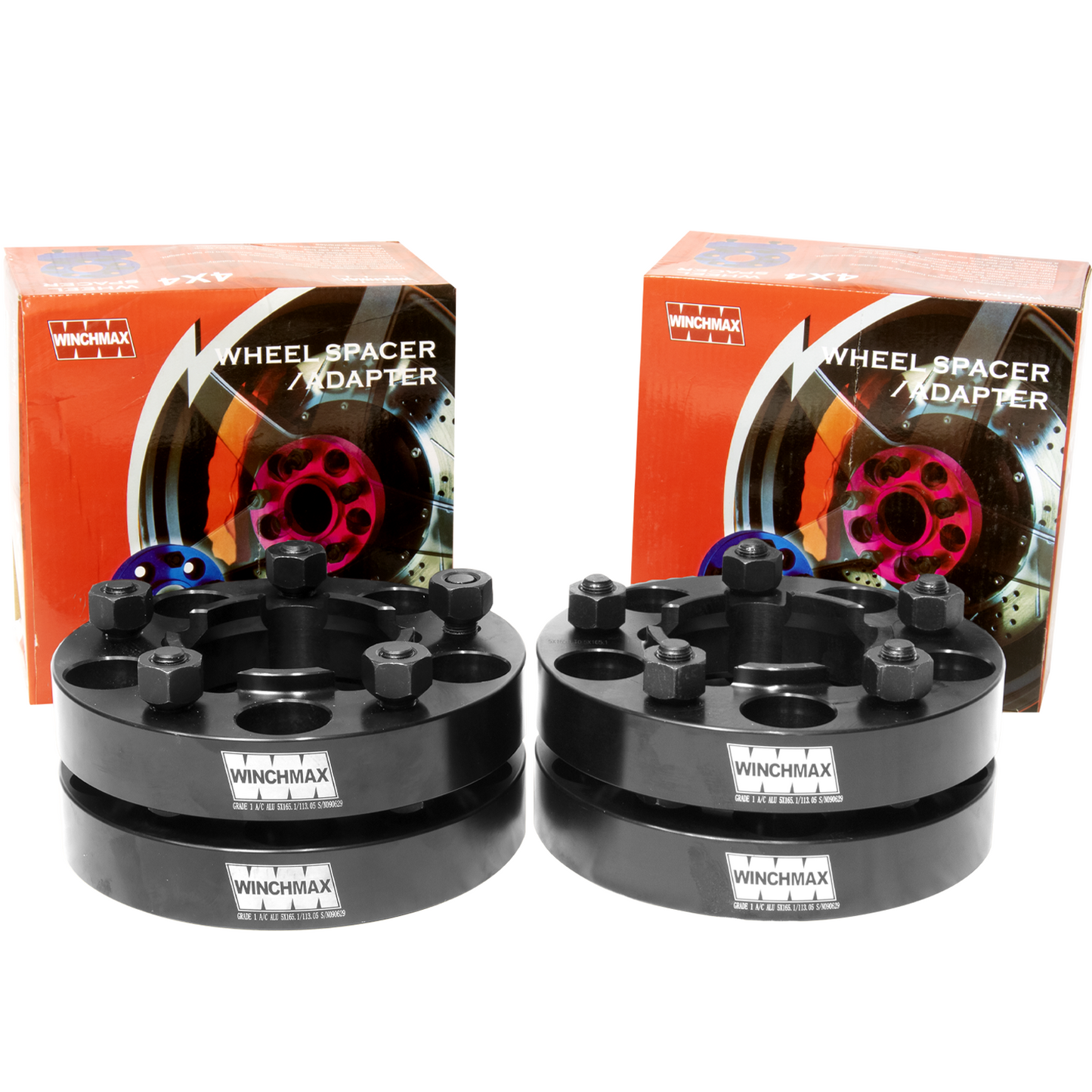

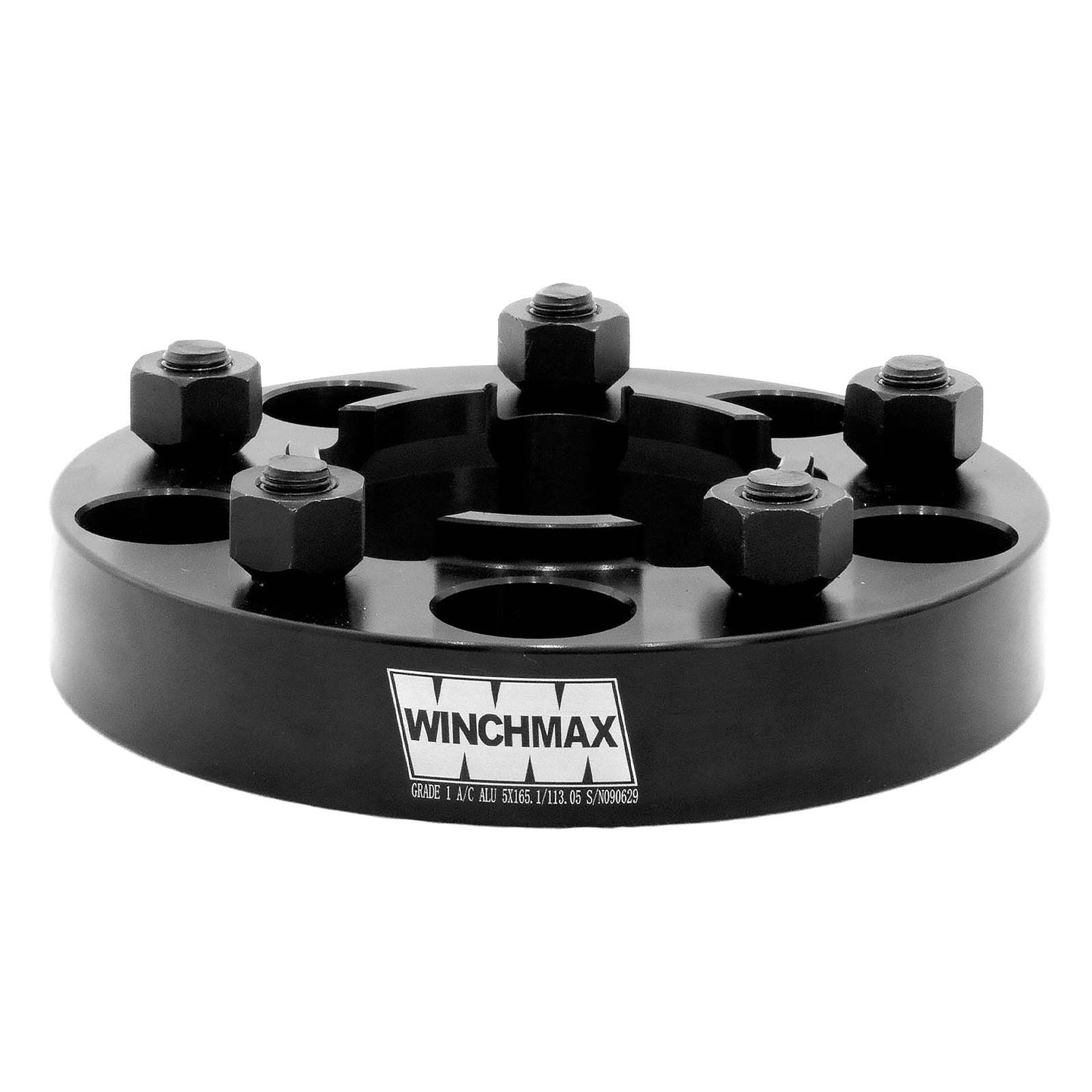

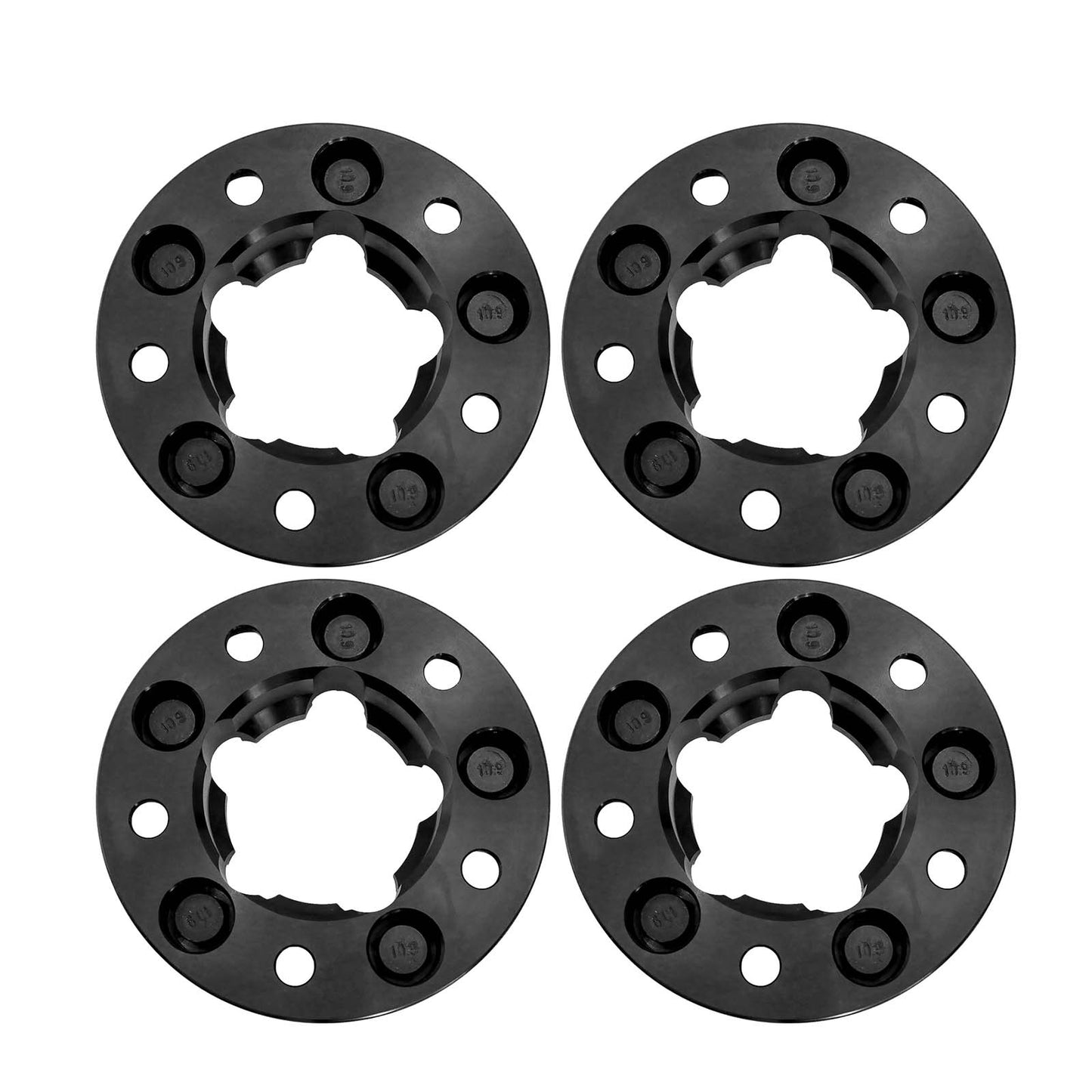

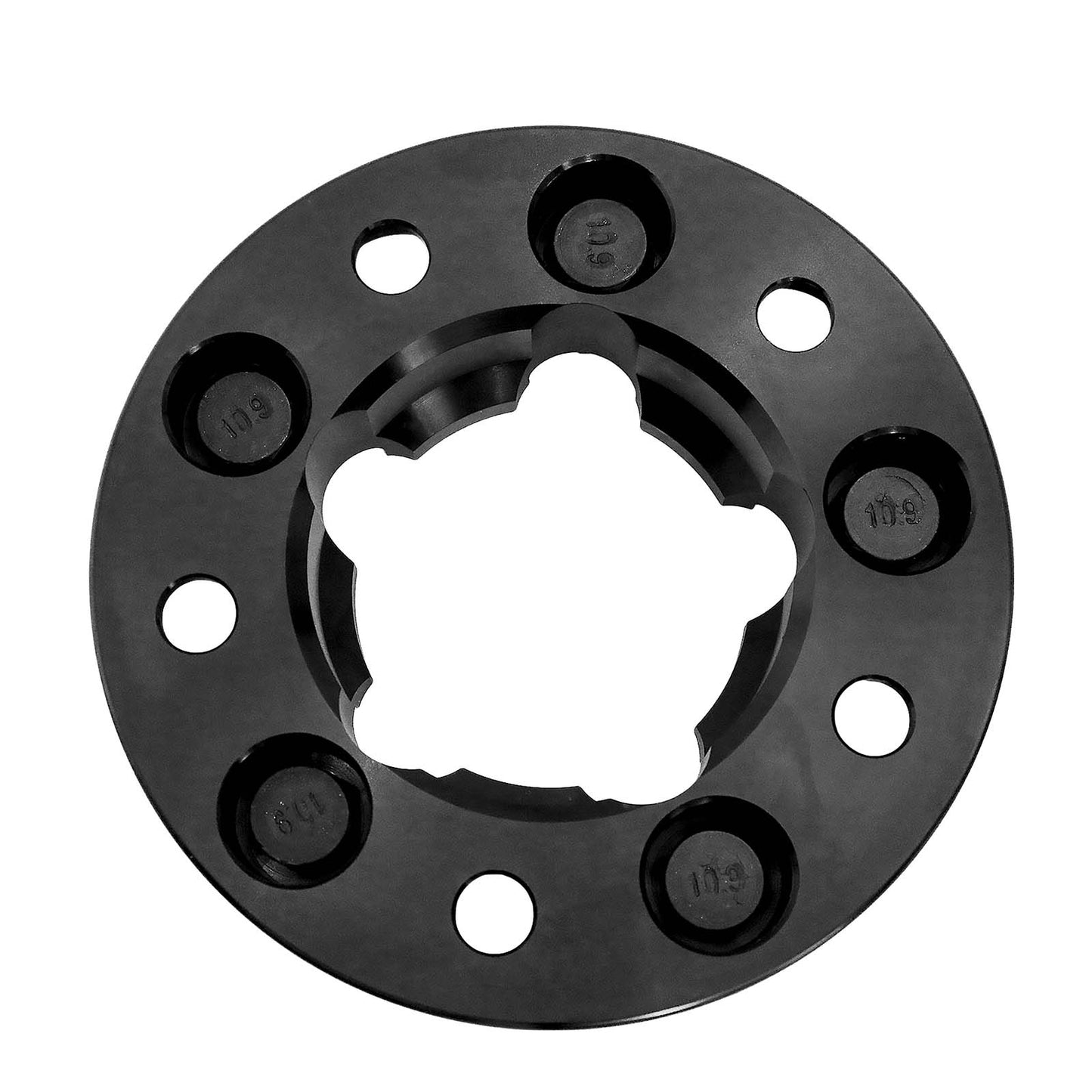

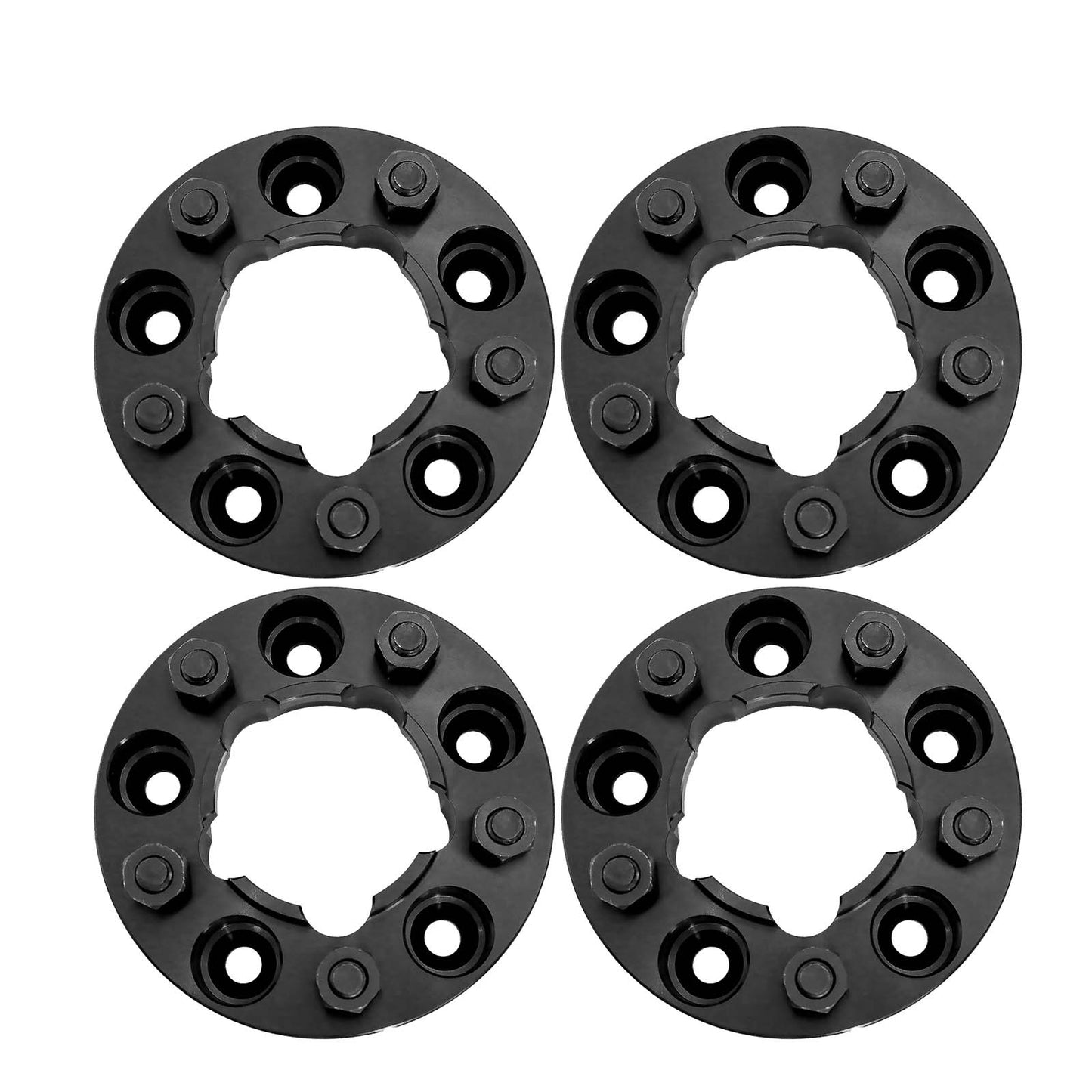

Distanziali ruota originali WINCHMAX in alluminio da 30 mm (set da 4)
Caratteristiche
- Il design del collare di centraggio del mozzo facilita il montaggio e aumenta la stabilità.
- Progettato con precisione utilizzando fresatrici CNC di ultima generazione, garantisce una perfetta aderenza e finitura.
- Realizzato in alluminio aeronautico 6061T6 per la massima leggerezza e resistenza.
- Splendida finitura anodizzata per una maggiore resistenza alla corrosione e durata.
- Specifiche dei bulloni ruota ad alta resistenza (grado 10.9) notevolmente migliorate rispetto ai componenti originali Land Rover standard.
- Aumenta il passo di 60 mm per una migliore maneggevolezza e stabilità.
- Consente il montaggio di cerchi più larghi e Pneumatici.
- Compatibile con Land Rover 90, 110, Defender, Discovery 1 e Range Rover Classic con mozzi standard.
- Diametro primitivo (PCD): 5 x 165,1 Filettatura: 16 x 1,5 mm Foro centrale: 125 mm
-
Documenti PDF
-
WINCHMAX wheel spacers are precision made and will offer you many years of use if fitted and used correctly. Fitting must be undertaken by a suitably competent person in accordance with the vehicle manufacturers handbook and the guidance below. We recommend engaging the services of a professional wheel/tyre specialist.
- Remove wheel in accordance with vehicle handbook.
- Clean the contact surfaces of the rim and the hub (emery cloth/wire brush) to ensure they are free from corrosion and any dirt or grit - check the spacer fits snugly on the hub.
- Secure spacer to the hub using the lug nuts supplied with the spacers. Tighten (crosswise pattern) to the same torque setting specified by the vehicle manufacturer for the wheel fitting.
- Check that the recesses in the rear of the rim will accommodate the stud protrusion from the spacer.
- Re-fit the wheel onto the spacer in accordance with the vehicle handbook.
- Check for security and adequate clearance between the wheel and the vehicle throughout the full steering range 'lock to lock'.
- Re-check torque settings after 20 then 100 miles of driving and as required thereafter.
- If using blind lug nuts please ensure that they tighten correctly against the rim and do not bottom out against the end of the stud.
