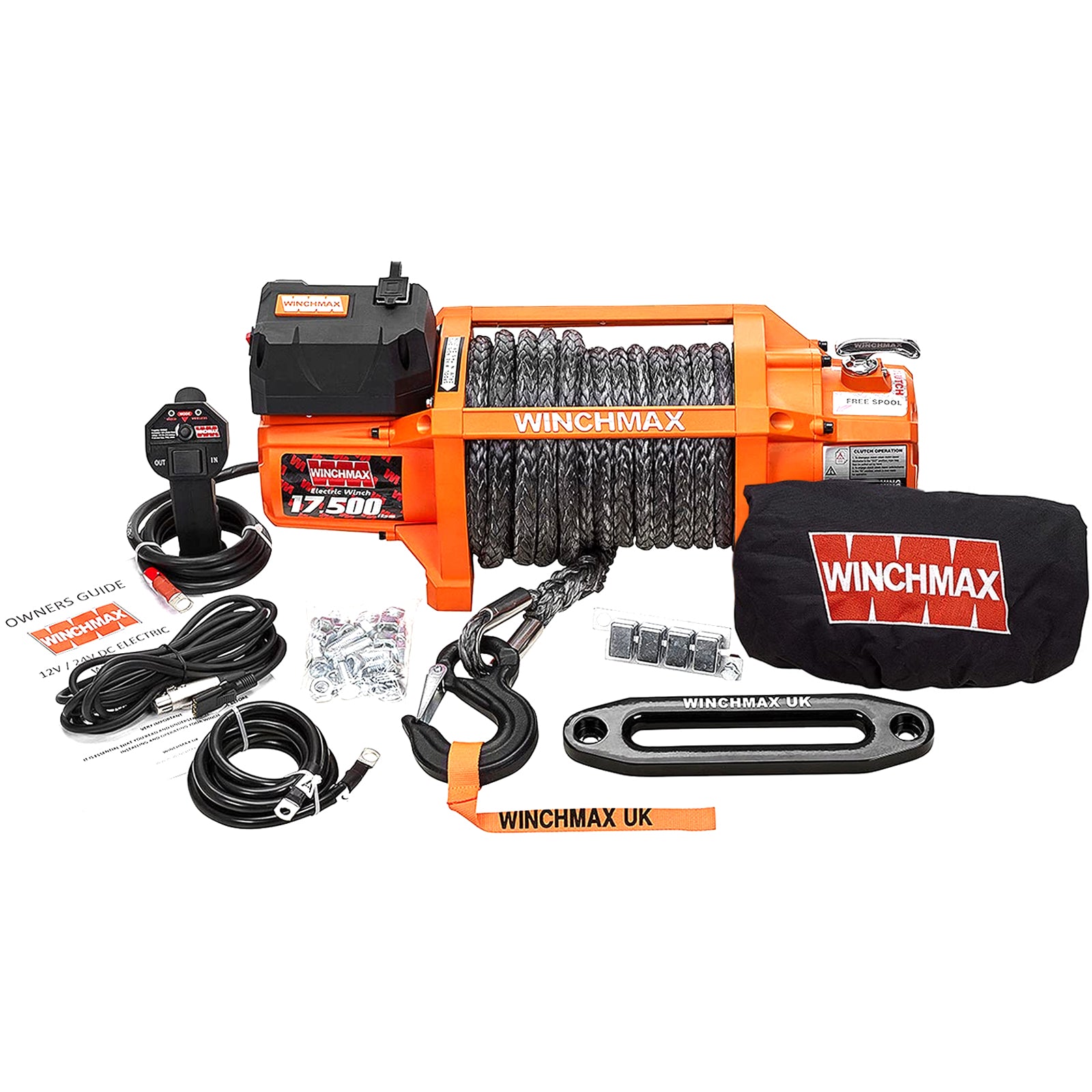

17,500lb (7,938kg) 'SL Series' Original Orange 12v Winch. 26m x 13mm Dyneema Rope, Wireless Remote Control.

17,500lb (7,938kg) Original Orange 12v Electric Winch, Dyneema Rope, Twin Wireless Remote Control

Ideal for recovery trucks and 4x4s over 3.5T

Features

• 17,500lb (7,938kg) straight line pull SL series 12v electric winch.

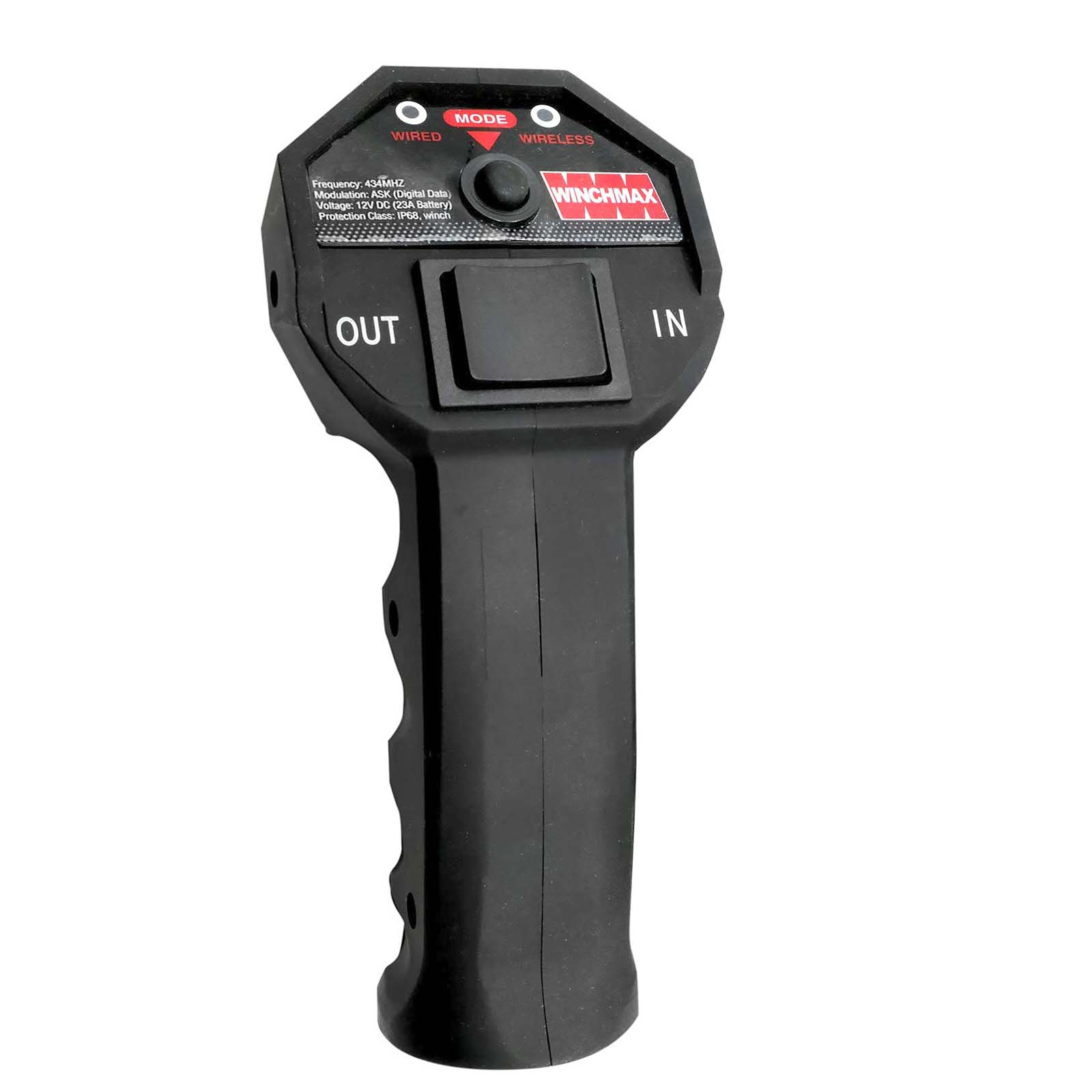

• Latest technology long-range combination wireless remote control.
• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 26m x 13mm Dyneema SK75 multi-strand synthetic rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

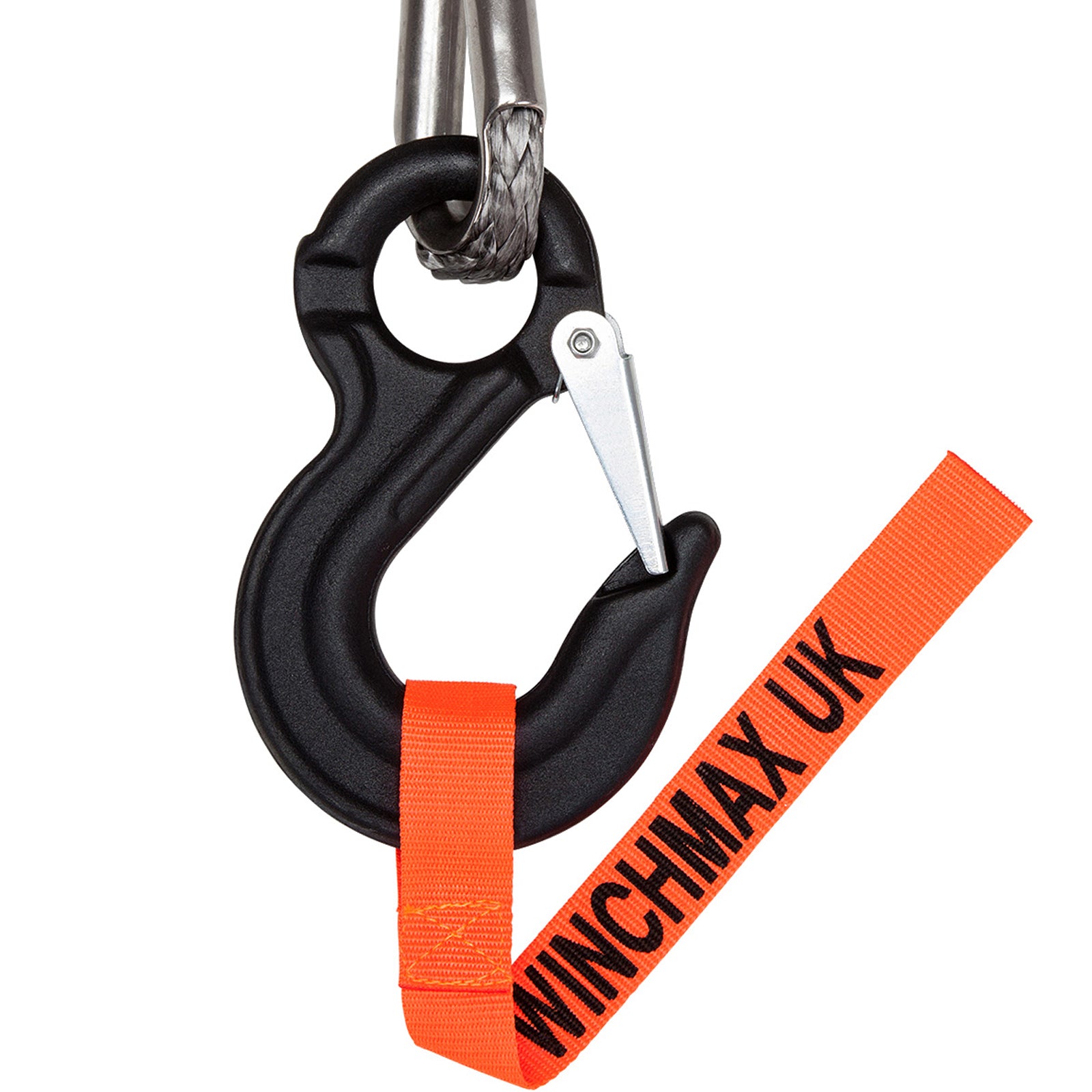

• Competition hook with safety catch and hand saver, black.

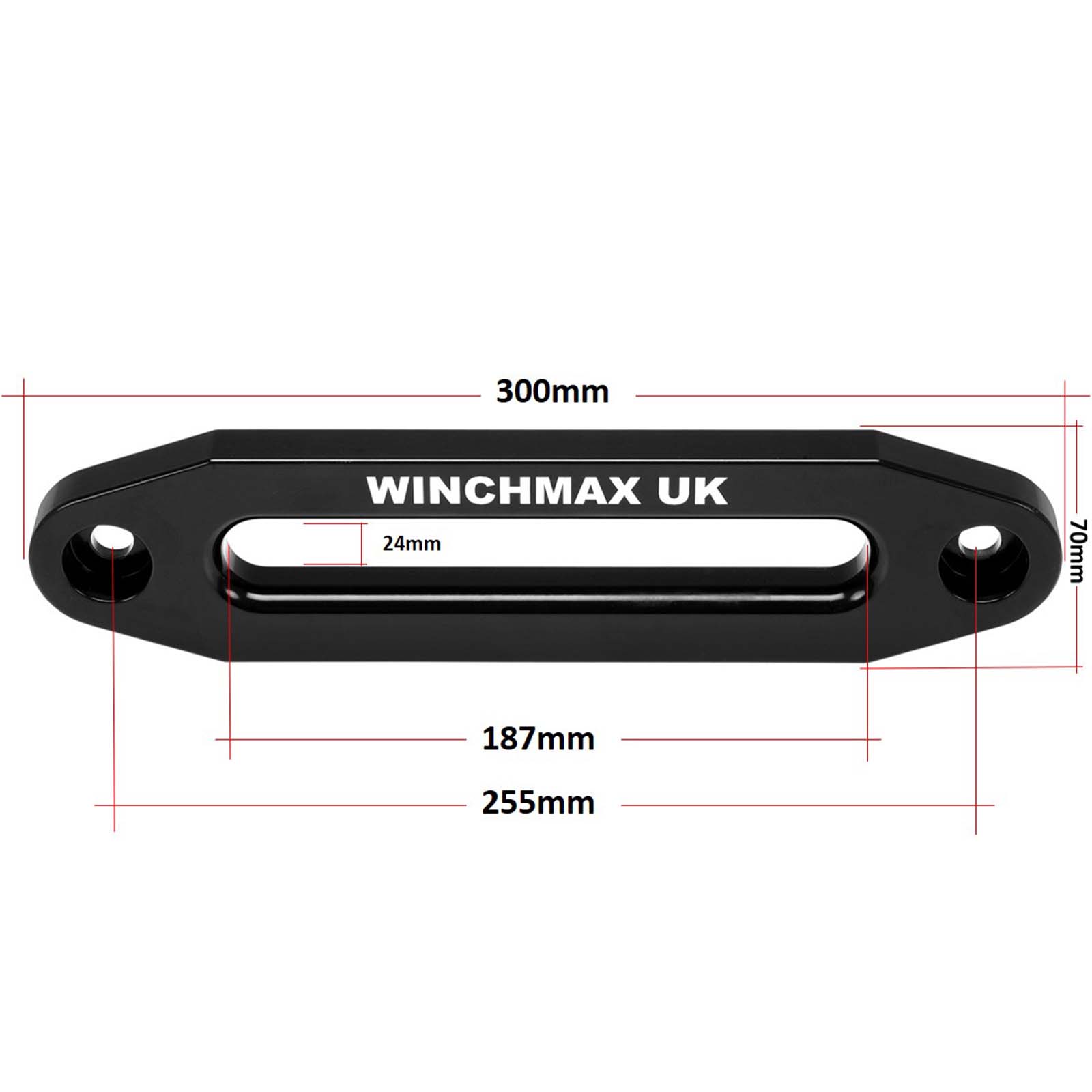

• WINCHMAX aluminium hawse fairlead. Precision CNC milled, laser-etched.

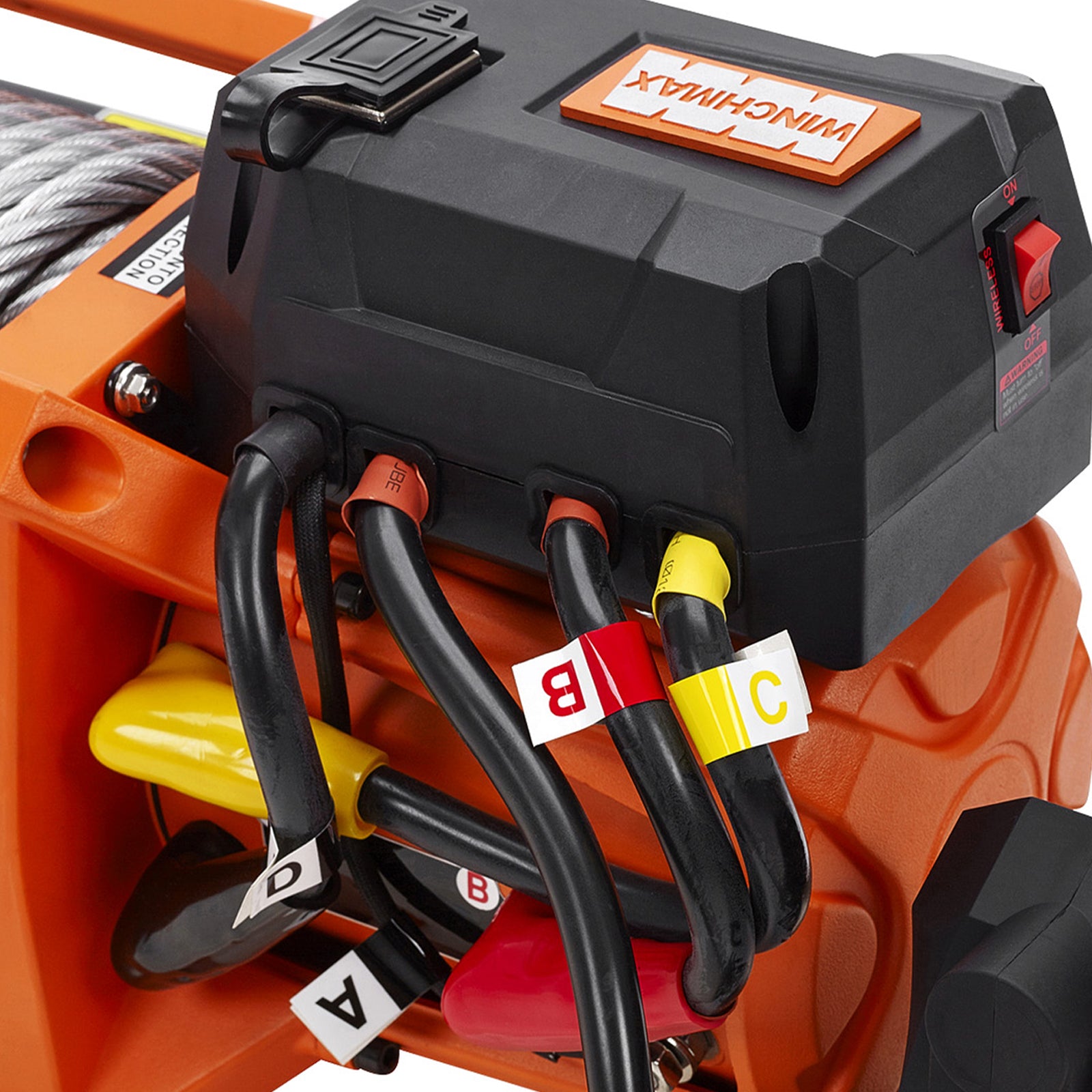

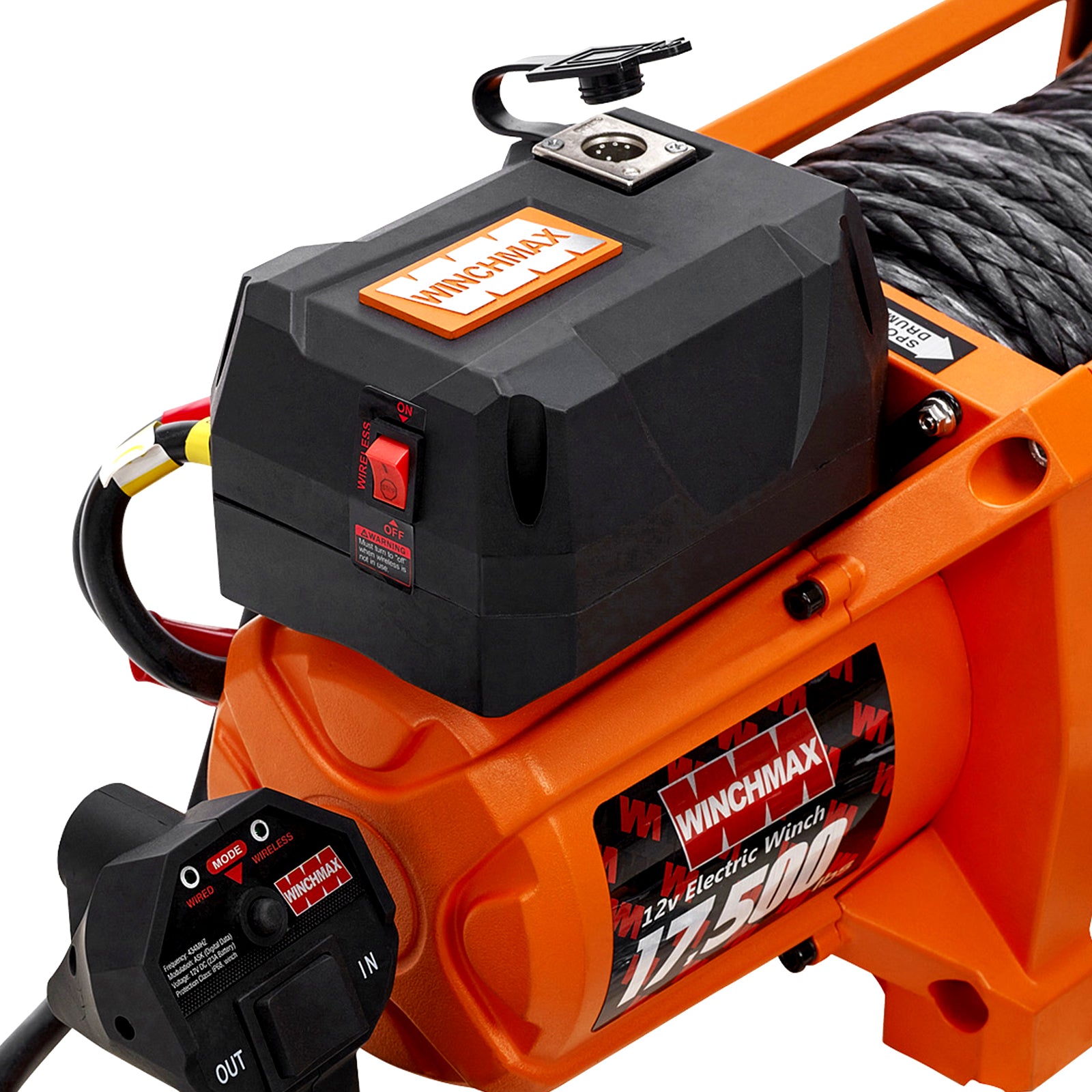

• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.

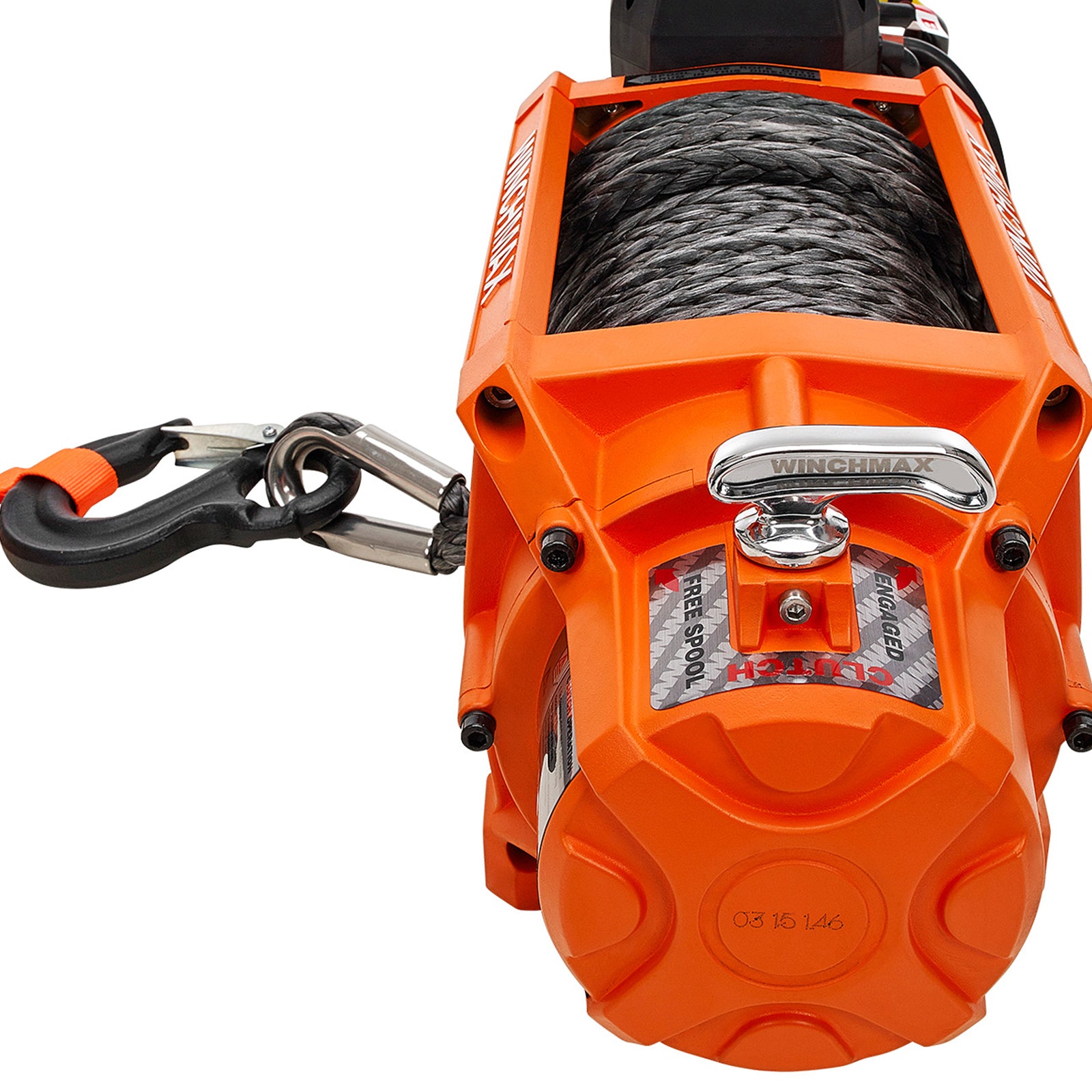

• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime
• Heavy-duty & built to last - gross weight 50kg.
• CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	17,500lb (7,938kg)
Motor	12v 6.8hp/5.1kw series wound
Control	Big grip remote switch, 4.5m lead.
Gear train	3 stage planetary
Gear reduction ratio	430:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum size	Diameter 88mm (3.45”) Length 224 mm (8.82”)
Drum Finish	Black, painted.
Cable	26m x 13mm Dyneema SK75 synthetic rope
Hook	Competition hook with safety catch
Fairlead	Aluminium hawse
Battery	Recommended 750CCA minimum for winching
BatteryLeads	2 gauge, 1.83m (72”) 35mmsq - 6.5mm Diameter
Winch Finish	Original Orange Powder Coated
Weight (GW)	50kg (110lb)

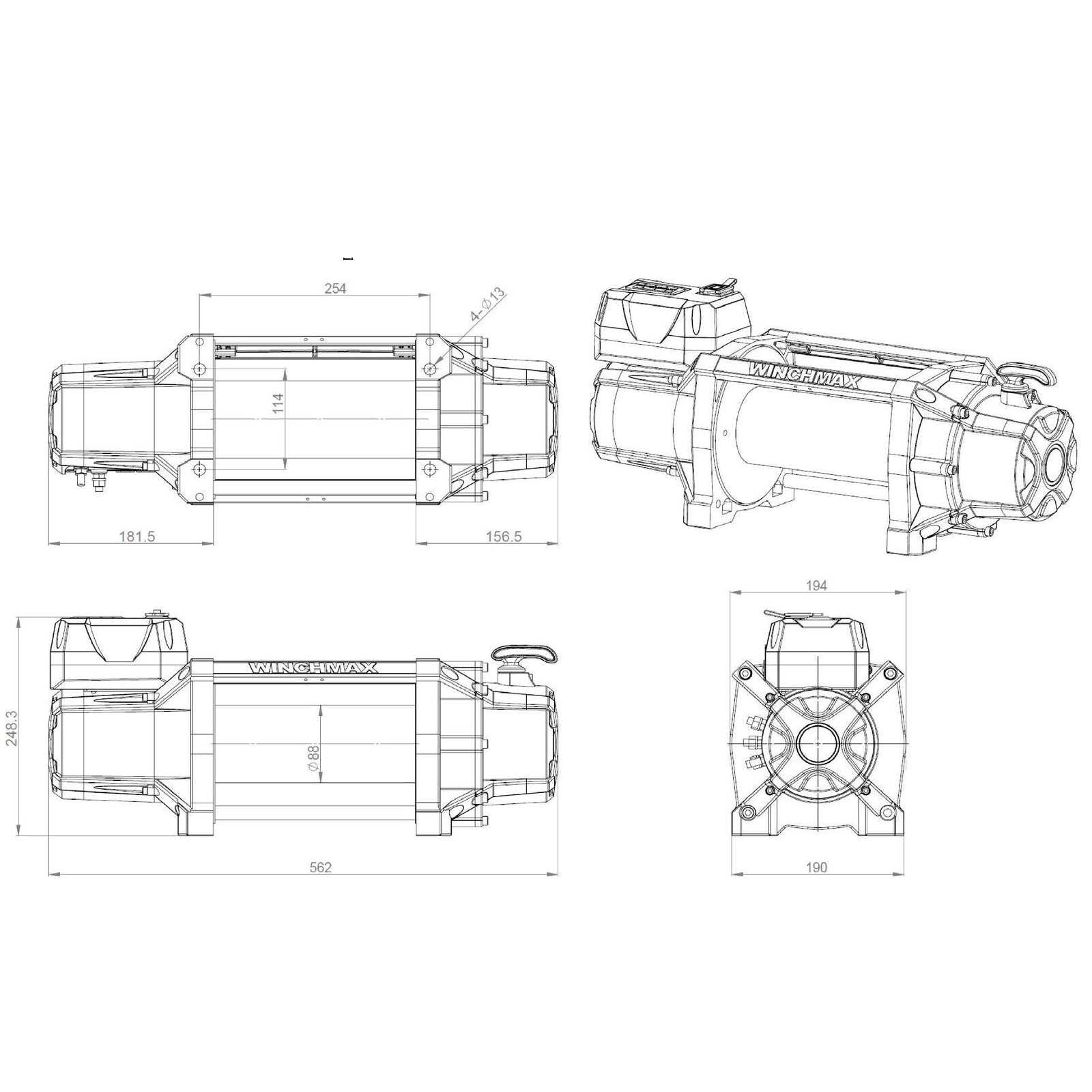

Overall Dimensions (LxWxH)	562 x 194 x 248.3mm (22.1” x 7.6” x 9.8”)
Mounting Bolt Pattern	10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	7.2m/min (23.6 ft/min)
Waterproof	IP67 Rating



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	17,500	7,955	19.68/6
2	15,225	6,920	45.92/14.0
3	13,246	6,021	75.44/23
4	11,524	5,238	85.28/26.0



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	23.62ft (7.2m)	71A
6,000 (2,721)	9.18ft (2.8m)	200A
10,000 (4,536)	5.9ft (1.8m)	300A
14,000 (6,363)	4.26ft (1.3m)	395A
17,500 (7,937)	2.95ft (1.0m)	450A
