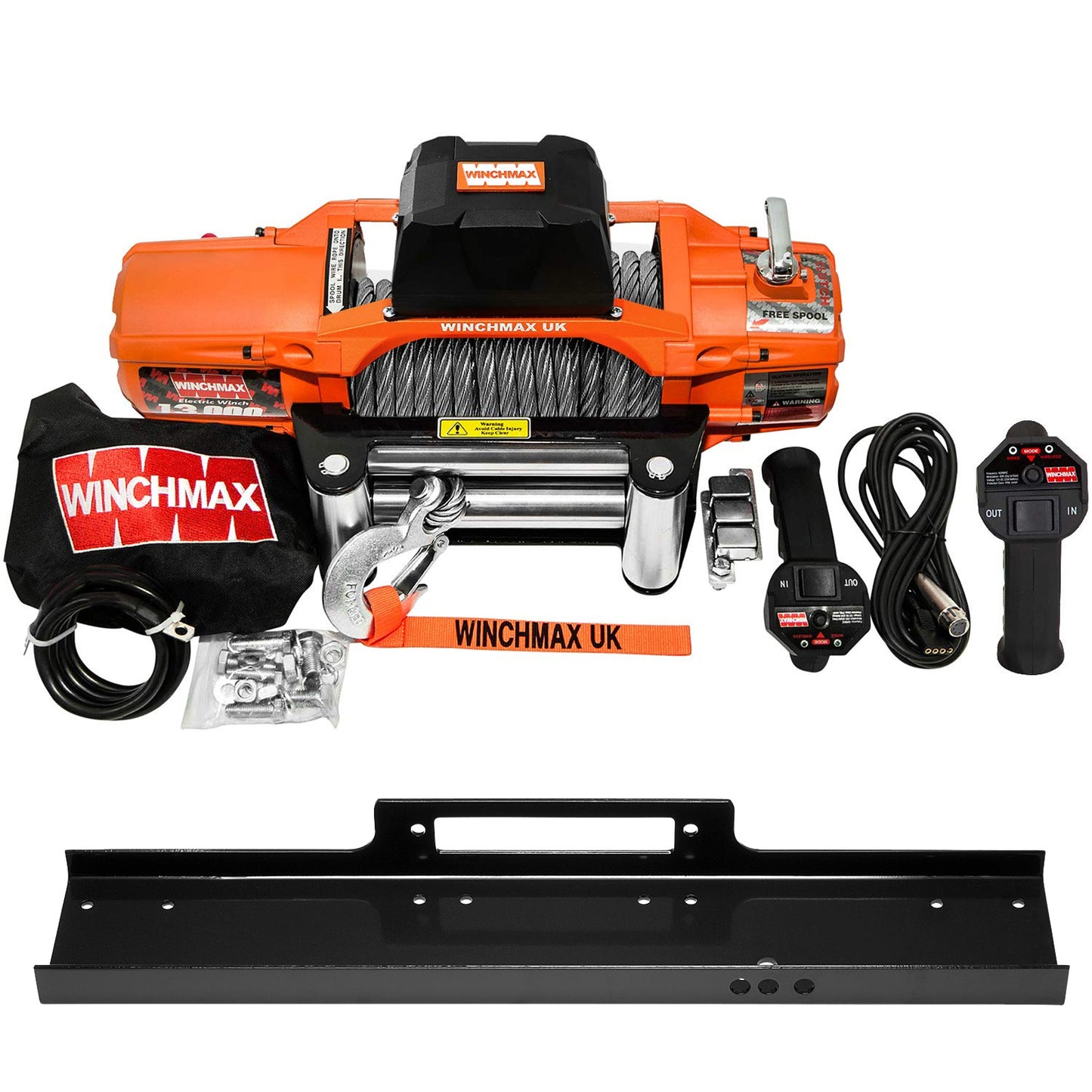

13,500lb (6,123kg) 'SL Series' Original Orange 12v Winch, 24m x 9.5mm Steel Rope, Mounting Plate, Remote Controls.

13,500lb (6,123kg) SL Series Original Orange 12v Electric Winch, Steel Rope, Flat Bed Mounting Plate
Twin Wireless Remote Control

Ideal for recovery trucks & trailers up to 3.5T

Features

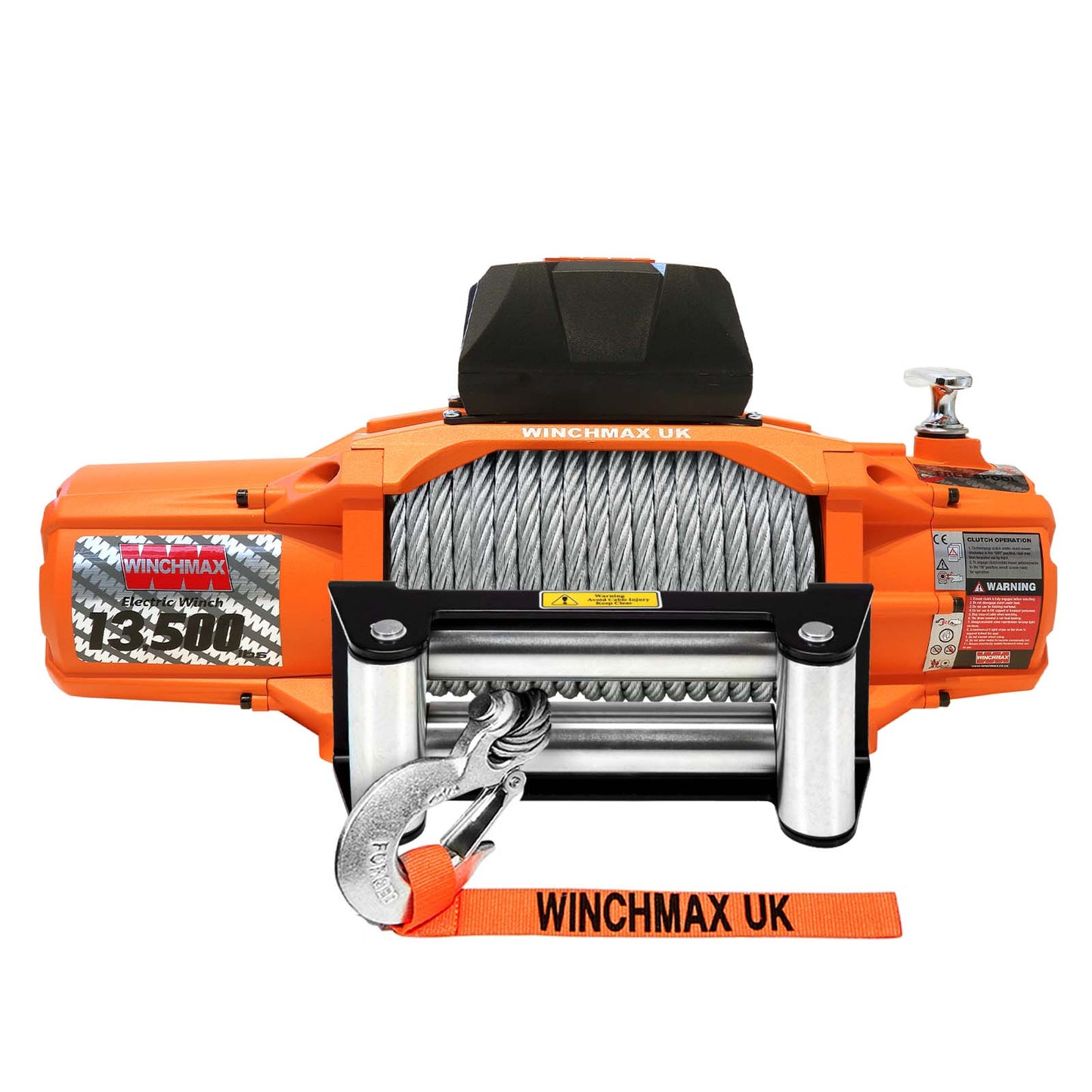

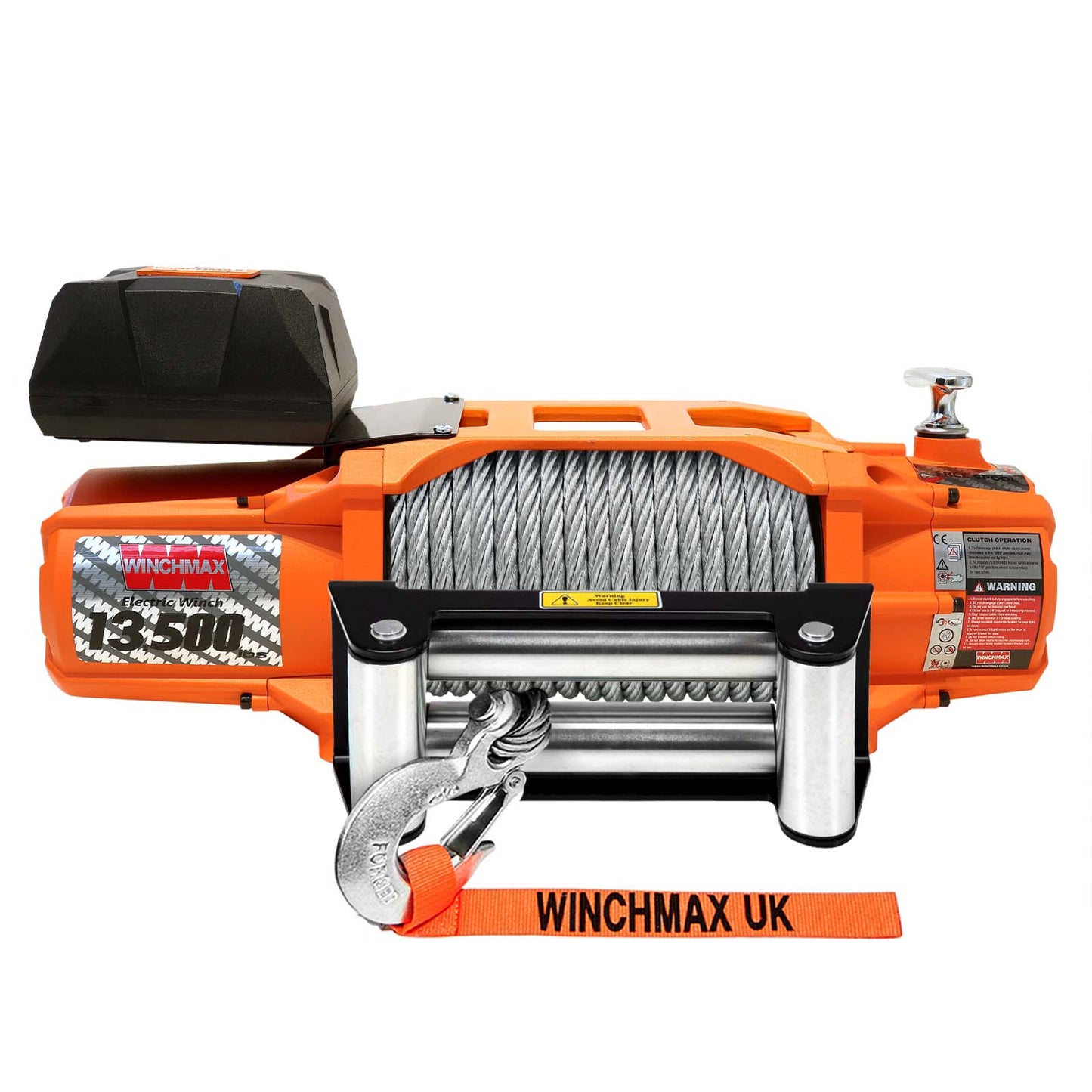

• 13,500lb (6,123kg) straight-line pull SL series 12v electric winch.

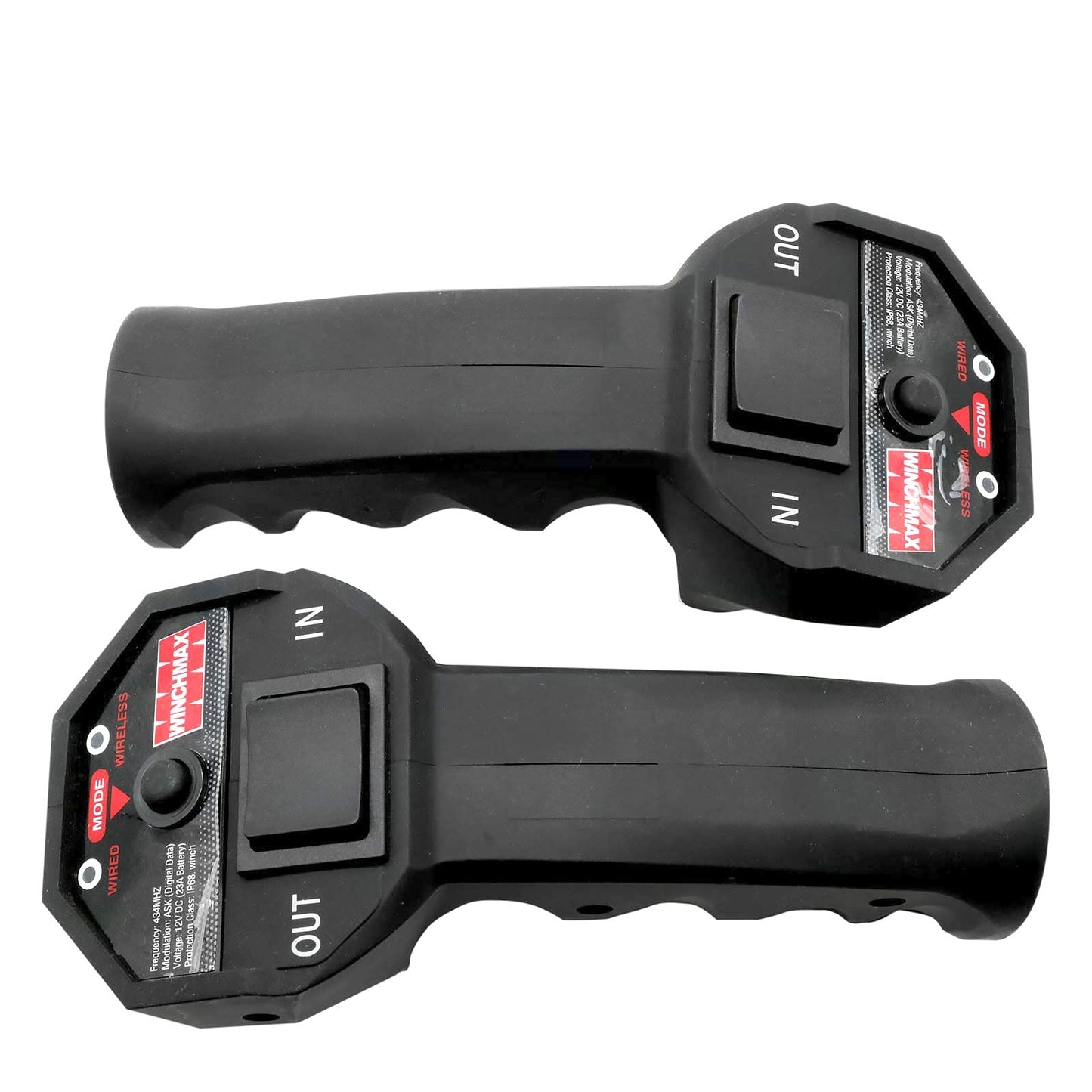

• Latest technology long-range combination wireless remote controls, twin handsets.
• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection
• 24m x 9.5mm multi-strand steel wire rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

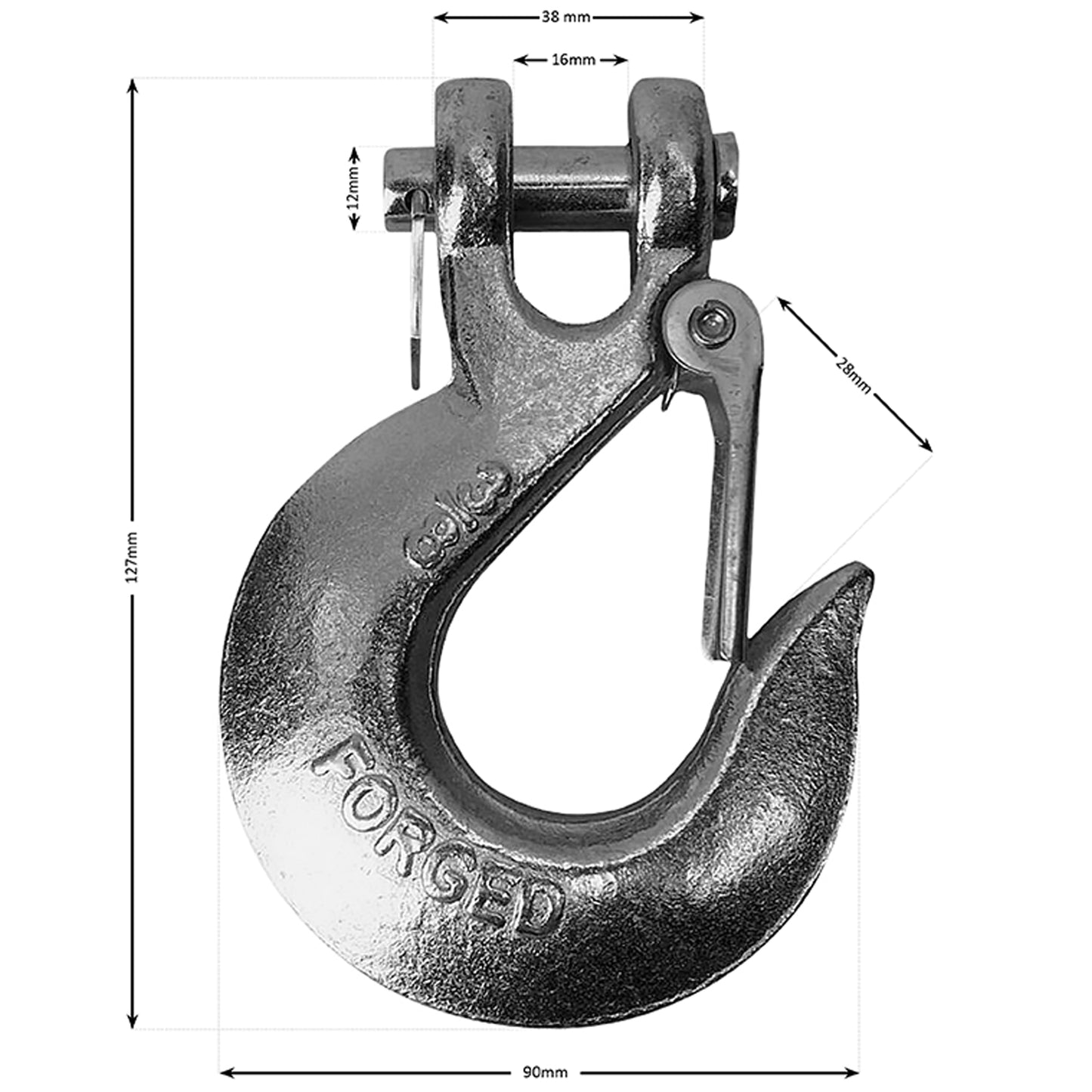

• Clevis hook with safety catch and hand saver. 3/8 inch G70 grade forged. Zinc plated for corrosion resistance.

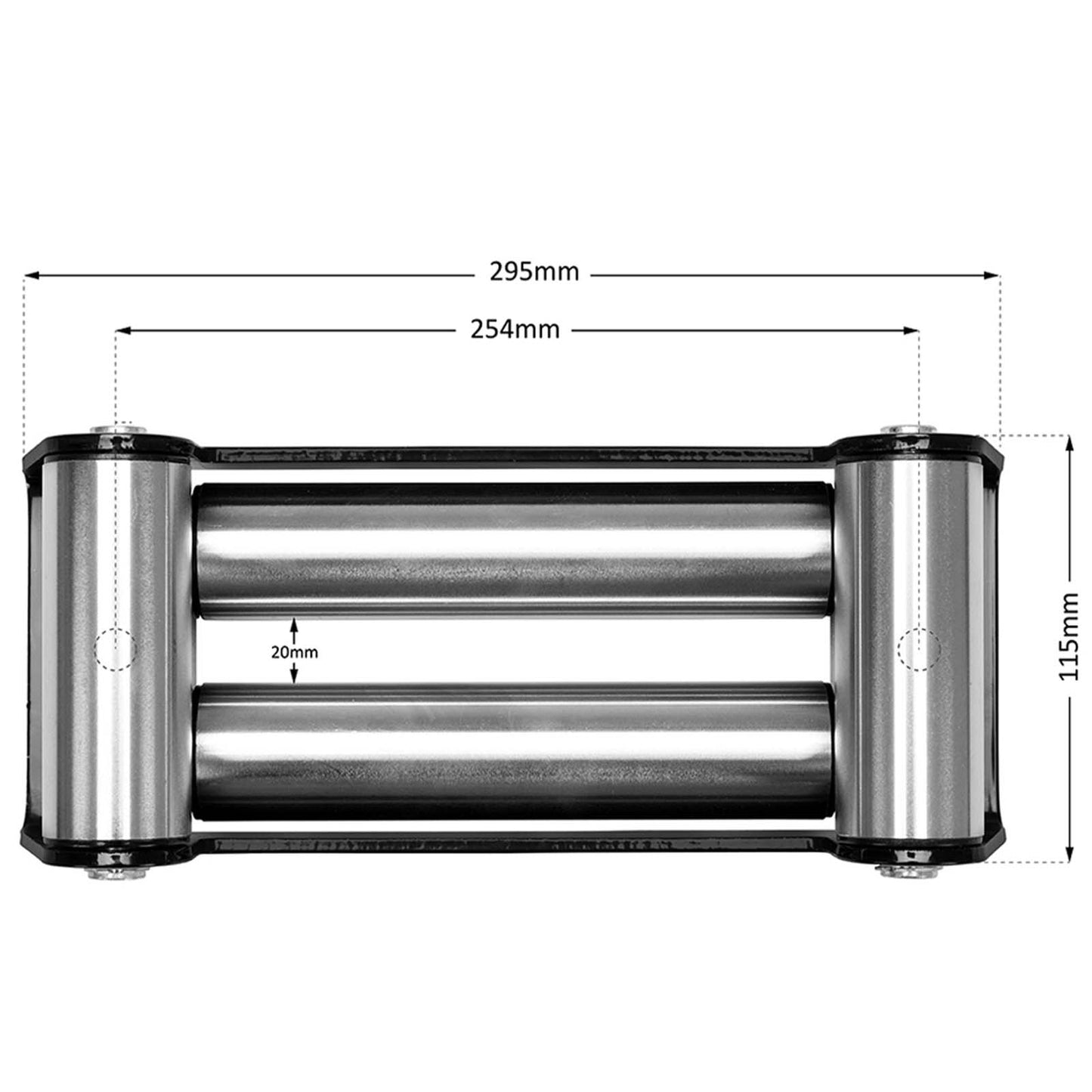

• Tough four roller fairlead with zinc plated rollers.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Power in/out big grip handheld unit.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.

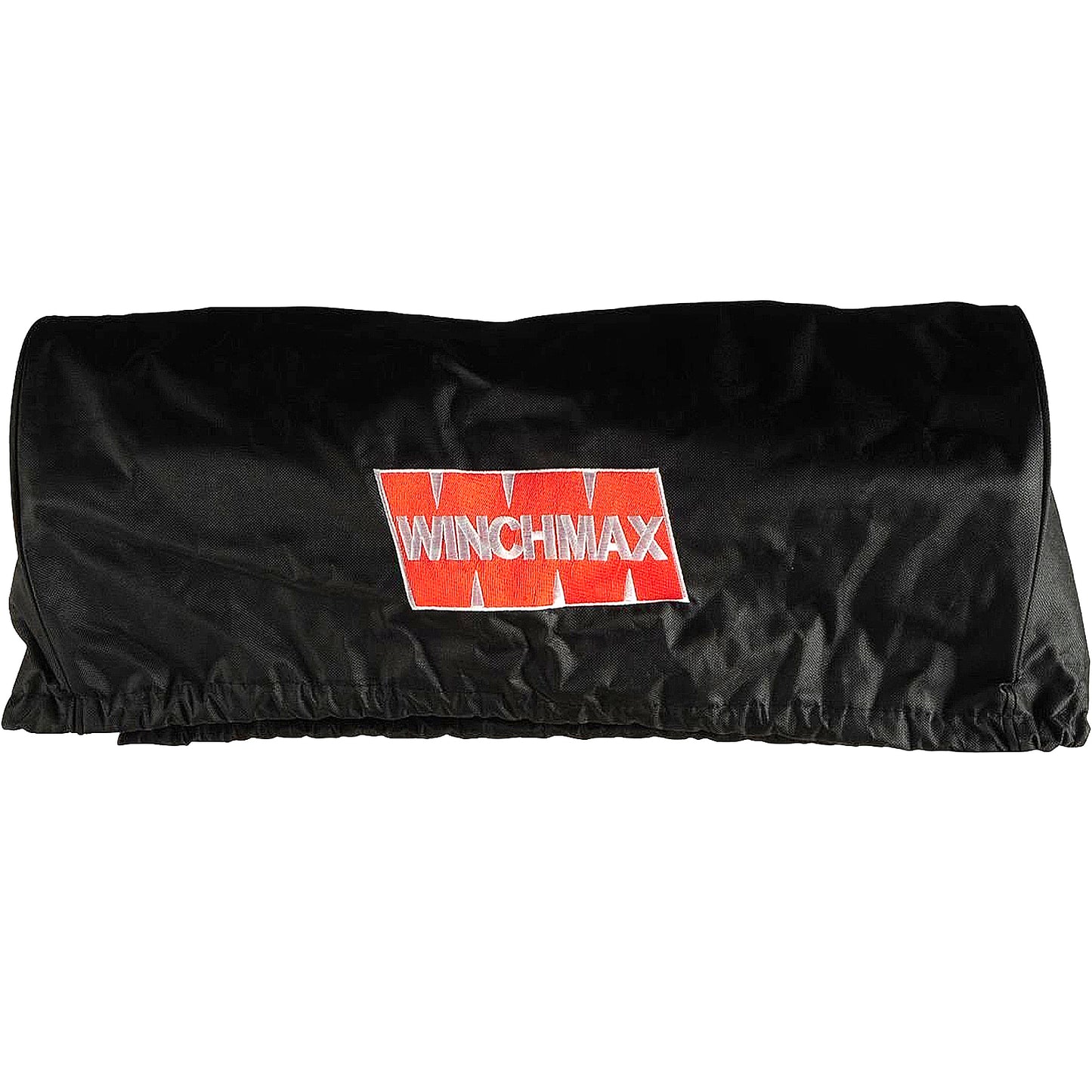

• Strong WINCHMAX branded cover to protect from water and road grime
• Heavy-duty & built to last - gross weight 40kg.
• CE certified & built to ISO9001 quality management system requirements.

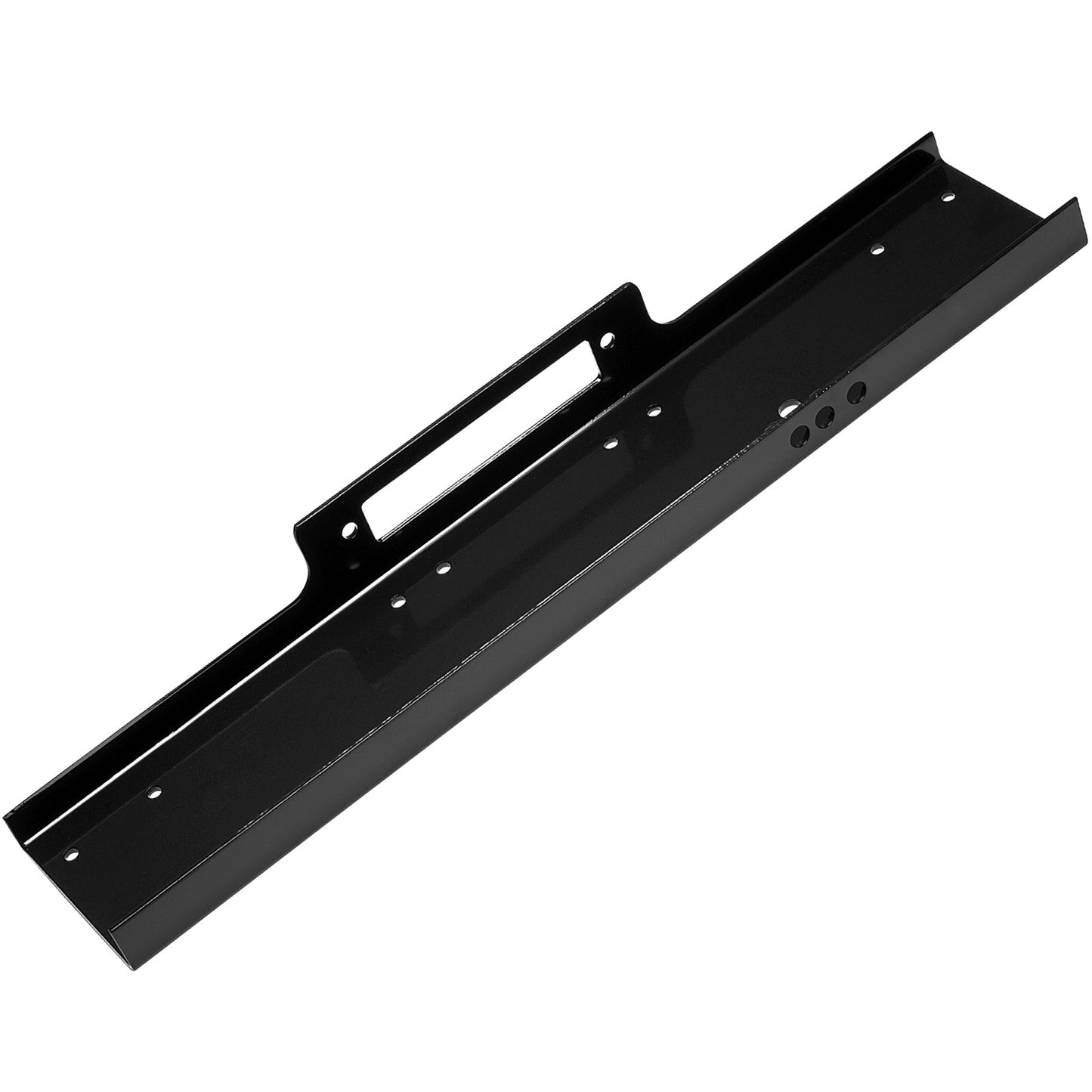

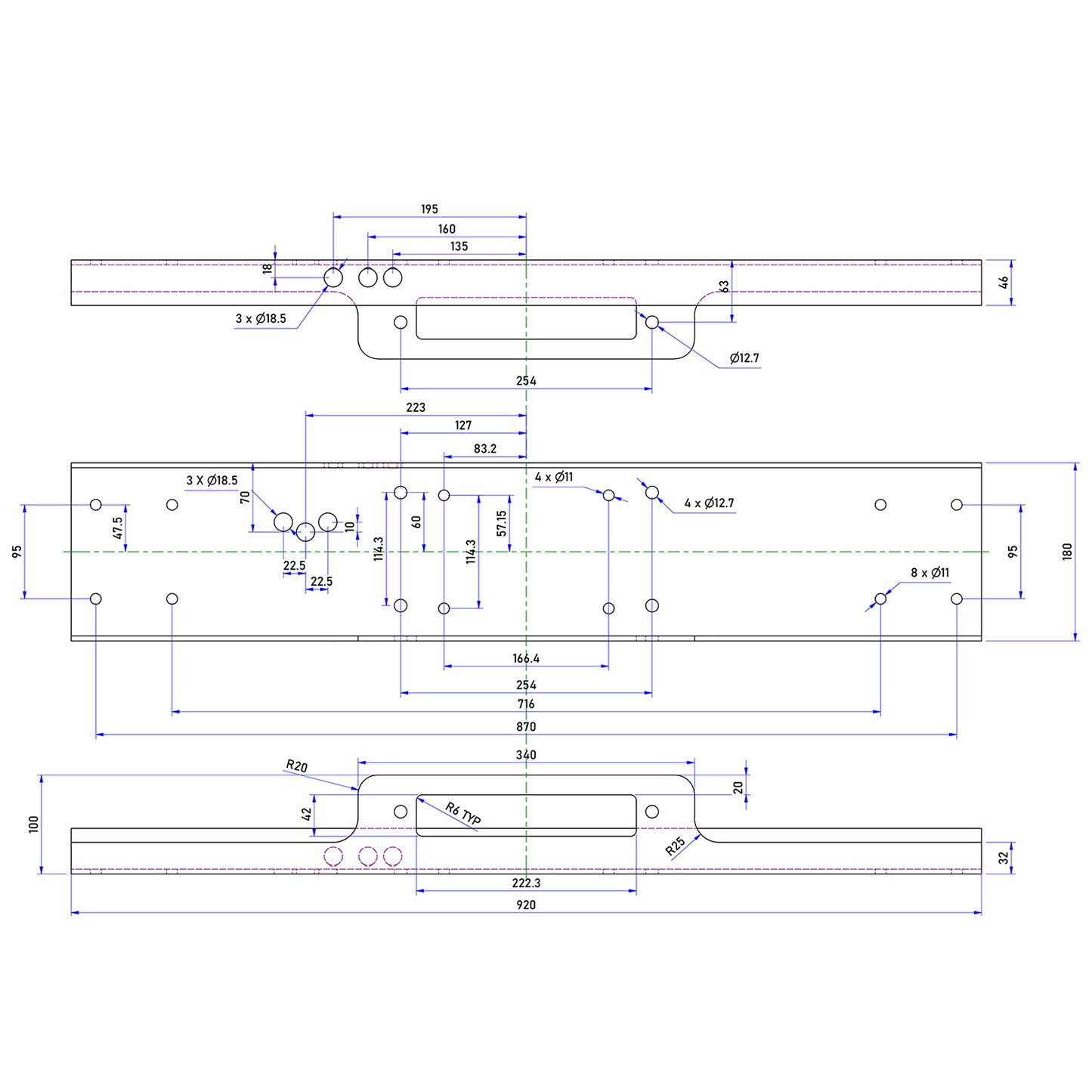

WINCHMAX Mounting Plate

• Heavy-duty mounting plate folded, and CNC laser cut from 5mm steel.
• Durable powder-coated finish.
• Pre-drilled for quick, easy, and professional looking installation of winch and fairlead.
• Ideal for flatbed recovery truck and trailer applications.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	13,500lb (6,123kg)
Motor	12v 6.8hp/5.1kw series wound
Control	Big grip remote switch, 4.5m lead
Gear Train	3 stage planetary
Gear Reduction Ratio	265:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 64mm (2.5”) length 224mm (8.82”)
Drum Finish	Black, painted.
Cable	24m x 9.5mm (3/8”) diameter steel wire rope
Hook	3/8 inch clevis hook with safety catch, zinc plated.
Fairlead	4-Way roller fairlead
Battery	Recommended 650CCA minimum for winching
BatteryLeads	2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
Winch Finish	Original Orange powder coated
Weight (GW)	40kg (88lb)

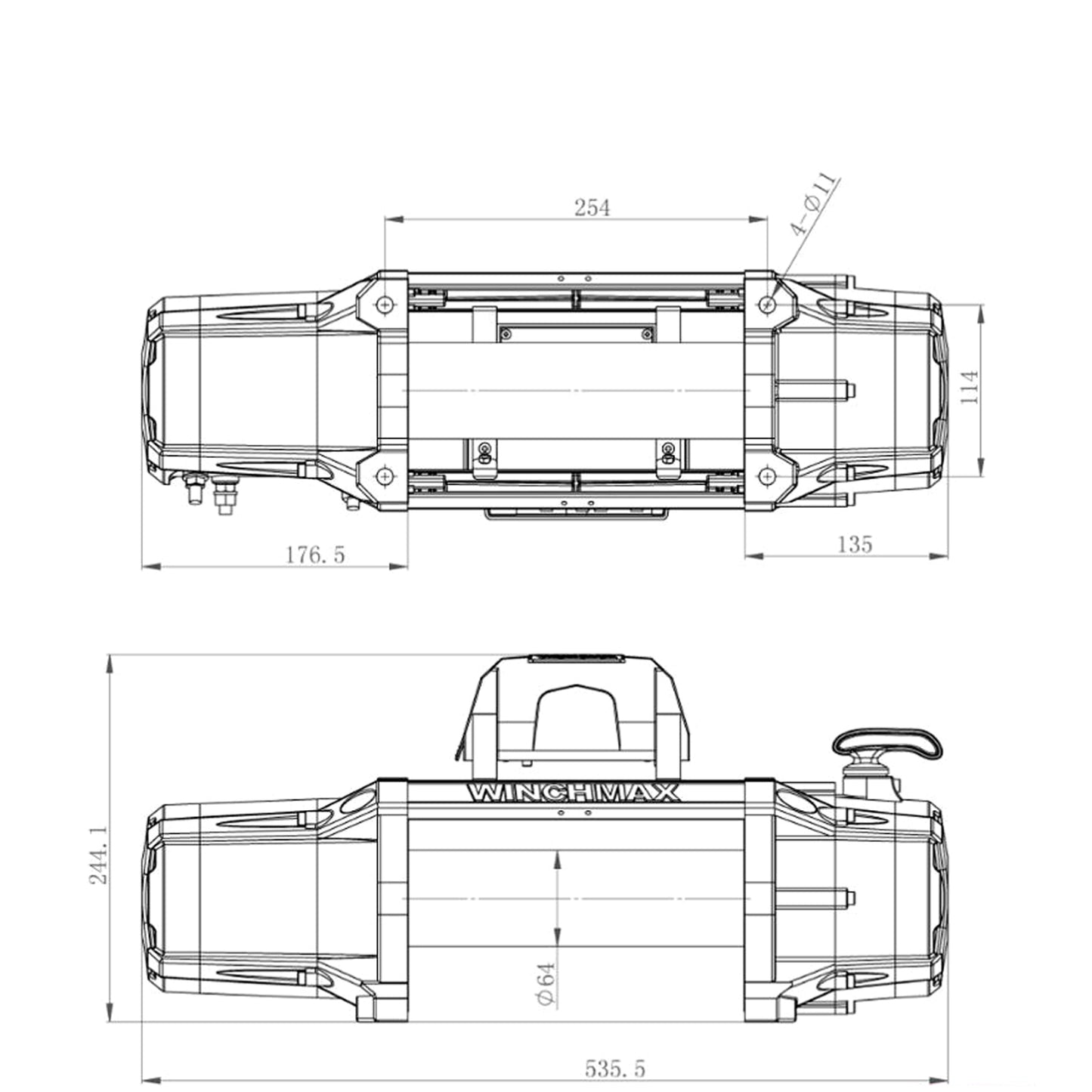

Overall Dimensions (LxWxH)	536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
Mounting Bolt Pattern	10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	7.5m/min (24.6 ft/min)
Waterproof	IP67 Rating



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	13,500	6,123	20.4/6.22
2	9,530	4,332	41/12.0
3	7,929	3,604	71/21.0
4	6,770	3,077	85/24.0



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft (7.5m)	70A
3,000 (1,363)	11.48ft (3.5m)	138A
6,000 (2,727)	8.86ft (2.7m)	218A
9,000 (4,090)	7.72ft (2.2m)	260A
13,500 (6,123)	5.58ft (1.7m)	350A
