13,500lb (6,123kg) 'SL Series' Original Orange 12v Electric Winch. 28m x 11mm Dyneema Rope, Remote Controls

13,500lb (6,123kg) 'SL Series' Original Orange 12v Electric Winch. 28m x 11mm Dyneema Rope, Remote Controls

Codice rapido: 1153
SKU: WMSL1350012VSYN
Prezzo di listino £489.95Inc VAT£408.29Exc VAT
Prezzo di listino Inc VAT £0.00Exc VAT
Prezzo scontato £489.95Inc VAT£408.29Exc VAT
In offerta Esaurito

Hai bisogno di aiuto?

Chiamaci al +44 (0) 1986 899264 e saremo felici di aiutarti.

Certificato di conformità su tutti i prodotti
Order within
Days
:
h
:
m
:
s
for UK Next Working Day delivery on
Visualizza dettagli completi

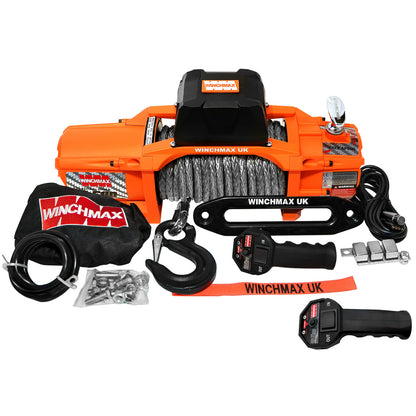

  • 13,500lb (6,123kg) SL Series Original Orange 12v Electric Winch, Dyneema rope, Twin Wireless Remote Control
    Ideal for recovery trucks and 4x4s up to 3.5T

    New for 2021
    redesigned control box with side mounting option.


    Features

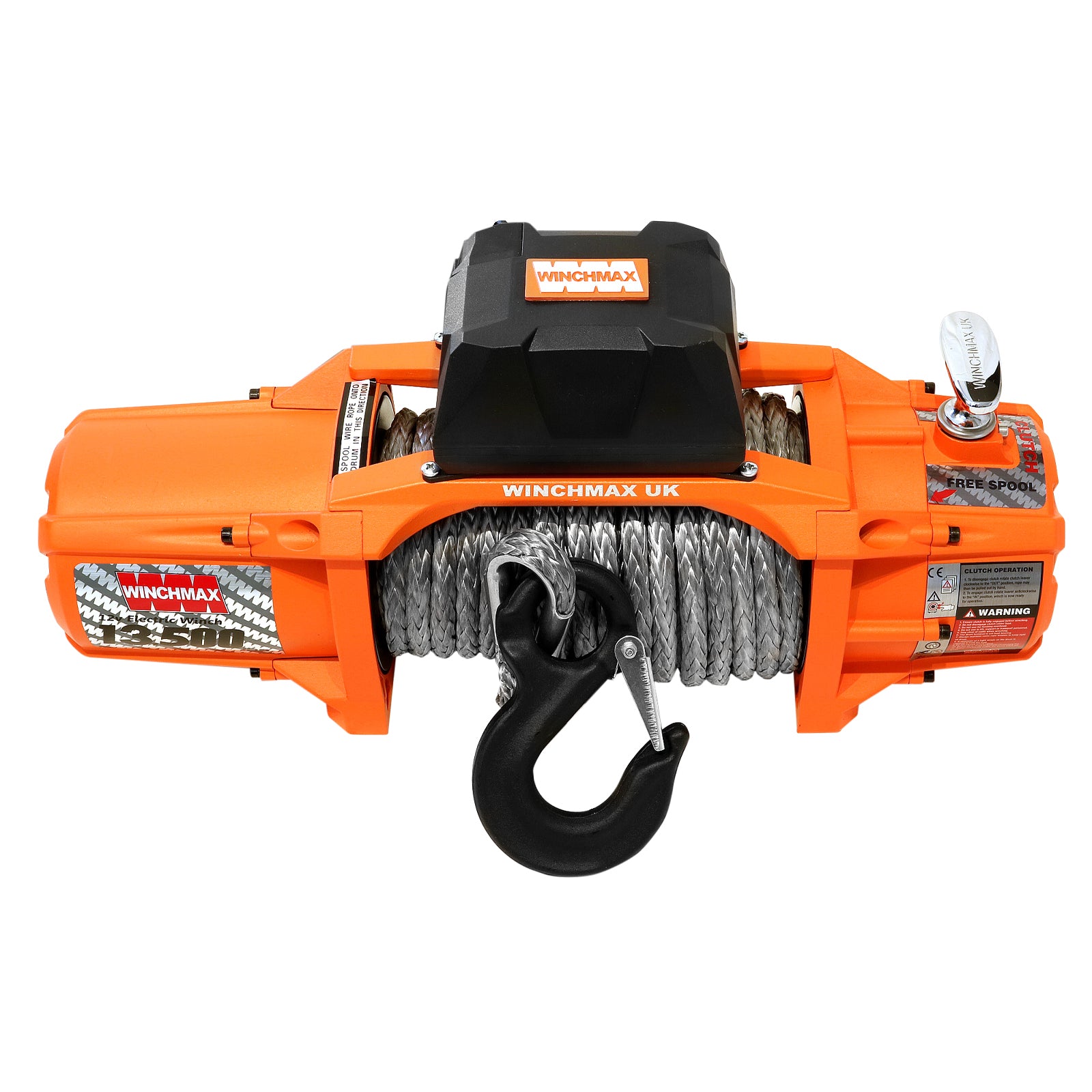

    • 13,500lb (6,123kg) straight-line pull SL series 12v electric winch.
    • Latest technology long-range combination wireless remote controls, twin handsets.
    • Super powerful 12v 6.8hp/5.1kw series wound electric motor.
    • Massive ultra-tough three-stage gearbox with hardened steel gears.
    • Motor and gearbox casing machined from billet steel for maximum impact protection.
    • 28m x 11mm Dyneema SK75 multi-strand synthetic rope.
    • New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
    • Competition hook with safety catch and hand saver, black.
    • WINCHMAX aluminium hawse fairlead. Precision CNC milled, laser-etched.
    • Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
    • Power in/out big grip wander lead with extra-long 4.5m cord.
    • Sliding ring gear freewheel clutch.
    • High tensile fixing bolt kit.
    • Strong WINCHMAX branded cover to protect from water and road grime.
    • CE certified & built to ISO9001 quality management system requirements
    Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
    VAT invoice provided with every sale.
  • Single Line Rated Pull 13,500lb (6,123kg)
    Motor 12v 6.8hp/5.1kw series wound
    Control Big grip remote switch, 4.5m lead
    Gear Train 3 stage planetary
    Gear Reduction Ratio 265:1
    Clutch Sliding ring gear
    Braking Action Automatic in the drum
    Drum Size Diameter 64mm (2.5") length 224mm (8.82”)
    Drum Finish Galvanised
    Cable 28m x 11mm Dyneema SK75 synthetic rope
    Hook Competition hook with safety catch
    Fairlead One-piece billet aluminium hawse fairlead
    Battery Recommended 650CCA minimum for winching
    BatteryLeads 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
    Winch Finish Matt black (low light paint)
    Weight (GW) 29.5kg (66lb)
    Overall Dimensions (LxWxH) 536 x 160 x 218mm (21.3" x 6.3"" x 8.6")
    Mounting Bolt Pattern 10.00”±0.015"" x 4.50”±0.010" (254 x 114.3mm)
    Motor Current 65-500A
    No Load Line Speed 7.5m/min (24.6 ft/min)
    Waterproof IP67 Rating

    Layer Rated Line pull (lb) Line Pull (kg) Total Rope On Drum (ft/m)
    1 13,500 6,123 20.4/6.22
    2 9,530 4,332 41/12.0
    3 7,929 3,604 71/21.0
    4 6,770 3,077 85/24.0

    Line Pull (lb/kg) Line Speed ft/min (m/min) Motor (Amps)
    0 (0) 24.6ft (7.5m) 70A
    3,000 (1363) 11.48ft (3.5m) 138A
    6,000 (2727) 8.86ft (2.7m) 218A
    9,000 (4090) 7.72ft (2.2m) 260A
    13,500 (6123) 5.58ft (1.7m) 350A
