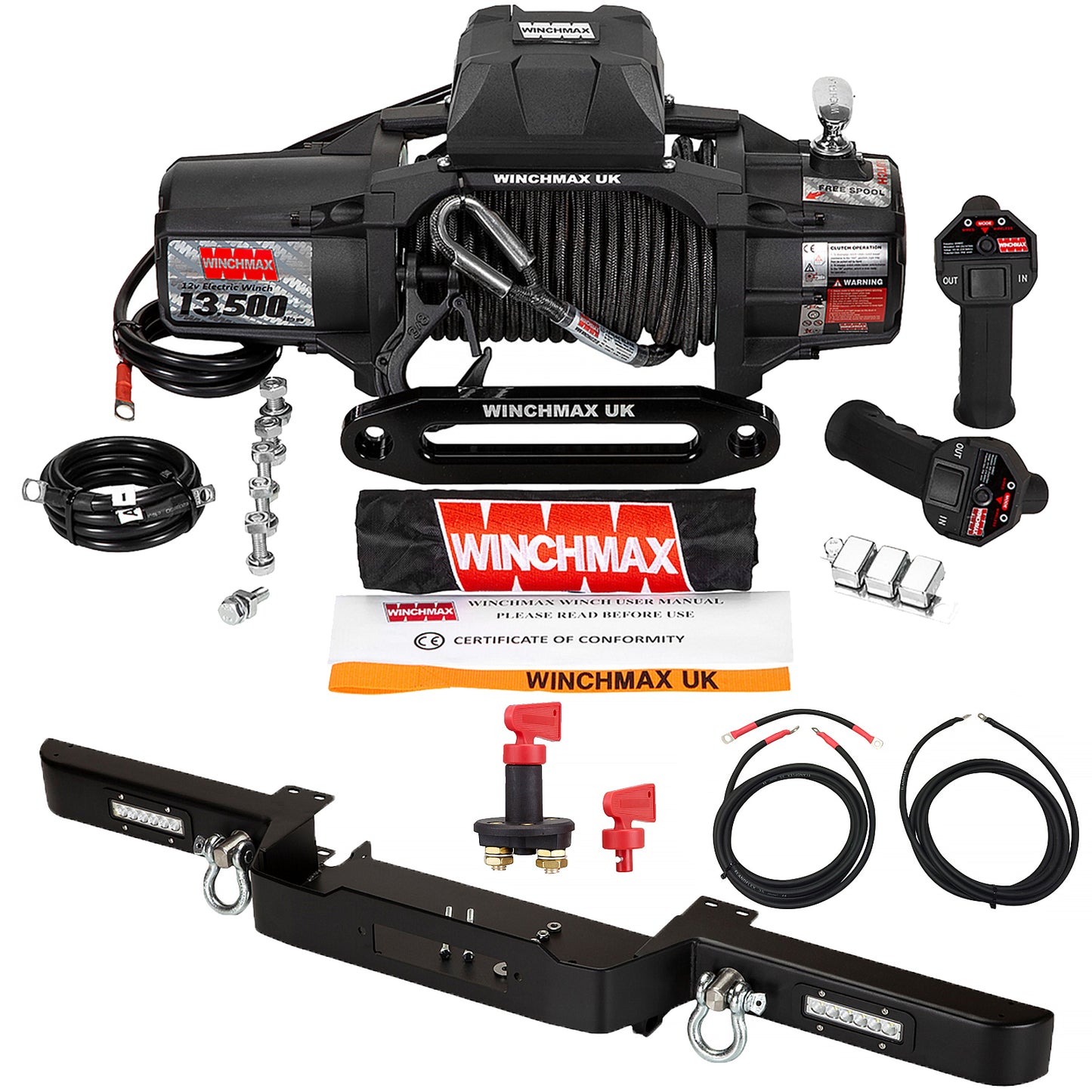

13,500lb (6,123kg) 'SL Series' 12v Military Grade Winch. Defender Bumper, 25m x 10mm Armourline Rope, Isolator.

13,500lb (6,123kg) SL Series 12v Military Grade Winch, Land Rover Defender DRL Winch Bumper, Armourline Rope, Wiring Kit & Isolator

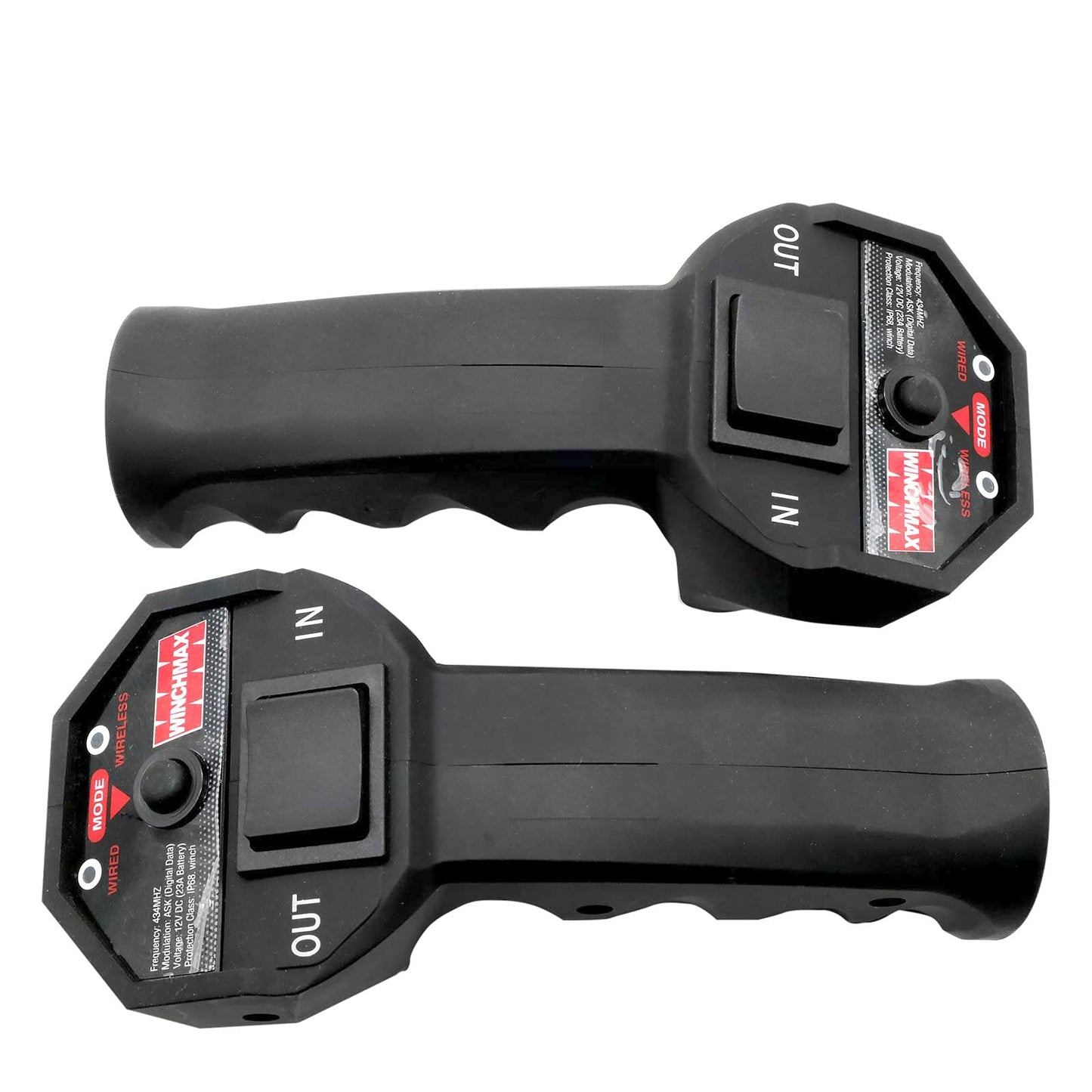

Twin Wireless Remote Control

Everything you need to install a tough and powerful electric winch on your Land Rover Defender. Fits Defenders with or without Air Con.

Features

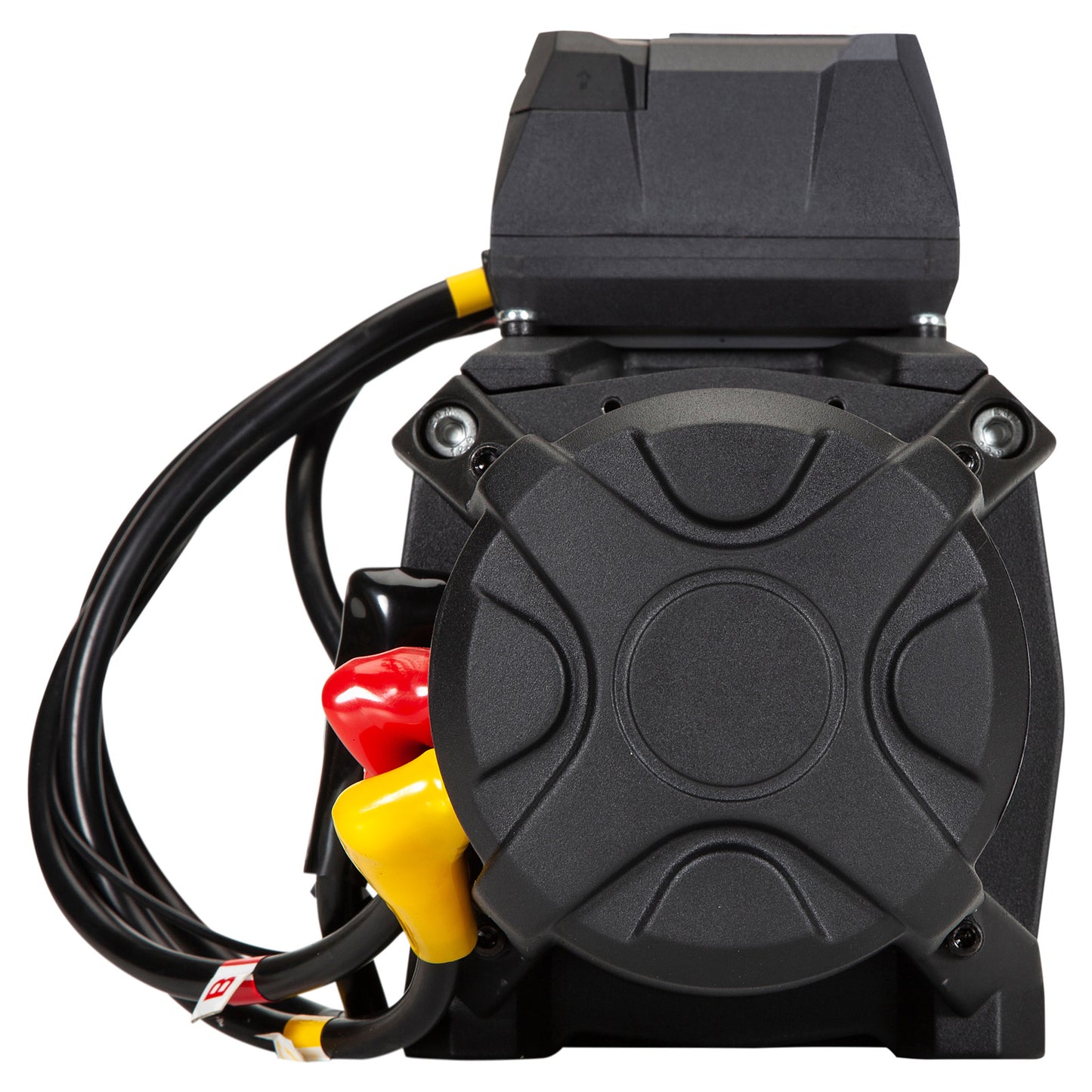

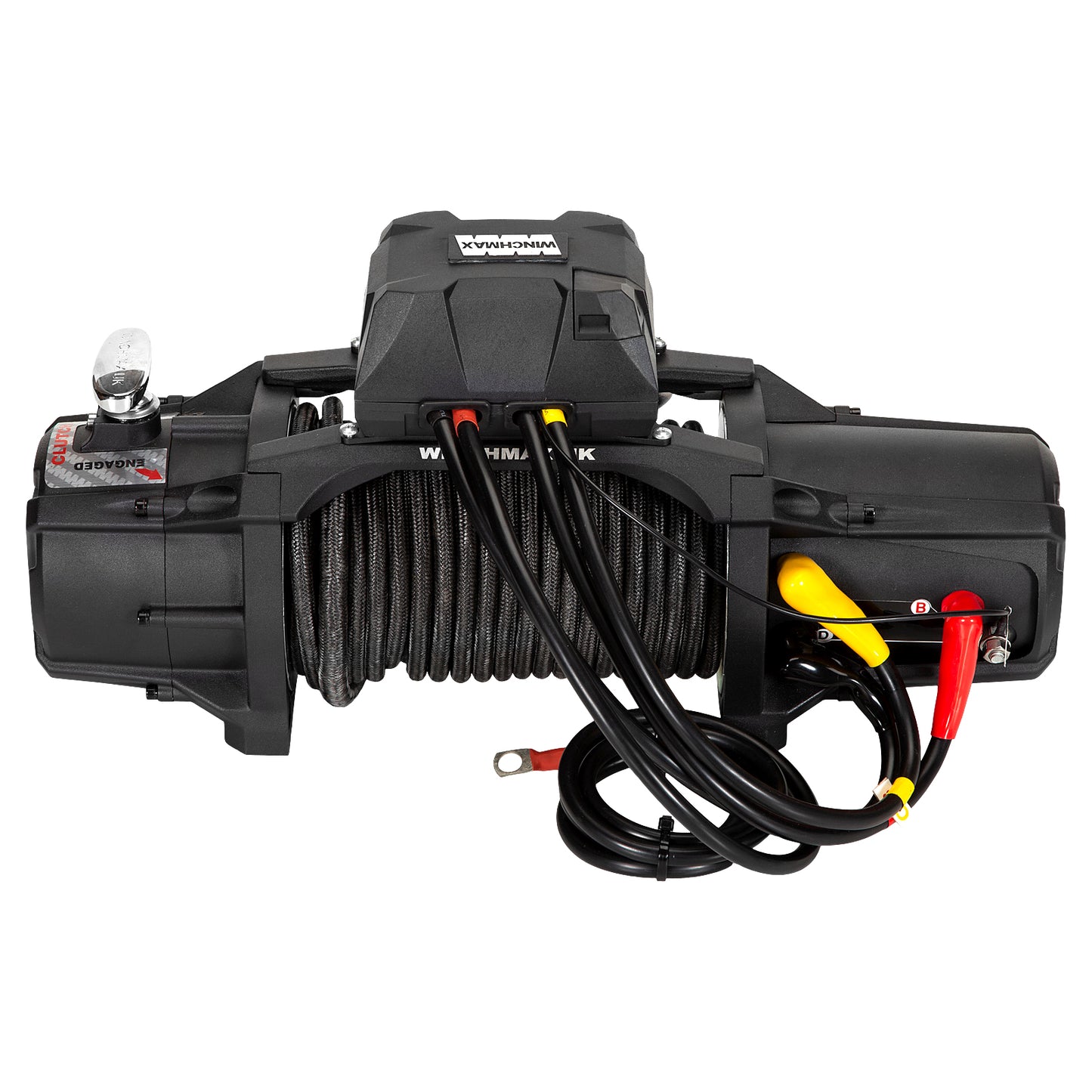

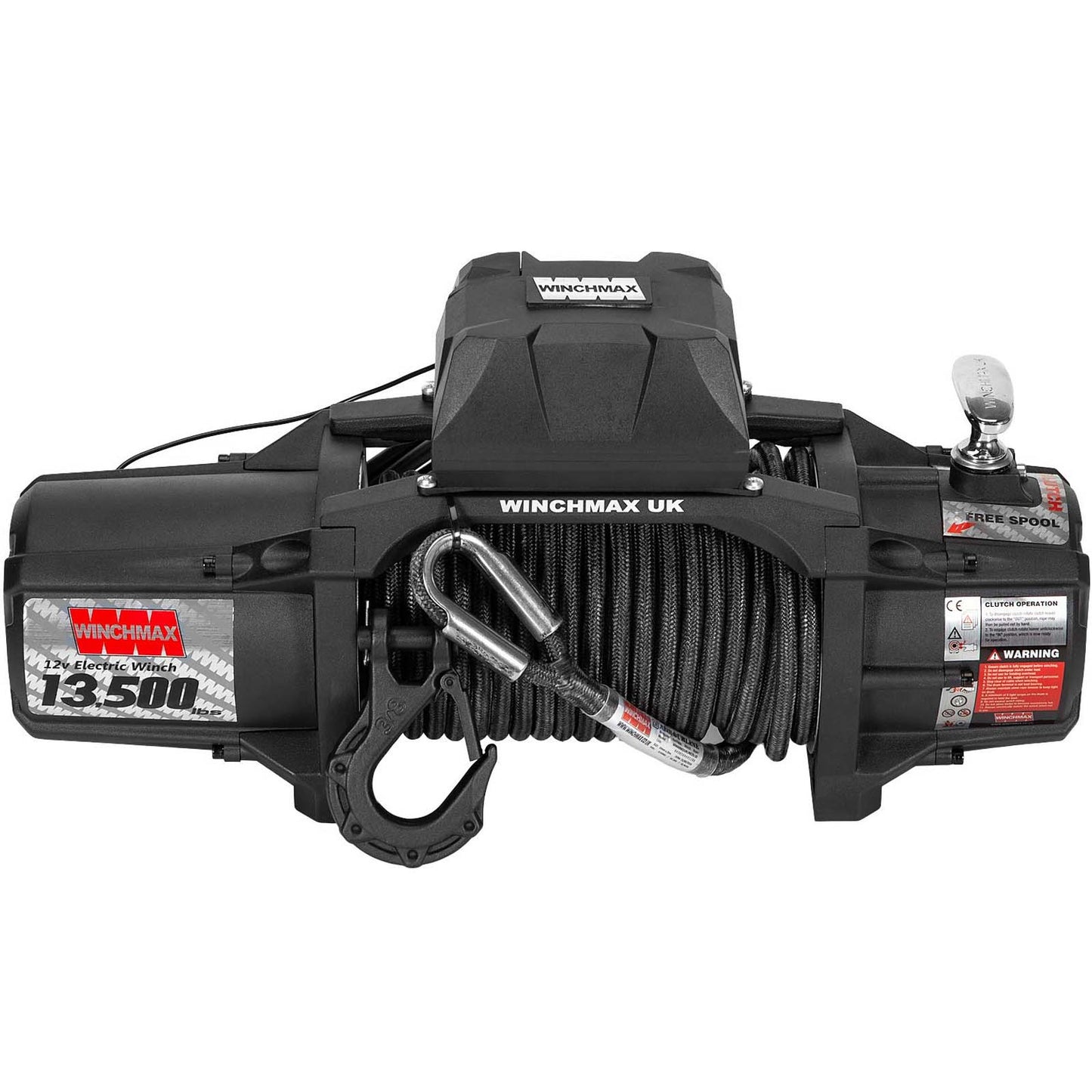

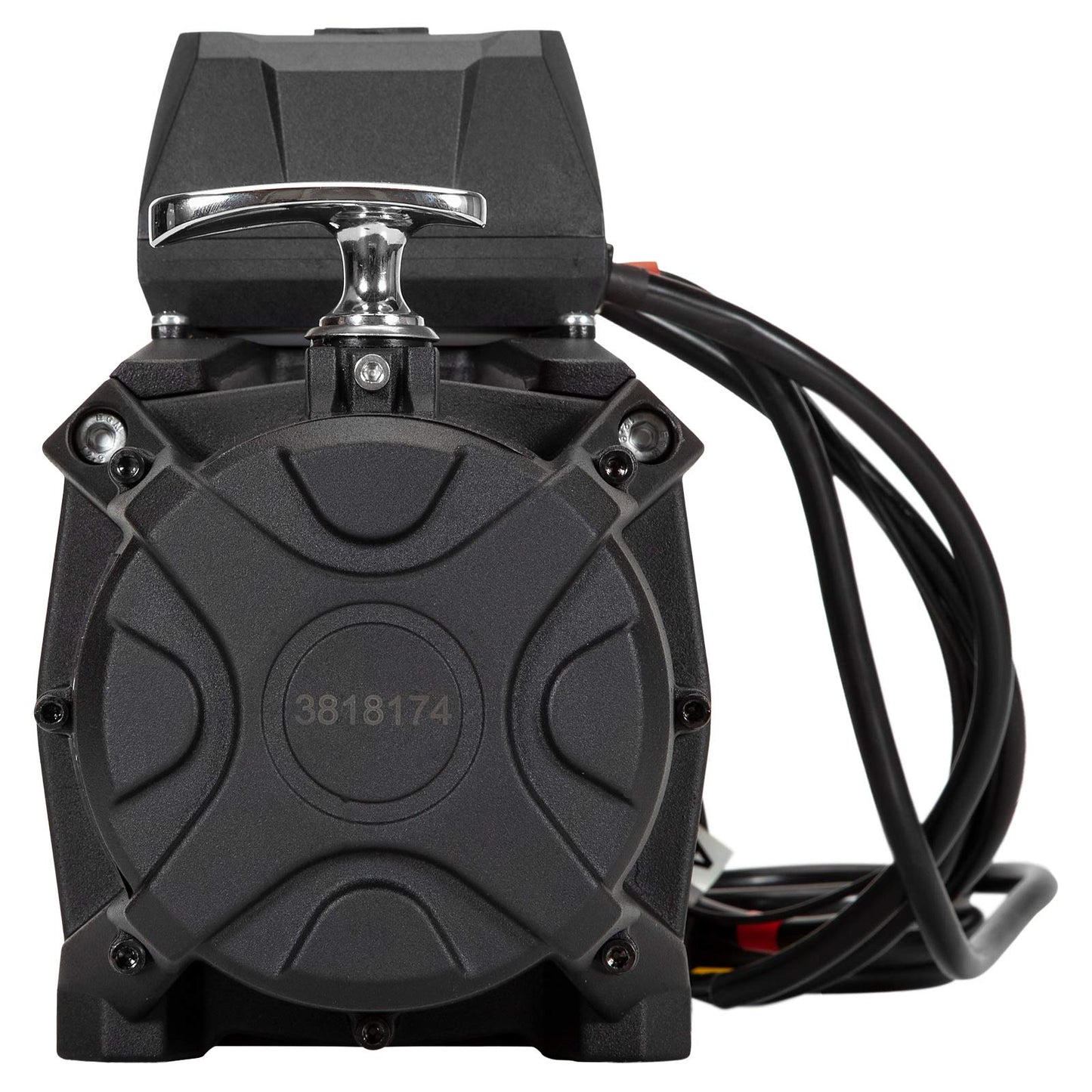

Winch

• 13,500lb (6,123kg) straight-line pull SL series 12v electric winch.
• Military grade winch with improved anti-corrosion measures.
• Two handsets with the latest technology long-range, combination wireless remote control.
• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 25m x 10mm Armourline double braided synthetic rope with 21,000lb (9,500kg) average breaking load.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

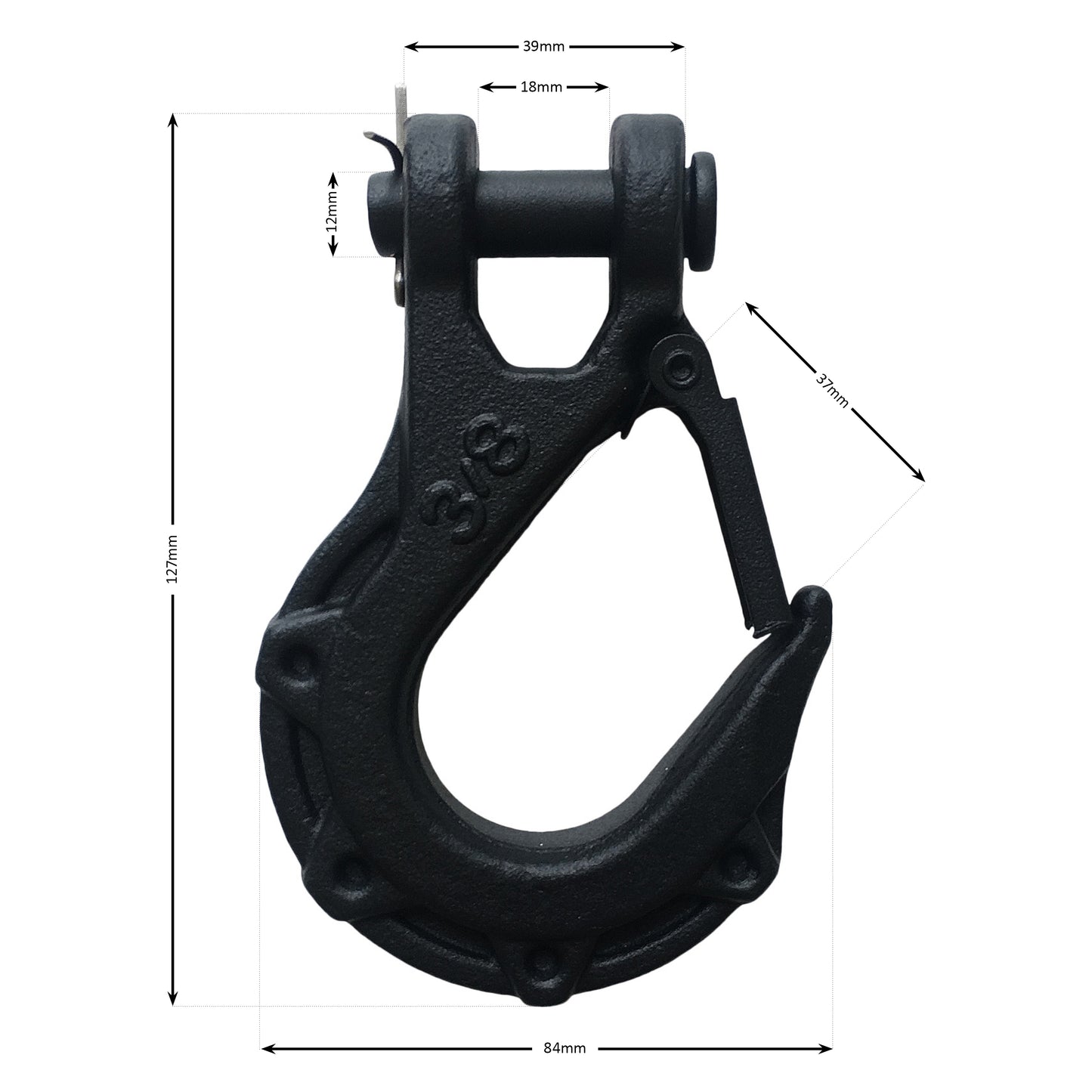

• 3/8 Inch grade 70 forged tactical clevis hook powder coated for corrosion resistance with safety catch and hand saver.
• Military Grade water seals on the motor casing.

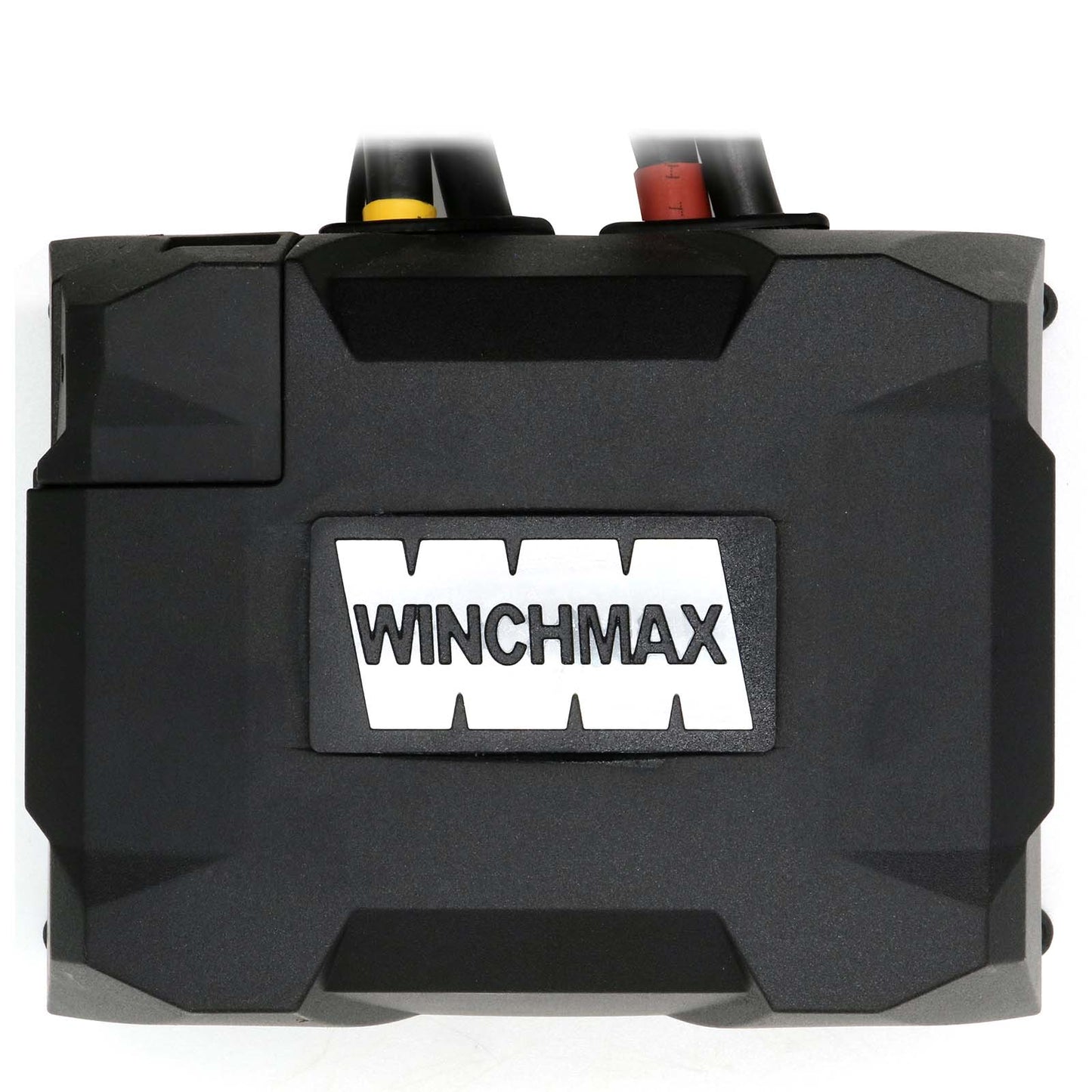

• Ultra-reliable solenoid with upgraded water seals, waterproof to IP67 standard.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit included.
• Strong WINCHMAX branded cover to protect your winch from water and road grime
• CE certified & built to ISO9001 quality management system requirements.

Armourline Rope

• Latest UHMWPE synthetic winch rope technology.
• A double-braided outer sheath provides protection to the core from abrasive grit and dirt.
• UV Resistant to prevent sun damage.
• Polyurethane coated for enhanced abrasion resistance.

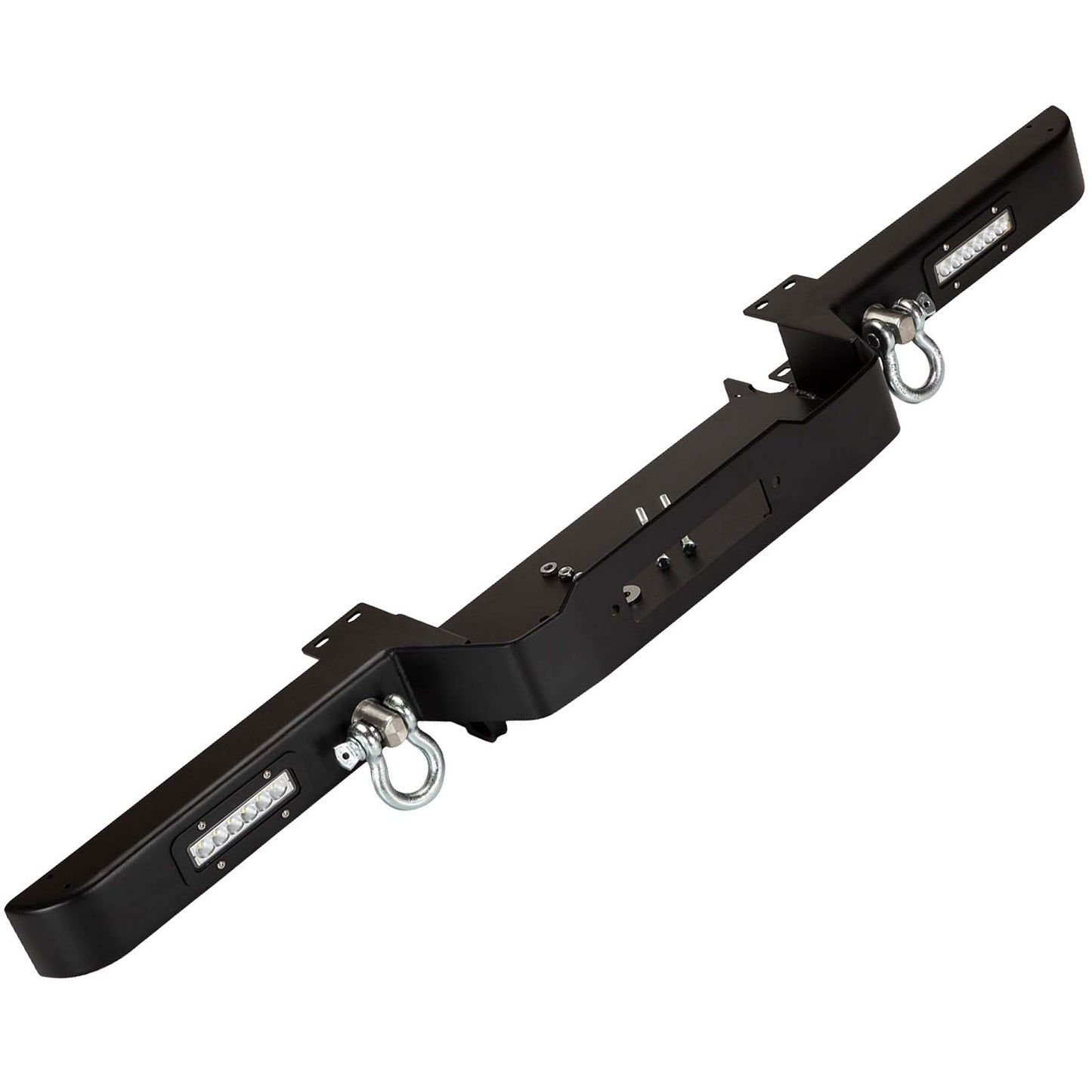

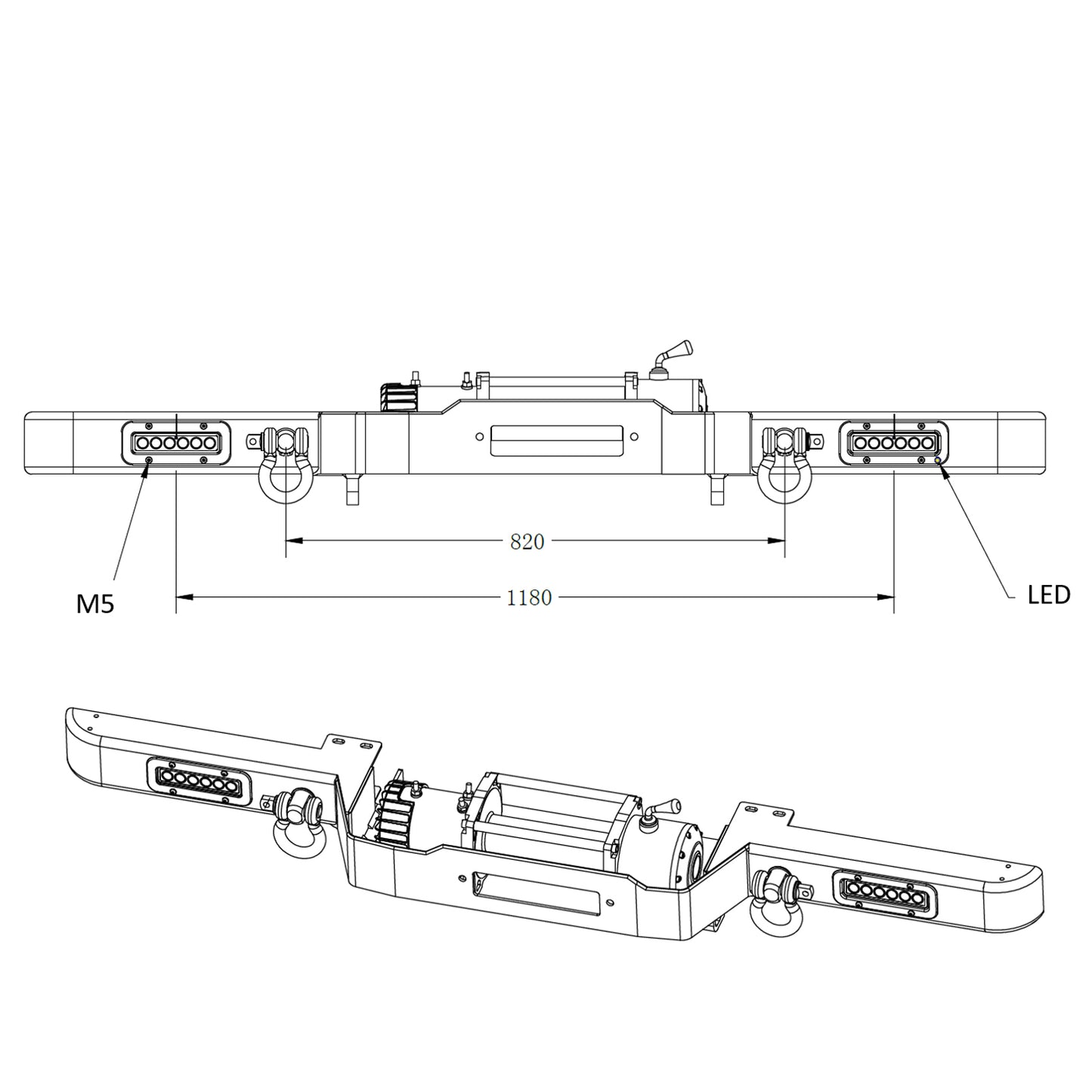

Defender Bumper

• A recreation of the original Land Rover part VPLDP0105 (5mm thick steel).
• Durable powder-coated finish.
• Integral powerful LED DLR lights.
• DLR - DC 9-30V

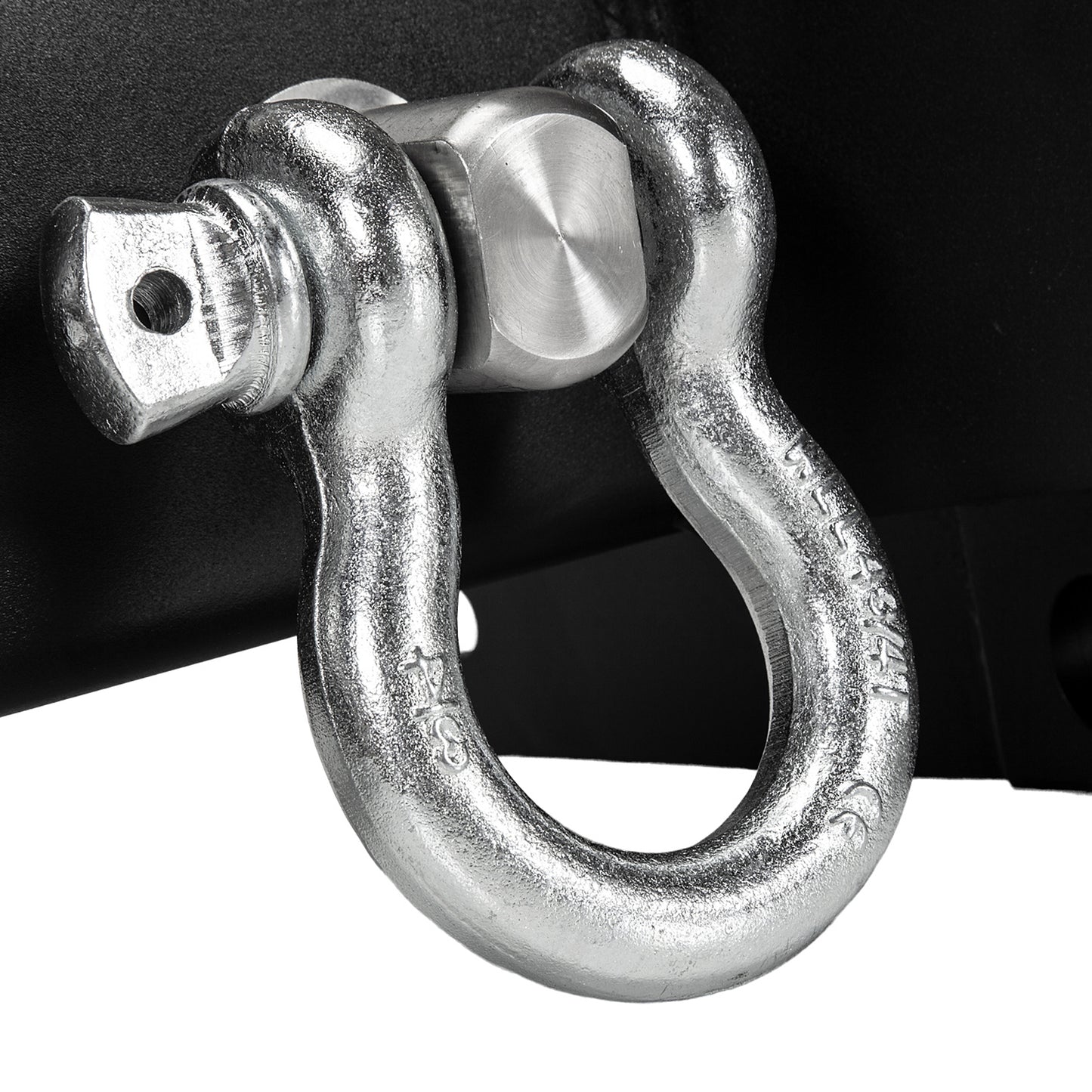

• 2 x swivel eye fixing points complete with large 3/4 inch bow shackles.
• Drilled to allow original bumper end caps to be transferred from your existing winch bumper.
• Attachment bolts included.

Wiring Cable Kit

• Made in the UK to fit Land Rover Defenders
• Premium quality EN60228 35mm² copper cable with a class 6 extra flexible conductor and heavy PVC flexible insulation.

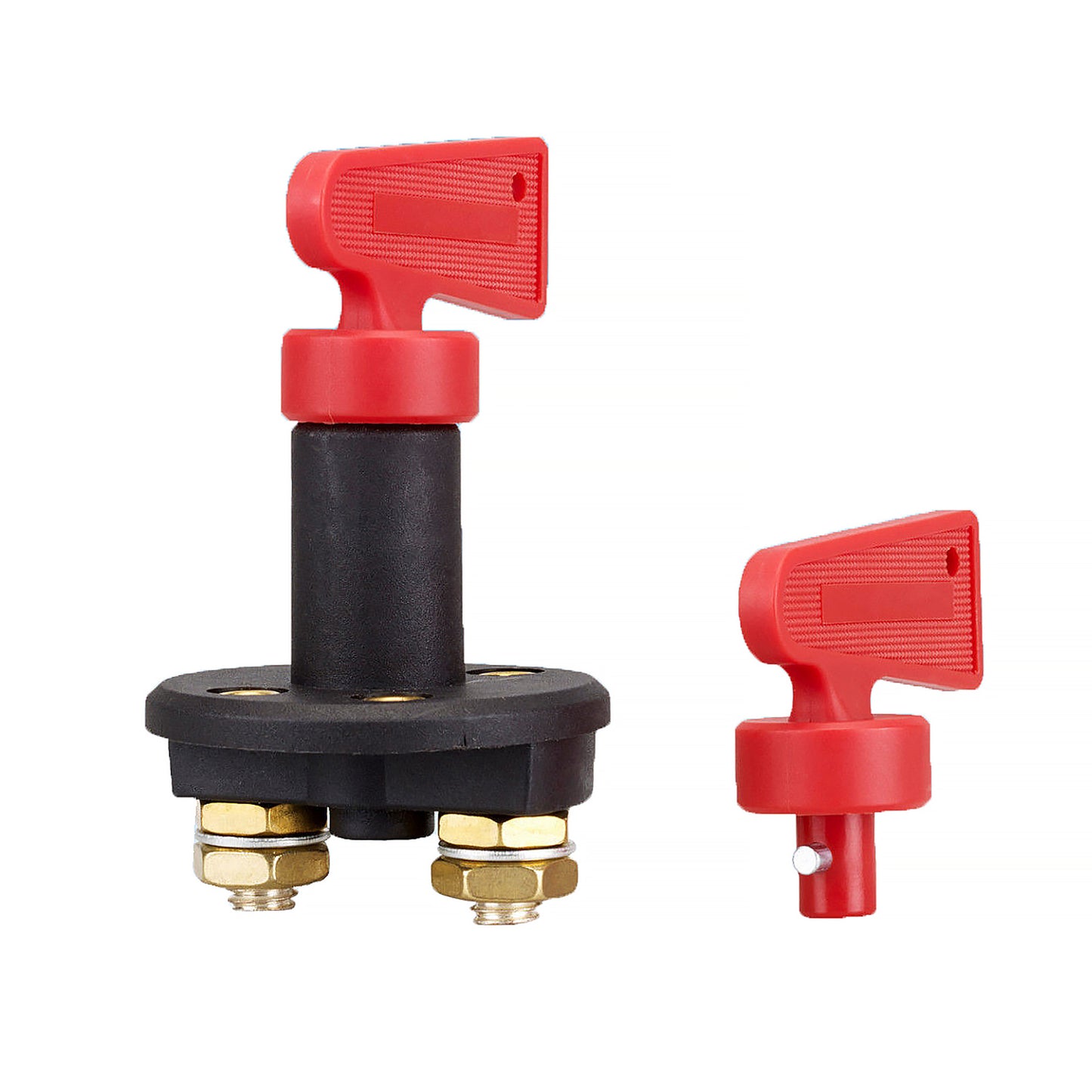

Battery Isolator

• Heavy-duty battery isolator switch.
• 2 x twist and release keys.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	13,500lb (6,123kg)
Motor	12v 6.8hp/5.1kw series wound
Control	Big grip remote switch, 4.5m lead
Gear Train	3 stage planetary
Gear Reduction Ratio	265:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 64mm (2.5”) length 224mm (8.82”)
Drum Finish	Galvanised
Cable	25m x 10mm Armourline synthetic rope.
Hook	Tactical clevis hook 3/8 inch black.
Fairlead	Aluminium hawse fairlead
Battery	Recommended 650CCA minimum for winching
Battery Leads	2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
Winch Finish	Matt black (low light paint)
Weight (GW)	30kg (66lb)

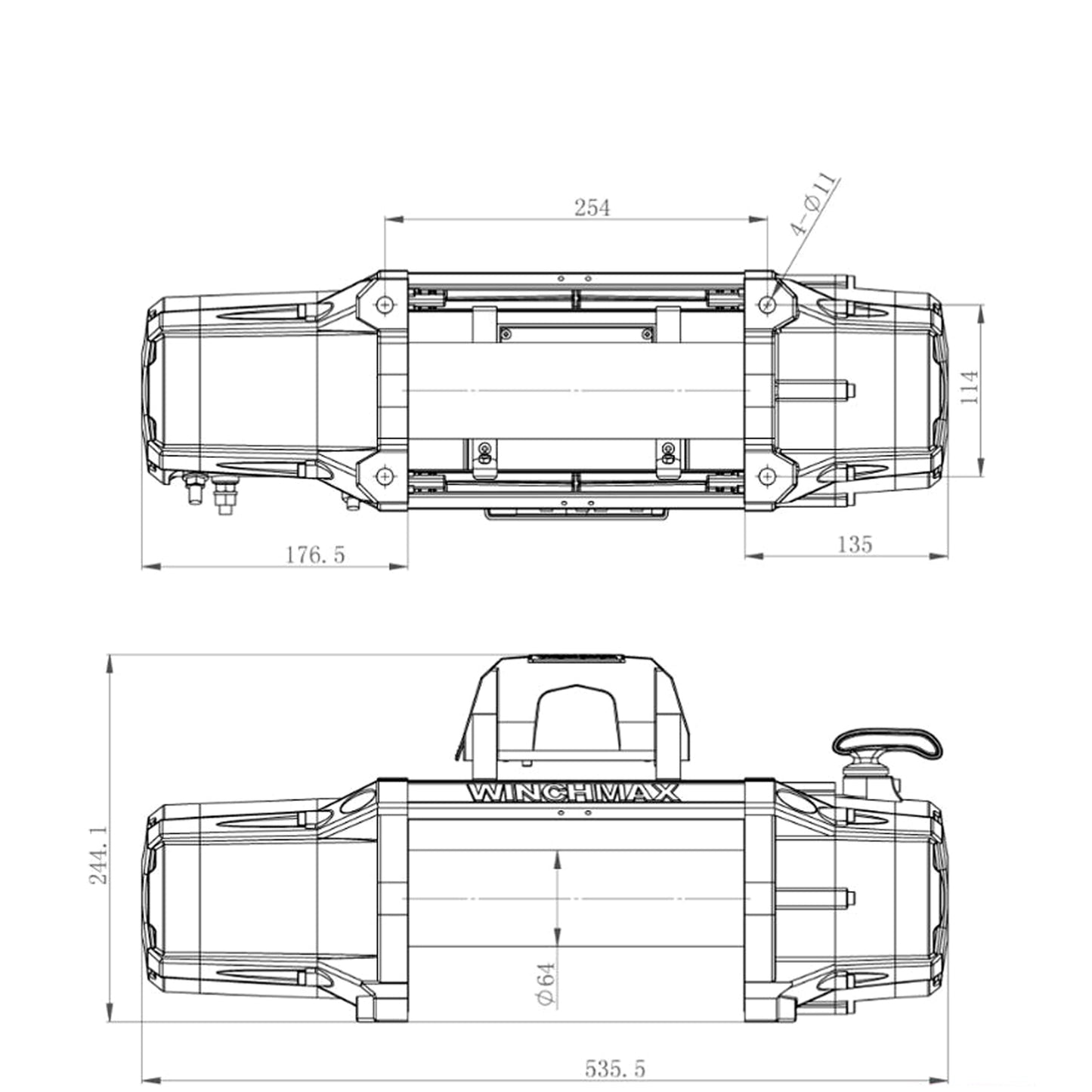

Overall Dimensions (LxWxH)	536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
Mounting Bolt Pattern	10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	7.5m/min (24.6 ft/min)
Waterproof	IP67 Rating



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	13,500	6,123	20.4/6.22
2	9,530	4,332	41/12.0
3	7,929	3,604	71/21.0
4	6,770	3,077	85/24.0



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft (7.5m)	70A
3,000 (1,363)	11.48ft (3.5m)	138A
6,000 (2,727)	8.86ft (2.7m)	218A
9,000 (4,090)	7.72ft (2.2m)	260A
13,500 (6,123)	5.58ft (1.7m)	350A
