Mobile Winch Mount 17,000lb - 20,000lb 2 inch Receiver Hitch Winch Mounting plate

Heavy-Duty Mobile Winch Mount 2" Receiver Hitch System

Suitable for most large recovery winches 17,000lbs - 20,000lbs. Pre-drilled for standard 114.3 x 254mm mounting bolt pattern used by most winch manufacturers.

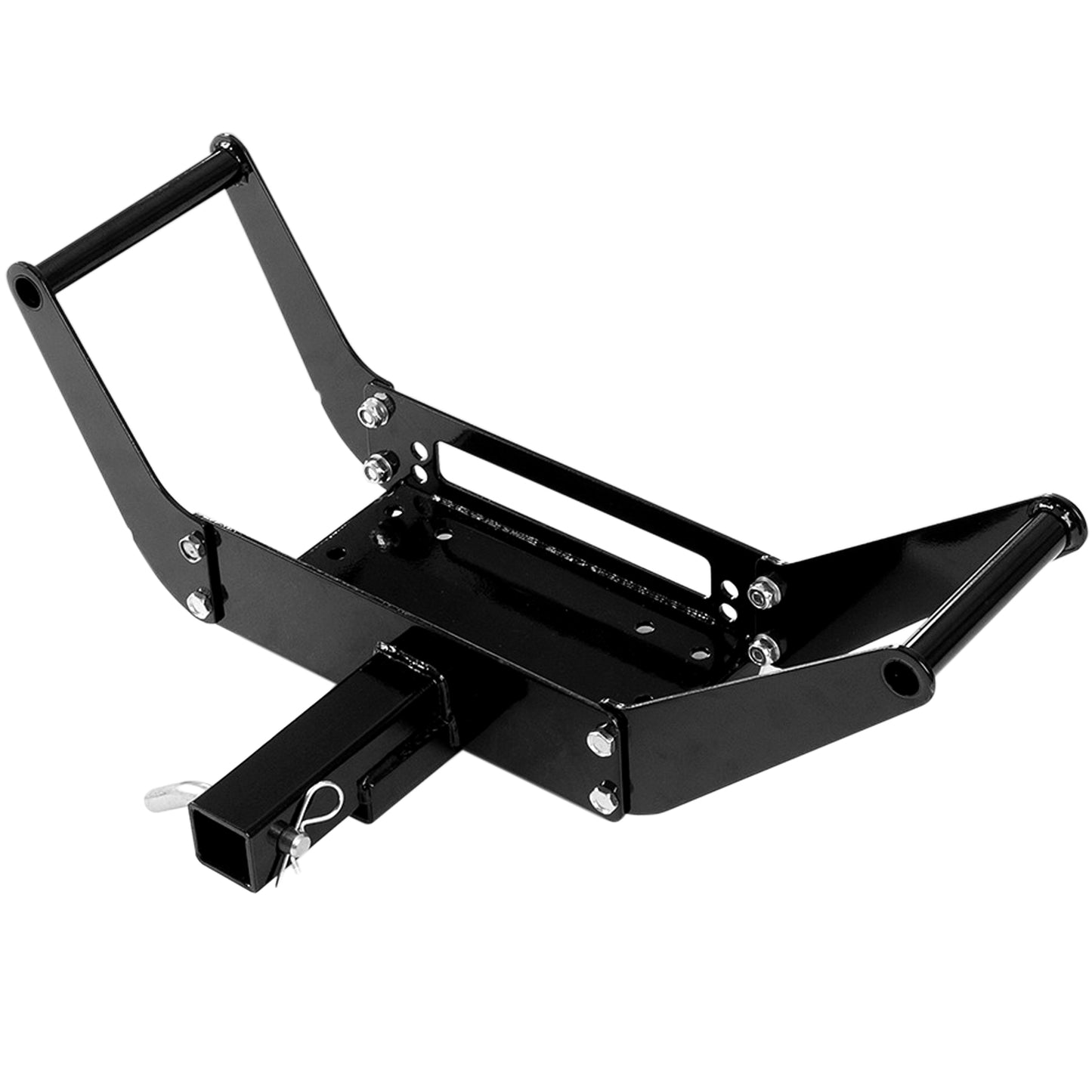

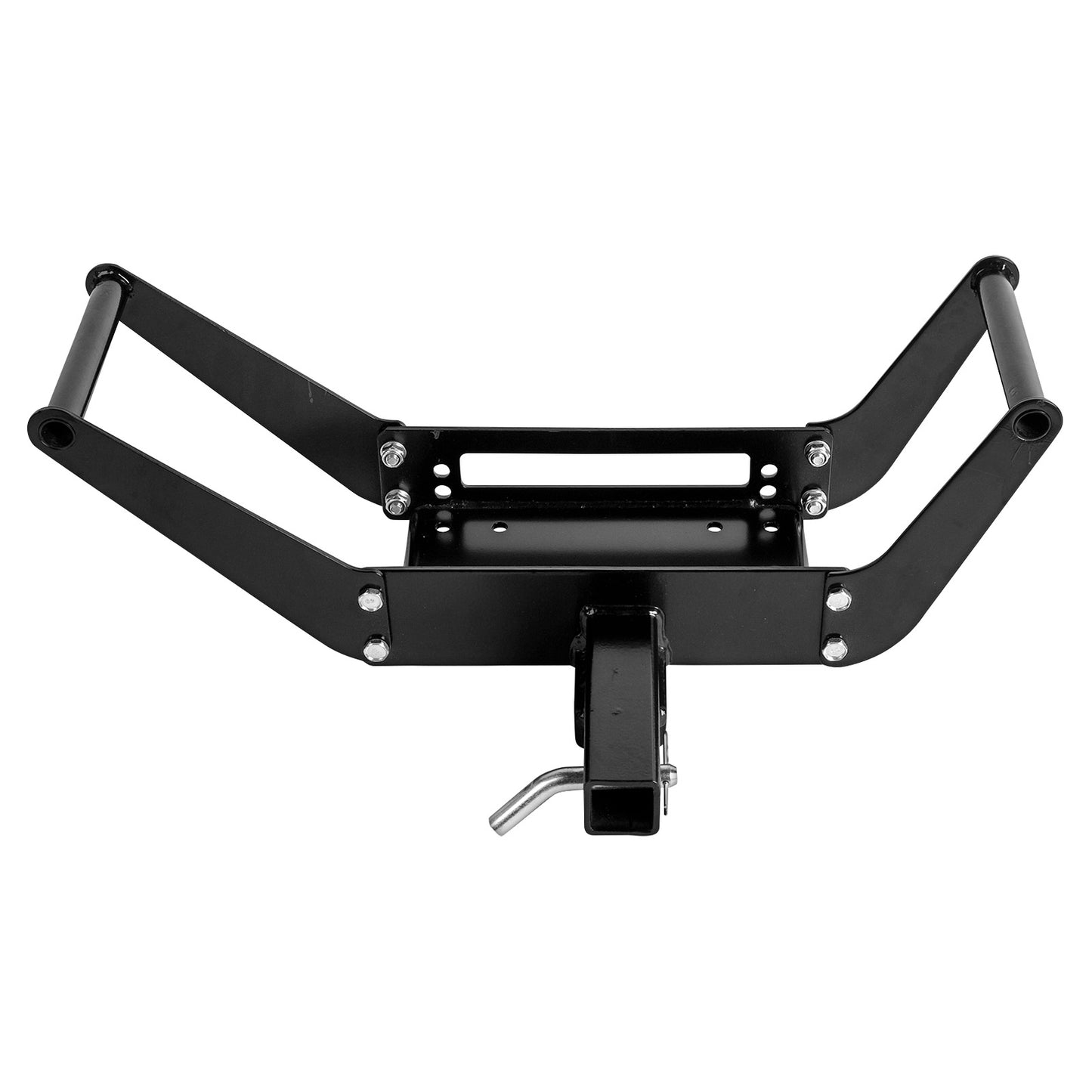

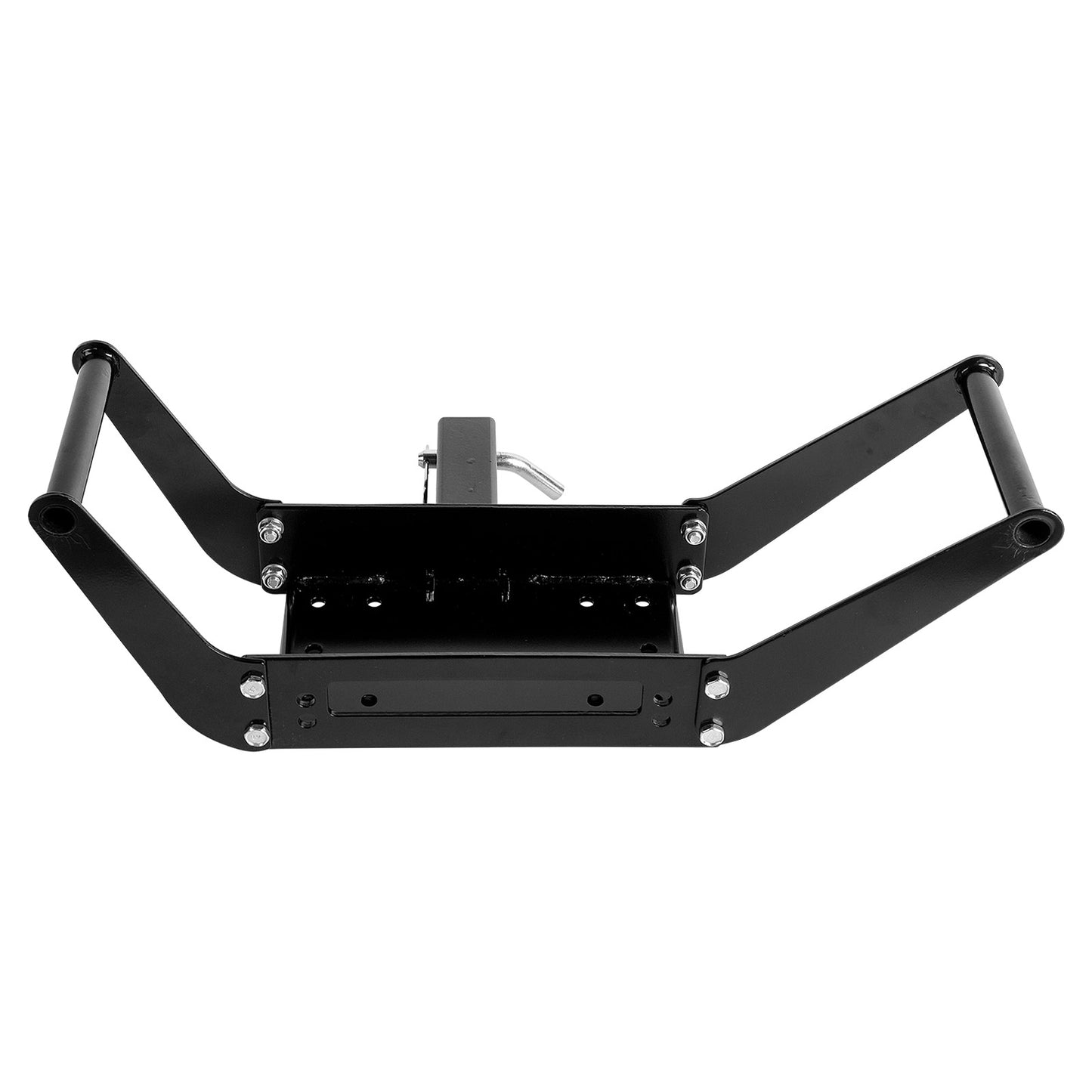

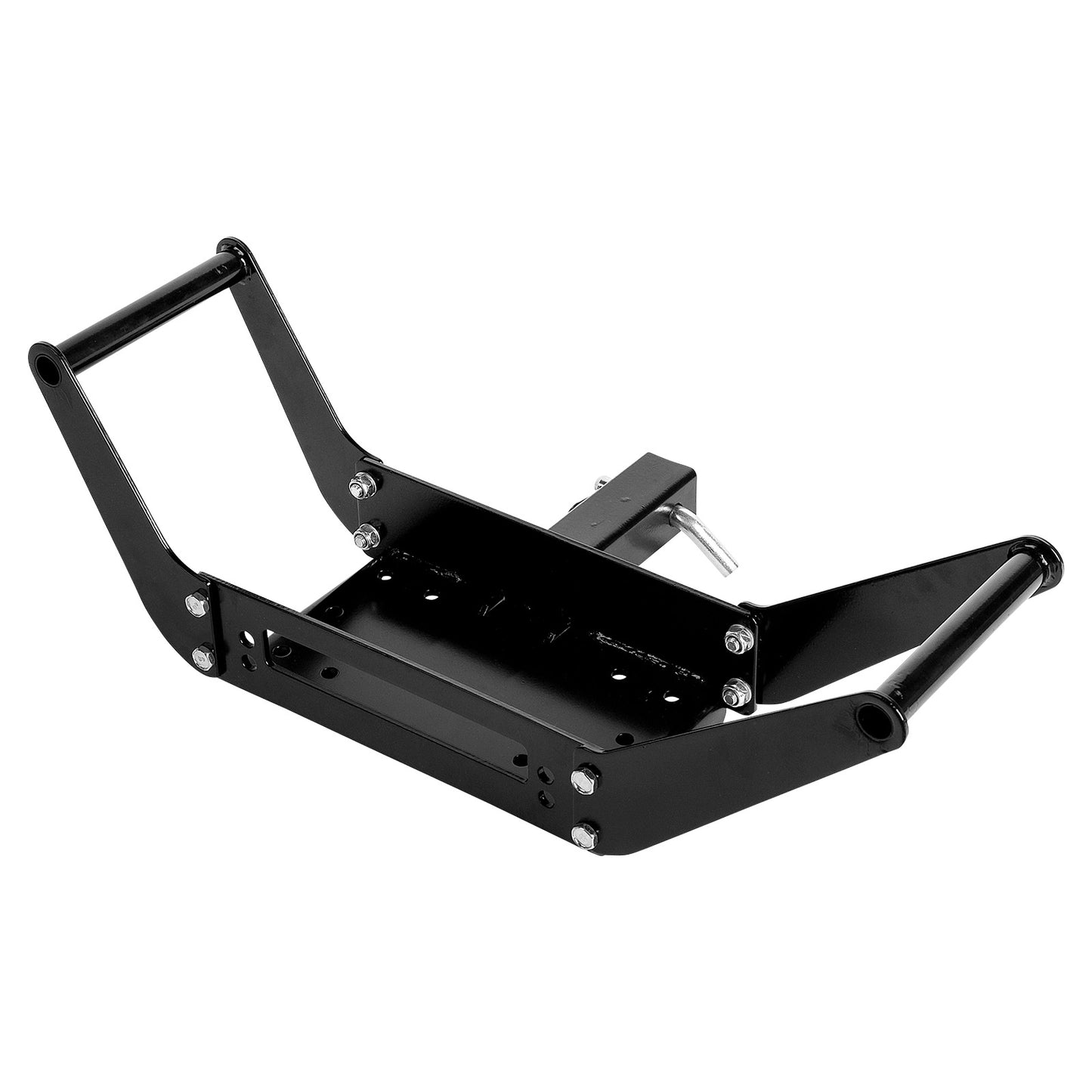

The WINCHMAX 2 inch Receiver Hitch Mobile Mounting Plate is a great idea if you are looking for a mobile solution for your winch. It allows temporary mounting in many positions, so you can share between vehicles, switch from front to rear mounting and keep the winch locked up inside the vehicle when not in use.

It is made from heavy-duty 1/4 inch (6mm) powder-coated steel and has a standard 2 inch male mounting spigot designed to mount into a standard US type receiver hitch.

The mount is supplied flat pack for transport, all you have to do is bolt on the carrying arms with the fixings provided.

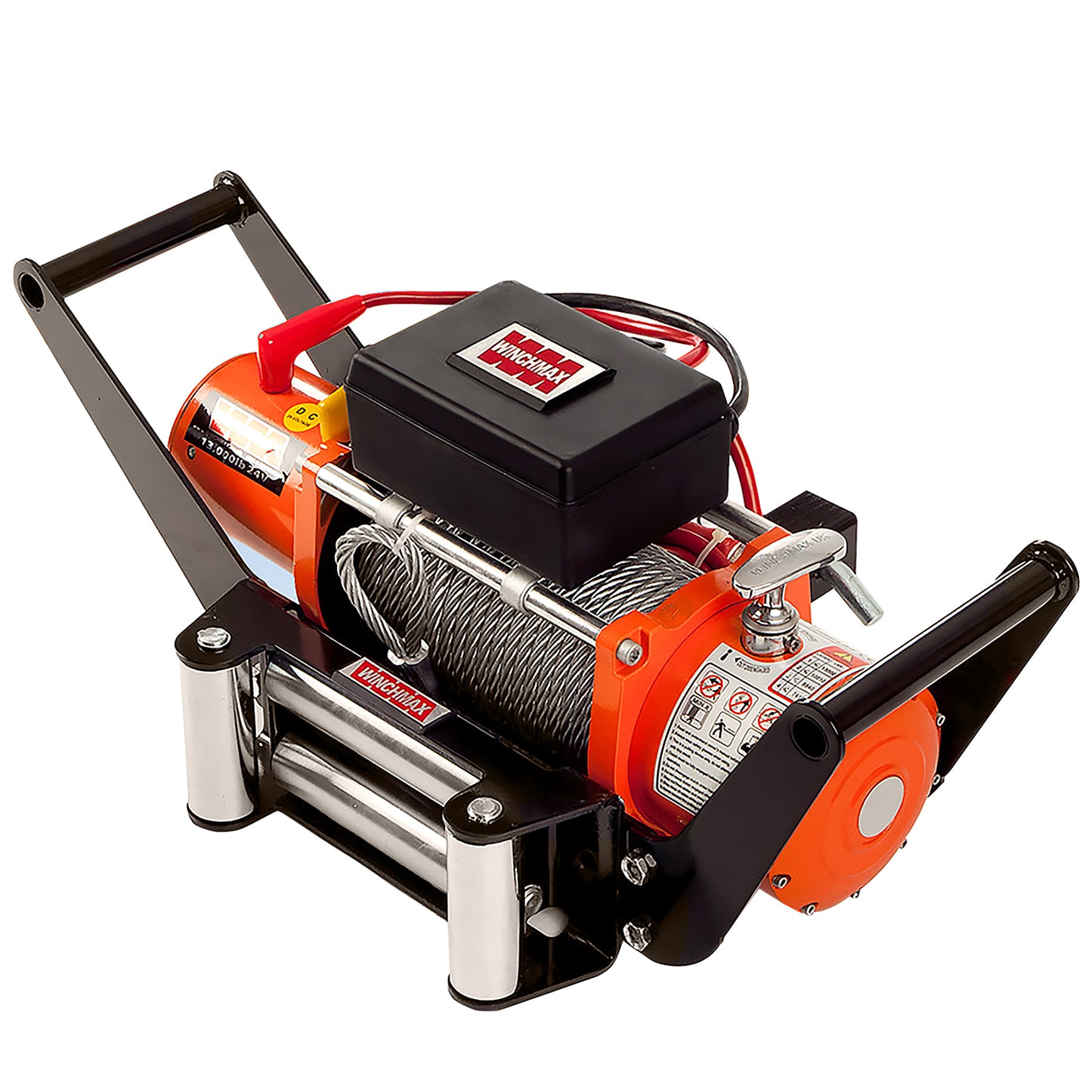

This mounting plate allows for mobile mounting applications and will work with all WINCHMAX recovery winches as well many of the Warn, Ramsey, Superwinch, Champion, Ironman, Gorilla, Bulldog and other brands of self-recovery winches with a standard 114.3 x 254mm bolt pattern. The front of the mount is pre-drilled for a standard two-hole 254mm roller fairlead or hawse fairlead.

Note: our 20,000lb 'Z' type hydraulic winch will not fit this mount.

FEATURES

• 254mm x 114.5mm Mounting Bolt Pattern
• 254mm On Center Fairlead Bolt Pattern
• Hitch Pin and Clip Included.
• Made of 1/4" Steel
• Anti-Rust Black Powder Coat Finish
• Perfect fit for WINCHMAX Winches
• Hitch Pin and Clip included.
• Allows Fairlead to mount in the perfect location to allow the cable or rope to feed smoothly

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.
