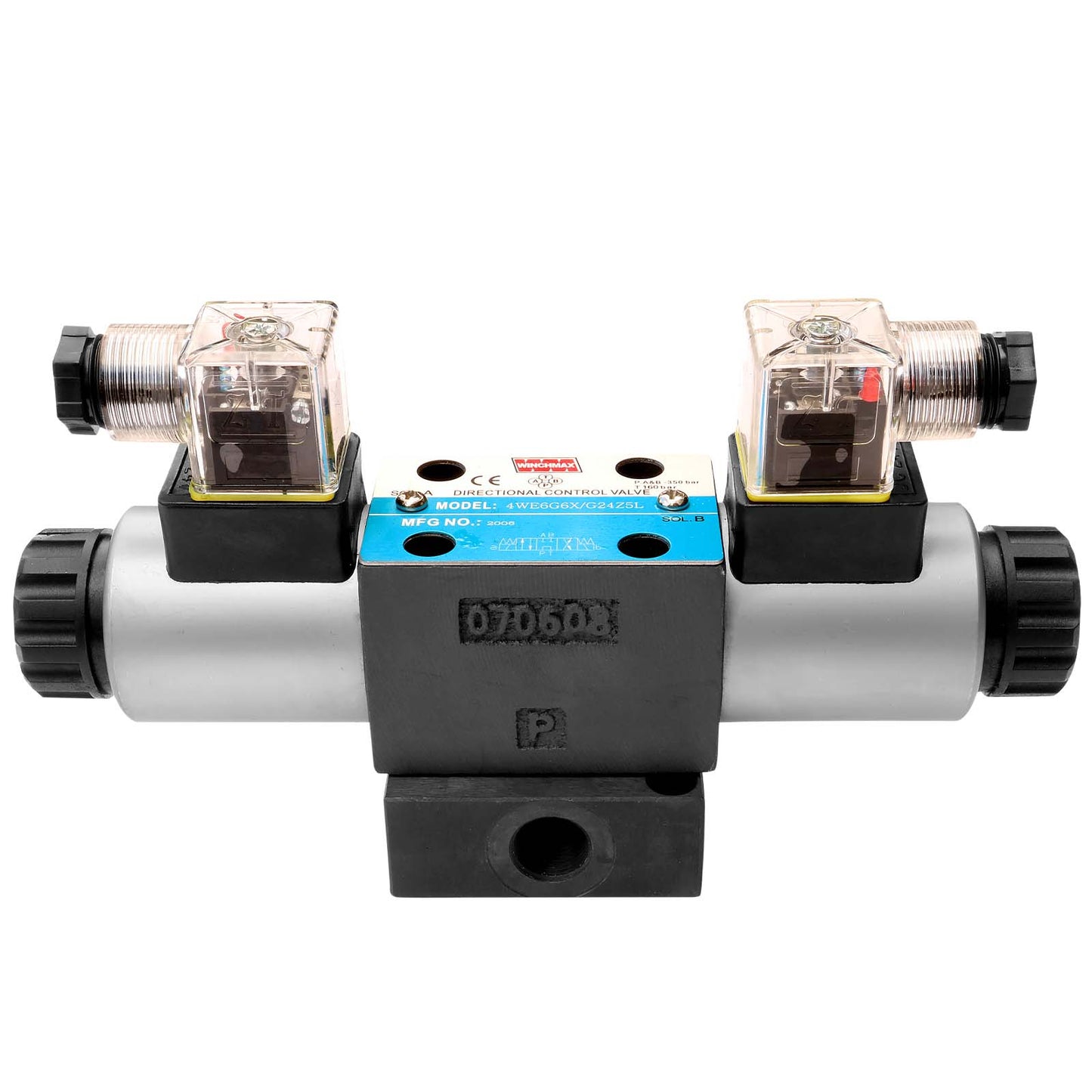

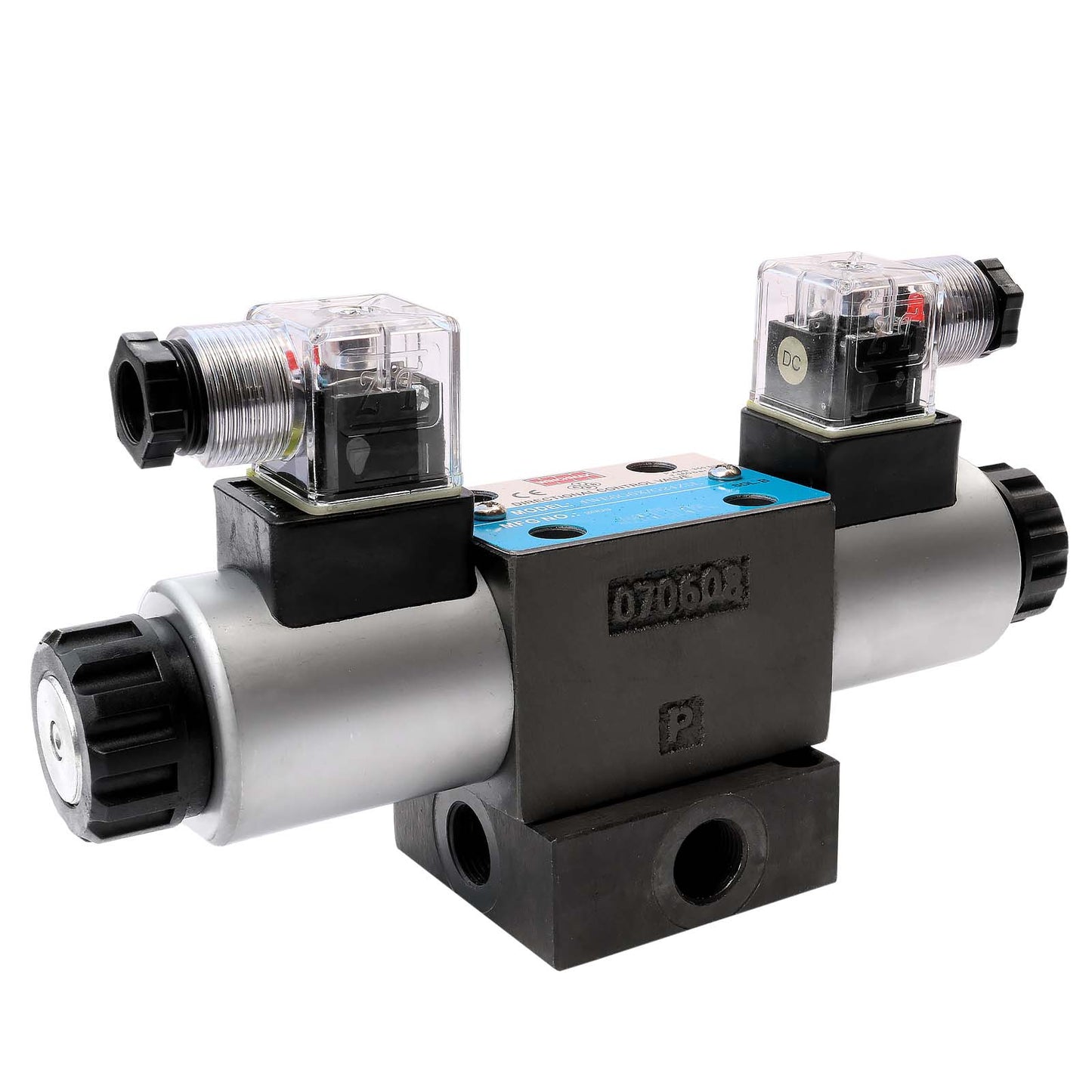

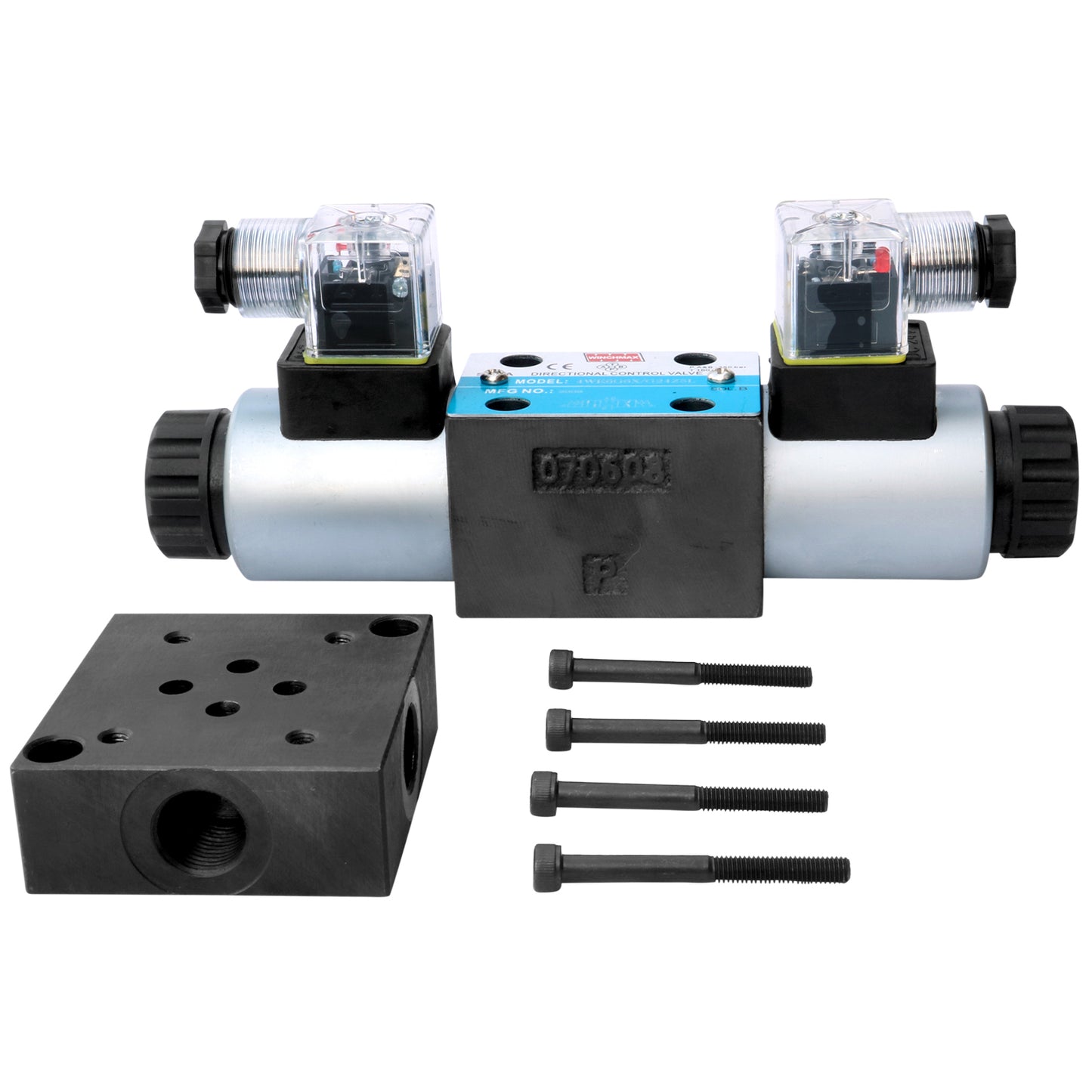

CETOP3/NG6 12v Solenoid Valve and Manifold Subplate

CETOP3/NG6 Solenoid Operated Modular Directional Control Valve with Manifold Subplate.
High flow directional control for hydraulic winches.

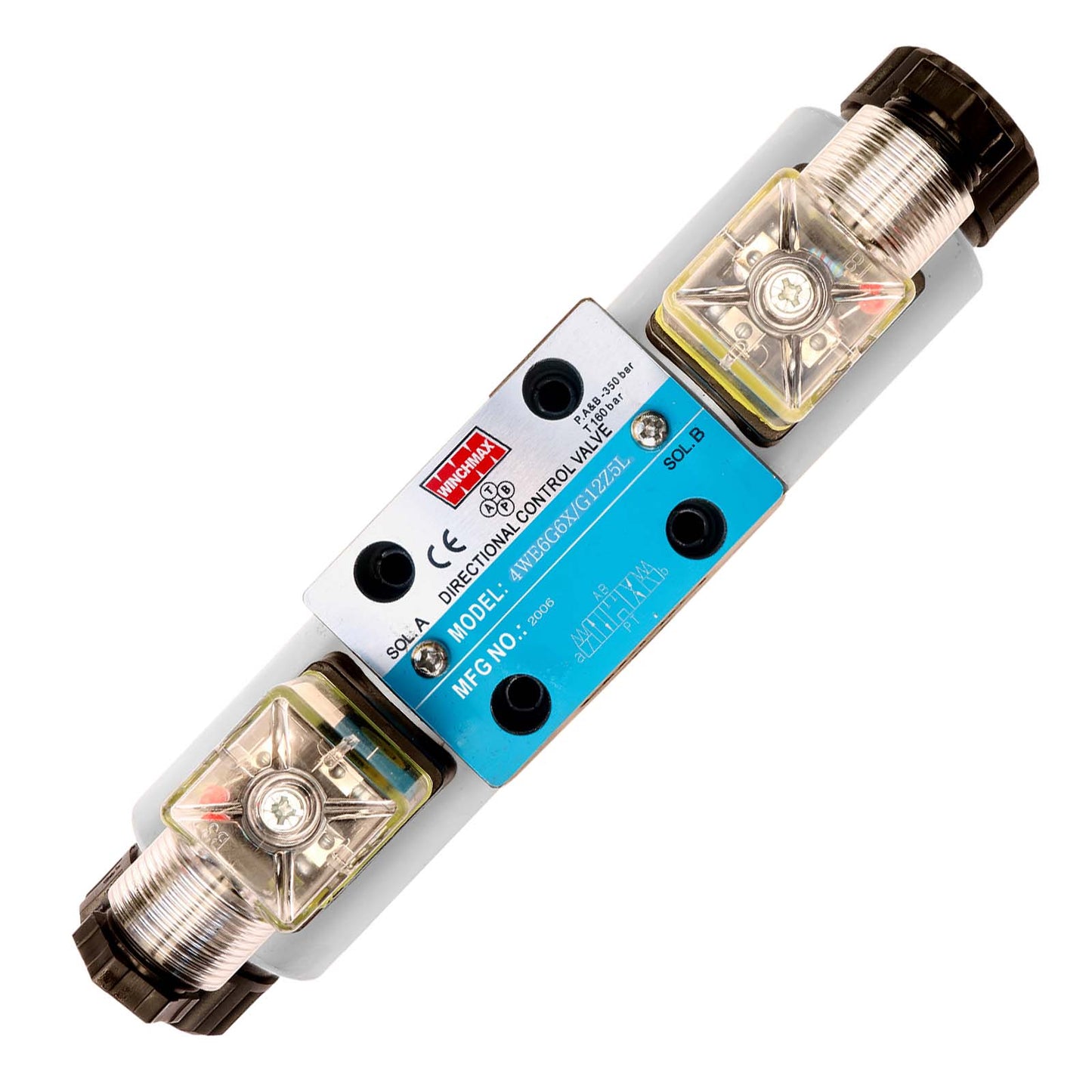

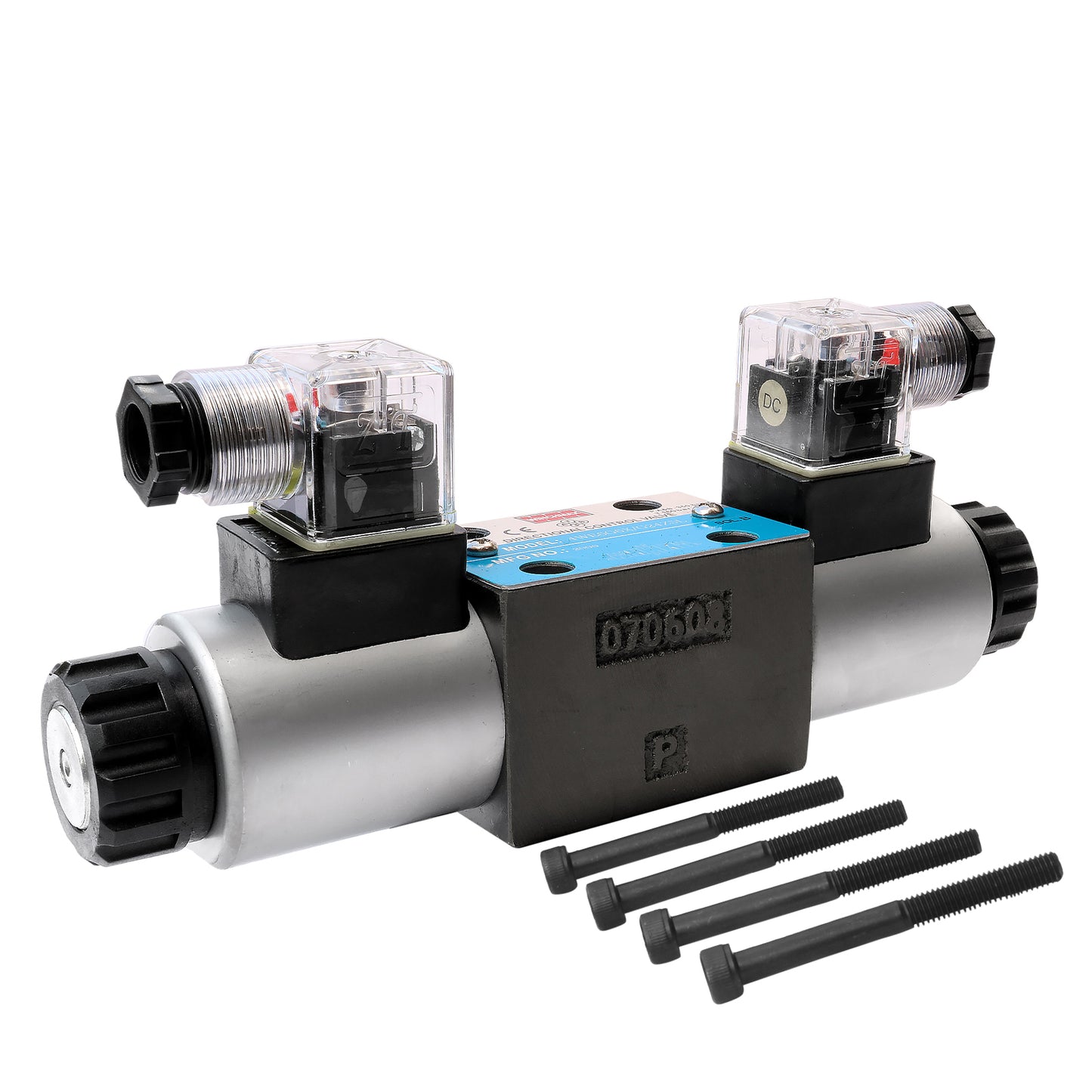

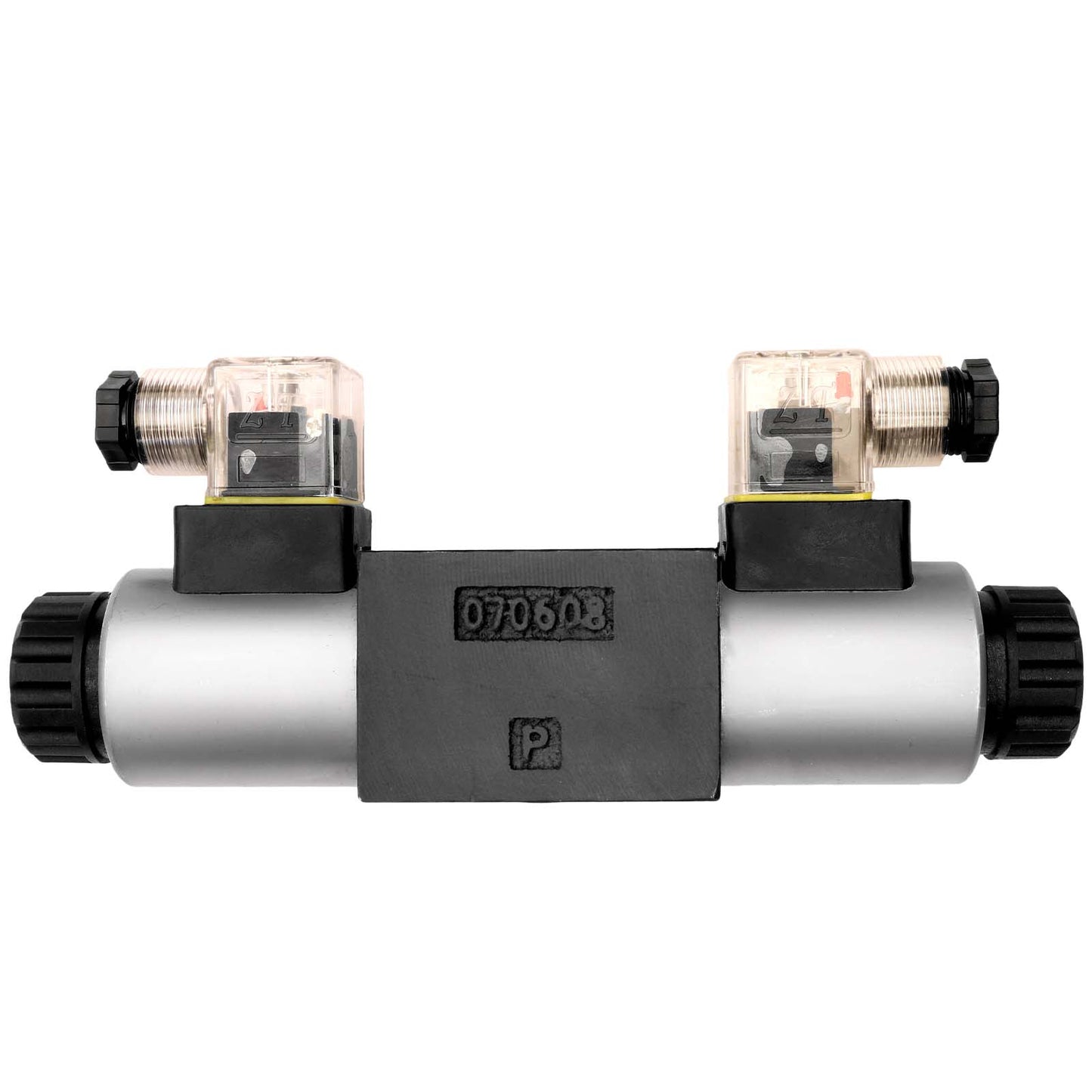

Solenoid Operated Directional Hydraulic Control Valve, CETOP3/NG6 Three-Position 12V
Used to start, stop and direct the oil flow.

Features

• Double 12V Coils.
• High Flow up to 80l/min.
• Removable DIN plug connector with clear cover, cable gland and LED indicator.
• Configuration; Spring centred P open to Tank, A & B Blocked.
• Max Pressure P,A,B, 31.5 MPa (315bar / 4500 psi).
• Manual override feature.

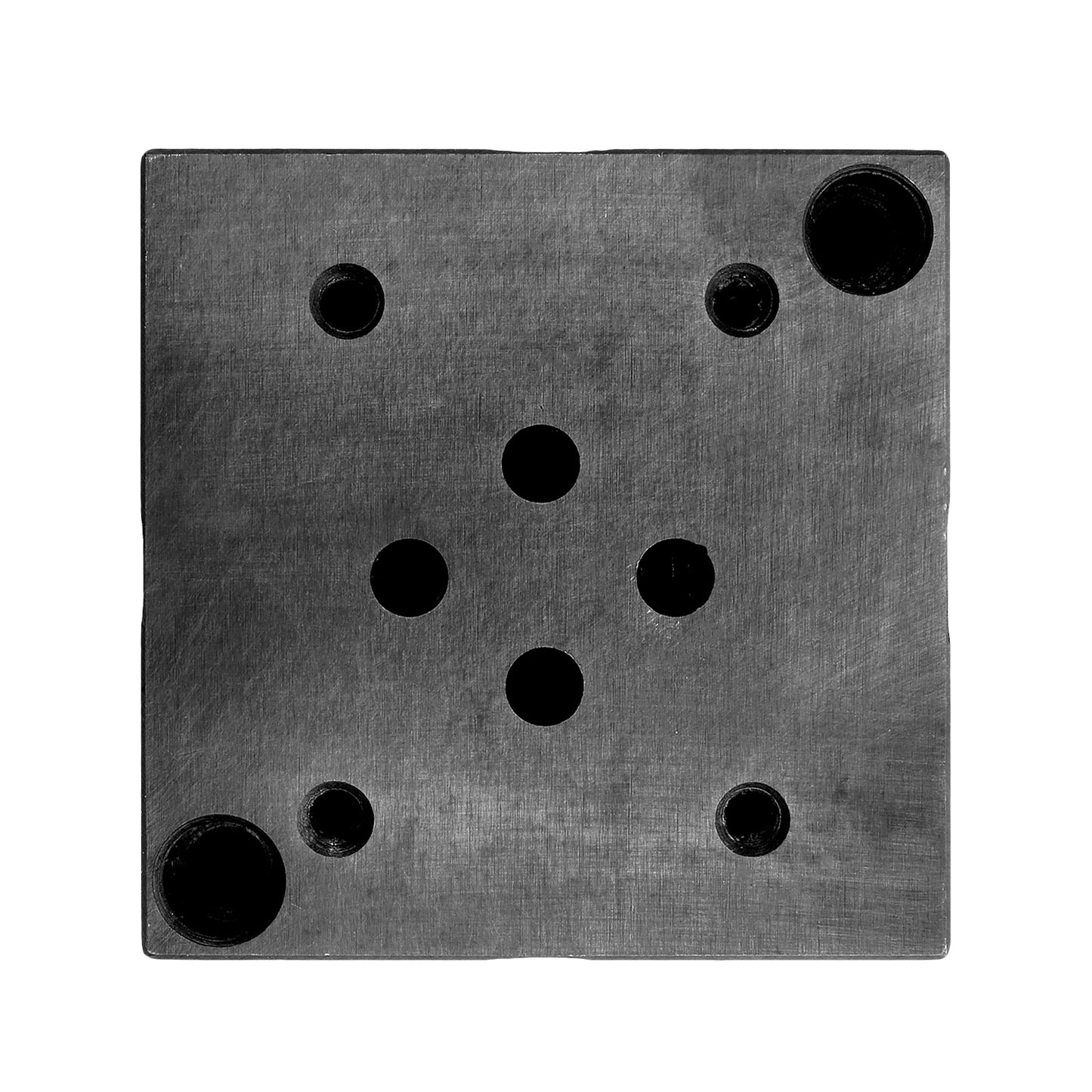

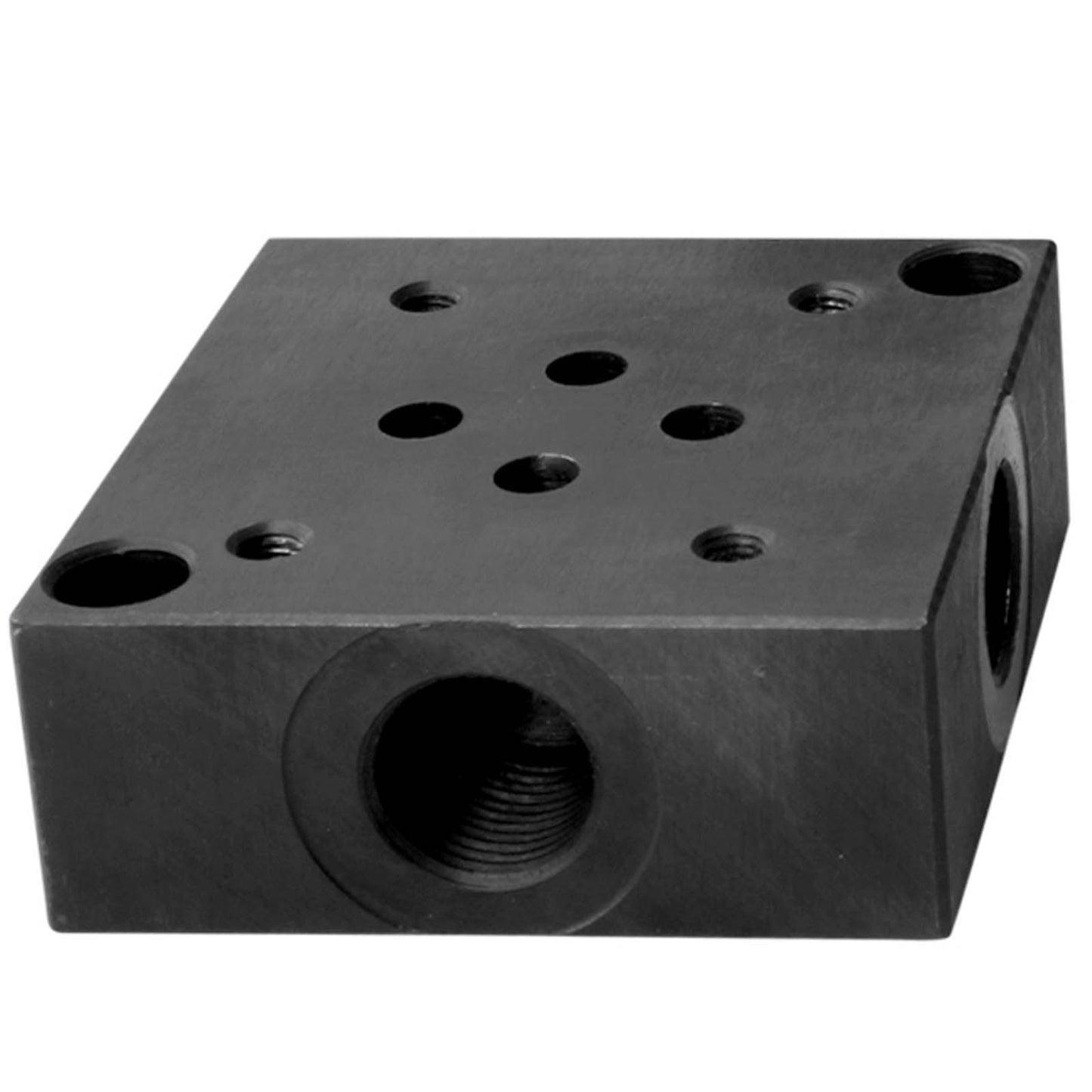

Manifold Subplate CETOP3/NG6 Hydraulic
Provides a manifold to connect the P,T,A,B pipework into a directional control valve (and pressure regulator if required).

Features

• Forged Steel Construction
• Side Ported P,T,A,B.
• Port size 3/8 inch BSP

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

4WE6 Solenoid Direction Control Valve
Max. flow rate (l/min)	80
Max. working pressure (MPa) A, B, P port	31.5
Max. working pressure (MPa) T port	16
Double solenoids type Weight (kg)	2.2
Hydraulic Fluid	Mineral Oil
Seal Material	NBR Seals
Temperature range (°C)	-30 to +80
Viscosity range (mm2/s)	2.8 to 500
Oil cleanliness class according to ISO 4406	Class 20/18/15
