9,000lb (4,082kg) 12v Winch EN14492 Compliant. 24m x 9mm Steel Rope. Mounting Plate & Battery Isolator.

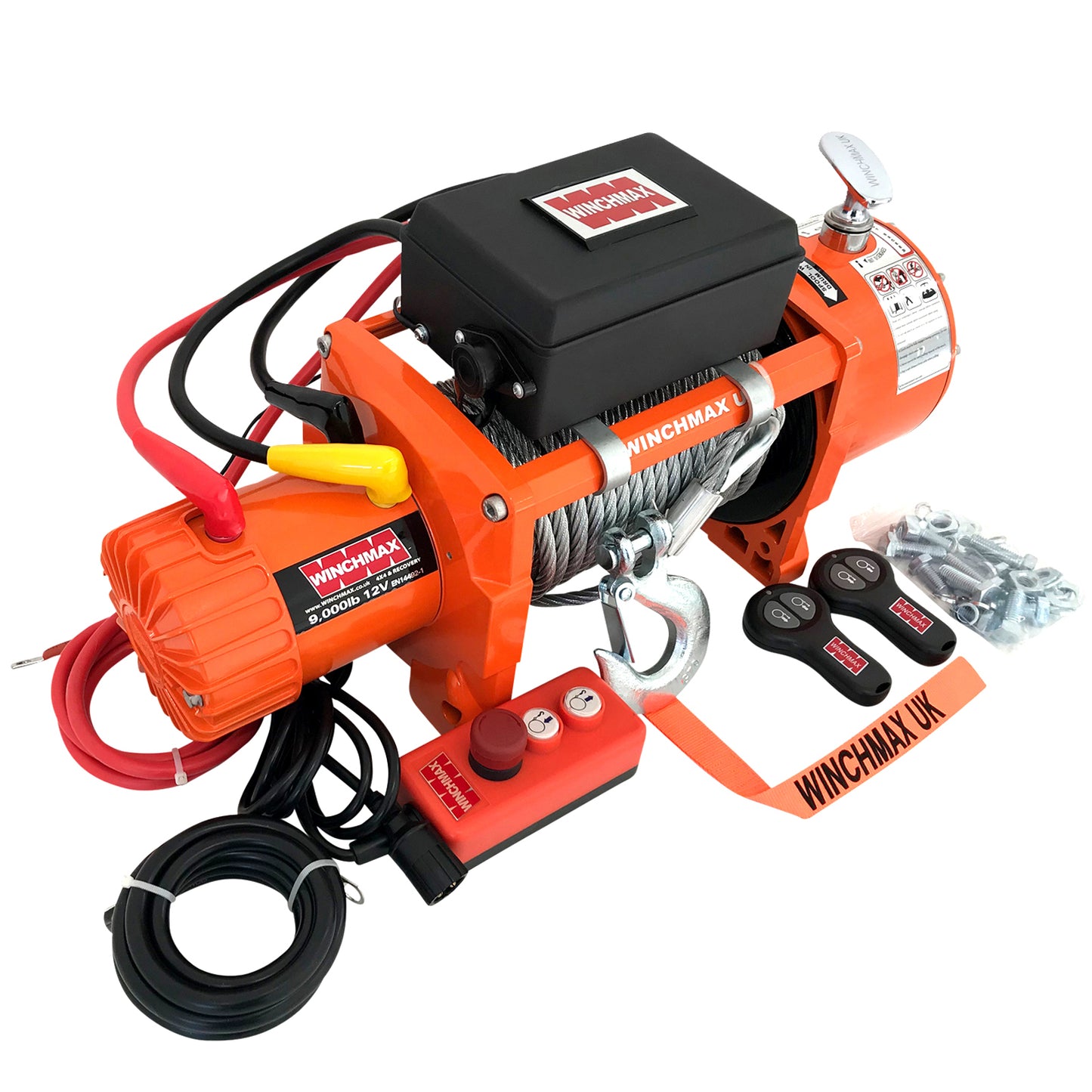

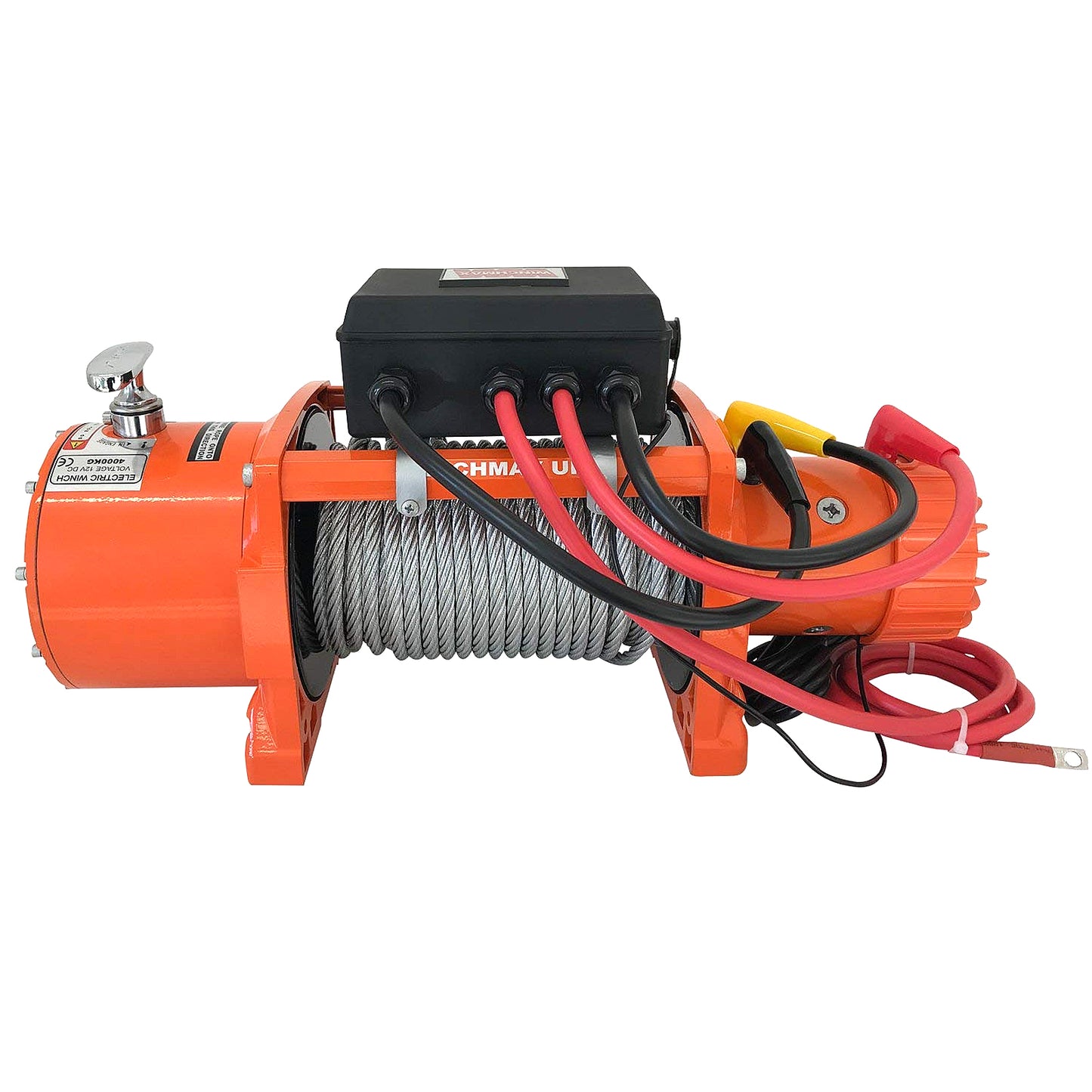

9,000lb (4,082kg) Original Orange 12v Electric Winch. EN14492 Compliant.

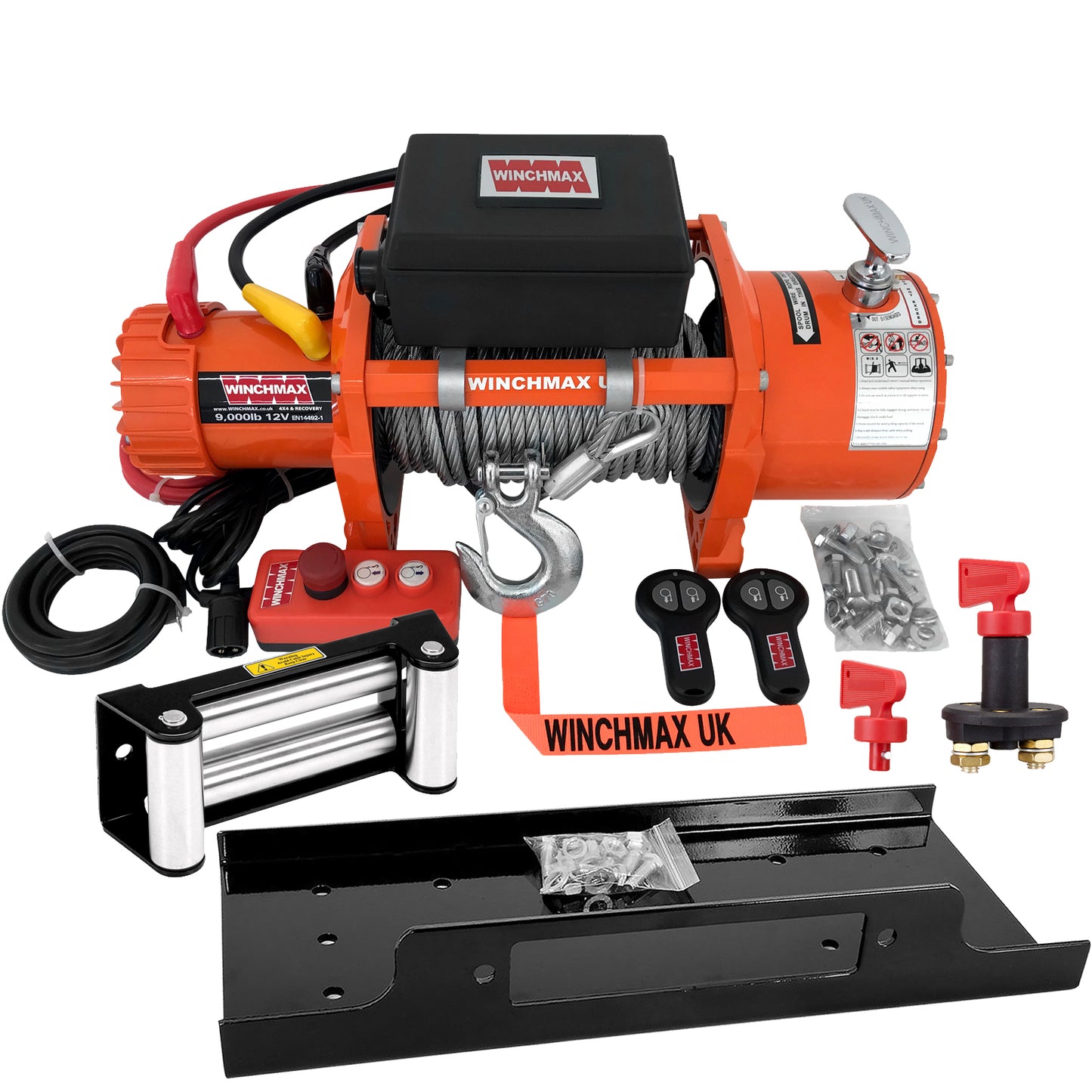

Mounting Plate and Battery Isolator Switch.

Complies with the EN14492 regulations for use on recovery trucks. Ideal for professional use on recovery trucks & trailers up to 3.5T

This winch is a 15,000lb winch that is electronically restricted to 9,000lb. it is a bigger and stronger winch than a 'standard' 13,500lb model.

Features

• 9,000lb (4,082kg) straight-line pull (electronically limited).
• Fully EN14492 compliant winch for commercial recovery use.
• Built-in electronic load limiter.

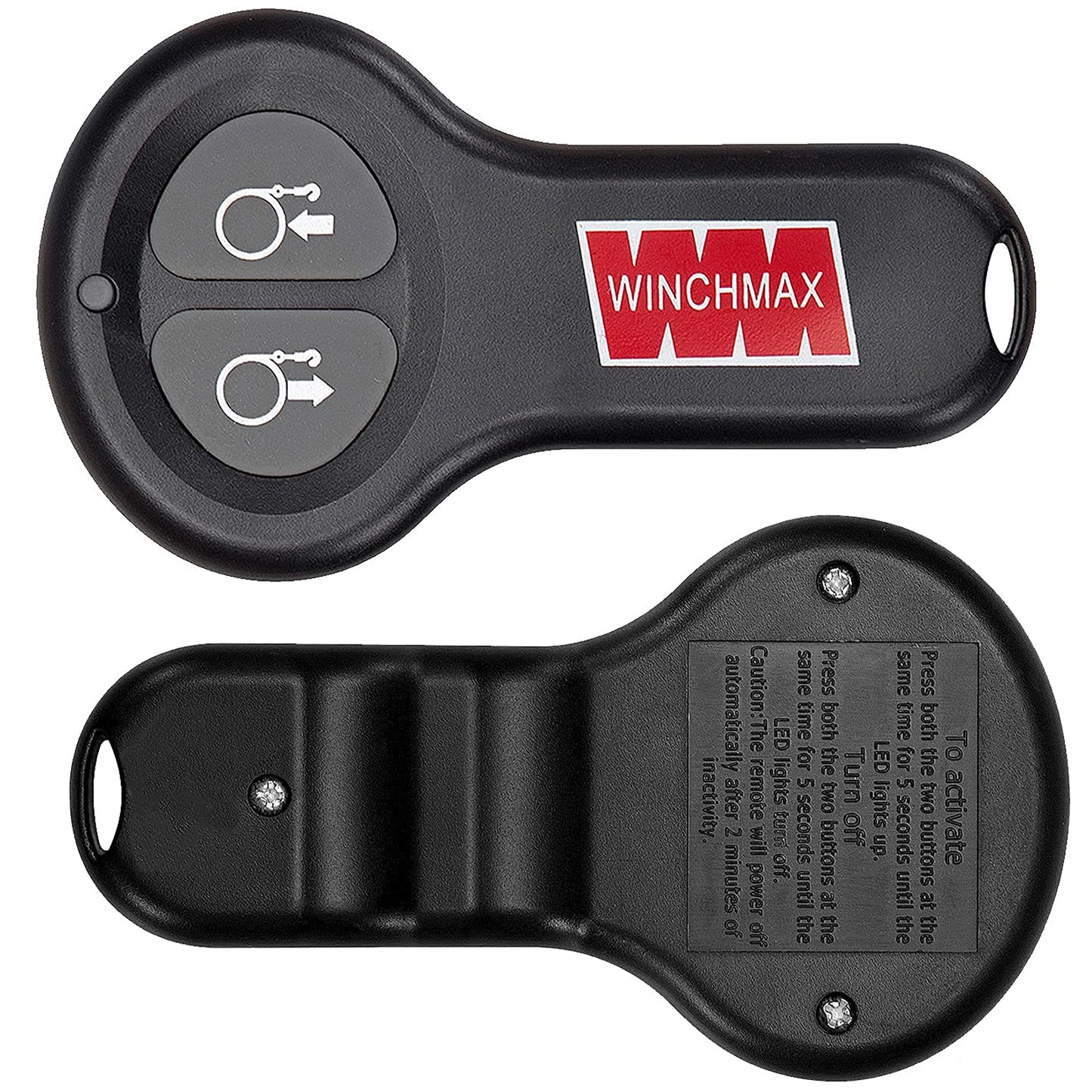

• Latest technology long-range wireless remote controls, twin handsets
• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 24m x 9 mm multi-strand steel wire rope.

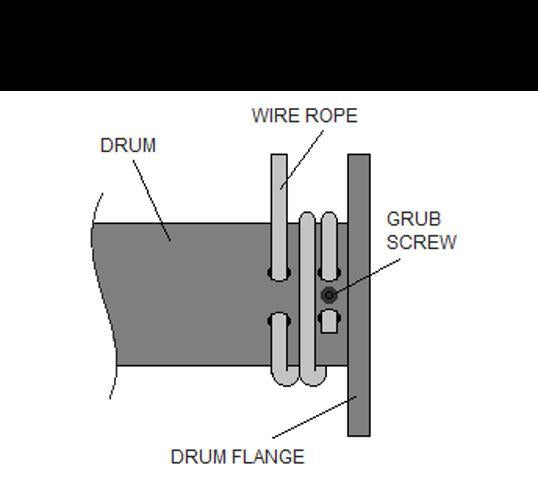

• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

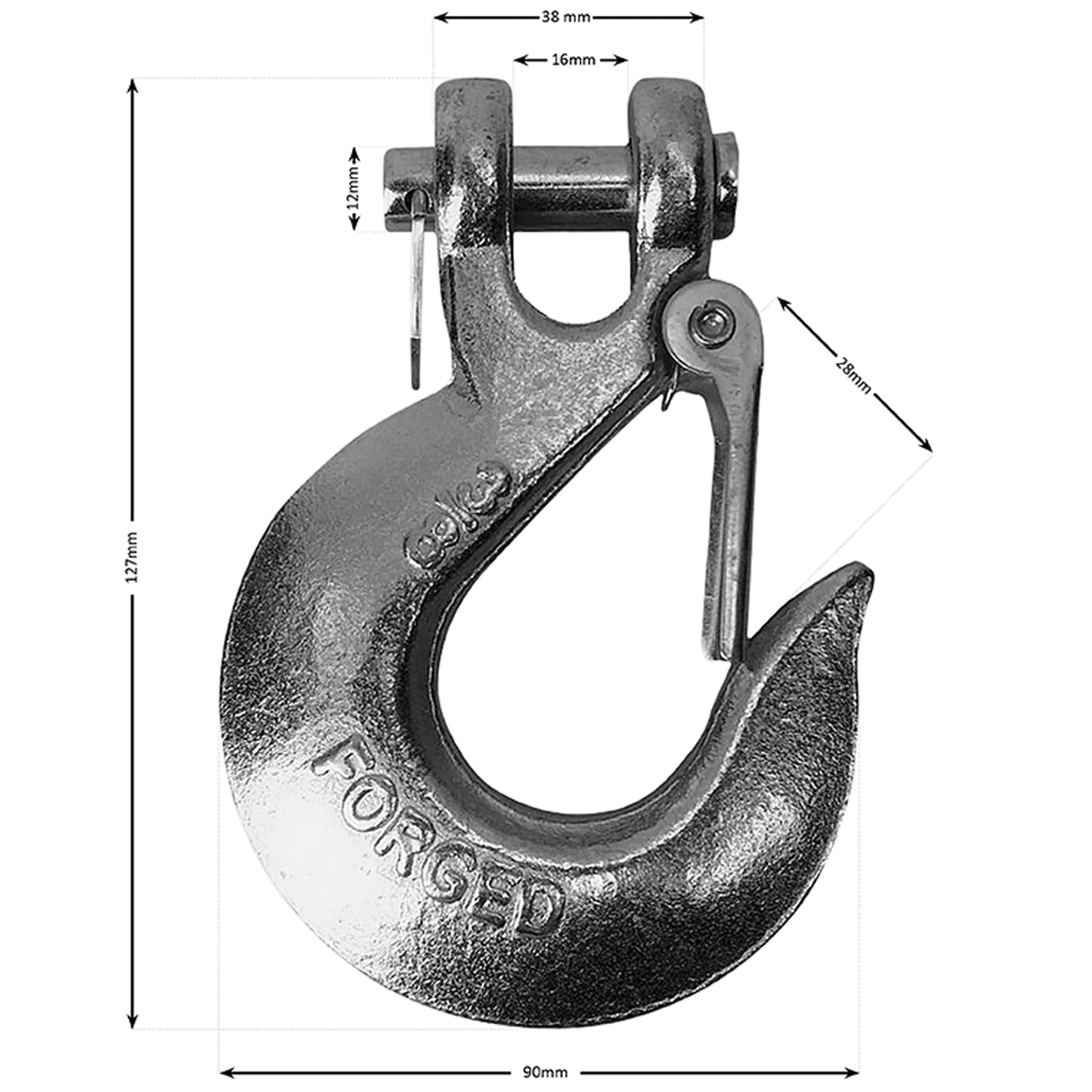

• 3/8 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.

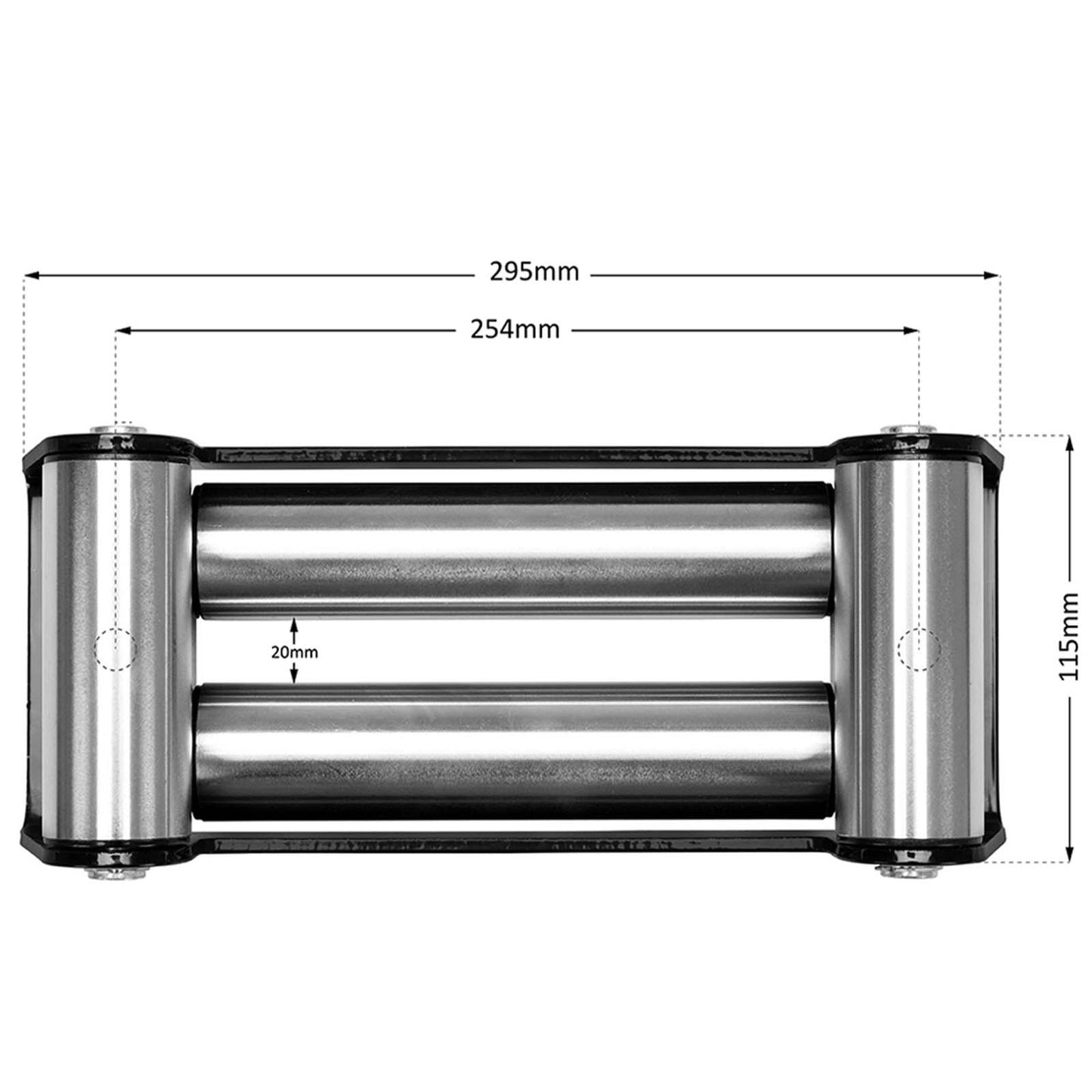

• Tough four roller fairlead with zinc plated rollers.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP68 waterproof.
• Power in/out handheld control unit - with a large emergency stop button
• Sliding ring gear freewheel clutch.
• Tough four roller fairlead with zinc plated rollers.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime.
• Heavy-duty & built to last - gross weight 52kg.
• CE certified & built to ISO9001 quality management system requirements.

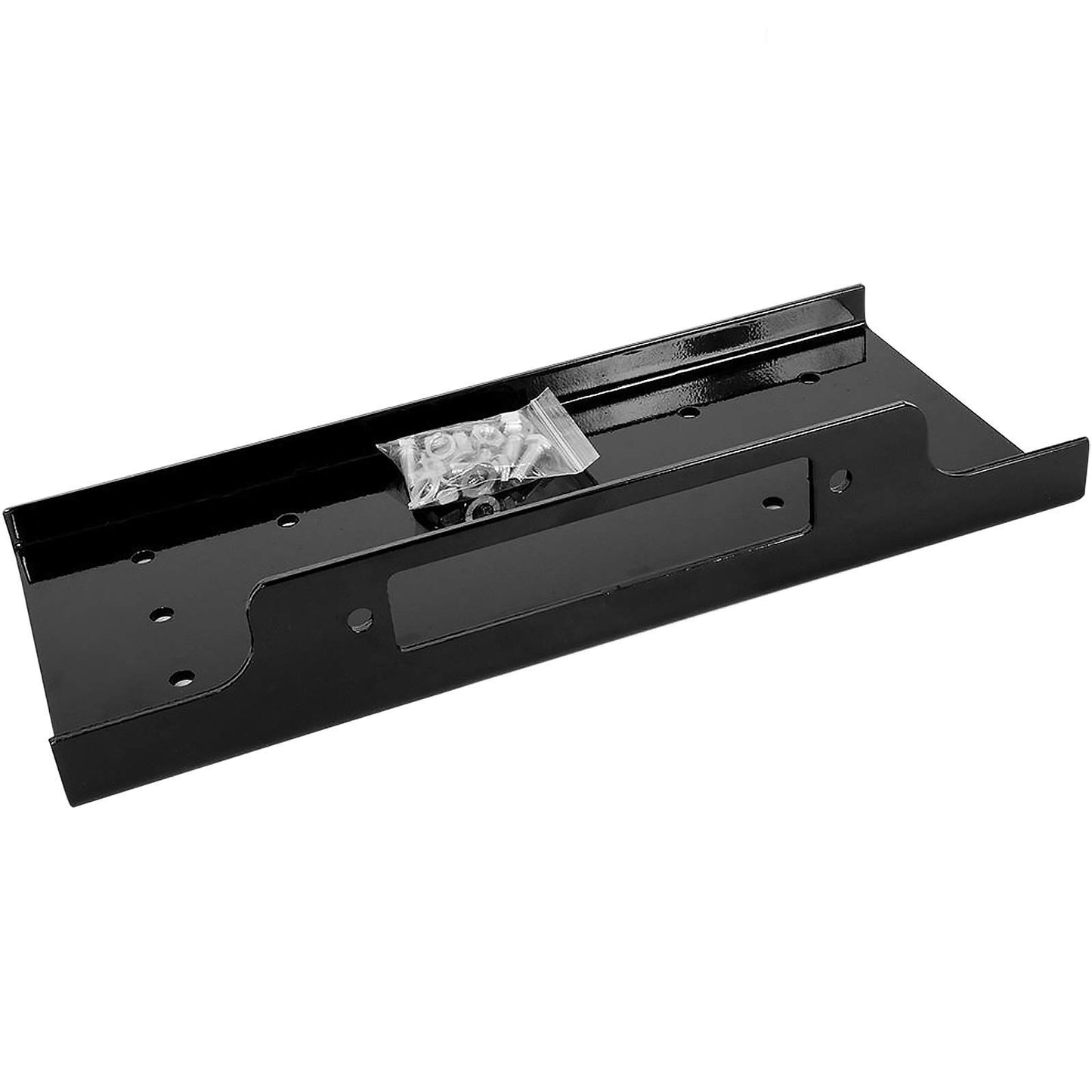

Mounting Plate

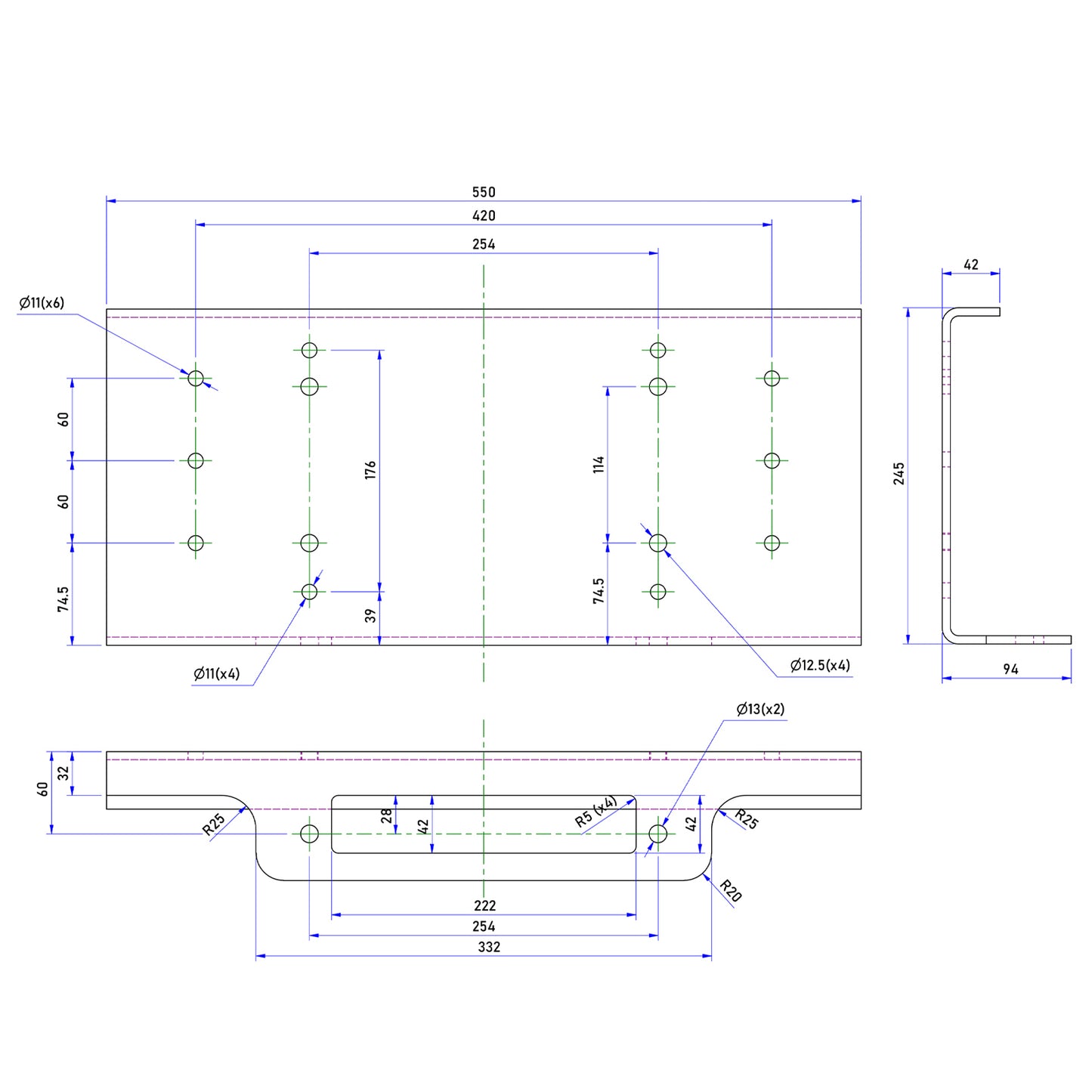

• Drilled for standard 254mm x 114.3mm (10" x 4.5") bolt pattern.
• Black powder-coated for excellent corrosion resistance.
• Pre-drilled for winch and roller fairlead
• Mounting Plate - Manufactured in the UK

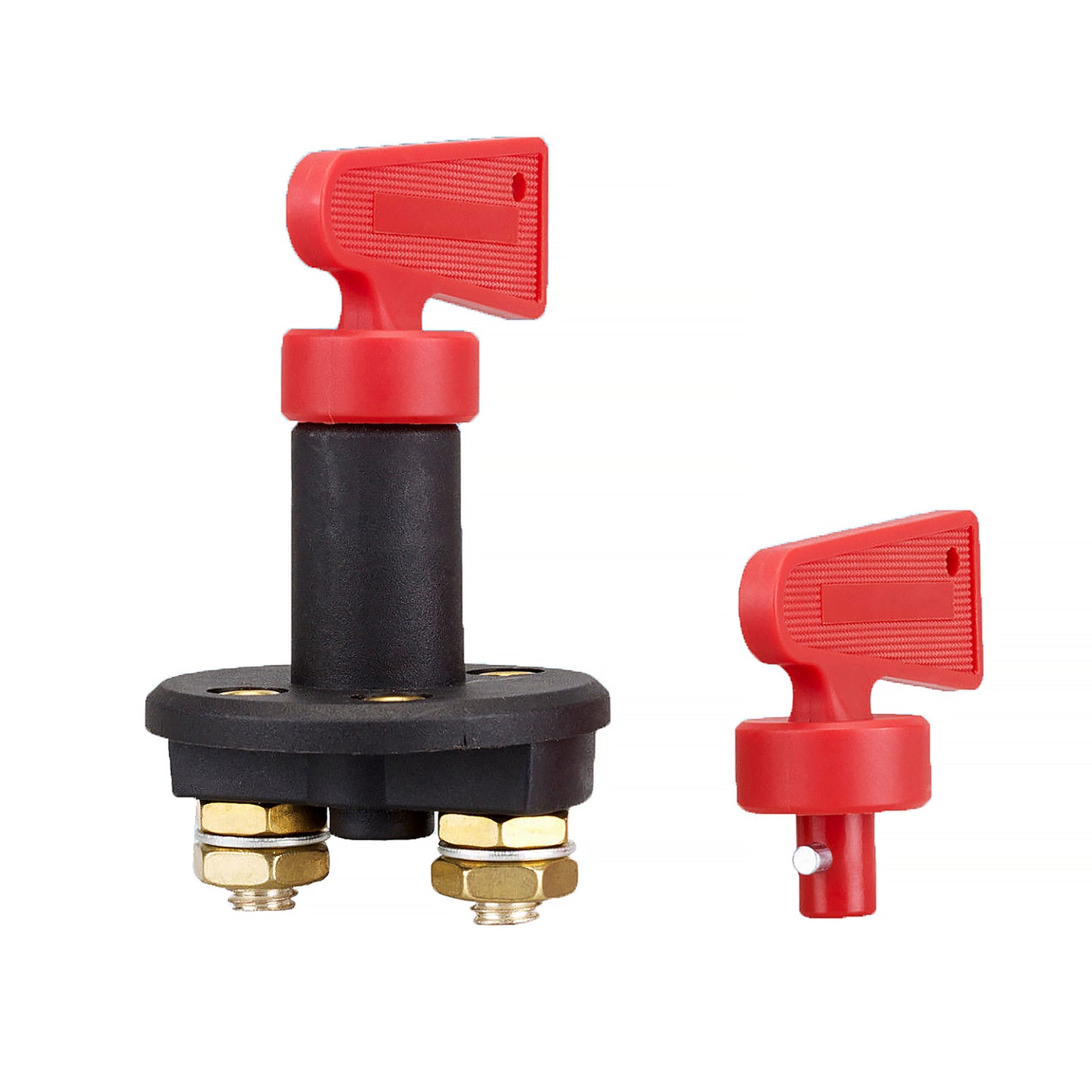

WINCHMAX Heavy-Duty Battery Isolator Switch

• 300A rating.
• Heavy-duty construction.
• 2 x twist and release keys.
• Suitable for all WINCHMAX winches.
• M10 connection posts with nuts and washers.
• Isolator switch - Essential safety feature for electric winches.
• Provides a fast disconnect in the case of an emergency.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	9,000lb (4,082kg)
Motor	12v 6.8hp/5.1kw series wound
Control	Remote switch, 12ft (4.5m) lead, in & out
Gear Train	3 stage planetary
Gear Reduction Ratio	358:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter (3.5") 90mm Length (8.82") 224mm
Drum Finish	Black, painted.
Cable	24m x 9mm multi-strand steel wire rope
Hook	Clevis hook 3/4 inch, zinc plated.
Fairlead	4-way roller fairlead
Battery	Recommended: 650CCA Minimum For Winching
Winch Finish	Original Orange powder coated
Weight (GW)	52kg (114lb)

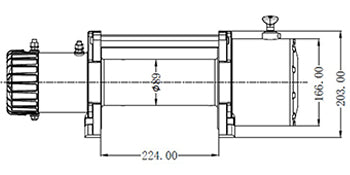

Overall Dimensions (LxWxH)	560.5 x 195 x 232mm
Mounting Bolt Pattern	254 x 114.3mm + 254mm x 176mm (8 fixings)
No Load Line Speed	7.28m/min (23.9 ft/min)

  Performance Data

Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	21.5ft (6.5m)	65A
2,000 (909)	11.5ft (3.55m)	126A
4,000 (1,818)	9.4ft (2.85m)	175A
6,000 (2,727)	7.9ft (2.4m)	230A
8,000 (3,636)	6.5ft (2.0m)	280A
9,000 (4,090)	5.22 (1.5)	360A

  Line pull and rope capacity in layer

Layer Rated	Line pull (Lb)	Line Pull (Kg)	Total Rope On Drum (ft/m)
1	9,000	4,090	19.6/6.0
2	8,000	3,636	42.6/13.0
3	6,670	3,030	68.9/21.0

Documenti PDF

• KeyholeRemoteGuide
