Verricello elettrico di livello militare da 3.000 libbre (1.361 kg) a 24 V, fune in Dyneema, doppio telecomando wireless

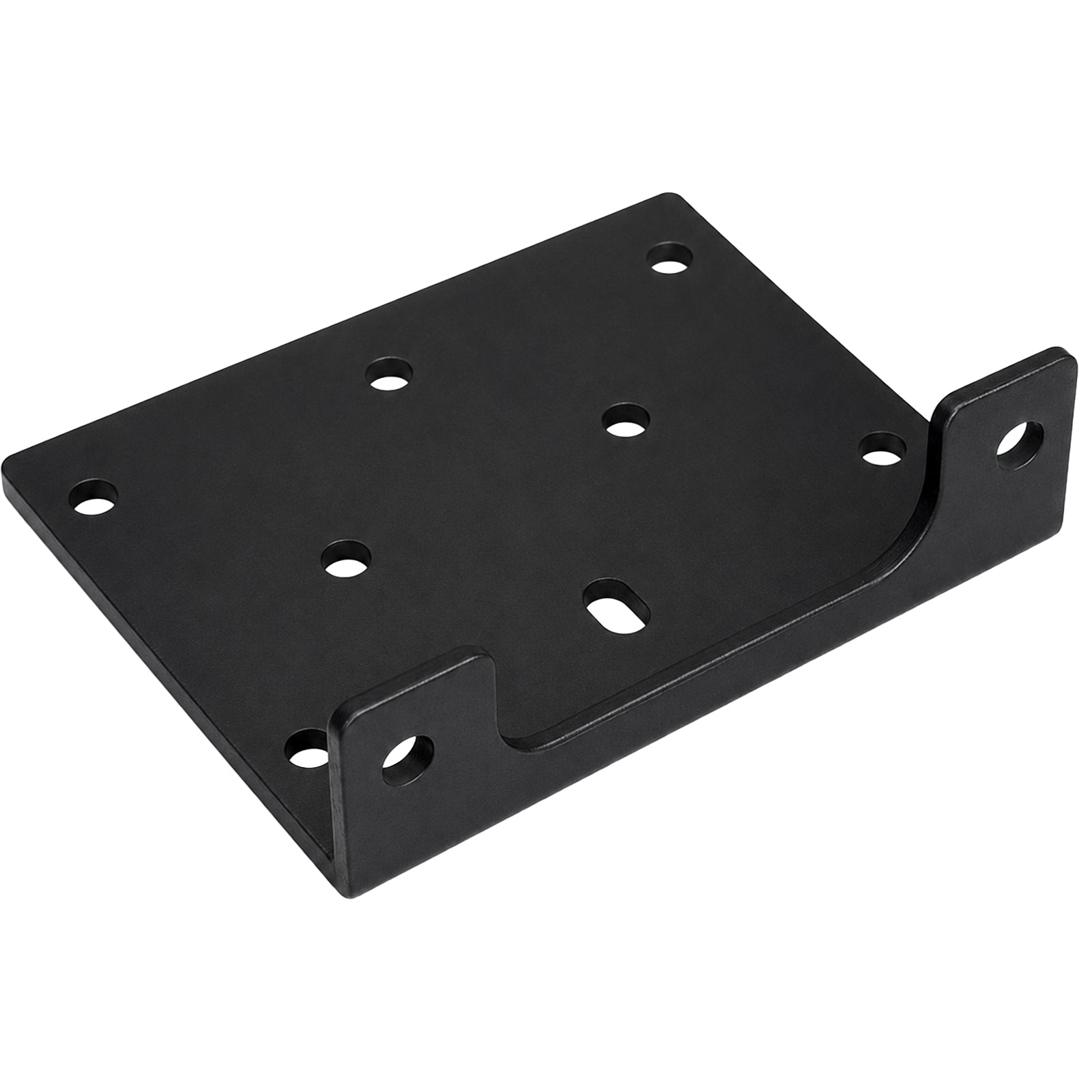

Include piastra di montaggioIdeale per l'uso su rimorchi per barche, quad e veicoli utilitari leggeri
Caratteristiche
- Verricello elettrico a trazione rettilinea da 3.000 libbre (1.361 kg) a 24 V.
- Di livello militare con misure anticorrosione migliorate.
- Telecomandi wireless a lungo raggio di ultima generazione, doppio telecomando.
- Motore elettrico a magneti permanenti super potente da 24 V.
- Riduttore a tre stadi ultra resistente con ingranaggi in acciaio temprato.
- Dyneema sintetico SK75 originale da 15,5 m x 5 mm Fune.
- Nuovo attacco fune passante con morsetto a vite senza testa per un fissaggio ultra sicuro della fune al tamburo.
- Gancio a forcella forgiato da 1/4 di pollice grado 70 con fermo di sicurezza, zincato per resistenza alla corrosione e salvamano.
- Passacavi in alluminio. Fresato CNC di precisione con marchio WINCHMAX inciso al laser.
- Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
- Power in/out rocker switch (with handlebar mount).
- Free-wheel clutch.
- Stainless steel crossbars and fixings.
- Upgraded water seals.
- High tensile fixing bolt kit.
- 2 x 180cm battery power cables, 2x 90cm motor power cables.
- Strong WINCHMAX branded cover to protect from water and road grime.
- Heavy-duty & built to last - gross weight 12kg.
- CE certified & built to ISO9001 quality management system requirements.
Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale. -
Single Line Rated Pull 3,000lb (1,361kg) Motor 24v 1.5hp permanent magnetic motor Control Remote rocker switch, handlebar mount kit, in and out Gear Train 3 stage planetary Gear Reduction Ratio 136:1 Clutch Cam activated free spool Braking Action Automatic in the drum Drum Size Diameter 50mm (2.0") Length 75mm (2.9”) Drum Finish Aluminium Cable 15.5m x 5mm stainless steel wire rope Hook Clevis hook 1/4 inch, zinc plated Fairlead 4 Way stainless steel roller fairlead Battery Recommended 12Ah minimum for winching Battery Leads 6 gauge, 1.7m (67”) 15mmsq - 4.2mm diameter Finish Matt black (low light paint) Weight (GW) 12kg (26.5lb) Overall Dimensions(LxWxH) 339 x 110 x 114 mm Mounting Bolt Pattern 126 x 76 mm Motor Current 15-200A No Load Line Speed 8.3m/min (27.2 ft/min) Wireless Remote Long Range Wireless Remote Control x 2 Layer Rated Line pull (lb) Line Pull (kg) Total Rope On Drum (ft/m) 1 3,000 1,361 8.85 (2.7) 2 2,561 1,162 19.22 (5.86) 3 2,234 1,013 31.11 (9.48) 4 1,981 899 44.52 (13.58) 5 1,779 807 50.0 (15.5) Line Pull (lb/kg) Line Speed ft/min (m/min) Motor (Amps) 0 (0) 27ft (8.3m) 10A 500 (227) 20ft (6.1m) 21A 1,000 (454) 16ft (4.9m) 32A 2,000 (907) 9ft (2.7m) 65A 3,000 (1361) 5ft (1.5m) 95A -
