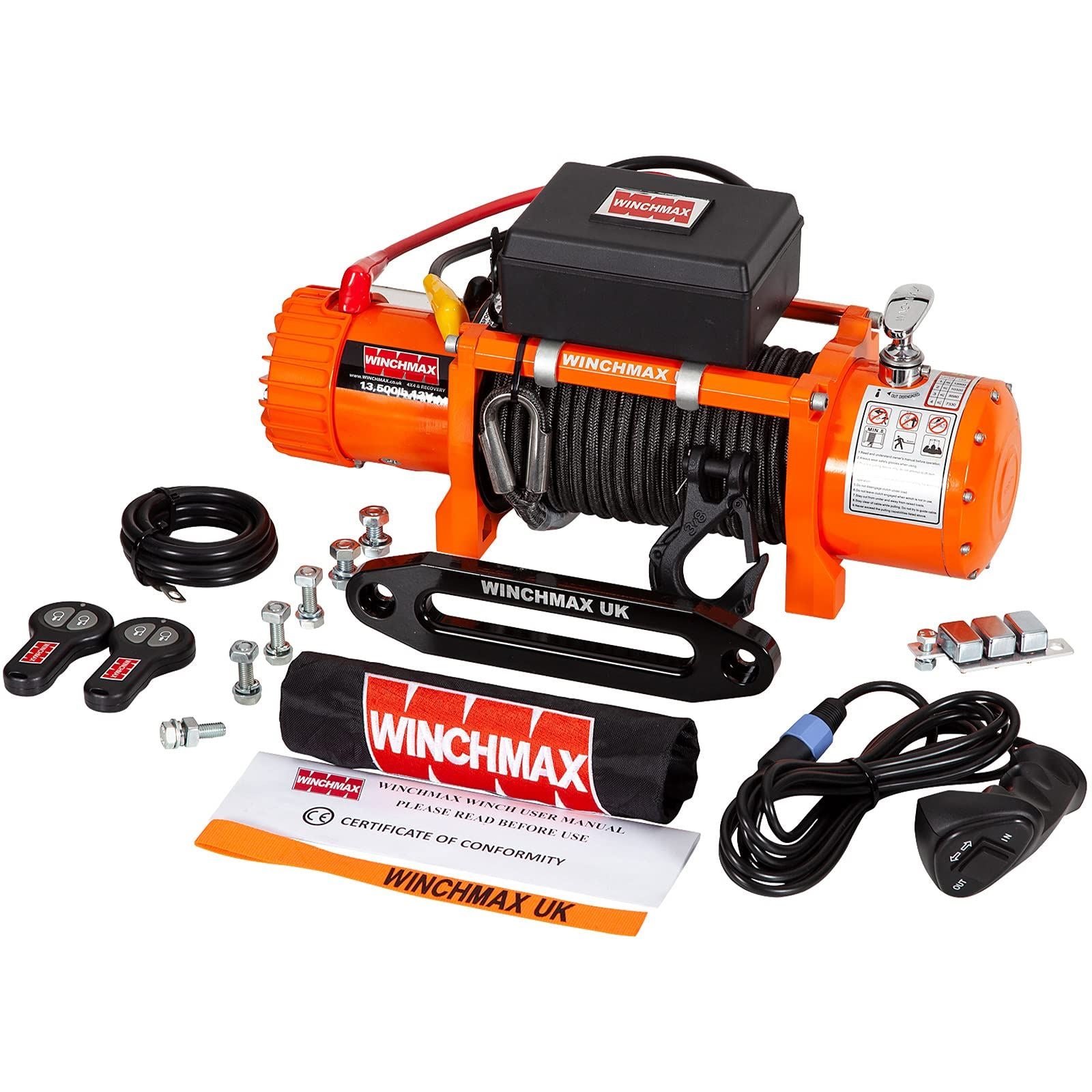

13,500lb (6,123kg) 12v Electric Winch. 3.5Ton Recovery/Trailer Winch Kit. 25 m x 10 mm Armourline Rope. 3/8 inch hook.

13,500lb (6,123kg) Original Orange 12V Winch, Compact Mounting Plate. Armourline Rope. Battery Isolator. Twin Wireless Remote Controls.

Ideal for recovery trucks and 4x4s up to 3.5T

Winch

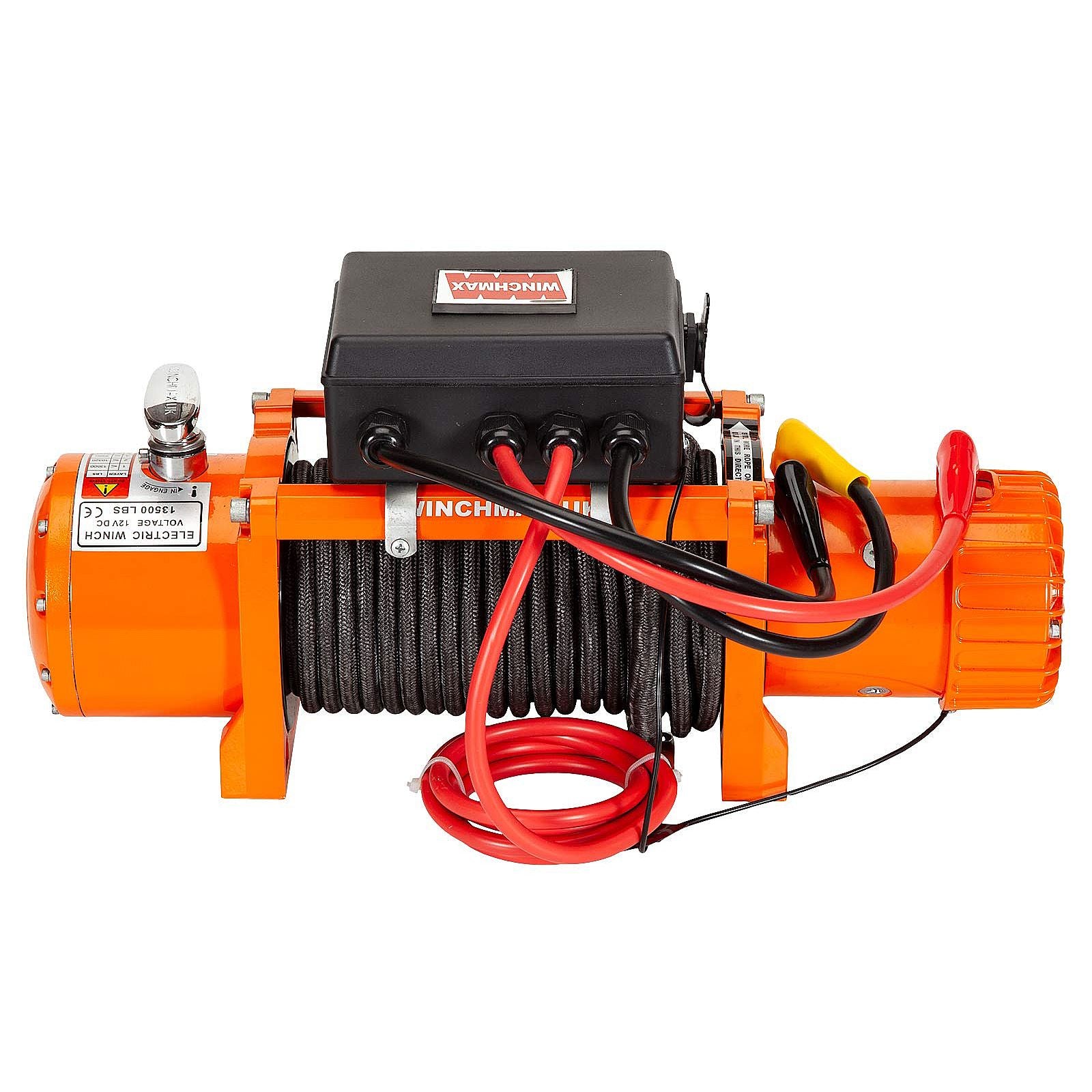

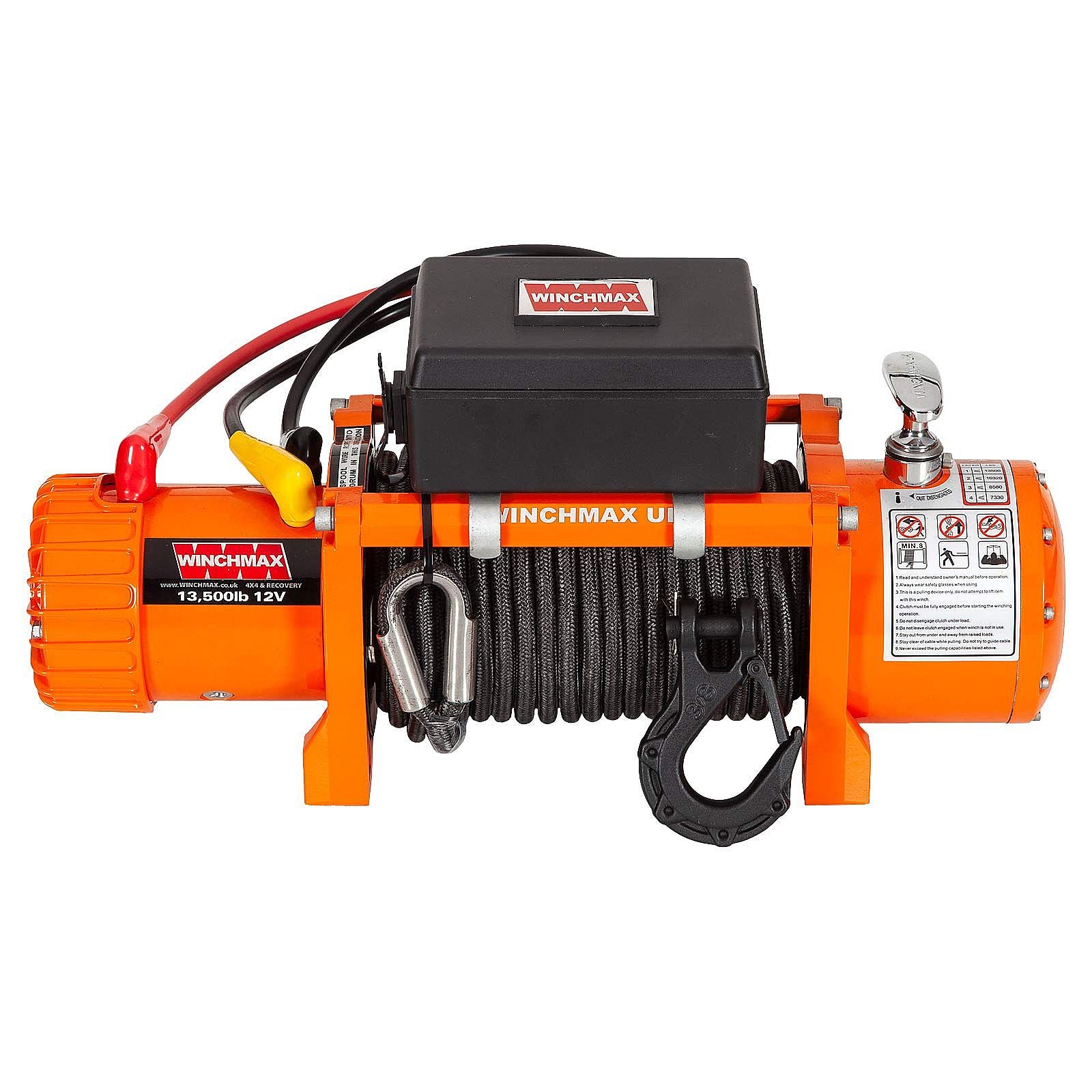

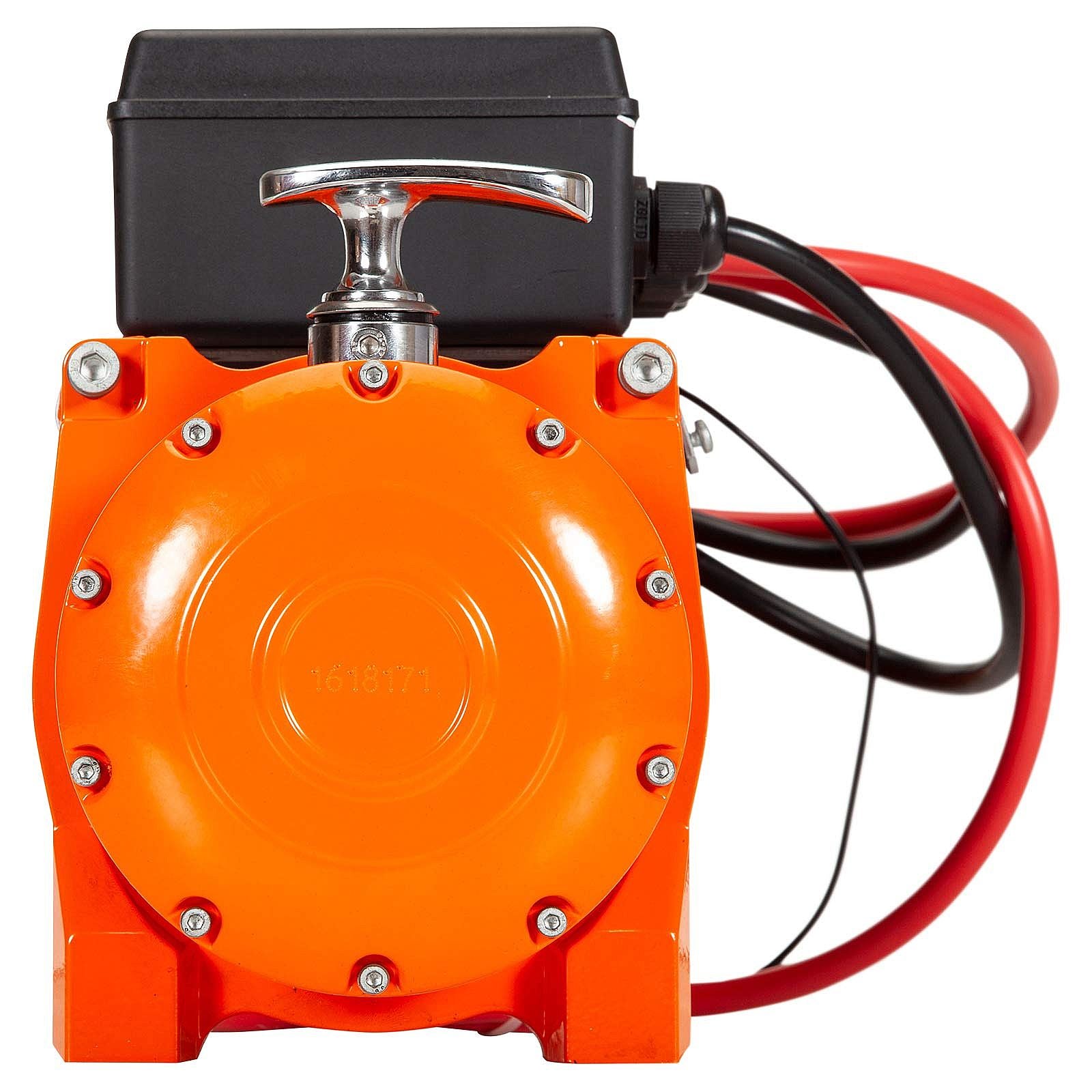

• 13,500lb (6,123kg) straight-line pull 12V electric winch.
• Latest technology long-range wireless remote controls, twin handsets.
• Super powerful 12V 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 25m x 10mm Armourline double braided synthetic rope. 21,000lb (9,500kg) average breaking load.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

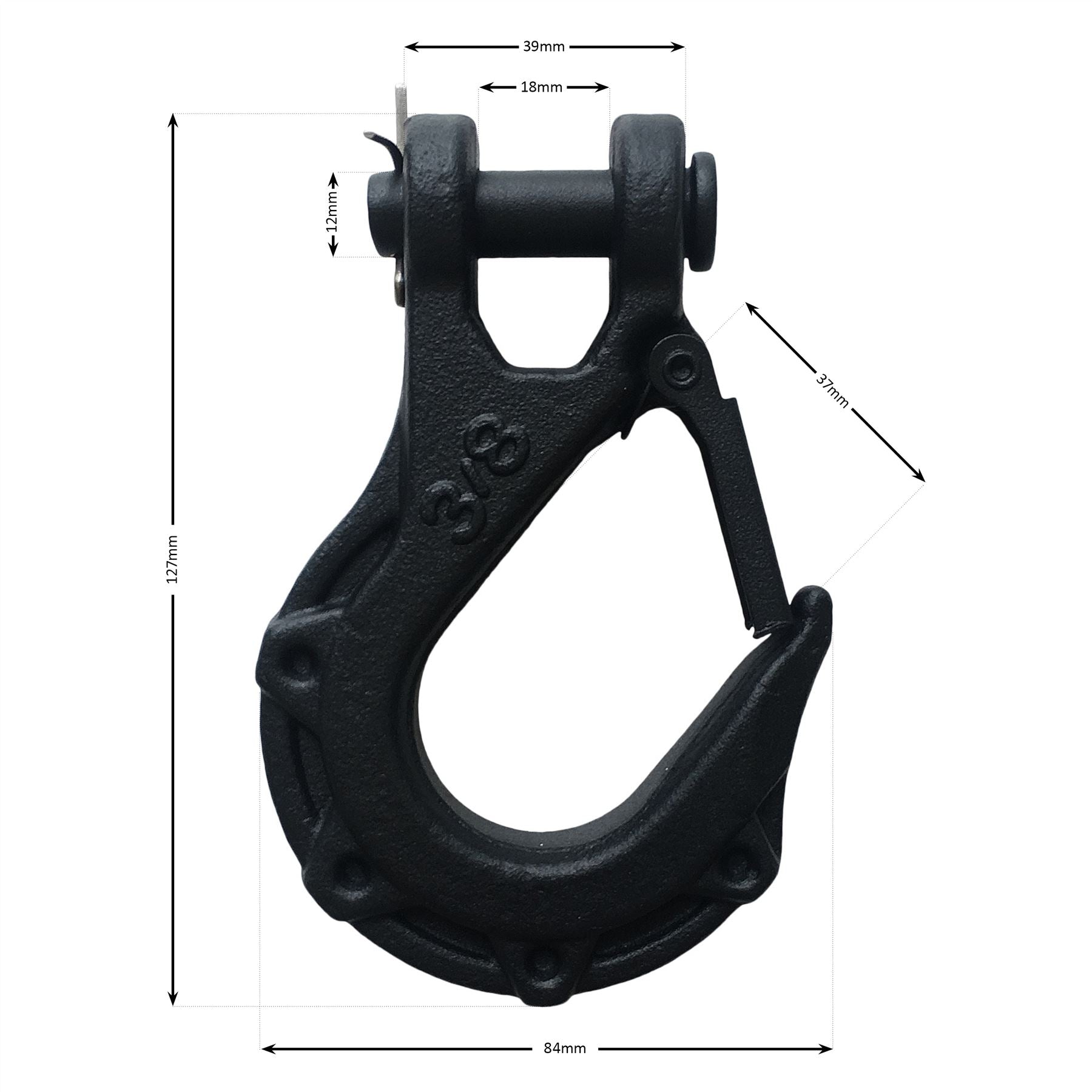

• Tactical clevis hook 3/8 inch G70 grade forged. Safety catch and hand saver, black.

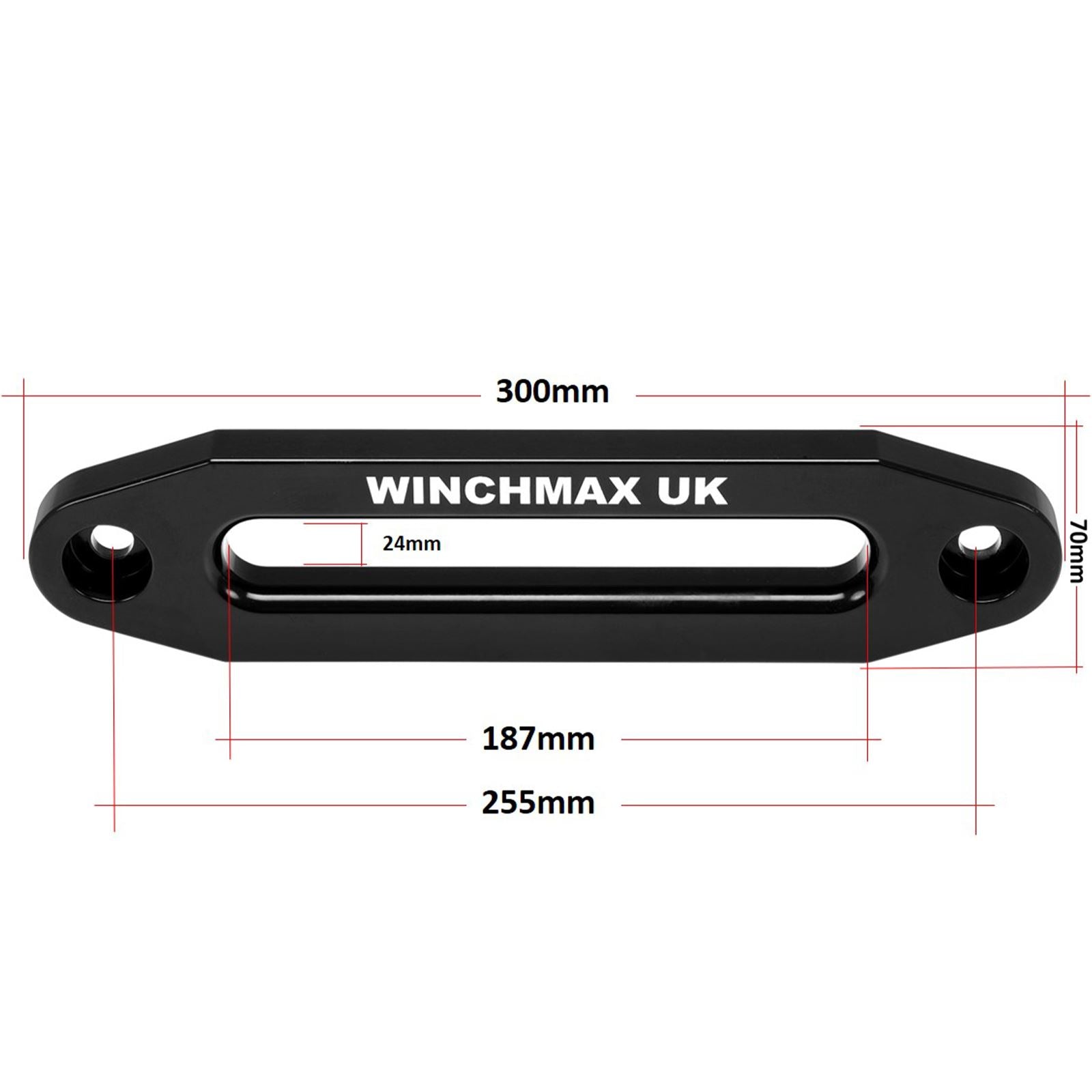

• WINCHMAX aluminium hawse fairlead. Precision CNC milled, laser-etched.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable and IP67 waterproof.
• Power in/out big grip wander lead with 4.5m cord.

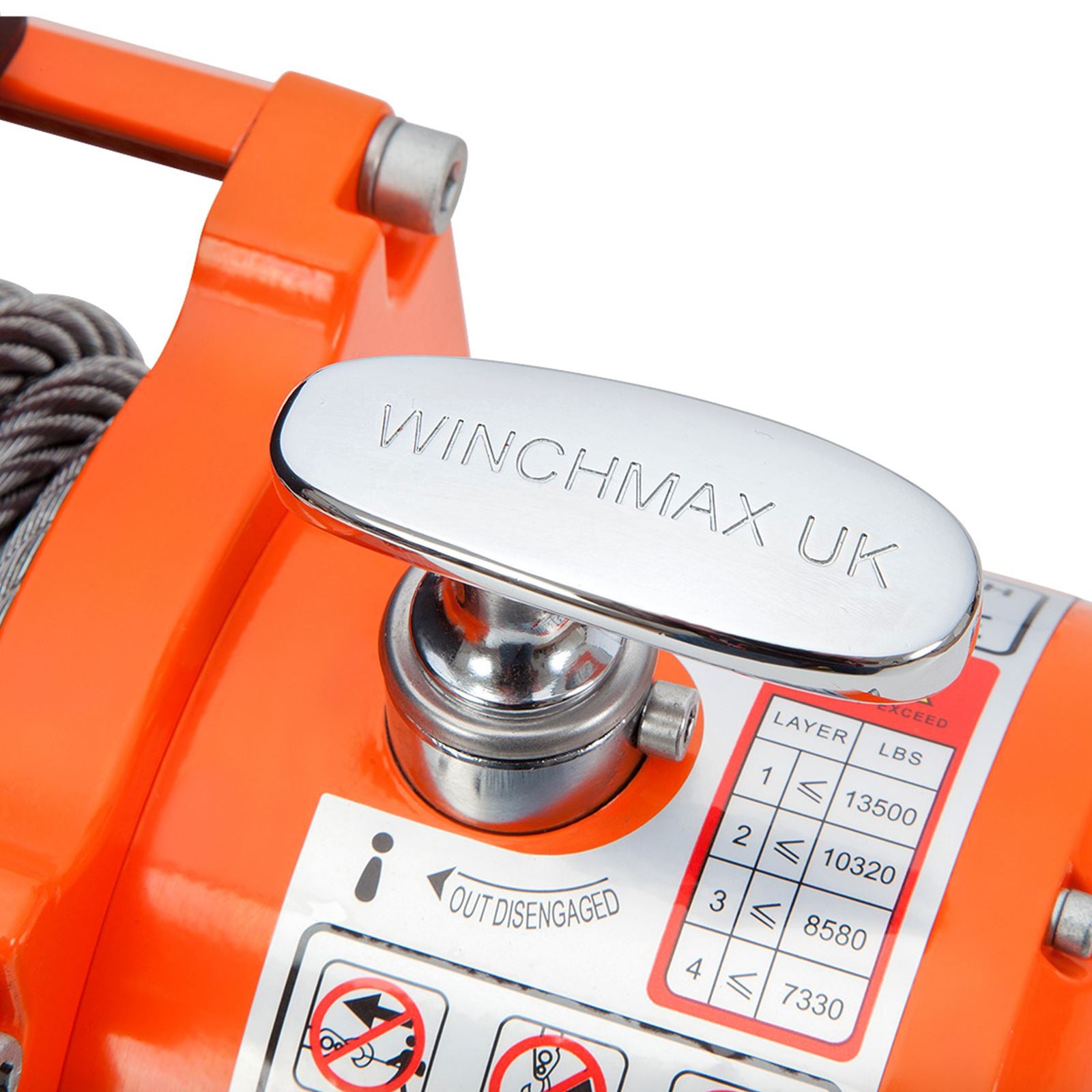

• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime.

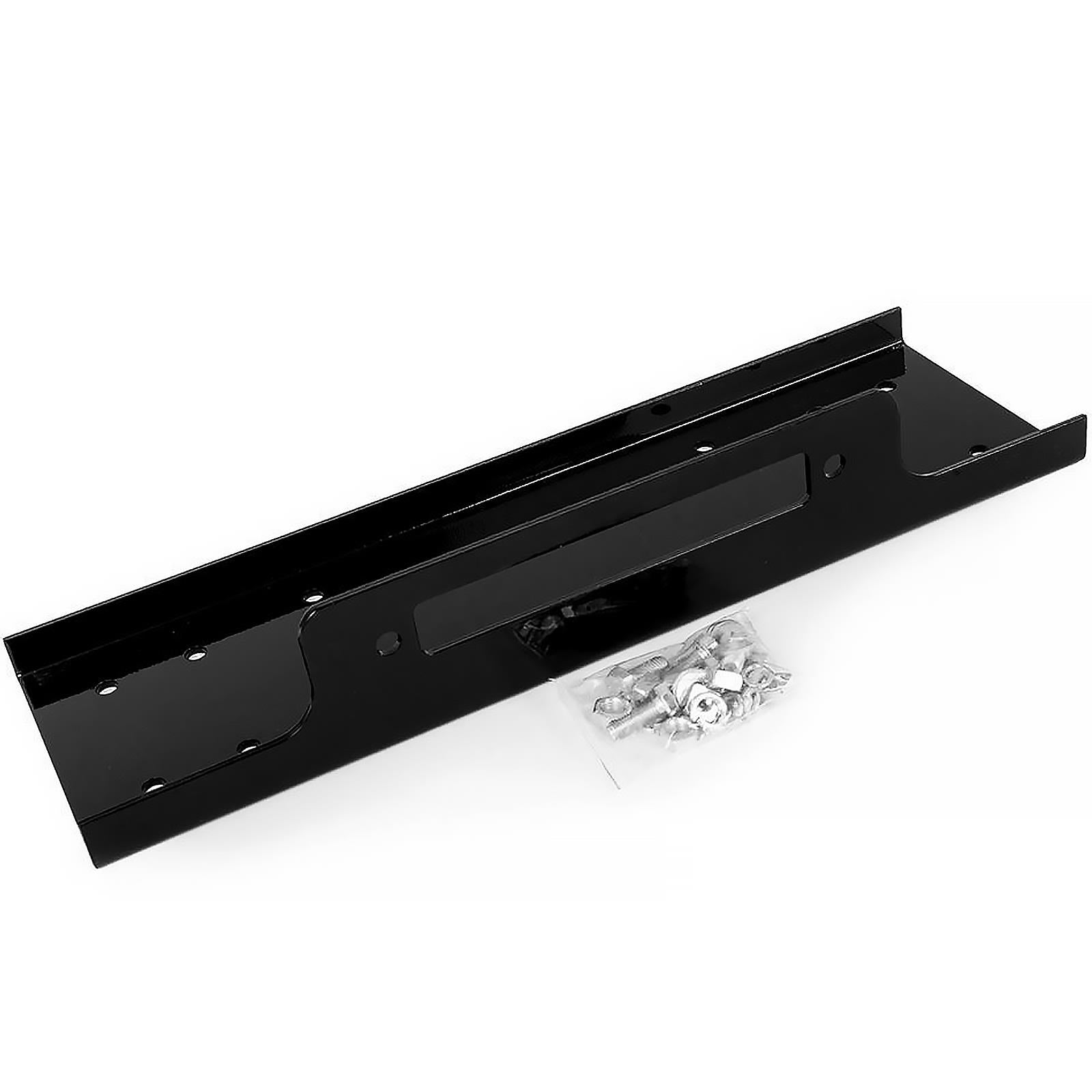

Mounting Plate

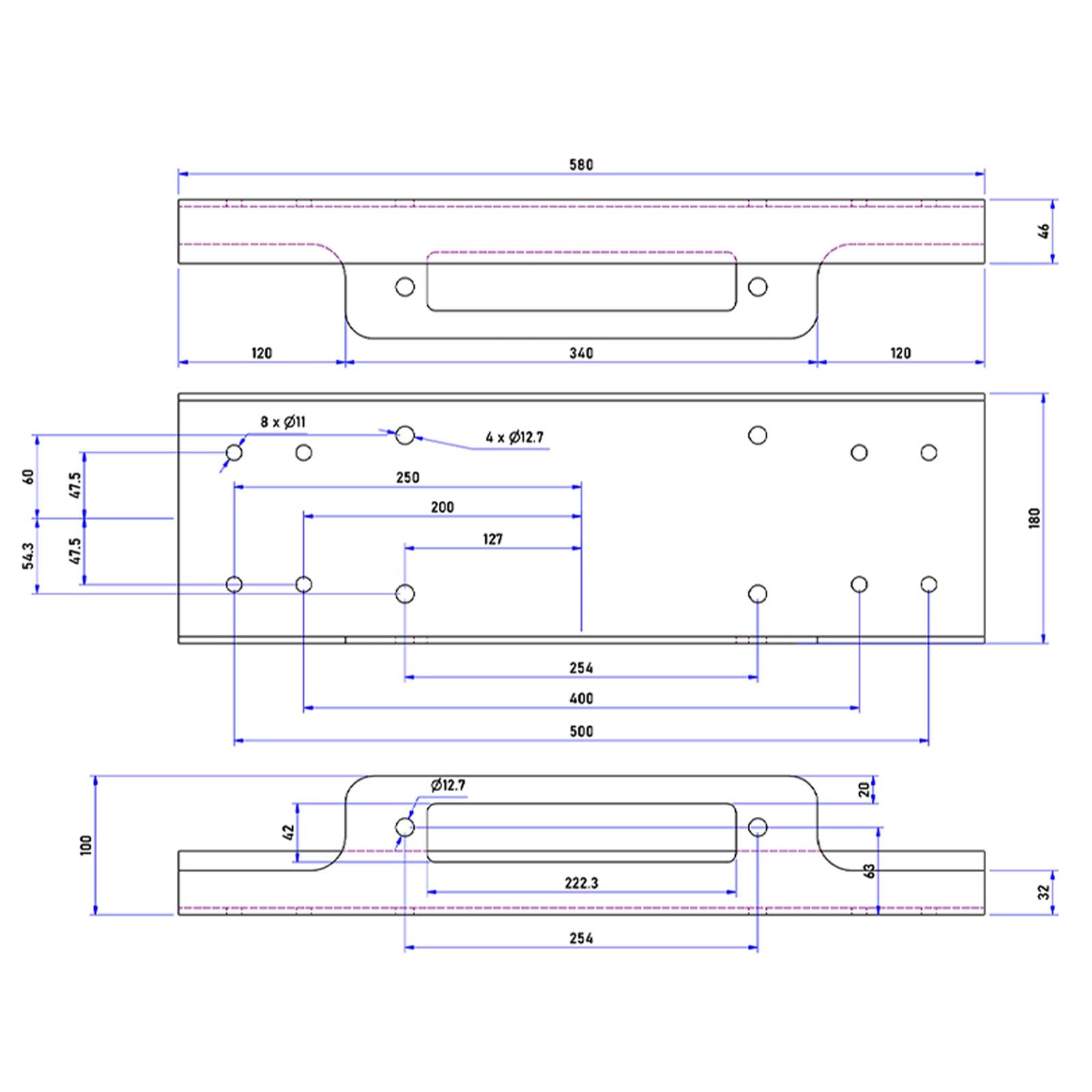

• Heavy-duty mounting plate made especially to suit WINCHMAX brand winches up to 13500lb or any other low profile winch with a standard 254mm x 114.3mm (10" x 4.5") bolt pattern.
• Dimensions- 580mm (length), 180mm (width), 100mm (height)
• Black powder-coated for excellent corrosion resistance.
• Pre-drilled for winch and roller fairlead
• Manufactured in the UK

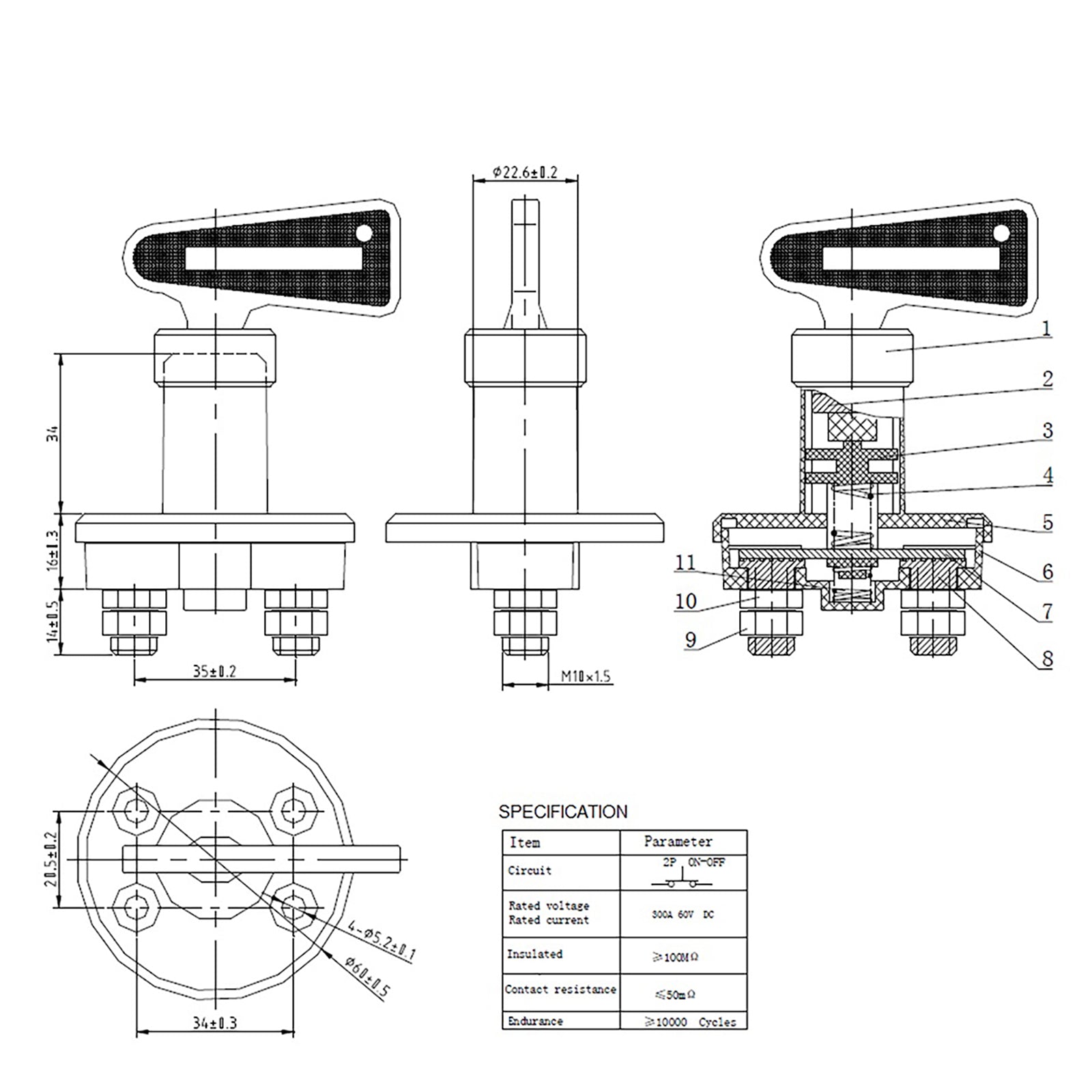

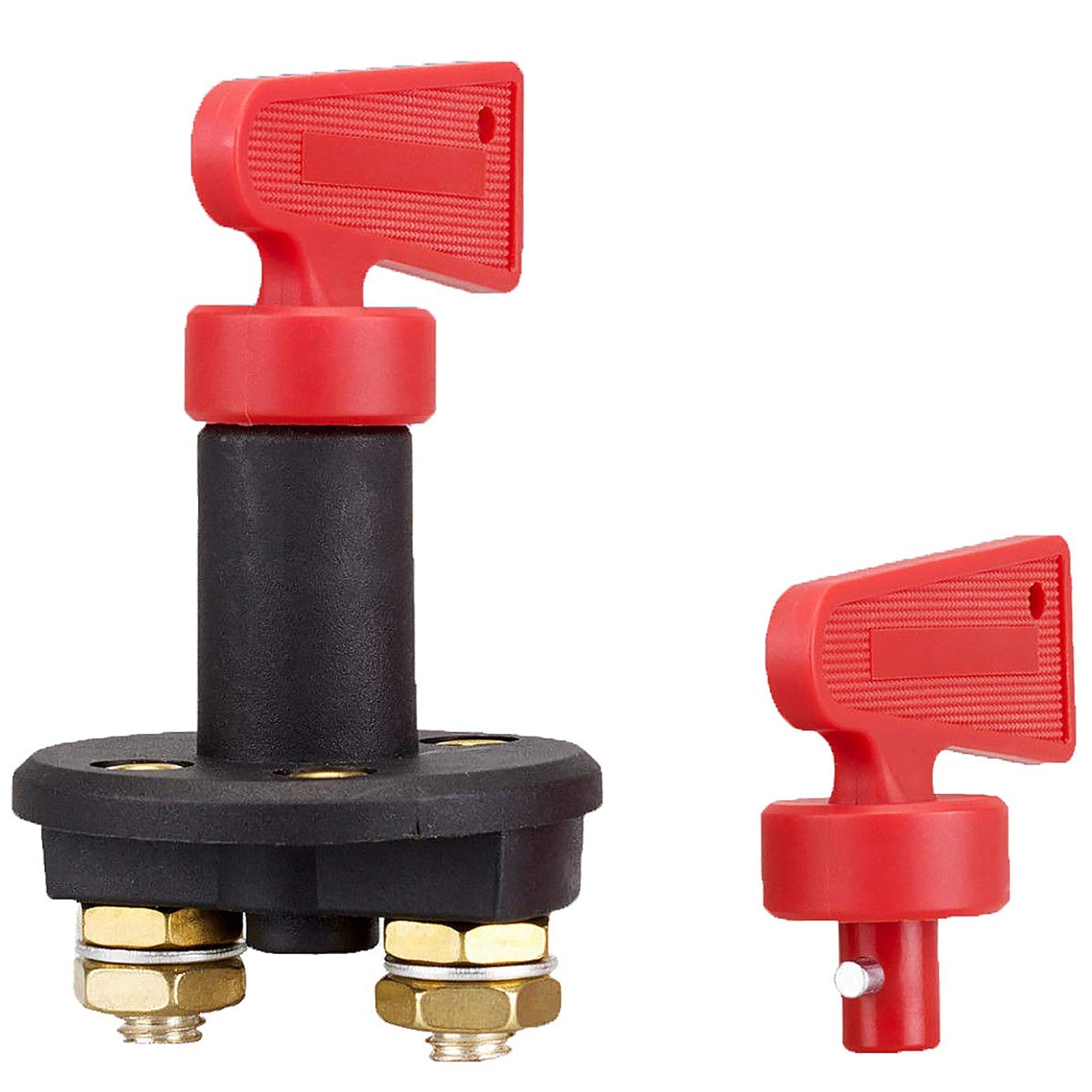

Battery Isolator

• 300A rating.
• Heavy-duty construction.
• 2 x twist and release keys.
• Suitable for all WINCHMAX winches.
• M10 connection posts with nuts and washers.
• Essential safety feature for all electric winches.
• Provides a fast disconnect in the case of an emergency.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	13,500lb (6,123kg)
Motor	12v 6.8hp/5.1kw, series wound
Control	Remote Switch, 4.5m lead, in and out
Gear Train	3 stage planetary
Gear Reduction Ratio	265:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 64mm (2.5") Length 224mm (8.82")
Drum Finish	Black, painted
Cable	25m x 10mm Armourline synthetic rope
Hook	Tactical clevis hook 3/8 inch, black
Fairlead	One-piece billet aluminium hawse fairlead
Battery	Recommended 650CCA minimum for winching
Battery Leads	2 gauge, 1.83m (72”) 25 mm² - 5.6mm diameter
Winch Finish	Original Orange powder-coated
Weight (GW)	30kg (88lb)

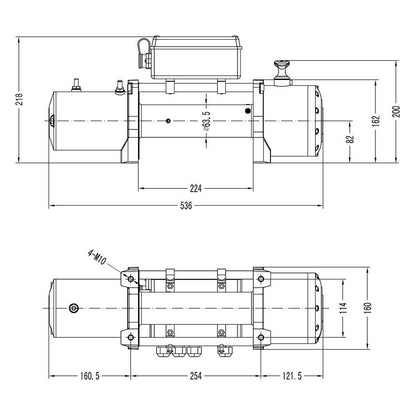

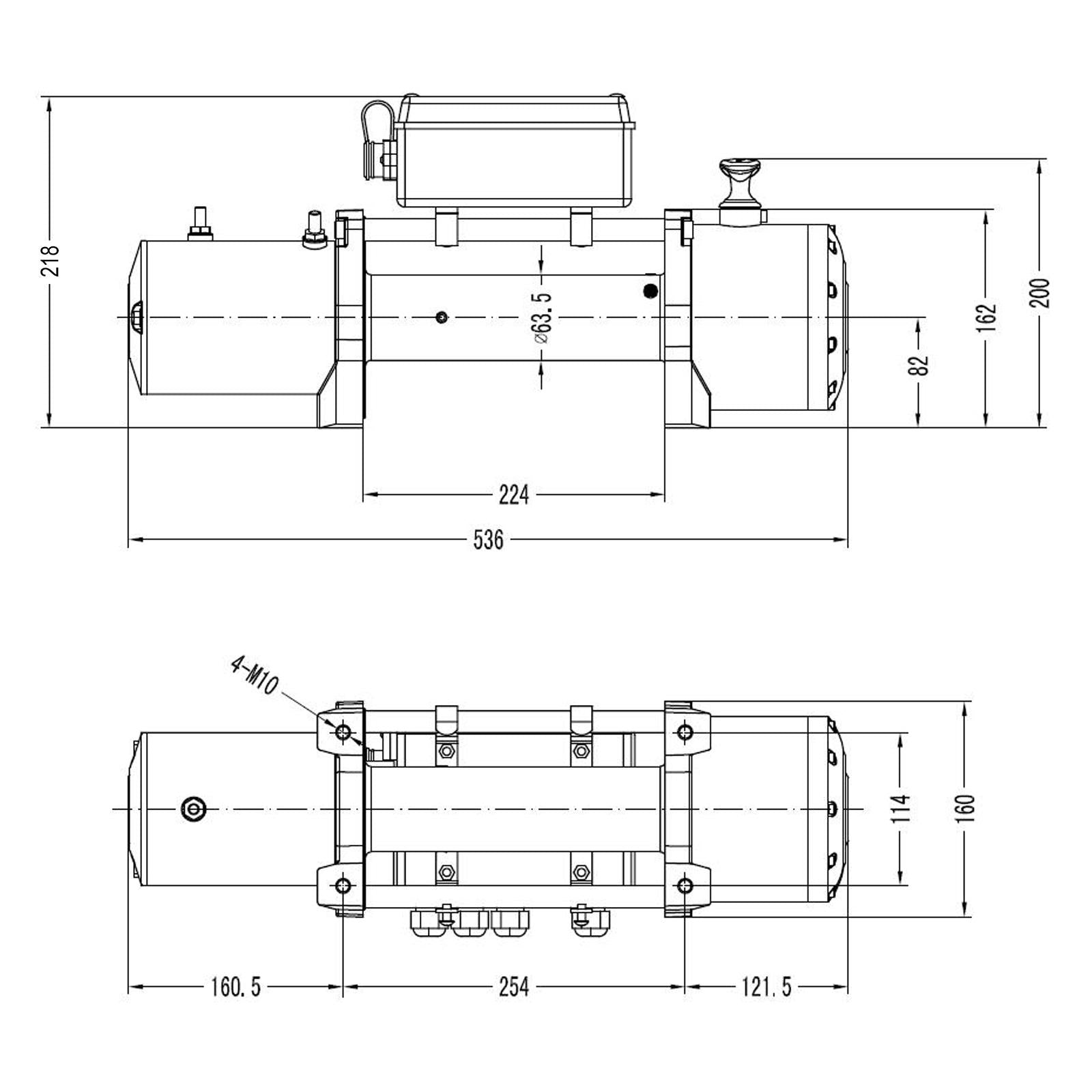

Overall Dimensions	536 x 160 x 218mm (21.3" x 6.3” x 8.6")
Mounting Bolt Pattern	10.00" ±0.015" x 4.50” ±0.010" (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	13,500	6,123	20.4/6.22
2	10,010	4,540	41/12.0
3	8,840	4,009	71/21.0
4	7,410	3,361	85/24.0



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft (7.5m)	70A
3,000 (1,363)	11.48ft (3.5m)	138A
6,000 (2,727)	8.86ft (2.7m)	218A
9,000 (4,090)	7.72ft (2.2m)	260A
13,500 (6,123)	5.58ft (1.7m)	415A
