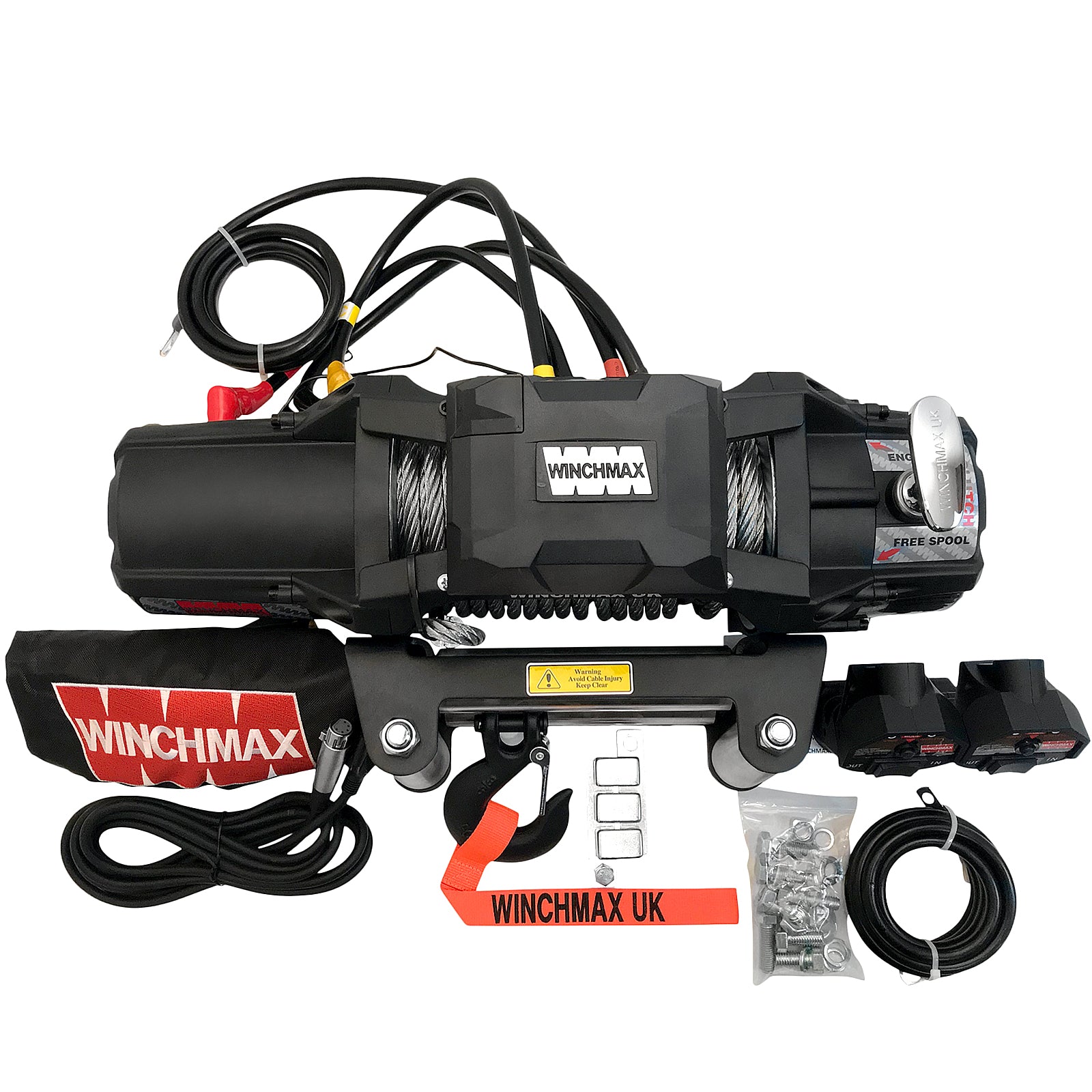

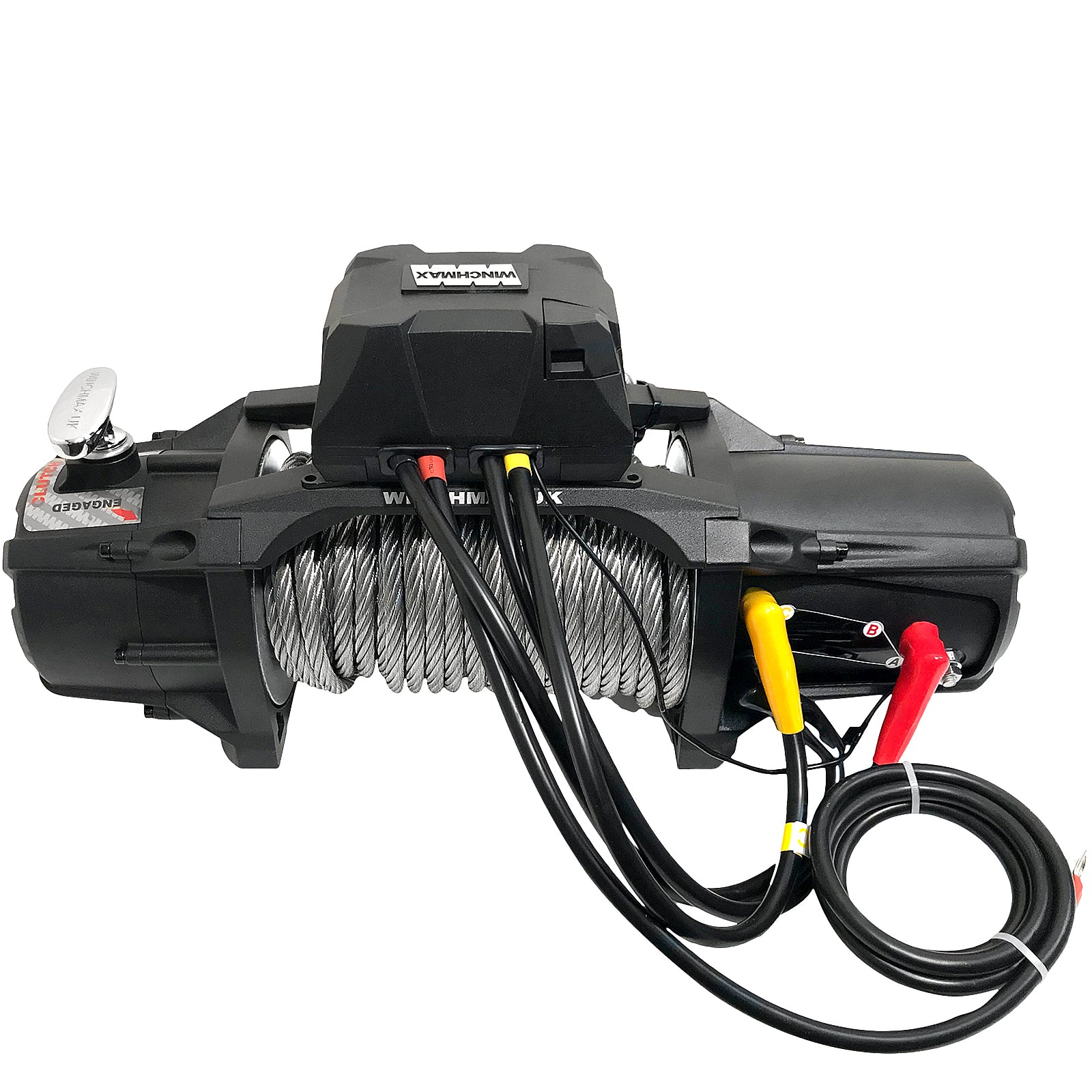

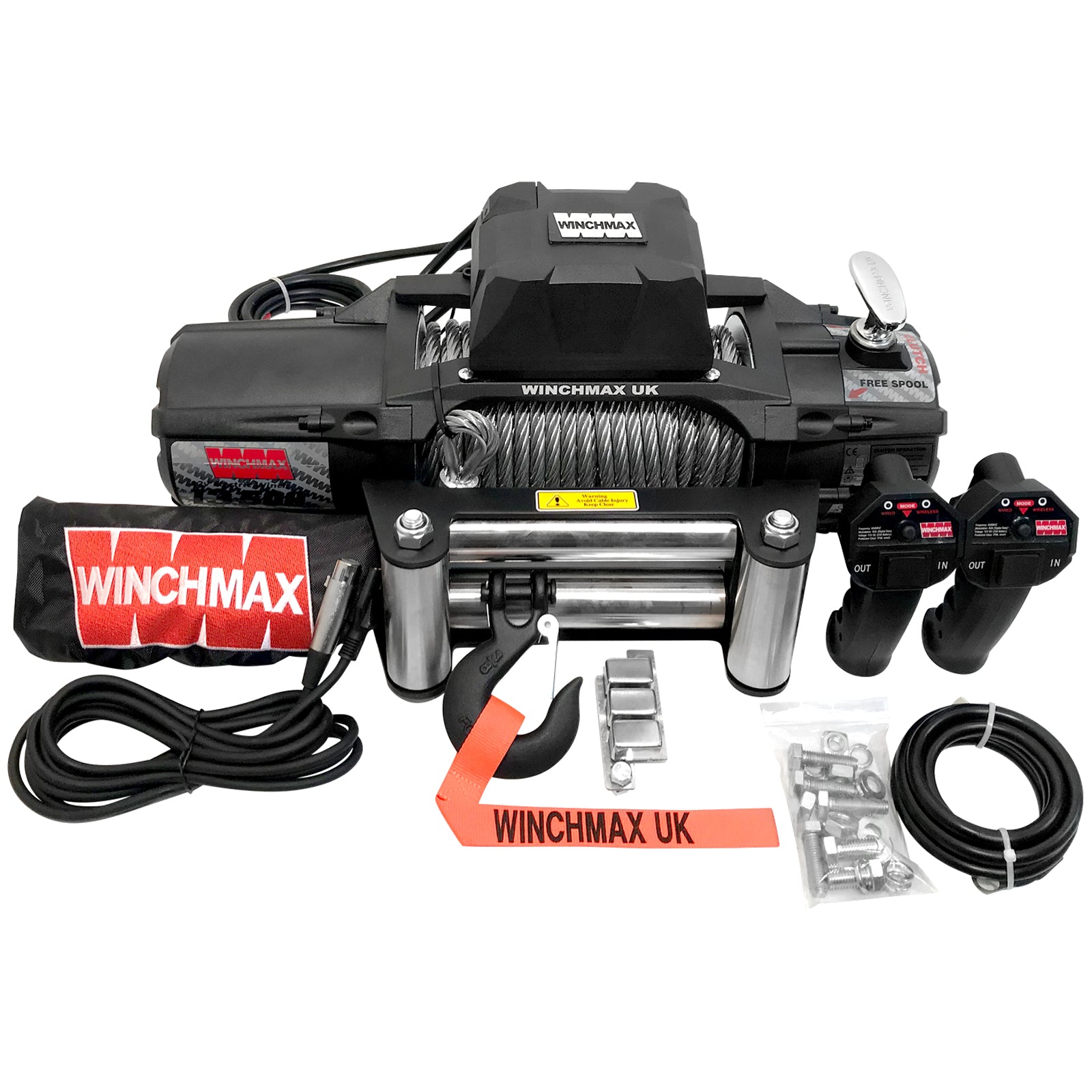

13,500lb (6,123kg) 'SL Series' 12v Military Grade Winch. 26m x 9.5mm Steel Rope, Twin Wireless Remote Controls.

13,500lb (6,123kg) SL Series Military Grade 12v electric Winch, Steel Rope, Twin Wireless remote control

Ideal for recovery trucks and 4x4s up to 3.5T

Features

• 13,500lb (6,123kg) straight-line pull SL series 12v electric winch.
• Military-grade with improved anti-corrosion measures.

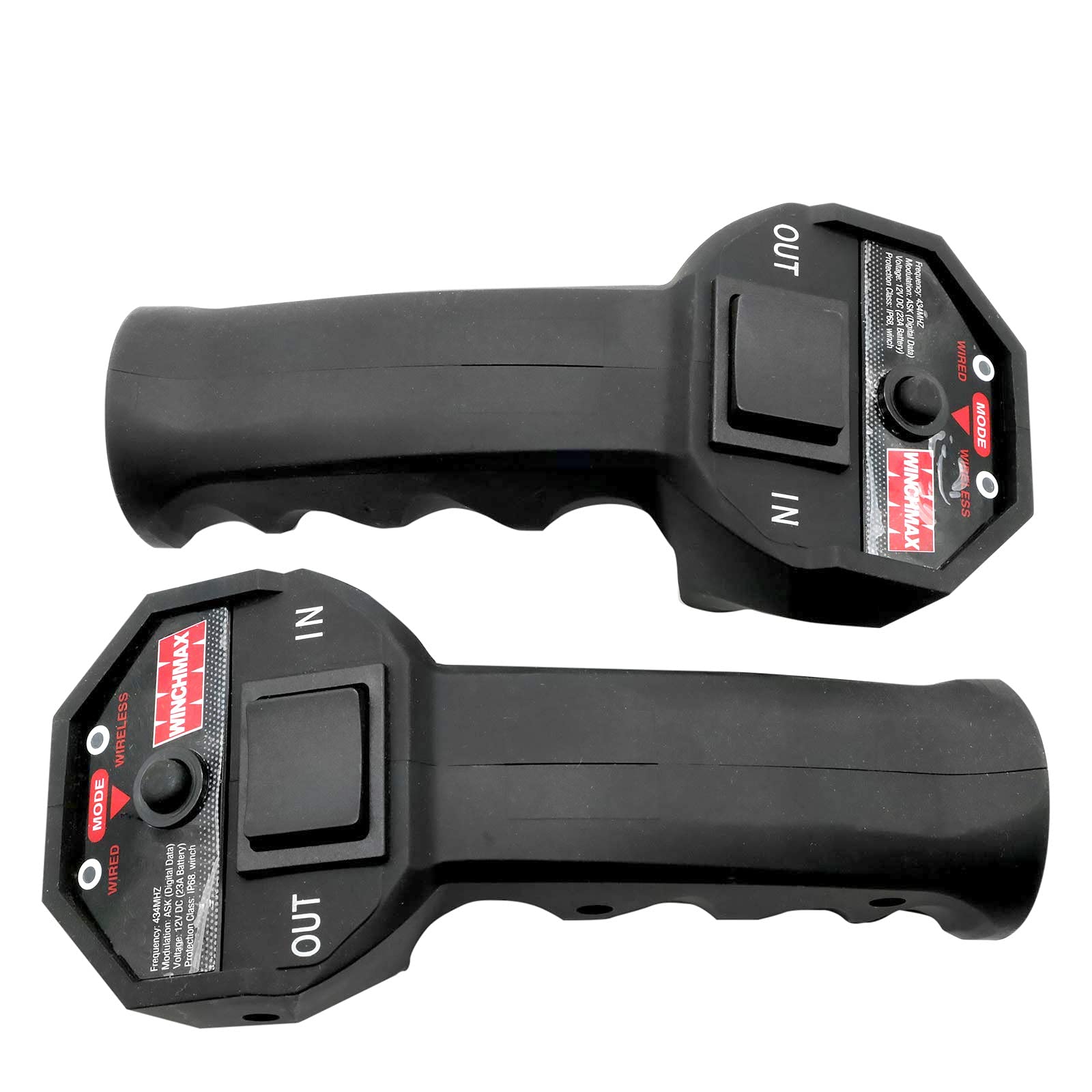

• Latest technology long-range combination wireless remote controls, twin handsets.
• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 26m x 9.5mm galvanized steel wire rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
• Clevis hook 3/8 inch G70 grade forged. Safety catch and hand saver, black.

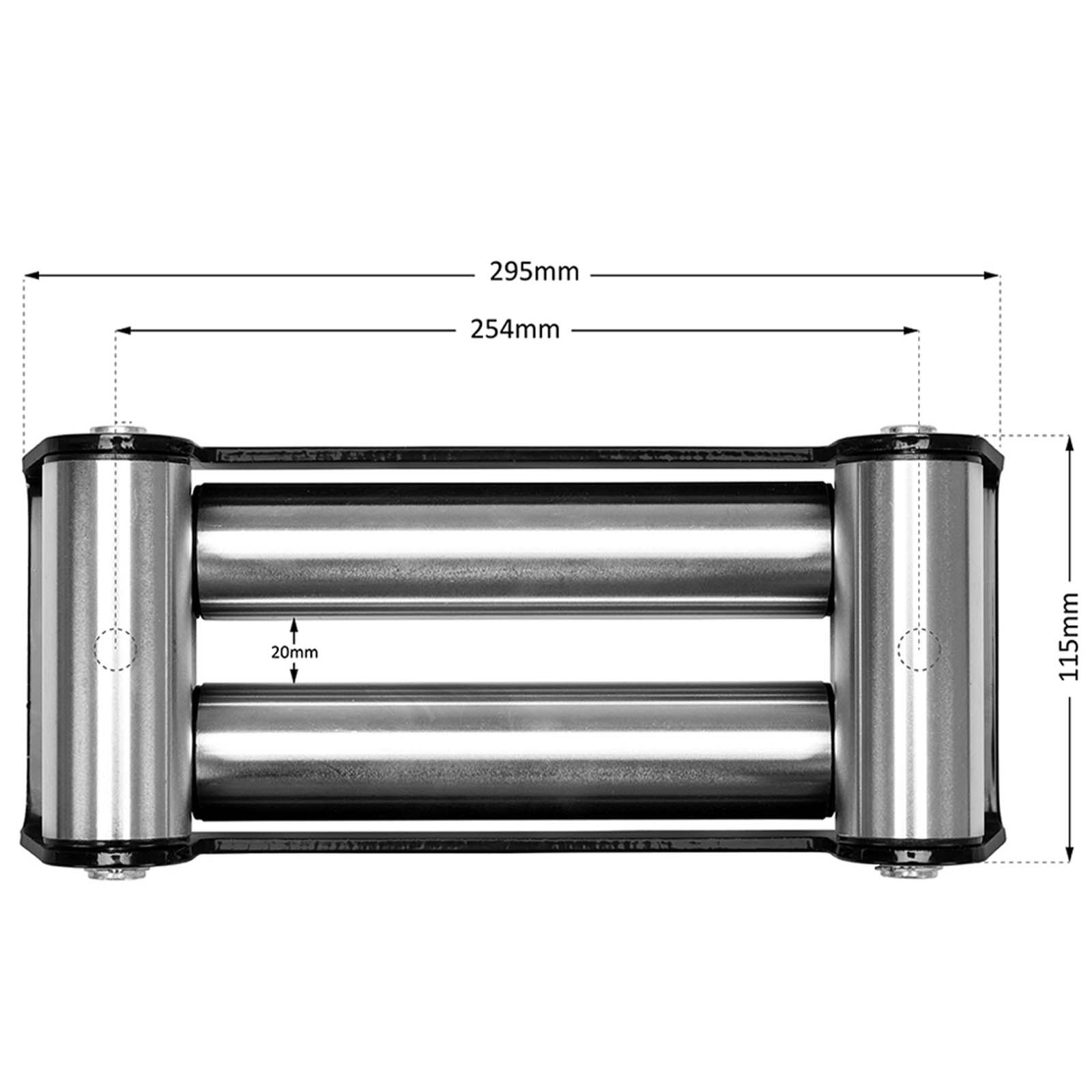

• Tough four roller fairlead with stainless steel rollers.
• Upgraded water seals.
• Stainless steel fixings.
• Galvanized steel drum,
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.

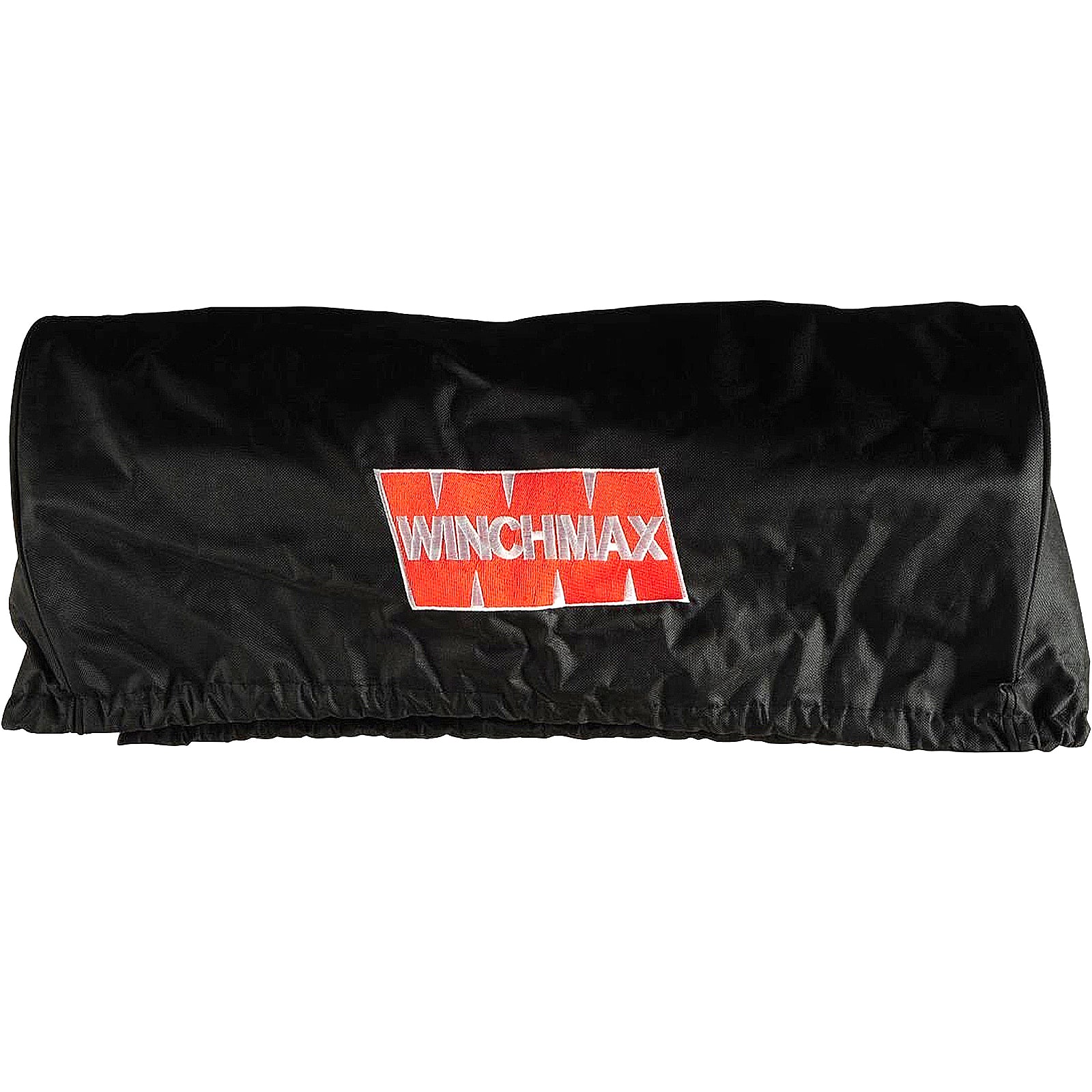

• Strong WINCHMAX branded cover to protect from water and road grime.
• Heavy-duty & built to last - gross weight 40kg.
• CE certified & built to ISO9001 quality management system requirements.

Don't forget Your Mounting plate.

WINCHMAX make the best mounting plates for quick and easy installation. Click here for our recommended mounting plates for this winch.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	13,500lb (6,123kg)
Motor	12v 6.8hp/5.1kw series wound
Control	Big grip remote switch, 4.5m lead
Gear Train	3 stage planetary
Gear Reduction Ratio	265:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 64mm (2.5”) length 224mm (8.82”)
Drum Finish	Galvanised
Cable	26m of 9.5mm (3/8”) diameter steel wire rope
Hook	Clevis hook with safety catch, zinc plated.
Fairlead	4-Way roller fairlead
Battery	Recommended 650CCA minimum for winching
BatteryLeads	2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
Winch Finish	Matt black (low light paint)
Weight (GW)	40kg (88lb)

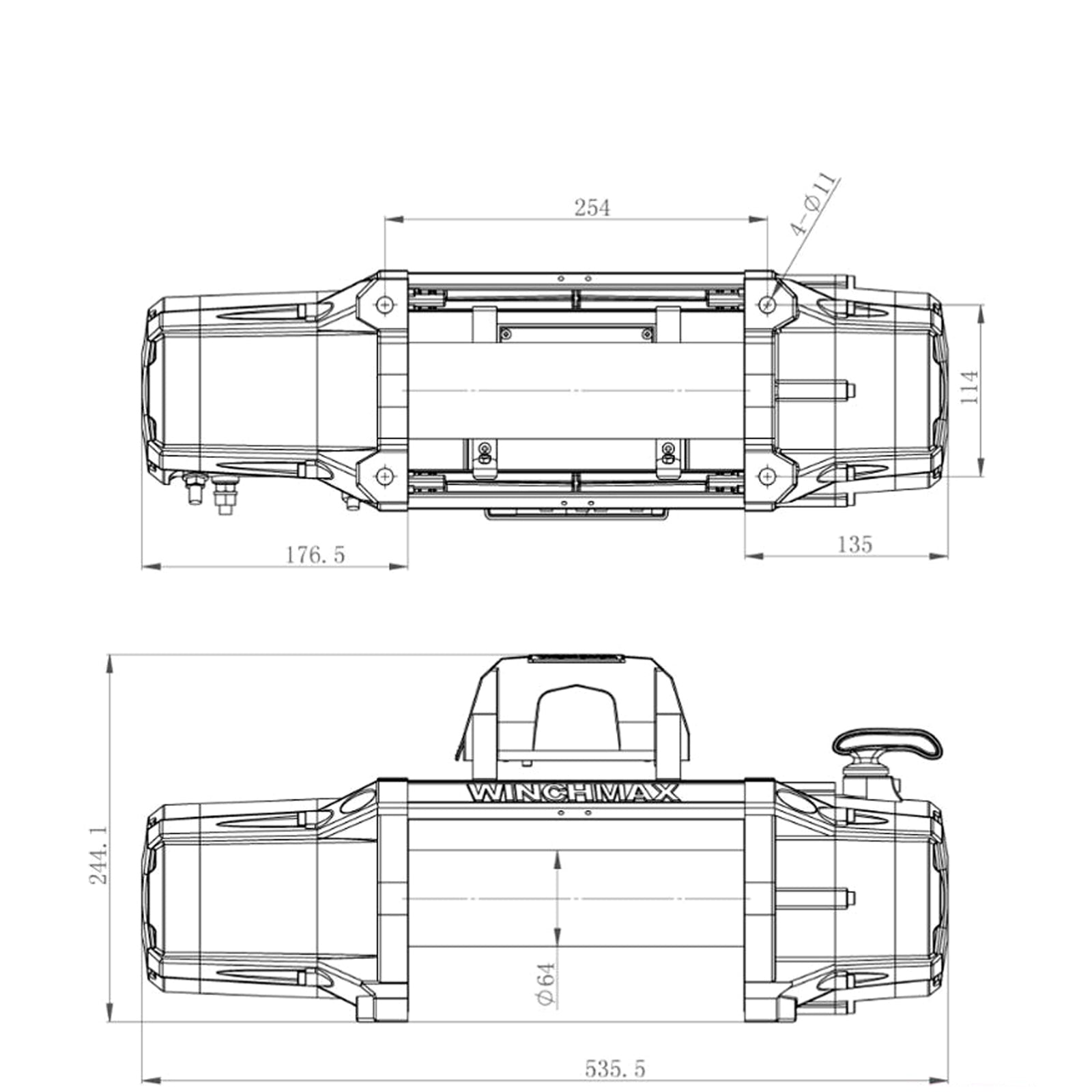

Overall Dimensions (LxWxH)	536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
Mounting Bolt Pattern	10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	7.5m/min (24.6 ft/min)
Waterproof	IP67 Rating



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	13,500	6,123	20.4/6.22
2	9,530	4,332	41/12.0
3	7,929	3,604	71/21.0
4	6,770	3,077	85/24.0



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft (7.5m)	70A
3,000 (1,363)	11.48ft (3.5m)	138A
6,000 (2,727)	8.86ft (2.7m)	218A
9,000 (4,090)	7.72ft (2.2m)	260A
13,500 (6,123)	5.58ft (1.7m)	350A

PDf Documents

• SL13500-SL17500WinchManualEU
• SL-RemoteGuide
• MountingHardwareGuide
