3,000lb (1,361kg) Original Orange 12v Electric Winch, 15.5m x 5mm Dyneema Rope, 1/4 Hook, Wireless Remote Controls.

3,000lb (1,361kg) Original Orange 12v Electric Winch, Dyneema Rope, Twin Wireless Remote Control
Includes mounting plate

Ideal for use on boat trailers, ATVs and light utility vehicles

Features

• 3,000lb (1,361kg) straight-line pull 12v electric winch.

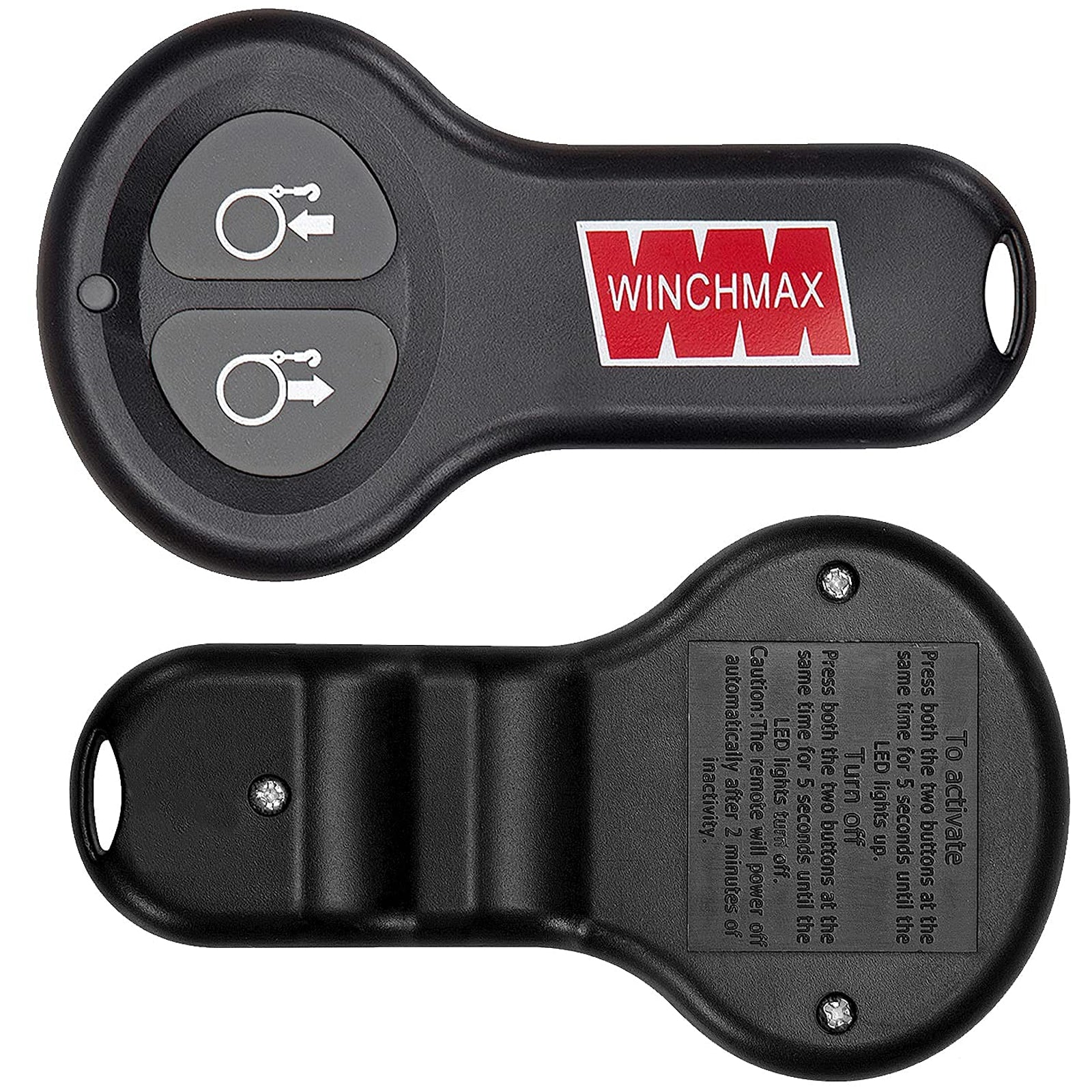

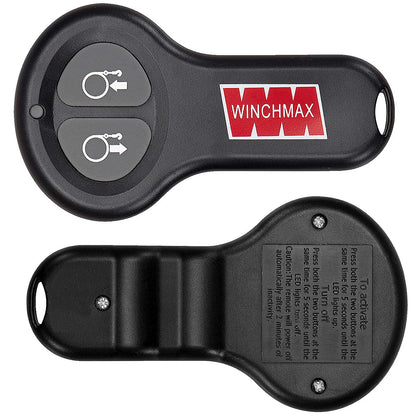

• Latest technology long-range wireless remote controls, twin handsets.
• Super powerful 12v permanent magnetic electric motor.
• Ultra-tough three-stage gearbox with hardened steel gears.
• 15.5m x 5mm genuine Dyneema SK75 synthetic rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
• 1/4 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
• Aluminium hawse fairlead. Precision CNC milled with laser-etched WINCHMAX branding.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Power in/out rocker switch (with handlebar mount).
• Freewheel clutch.
• High tensile fixing bolt kit.
• 2x 180cm battery power cables, 2x 90cm motor power cables.
• Heavy-duty & built to last - gross weight 12kg.
• CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	3,000lb (1,361kg)
Motor	12v 1.5hp permanent magnetic motor
Control	Remote rocker switch, handlebar mount kit, in and out
Gear train	3 stage planetary
Gear reduction ratio	136:1
Clutch	Cam activated free spool
Braking Action	Automatic in the drum
Drum Size	Diameter 50mm (2.0") Length 75mm (2.9”)
Drum Finish	Aluminium
Cable	15.5m x 5mm Dyneema SK75 synthetic rope
Hook	Clevis hook 1/4 inch, zinc plated
Fairlead	One-piece billet aluminium hawse fairlead
Battery	Recommended 12Ah minimum for winching
Battery Leads (x2)	6 gauge, 1.8m (71”) 15mmsq - 4.2mm diameter
Motor Leads (x2)	6 gauge, 0.9m (36”) 15mmsq - 4.2mm diameter
Winch Finish	Original Orange powder coated
Weight (GW)	10kg (22lb)
Overall Dimensions (LxWxH)	339 x 110 x 114 mm
Mounting Bolt Pattern	120 x 76 mm
Motor Current	15-200A
No Load Line Speed	8.3m/min (27.2 ft/min)



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	3,000	1,361	8.85/2.7
2	2,561	1,162	19.22/5.86
3	2,234	1,013	31.11/9.48
4	1,981	899	44.52/13.58)
5	1,779	807	50.0/15.5)



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	27ft (8.3m)	15A
500 (227)	20ft (6.1m)	40A
1,000 (454)	16ft (4.9m)	60A
2,000 (907)	9ft (2.7m)	130A
3,000 (1361)	5ft (1.5m)	190A
