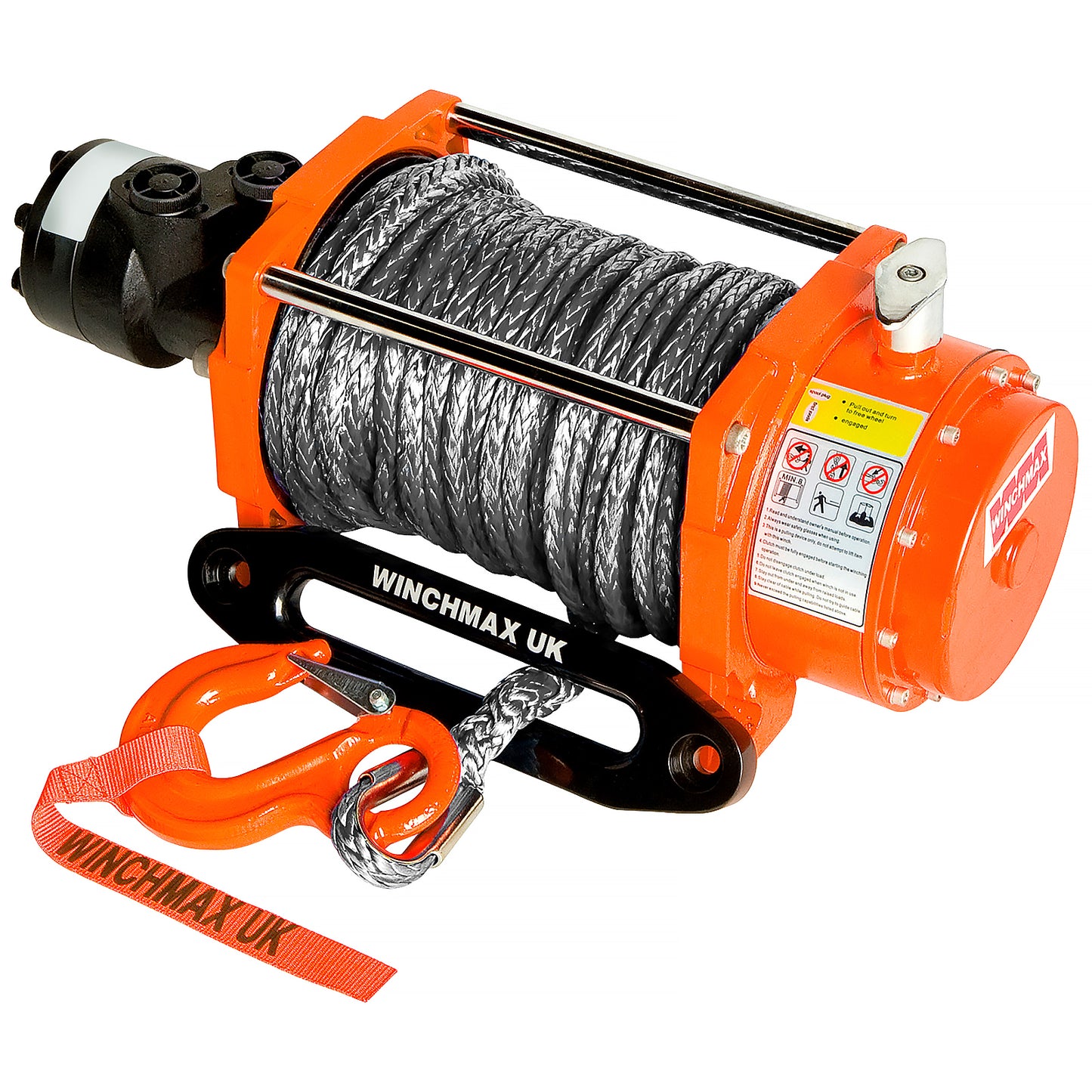

20,000lb (9,072kg) Original Orange Hydraulic Winch. 25m x 13mm Dyneema Rope. 12v Control System.

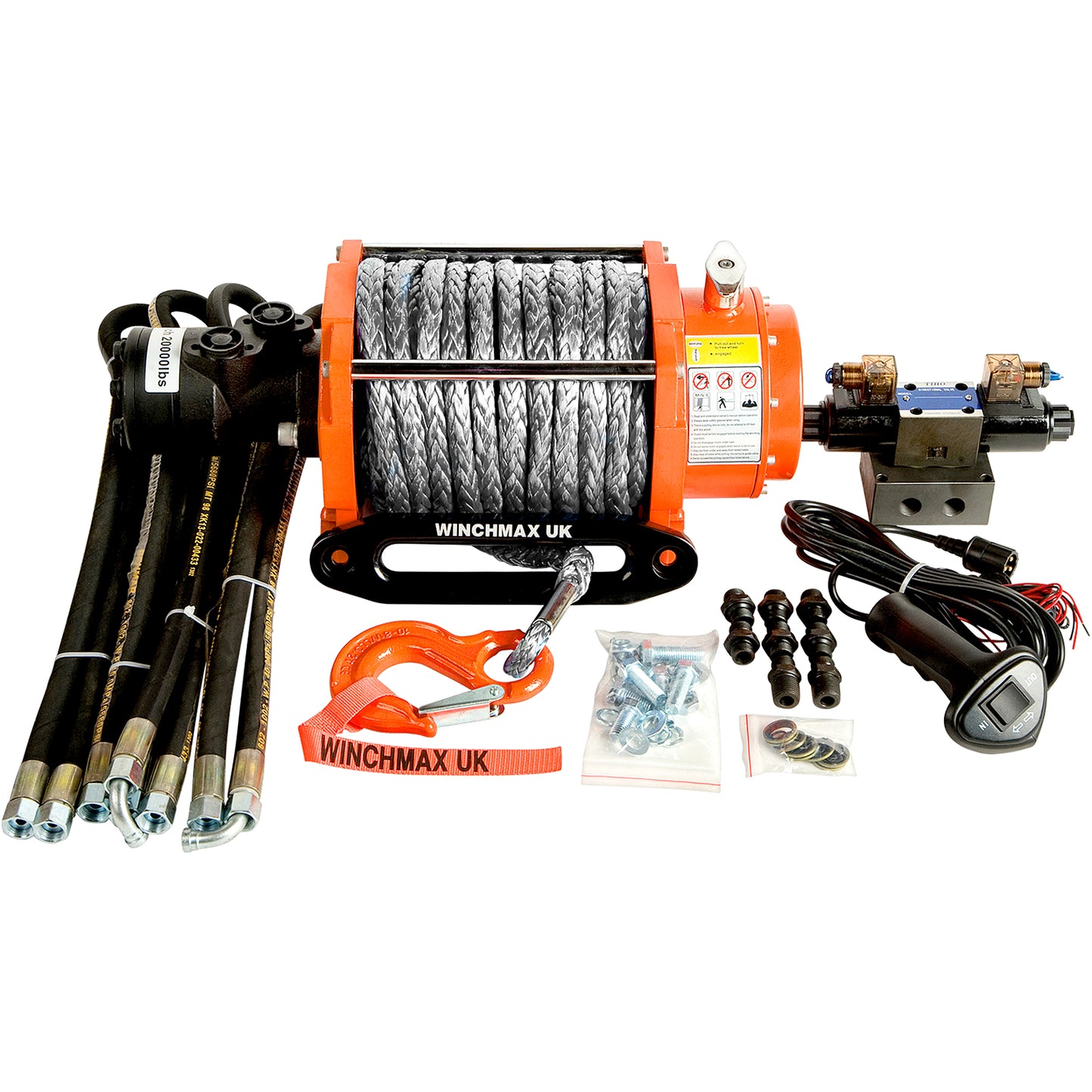

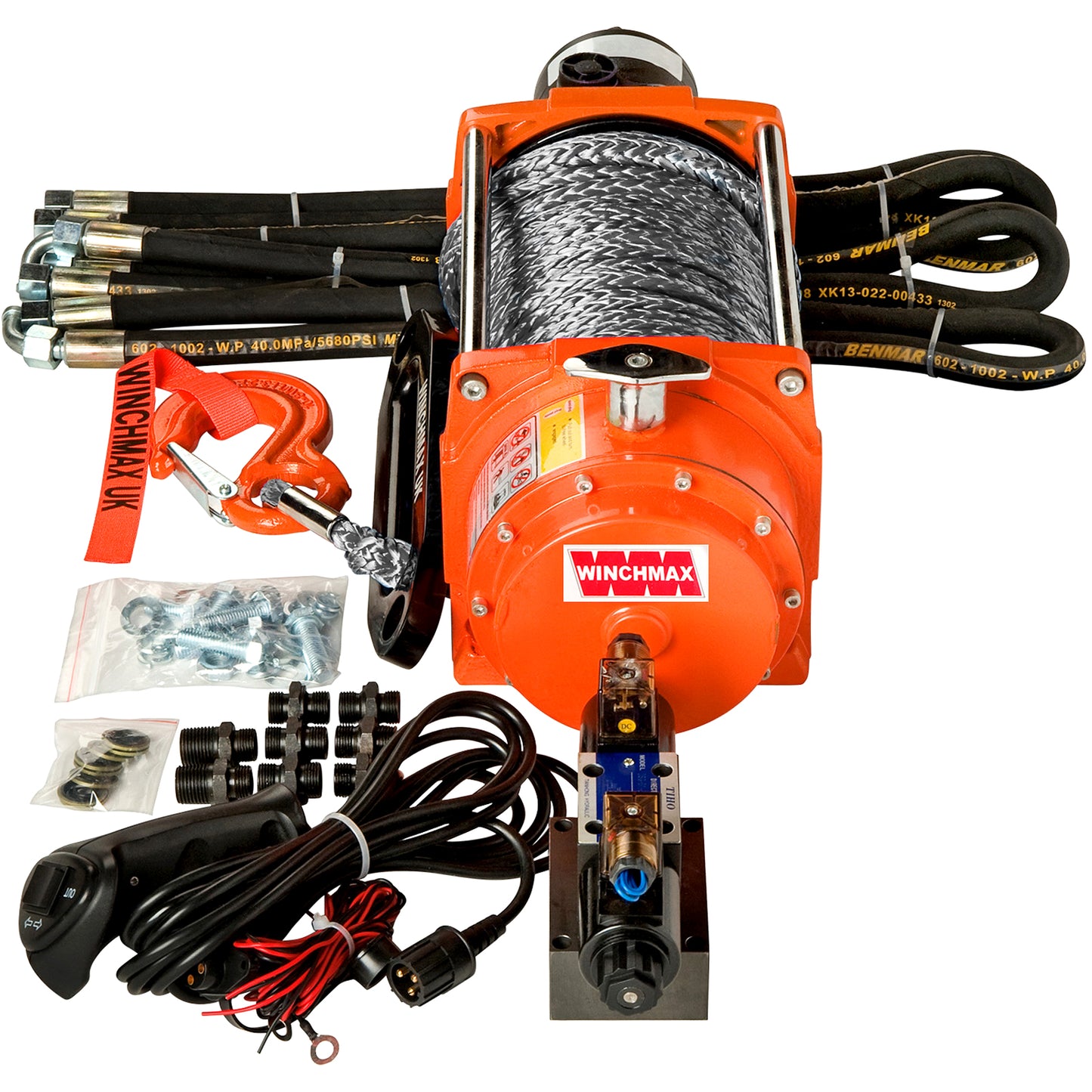

20,000lb (9072kg) Original Orange Hydraulic Winch with Dyneema Rope, Full Control System

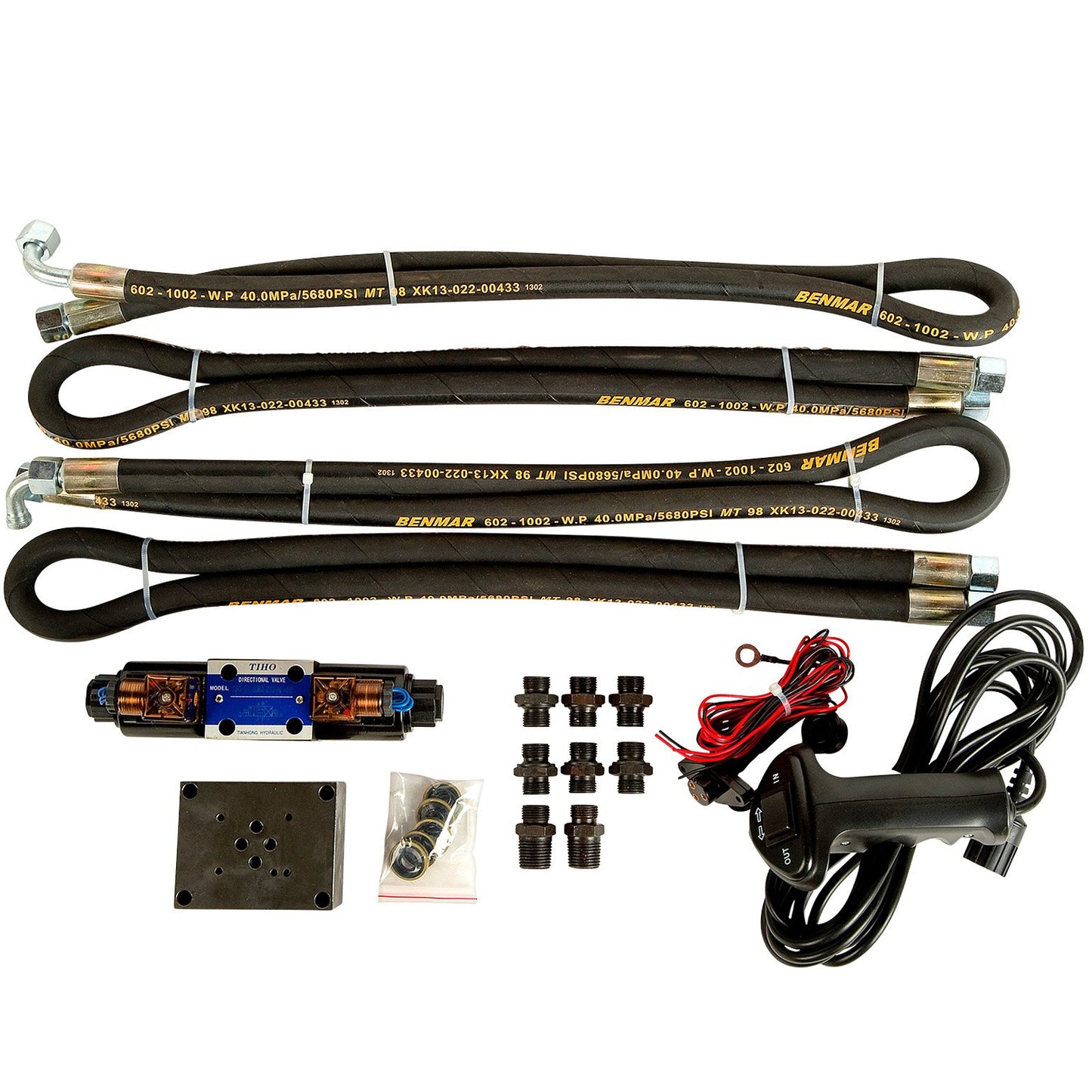

Includes full 12v wired control system, pipes and connectors

Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural

Features

• 20,000lb (9,072kg) straight line pull.
• Tough three-stage planetary gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• Sliding ring gear free-wheel clutch.

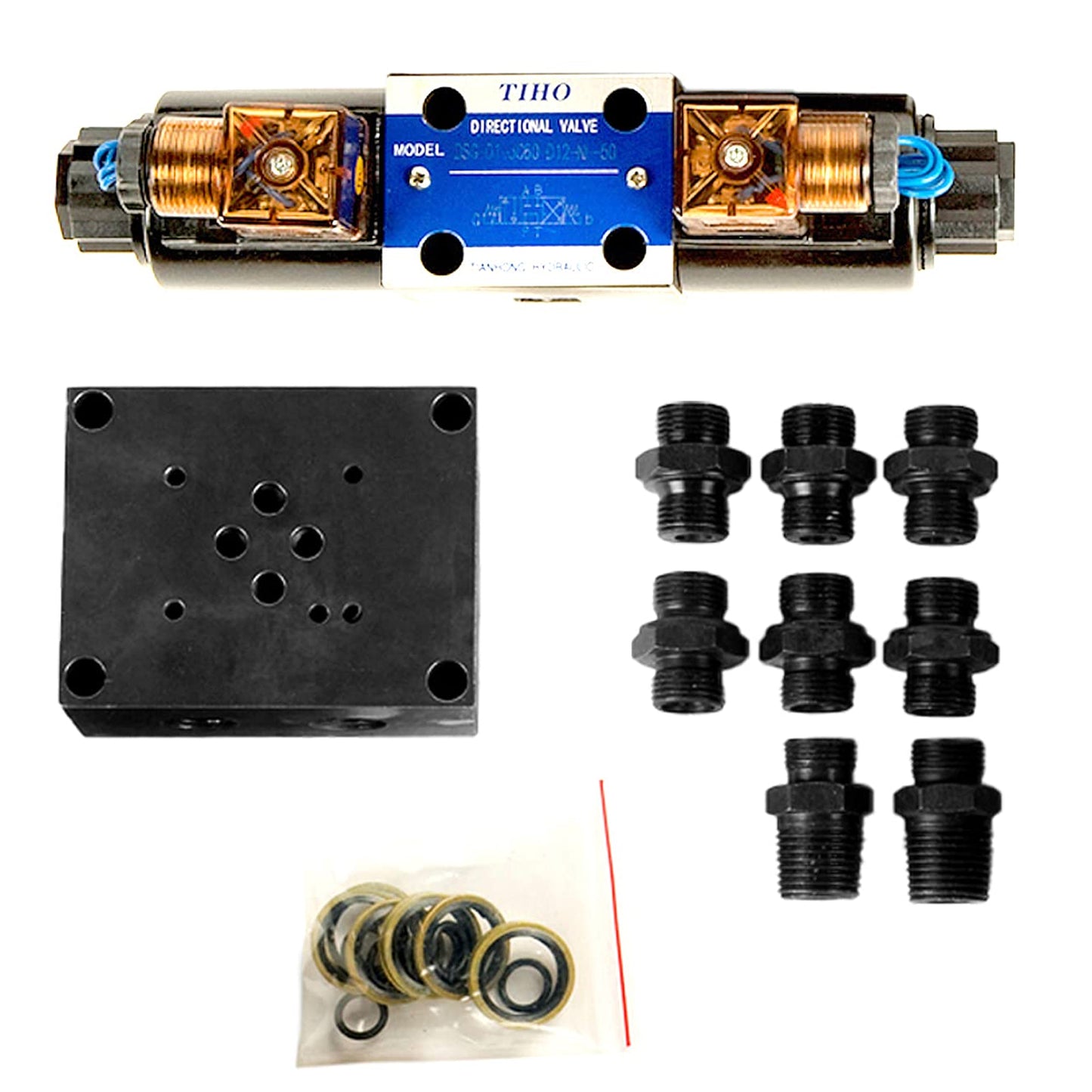

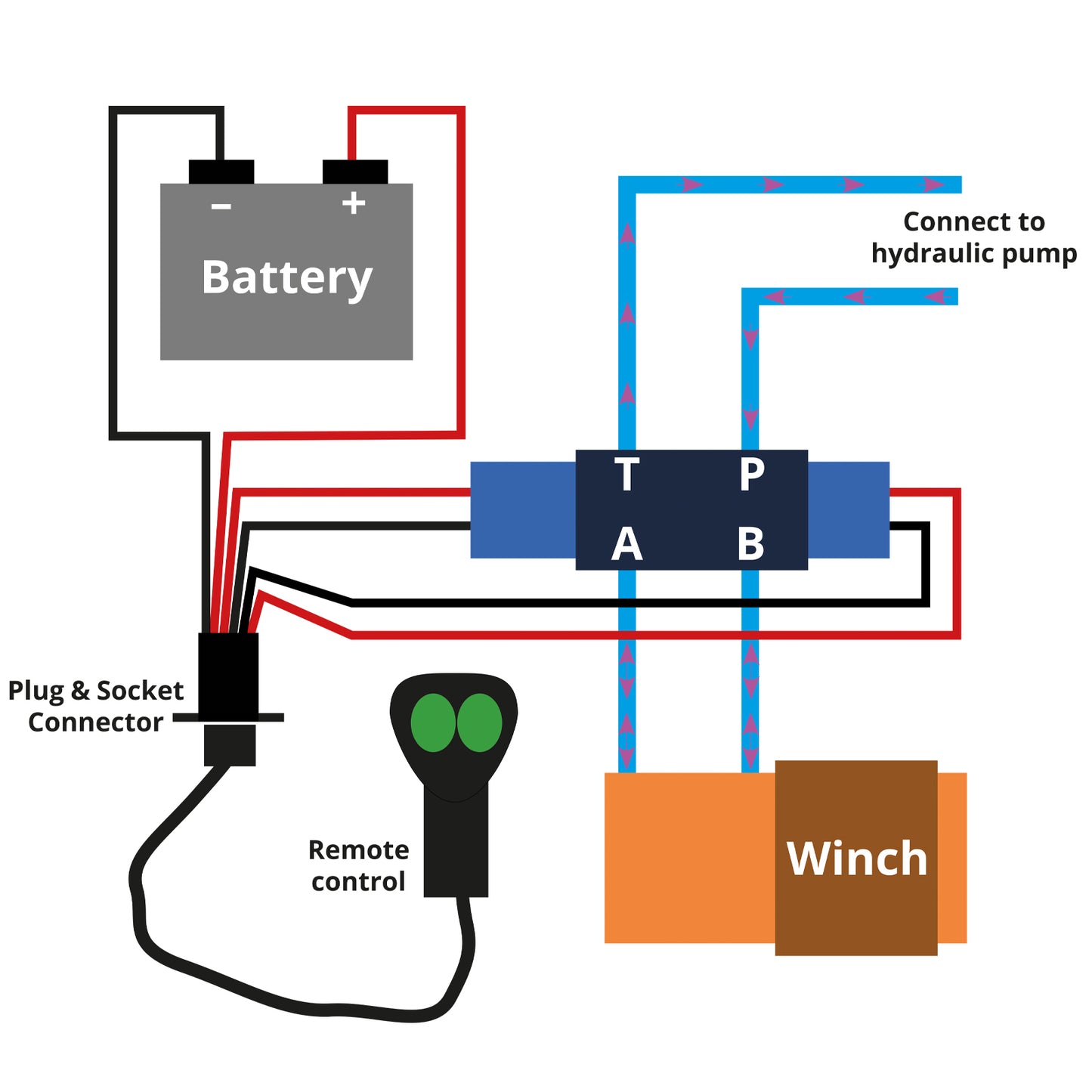

• 12V electrically operated CETOP 3 (NG6) solenoid operated directional valve control.

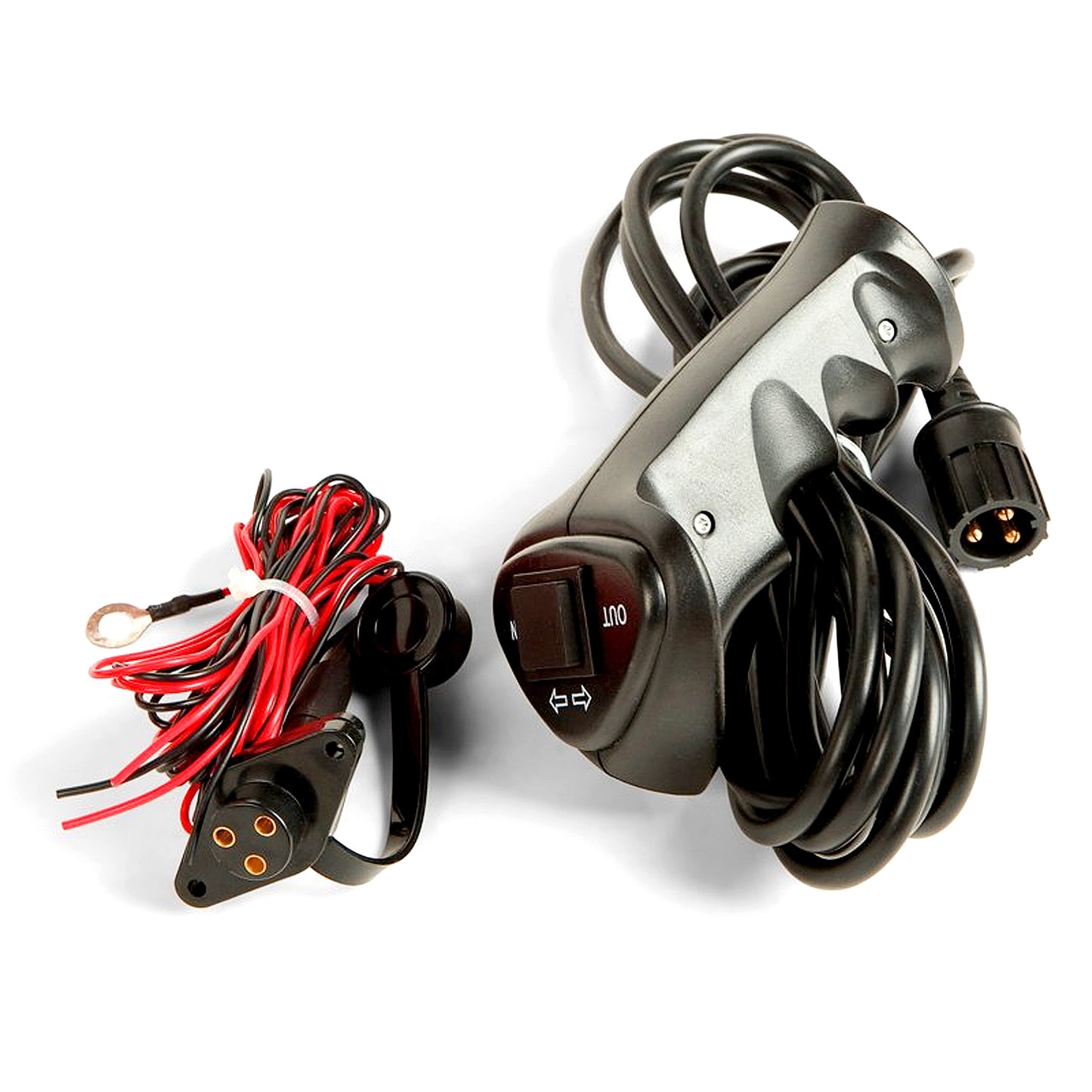

• Big grip controller for power in/out with extra-long 4.5m wander lead.
• Compatible with the WINCHMAX range of wireless remote controls.
• 25m x 13mm genuine Dyneema synthetic rope with drum terminal and thimble eye anchorage for the hook.
• Aluminium hawse fairlead. Precision CNC milled with laser-etched WINCHMAX branding.
• Hydraulic hose assemblies 1.25m long (x4) fitted with 18 x 1.5mm threaded fittings.
• High tensile fixing bolt kit.

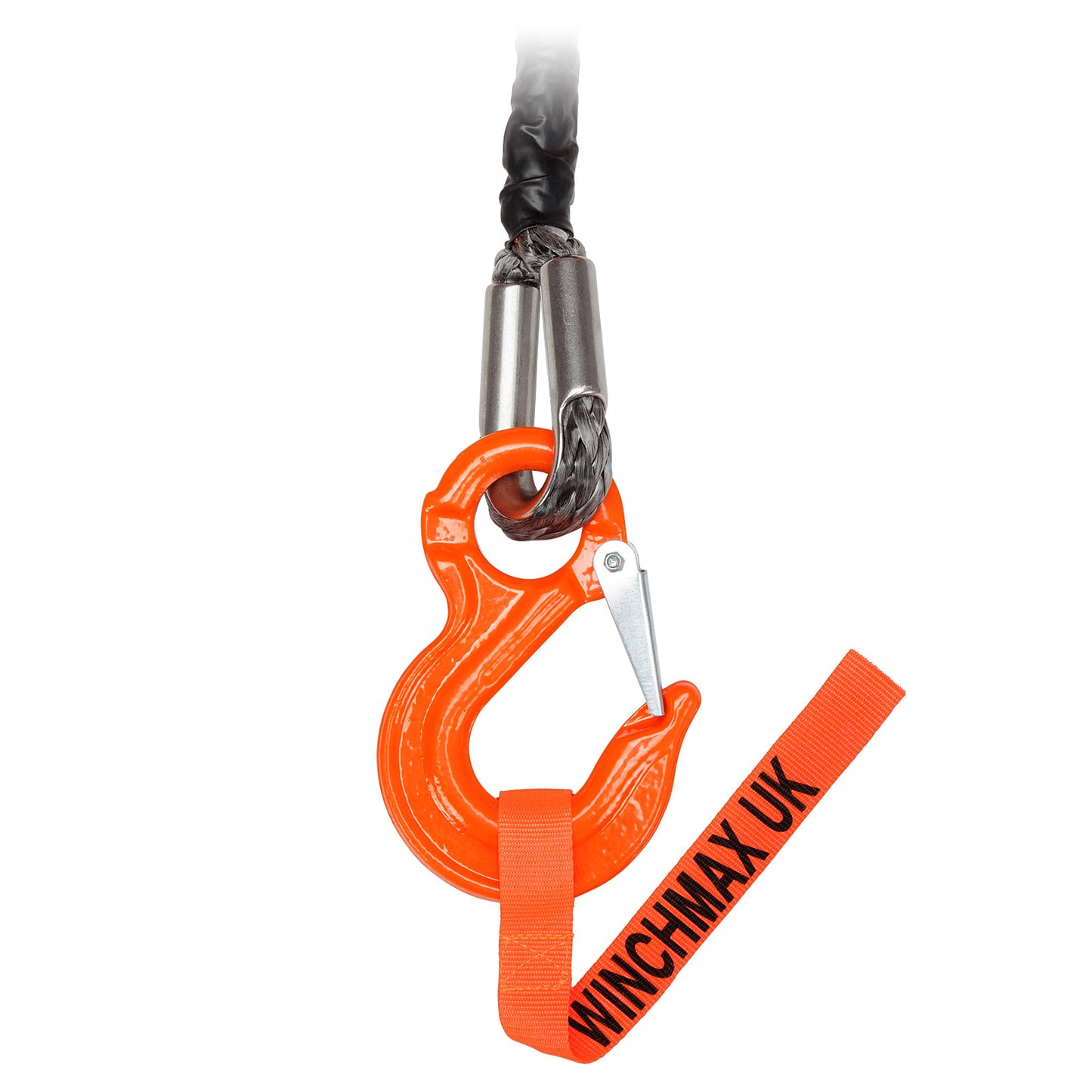

• Orange competition hook with safety catch and hand saver.
• Zinc plated for corrosion resistance.
• Heavy duty & built to last - gross weight 55kg.
• CE certified & built to ISO9001 quality management system requirements.

24v control system available on request

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical. VAT invoice provided with every sale.

Single Line Rated Pull	20,000lb (9,072kg)
Motor	Hydraulic
Control	Remote switch, 4.5m lead, in & out
Gear Train	3 stage planetary
Gear Reduction Ratio	32:1
Clutch	Sliding ring gear
Braking Action	Automatic
Drum Size	Diameter 88mm length 222mm
Drum Finish	Black, painted.
Cable	25m x 13mm Dyneema SK75 synthetic rope
Hook	Orange Clevis Hook 1/2 inch
Fairlead	Aluminium Hawse Fairlead
Flow	50-60 L/min
Pressure	10.8Mpa (108 Bar)
Winch Finish	Original Orange powder coated
Weight (GW)	55kg (121lb)

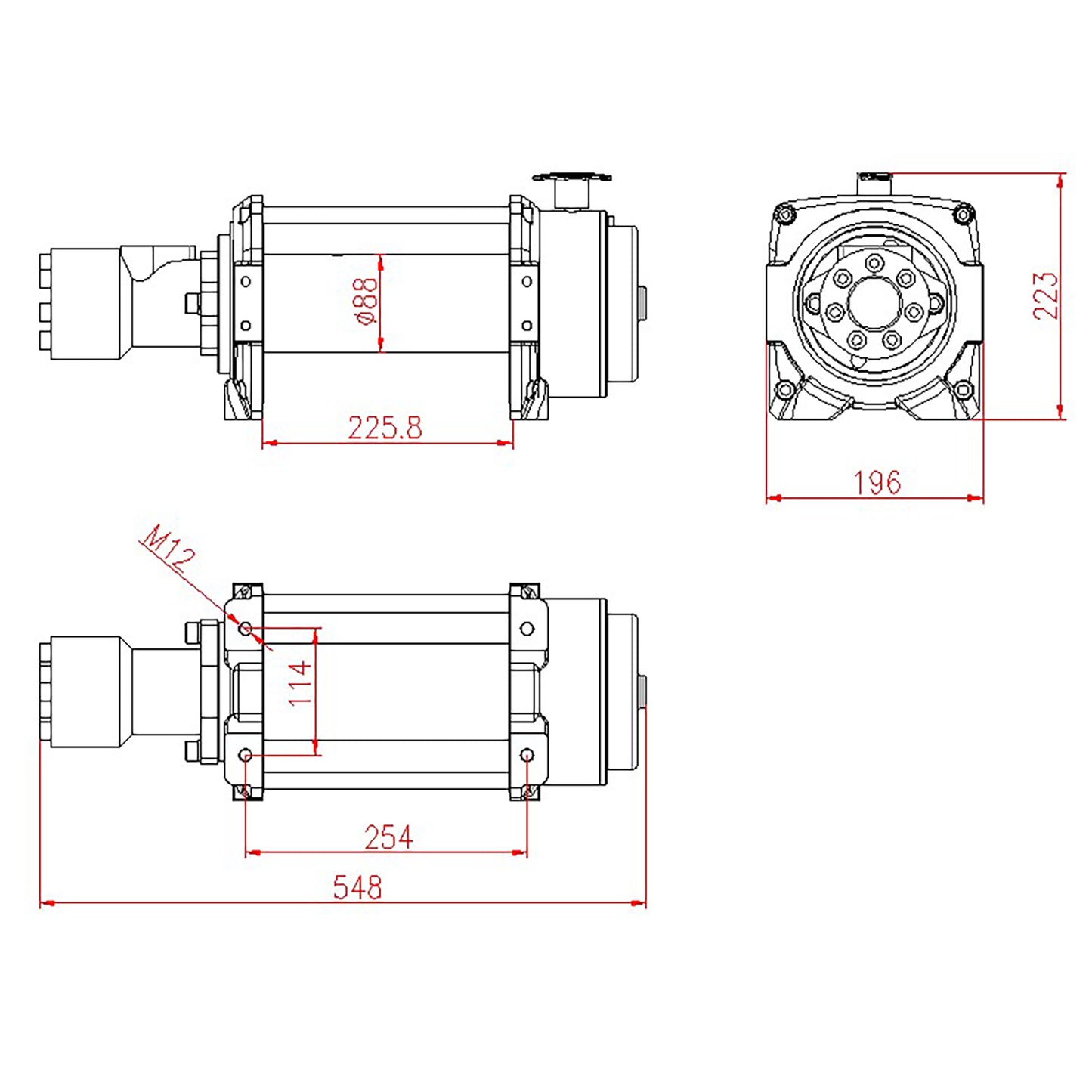

Overall Dimensions (LxWxH)	548 x 196 x 249mm
Mounting Bolt Pattern	10.00” ±0.015" x 4.50” ±0.010" (254 x 114.3mm)
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Pull per layer (kg)	Line speed (m/min)
1	20,000	9,072	4.24
2	17,860	8,118	4.75
3	16,130	7,332	5.26
4	14,710	6,686	5.77
