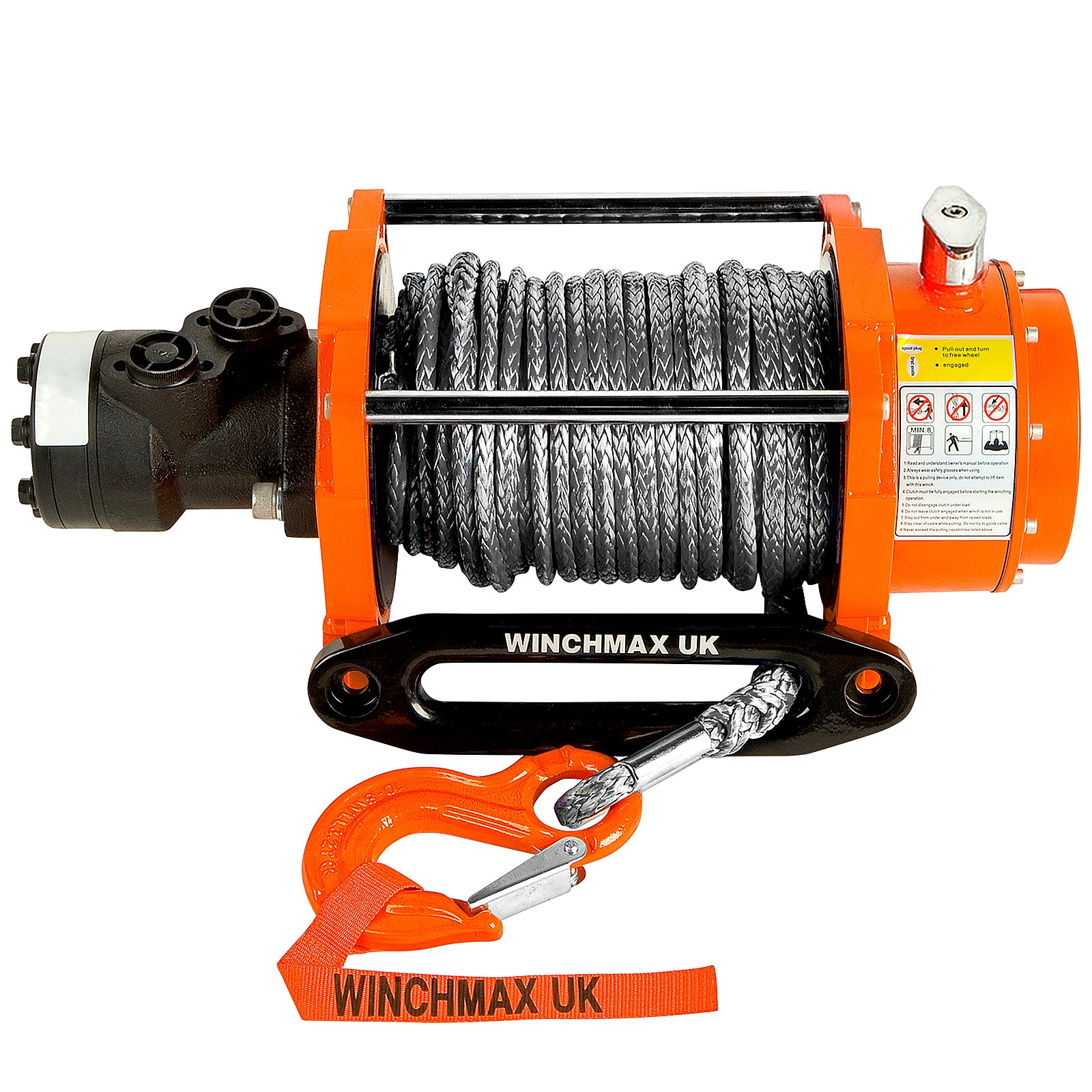

20,000lb (9,072kg) Original Orange Hydraulic Winch. 25m x 13mm Dyneema Rope. Competition Hook.

20000lb (9072kg) Original Orange Hydraulic Winch, Dyneema Synthetic Rope.

Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural

Features

• 20,000lb (9,072kg) straight-line pull hydraulic winch (12v controls)
• Ultra-tough three-stage gearbox with hardened steel gears.
• Casing machined from billet steel for maximum impact protection.
• 25m x 13mm genuine Dyneema synthetic rope.
• Through-drum rope attachment with grub screw clamp for maximum security.

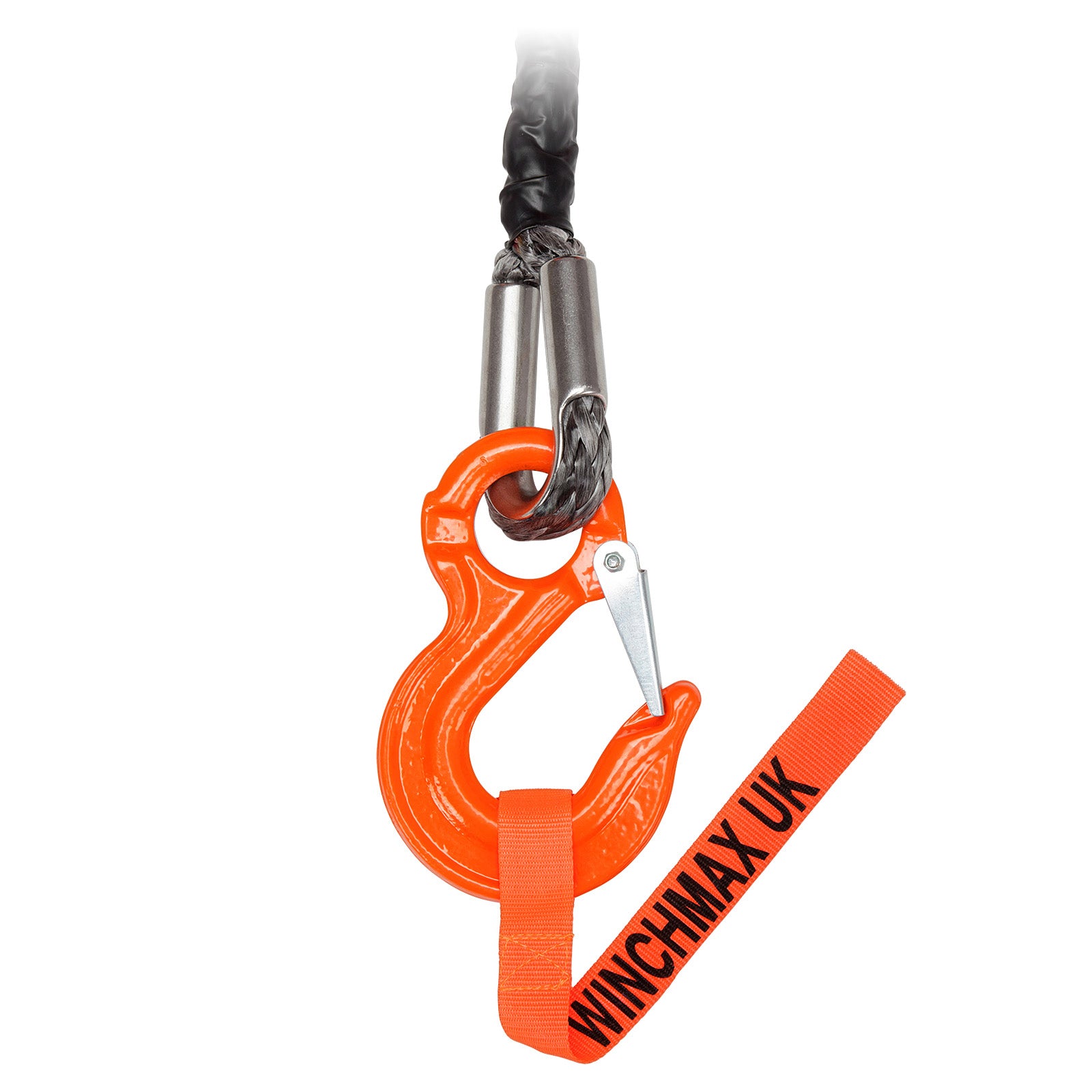

• Orange competition hook with safety catch and hand saver.
• Aluminium hawse fairlead. Precision CNC milled with laser-etched WINCHMAX branding.
• Sliding ring gear free-wheel clutch.
• High tensile fixing bolt kit.
• Heavy duty & built to last - gross weight 48kg.
• CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	20,000lb (9,072kg)
Motor	Hydraulic
Control	NOT SUPPLIED
Gear Train	3 Stage Planetary
Gear Reduction Ratio	32:1
Clutch	Sliding Ring Gear
Braking Action	Automatic
Drum Size	Diameter 88mm Length 222mm
Drum Finish	Black, painted
Cable	25m x 13mm Dyneema SK75 Synthetic Rope
Hook	Orange Competition Hook with Safety Catch
Fairlead	Aluminium Hawse Fairlead
Flow	50-60 l/min
Pressure	10.8Mpa (108 Bar)
Motor to Pipe Union	1/2” BSPT x 18mm adaptor
Winch Finish	Original Orange powder-coated
Weight (GW)	62kg (136lb)

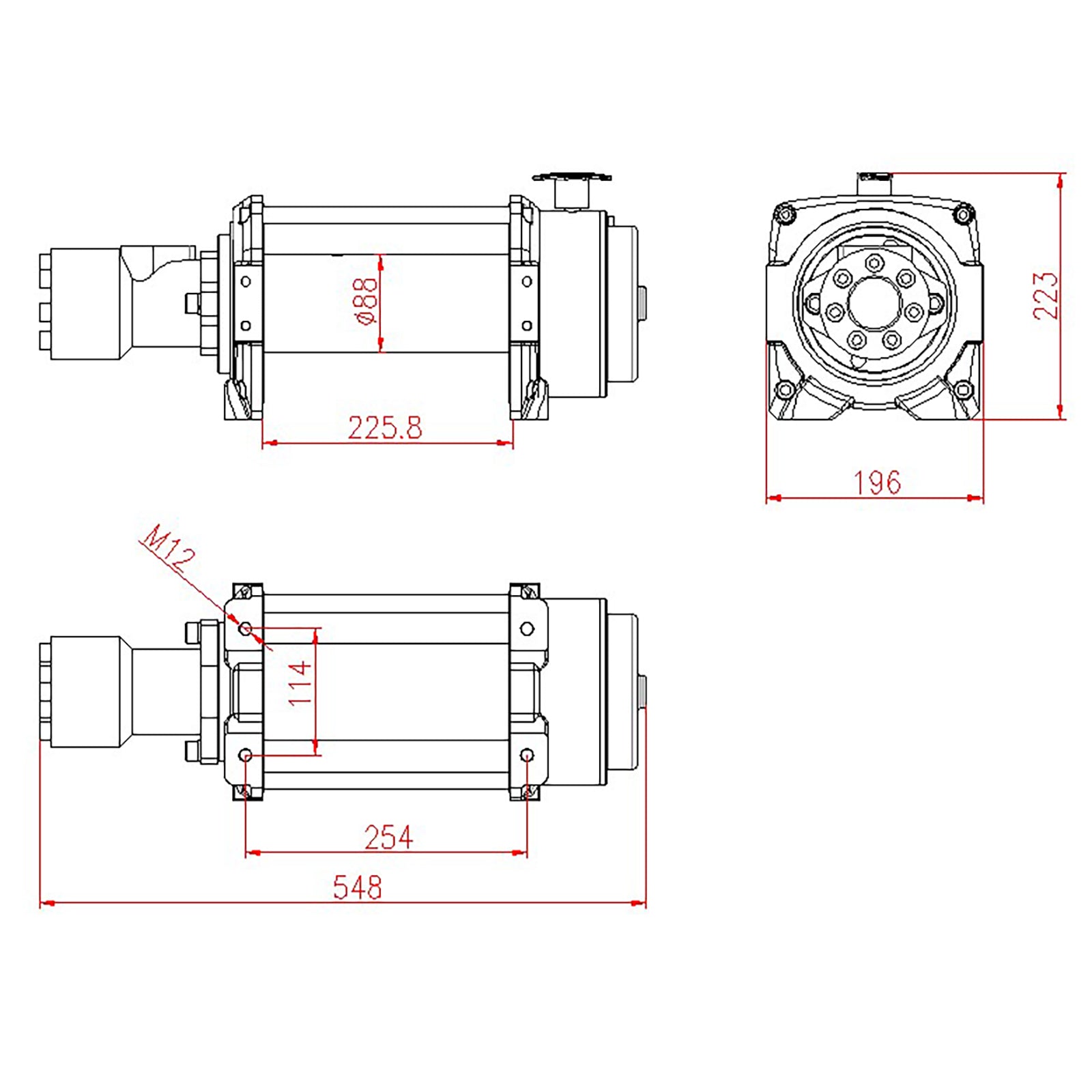

Overall Dimensions (LxWxH)	548 x 196 x 249mm
Mounting Bolt Pattern	10.00in ± 0.015in x 4.50in ± 0.010in (254 x 114.3mm)
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Pull per layer (kg)	Line speed (m/min)
1	20000	9072	4.24
2	17860	8118	4.75
3	16130	7332	5.26
4	14710	6686	5.77
