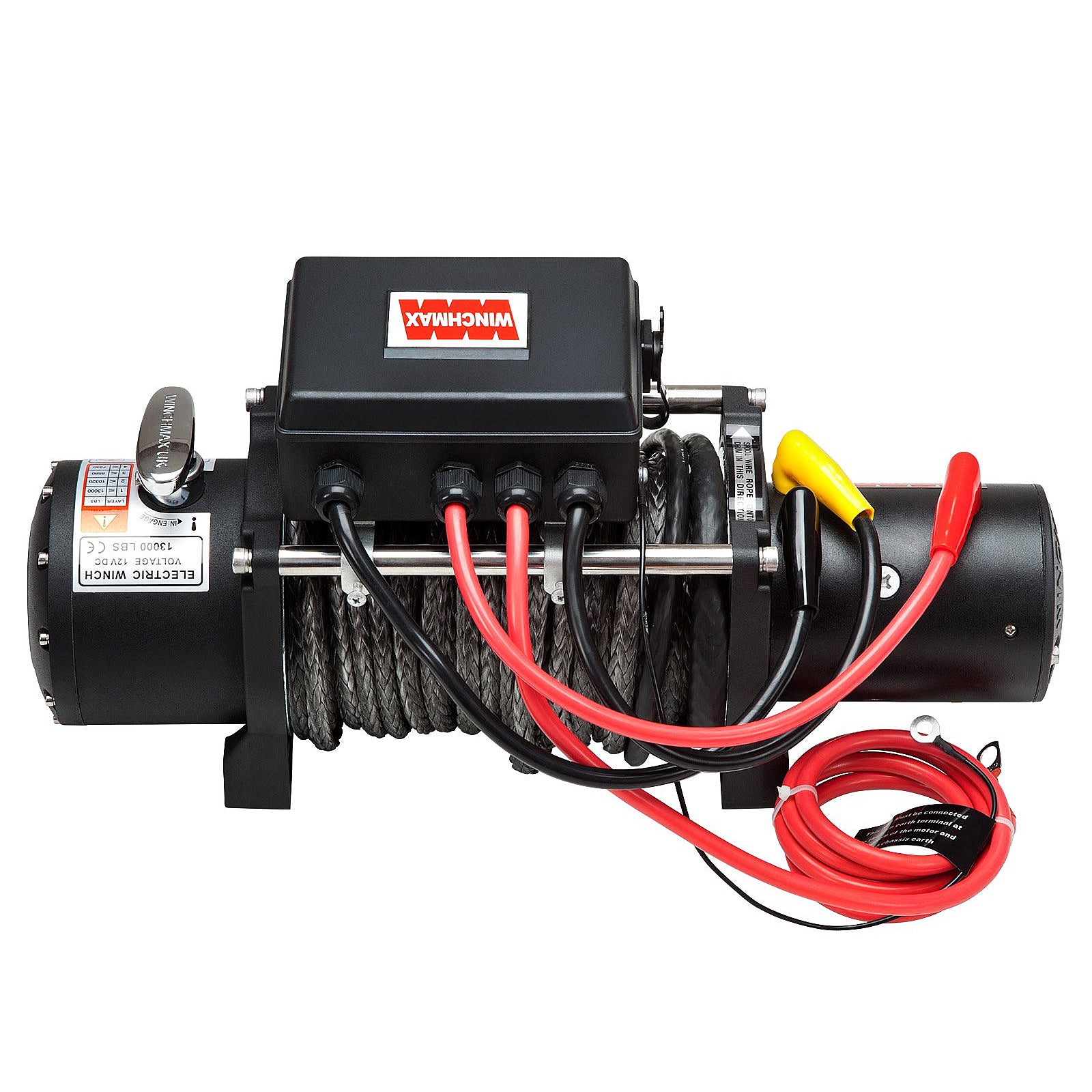

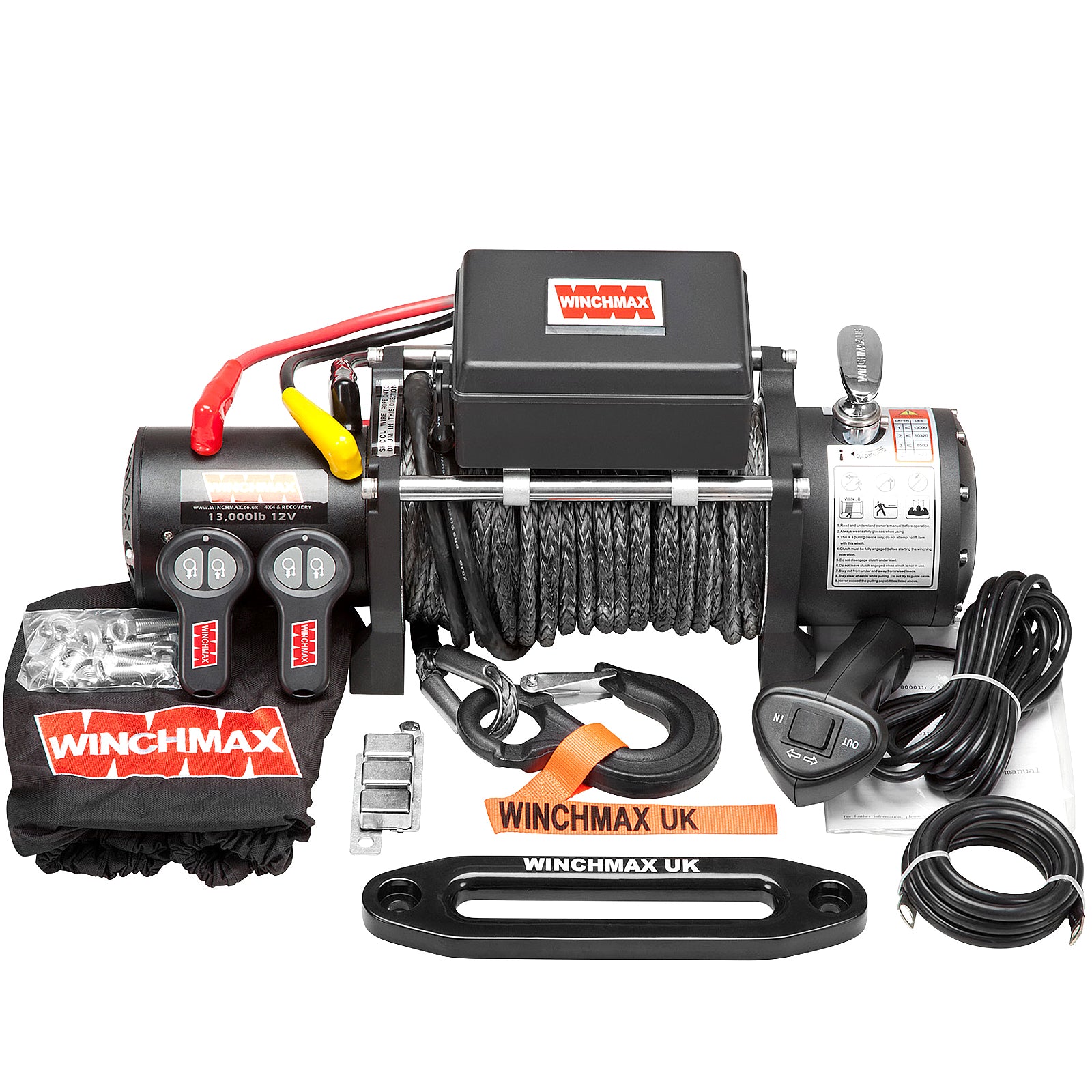

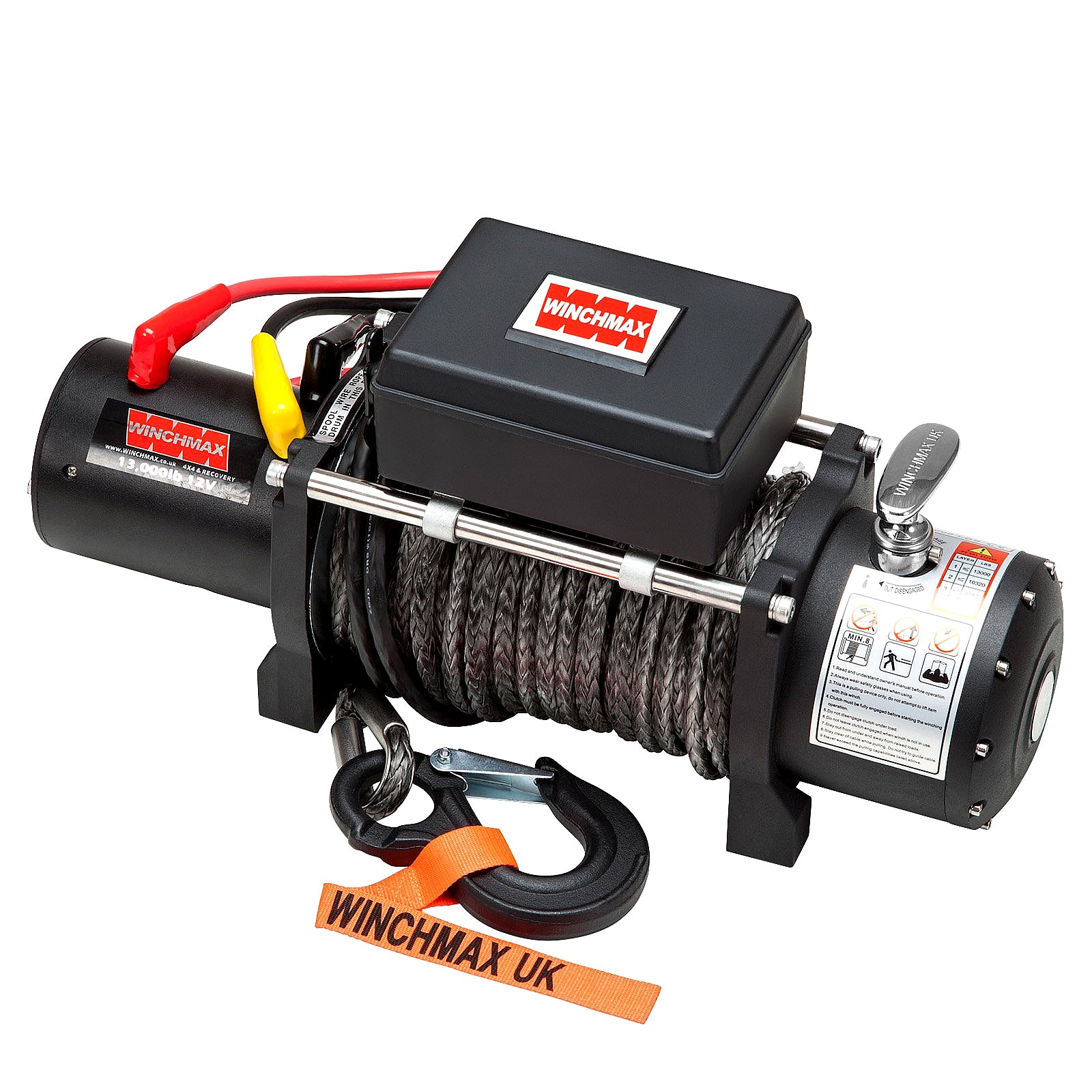

13,500lb (6,123kg) 12v Military Grade Winch. 28m x 11mm Dyneema Rope, Twin Wireless Remote Control

13,500lb (6,123kg) Military Grade 12v Electric Winch, Dyneema Rope, Twin Wireless Remote Control

Ideal for recovery trucks and 4x4s up to 3.5T

Features

• 13,500lb (6,123kg) straight-line pull 12v electric winch.
• Military-grade with improved anti-corrosion measures.

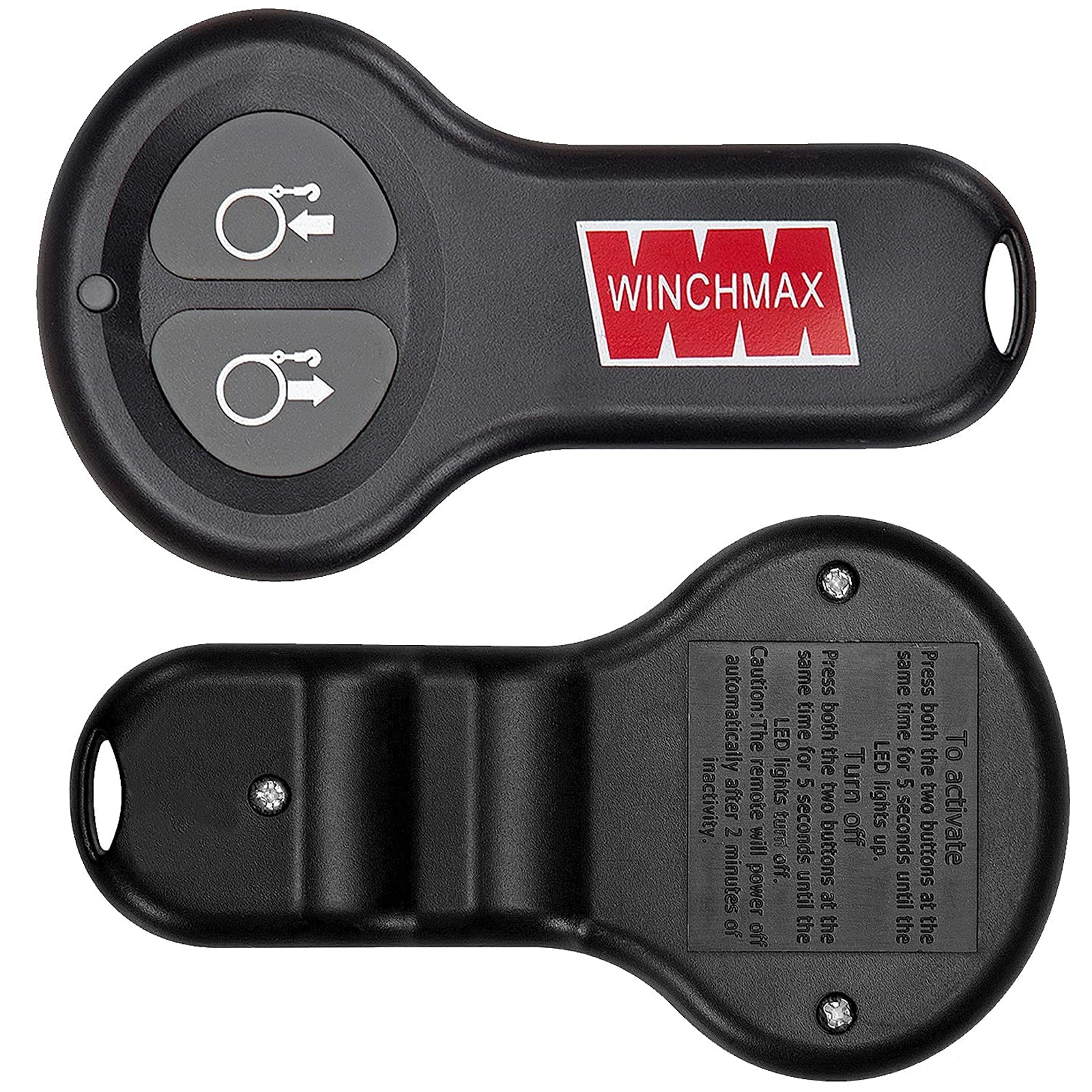

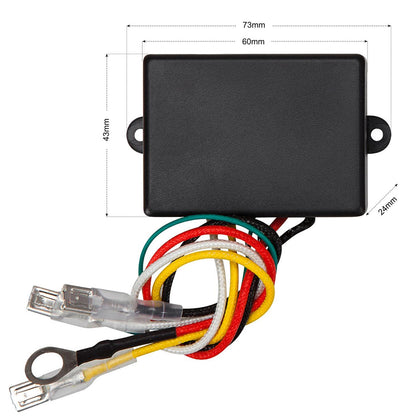

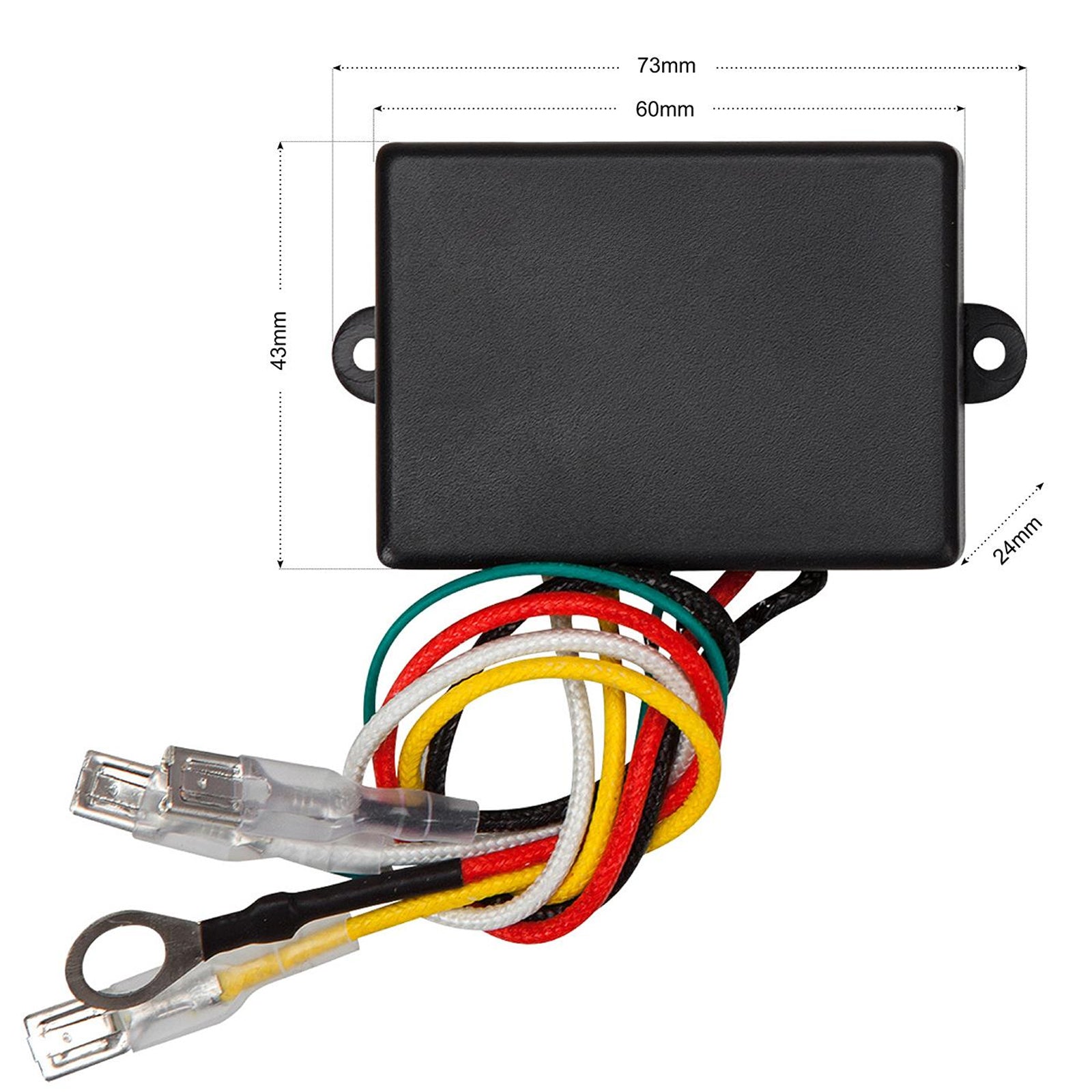

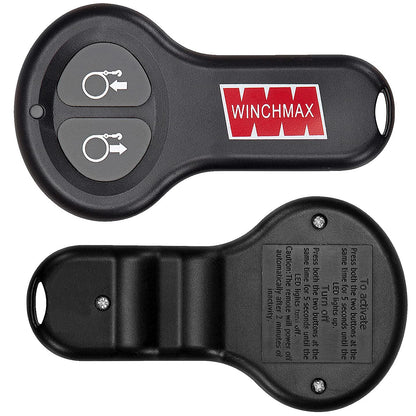

• Latest technology long-range wireless remote controls, twin handsets.

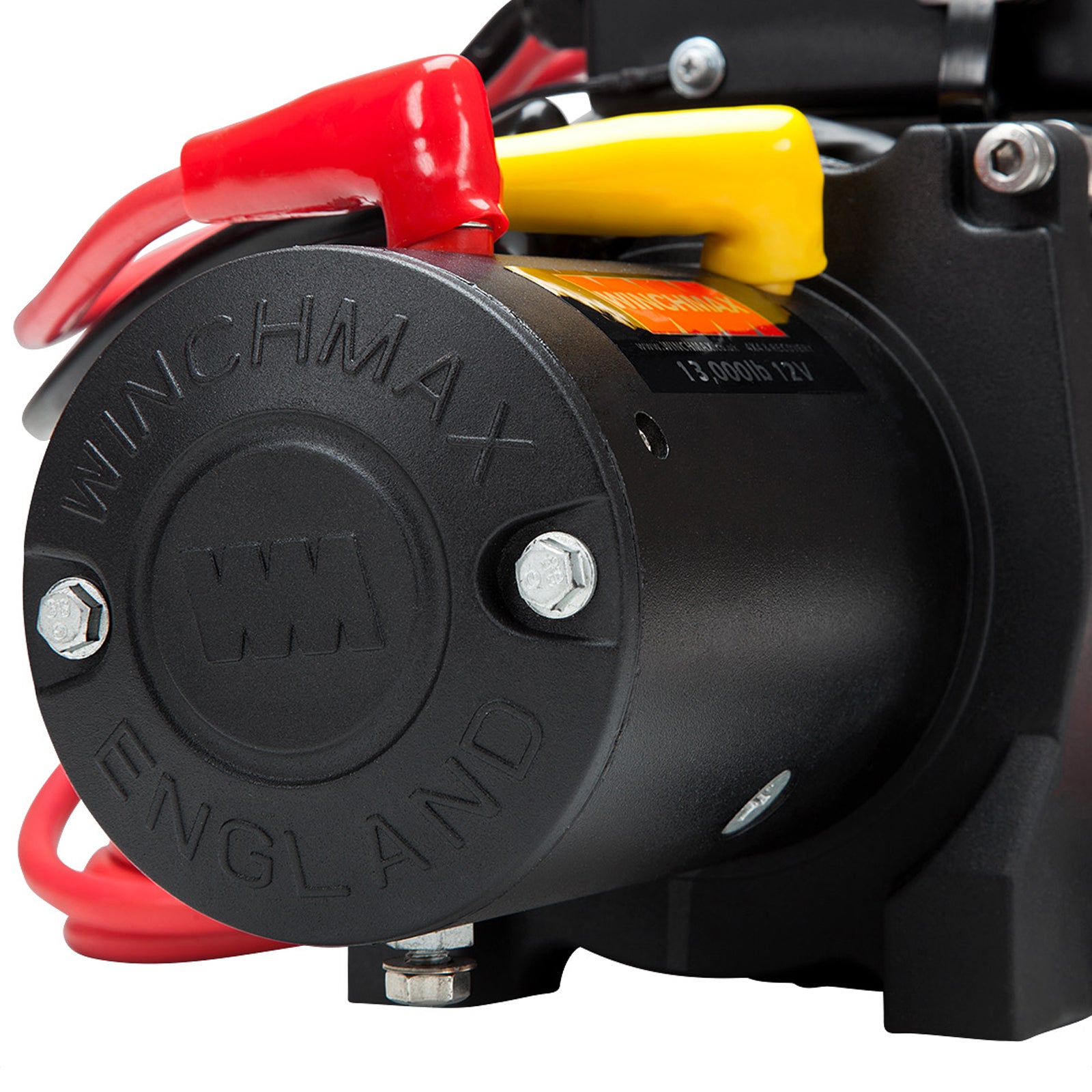

• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 28m x 11mm Dyneema SK75 multi-strand synthetic rope.
• Through-drum rope attachment with grub screw clamp for maximum security.
• Competition hook with safety catch and hand saver, black.

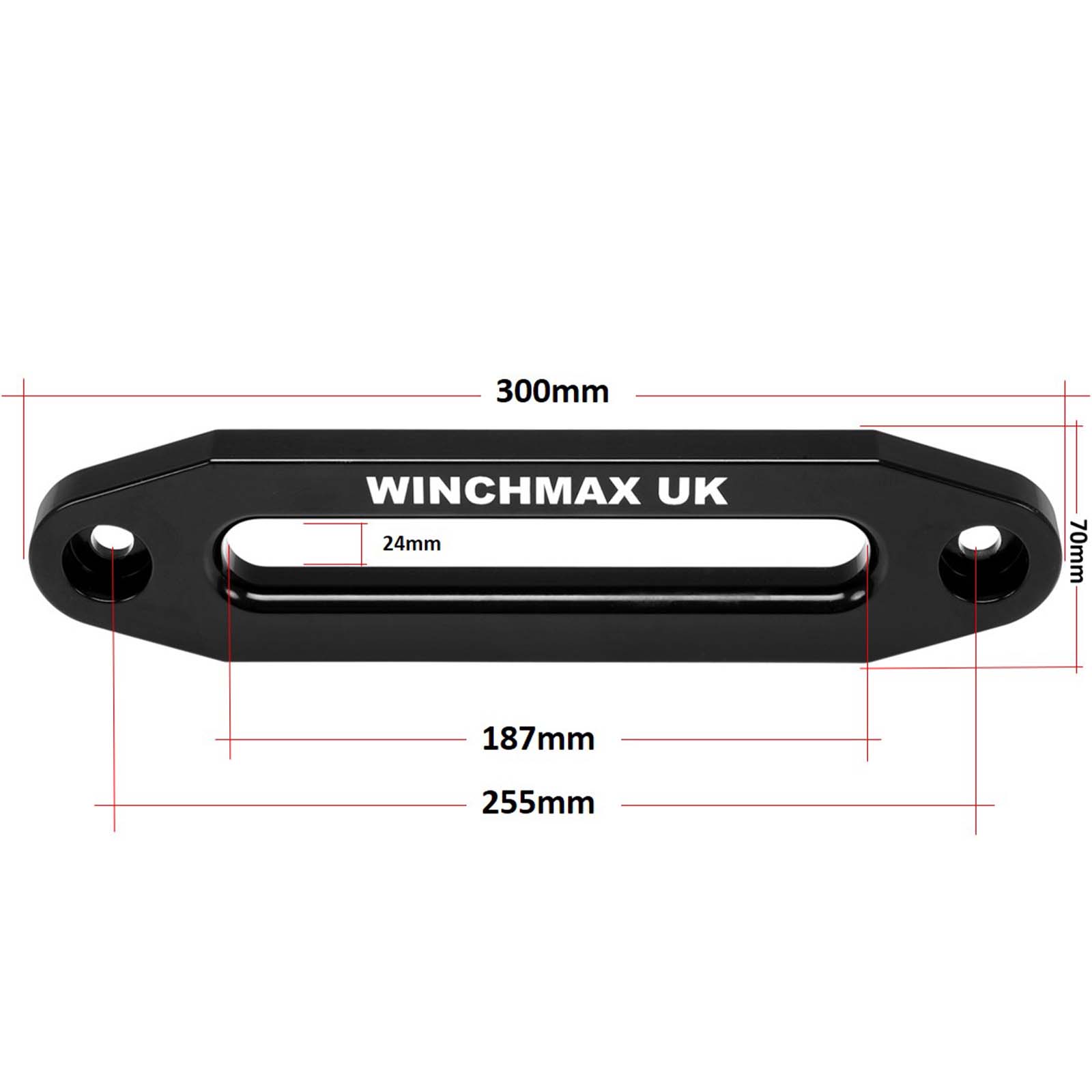

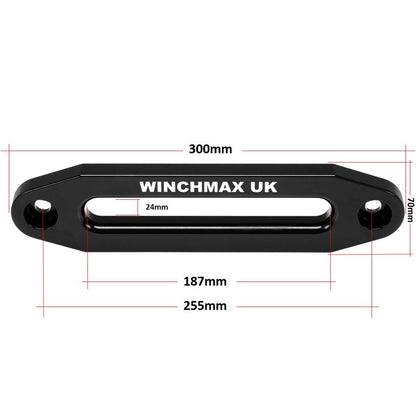

• WINCHMAX aluminium hawse fairlead. Precision CNC milled, laser-etched.
• Upgraded water seals.
• Stainless steel fixings.
• Galvanized steel drum.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Sliding ring gear freewheel clutch.
• Power in/out big grip wander lead with extra-long 4.5m cord.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime.
• Heavy-duty & built to last - gross weight 30kg.
• CE certified & built to ISO9001 quality management system requirements.

Don't forget Your Mounting plate.

WINCHMAX make the best mounting plates for quick and easy installation. Click here for our recommended mounting plates for this winch.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	13,500lb (6,123kg)
Motor	12v 6.8hp/5.1kw, series wound
Gear Train	3 stage planetary
Gear Reduction Ratio	265:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 64mm (2.52") Length 224mm (8.82”)
Drum Finish	Galvanized
Cable	28m x 11mm Dyneema SK75 12 strand synthetic rope
Hook	Competition hook with safety catch
Fairlead	Aluminium hawse fairlead
Battery Leads	2 gauge, 1.83m (72”) 25mmsq - 6.5mm diameter
Battery	Recommended 650CCA minimum for winching
Winch Finish	Matt black (low light paint)
Weight (GW)	30kg (66lb)

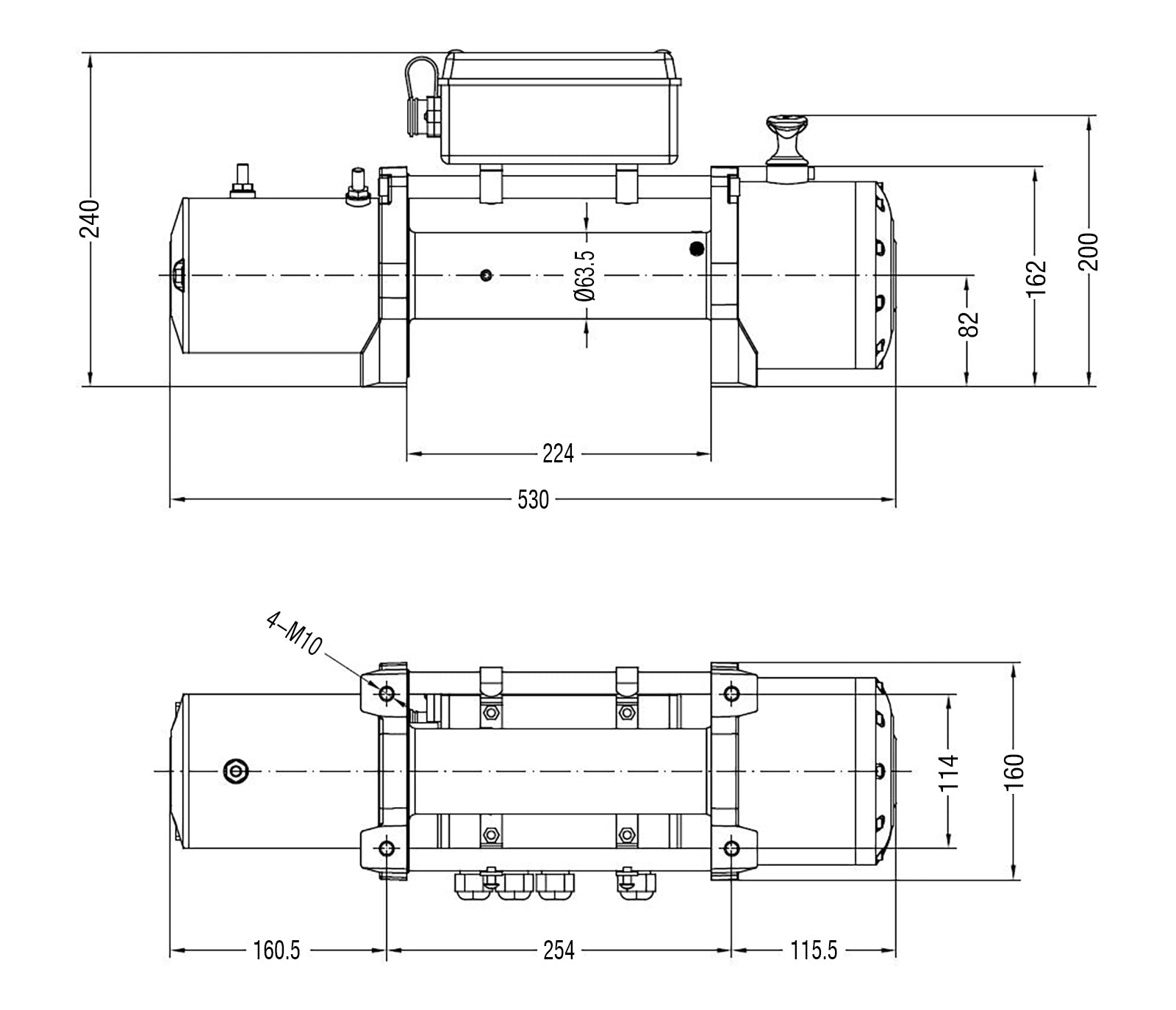

Overall Dimensions (LxWxH)	536 x 160 x 218mm (21.3" x 6.3" x 8.6")
Mounting Bolt Pattern	10.00” ±0.015" x 4.50” ±0.010" (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	7.5m/min (24.6 ft/min)

PDf Documents

• 13500-20000WinchManualEU
• KeyholeRemoteGuide
• MountingHardwareGuide
