13,500lb (6,123kg) 12v Military Grade Winch. 25m x 10mm Armourline Rope. Twin Wireless Remote Controls.

13,500lb (6,123kg) Military Grade 12v Electric Winch, Armourline Rope, Twin Wireless Remote Control

Ideal for recovery trucks and 4x4s up to 3.5T

Features

• 13,500lb (6,123kg) straight-line pull 12v electric winch.
• Military-grade with improved anti-corrosion measures.
• Latest technology long-range wireless remote controls, twin handsets.
• Super powerful 12v 6.8hp (5.1kw) series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 25m x 10mm Armourline double braided synthetic rope. 21,000lb (9,500kg) average breaking load.
• Through-drum rope attachment with grub screw clamp for maximum security.
• Tactical clevis hook 3/8inch G70 grade forged. Safety catch and hand saver, black.

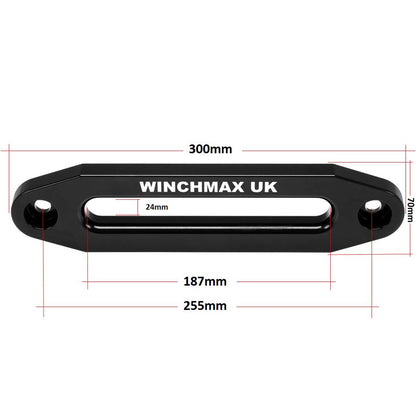

• WINCHMAX aluminium hawse fairlead. Precision CNC milled, laser-etched.
• Upgraded water seals.
• Stainless steel fixings.
• Galvanized steel drum.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Power in/out big grip wander lead with extra-long 4.5m cord.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime.
• Heavy-duty & built to last - gross weight 30kg.
• CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single line rated pull	13,500lb (6,123kg)
Motor	12v 6.8hp/5.1kw, Series Wound
Gear train	3 Stage Planetary
Gear reduction ratio	265:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In The Drum
Drum size	Diameter 64mm (2.52") Length 224mm (8.82”)
Drum finish	Galvanized
Cable	25m x10mm Dyneema SK75 Armouline Rope
Hook	Tactical clevis hook 3/8 inch, black.
Fairlead	Aluminium Hawse Fairlead
Battery Leads	2 gauge, 1.83m (72”) 25mmsq - 6.5mm Diameter
Battery	Recommended 650CCA minimum for winching
Finish	Matt Black (Low Light Paint)
Weight	GW - 30kg  (66lb)
Overall Dimensions(LxWxH)	536 x 160 x 218mm (21.3" x 6.3” x 8.6")
Mounting Bolt Pattern	10.00”±0.015" x 4.50”±0.010" (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	7.5m/min (24.6 ft/min)



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	13,000	5,896	20.4/6.22
2	9,530	4,332	41/12.0
3	7,929	3,604	71/21.0
4	6,770	3,077	85/24.0



Line Pull (lb/kg	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft (7.5m)	85A
3,000 (1363)	11.48ft (3.5m)	145A
6,000 (2727)	8.86ft (2.7m)	235A
9,000 (4090)	7.72ft (2.2m)	270A
13,000 (5896)	5.58ft (1.7m)	400A
