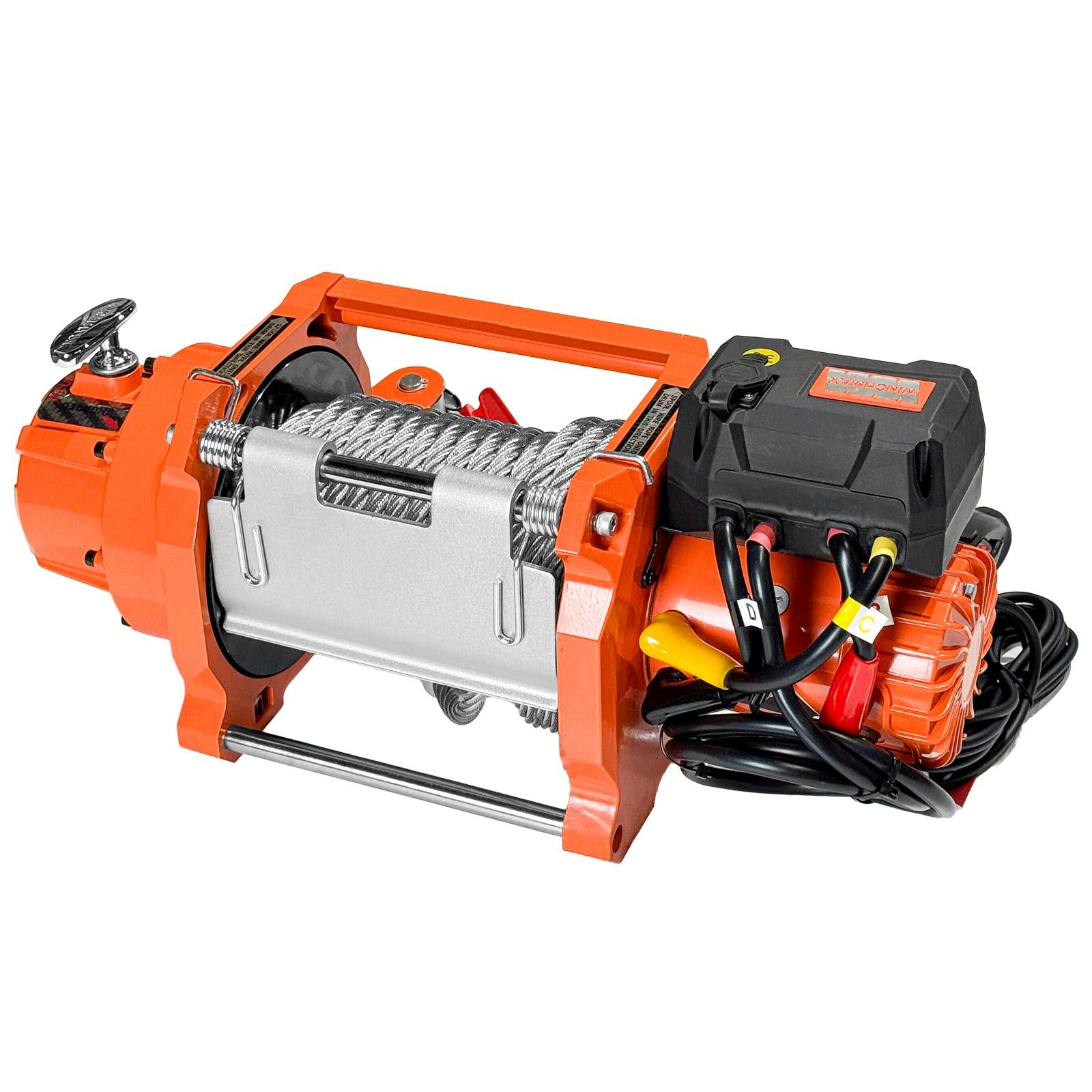

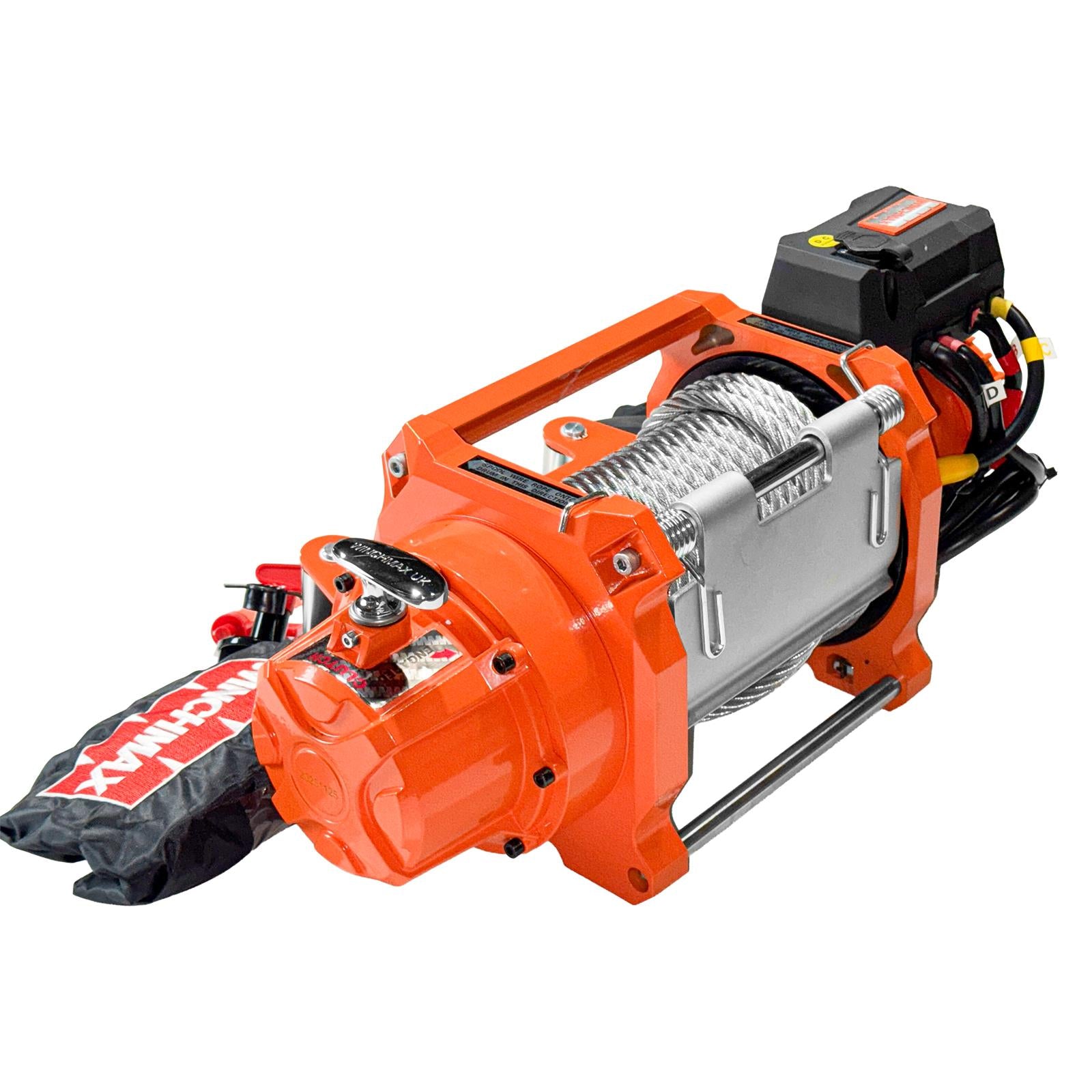

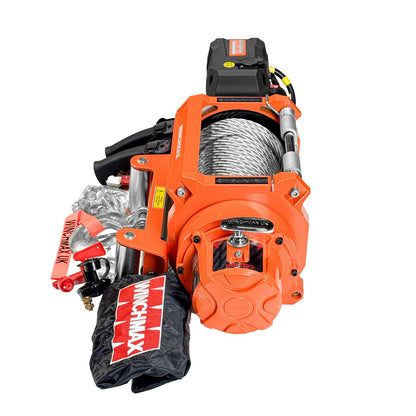

22,000lb 24V Winch Heavy Duty 20m x 14mm Steel Rope.

22,000lb 24V Winch Heavy Duty 20m x 14mm Steel Rope.

Kurzcode: 1414
SKU: WMHD2200024V
£1,299.95Inc VAT£1,083.29Exc VAT
Inc VAT £0.00Exc VAT
£1,299.95Inc VAT£1,083.29Exc VAT
Sale Ausverkauft

Benötigen Sie Hilfe?

Rufen Sie uns unter +44 (0) 1986 899264 an und wir helfen Ihnen gern.

Konformitätszertifikat für alle Produkte
Order within
Days
:
h
:
m
:
s
for UK Next Working Day delivery on
Vollständige Details anzeigen

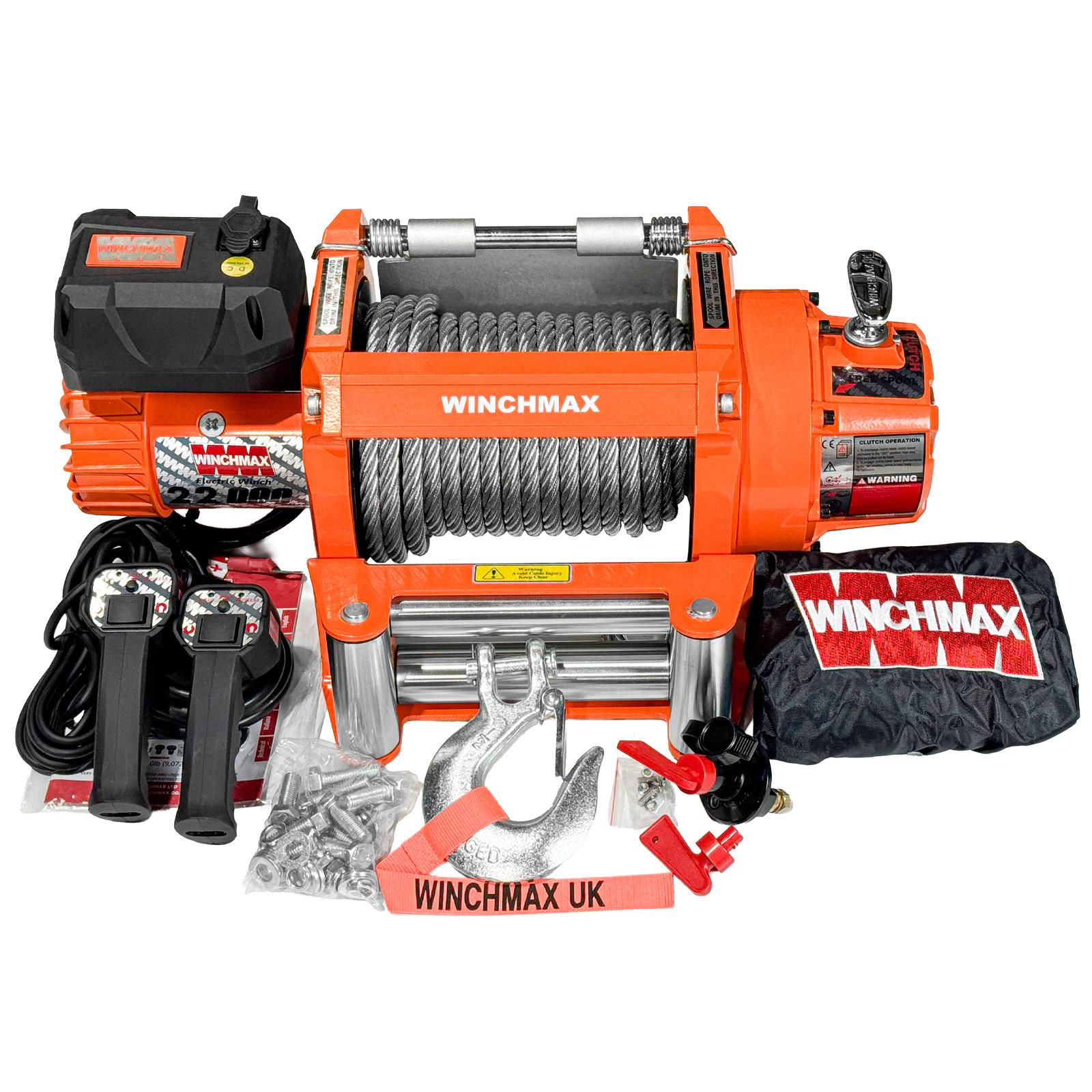

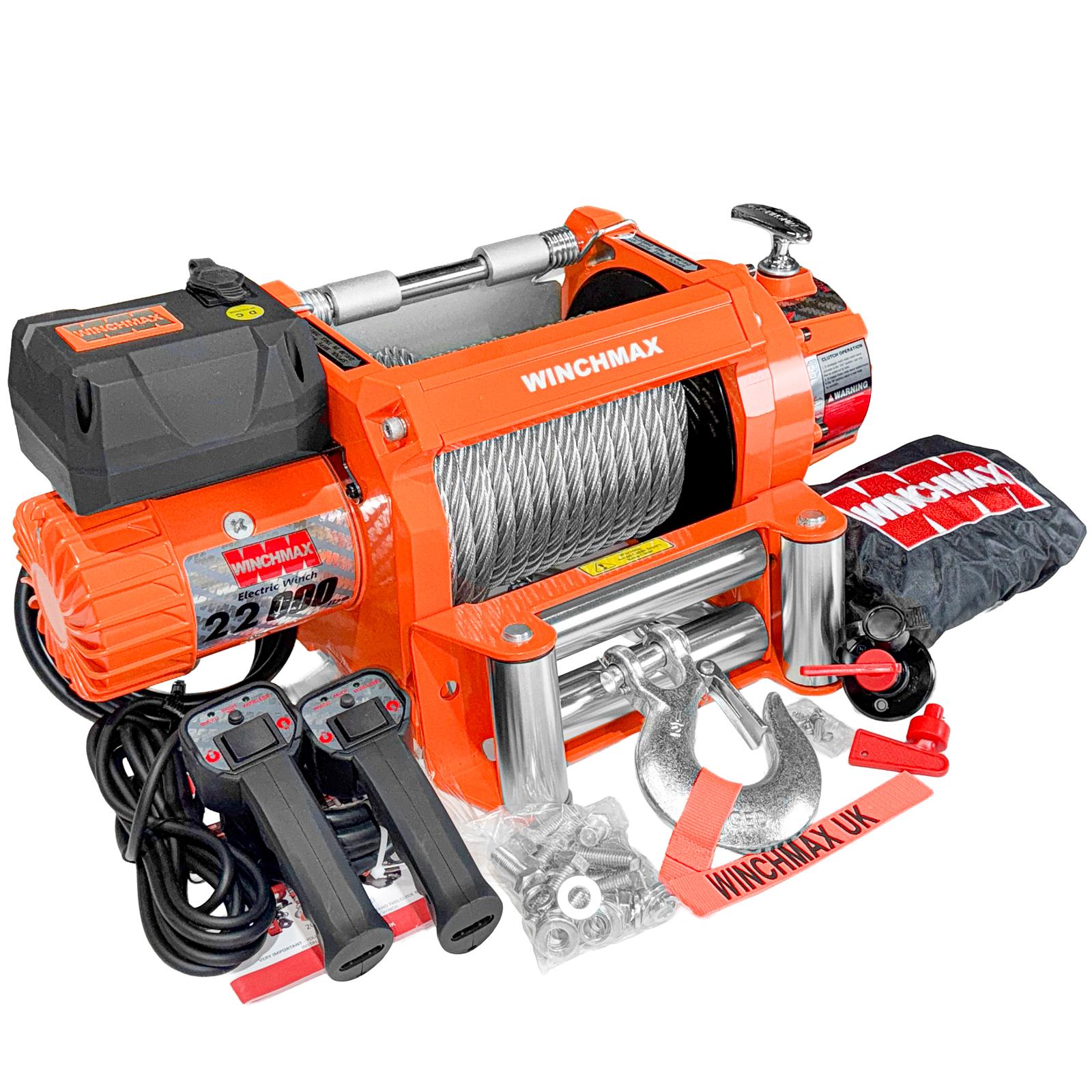

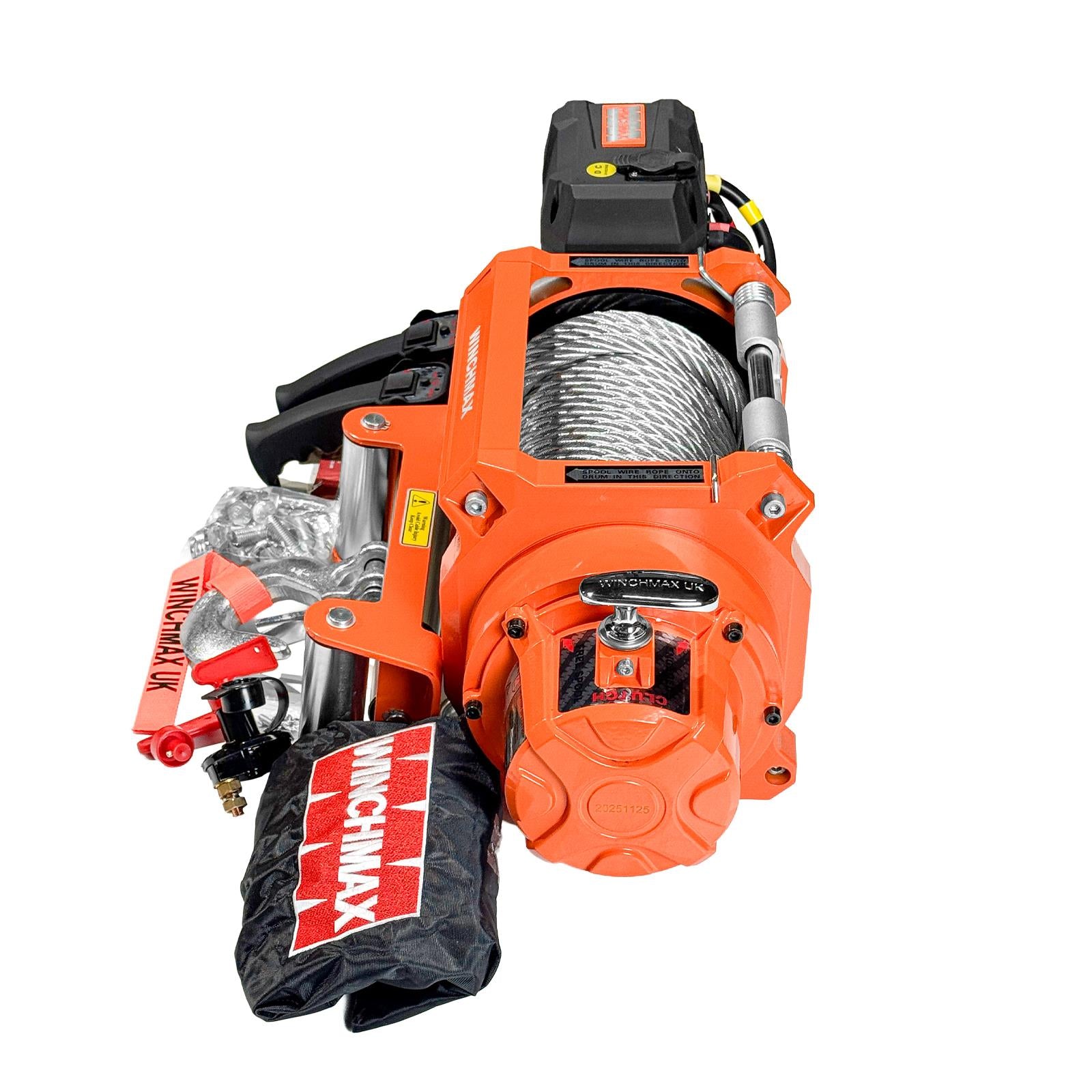

  • 22,000lb (9,979kg) Heavy Recovery Original Orange 24V Winch, Steel Rope, Twin Wireless Remote Controls.  **Mounting Plate Included

    Features

    • 22,000lb (9,979kg) straight-line pull 24V electric winch.

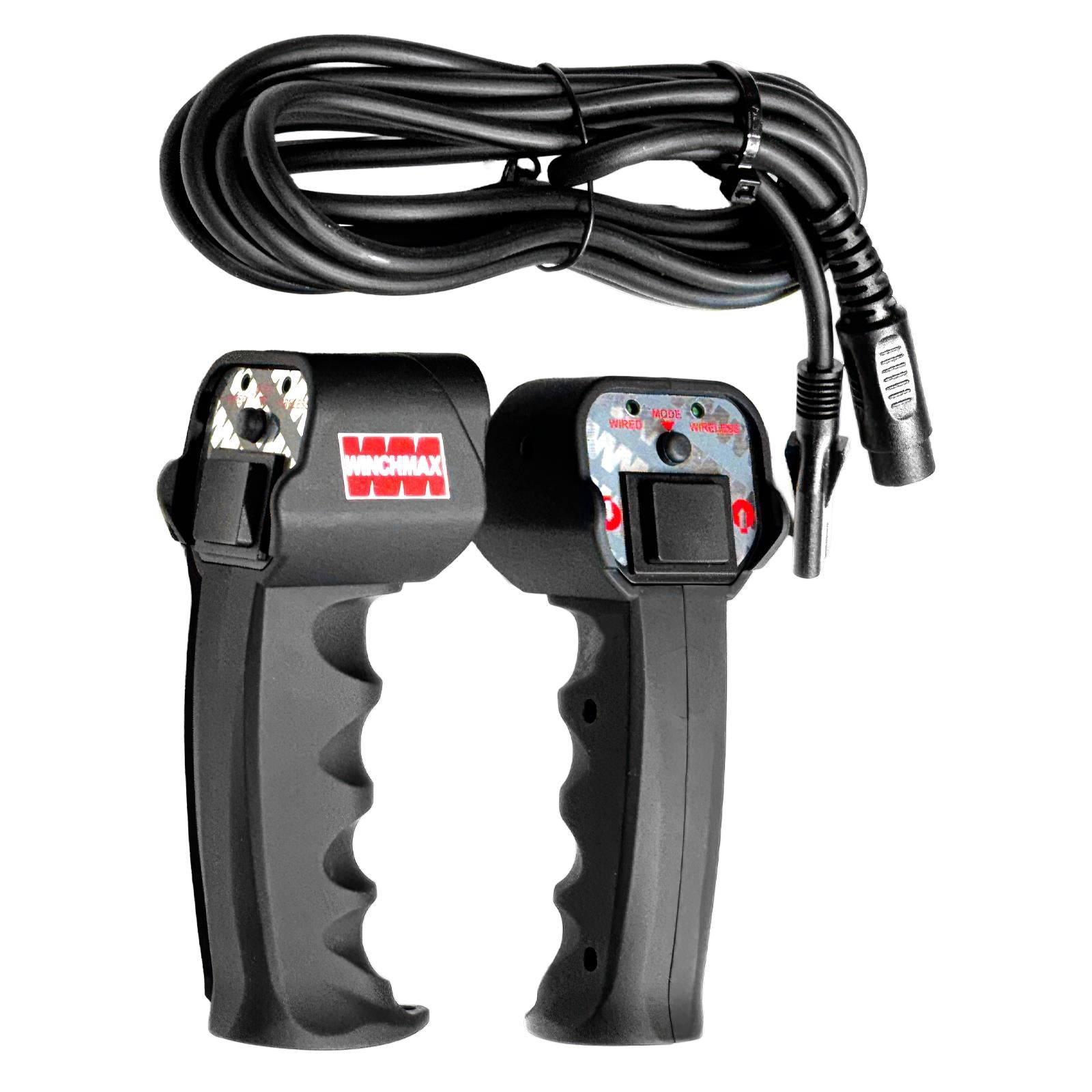

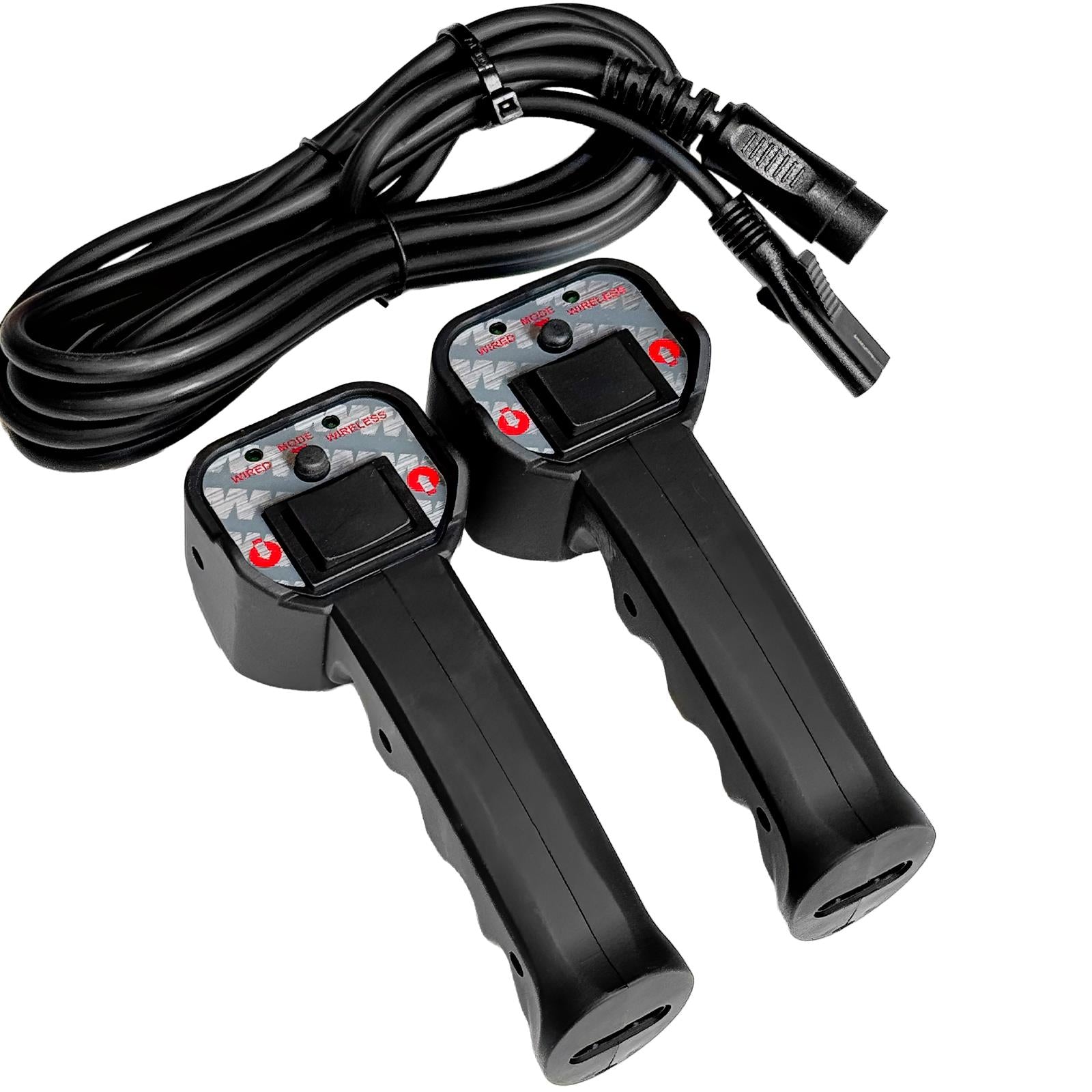

    • Latest technology long-range wireless remote controls, twin handsets.
    • Super powerful 24V 7.0hp/5.2kw series wound electric motor.
    • Massive ultra-tough four-stage gearbox with hardened steel gears.
    • Motor and gearbox casing machined from billet steel for maximum impact protection.
    • 20m x 14mm Galvanised steel wire rope.
    • New double 'through-drum' rope connection with grub screw clamp for ultra-secure rope attachment to drum.
    • Heavy spring-loaded steel plate drum tensioner to assist with even spooling and stop wire rope unfurling when off load.

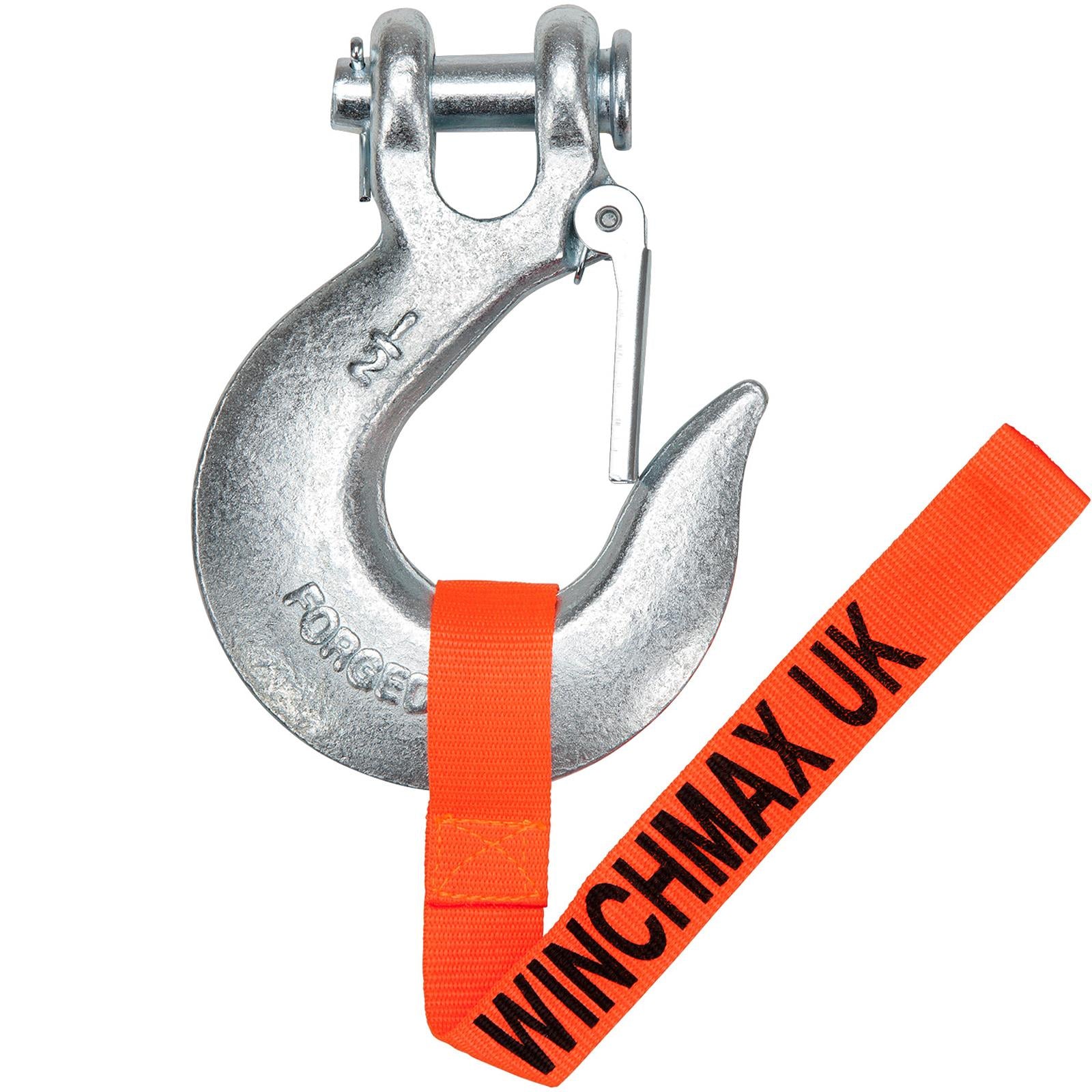

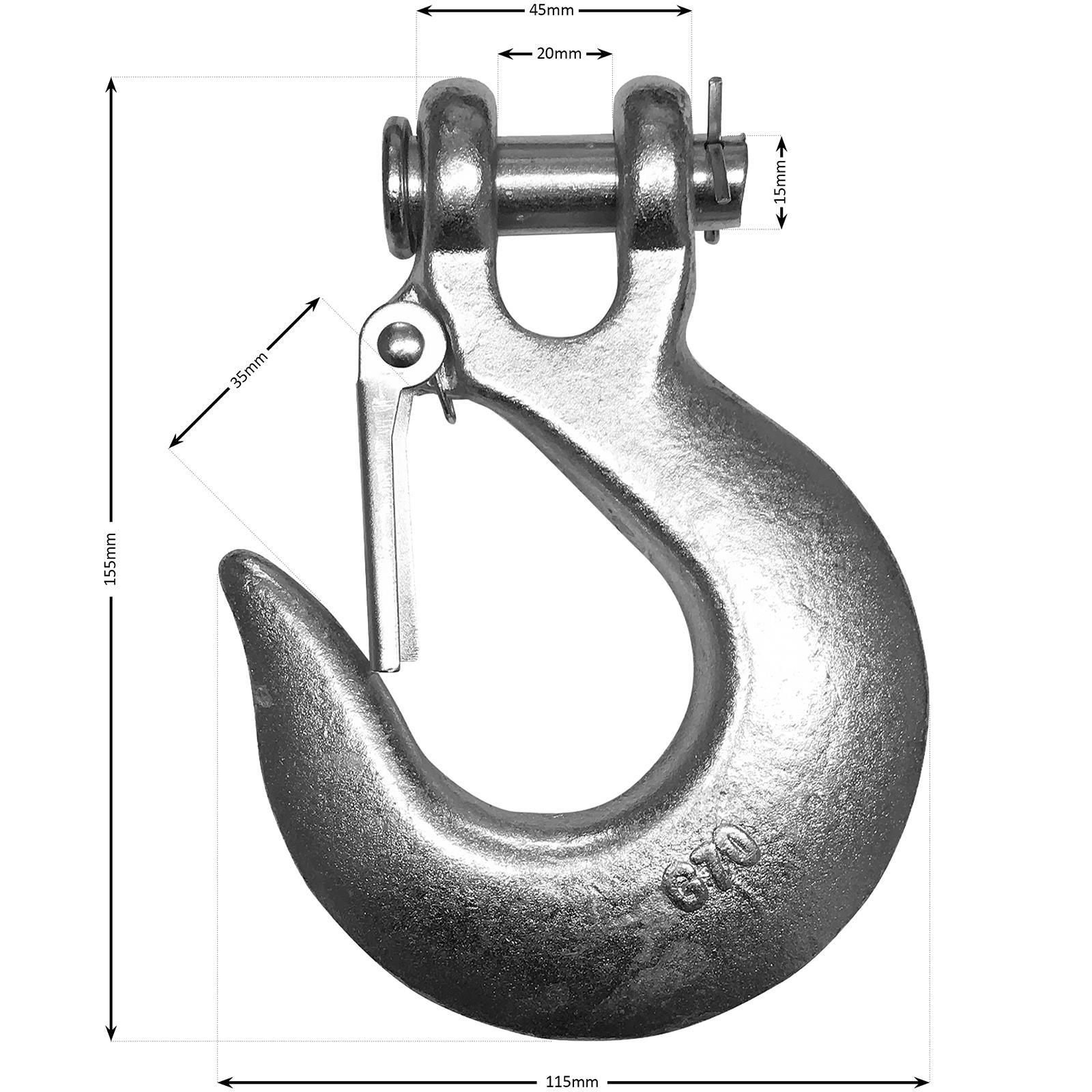

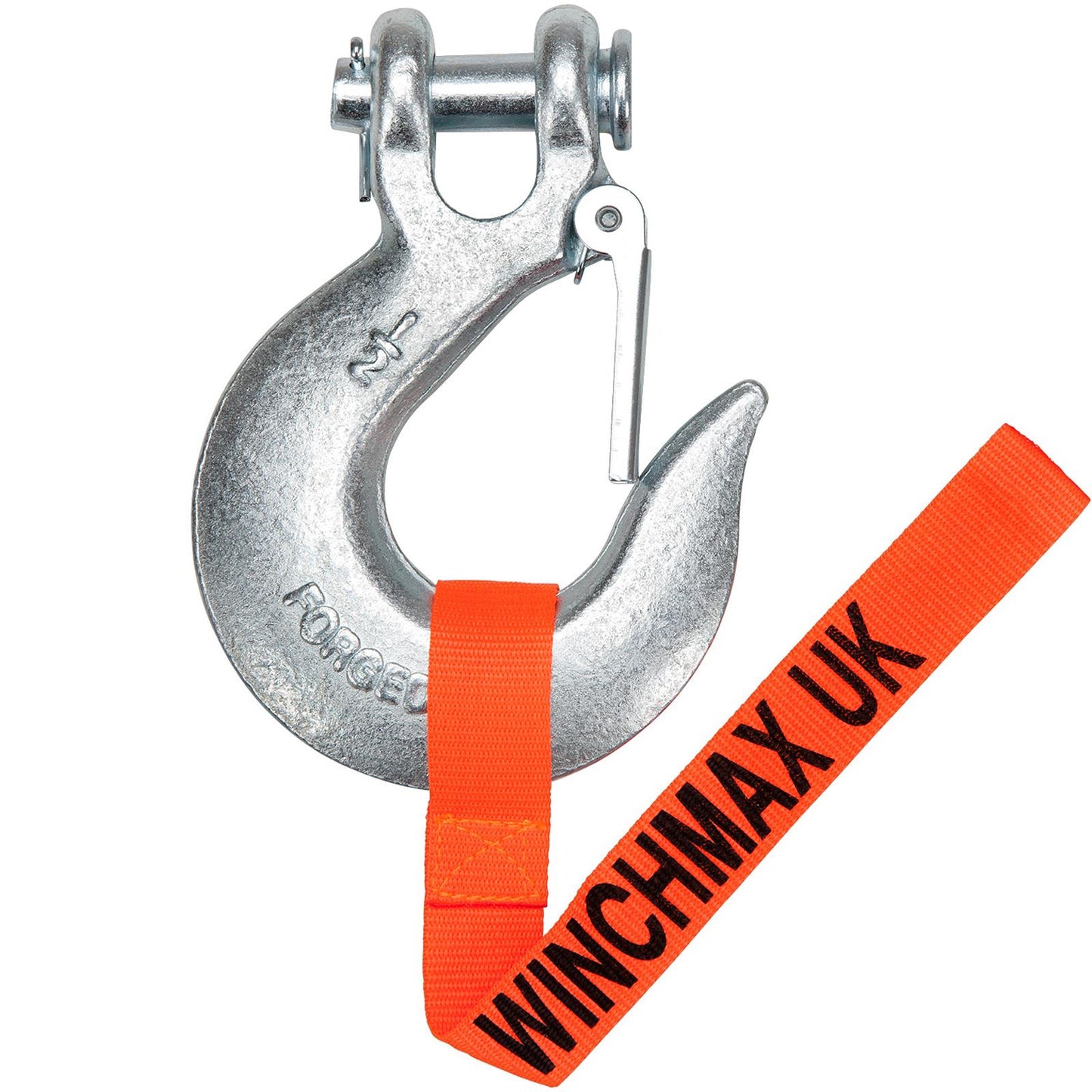

    • 1/2 inch grade 70 forged clevis hook with safety catch and hand saver zinc plated for corrosion resistance.
    • Sliding ring gear freewheel clutch.

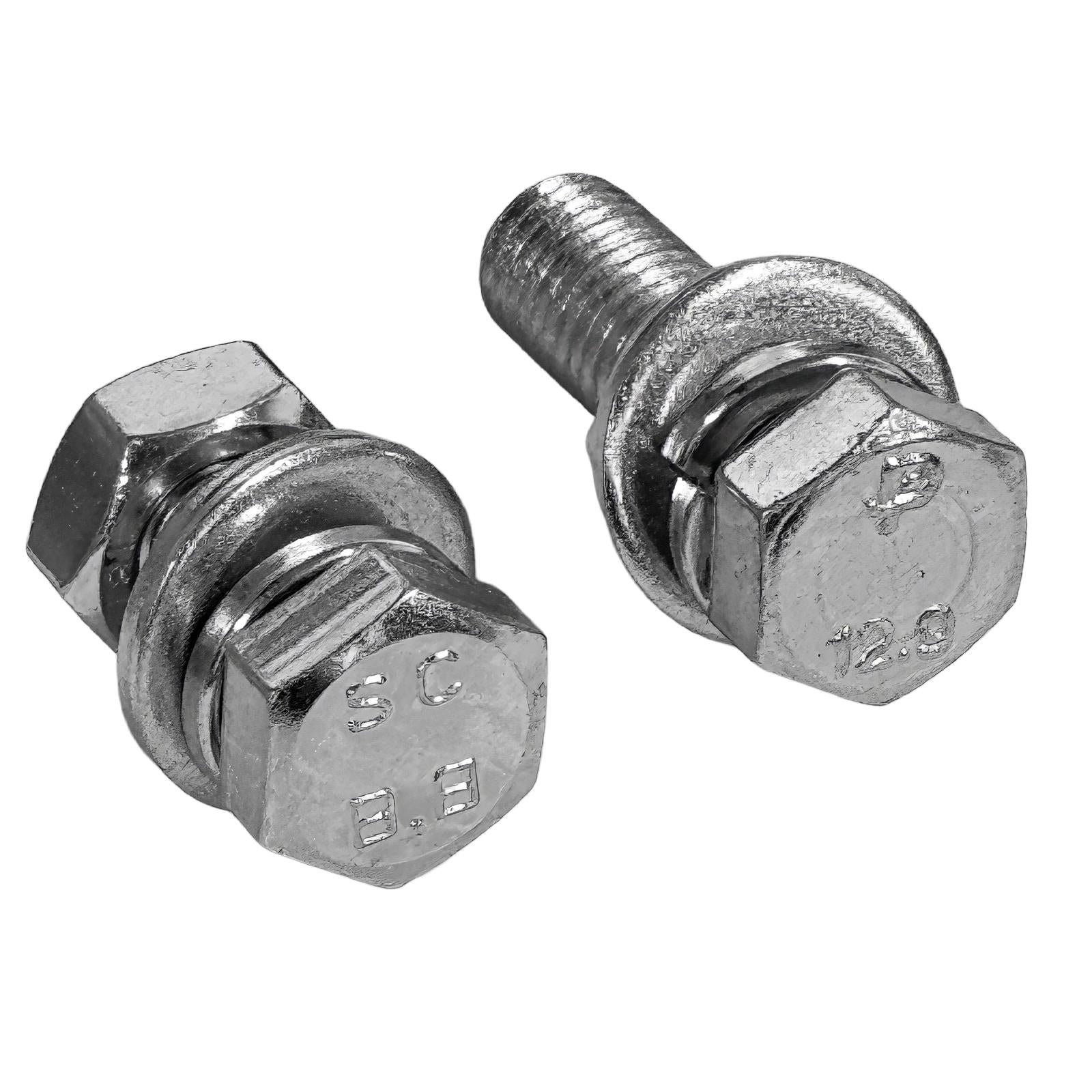

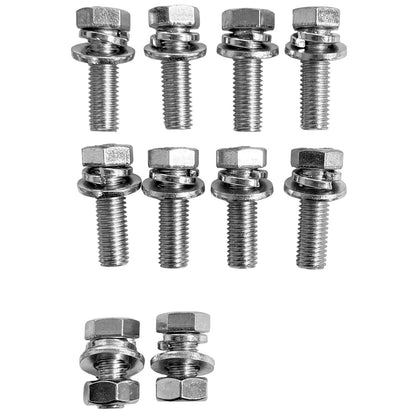

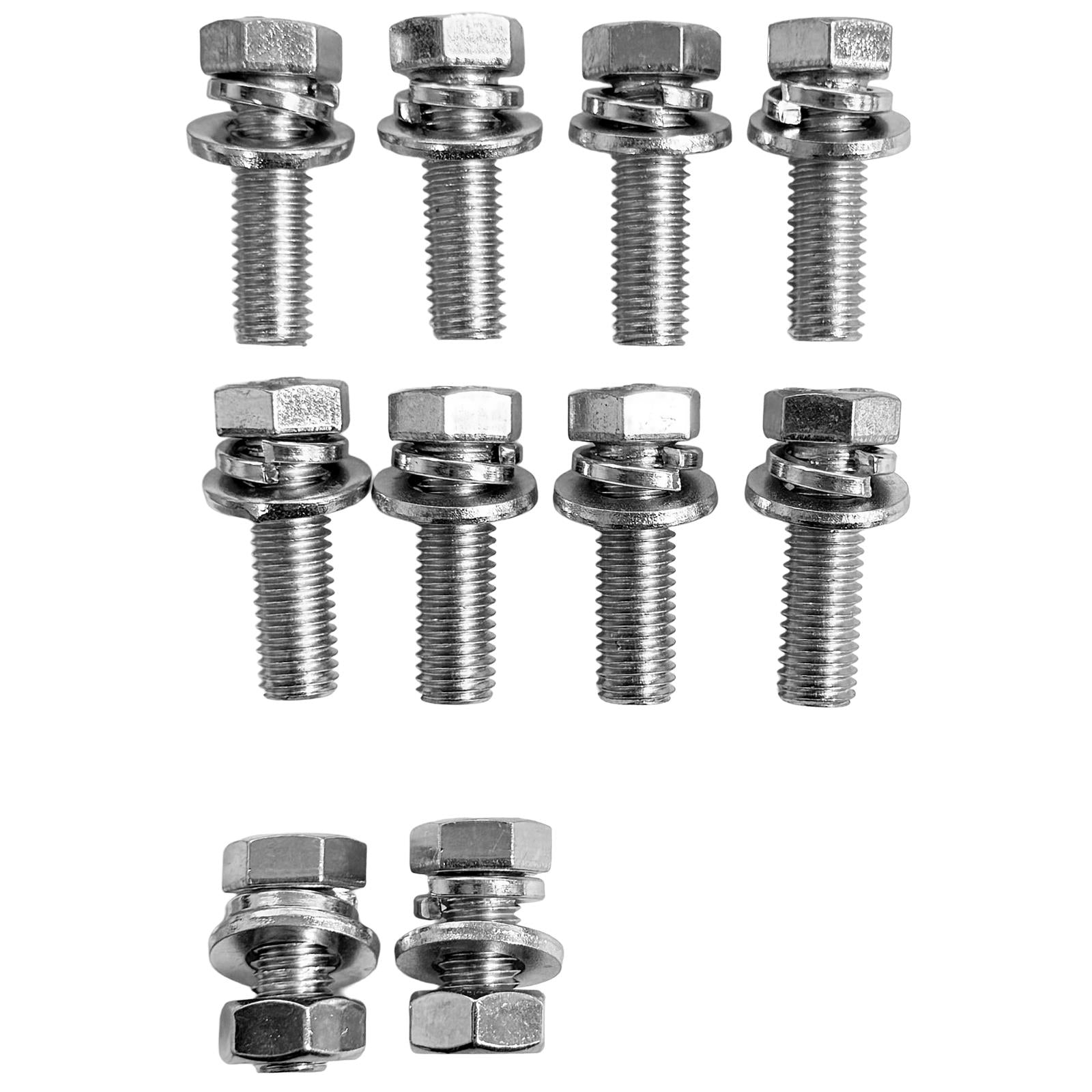

    • High tensile fixing bolt kit.
    • Strong WINCHMAX branded cover to protect from water and road grime.
    • Heavy duty & built to last - gross weight 76.2kg.
    • CE certified & built to ISO9001 quality management system requirements.

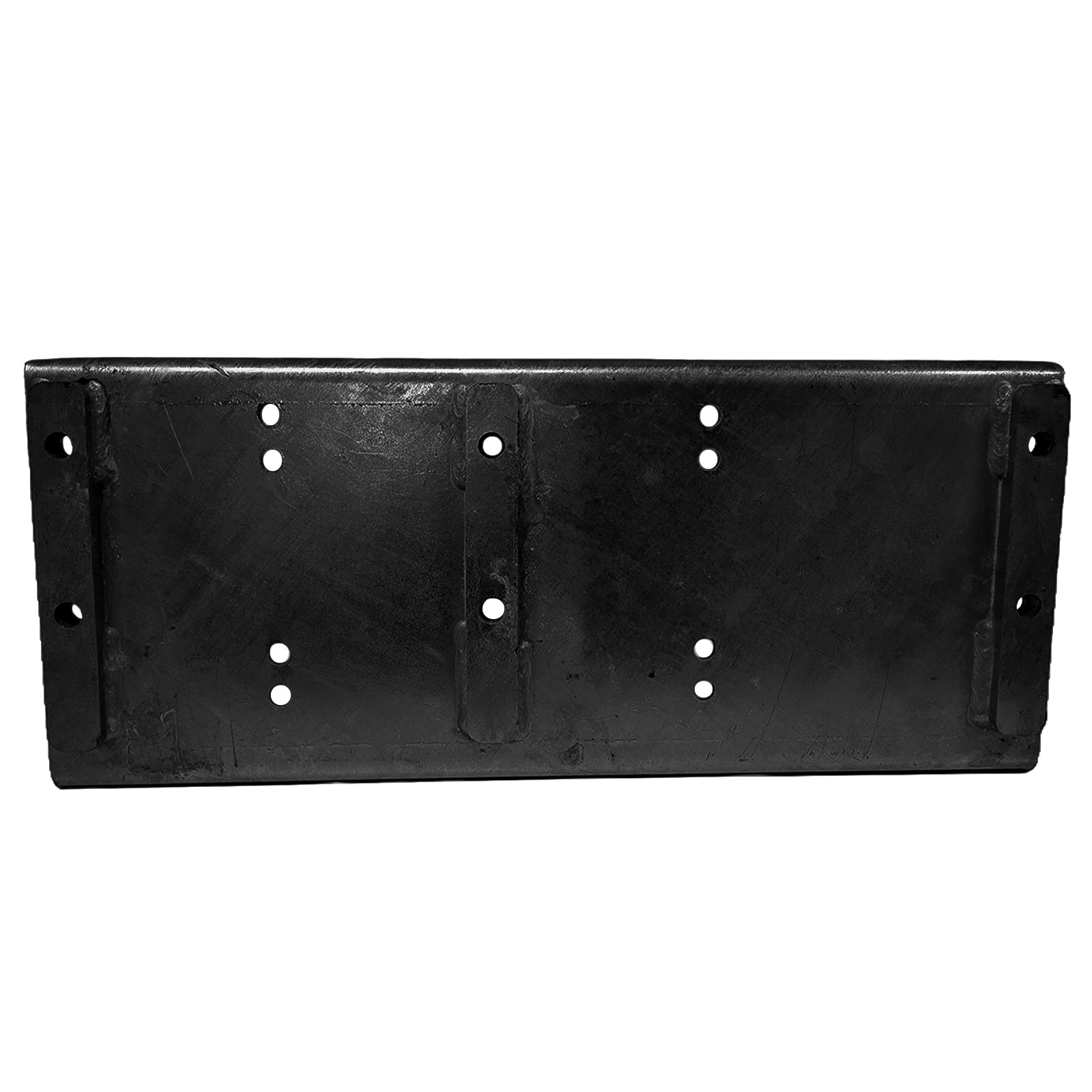

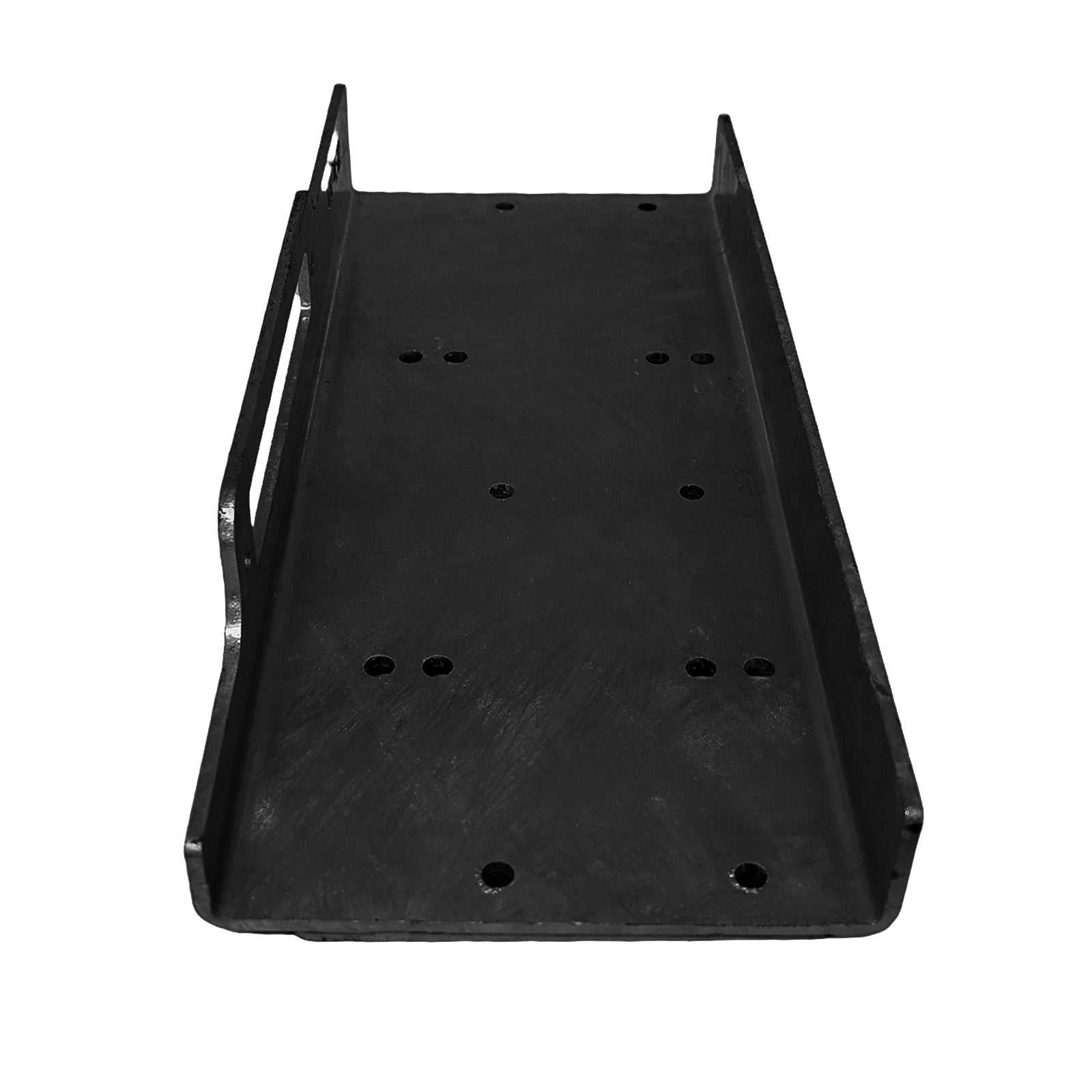

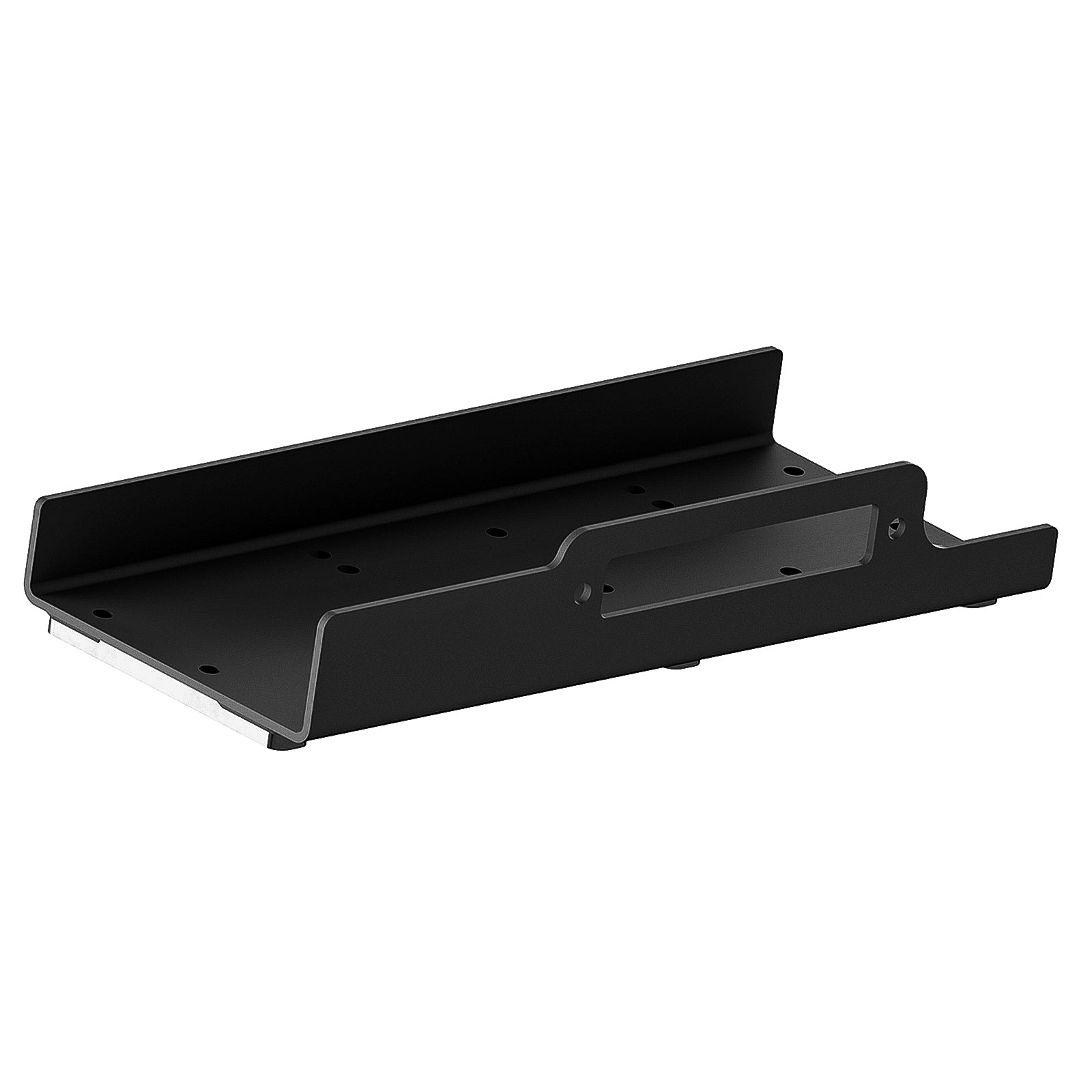

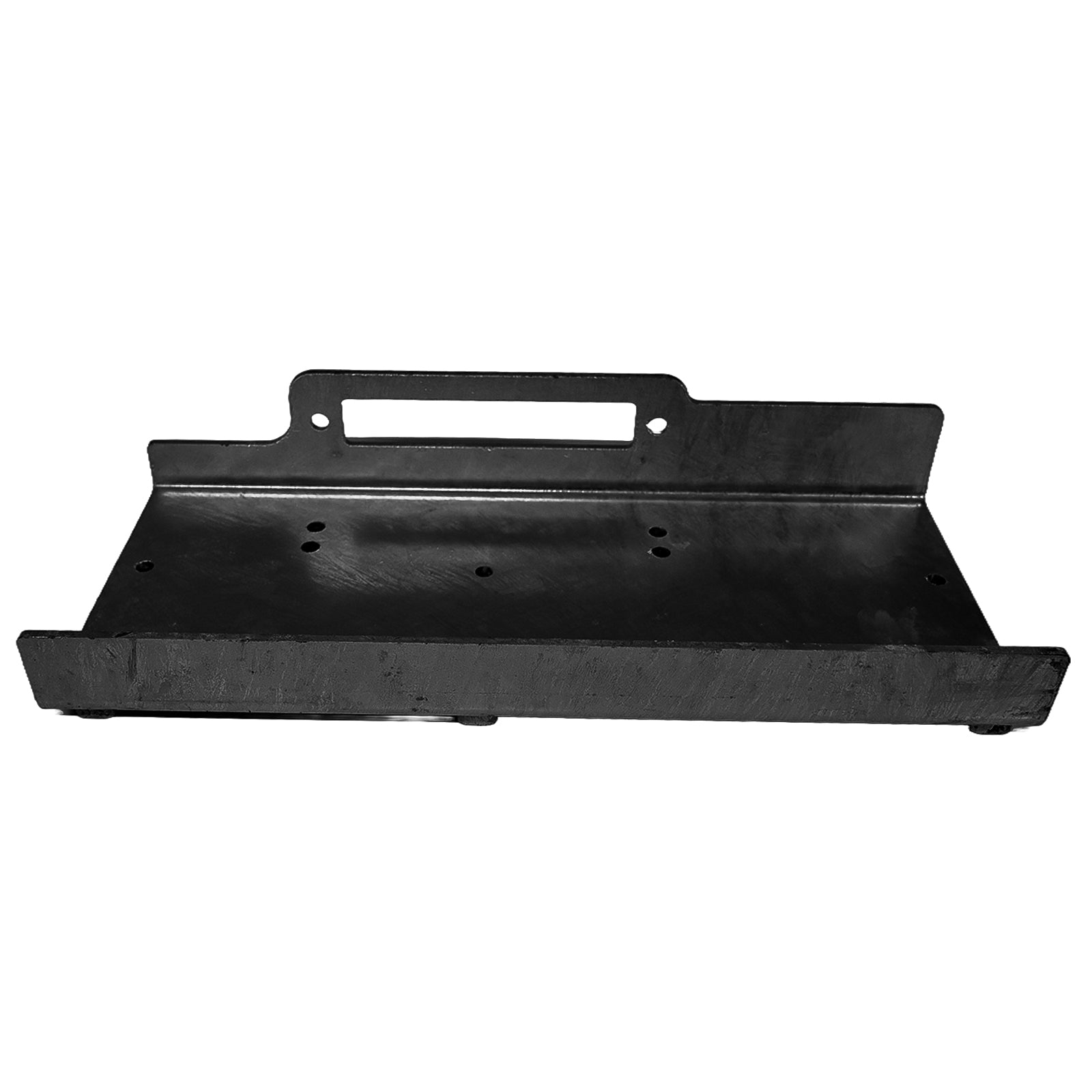

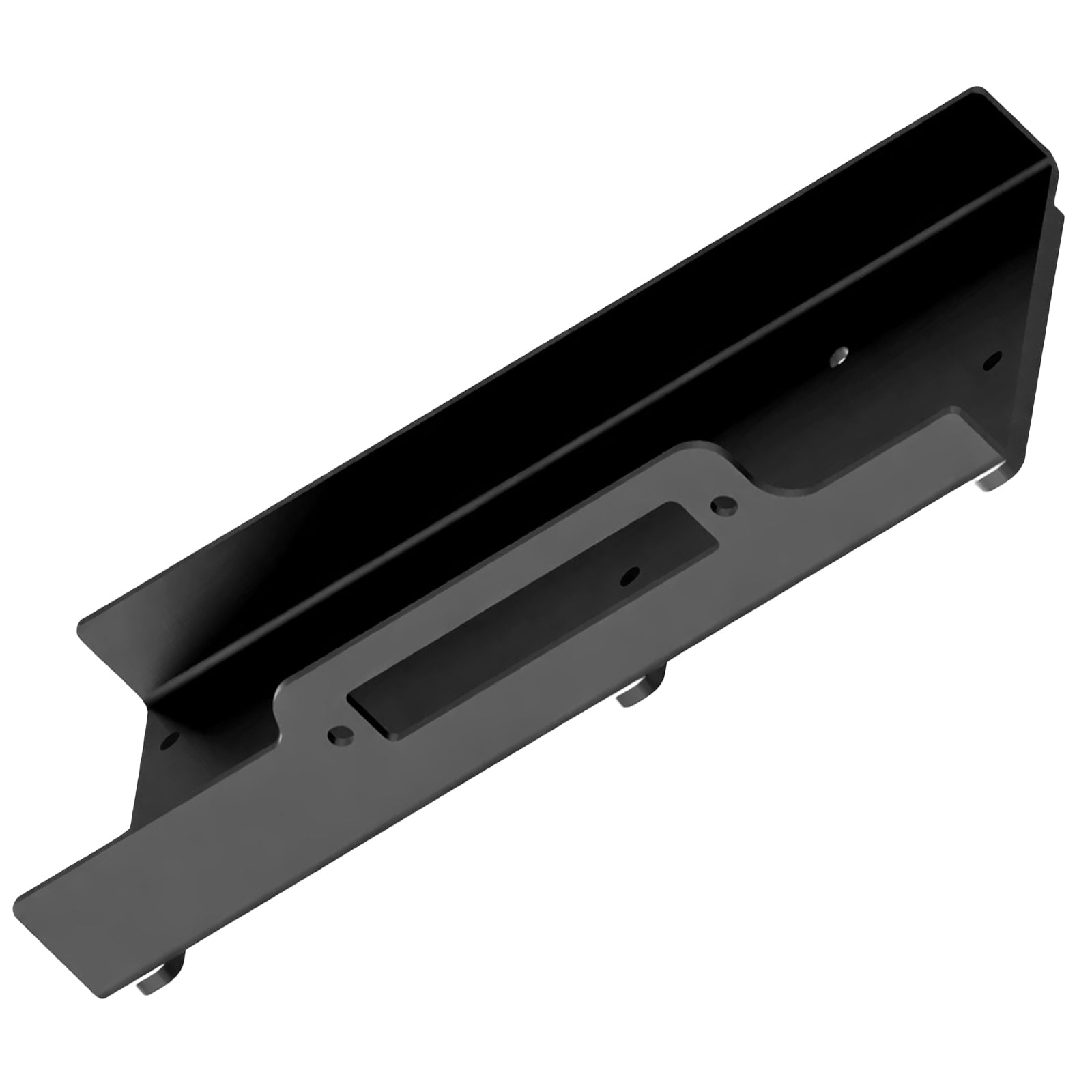

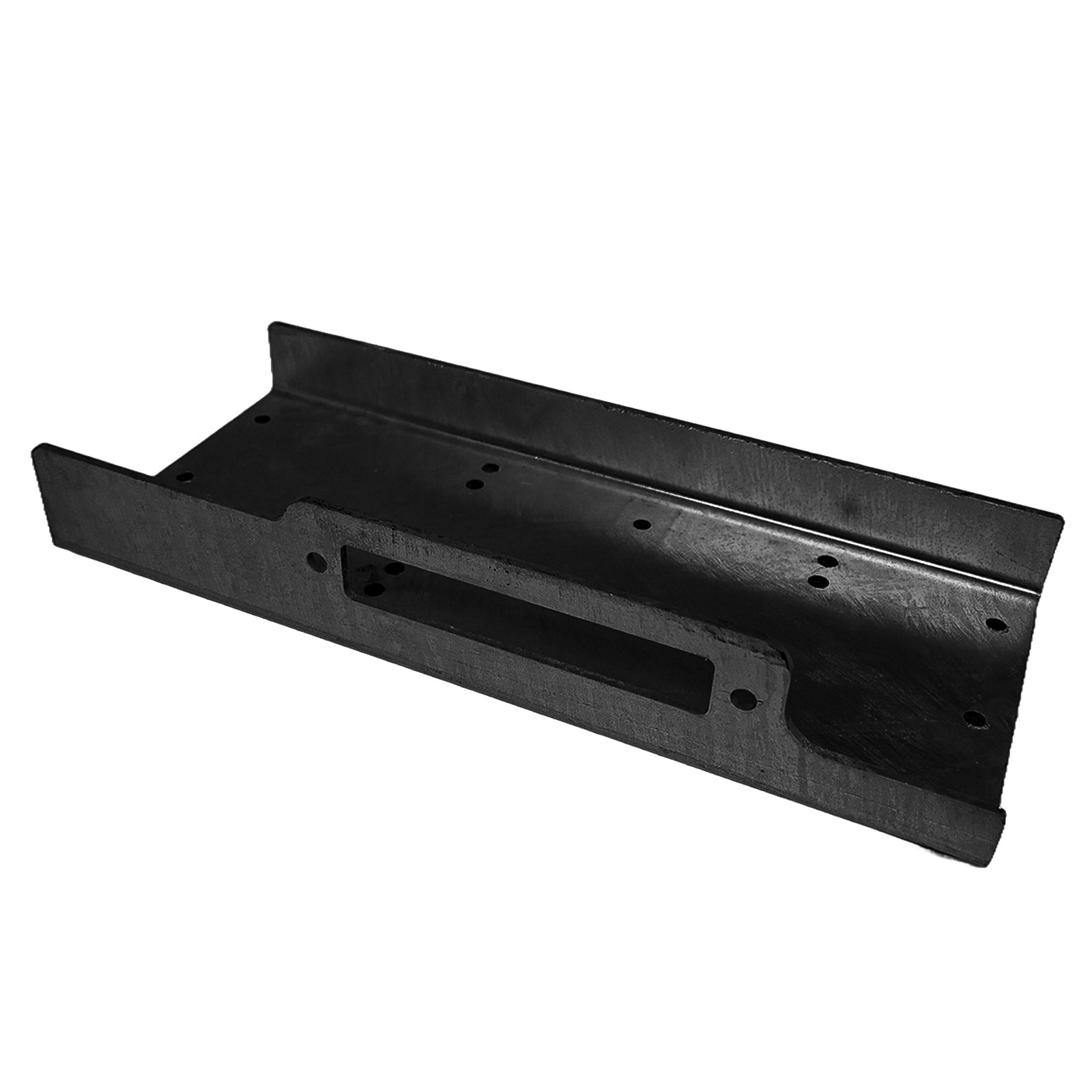

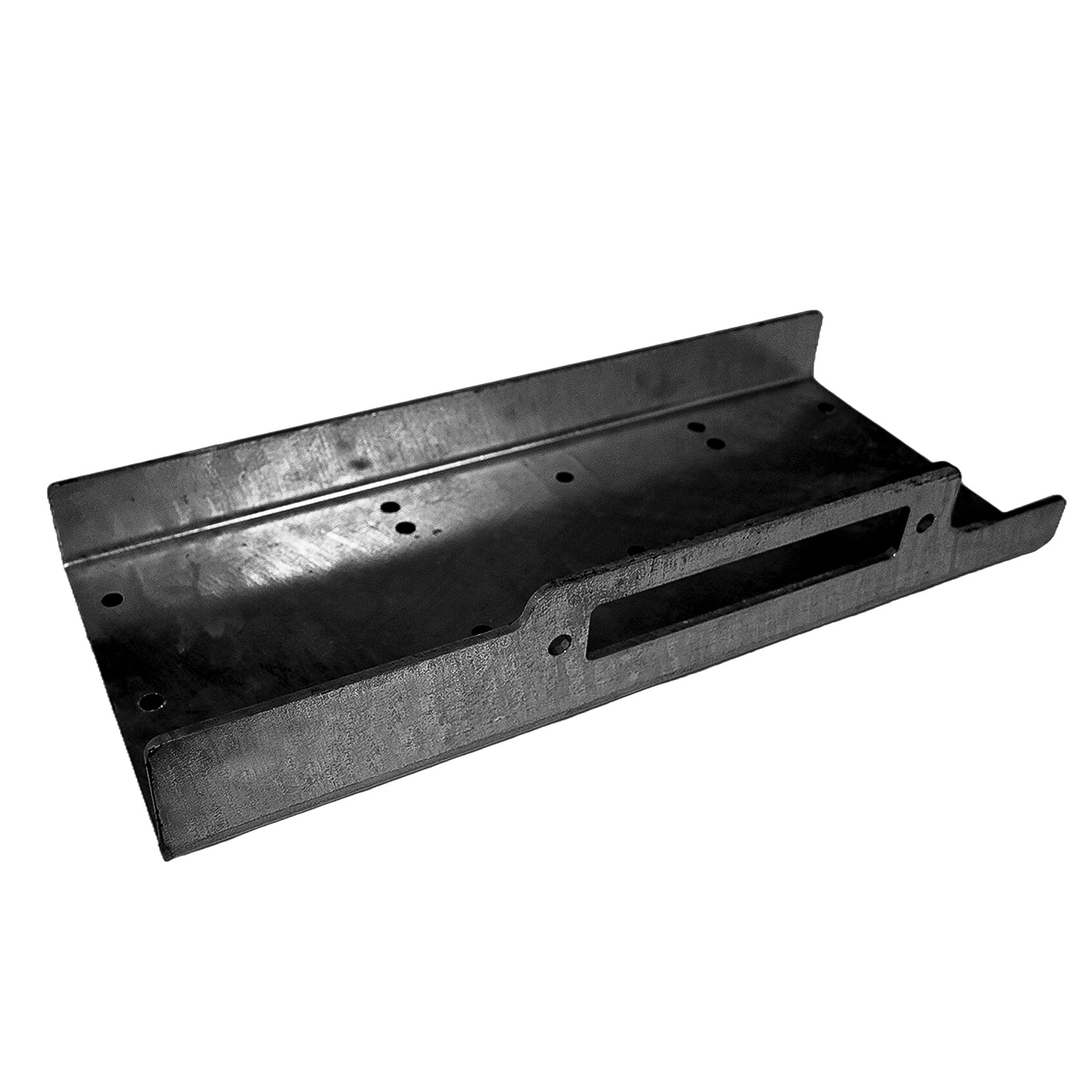

    • Heavy duty mounting plate included in the kit, made from 6mm steel and powder coated in black. 12.3kg.

    Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
    VAT invoice provided with every sale.

  • Max rated pull (momentary) 22,000lb (9,979kg)
    Motor 24v 7.0 hp/5.2 kw series wound
    Control Two combination wireless remote controls
    Gear Train 4 stage planetary
    Gear Reduction Ratio 454:1
    Clutch Sliding ring gear
    Braking Action Automatic in the drum
    Drum Size Diameter 88mm x length 224mm
    Battery Recommended 800CCA minimum for winching
    Battery Leads 2 gauge, 1.83m - 5.6mm diameter
    Winch Finish Orange powder coated
    Weight (GW) 76.2 kg
    Overall Dimensions (LxWxH) 592 x 223 x 280.5mm
    Mounting Bolt Pattern 10"/4.5"+10"/6.5" (254 x 114.3mm + 254 x 165.1)
    Motor Current 65-400A
    No Load Line Speed 6.15m/min (20.18 ft/min)
    Waterproof IP67 Rating
    Mounting plate 12.3 kg



    Layer Rated Line pull (lb) Line Pull (Kg) Total Rope On Drum (ft/m)
    1 22,000 9,979 15.09 (4.6)
    2 17,262 7,830 34.45 (10.5)
    3 14,203 6,442 57.91 (17.65)
    4 12,065 5,473 65.63 (20)



    First Layer Line Pull (lb) Line Speed ft/min Motor (Amps)
    0 (0) 20.18ft（6.15m） 65
    3,000 (1,363) 6.73ft（2.05m） 154
    6,000 (2,727) 5.48ft（1.67m） 216
    9,000 (4,090) 4.59ft（1.4m） 280
    12,000 (5,443) 3.67ft（1.12m） 340
    15,000 (6,804) 3.41ft（1.04m） 370
    18,000 (8,164) 3.22ft（0.98m） 383
    20,000 (9,072) 3.05ft（0.93m） 394
    22,000 (9,979) 2.95ft（0.9m） 400
