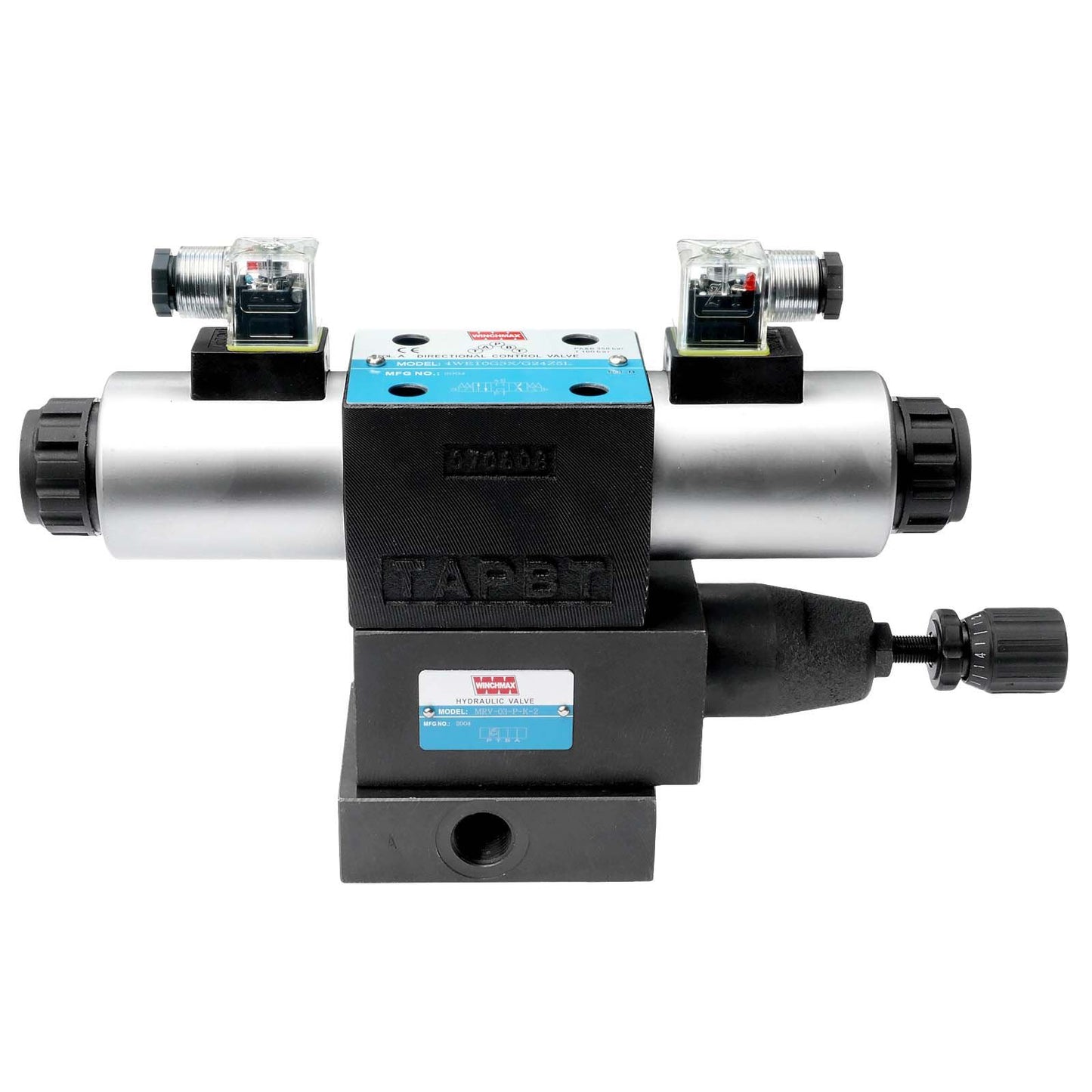

WINCHMAX. 12V CETOP5/NG10 Solenoid Valve, Manifold and Regulator.

CETOP5/NG10 High Flow Modular Directional Control Valve with Pressure Regulator and Manifold Block.

Solenoid Operated Directional Hydraulic Control Valve, CETOP5/NG10 Three-Position 12V
Solenoid-operated directional spool valve used to start, stop, and direct the oil flow.

Features

• Double 12V Coils.
• High Flow up to 120l/min.
• Removable DIN plug connector with clear cover, cable gland, and LED indicator.
• Configuration; Spring-centred P open to Tank, A & B Blocked.
• Max Pressure P, A, B, 31.5 Mpa (350 bar / 4500 psi).
• Manual override feature.

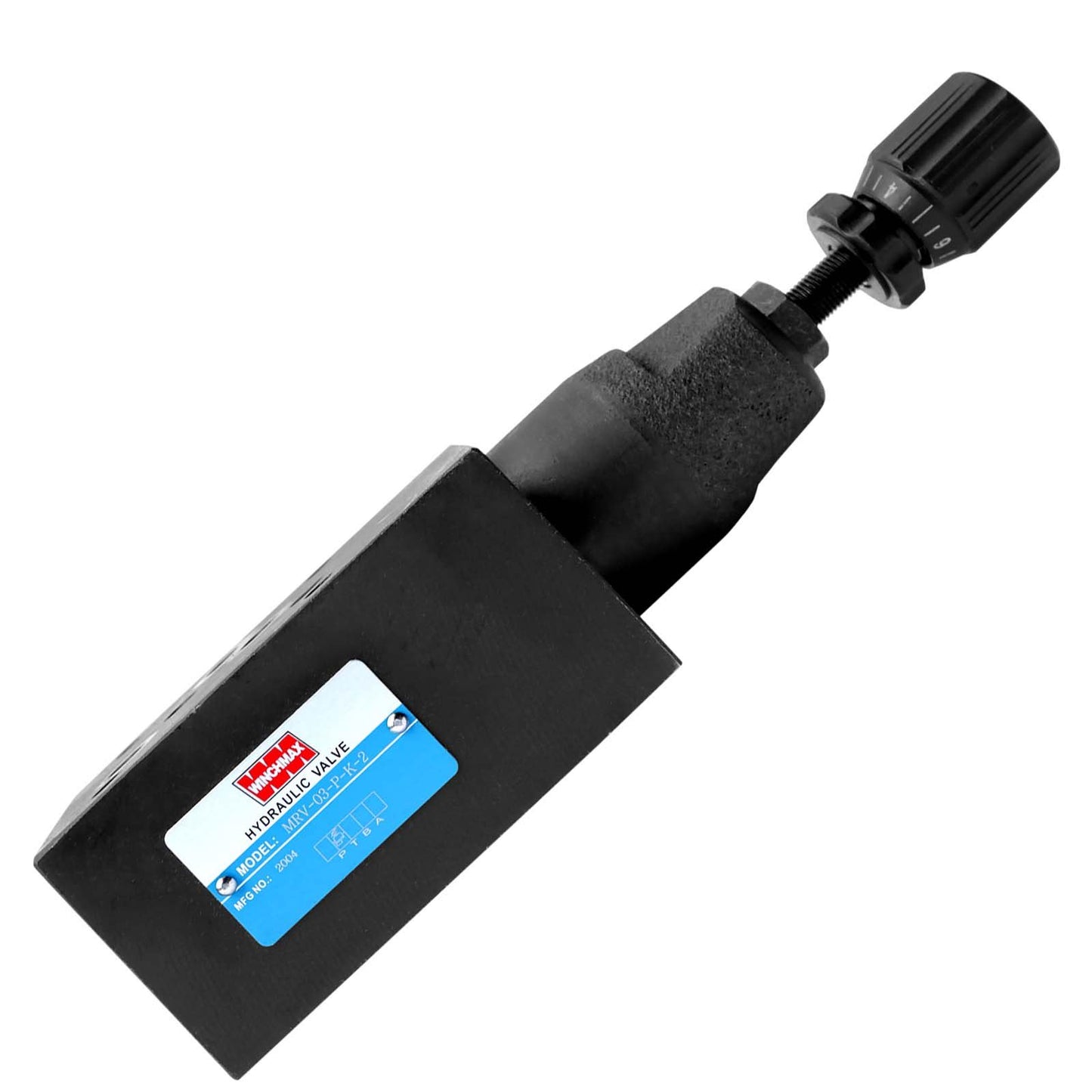

Modular Hydraulic Pressure Regulator Relief Valve CETOP5/NG10
Modular relief valve is used to regulate the maximum pressure within the operating parameters of the winch or other item being controlled. Installed between the manifold block and directional control valve. When the set pressure is exceeded, P will bypass across to T.

Features

• Easy to operate rotary calibration control with lock ring.
• Maximum flow 70l/min.
• P to T on operation.
• 70-250 bar setting range.

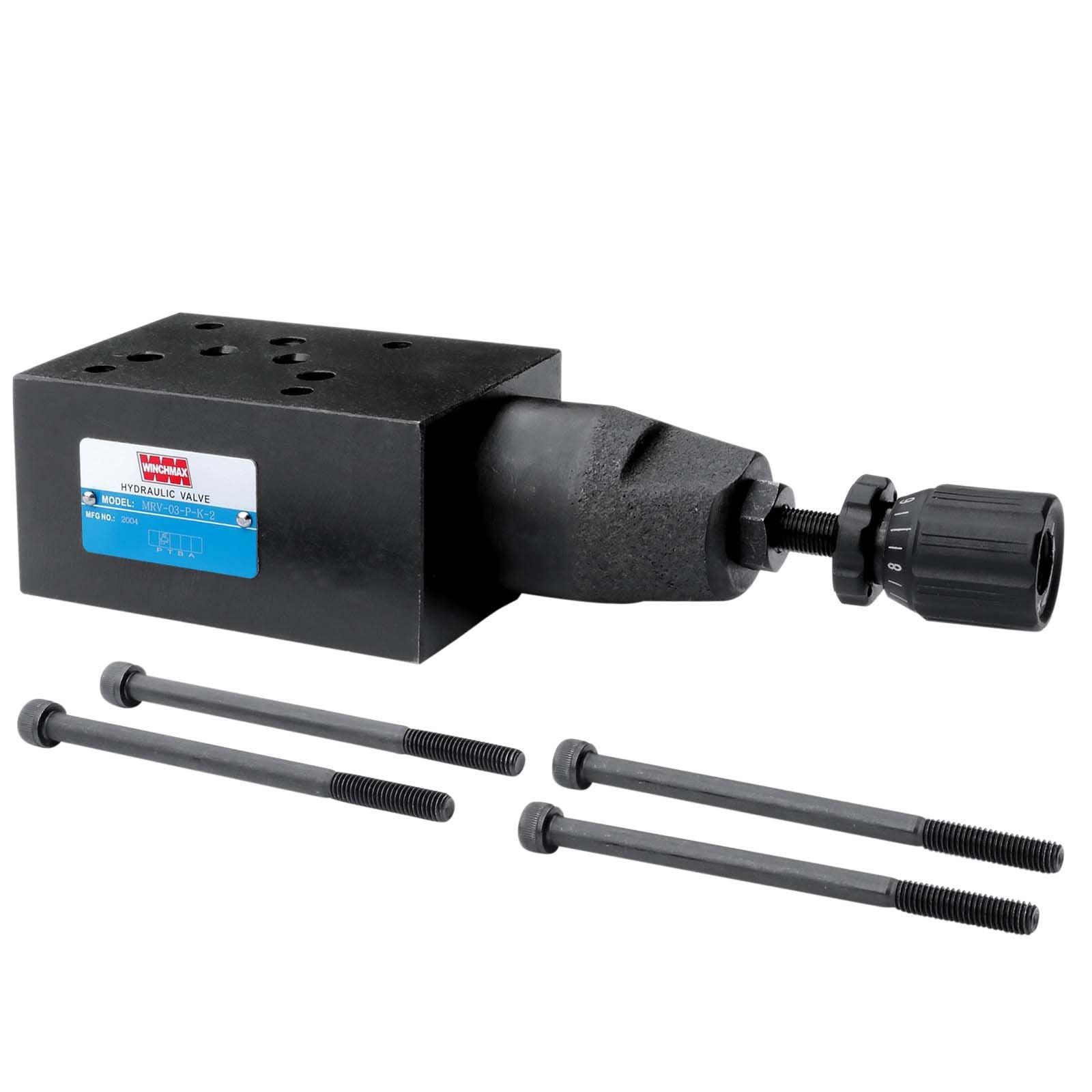

• Supplied with extended bolts for attachment between direction valve and manifold block.

Manifold Subplate Cetop5/NG10 Hydraulic

These steel plate covers have been designed to replace valves on the steel manifold and work to provide a pressure blank, which will enable the remaining station to operate. A manifold subplate with reliable relief valves will improve your system’s overall safety and precise control.

Features

• Forged Steel Construction.
• Side Ported P, T, A, B.
• Port size 1/2 inch BSP.
