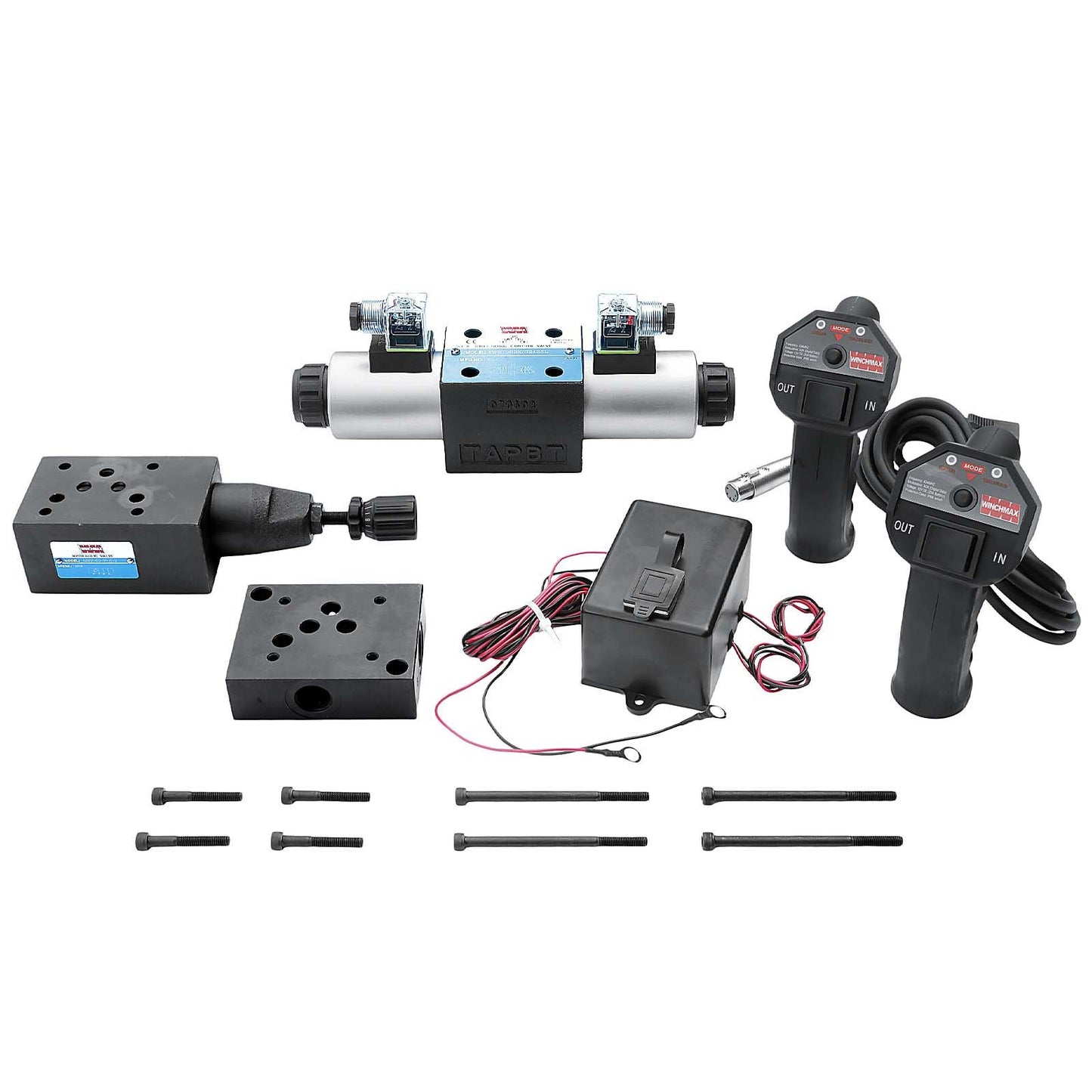

WINCHMAX. 12V CETOP5/NG10 Solenoid Valve, Manifold Subplate and Remotes

CETOP5/NG10 High Flow Wireless Remote Control Operated Modular Directional Control Valve with Pressure Regulator and Manifold Block.
Wireless high-flow directional control for larger hydraulic winches or where higher speeds are desirable.

Solenoid Operated Directional Hydraulic Control Valve, CETOP5/NG10 Three-Position 12V
Solenoid-operated directional spool valve used to start, stop, and direct the oil flow.

Features

• Double 12V Coils.
• High Flow up to 120l/min.
• Removable DIN plug connector with clear cover, cable gland, and LED indicator.
• Configuration; Spring centered P open to Tank, A & B Blocked.
• Max Pressure P, A, B, 31.5 Mpa (350 bar/4500 psi).
• Manual override feature.

Modular Hydraulic Pressure Regulator Relief Valve CETOP5/NG10
A modular relief valve is used to regulate the maximum pressure within the operating parameters of the winch or other item being controlled. Installed between the manifold block and directional control valve. When the set pressure is exceeded, P will bypass across to T.

Features

• Easy to operate rotary calibration control with lock ring.
• Maximum Flow 70l/min.
• P to T on operation.
• 70-250 bar setting range.
• Supplied with extended bolts for attachment between direction valve and manifold block.

Manifold Subplate CETOP5/NG10 Hydraulic
These steel plate covers have been designed to replace valves on the steel manifold and work to provide a pressure blank, which will enable the remaining station to operate. A manifold subplate with reliable relief valves will improve your system’s overall safety and precise control.

Features

• Forged Steel Construction
• Side Ported P, T, A, B.
• Port size 1/2 inch BSP

Winch Remote Control, Wireless. Twin SL Handsets. Long Range Wireless with Enclosure, 12V
Converts a 12V solenoid-operated direction valve on a hydraulic winch from manual switching to the long-range wireless remote control. This new and innovative design combines the mm precision control of a manual wander lead system with the convenience of a wireless system. The robust handheld controllers can be plugged into the control box in the usual way or disconnect the cable and with the press of a button, the handheld controller becomes fully wireless.

Features

• Supplied with two large grip handheld controllers.
• Can be used tethered (with control cable supplied) or fully wireless
• Operating Range over 30m (100ft)
• Improved components for better reliability, range, and battery life
• Control box housing a wireless receiver and fitted with a socket for optional wander lead connection.
• 8m control box power supply leads fitted with ring terminals.
• 250mm output cables to connect to the coils on an existing solenoid control valve.
• Approximate control box size is 75mm x 105mm x 60mm, with two lugs for convenient fixing.
• Easy to fit, full installation instructions supplied.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
