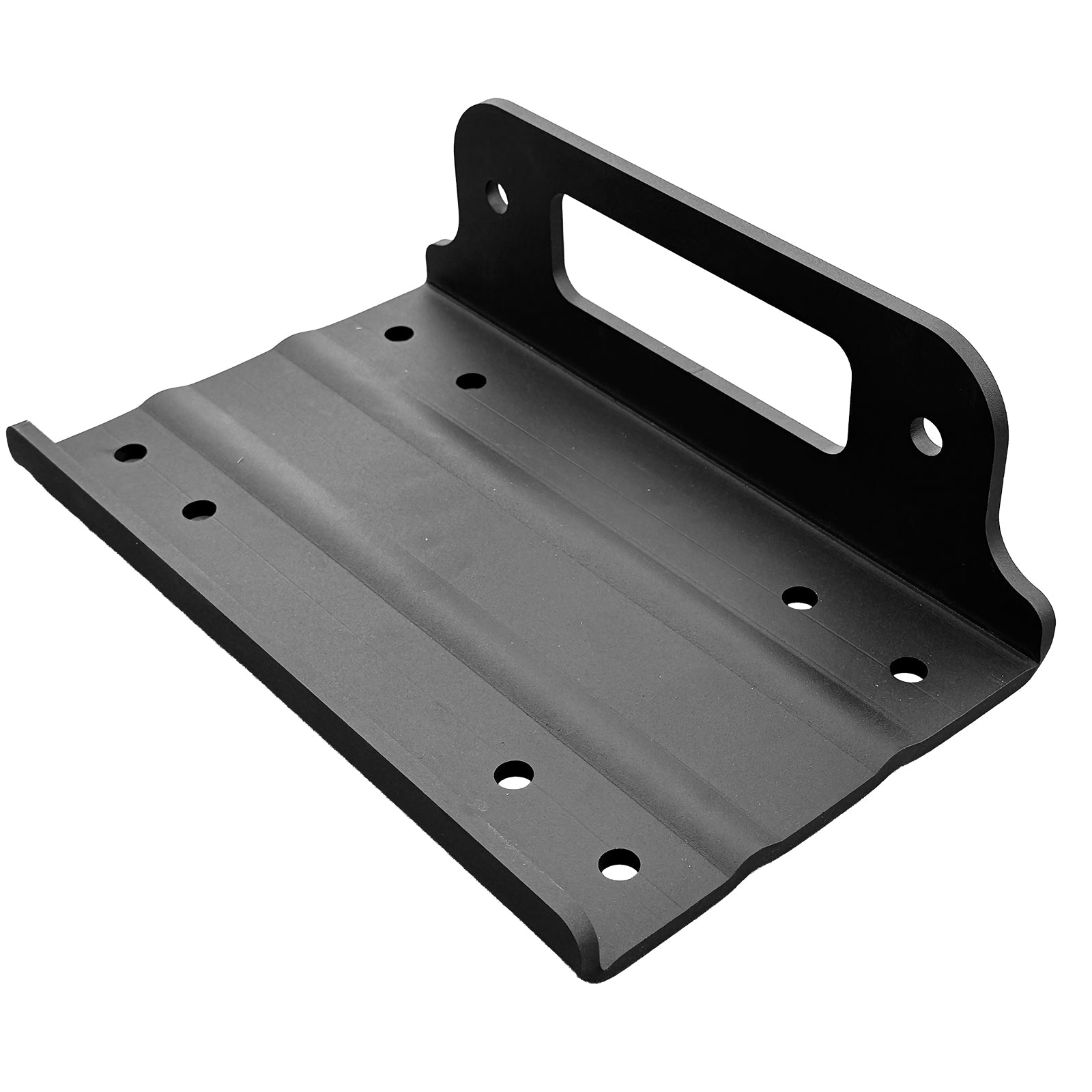

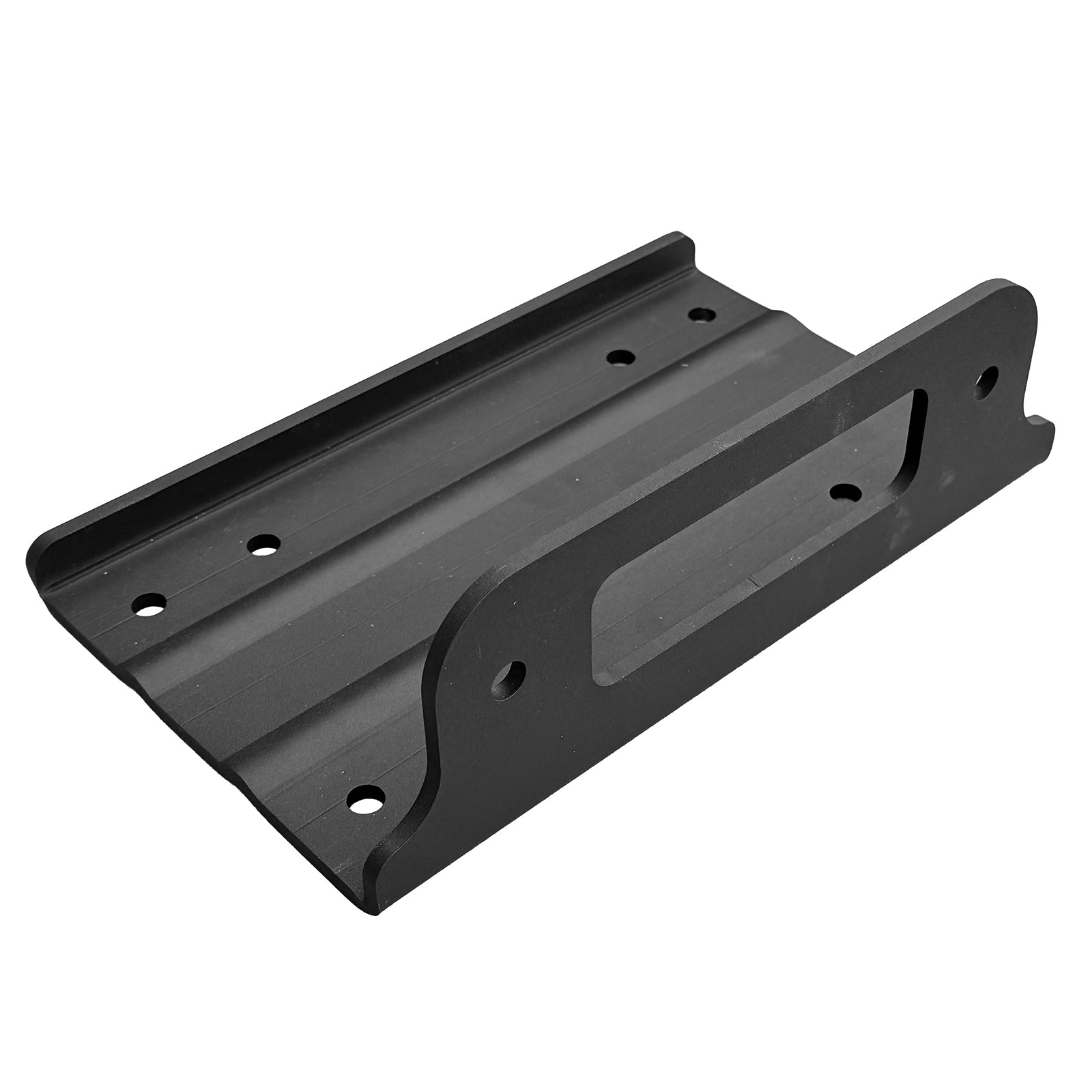

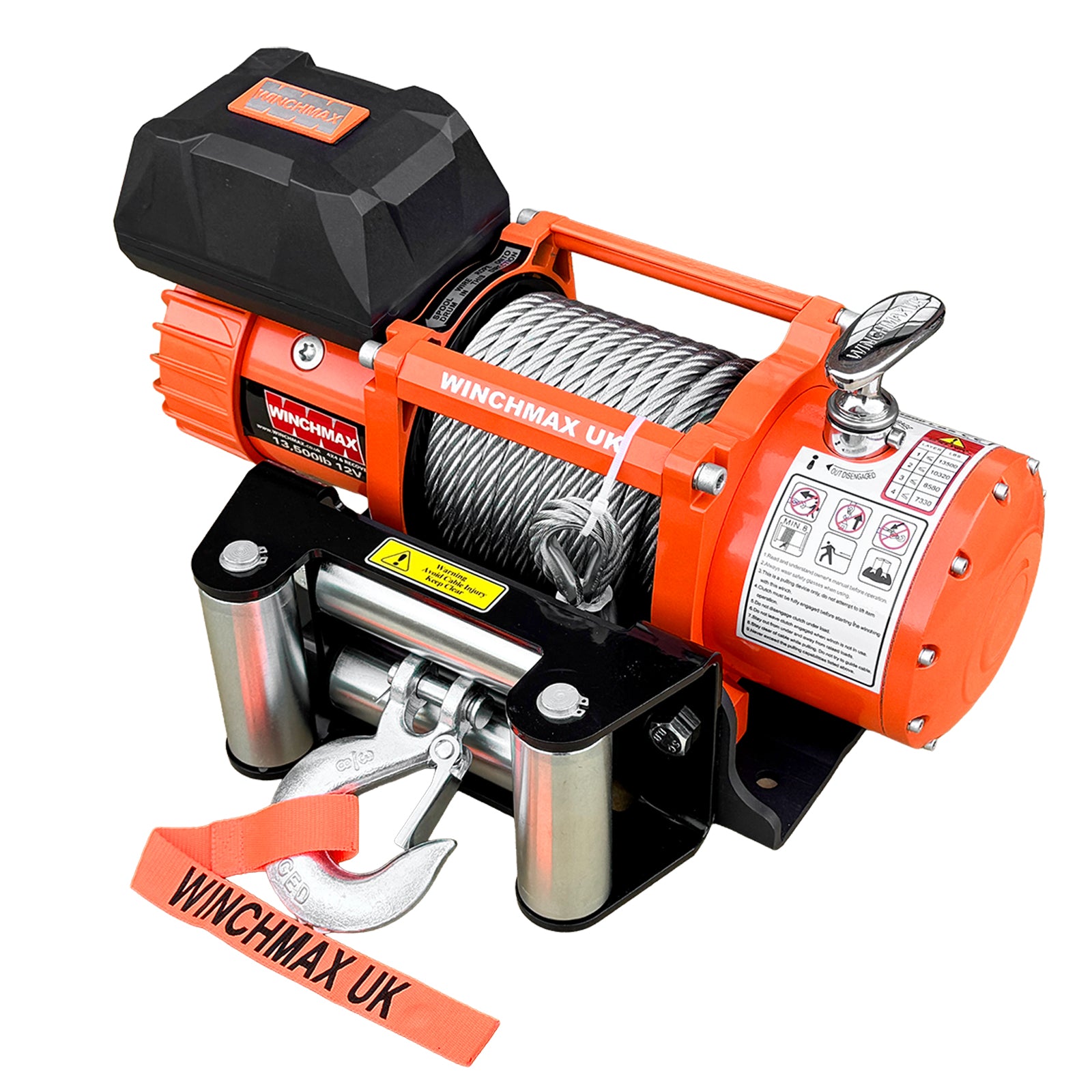

13,500lb 12V Winch. 15m x 9.5mm Steel Rope. 3/8 inch Hook + MP - Short Drum - Compact Trailer Winch

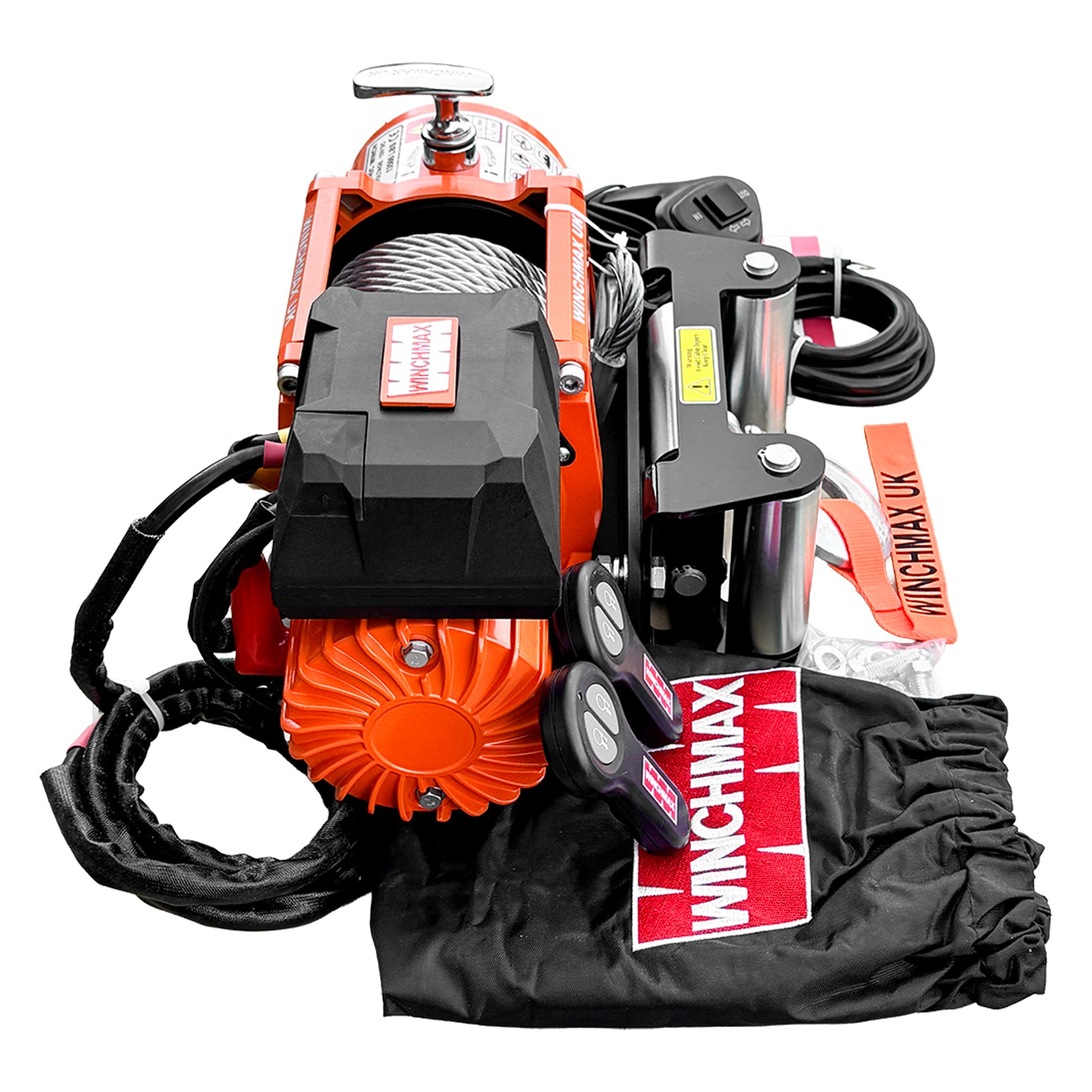

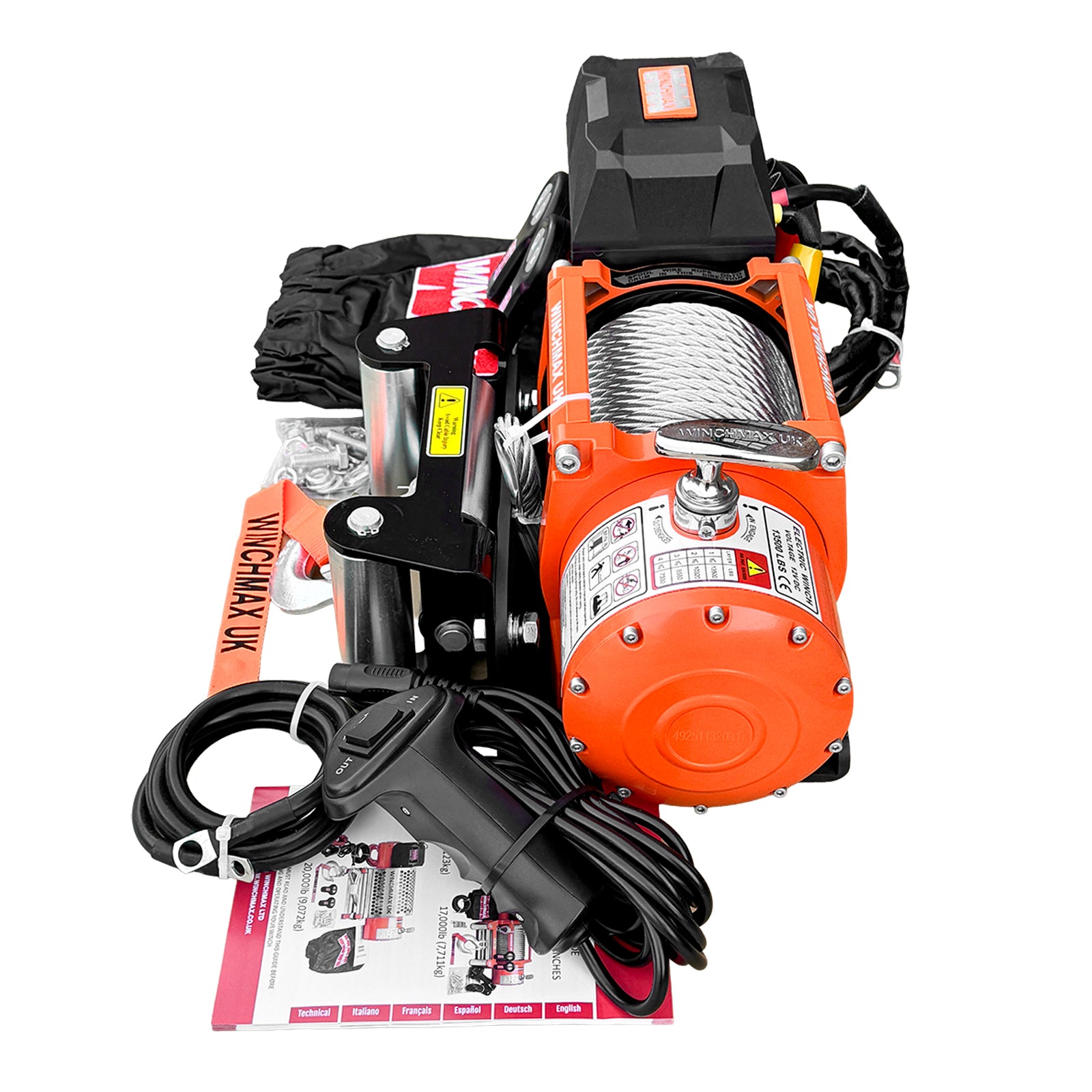

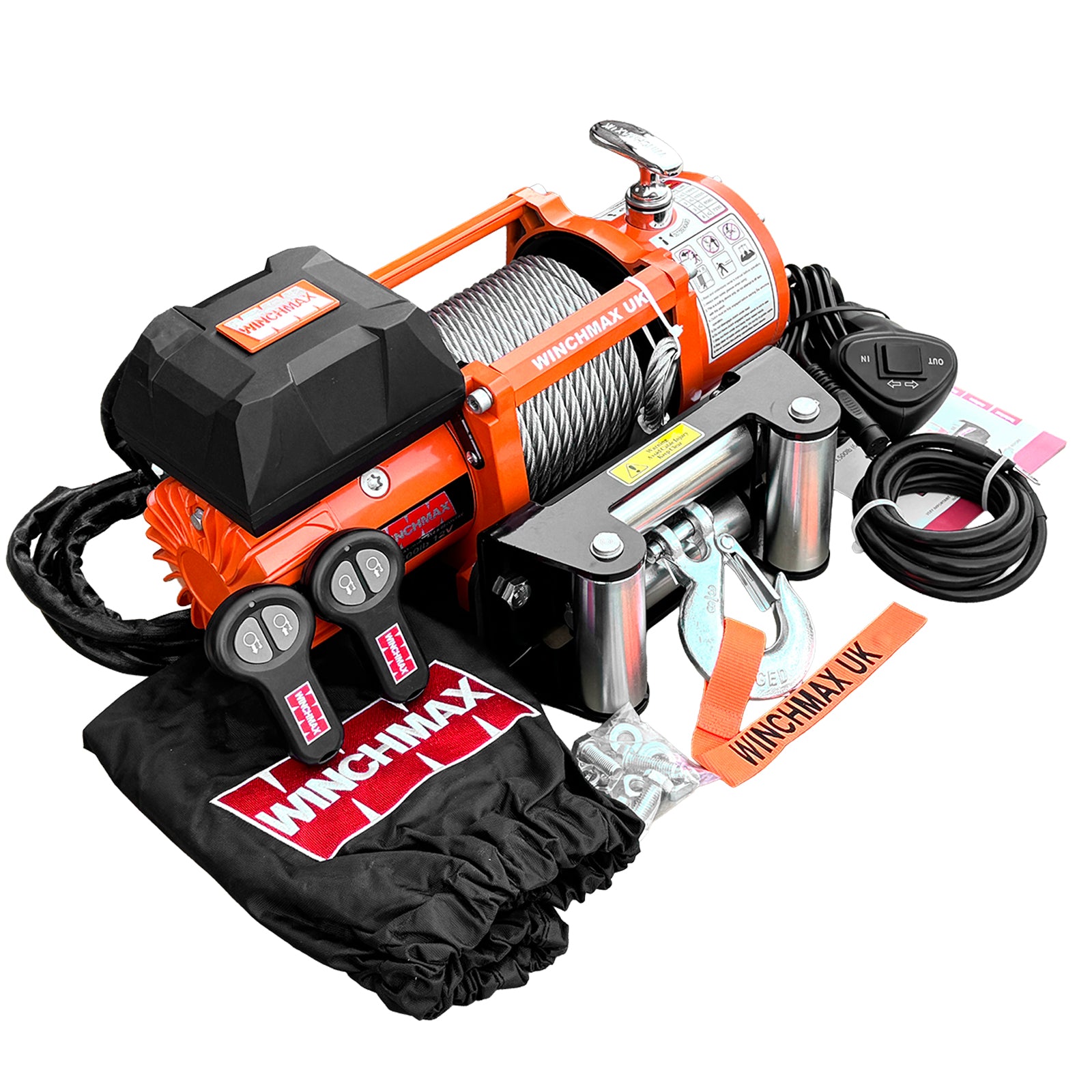

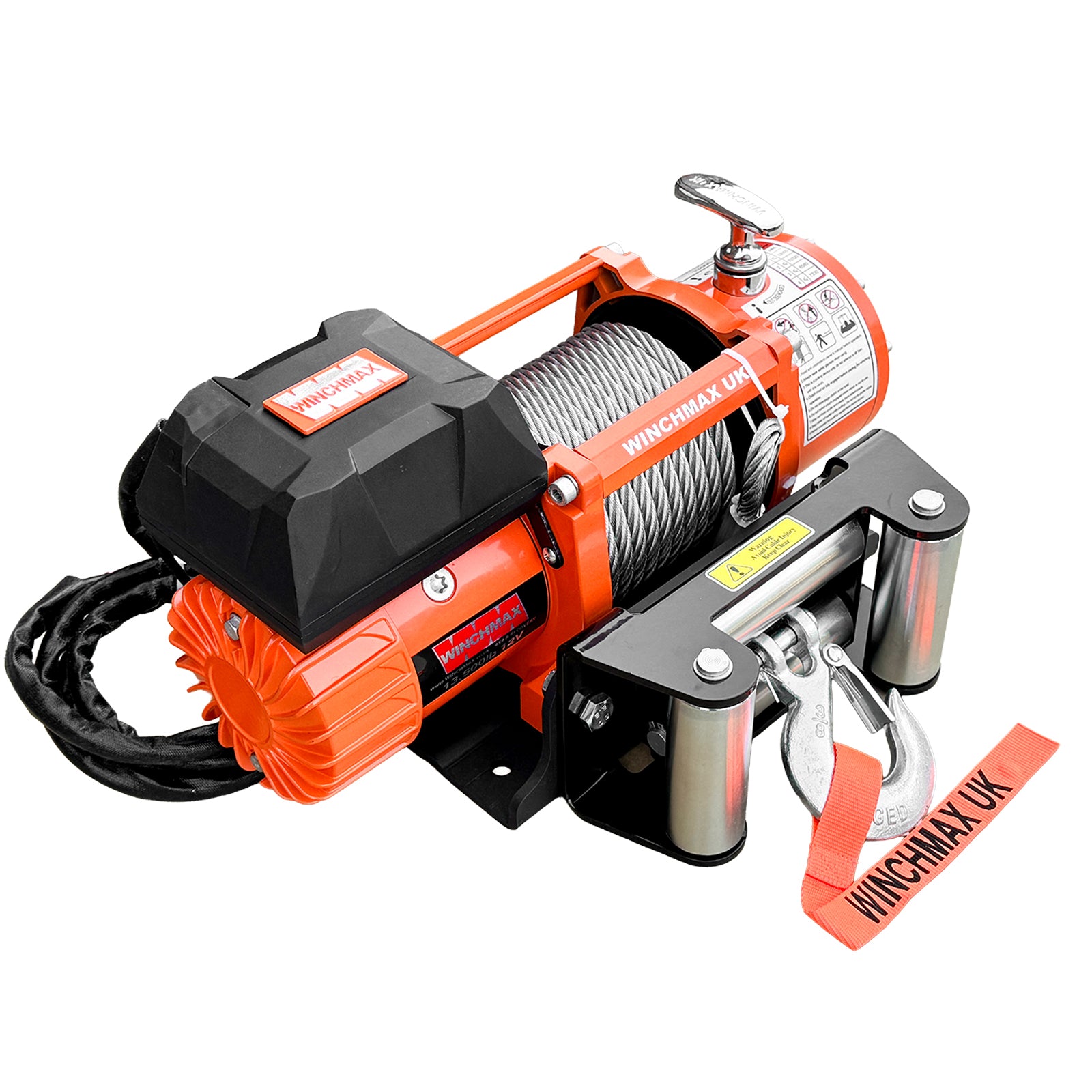

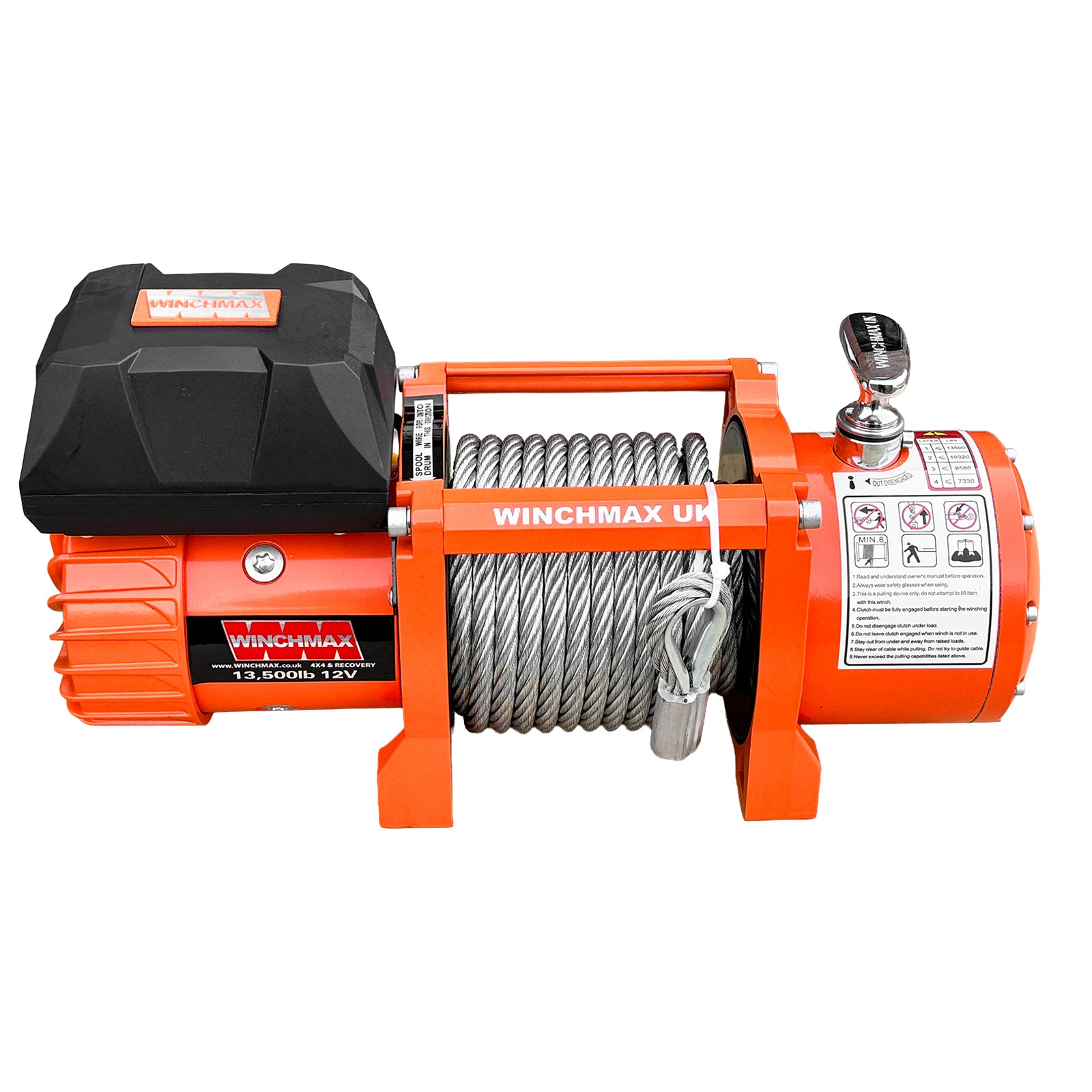

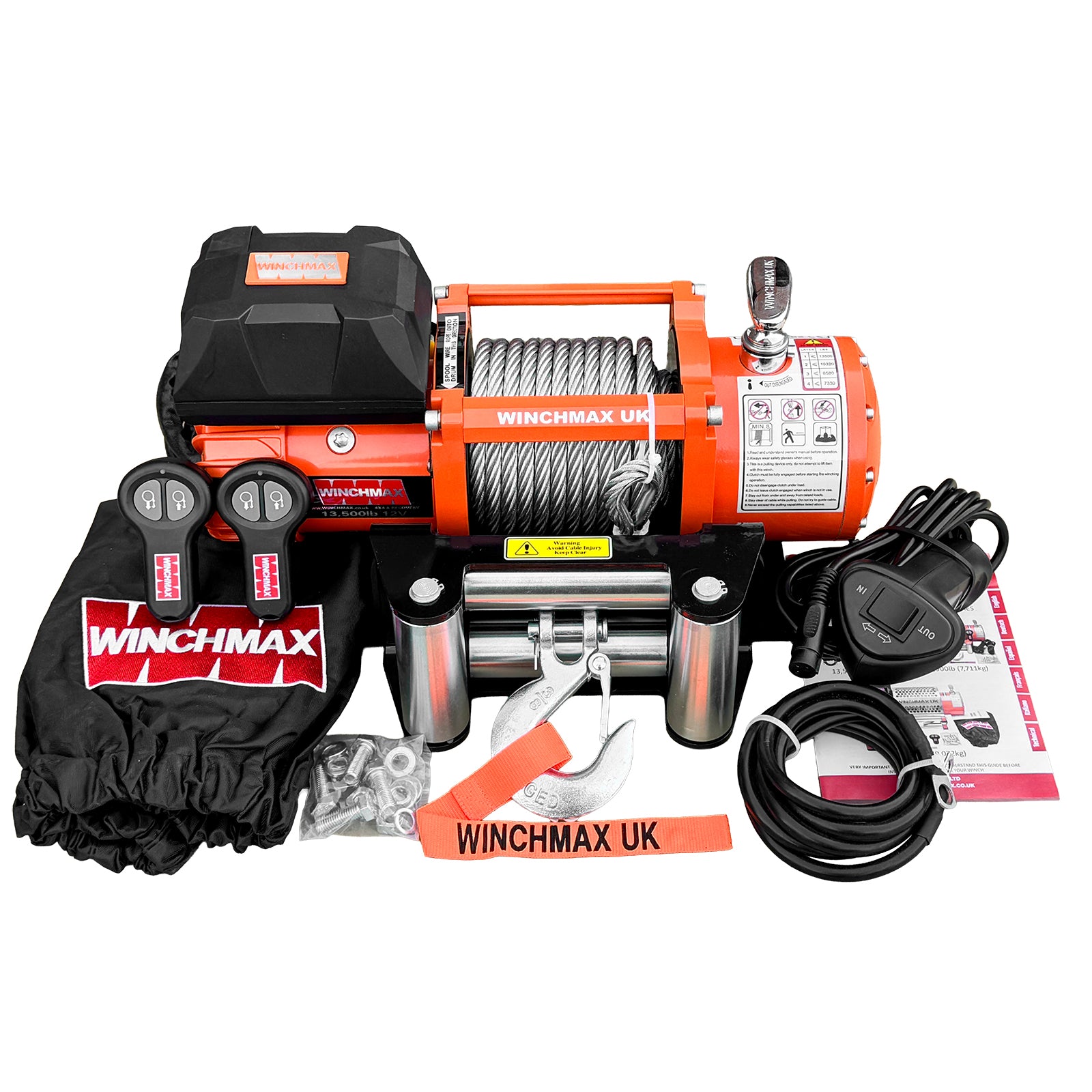

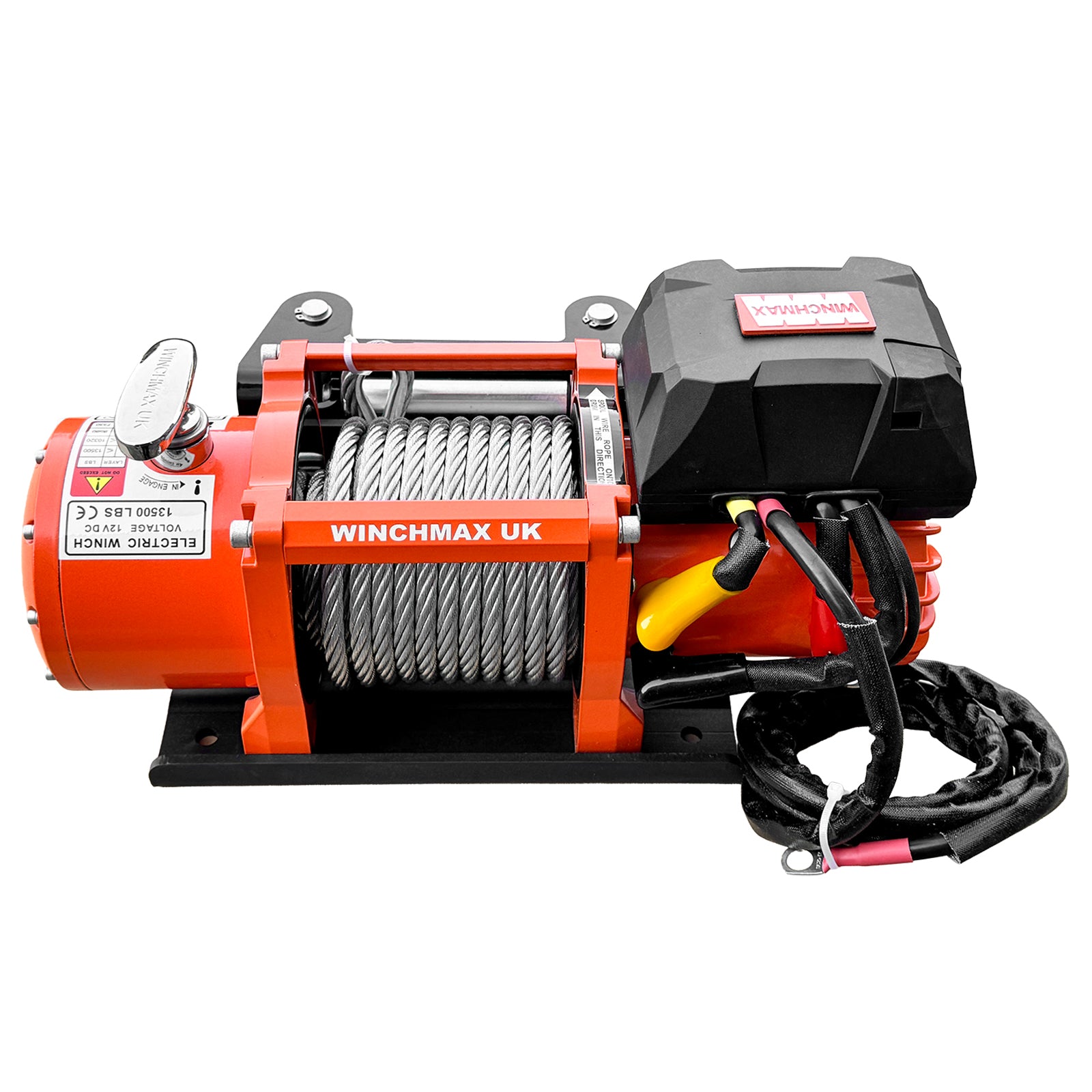

13,500lb (6,123kg) Original Orange 12v Electric Winch, Steel Rope,Fairlead, Mounting Plate and Twin Wireless Remote Control.
Perfect for 4×4 vehicles, recovery trucks and trailers/car transporters up to 3.5 tons. Reliable and durable for heavy-duty use.

Features

• 13,500lb (6,123kg) straight-line pull 12v electric winch.

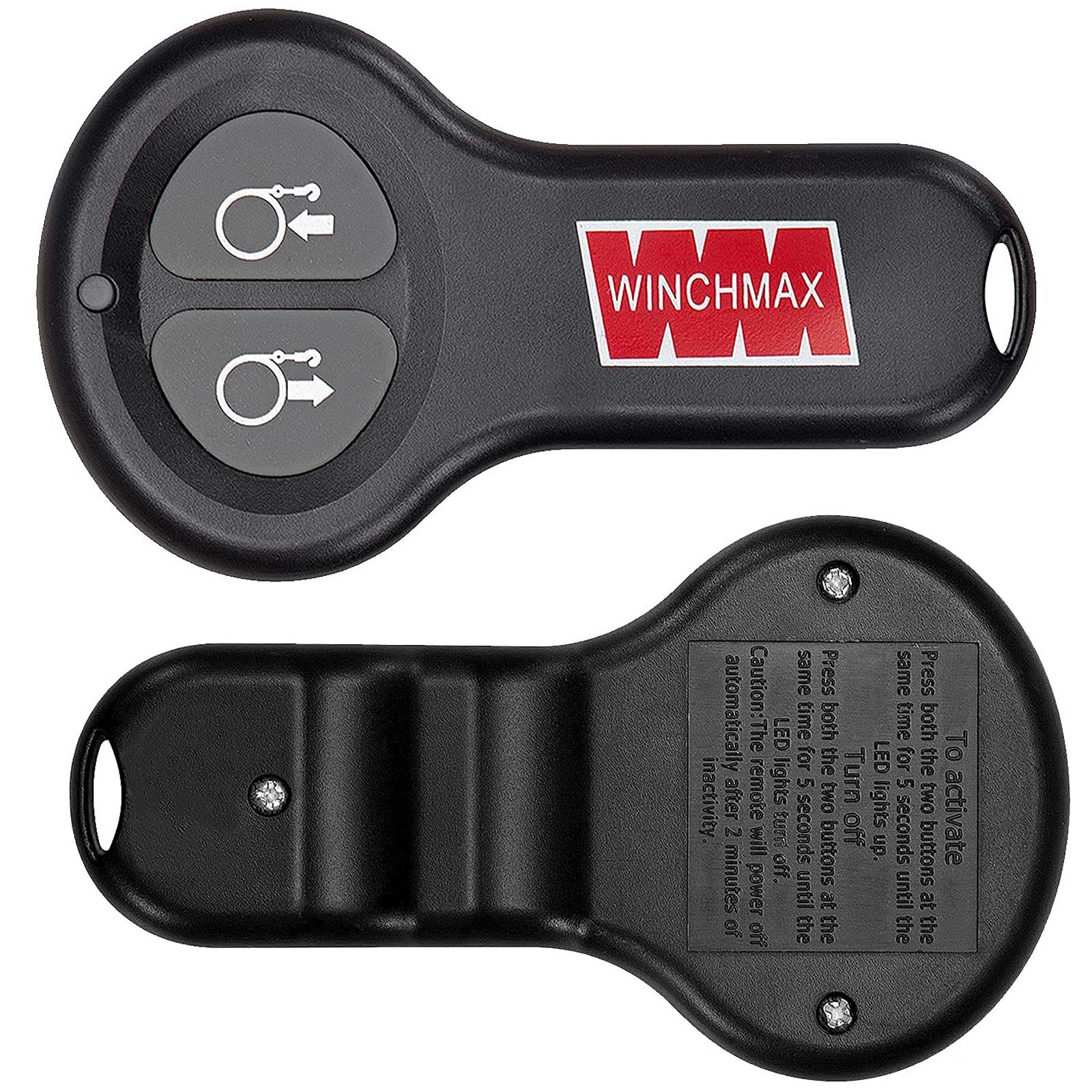

• Latest technology long-range wireless remote controls, twin handsets.
• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 15m x 9.5mm galvanized steel wire rope.
• New 'through-drum' rope connection with grub screw for ultra-secure rope attachment to drum.

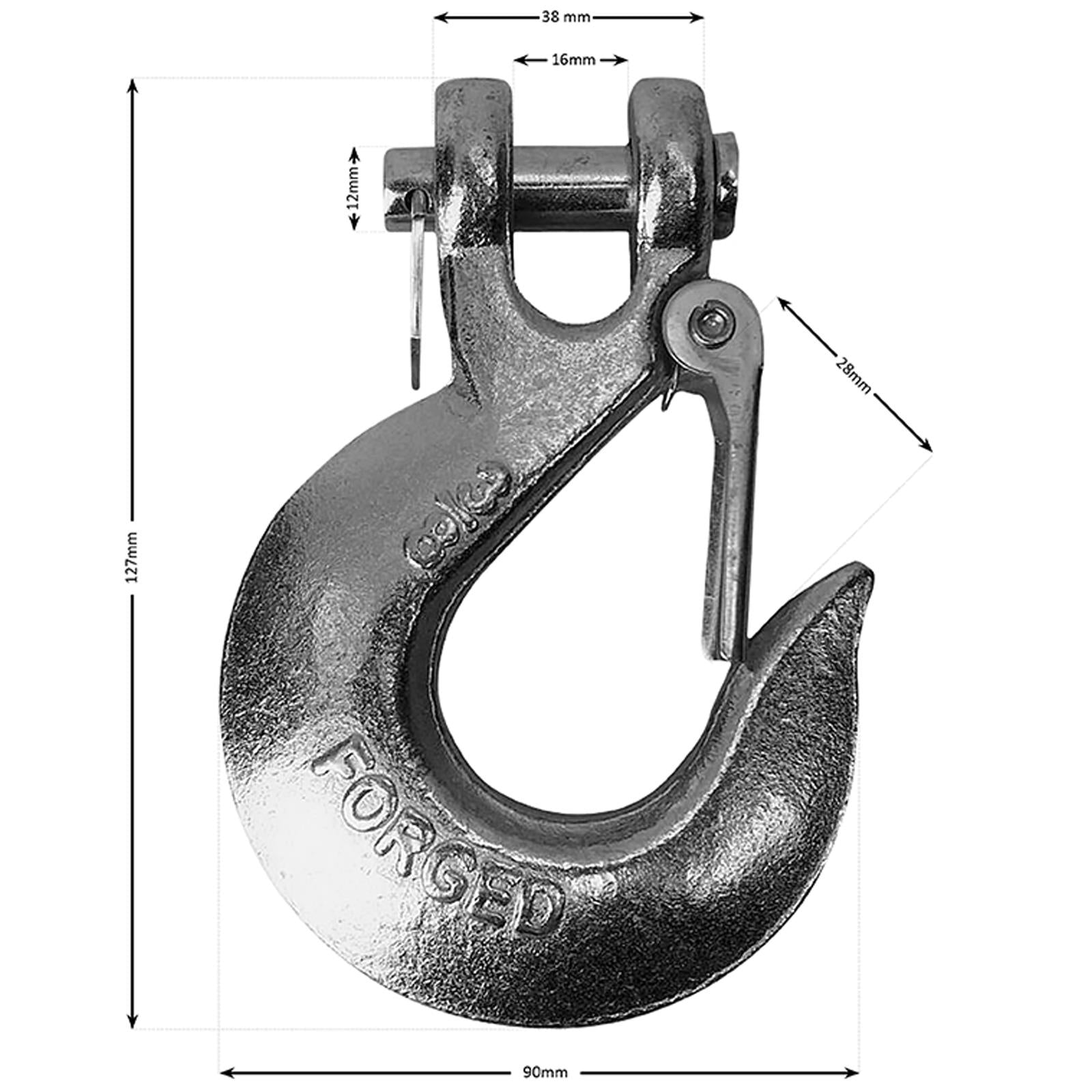

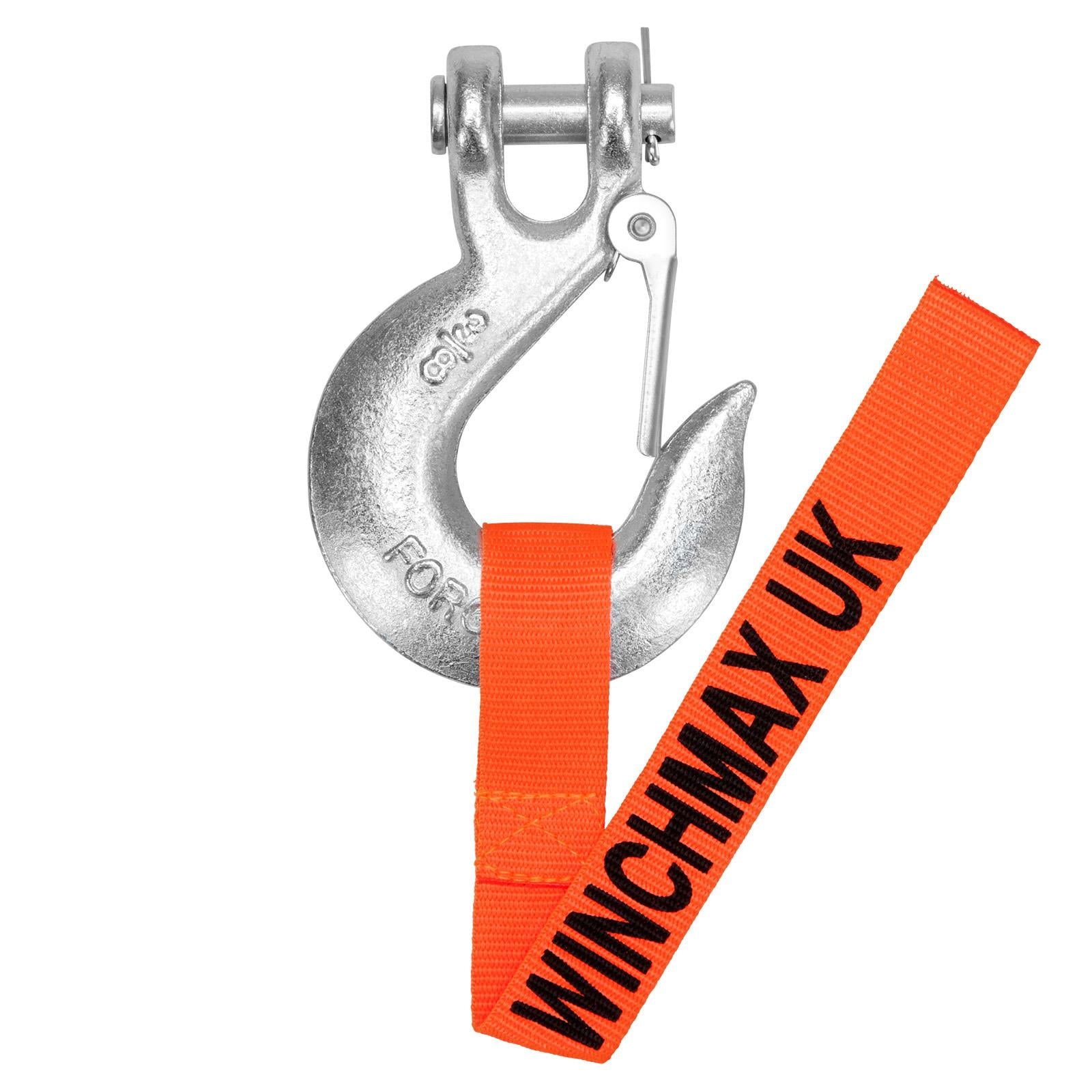

• Clevis hook 3/8 inch G70 grade forged. Safety catch and hand saver. Zinc plated for corrosion resistance.

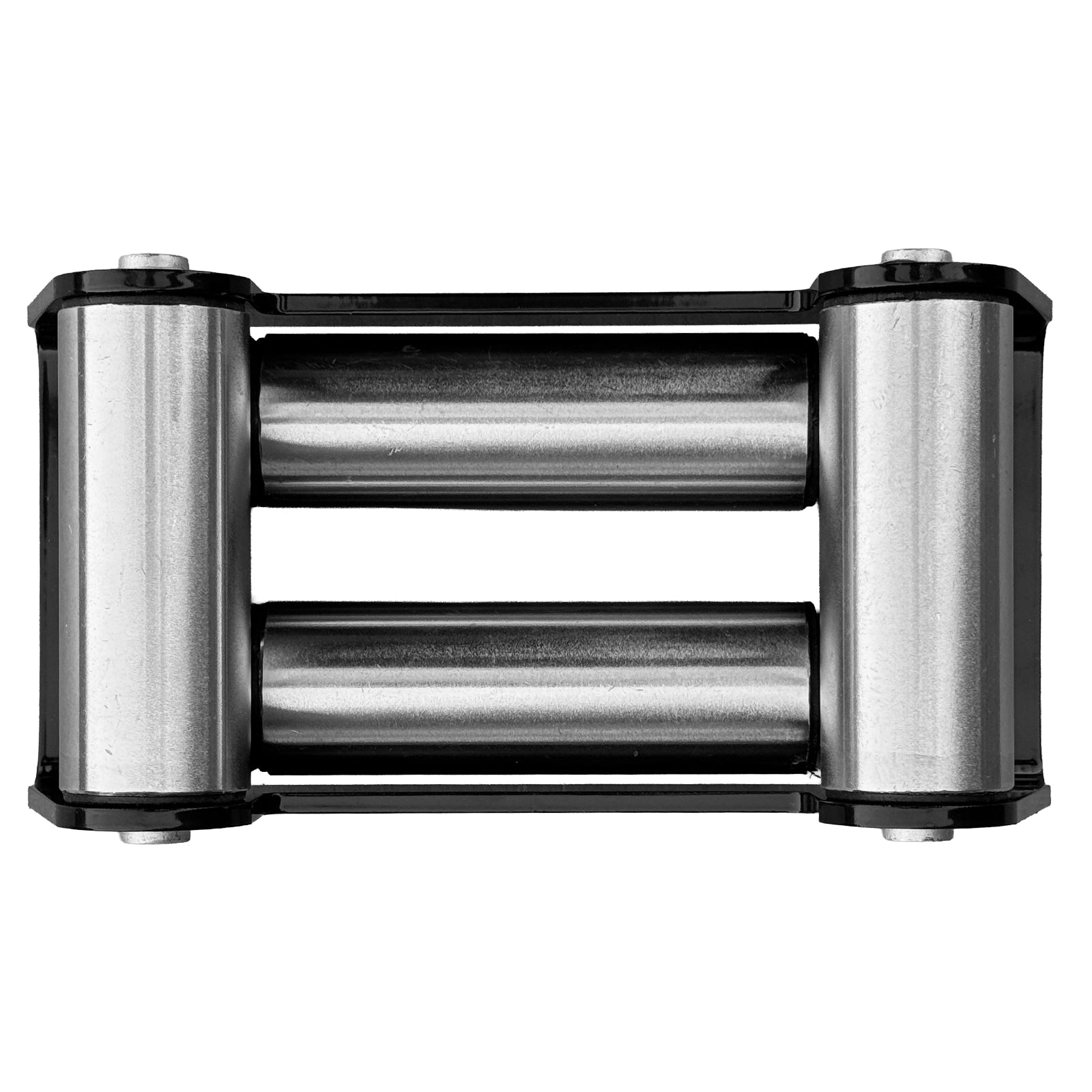

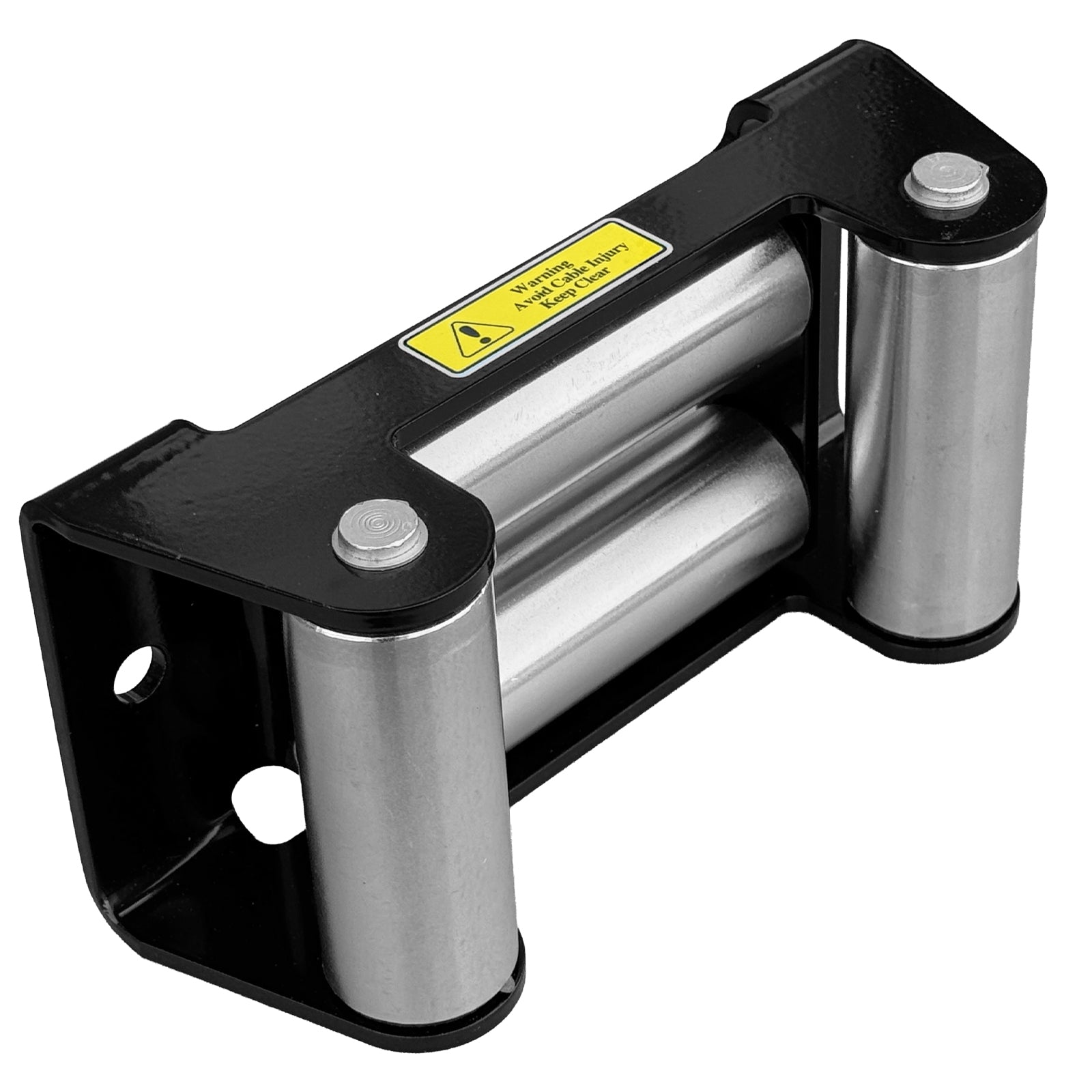

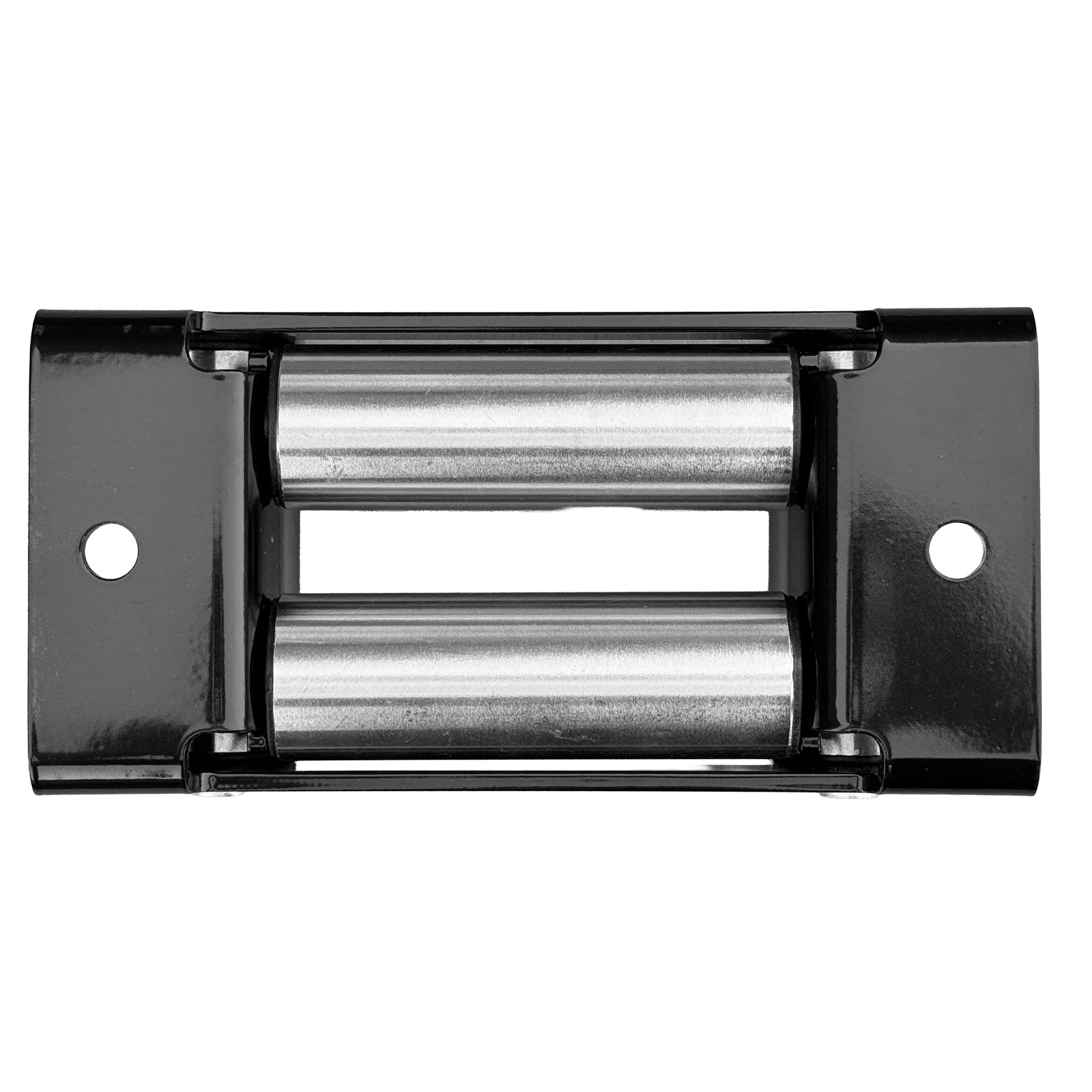

• Tough four roller fairlead with zinc plated rollers.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Power in/out big grip wander lead with extra-long 4.5m cord.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.

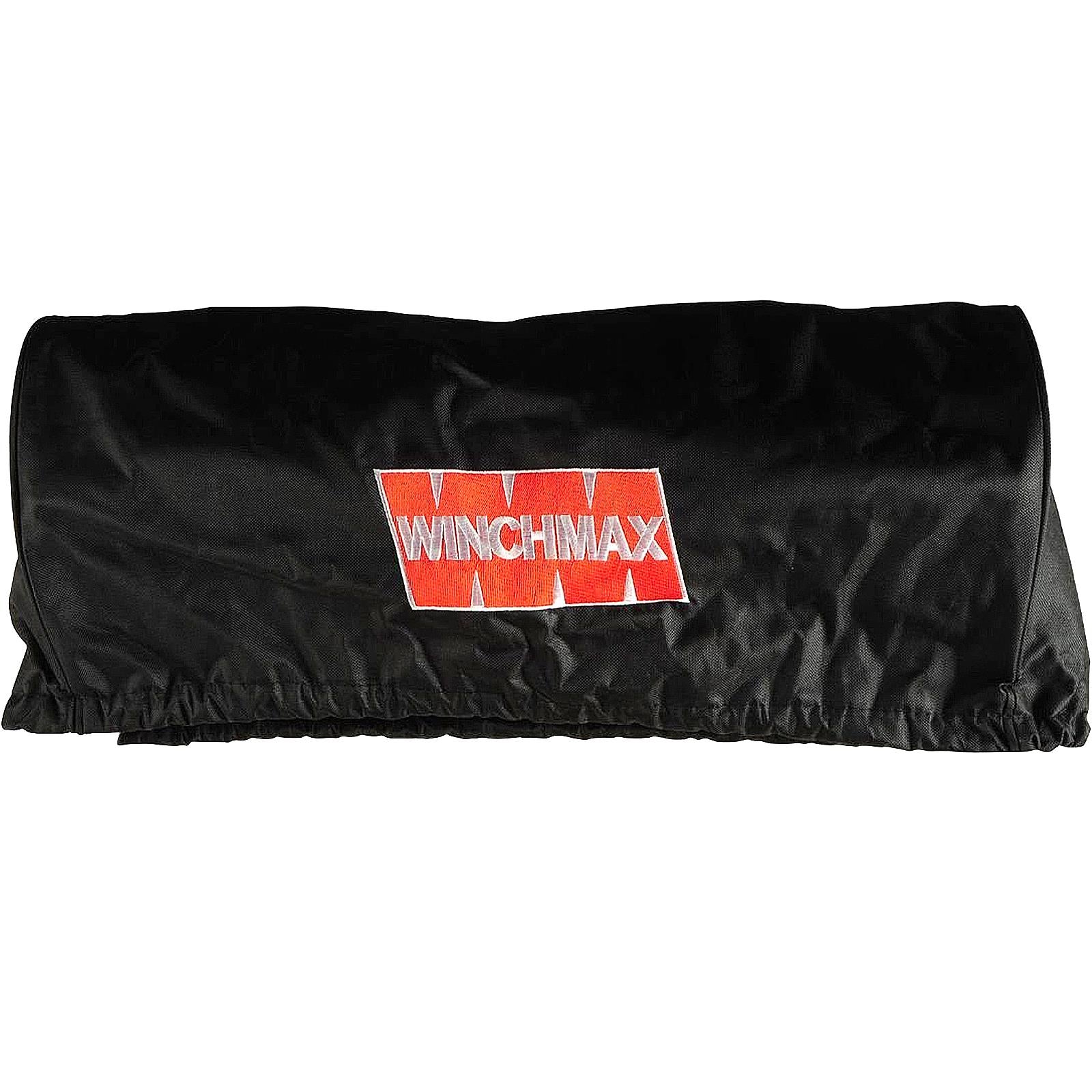

• Strong WINCHMAX branded cover to protect from water and road grime
• Heavy-duty & built to last - gross weight 40kg.
• CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	13,500lb (6,123kg)
Motor	12v 6.8hp/5.1kw, series wound
Control	Remote switch, 4.5m lead, in and out
Gear train	3 stage planetary
Gear reduction ratio	265:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum size	Diameter 64mm (2.5") length ?
Drum finish	Black, painted.
Cable	15m x 9.5mm galvanized steel wire rope
Hook	Clevis hook 3/8 inch, zinc plated.
Fairlead	4-Way roller fairlead
Battery	Recommended 650CCA minimum for winching
Battery Leads	2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
Finish	Original Orange powder coated
Weight (GW)	30kg
Overall Dimensions(LxWxH)	536 x 160 x 218mm (21.3" x 6.3" x 8.6")
Mounting Bolt Pattern	10.00” ±0.015" x 4.50” ±0.010" (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	13,500	6,123	20.4/6.22
2	10,010	4,540	41/12.0
3	8,840	4,009	71/21.0
4	7,410	3,361	85/24.0



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft (7.5m)	70A
3,000 (1363)	11.48ft (3.5m)	138A
6,000 (2727)	8.86ft (2.7m)	218A
9,000 (4090)	7.72ft (2.2m)	260A
13,500 (6123)	5.58ft (1.7m)	415A
