Steel Rope 26m x 9.5mm, Hole Fix. Roller Fairlead. 3/8 inch Tactical Hook. For winches up to 13,500lb.

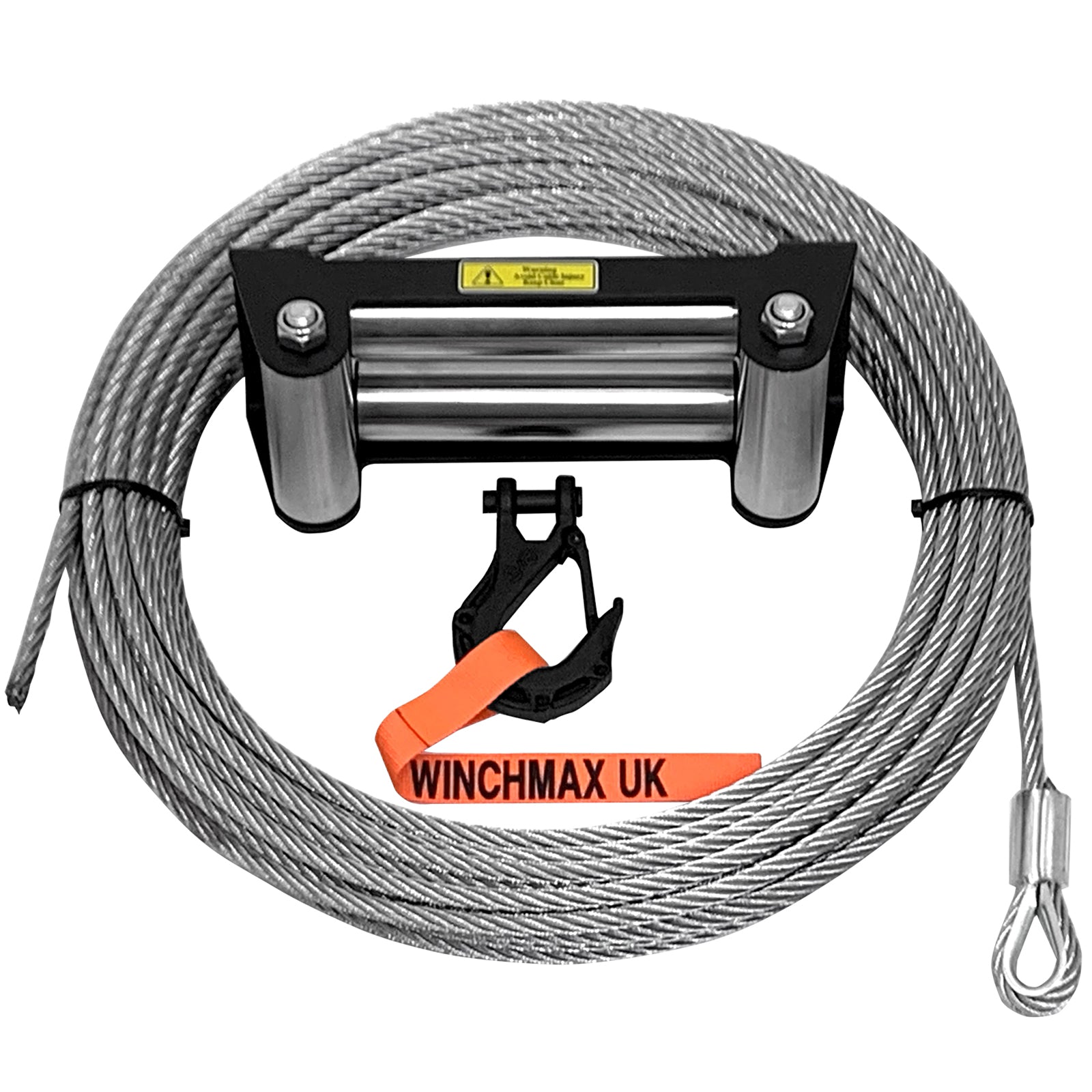

26m x 9.5mm Steel Winch Rope with Stainless Steel Roller Fairlead and Tactical Hook
Suitable for all Winches up to 13,500lb

Features

Cable

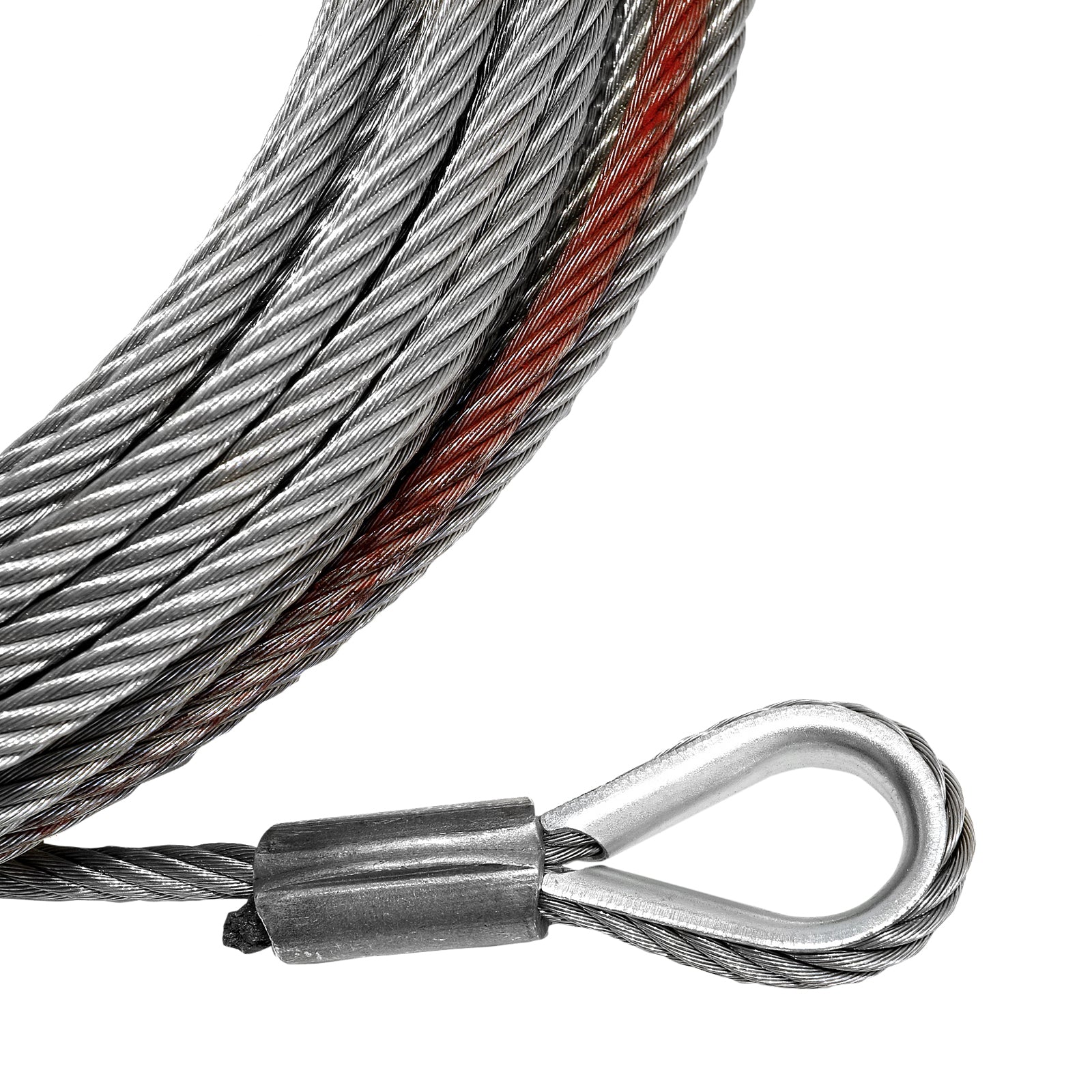

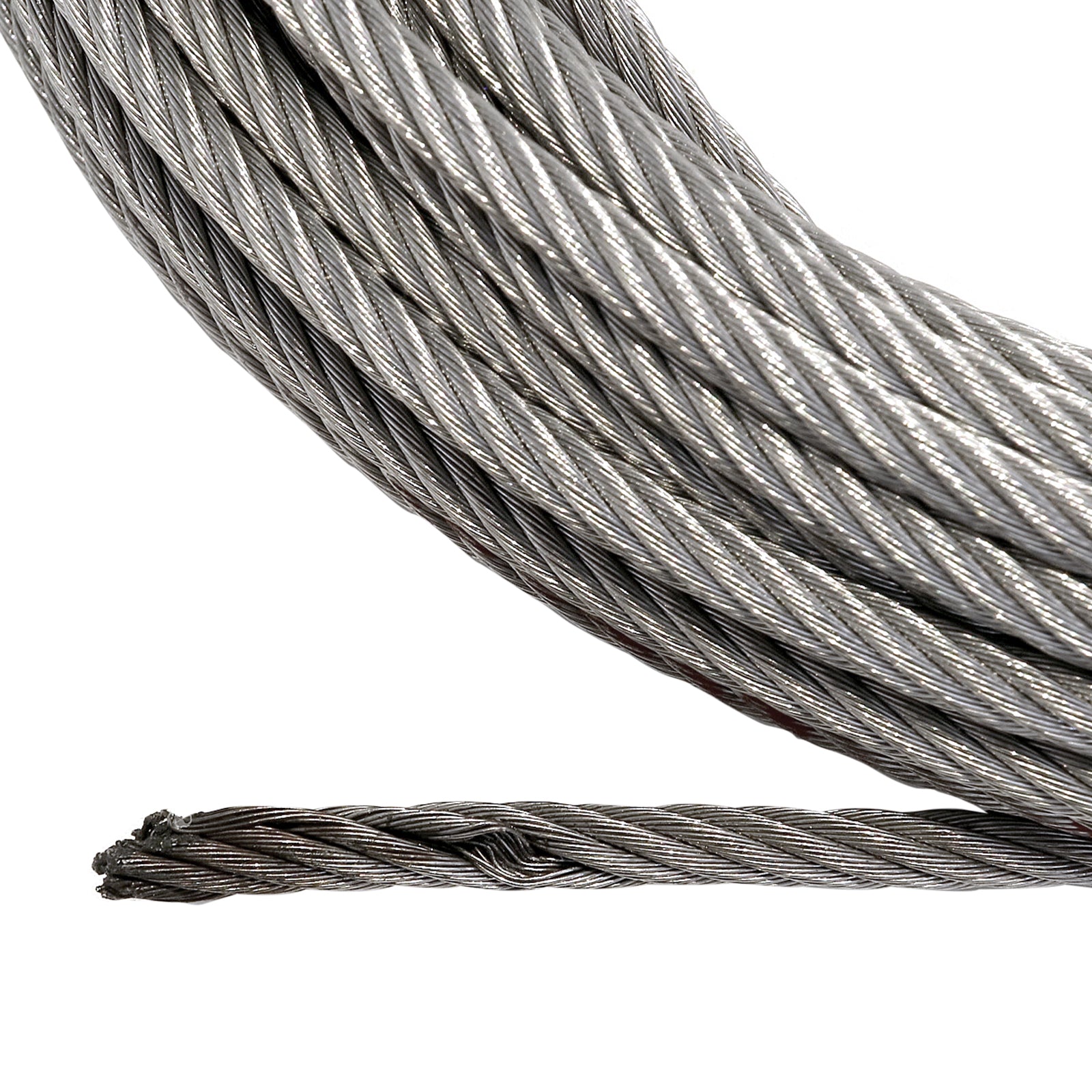

• 26m x 9.5mm Galvanized Steel Wire Cable.
• Hole in the drum fitting.
• Terminated with a thimble eyelet at the hook end and plain at the other.
• Tested breaking load 18,142lb/8,229kg so allowing for 50% safety factor this cable is suitable for winches rated up to 13,500lb

Please note that it is very important that you retain at least 6 tight wraps on the drum at all times as this is what anchors the cable to the drum.

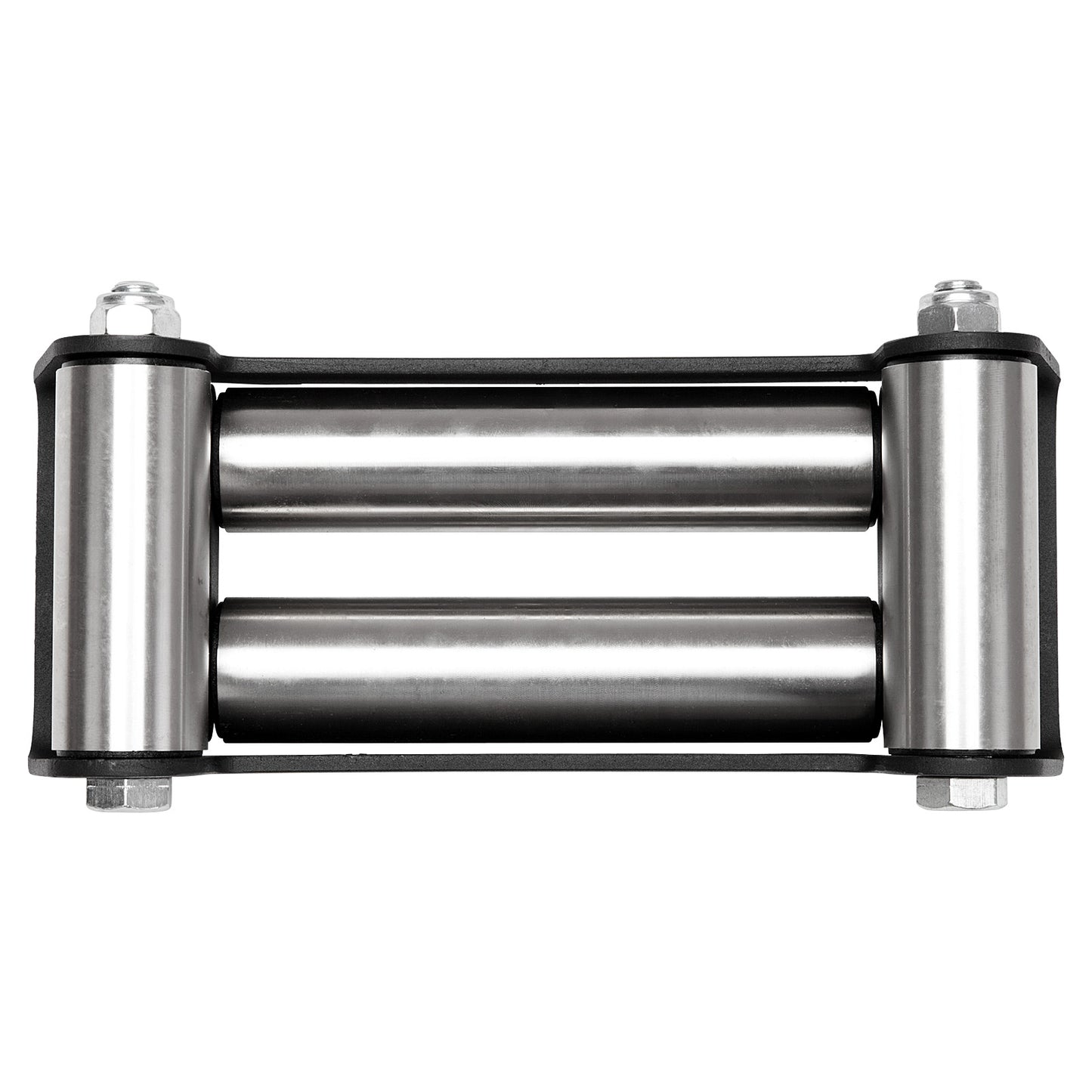

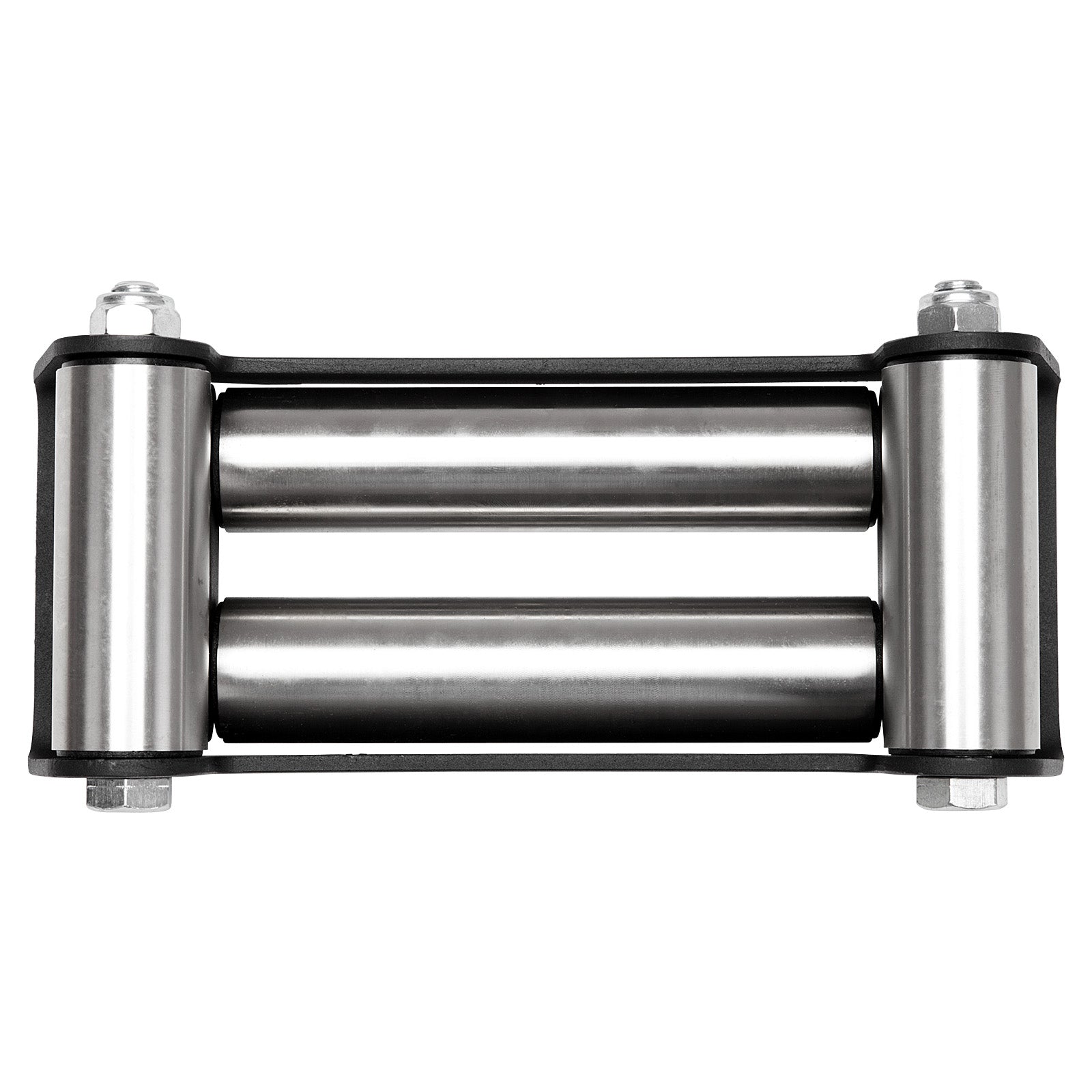

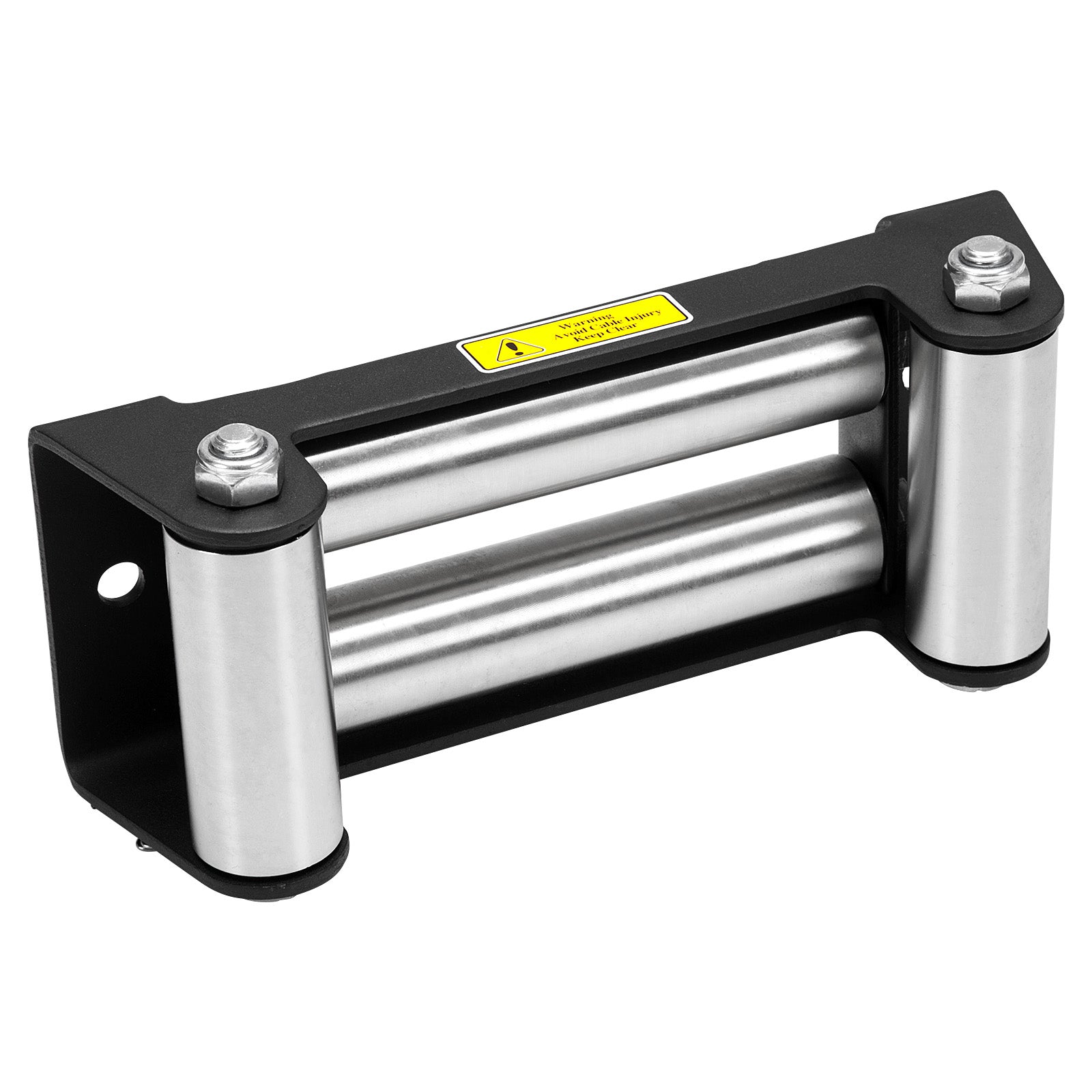

Fairlead

• Stainless steel rollers will not rust.
• Overall Size W295mm x H115mm.
• Black powder-coated frame finish.
• Pre-drilled for standard two-hole mounting.
• Roller axels are secured with circlips to allow roller removal.

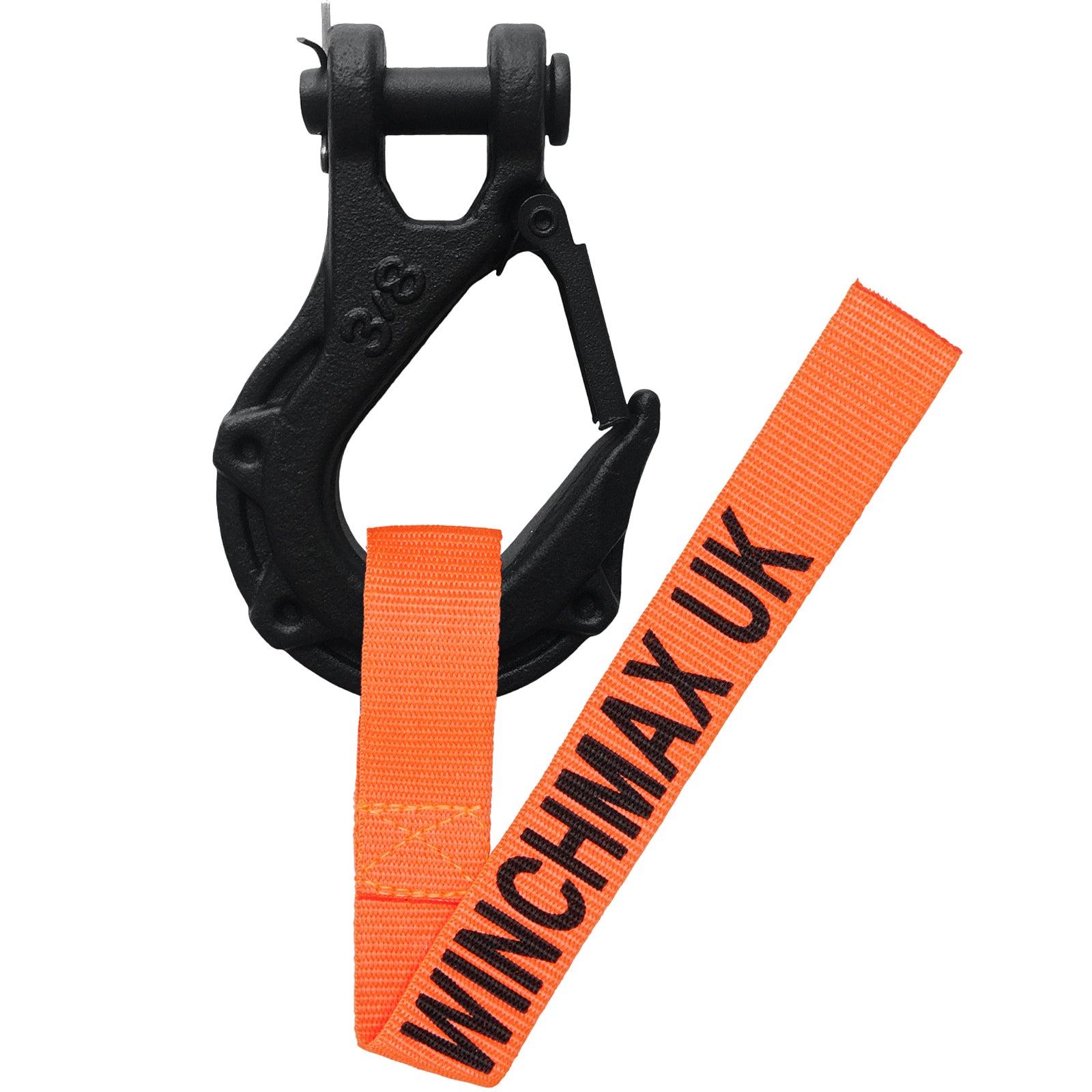

Hook

• Tactical, powder-coated, low-light textured black finish.
• Heavy-duty 3/8 inch tactical clevis winch hook.

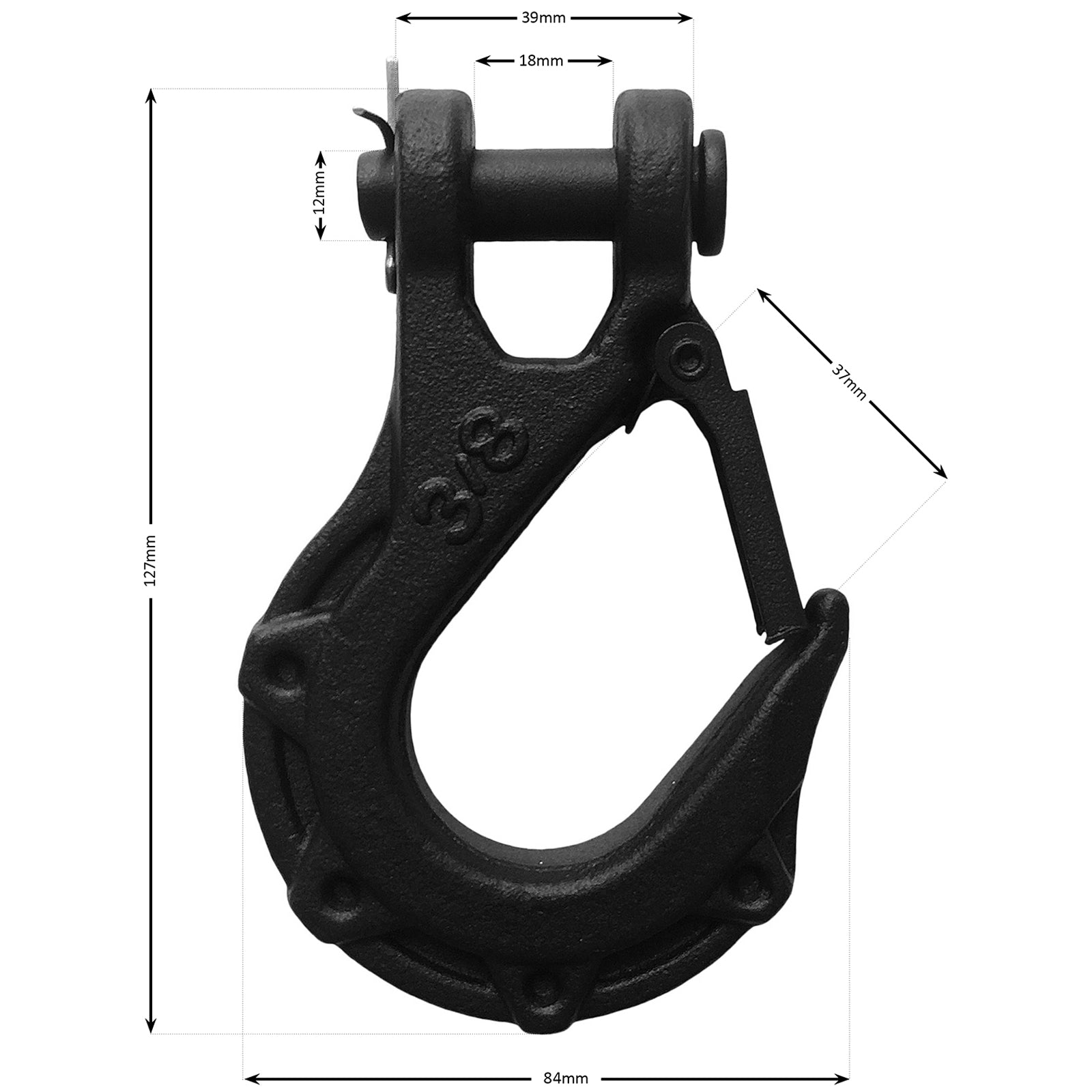

• Large, 127mm x 84mm
• Spring-loaded safety latch.
• Hook fits wire rope with thimble as used on WINCHMAX 13,500lb winches
• 28,806lb/12,740kg MBL (Minimum Breaking Force)
• Drop forged grade 70 steel
• Corrosion-resistant zinc plated

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.
