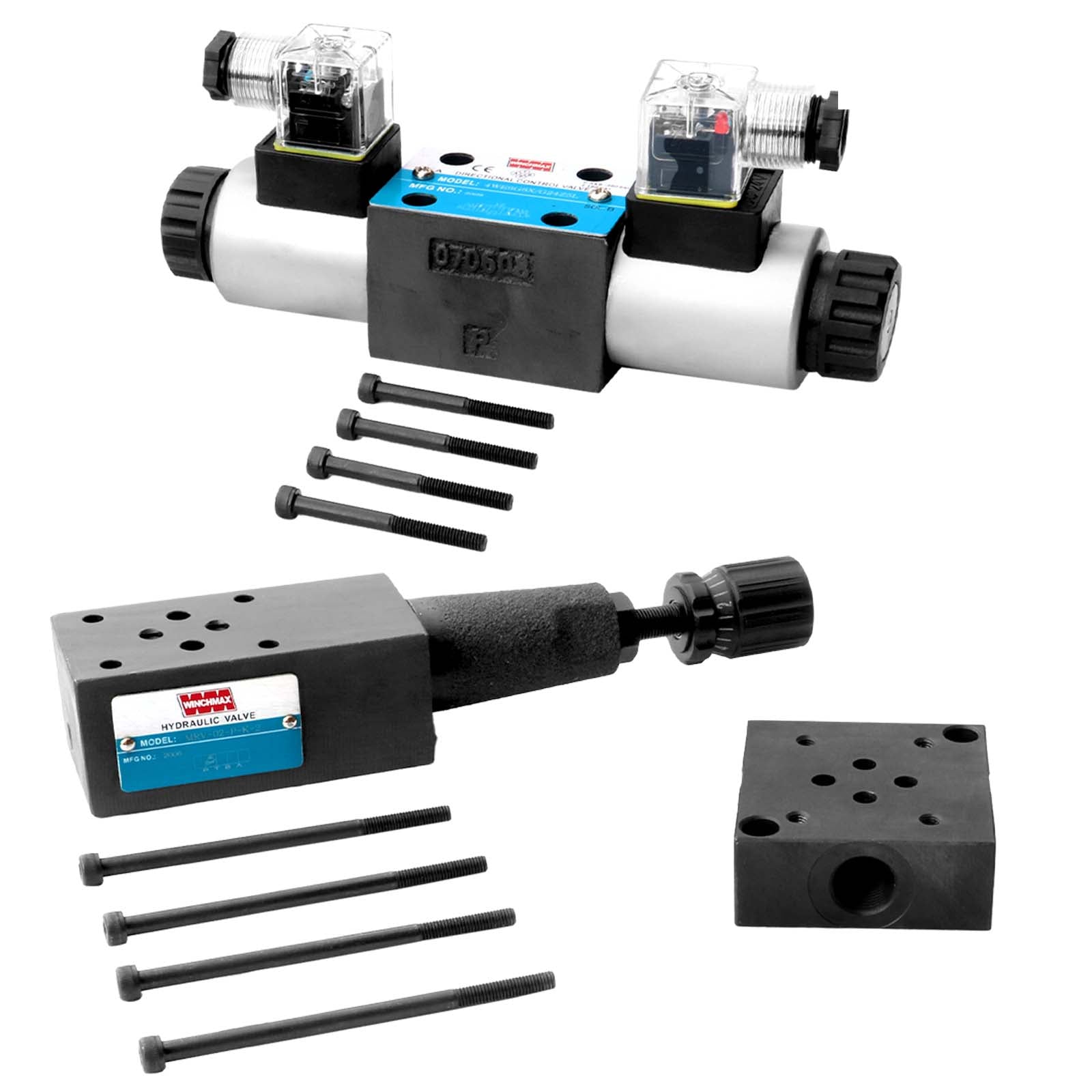

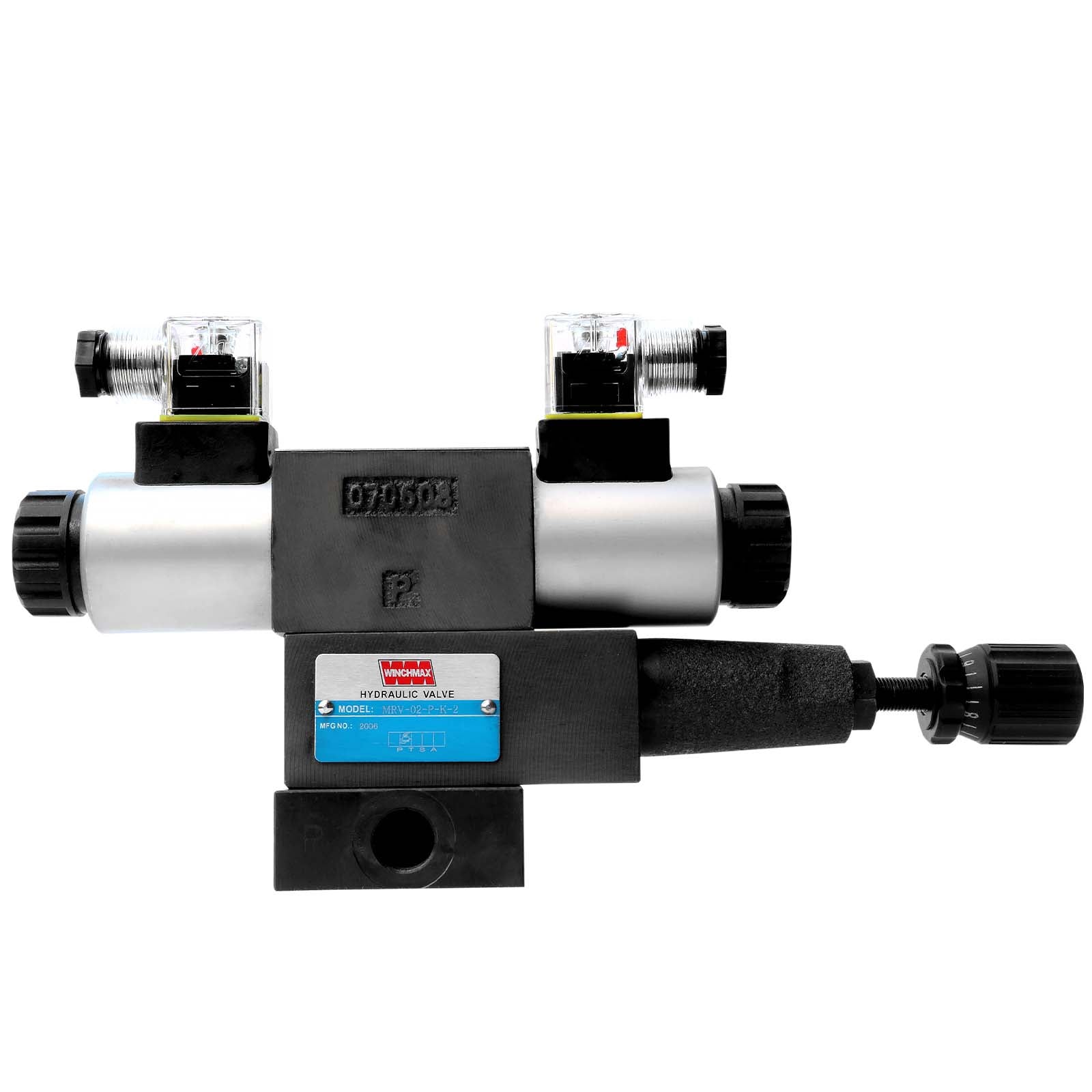

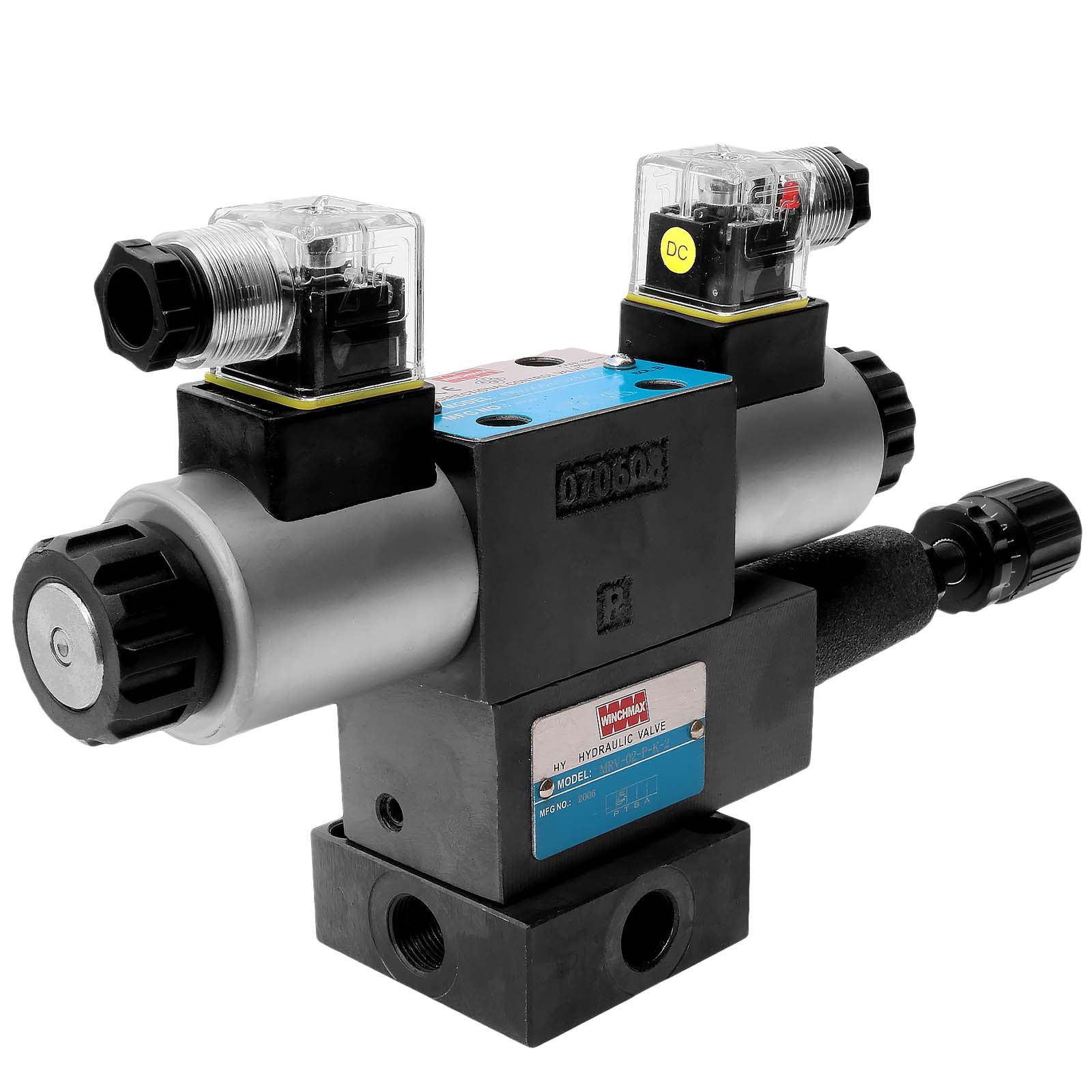

CETOP3/NG6 12v Solenoid Valve, Manifold and Regulator

CETOP3/NG6 Solenoid Operated Modular Directional Control Valve with Pressure Regulator and Manifold Block.
High flow directional control for hydraulic winches.

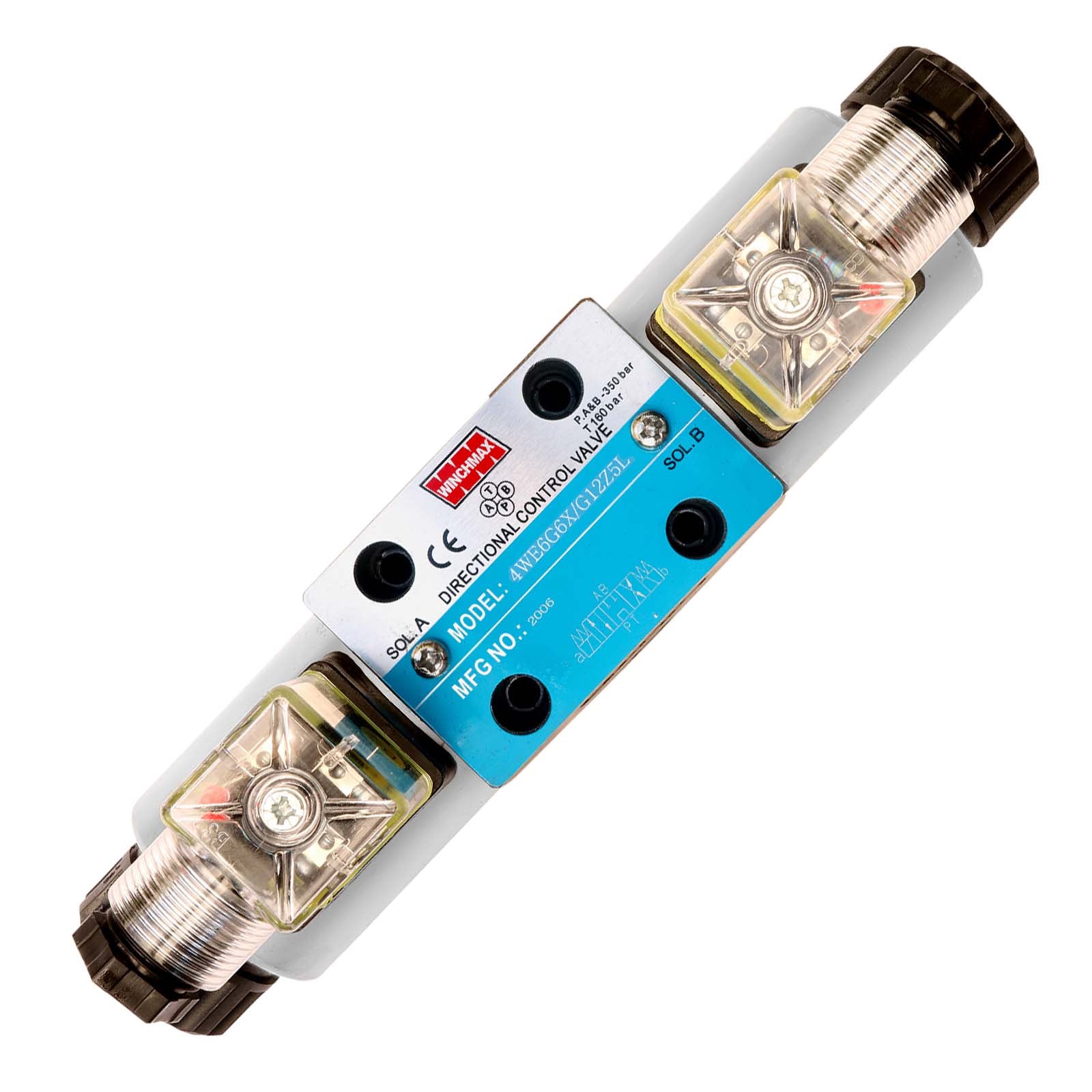

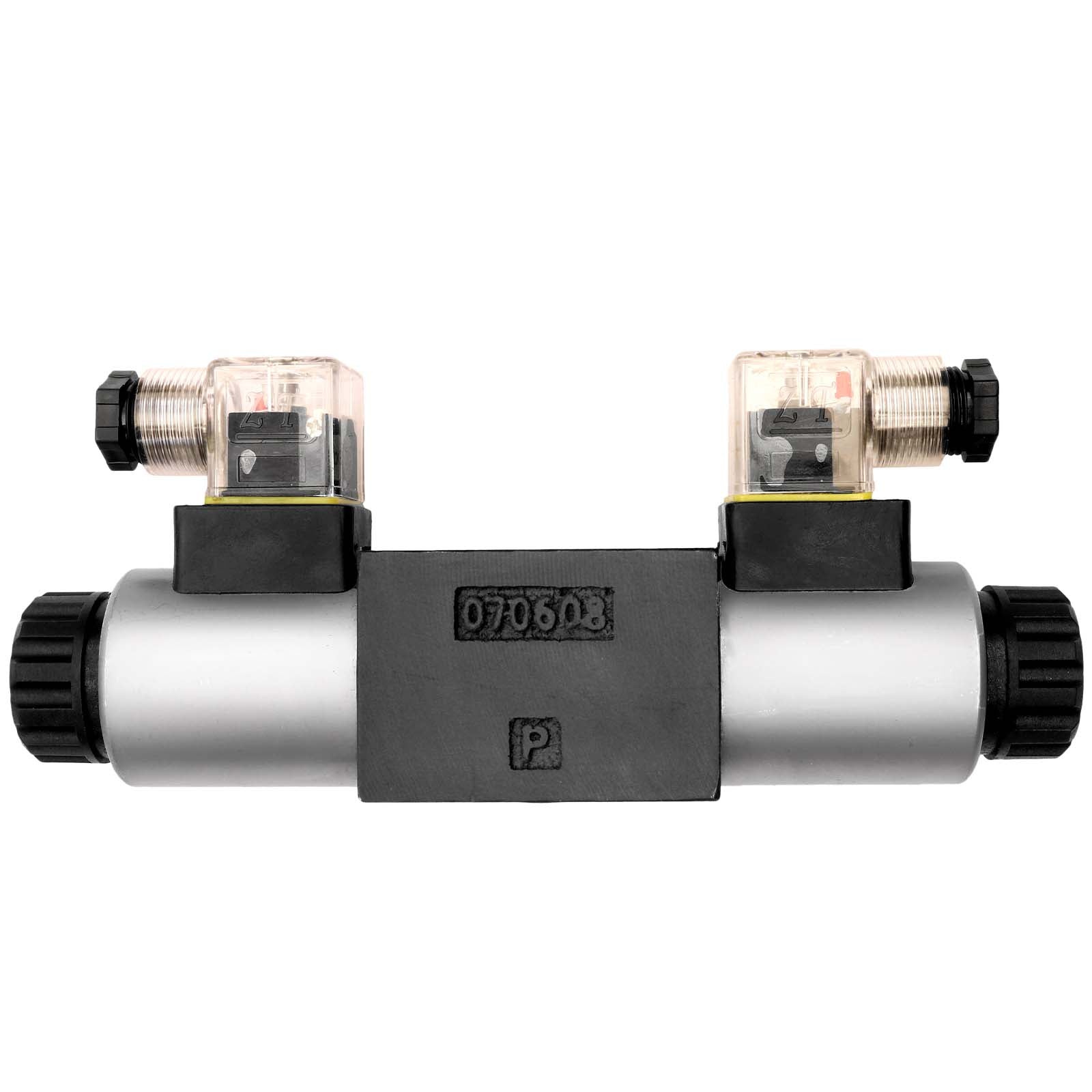

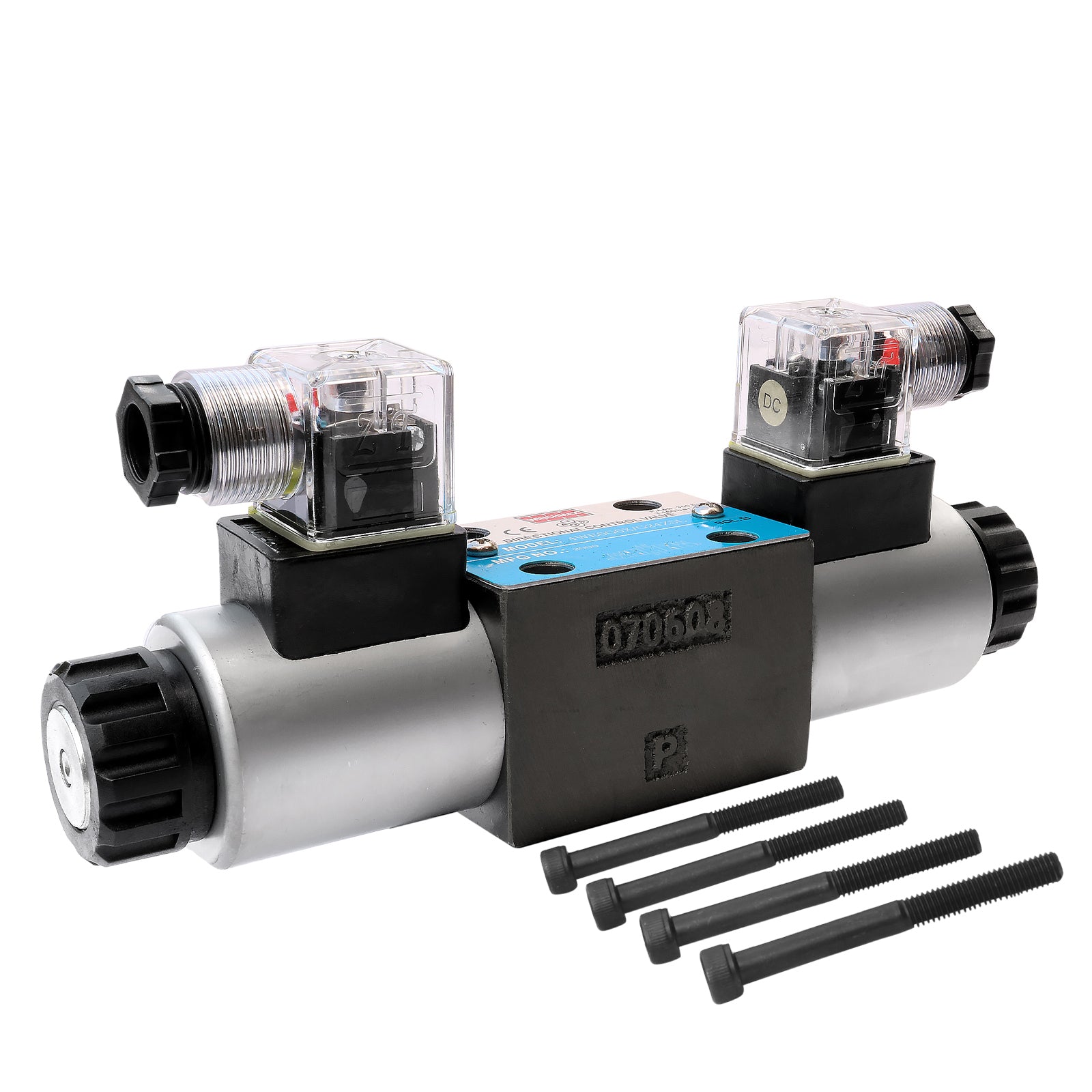

Solenoid Operated Directional Hydraulic Control Valve, CETOP3/NG6 Three-Position 12V
Used to start, stop and direct the oil flow.

Features

• Double 12V Coils.
• High Flow up to 80l/min.
• Removable DIN plug connector with clear cover, cable gland and LED indicator.
• Configuration; Spring-centred P open to Tank, A & B Blocked.
• Max Pressure P, A, B, 31.5 MPa (315 bar/4500 psi).
• Manual override feature.

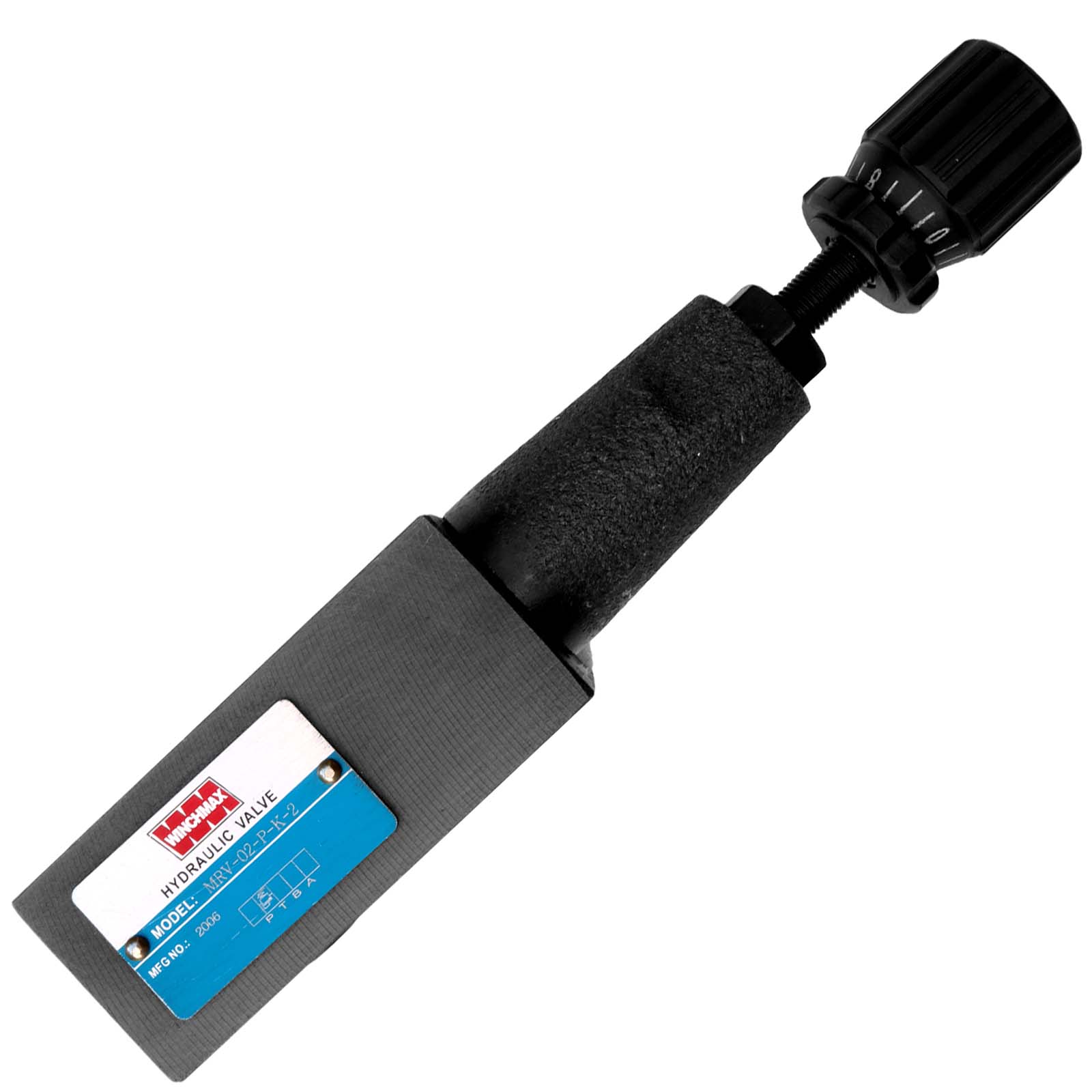

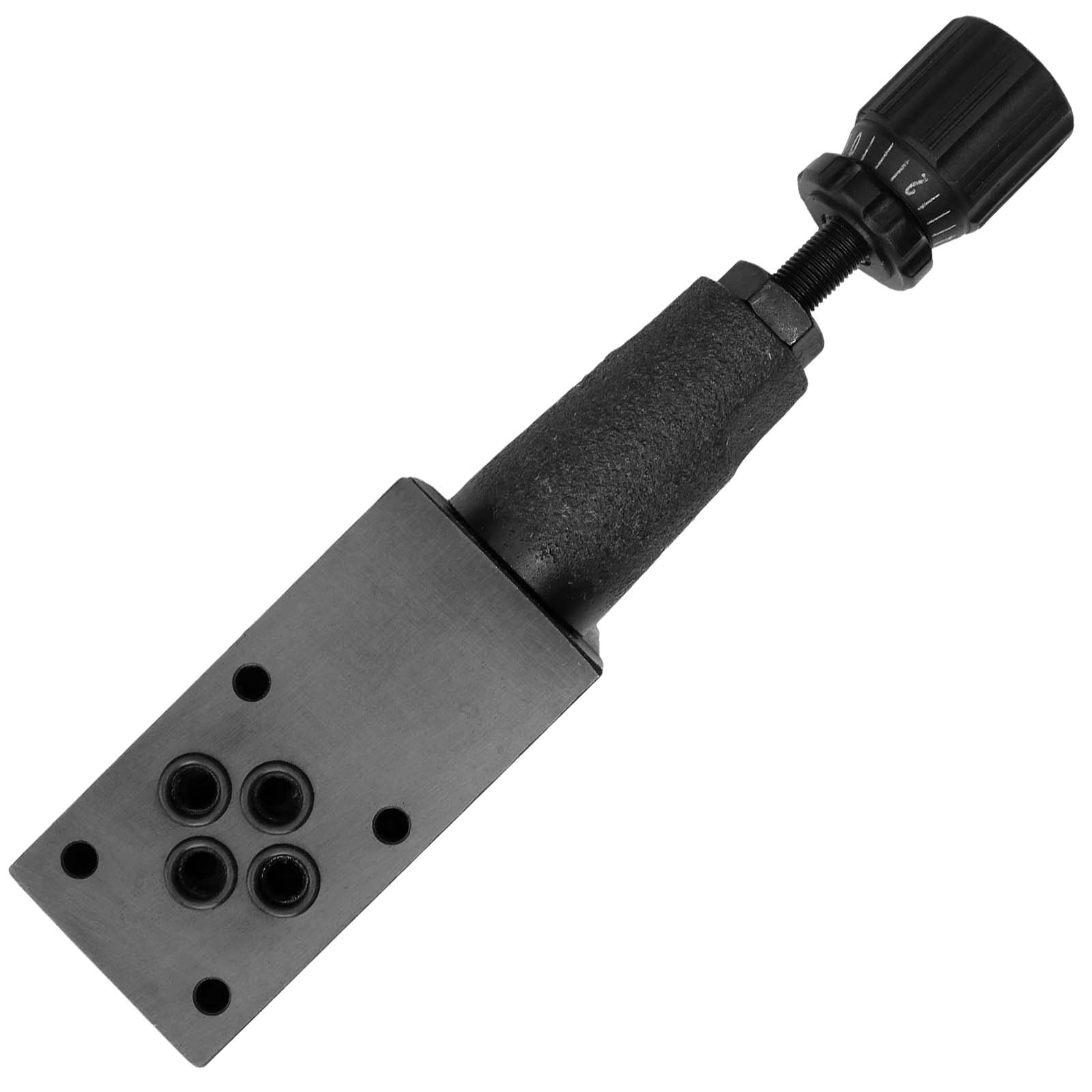

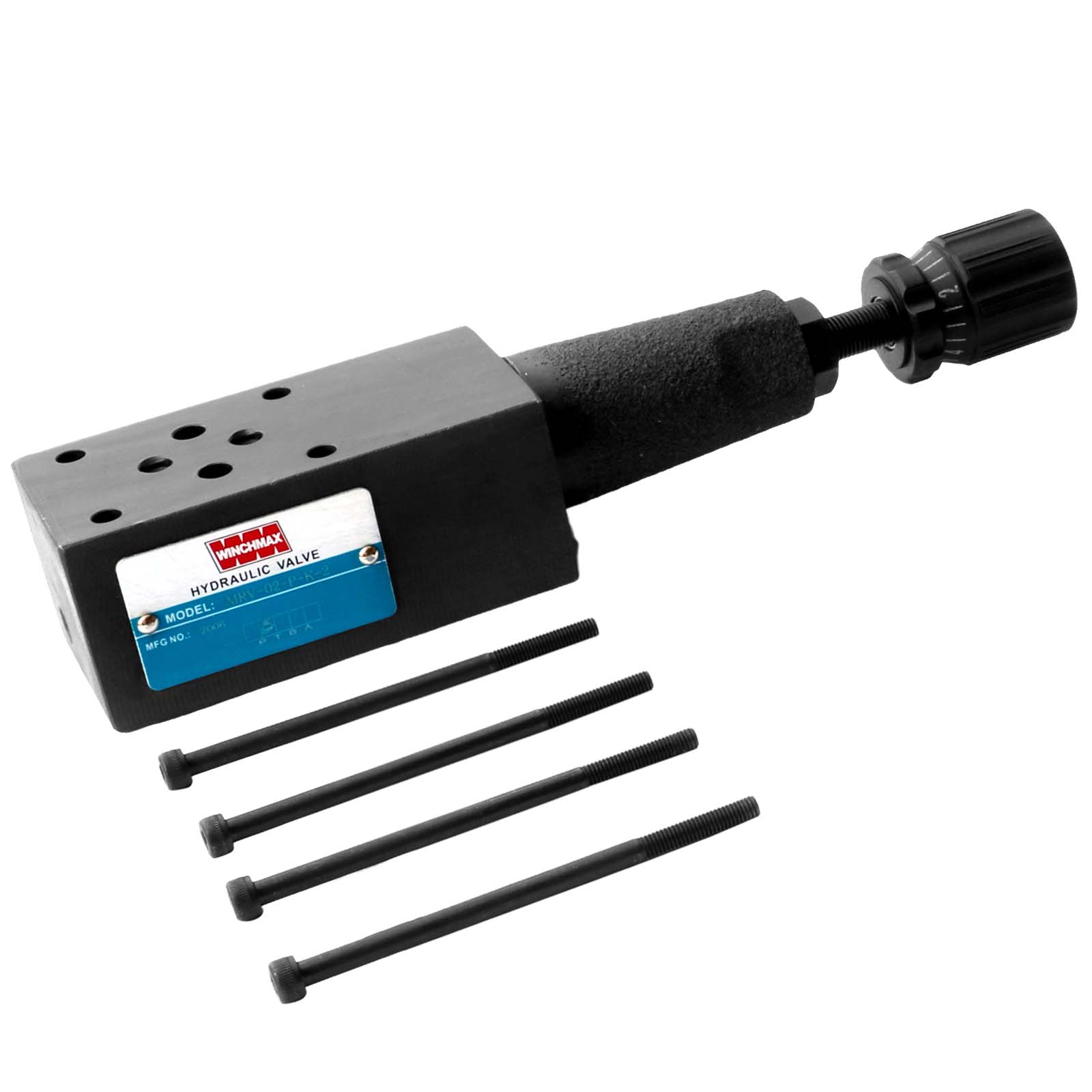

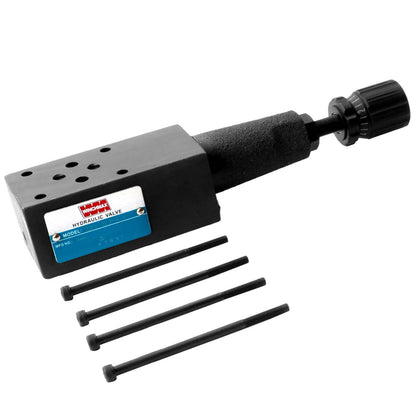

Modular Hydraulic Pressure Regulator Relief Valve CETOP3/NG6
A modular relief valve is used to regulate the maximum pressure within the operating parameters of the winch or other item being controlled. Installed between the manifold block and directional control valve. When the set pressure is exceeded, P will bypass across to T.

Features

• Easy to operate rotary calibration control with lock ring.
• Maximum Flow 35l/min
• P to T on operation.
• Pressure Adjustment Range 3.5-14 MPa (35-140 bar setting range).
• Supplied with extended bolts for attachment between direction valve and manifold block.

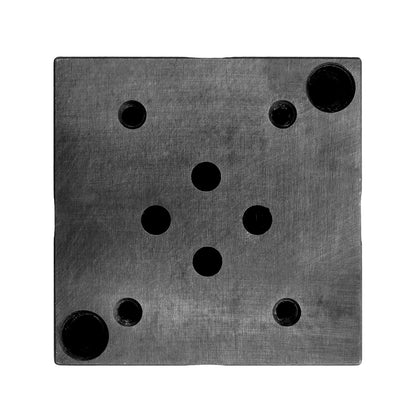

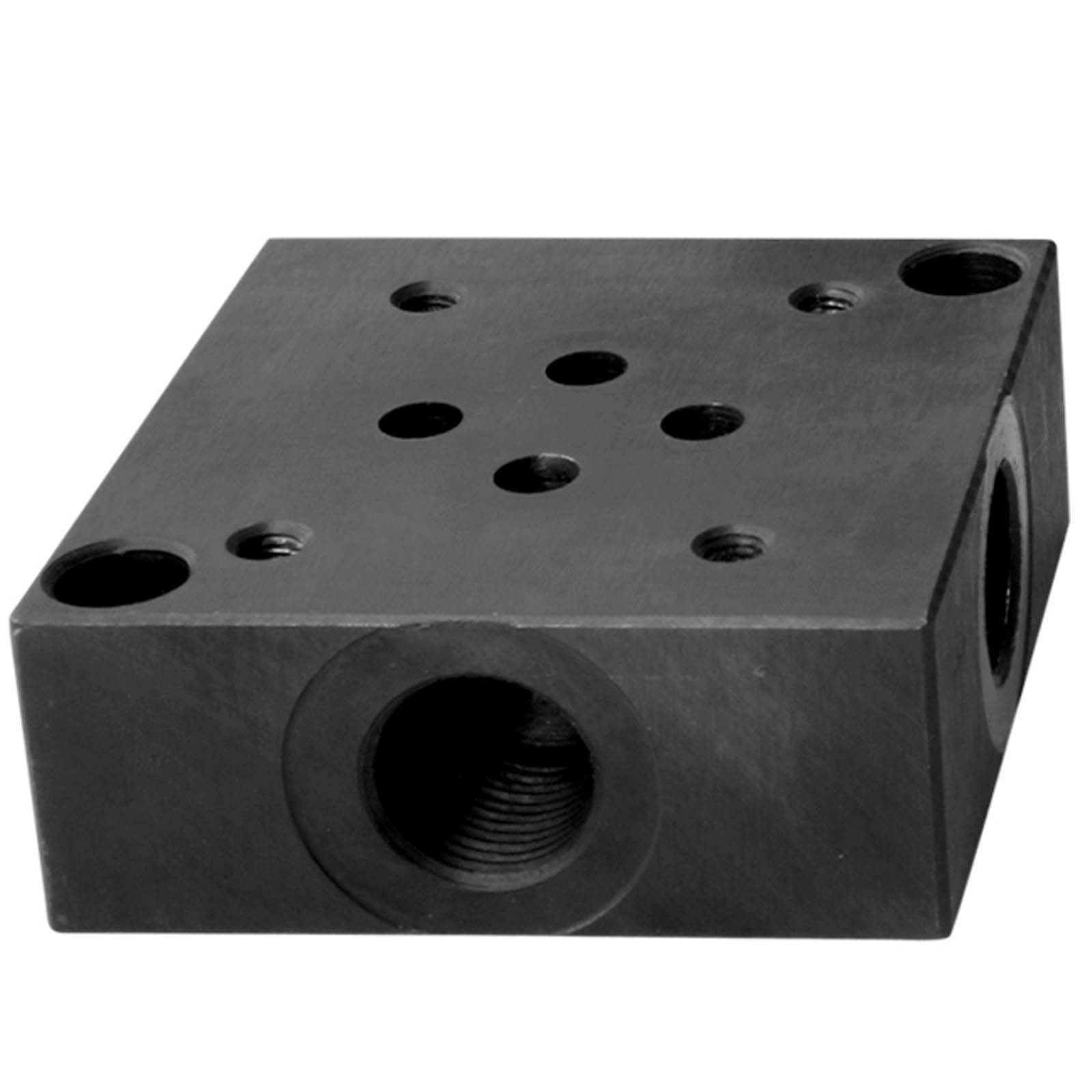

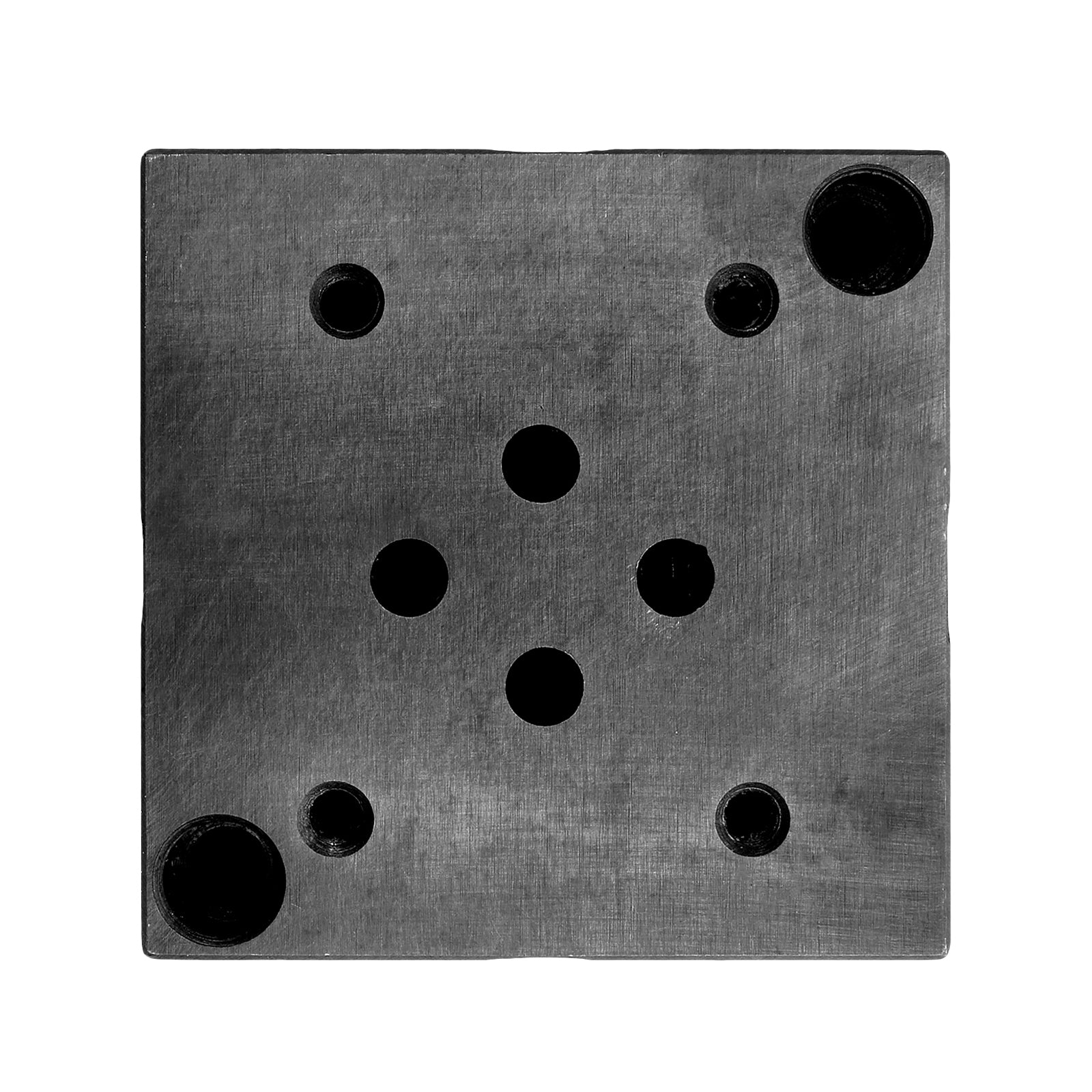

Manifold Subplate CETOP3/NG6 Hydraulic
Provides a manifold to connect the P, T, A, B pipework into a directional control valve (and pressure regulator if required).

Features

• Forged Steel Construction
• Side Ported P,T,A,B.
• Port size 3/8 inch BSP

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

4WE6 Solenoid Direction Control Valve
Max. flow rate (l/min)	80
Max. working pressure (MPa) A, B, P port	31.5
Max. working pressure (MPa) T port	16
Double solenoids type Weight (kg)	2.2
Hydraulic Fluid	Mineral Oil
Seal Material	NBR Seals
Temperature range (°C)	-30 to +80
Viscosity range (mm2/s)	2.8 to 500
Oil cleanliness class according to ISO 4406	Class 20/18/15



MRV-02 Modular Relief Valve
Pressure adjustment range (MPa)	3.5 -14
Max. flow rate (l/min)	35
Weight (kg)	1.5
Hydraulic fluid	Mineral oil
Seal material	NBR seals
Temperature range (°C)	-30 to +80
Viscosity range (mm2/s)	2.8 to 500
Oil cleanliness class according to ISO 4406	Class 20/18/15
