CETOP3/NG6 12v Solenoid Operated Directional Hydraulic Control Valve
CETOP3/NG6 12v Solenoid Operated Directional Hydraulic Control Valve
Quick Code: 1104
SKU: WMHYSOLVALVE3-12V
Normalpris
£77.95Inc VAT£64.96Exc VAT
Normalpris
Inc VAT
£0.00Exc VAT
Udsalgspris
£77.95Inc VAT£64.96Exc VATShare
Tilgængelighed for afhentning kunne ikke indlæses
Need Help?
Call us on +44 (0) 1986 899264 and we'll be happy to help.
Certificate of conformity on all products
-

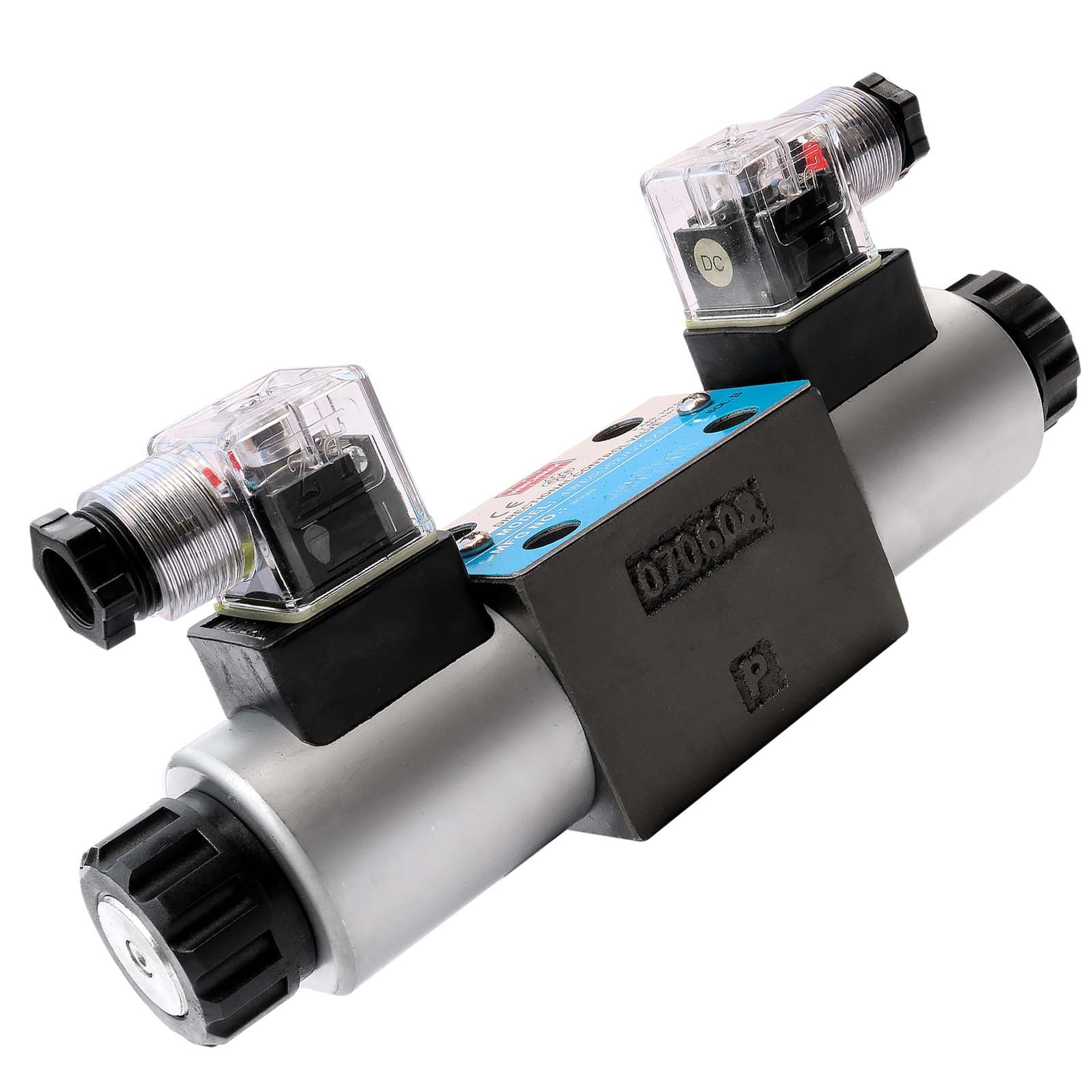

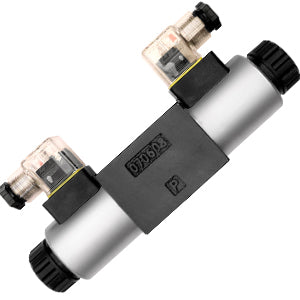

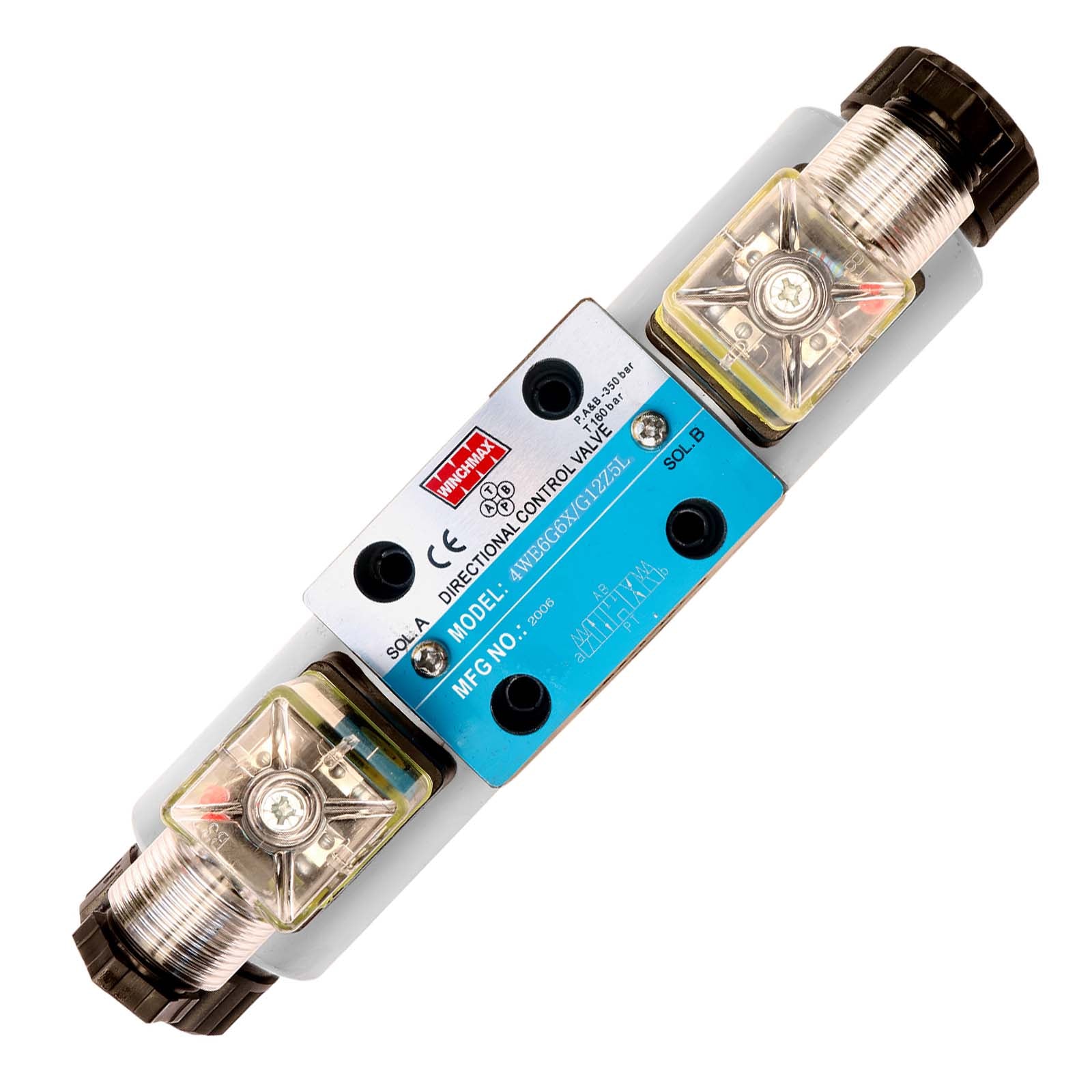

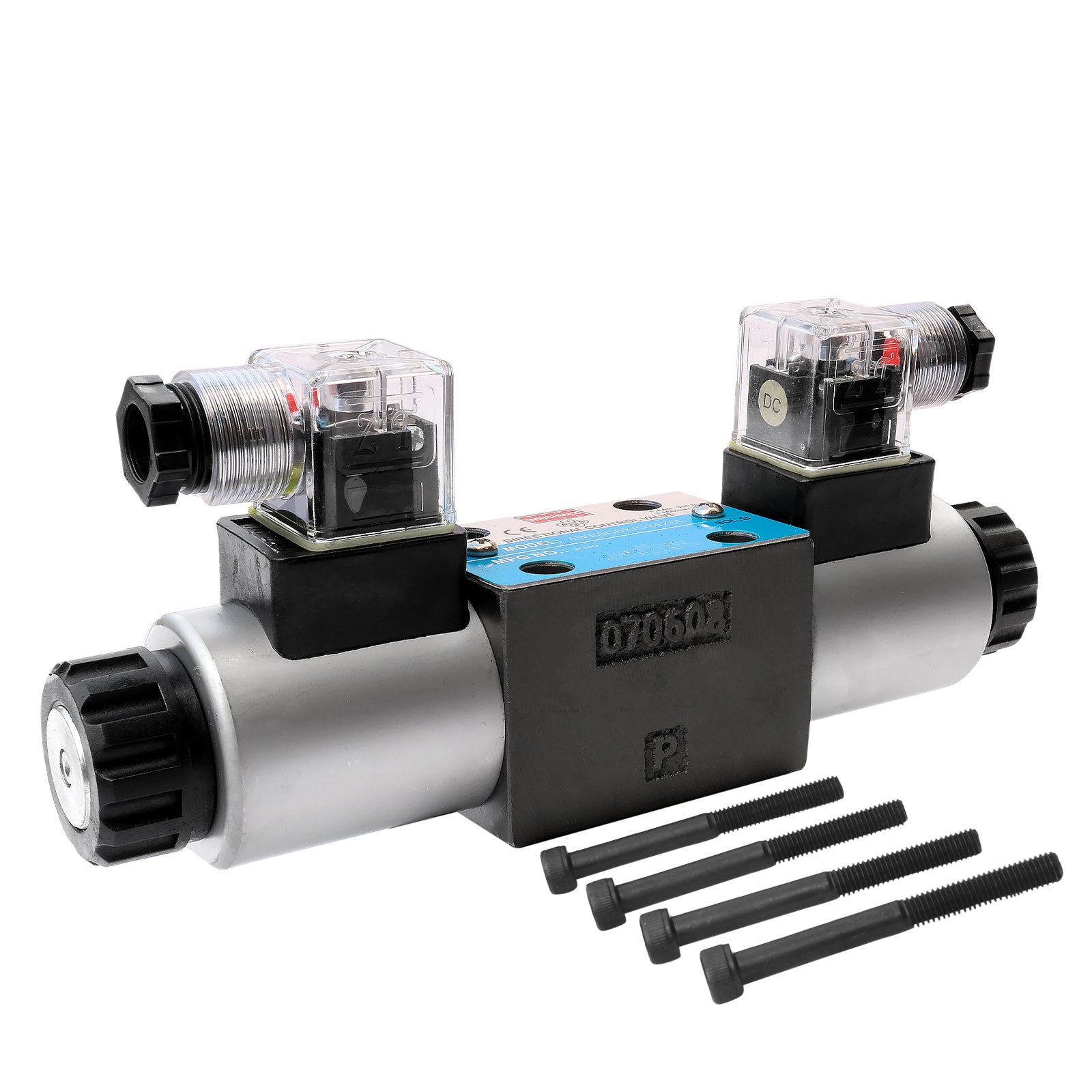

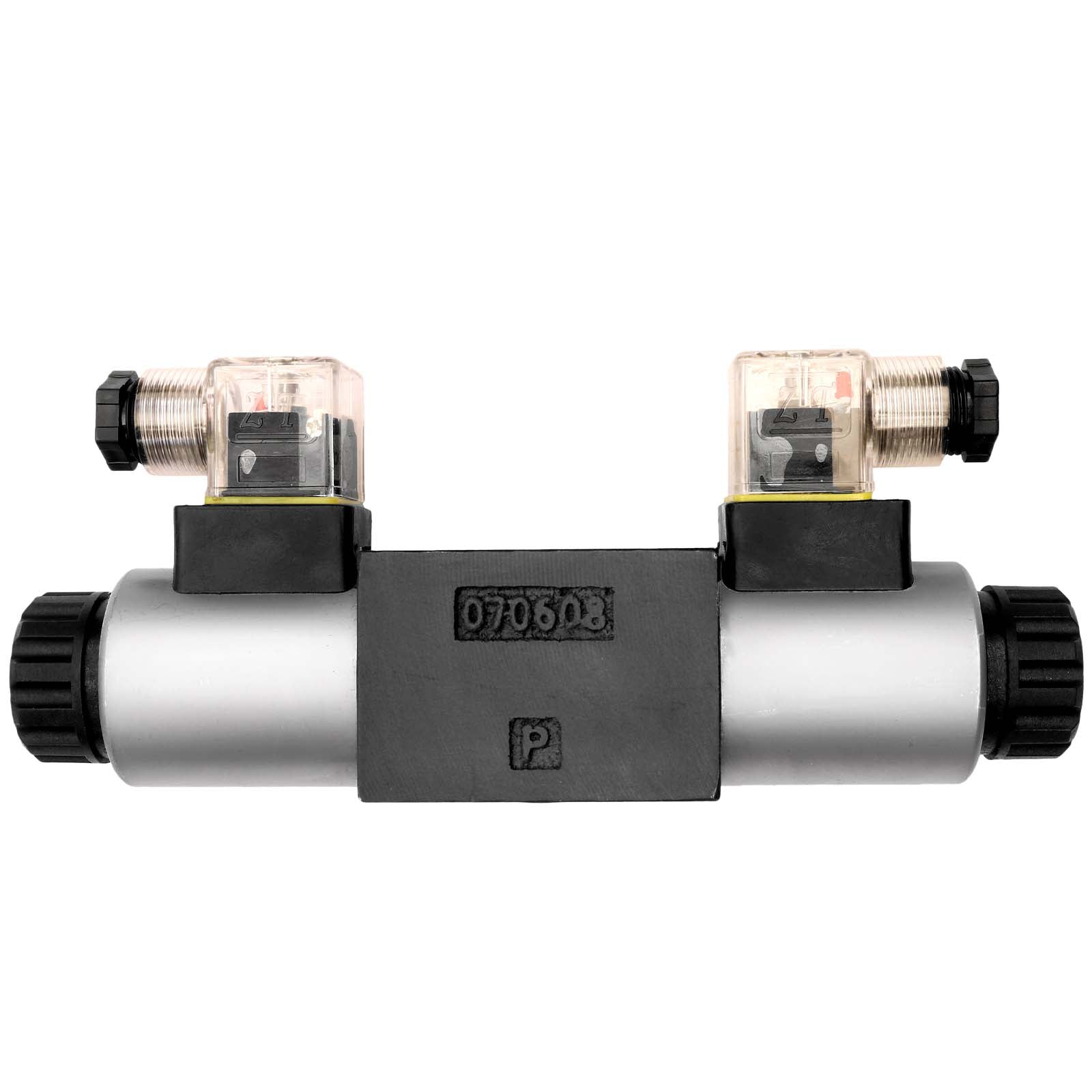

CETOP3/NG6 Solenoid Operated Modular Directional Control Valve
High flow directional control for hydraulic winches.
Solenoid Operated Directional Hydraulic Control Valve, CETOP3/NG6 Three-Position 12V
Used to start, stop and direct the oil flow.
Features- Double 12V Coils.
- High Flow up to 80l/min.
- Removable DIN plug connector with clear cover, cable gland and LED indicator.

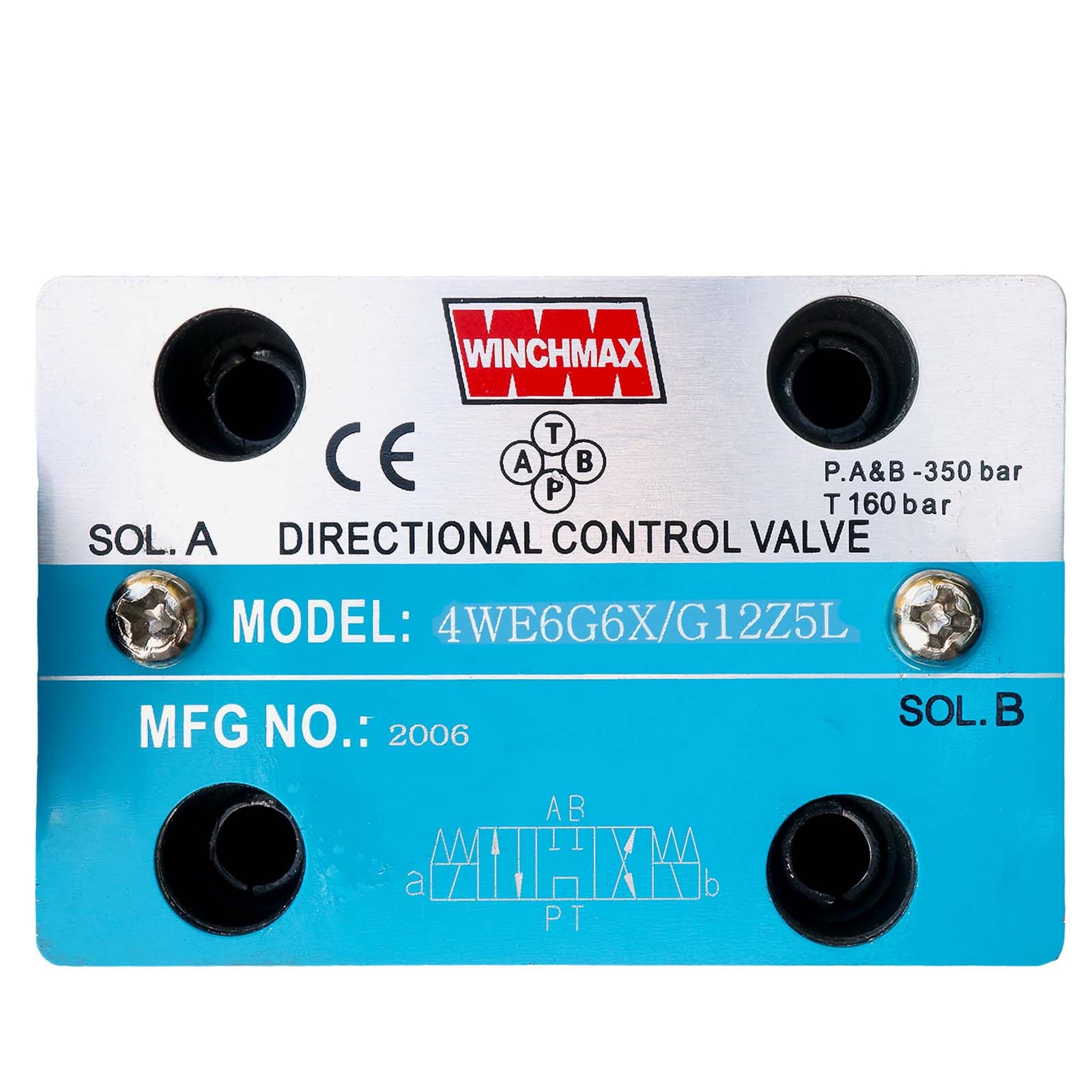

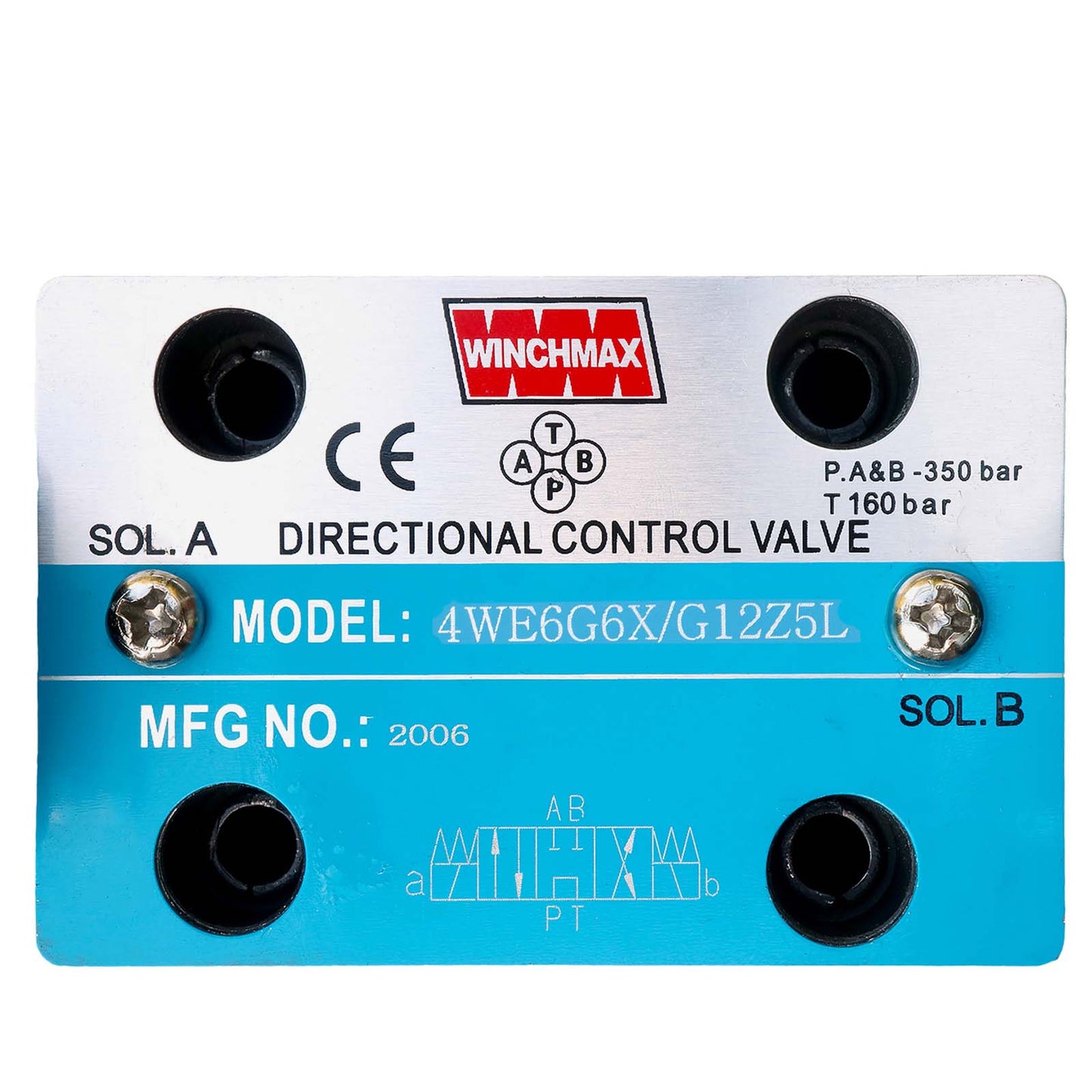

- Configuration; Spring-centred P open to Tank, A & B Blocked.
- Max Pressure P, A, B, 31.5 MPa (315 bar/4500 psi).
- Manual override feature.
VAT invoice provided with every sale. -
4WE6 Solenoid Direction Control Valve Max. flow rate (l/min) 80 Max. working pressure (MPa) A, B, P port 31.5 Max. working pressure (MPa) T port 16 Double solenoids type Weight (kg) 2.2 Hydraulic Fluid Mineral Oil Seal Material NBR Seals Temperature range (°C) -30 to +80 Viscosity range (mm2/s) 2.8 to 500 Oil cleanliness class according to ISO 4406 Class 20/18/15 -
