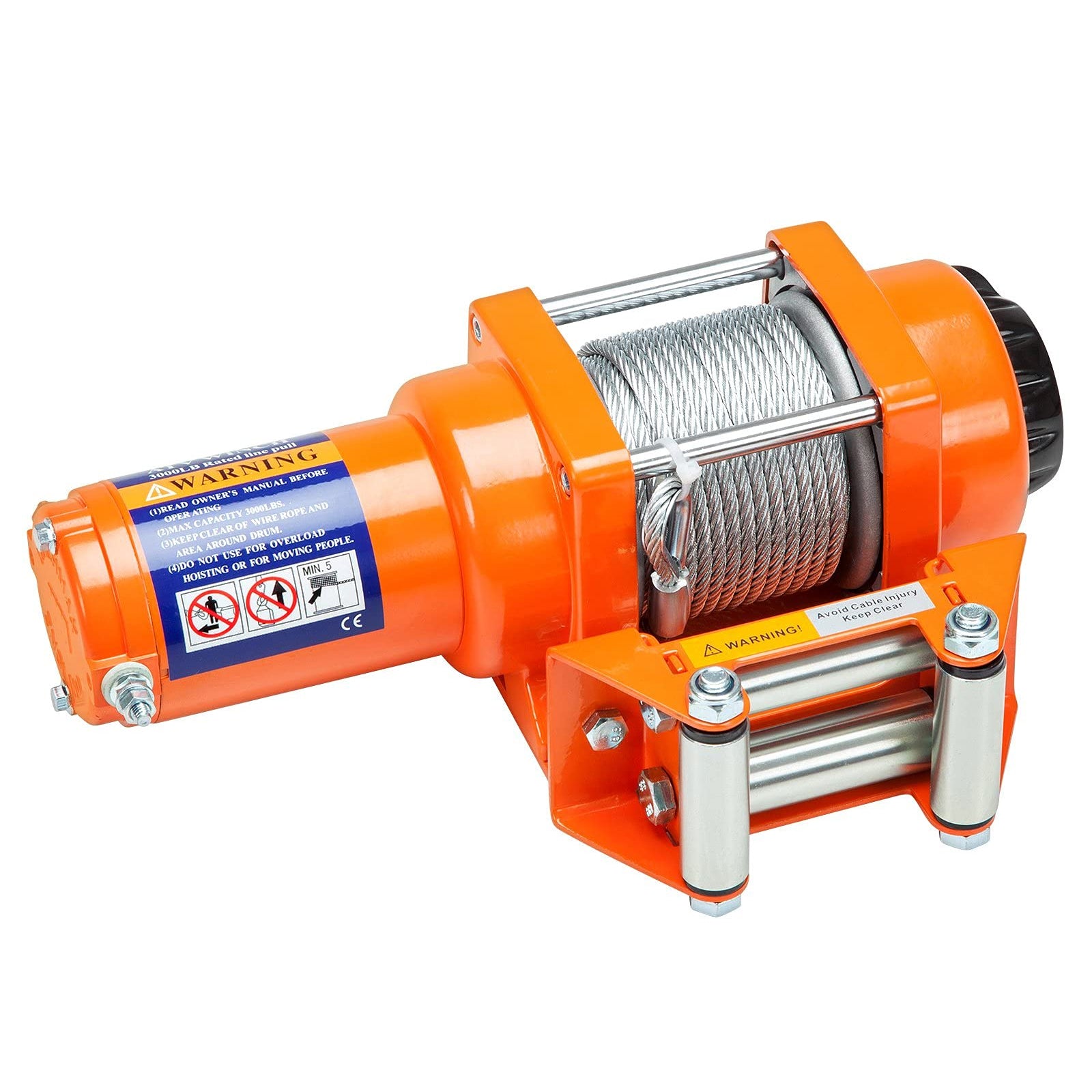

3,000lb (1,361kg) Original Orange 12v Electric Winch. 15m x 5mm Steel Rope, 1/4 Hook, Wireless Remote Controls.

3,000lb (1,361kg) Original Orange 12v Electric Winch. 15m x 5mm Steel Rope, 1/4 Hook, Wireless Remote Controls.

Quick Code: 1041
SKU: WM300012VR
Normalpris £149.95Inc VAT£124.96Exc VAT
Normalpris Inc VAT £0.00Exc VAT
Udsalgspris £149.95Inc VAT£124.96Exc VAT
Udsalg Udsolgt

Need Help?

Call us on +44 (0) 1986 899264 and we'll be happy to help.

Certificate of conformity on all products
Order within
Days
:
h
:
m
:
s
for UK Next Working Day delivery on
Se komplette oplysninger

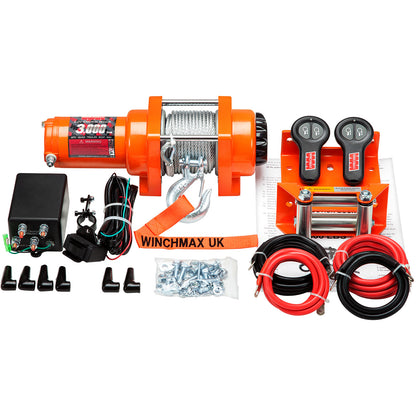

  • 3,000lb (1,361kg) Original Orange 12v Electric Winch, Steel Rope, Twin Wireless Remote Control
    Includes mounting plate

    Ideal for use on boat trailers, ATVs and light utility vehicles.

    Features
    • 3,000lb (1,361kg) straight-line pull 12v electric winch.
    • Latest technology long-range wireless remote controls, twin handsets.
    • Super powerful 12v permanent magnetic electric motor.
    • Ultra-tough three-stage gearbox with hardened steel gears.
    • 15m x 5mm galvanized steel wire rope.
    • New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
    • 1/4 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
    • Tough four roller fairlead with zinc plated rollers
    • Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
    • Power in/out rocker switch (with handlebar mount).

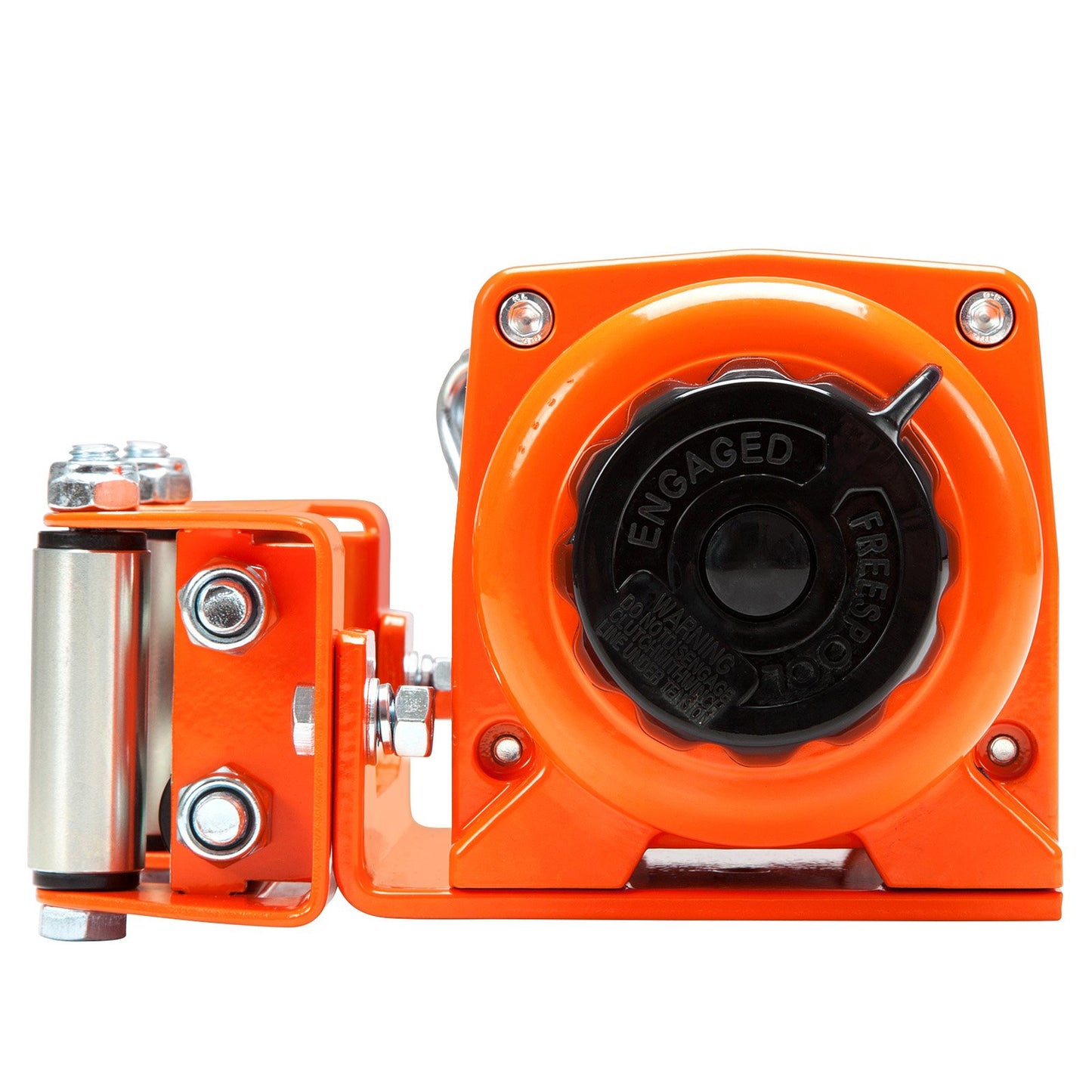

    • Freewheel clutch.
    • High tensile fixing bolt kit.
    • 2 x 180cm battery power cables, 2x 90cm motor power cables.
    • Heavy-duty & built to last - gross weight 12kg.
    • CE certified & built to ISO9001 quality management system requirements.
    Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
    VAT invoice provided with every sale.
  • Single Line Rated Pull 3,000lb (1,361kg)
    Motor 12v 1.5hp permanent magnetic motor
    Control Remote rocker switch, handlebar mount kit, in and out
    Gear Train 3 stage planetary
    Gear Reduction Ratio 136:1
    Clutch Cam activated free spool
    Braking Action Automatic in the drum
    Drum Size Diameter 50mm (2.0") Length 75mm (2.9”)
    Drum Finish Aluminium
    Cable 15m x 5mm galvanized steel wire rope
    Hook Clevis hook 1/4 inch, zinc plated
    Fairlead 4 Way roller fairlead
    Battery Recommended 12Ah minimum for winching
    Battery Leads (x2) 6 gauge, 1.7m (67”) 15mmsq - 4.2mm diameter
    Motor Leads (x2) 6 gauge, 0.9m (36”) 15mmsq - 4.2mm diameter
    Winch Finish Original Orange powder coated
    Weight (GW) 12kg (26.5lb)

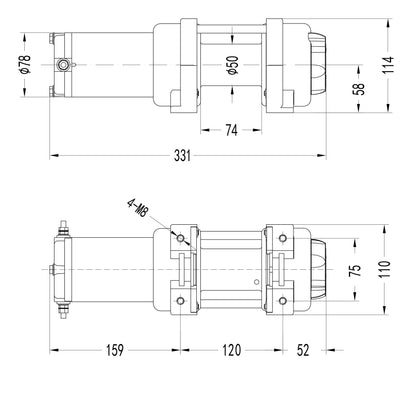

    Overall Dimensions (LxWxH) 339 x 110 x 114 mm
    Mounting Bolt Pattern 120 x 76 mm
    Motor Current 15-200A
    No Load Line Speed 8.3m/min (27.2 ft/min)

    Layer Rated  Line pull (lb)  Line Pull (kg)  Total Rope On Drum (ft/m)
     1  3,000  1,361  8.85/2.7
     2  2,561  1,162  19.22/5.86
     3  2,234  1,013  31.11/9.48
    4  1,981  899  44.52/13.58
    5  1,779  807  50.0/15.5

    Line Pull (lb/kg)  Line Speed ft/min (m/min)  Motor (Amps)
     0 (0)  27ft (8.3m)  15A
     500 (227)  20ft (6.1m)  40A
     1,000 (454)  16ft (4.9m)  60A
     2,000 (907)  9ft (2.7m)  130A
     3,000 (1,361)  5ft (1.5m)  190A
