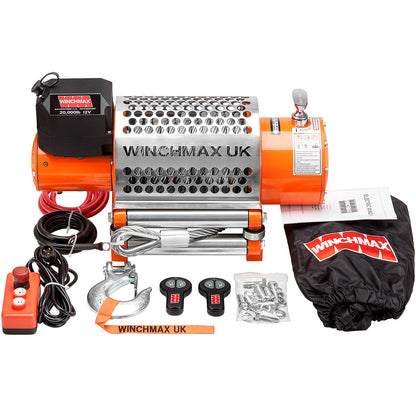

20,000lb (9,072kg) Original Orange Recovery 12v Electric Winch. 25m x 14mm Steel Rope, Wireless Remote Controls.

20,000lb (9,072kg) Heavy Recovery Original Orange 12v Electric Winch, Steel Rope, Twin Wireless Remote Control

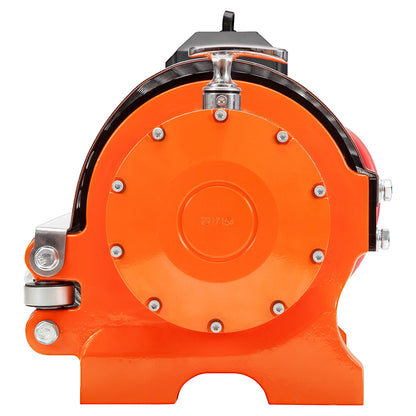

Integral roller fairlead, no mounting plate required.

Features

• 20,000lb (9,072kg) straight-line pull Z Series 12v electric winch.
• Latest technology long-range wireless remote controls, twin handsets.
• Super powerful 12v 7.0hp/5.2kw series wound electric motor.
• Power in/out handheld control unit - with a large emergency stop button.
• Massive ultra-tough four-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 25m x 14mm galvanized steel wire rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
• 1/2 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
• Super heavy-duty four roller fairlead - built into the winch (no mounting plate required).

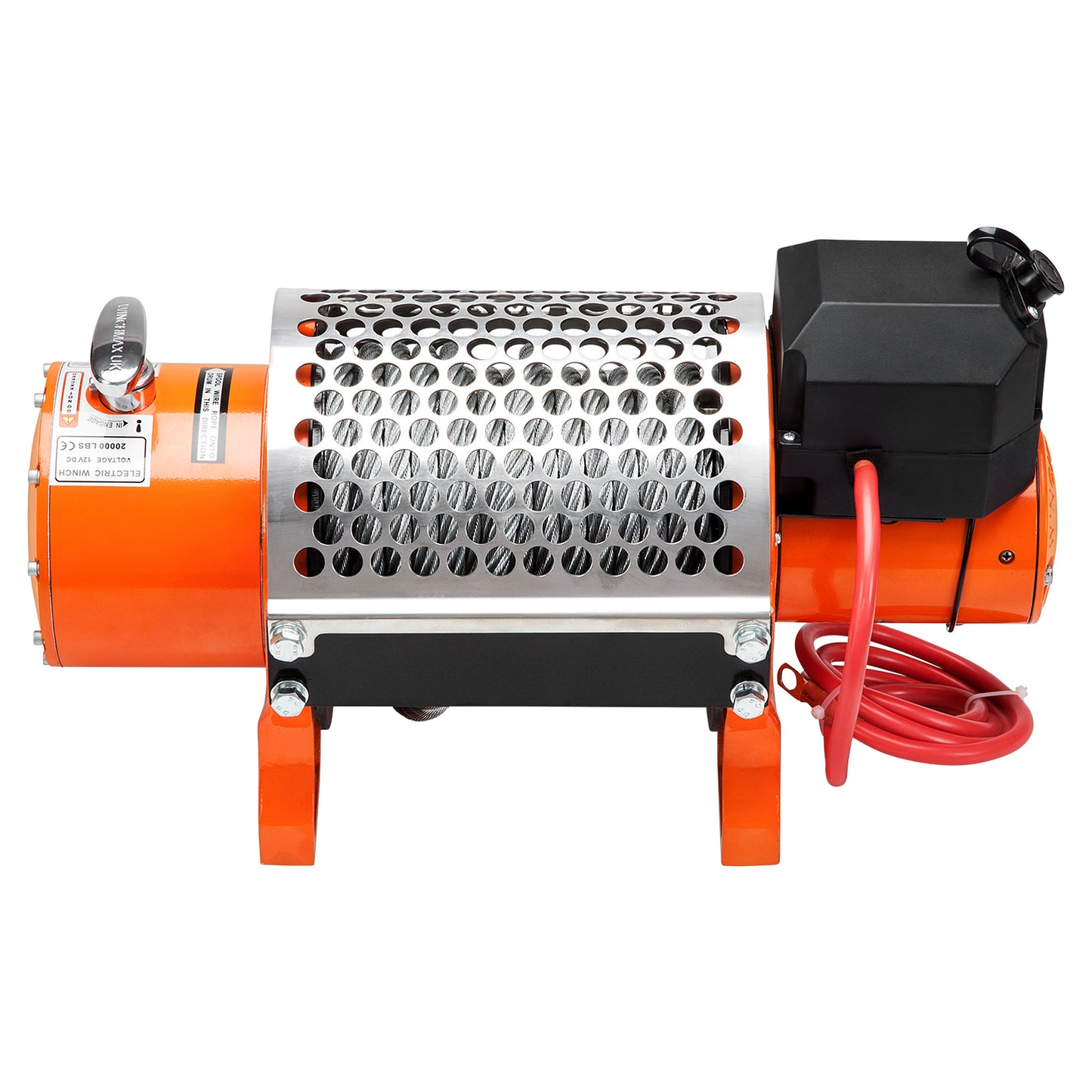

• Stainless steel perforated drum cover provides enhanced safety whilst still allowing the operator to monitor the rope spooling.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime.
• Heavy duty & built to last - gross weight 85kg.
• CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line rated pull	20,000lb (9,072kg)
Motor	12v 7.0HP/5.2KW, series wound
Motor Current	75-570A
Control	Remote switch, 4.5m lead, in & out
Gear Train	4 stage planetary
Gear Reduction Ratio	544:1
Clutch	Sliding ring gear
Braking Action	Automatic
Drum Size	Diameter 89mm Length 228.6mm
Drum Finish	Black, painted
Cable	25m x 14mm galvanized steel wire rope
Hook	Clevis hook 1/2 inch
Fairlead	Heavy-duty 4 way roller fairlead
Battery	Recommended: 750CCA Minimum For Winching
Winch Finish	Original Orange powder coated
Weight (GW)	85kg (187lb)
Overall Dimensions (LxWxH)	576 x 302 x 305mm
Mounting Bolt Pattern	10.00” x 4.50” (254 x 114.3mm)
No Load Line Speed	5.1m/min (16.73 ft/min)



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	20,000	9,091	15.62/4.76
2	15,725	7,132	35.43/10.8
3	12,956	5,877	59.55/18.15
4	11,016	5,336	85.30/26



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	16.73ft (5.1m)	82A
4,000 (1,814)	8.20ft (2.5m)	128A
8,000 (3,629)	7.22ft (2.2m)	210A
12,000 (5,443)	6.23ft (1.9m)	278A
16,000 (7,257)	4.92ft (1.5m)	365A
20,000 (9,072)	3.6ft (1.1m)	420A

PDf Documents

• 13500-20000WinchManualEU
• KeyholeRemoteGuide
• MountingHardwareGuide
