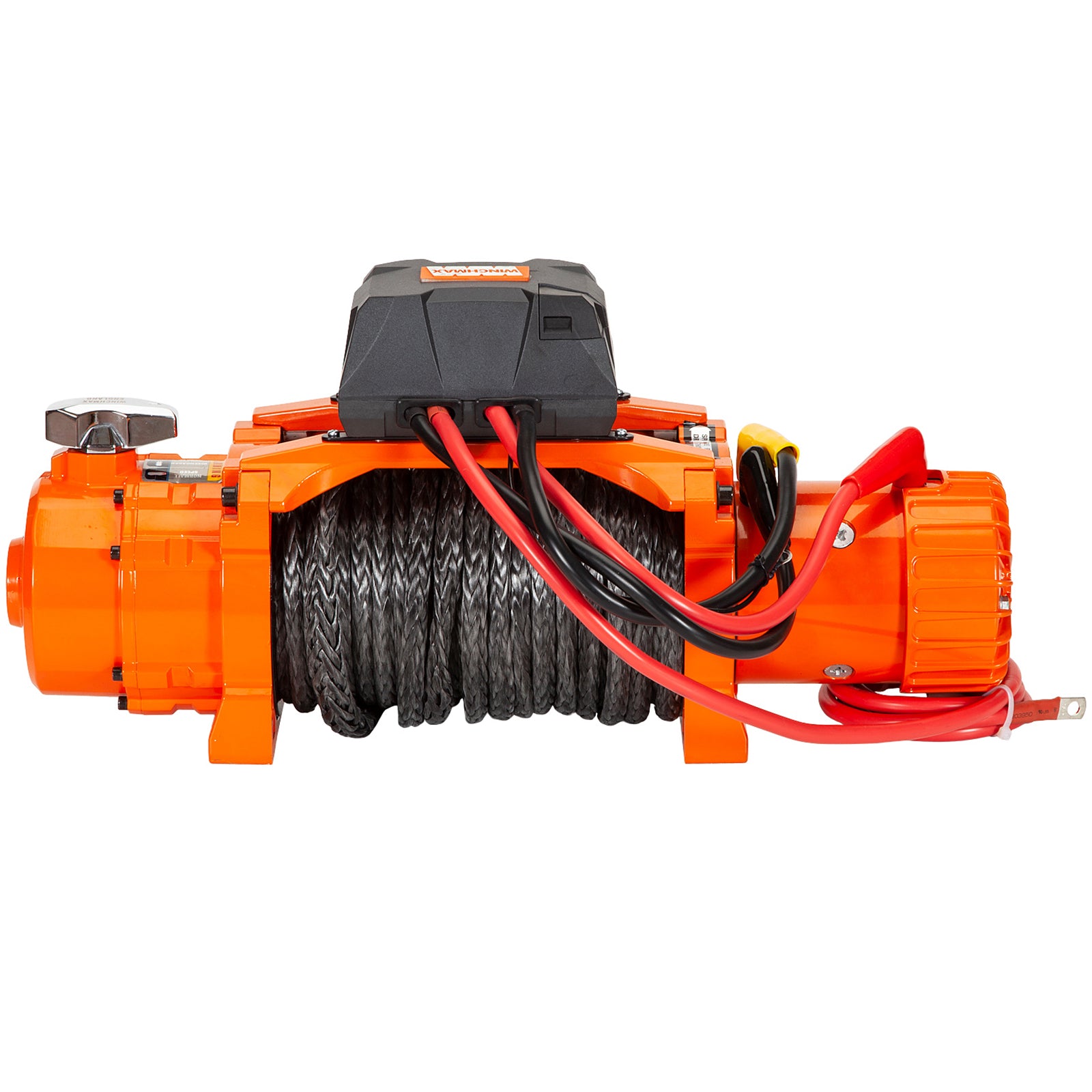

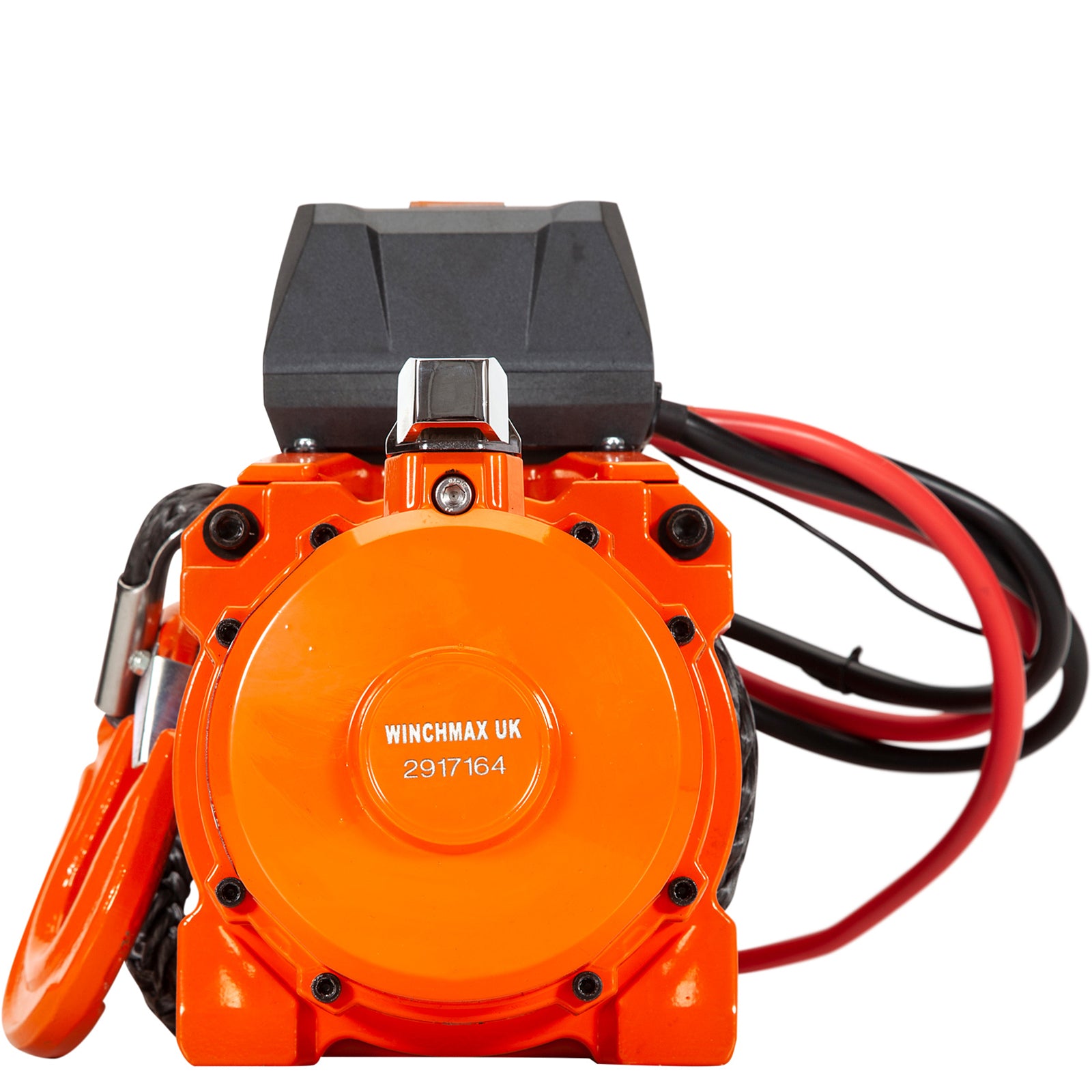

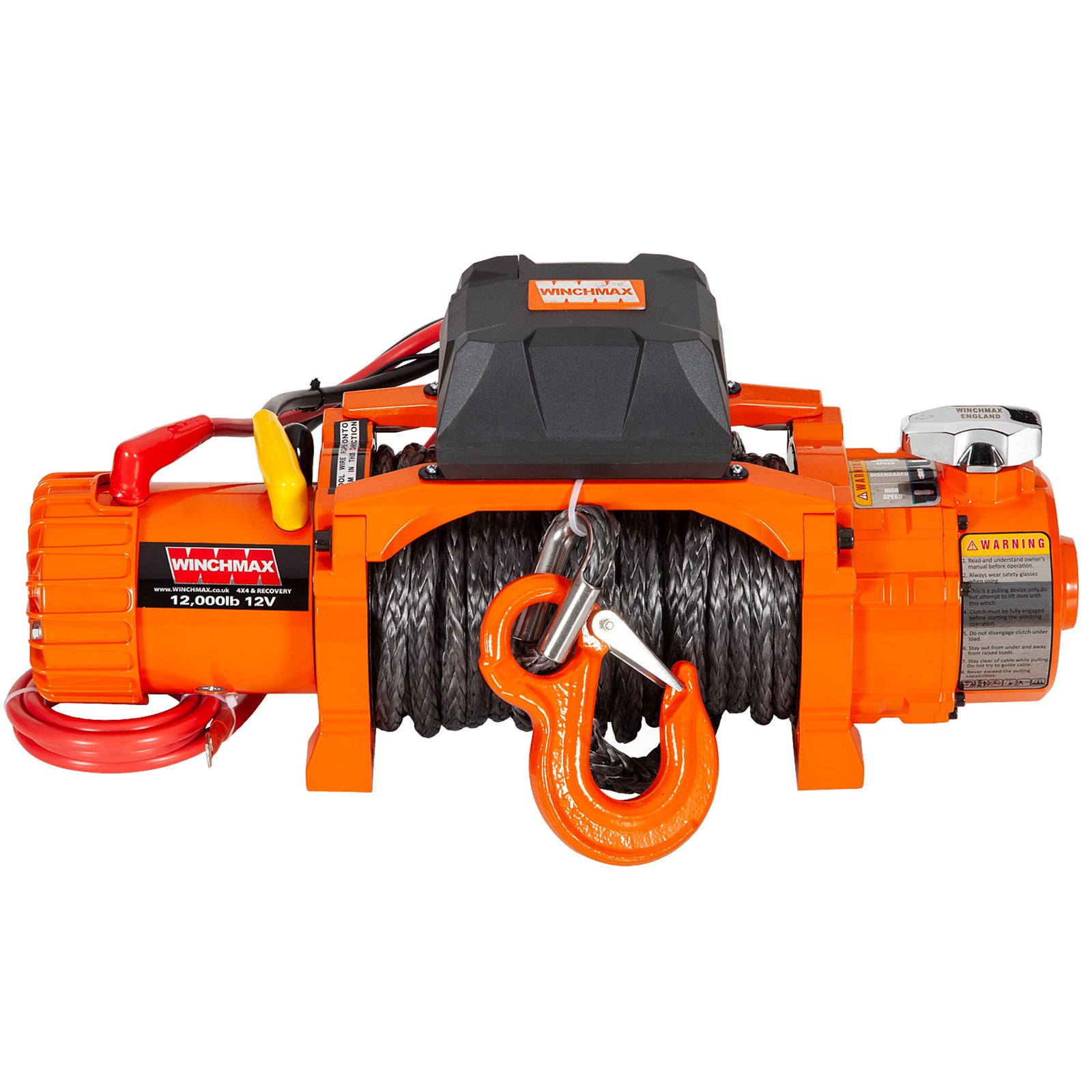

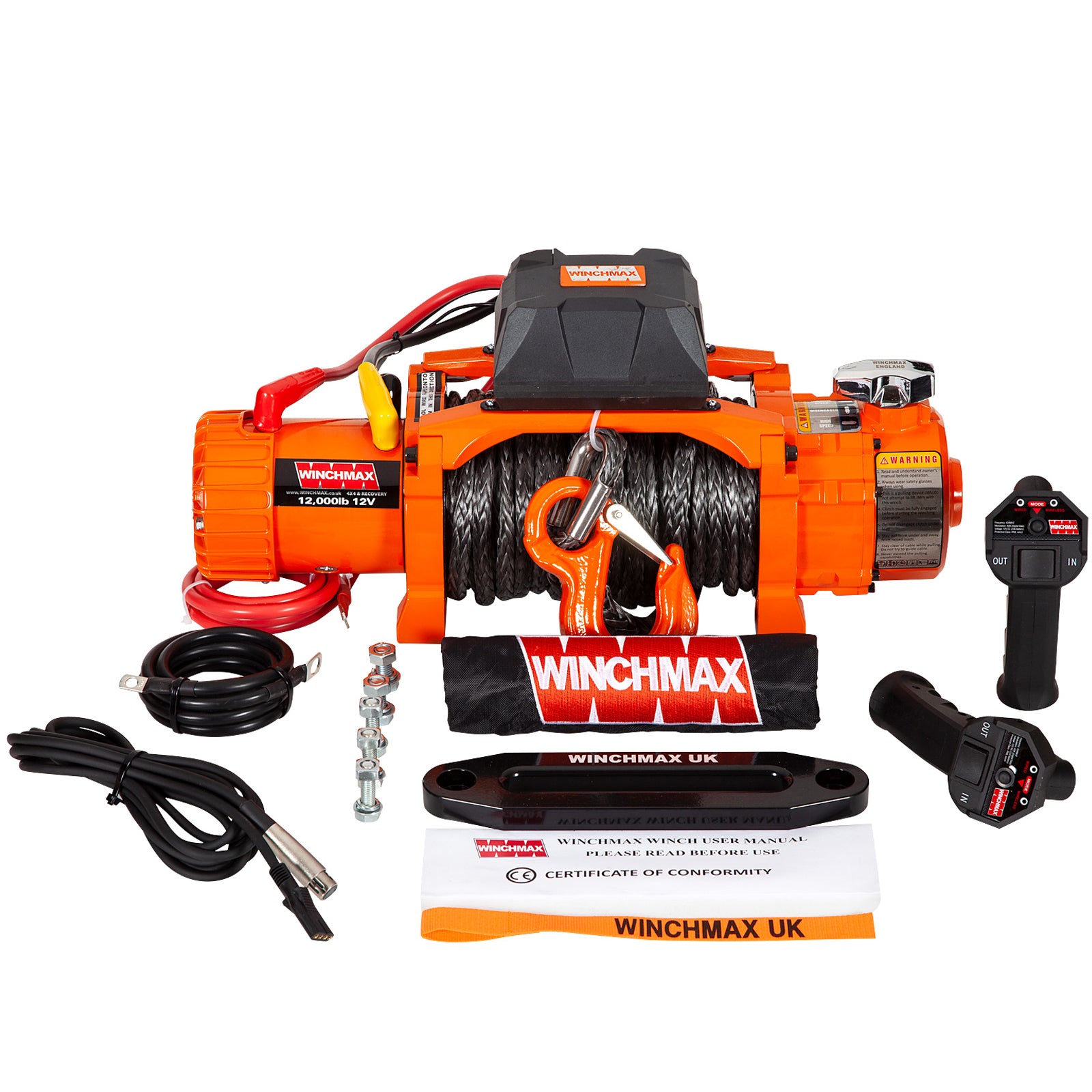

12,000lb (5,443kg) Original Orange 12v Two Speed Winch. 26m x 11mm Dyneema Rope, Wireless Remote Controls.

12,000lb (5,443kg) Original Orange 12v Electric Winch, Two Speed, Dyneema Rope, Twin Wireless Remote Control
Selectable Two-speed gearbox allows for rapid deployment and recovery under no-load conditions

Ideal for recovery trucks and 4x4s up to 3.5T

Compatible with Winchmax Defender Winch Bumpers.

Features

• 12,000lb (5,443kg) straight-line pull, two speed fast 12v electric winch.

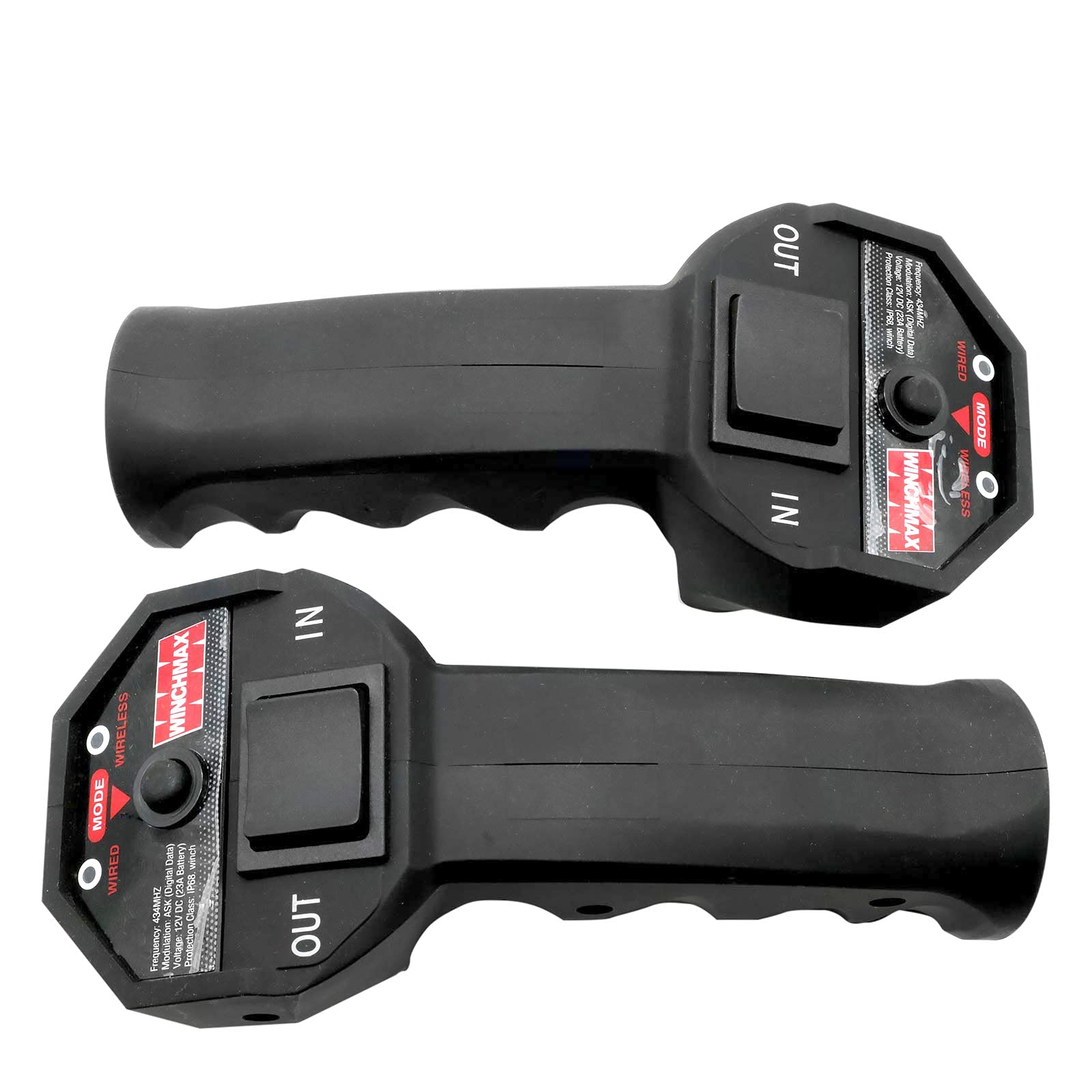

• Latest technology long-range combination wireless remote controls, twin handsets.
• Dual speed: Standard for on-load operation, Fast for rapid rope deployment and recovery off-load.
• Super powerful 12v 6.6hp/4.5kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 26m x 11mm Dyneema SK75 multi-strand synthetic rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

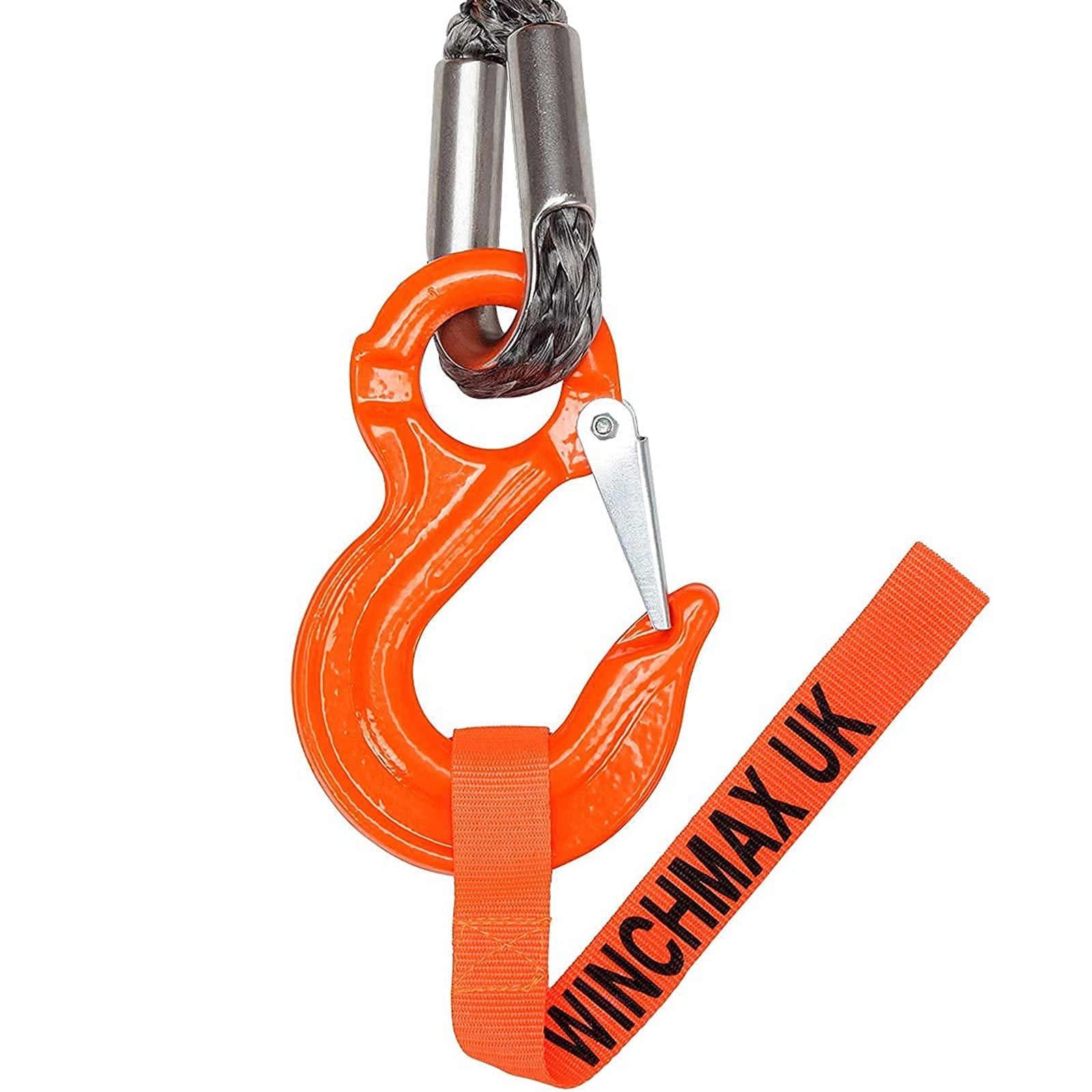

• Competition hook with safety catch and hand saver, orange.
• WINCHMAX aluminium hawse fairlead. Precision CNC milled, laser-etched.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Power in/out big grip wander lead with extra-long 4.5m cord.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.

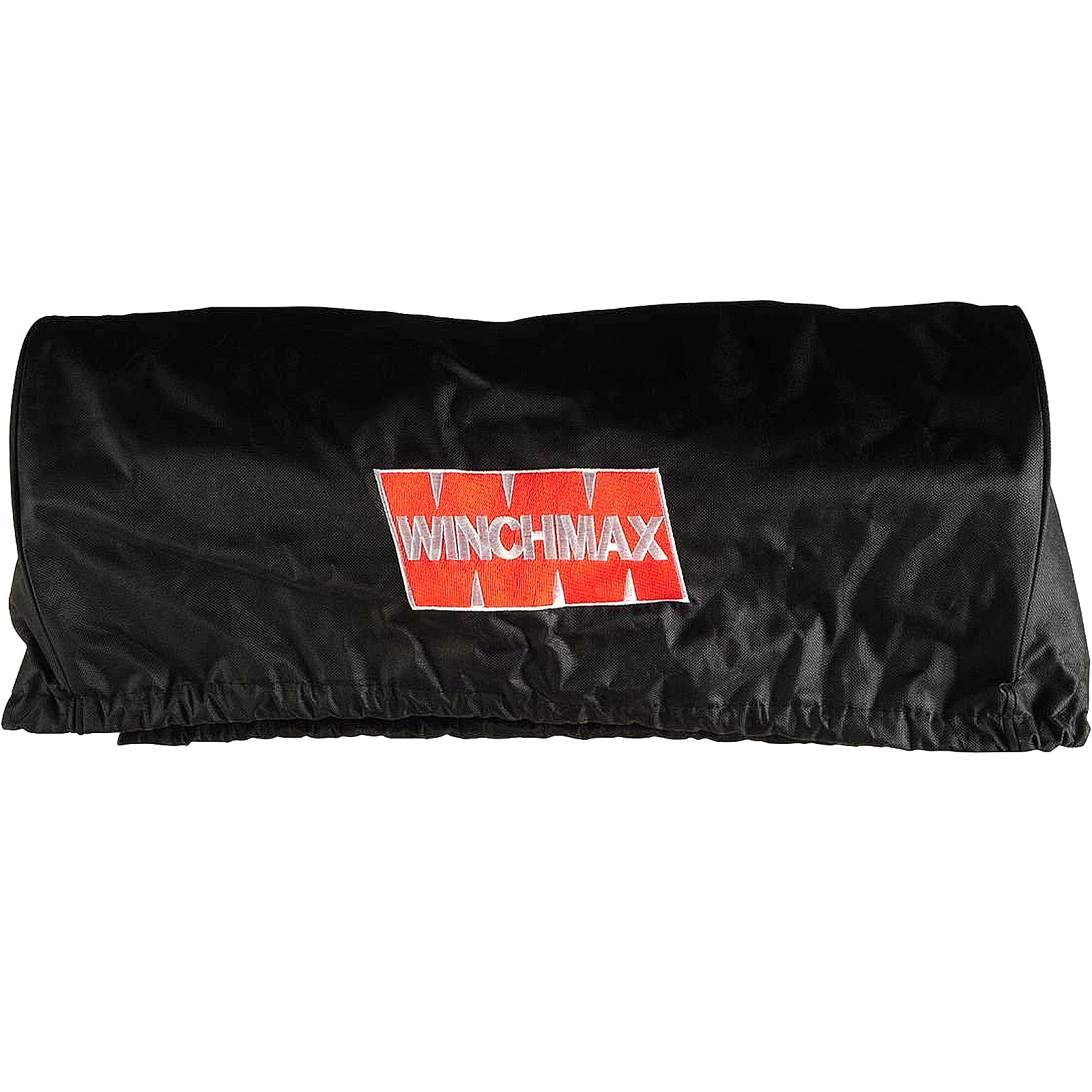

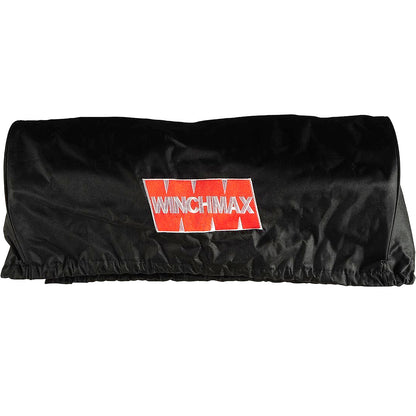

• Strong WINCHMAX branded cover to protect from water and road grime.
• Heavy-duty & built to last - gross weight 30kg.
• CE certified & built to ISO9001 quality management system requirements

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	12,000lb (5,443kg)
Voltage	12V DC
Motor	6.6hp/4.5kw series wound
Control	Remote switch, 4.5m lead, in & out
Gear Train	3 stage planetary
Gear Reduction Ratio	230:1 low speed - 115:1 high speed
Clutch	Free spooling sliding ring gear
Braking Action	Automatic full load holding
Drum Size	Diameter (2.5") 63mm length (8.8") 223mm
Cable	26m x 11mm Dyneema SK75 multi-strand synthetic rope
Hook	Competition hook with safety catch, orange.
Fairlead	Aluminium hawse fairlead. Precision CNC milled, laser-etched.
Remote Control	2 x long-range remote controls included
Battery	Recommended: 650CCA minimum for winching
Winch Finish	Original Orange powder coated
Weight (GW)	30kg

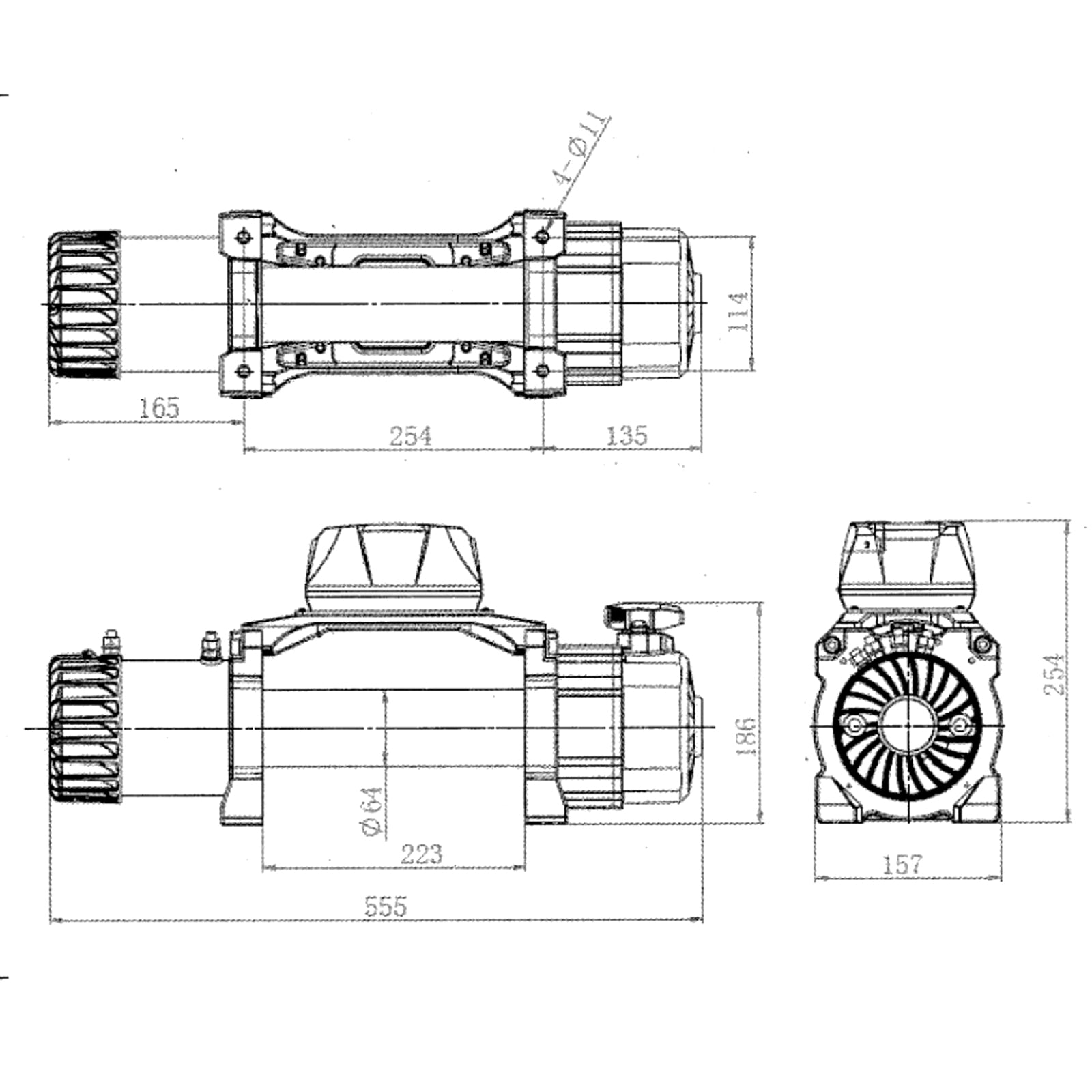

Overall Dimensions (LxWxH)	555 x 157 x 254mm
Mounting Bolt Pattern	10.00” x 4.50” (254 x 114.3mm)
No Load Line Speed	19.6m/min (64.3 ft/min)

  Performance Data at Low speed (Gear Ratio: 230.4:1)

Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	33.7ft (10.3m)	79A
3,000 (1362)	11.5ft (3.5m)	177A
6,000 (2724)	8.0ft (2.4m)	259A
9,000 (4086)	5.8ft (1.8m)	330A
12,000 (5448)	3.9ft (1.2m)	425A

  Performance Data at High Speed (Gear Ratio: 115.2:1)

Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	64.2ft (19.6m)	80A

  Above Performance, Specifications are based on First Layer of Drum

Layer Rated	Line pull (Lb)	Line Pull (Kg)	Total Rope On Drum (ft/m)
1	12,000	5,455	17.6/5.4
2	9,530	4,332	37/11.4
3	7,920	3,600	63/19.4
4	6,770	3,077	88/26.8
