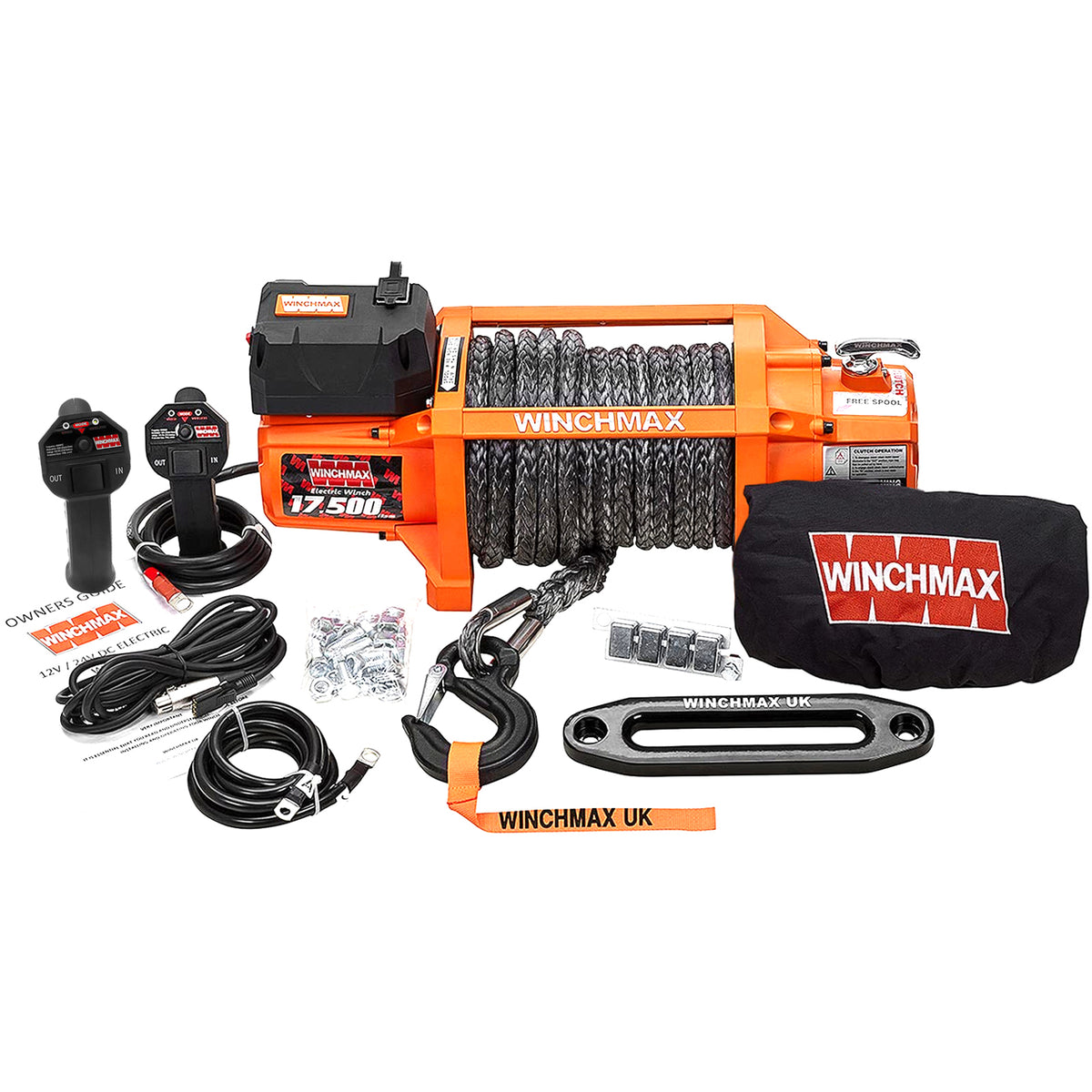

17,500lb (7,938kg) 'SL Series' Original Orange 12v Winch. 26m x 13mm Dyneema Rope, Wireless Remote Control.

17,500lb (7,938kg) Original Orange 12v Electric Winch, Dyneema Rope, Twin Wireless Remote Control

Ideal for recovery trucks and 4x4s over 3.5T

Features

• 17,500lb (7,938kg) straight line pull SL series 12v electric winch.
• Latest technology long-range combination wireless remote control.
• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 26m x 13mm Dyneema SK75 multi-strand synthetic rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
• Competition hook with safety catch and hand saver, black.
• WINCHMAX aluminium hawse fairlead. Precision CNC milled, laser-etched.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime
• Heavy-duty & built to last - gross weight 50kg.
• CE certified & built to ISO9001 quality management system requirements.

Don't forget Your Mounting plate.

WINCHMAX make the best mounting plates for quick and easy installation. Click here for our recommended mounting plates for this winch.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	17,500lb (7,938kg)
Motor	12v 6.8hp/5.1kw series wound
Control	Big grip remote switch, 4.5m lead.
Gear train	3 stage planetary
Gear reduction ratio	430:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum size	Diameter 88mm (3.45”) Length 224 mm (8.82”)
Drum Finish	Black, painted.
Cable	26m x 13mm Dyneema SK75 synthetic rope
Hook	Competition hook with safety catch
Fairlead	Aluminium hawse
Battery	Recommended 750CCA minimum for winching
BatteryLeads	2 gauge, 1.83m (72”) 35mmsq - 6.5mm Diameter
Winch Finish	Original Orange Powder Coated
Weight (GW)	50kg (110lb)
Overall Dimensions (LxWxH)	562 x 194 x 248.3mm (22.1” x 7.6” x 9.8”)
Mounting Bolt Pattern	10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	7.2m/min (23.6 ft/min)
Waterproof	IP67 Rating



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	17,500	7,955	19.68/6
2	15,225	6,920	45.92/14.0
3	13,246	6,021	75.44/23
4	11,524	5,238	85.28/26.0



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	23.62ft (7.2m)	71A
6,000 (2,721)	9.18ft (2.8m)	200A
10,000 (4,536)	5.9ft (1.8m)	300A
14,000 (6,363)	4.26ft (1.3m)	395A
17,500 (7,937)	2.95ft (1.0m)	450A
