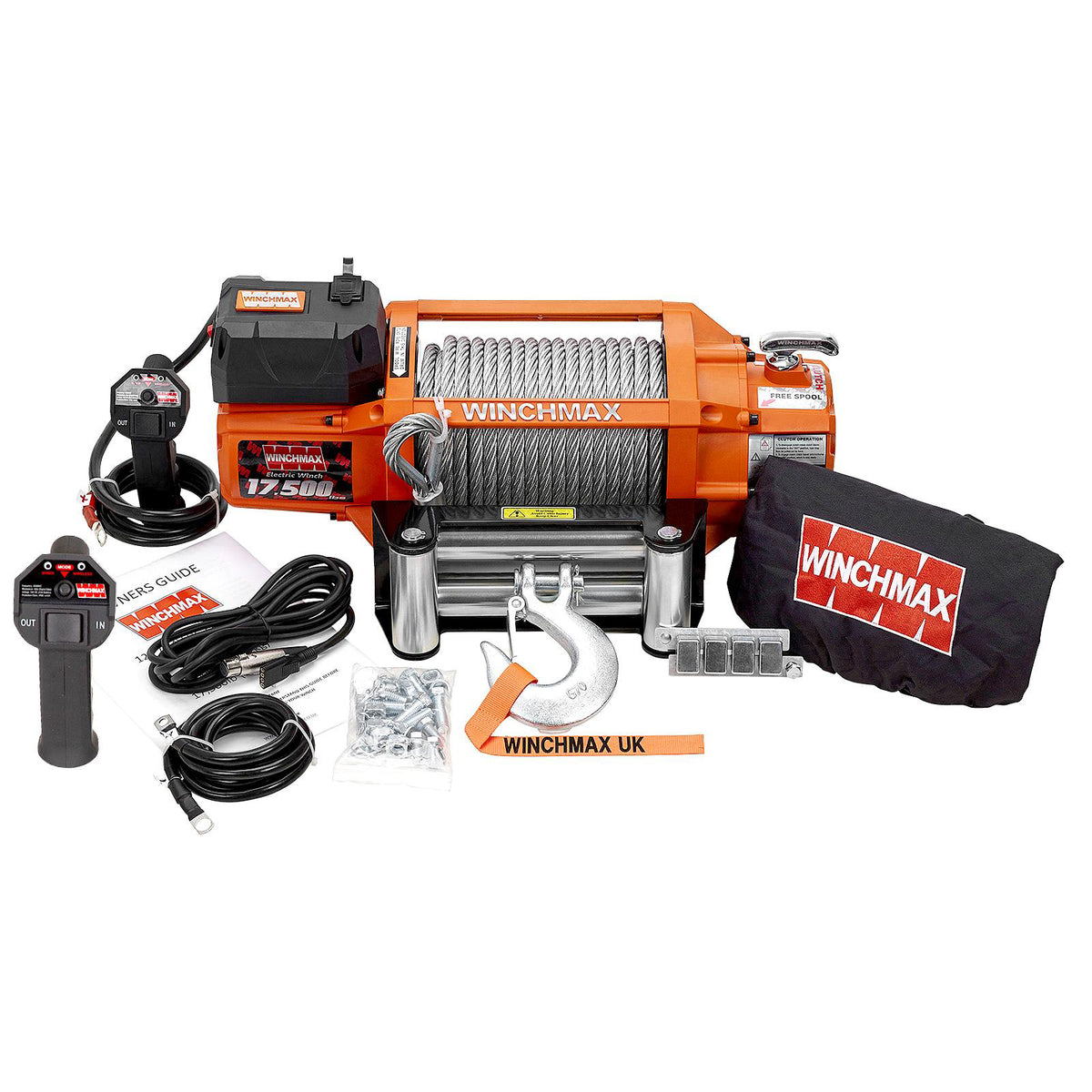

17,500lb (7,938kg) 'SL Series' Original Orange 12v Winch. 26m x 12mm Steel Rope, Wireless Remote Control.

17,500lb (7,938kg) Original Orange 'SL Series' 12v Electric Winch, Steel rope, Twin Wireless Remote Control

Ideal for recovery trucks and 4x4s over 3.5T

Features

• 17,500lb (7,938kg) straight-line pull SL series 12v electric winch.
• Latest technology long-range combination wireless remote control.
• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 26m x 12mm multi-strand galvanized steel wire rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
• Clevis hook 1/2 Inch G70 grade forged. Safety catch and hand saver. Zinc plated for corrosion resistance.
• Tough four roller fairlead with zinc plated rollers.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime
• Heavy-duty & built to last - gross weight 60kg.
• CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	17,500lb (7,938kg)
Motor	12v 6.8hp/5.1kw series wound
Control	Big grip remote switch, 4.5m lead.
Gear train	3 stage planetary
Gear reduction ratio	430:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum size	Diameter 88mm (3.45”) Length 224 mm (8.82”)
Drum Finish	Black, painted.
Cable	26m of 12mm galvanized steel wire rope
Hook	Clevis hook 1/2 inch, zinc plated.
Fairlead	4-Way roller fairlead
Battery	Recommended 750CCA minimum for winching
BatteryLeads	2 gauge, 1.83m (72”) 35mmsq - 6.5mm diameter
Winch Finish	Original Orange powder coated
Weight (GW)	60kg (66lb)
Overall Dimensions (LxWxH)	562 x 194 x 248.3mm (22.1” x 7.6"" x 9.8”)
Mounting Bolt Pattern	10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	7.2m/min (23.6 ft/min)
Waterproof	IP67 rating



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	17,500	7,955	19.68/6
2	15,225	6,920	45.92/14.0
3	13,246	6,021	75.44/23
4	11,524	5,238	85.28/26.0



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	23.62ft (7.2m)	71A
6,000 (2,721)	9.18ft (2.8m)	200A
10,000 (4,536)	5.9ft (1.8m)	300A
14,000 (6,363)	4.26ft (1.3m)	395A
17,500 (7,937)	2.95ft (1.0m)	450A
