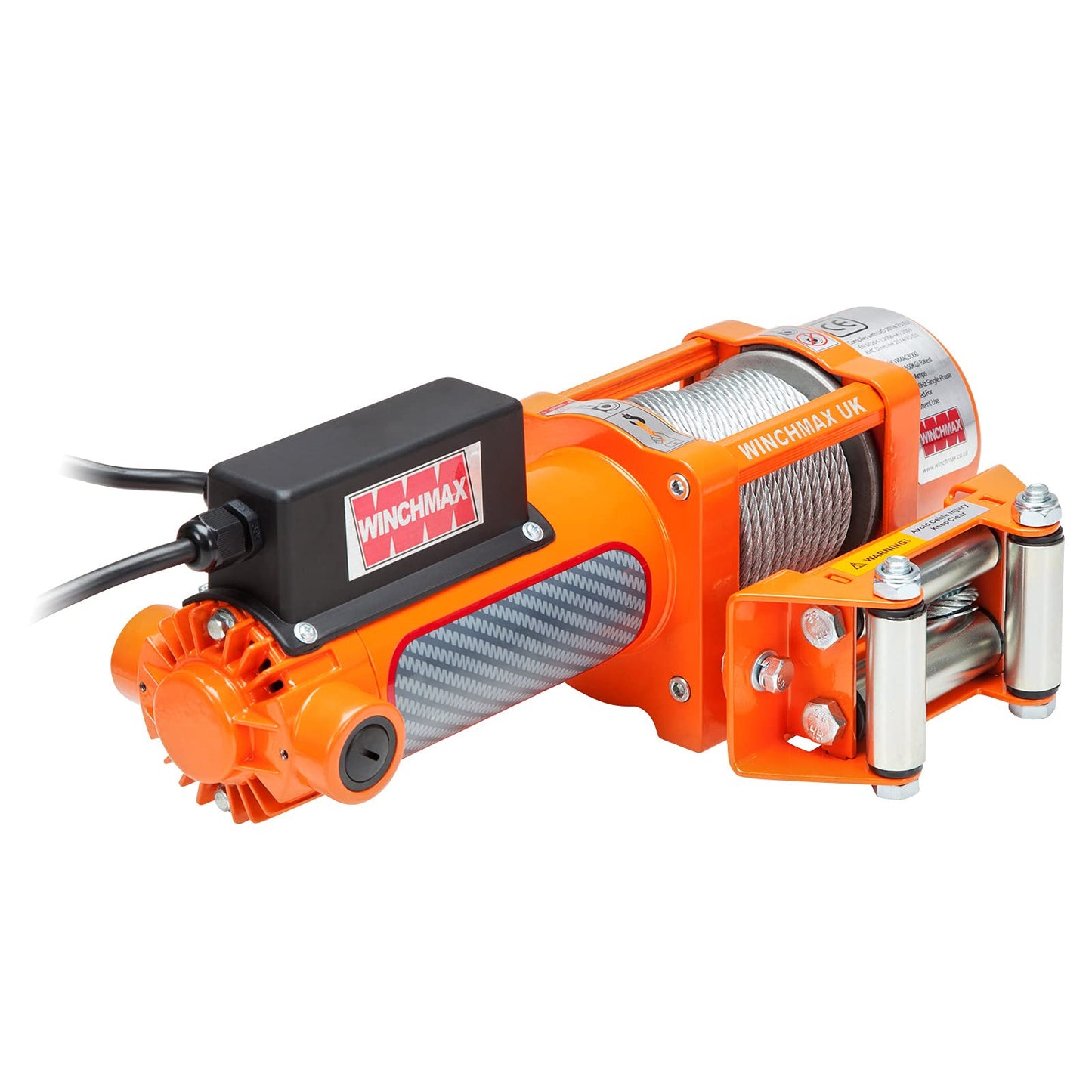

Electric Winch 240V AC 1,500lb Maximum Capacity
Features- Plugs into a Standard 13A Socket Outlet.
- Single Phase 240V For UK Mains Voltage Operation.
- 12.5m x 5mm Galvanized Steel Wire Rope.

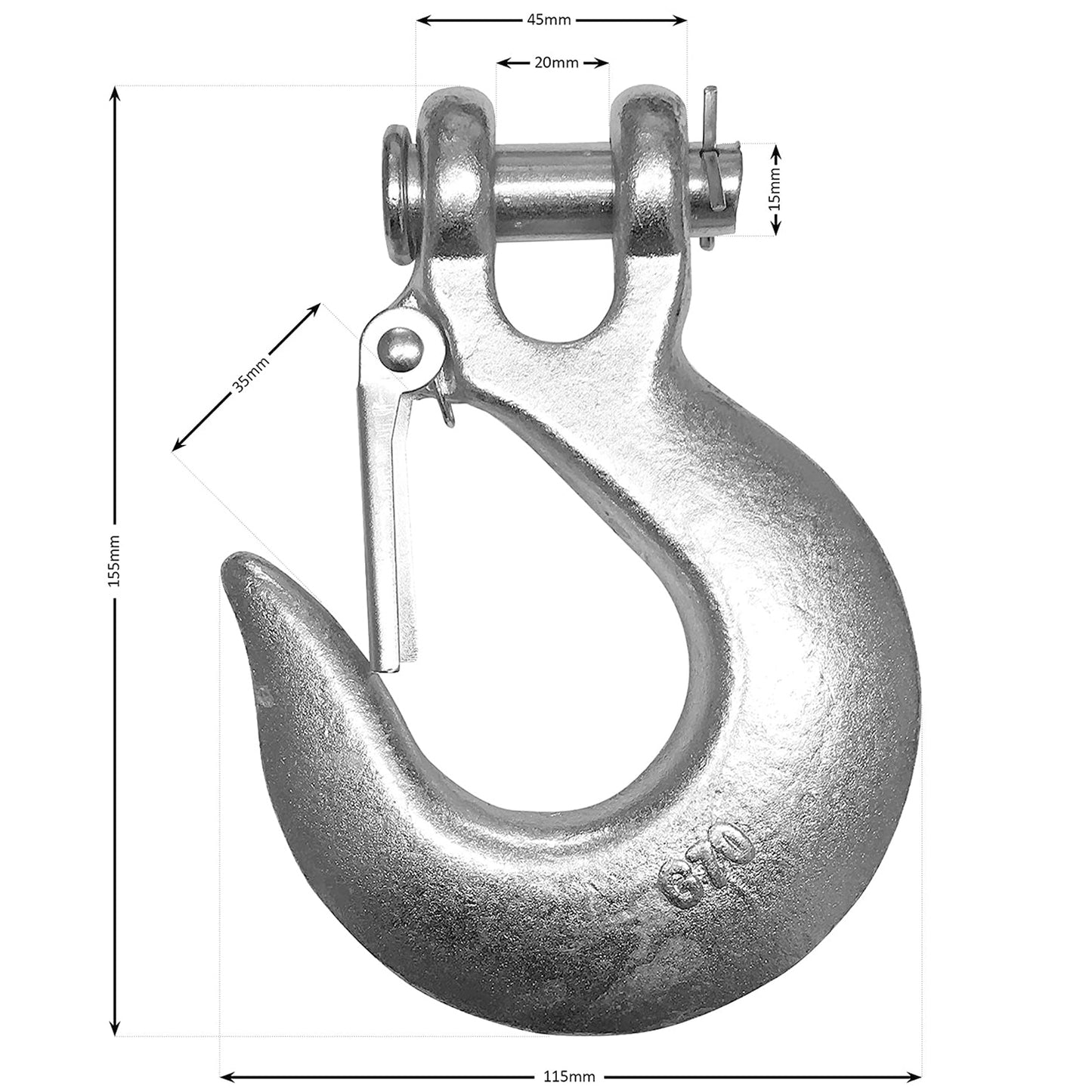

- 1/4 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
- Replaceable Motor Brushes.
- Mounting Bolt Kit Included.
- Integral Spring Plate Maintains Tight and Neat Drum Spooling of the Wire Rope.
Please Note:
This Product is a domestic utility winch, it is Not to Be Used as a Hoist for Overhead Lifting. It is Not Designed to be used for Industrial Applications. As with all mains voltage tools, this winch must not be exposed to excessive moisture.12 Month Warranty, Comercial/Industrial Use Voids Warranty
VAT invoice provided with every sale. -
Specifications based on the first layer of wire rope.

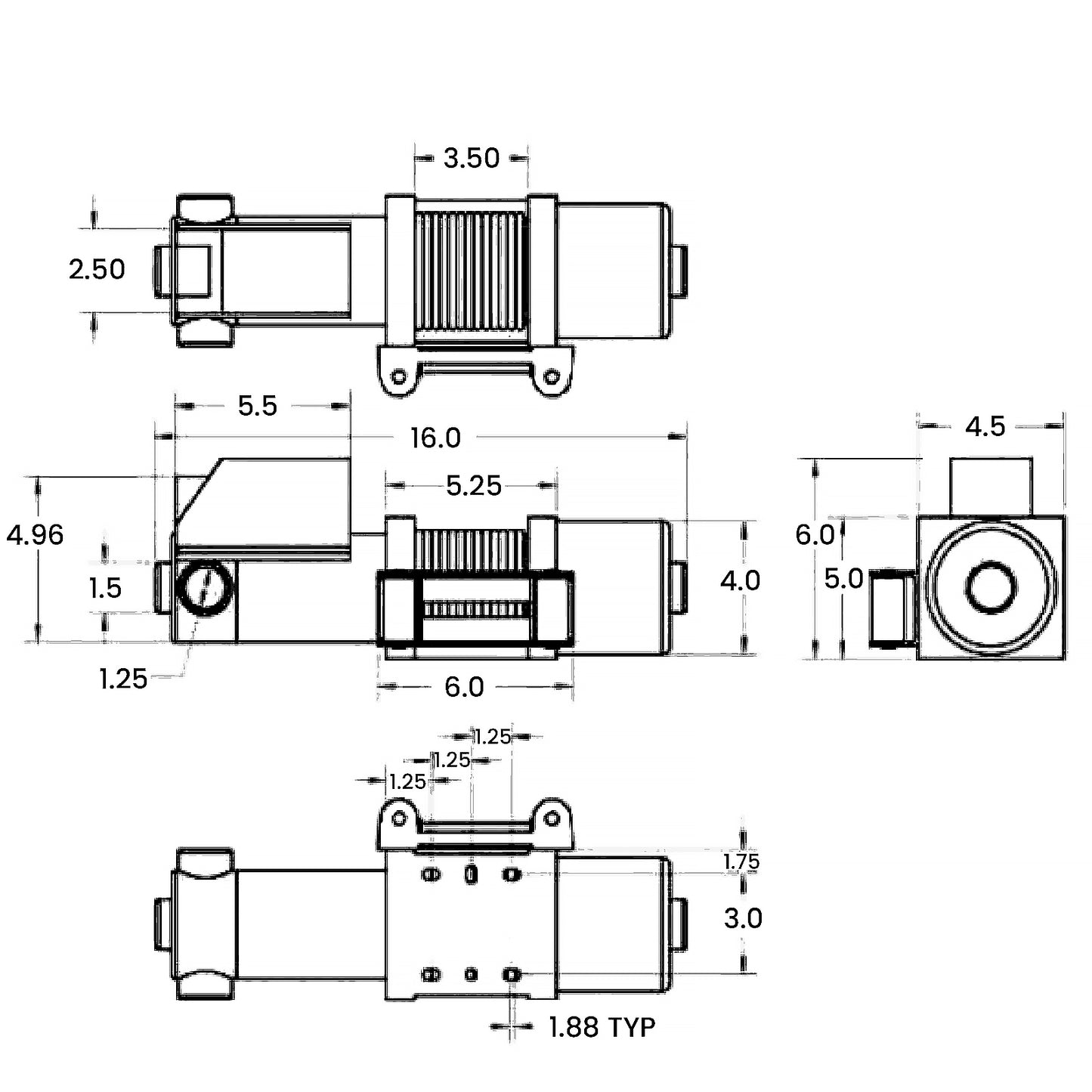

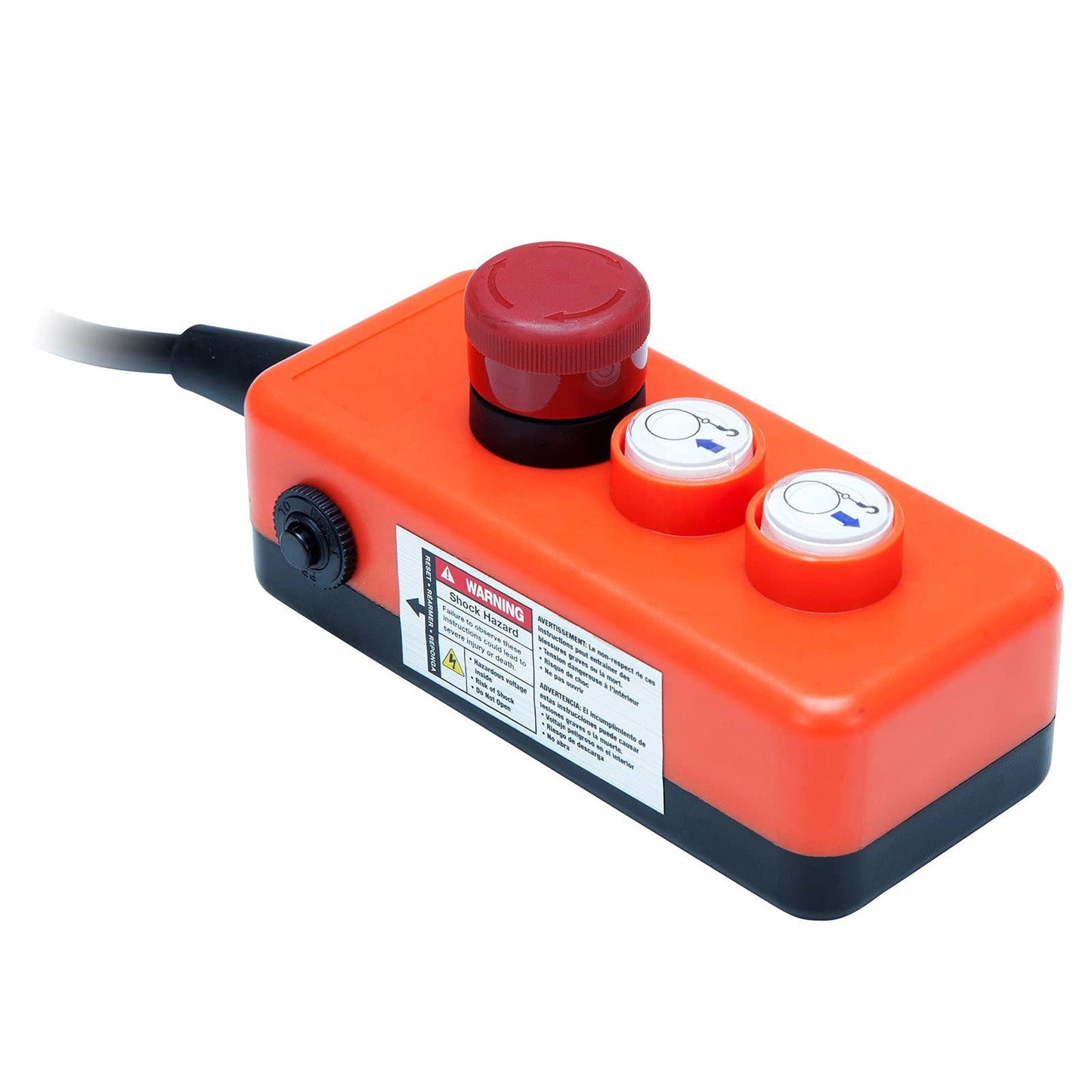

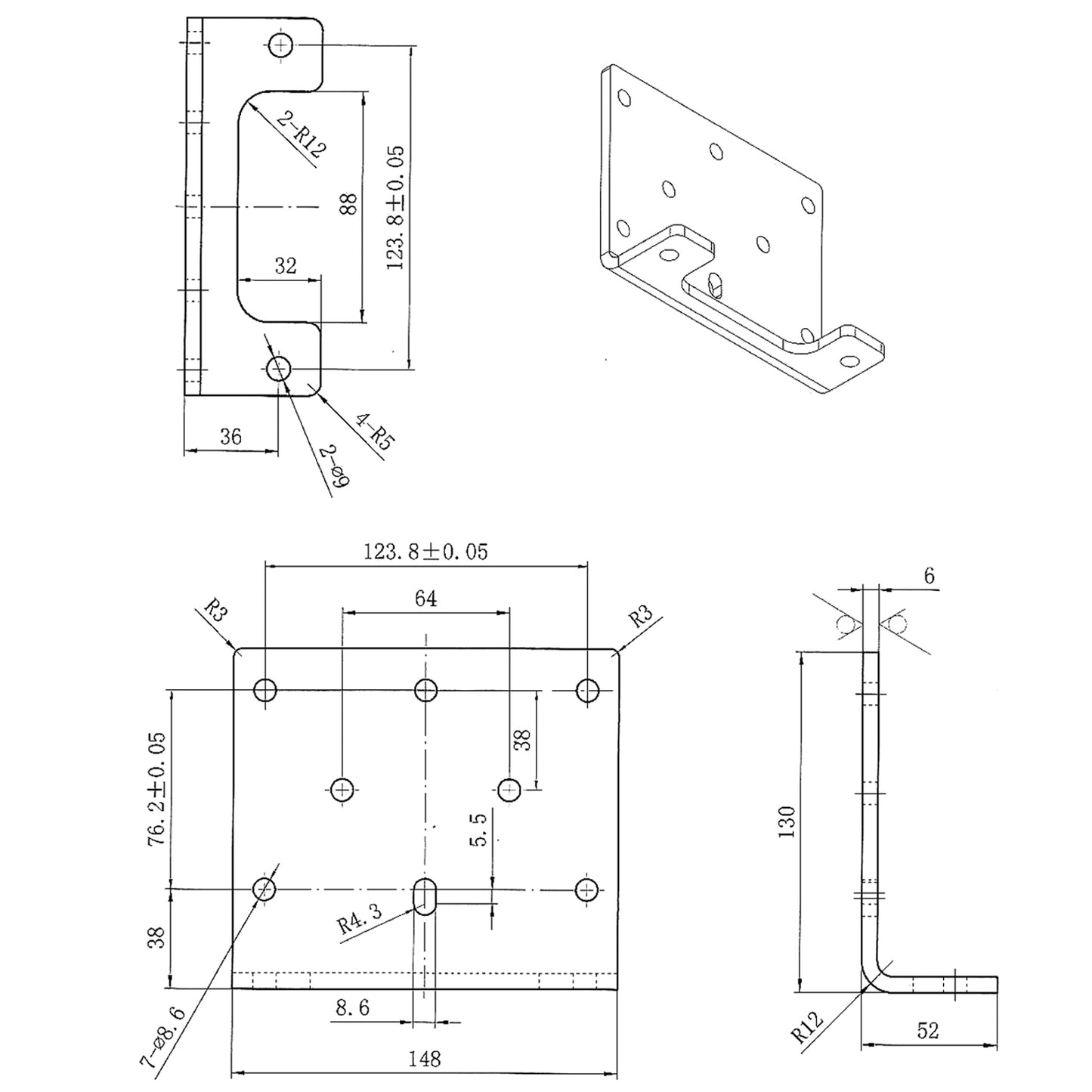

Rated Line Pull 1,500lb (680kg) Voltage 220/240v, 50/60Hz, single phase Motor 0.9hp (0.75kw) Motor Current 13A (220v) Breaking Action Automatic Gear Ratio 262:1 Duty Cycle 20 sec on, 0.5hr off (full load figures) Power Cord & Plug Flexible 8ft (2.4m) long with fitted UK compliant three-pin plug (fused 13A) Control System Heavy-duty 2 button pendant with emergency stop Control System Cord Flexible 9’10” (3m) long Protection Re-settable thermal overload Drum Finish Aluminium Winch Finish Original Orange powder coated Wire Rope 12.5m x 5mm galvanized steel rope Hook Galvanised clevis hook full load rated Rollers Four-way galvanised roller fairlead Mounting Plate Integral mounting plate and roller mounting Mounting Pattern 3” x 2.5” (76mm x 63mm) 4 x M8 High Tensile Roller Fairlead 400 x 195 x 125mm -
