5,000lb (2,268kg) Original Orange 12v Winch. 15.2m x 6.3mm Dyneema Rope, 1/4 Inch Clevis Hook, Twin Remote Controls.

5,000lb (2,268kg) Original Orange 12v Electric Winch, Dyneema Rope, Twin Wireless Remote Control

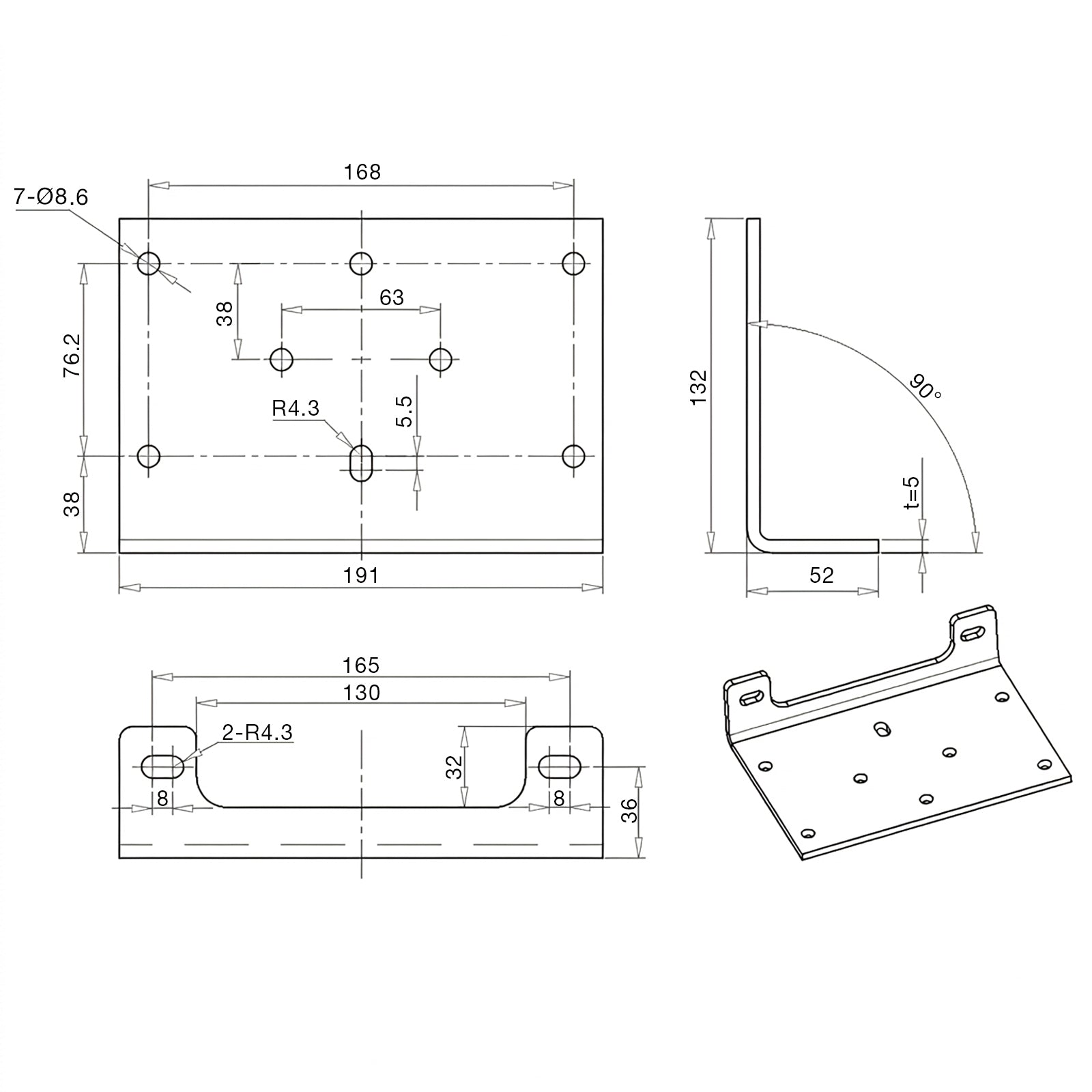

Includes mounting plate

Ideal for use on boat trailers, ATVs, and light utility vehicles.

Features

• 5,000lb (2,268kg) straight-line pull 12v electric winch.
• Latest technology long-range wireless remote controls, twin handsets.
• Super powerful 1.5hp 12v permanent magnetic electric motor.
• Ultra-tough three-stage gearbox with hardened steel gears.
• 15.2m x 6.3mm genuine Dyneema synthetic rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
• Clevis hook 1/4 Inch G70 grade forged. Safety catch and hand saver, zinc plated.
• WINCHMAX aluminium hawse fairlead. Precision CNC milled, laser-etched.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Power in/out rocker switch (with handlebar mount).
• Freewheel clutch.
• High tensile fixing bolt kit.
• 2x 180cm battery power cables, 2x 90cm motor power cables.
• Strong WINCHMAX branded cover to protect from water and road grime.
• Heavy-duty & built to last - gross weight 13.6kg.
• CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	5,000lb (2,268kg)
Motor	12v 1.5hp Permanent Magnetic Motor
Control	Twin Wireless Remote in/out Plus Handlebar-Mounted Rocker Switch
Gear Train	3 Stage Planetary
Gear Reduction Ratio	166:1
Clutch	Cam Activated Free Spool
Braking Action	Automatic Full Load Hold
Drum Finish	Steel - Painted Black
Cable	15.2m x 6.3mm Dyneema SK75 Synthetic Rope
Hook	Clevis Hook 1/4 Inch, Zinc plated.
Fairlead	One-piece Billet Aluminium Hawse Fairlead
Battery	Recommended 12Ah Minimum for Winching
Battery Leads (x2)	10mm2 x 180cm
Motor Leads (x2)	10mm2 x 90cm
Winch Finish	Original Orange powder coated
Weight (GW)	13.6kg (29.9lb)
Overall Dimensions	390 x 120 x 117mm  (LxWxH)
Motor Current	15-296A
No Load Line Speed	6.2m/min (20.5ft/min)



Layer Rated	Line pull (lb)	Line Pull (kg)
1	5,000	2,268
2	4,080	1,851
3	3,450	1,565
4	2,985	1,354



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	20.5ft (6.2m)	20
1,250 (567)	13.1ft (4.0m)	77
2,500 (1,134)	11.8ft (3.6m)	124
3,750 (1,700)	9.2ft (2.8m)	188
5,000 (2,268)	4.9ft (1.5m)	286
