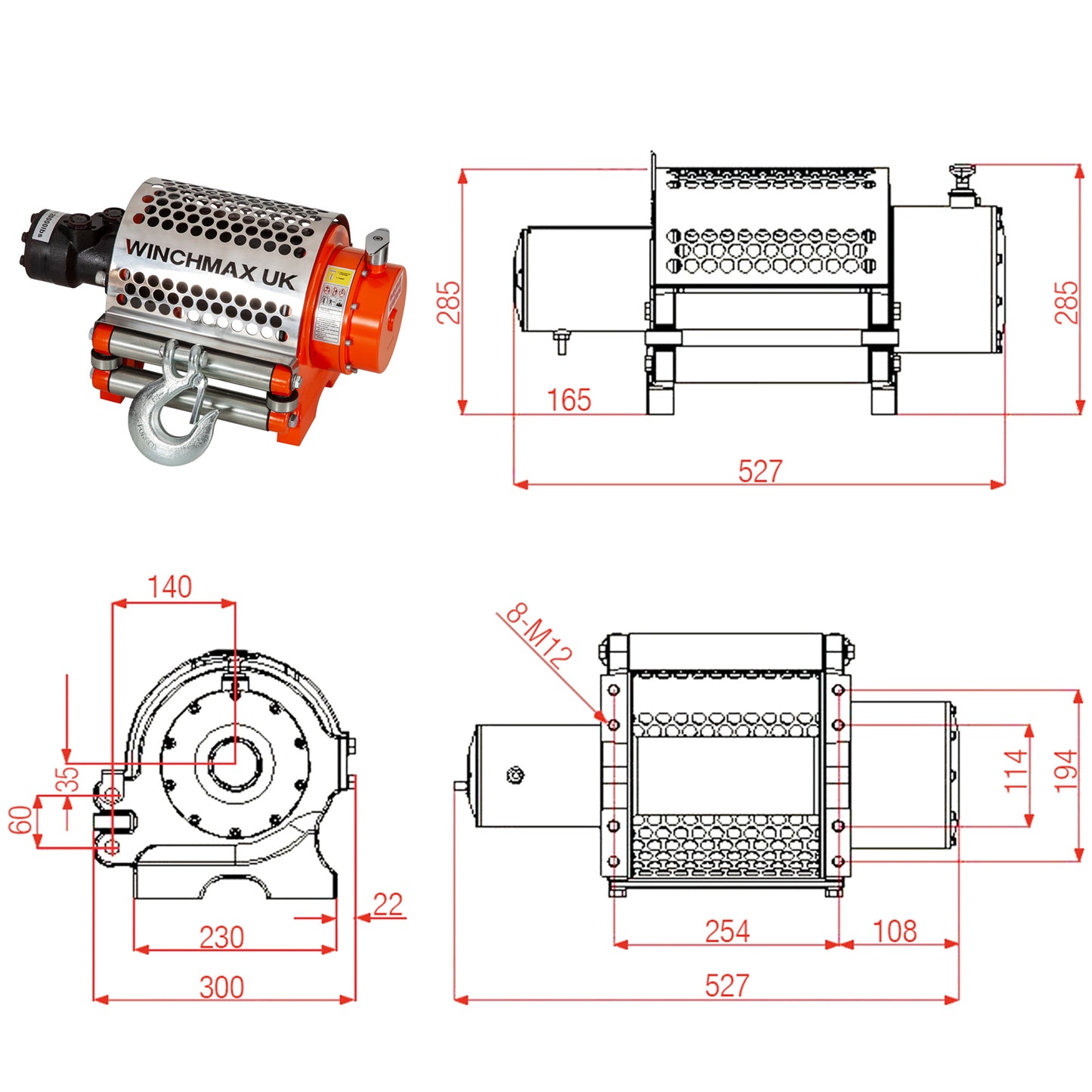

20,000lb (9,072kg) Original Orange Z Hydraulic Winch. 25m x 14mm Steel Rope. 1/2 Inch Clevis Hook.

20000lb (9072kg) Original Orange Hydraulic Winch, Steel Rope, Twin Wireless Remote Control

Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural

Features

• 20000lb (9072kg) Hydraulic Winch straight-line pull Z series hydraulic winch
• Ultra-tough three-stage gearbox with hardened steel gears
• Casing machined from billet steel for maximum impact protection.
• 25m x 14mm galvanized steel wire rope.
• Through-drum rope attachment with grub screw clamp for maximum security.
• 1/2 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
• Heavy-duty 4-way roller fairlead integrated to frame, no additional mounting plate required.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.
• Heavy duty & built to last - gross weight 70kg.
• CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single line rated pull	20,000lb (9,072kg)
Motor	Hydraulic
Gear train	3 Stage Planetary
Gear reduction ratio	32:1
Clutch	Sliding Ring Gear
Braking Action	Automatic
Drum size	Diameter 88mm Length 222mm
Cable	25m x 14mm Galvanized Steel Wire Rope
Hook	Clevis hook 1/2 Inch, Zinc Plated.
Fairlead	4-Way Roller Fairlead
Flow	50-60 L/min
Pressure	10.8Mpa (108 Bar)
Finish	Orange/Black
Weight (GW)	70kg  (154lb)

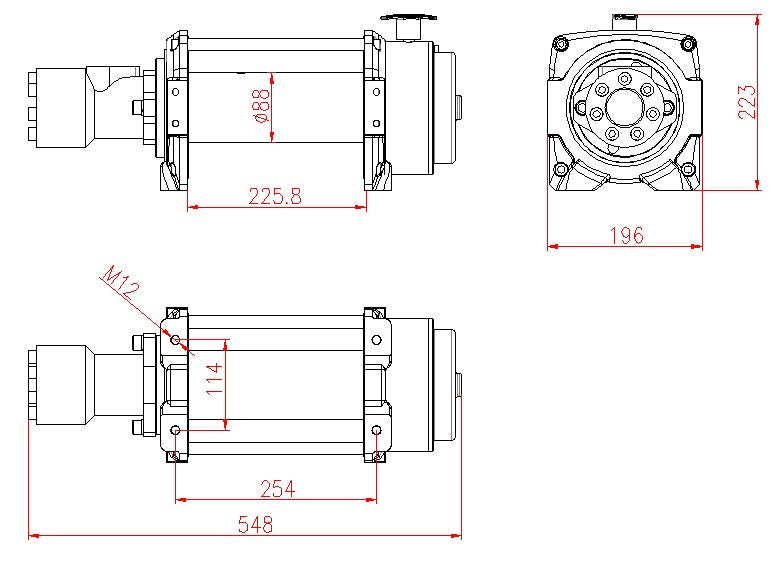

Overall Dimensions	548 x 196 x 249mm (LxWxH)
Mounting Bolt Pattern	10.00” ±0.015" x 4.50” ±0.010" (254 x 114.3mm)
Pressure Hose Connections	18mm/1.5mm
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Pull per layer (kg)	Line speed (m/min)
1	20,000	9,072	4.24
2	17,860	8,118	4.75
3	16,130	7,332	5.26
4	14,710	6,686	5.77

PDf Documents

• Hydraulic Winch Manual
• KeyholeRemoteGuide
