20,000lb (9,072kg) Original Orange Hydraulic Winch. 25m x 14mm Steel Rope. 1/2 inch Clevis Hook. 12v Control System.

20,000lb (9072kg) Original Orange Hydraulic Winch, Steel Rope, full Control System
Includes full 12v wired/wireless control system, pipes and connectors

Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural

Features

• 20,000lb (9,072kg) straight-line pull hydraulic winch (12v controls)
• Ultra-tough three-stage gearbox with hardened steel gears.
• Casing machined from billet steel for maximum impact protection.
• 25m x 14mm galvanized steel wire rope.
• Through-drum rope attachment with grub screw clamp for maximum security.
• 1/2 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
• Tough four roller fairlead with zinc plated rollers.
• Sliding ring gear free-wheel clutch.
• 12V electrically operated CETOP 3 (NG6) solenoid operated directional valve control.
• Compatible with the full WINCHMAX range of wireless remote controls.
• Big grip controller for power in/out with extra-long 4.5m wander lead.
• Wander lead wiring harness and socket for connection to the solenoid valve.
• Hydraulic hose assemblies 1.25m long (x4) fitted with 18 x 1.5mm threaded fittings.
• High tensile fixing bolt kit.
• Heavy duty & built to last - gross weight 70kg.
• CE certified & built to ISO9001 quality management system requirements.

24v control system available on request

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	20,000lb (9,072kg)
Motor	Hydraulic
Control	Remote switch, 4.5m lead, in and out
Gear Train	3 Stage Planetary
Gear Reduction Ratio	32:1
Clutch	Sliding Ring Gear
Braking Action	Automatic
Drum Size	Diameter 88mm length 222mm
Drum Finish	Black, painted.
Cable	25m x 14mm galvanized steel wire rope
Hook	Clevis Hook 1/2 Inch, Zinc Plated.
Fairlead	4-Way roller fairlead
Flow	50-60 L/min
Pressure	10.8Mpa (108 Bar)
Pressure Hose Connections	18mm/1.5mm
Winch Finish	Original Orange powder coated
Weight (GW)	65kg (143lb)

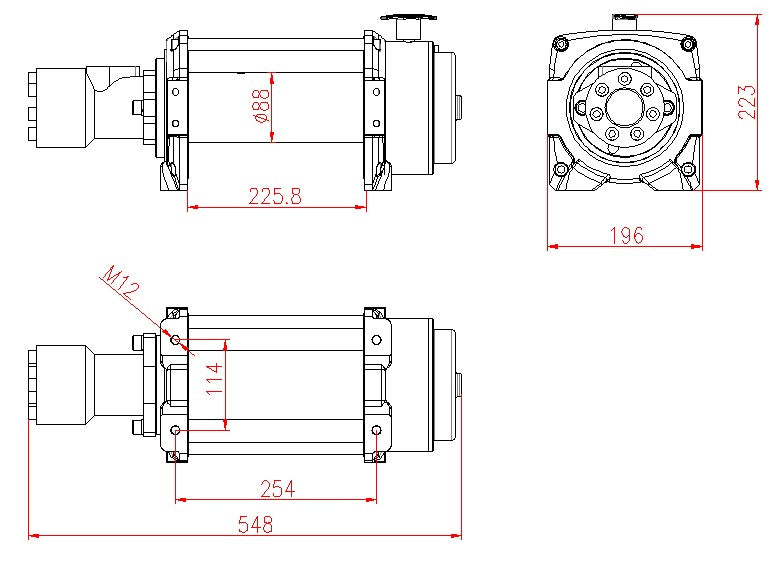

Overall Dimensions (LxWxH)	548 x 196 x 249mm
Mounting Bolt Pattern	10.00” ±0.015” x 4.50” ±0.010” (254 x 114.3mm)
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Pull per layer (kg)	Line speed (m/min)
1	20,000	9,072	4.24
2	17,860	8,118	4.75
3	16,130	7,332	5.26
4	14,710	6,686	5.77
