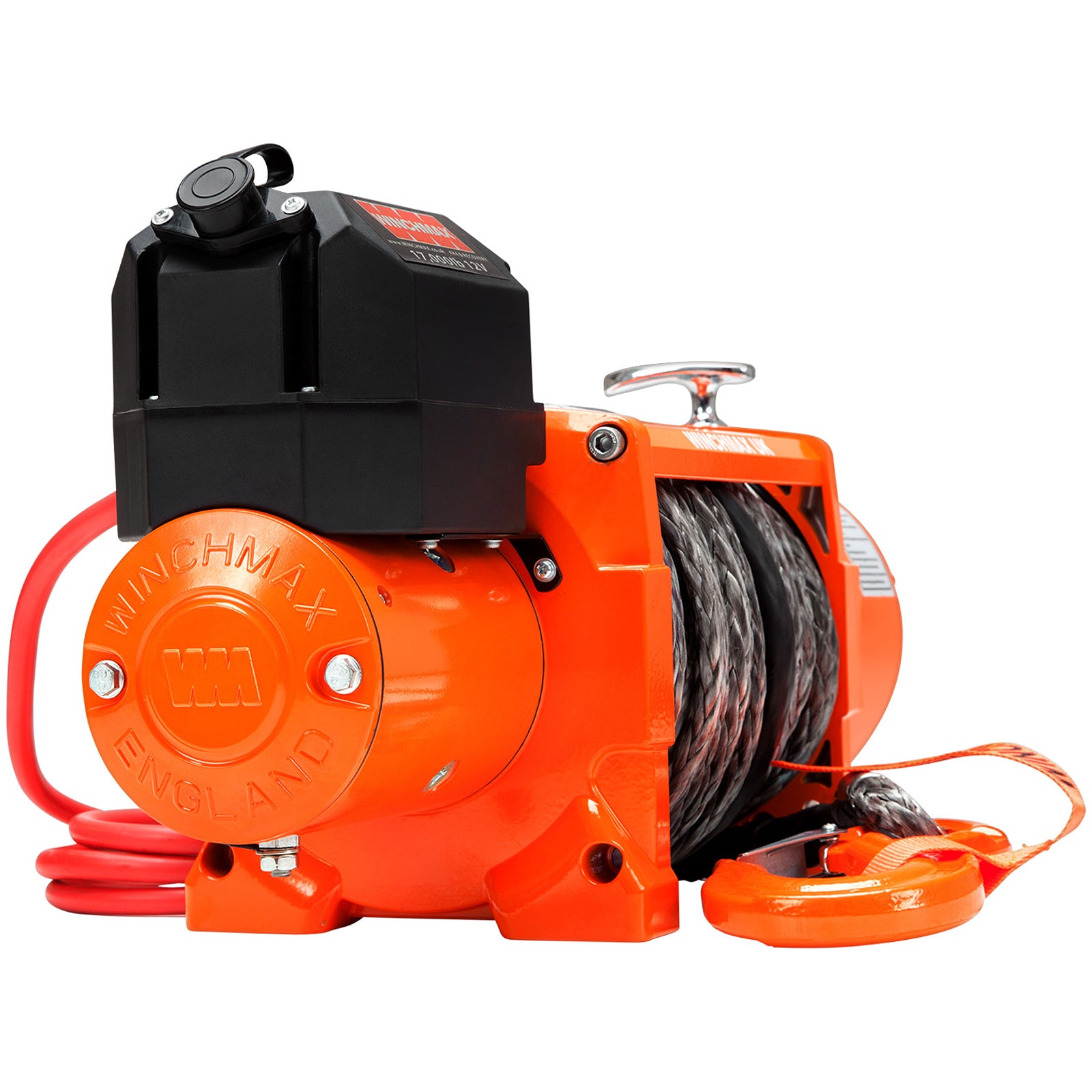

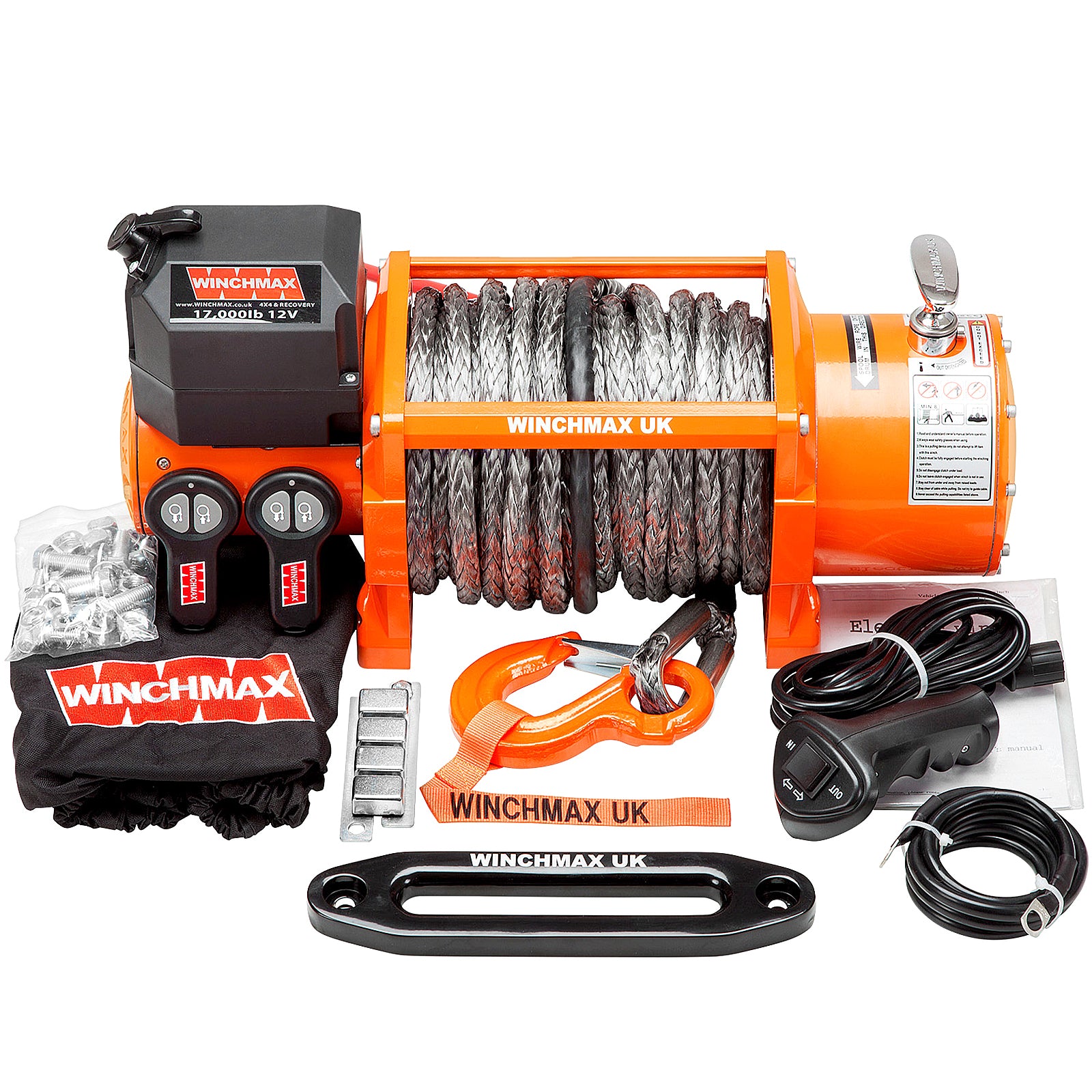

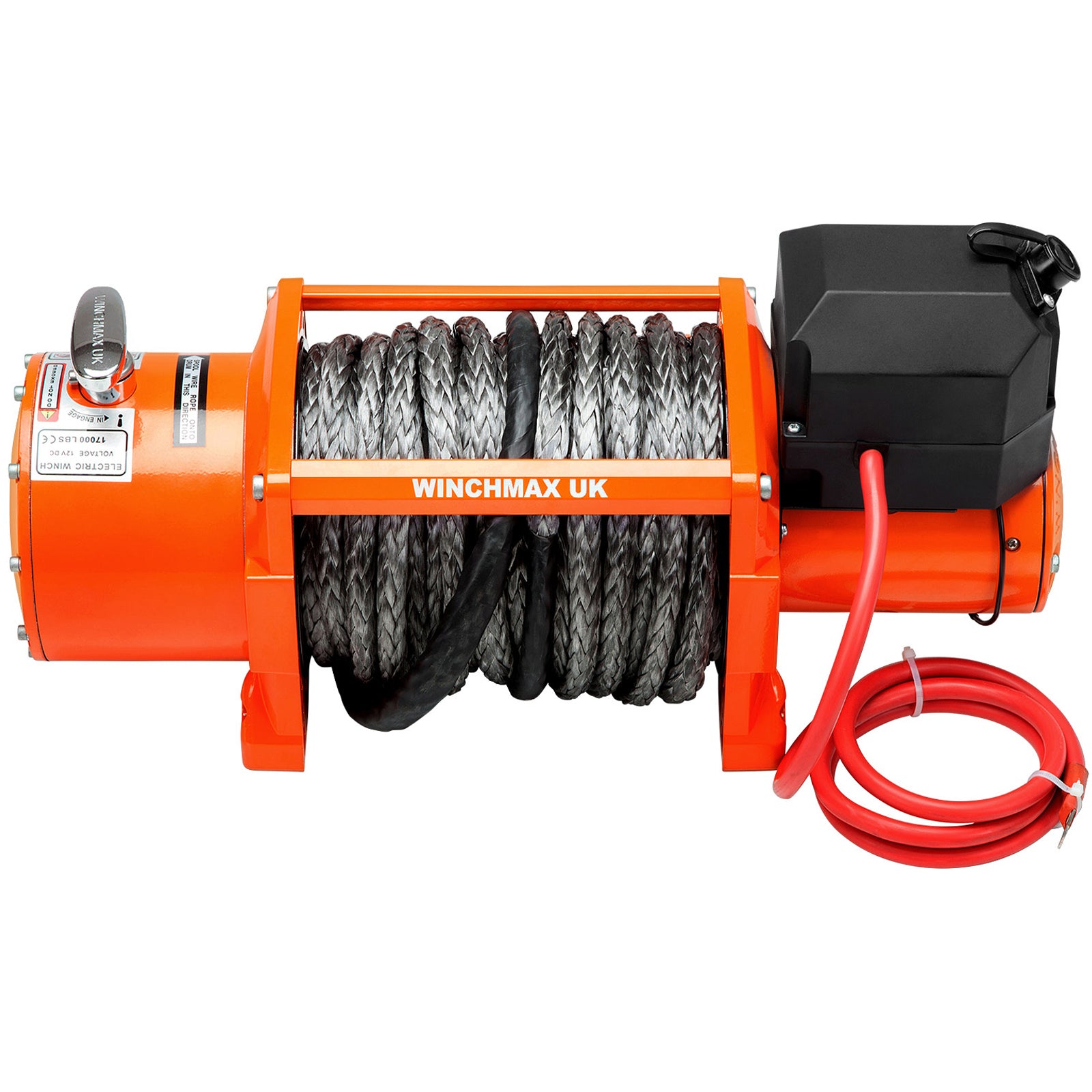

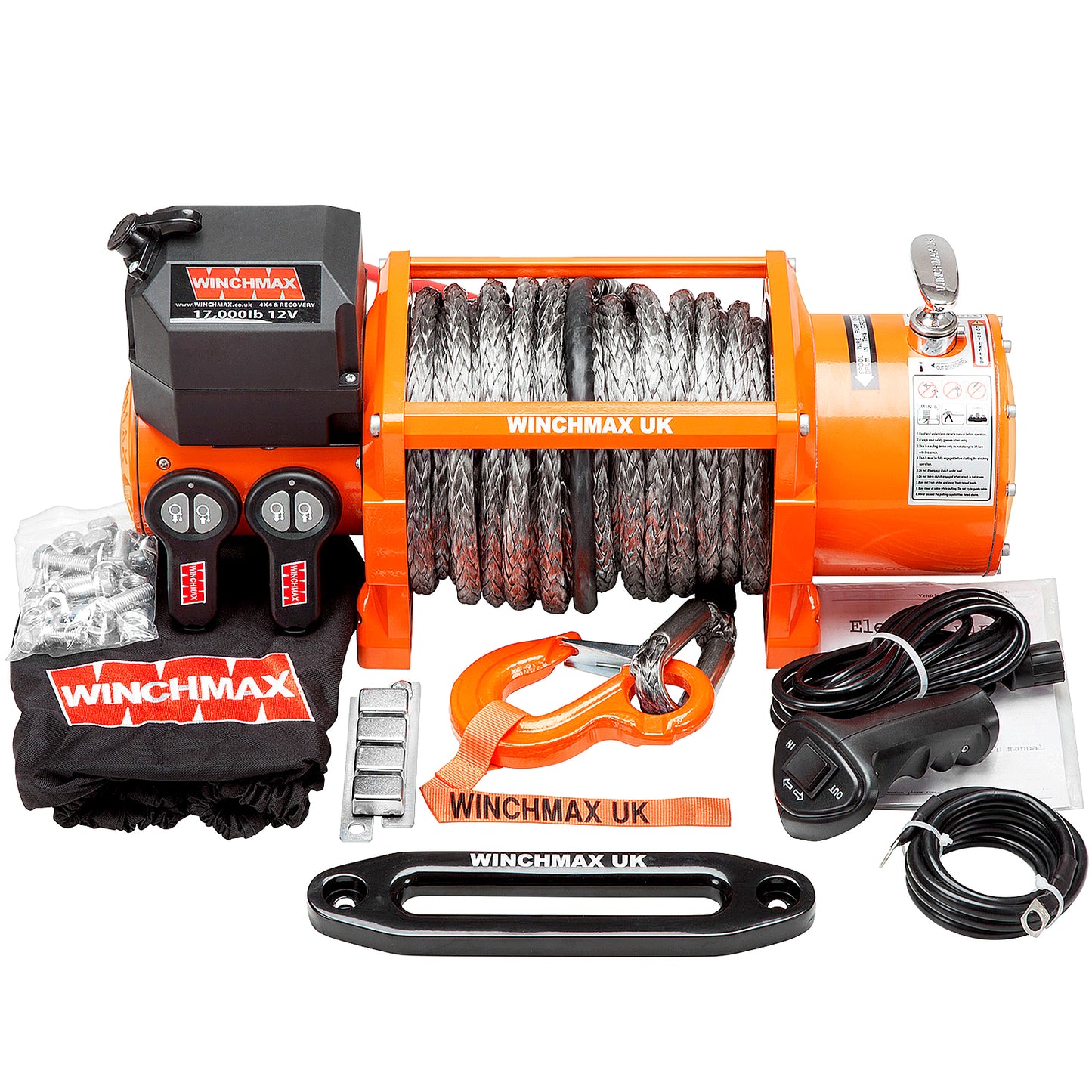

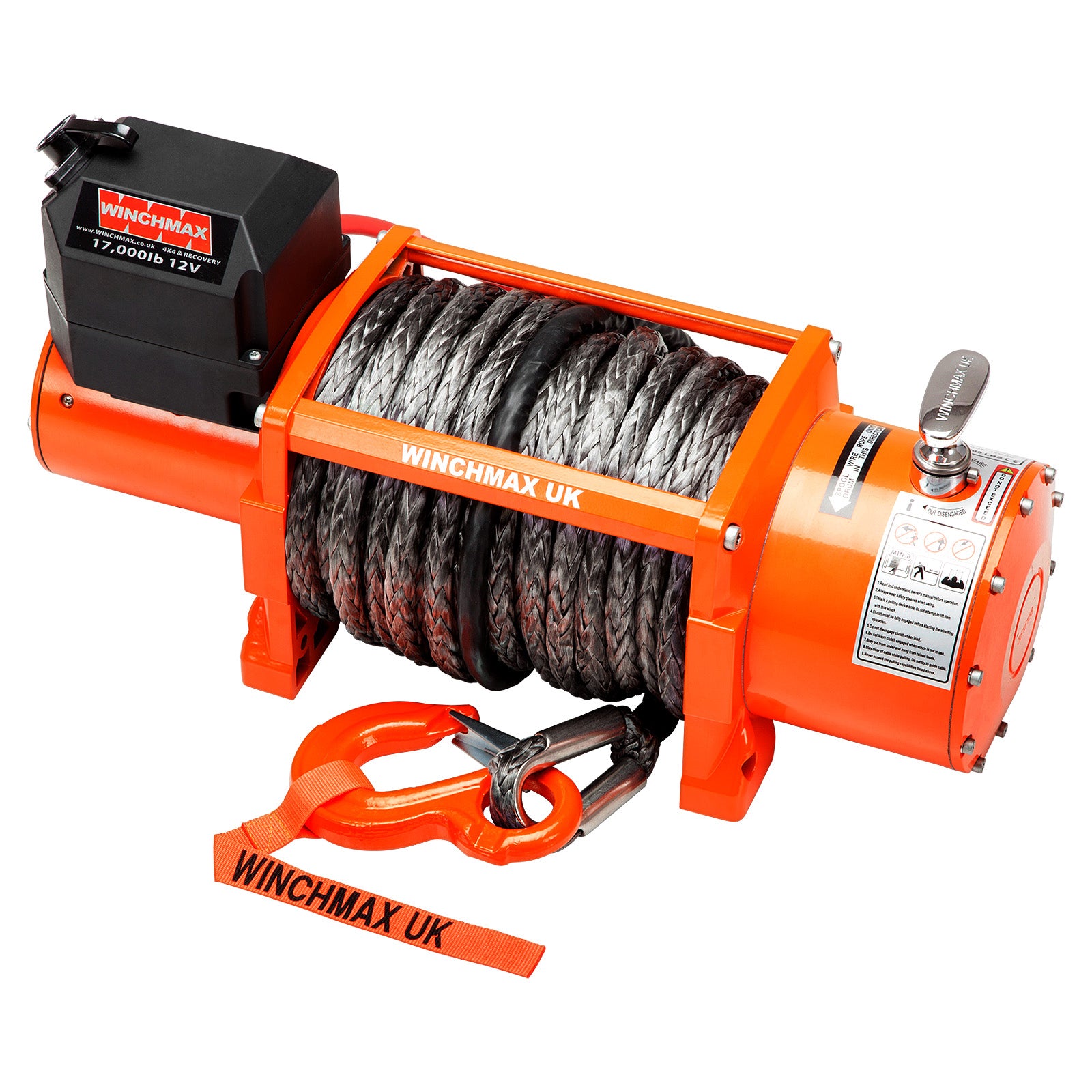

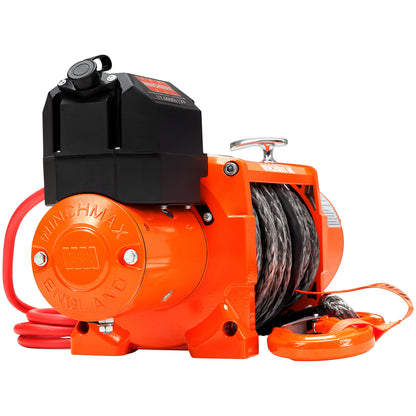

17,000lb (7,711kg) Original Orange 12v Electric Winch. 25m x 13mm Dyneema Rope, Wireless Remote Controls

17,000lb (7,711kg) Original Orange 12v Electric Winch. 25m x 13mm Dyneema Rope, Wireless Remote Controls

Ideal for recovery trucks and 4x4s over 3.5T

Features

• 17,000lb (7,711kg) straight-line pull 12v electric winch.

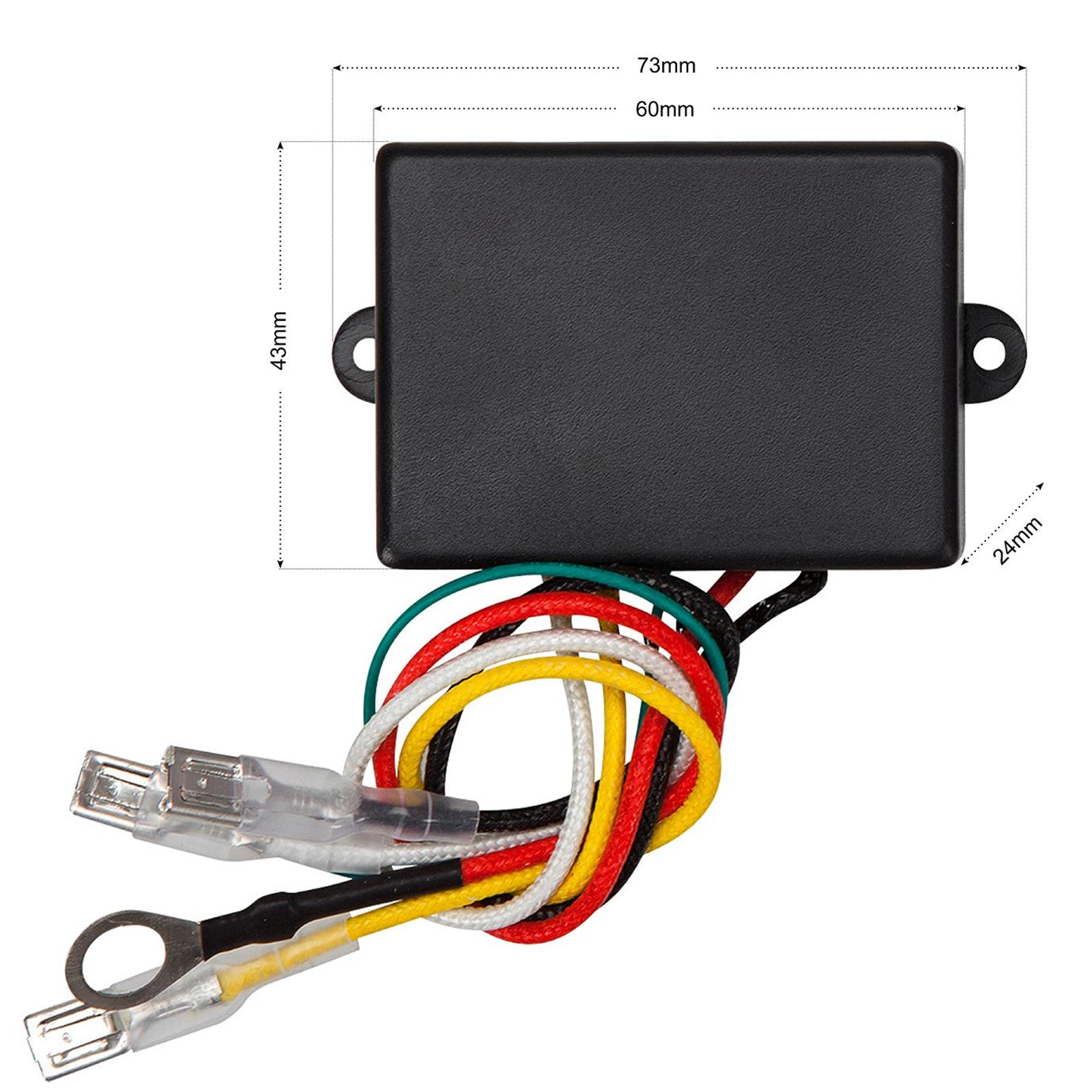

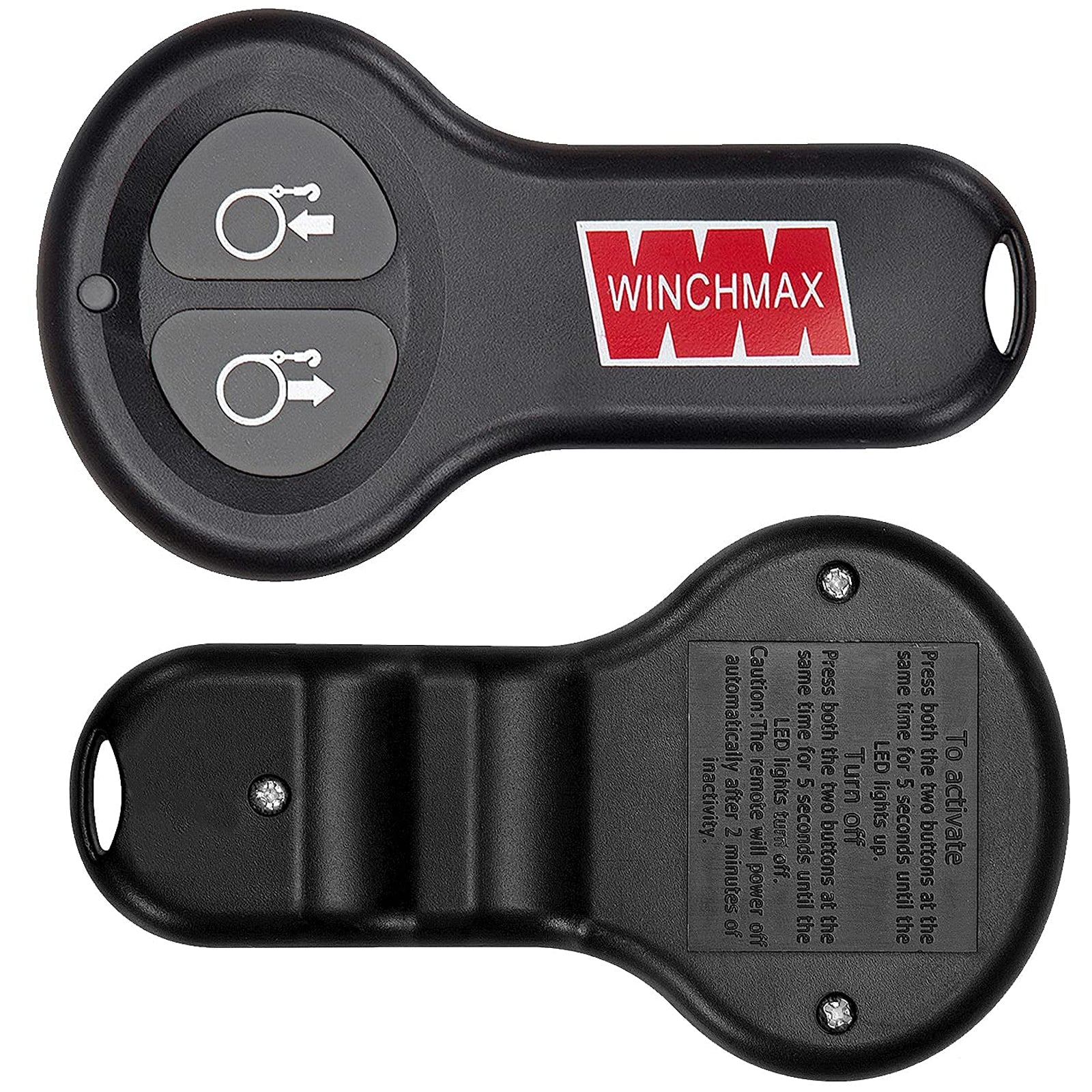

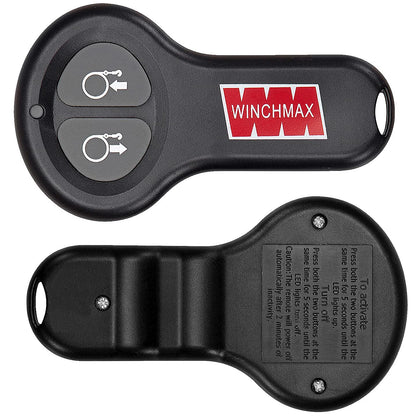

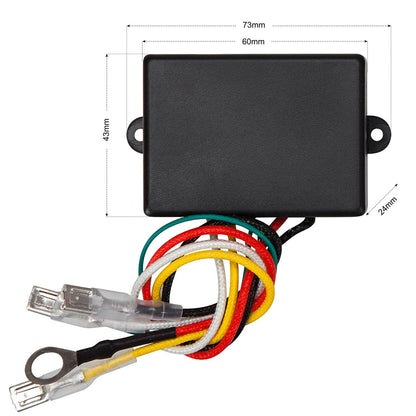

• Latest technology long-range wireless remote controls, twin handsets.
• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 25m x 13mm Dyneema SK75 multi-strand synthetic rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

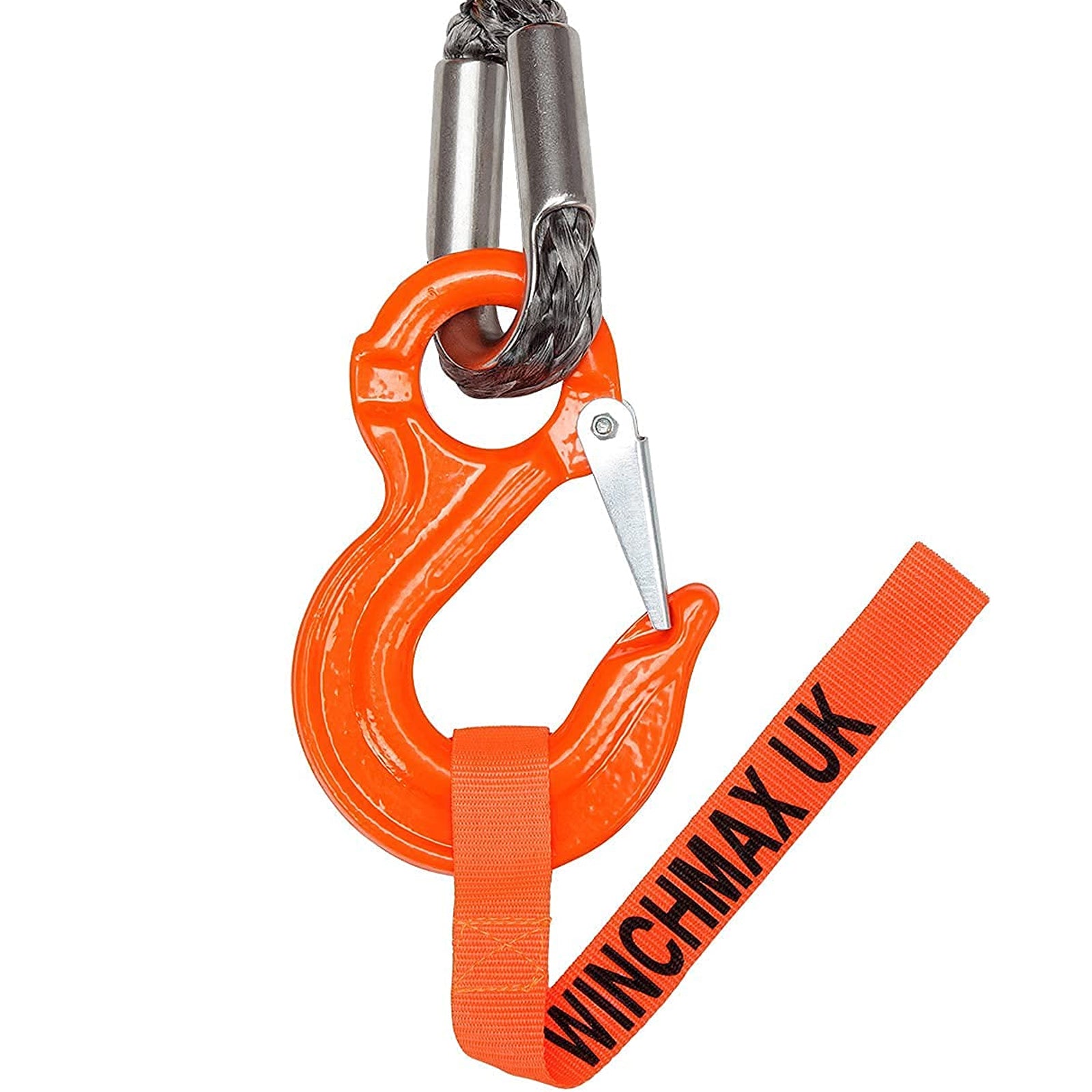

• Competition hook with safety catch and hand saver, orange.

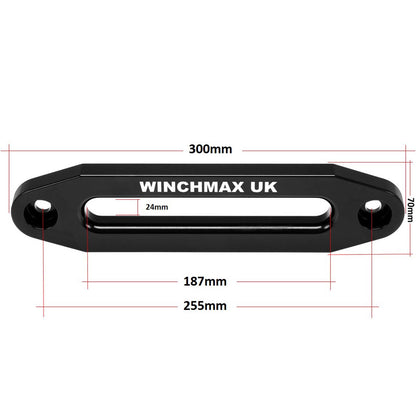

• Aluminium hawse fairlead. Precision CNC milled with laser-etched WINCHMAX branding.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
• Big grip controller for power in/out with extra-long 4.5m wander lead.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime.
• Heavy-duty & built to last - gross weight 50kg.
• CE certified & built to ISO9001 quality management system requirements.

Don't forget Your Mounting plate.

WINCHMAX make the best mounting plates for quick and easy installation. Click here for our recommended mounting plates for this winch.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	17,000lb (7,711kg)
Motor	12v 6.8hp/5.1kw, series wound
Control	Remote Switch, 4.5m lead, in and out
Gear Train	3 stage planetary
Gear Reduction Ratio	358:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 85mm (3.4") Length 224mm (8.82”)
Drum Finish	Black. painted
Cable	30m x 13mm Dyneema SK75 synthetic rope
Hook	Competition hook with safety catch
Fairlead	Aluminium hawse
Battery Leads	2 gauge, 1.83m (72”) 35mmsq - 6.5mm diameter
Winch Finish	Original Orange powder coated
Weight (GW)	50kg (110lbs)

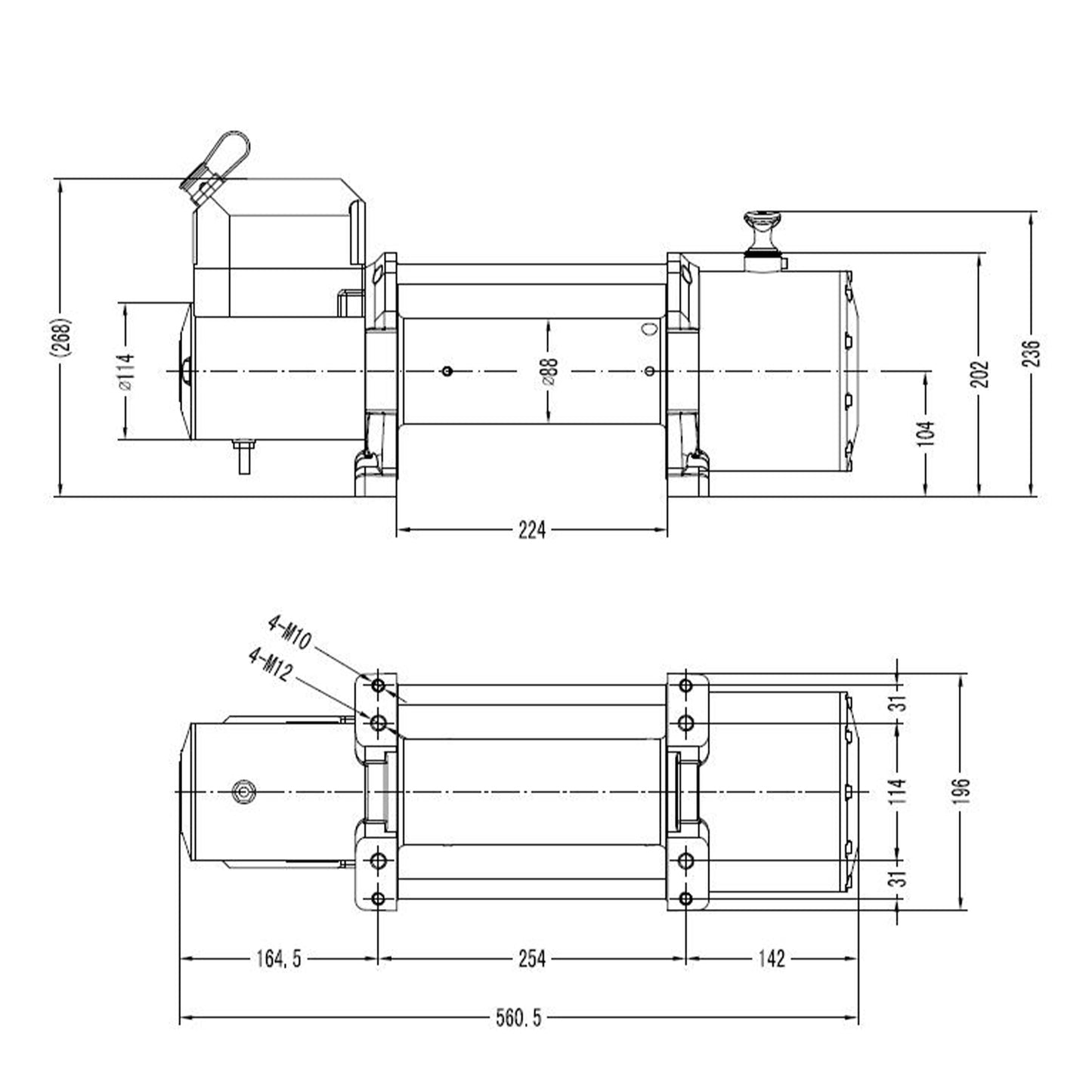

Overall Dimensions (LxWxH)	555mm x 196mm x 249mm
Mounting Bolt Pattern	10.00” ±0.015" x 4.50” ±0.010" (254 x 114.3mm)
Motor Current	65-550A
No Load Line Speed	7.28m/min (23.9 ft/min)



Layer Rated	Line pull (lbs)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	17,000	7,727	20.4/6.22
2	15,514	7,037	35.43/10.8
3	12,956	5,877	59.55/18.15
4	11,016	5,336	85.30/26



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	23.9ft (7.28m)	68A
4,000 (1,814)	9.3ft (2.8m)	155A
8,000 (3,629)	6.0ft (1.83m)	235A
12,000 (5,443)	4.4ft (1.34m)	330A
15,000 (6,818)	3.30ft (1.0m)	435A
17,000 (7,727)	2.95ft (0.9m)	520A
