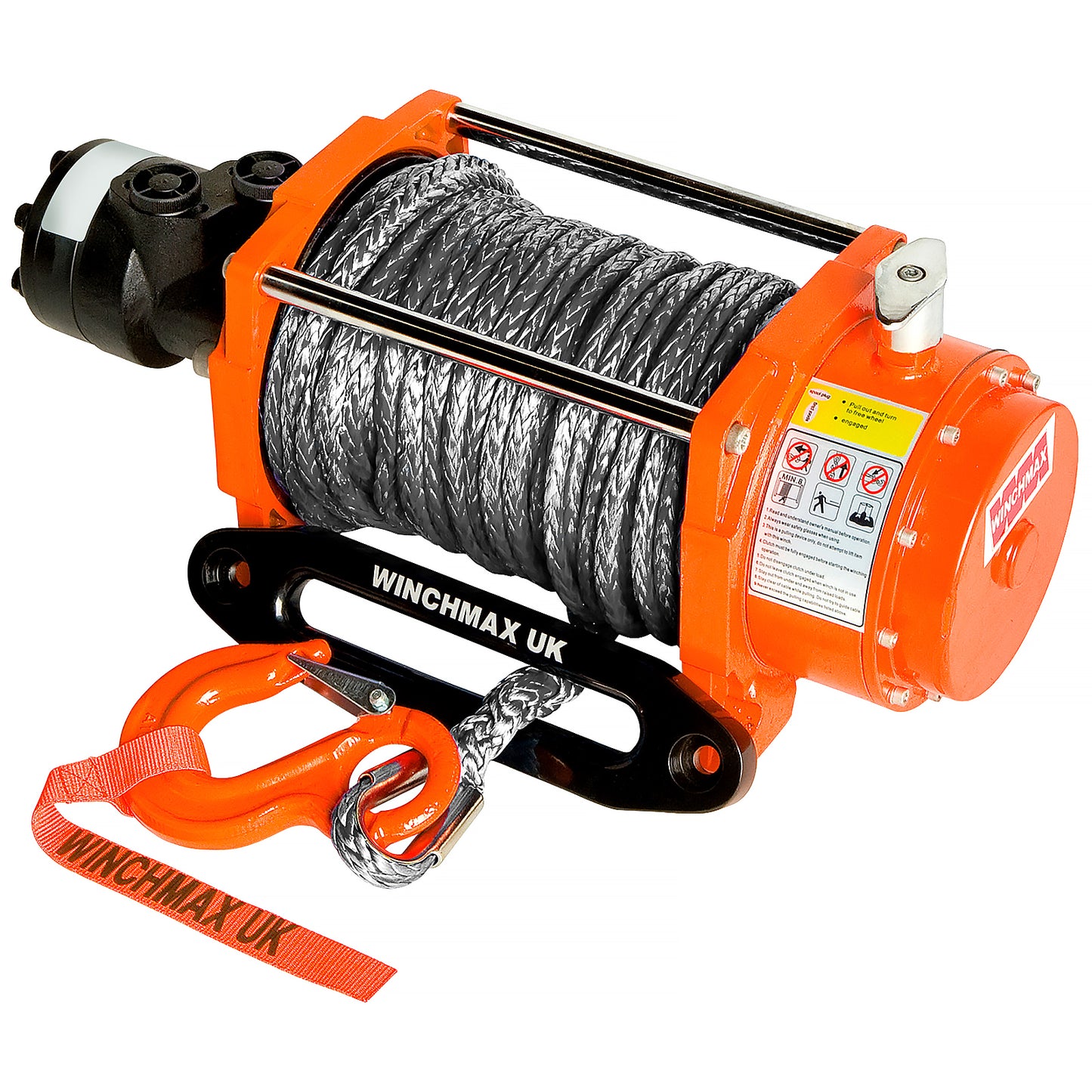

15,000lb (6,804kg) Original Orange Hydraulic Winch. 25m x 12mm Dyneema Rope. Competition Hook. 24V Control System.

15,000lb (6,804kg) Original Orange Hydraulic Winch, Dyneema Rope, 24v Control System

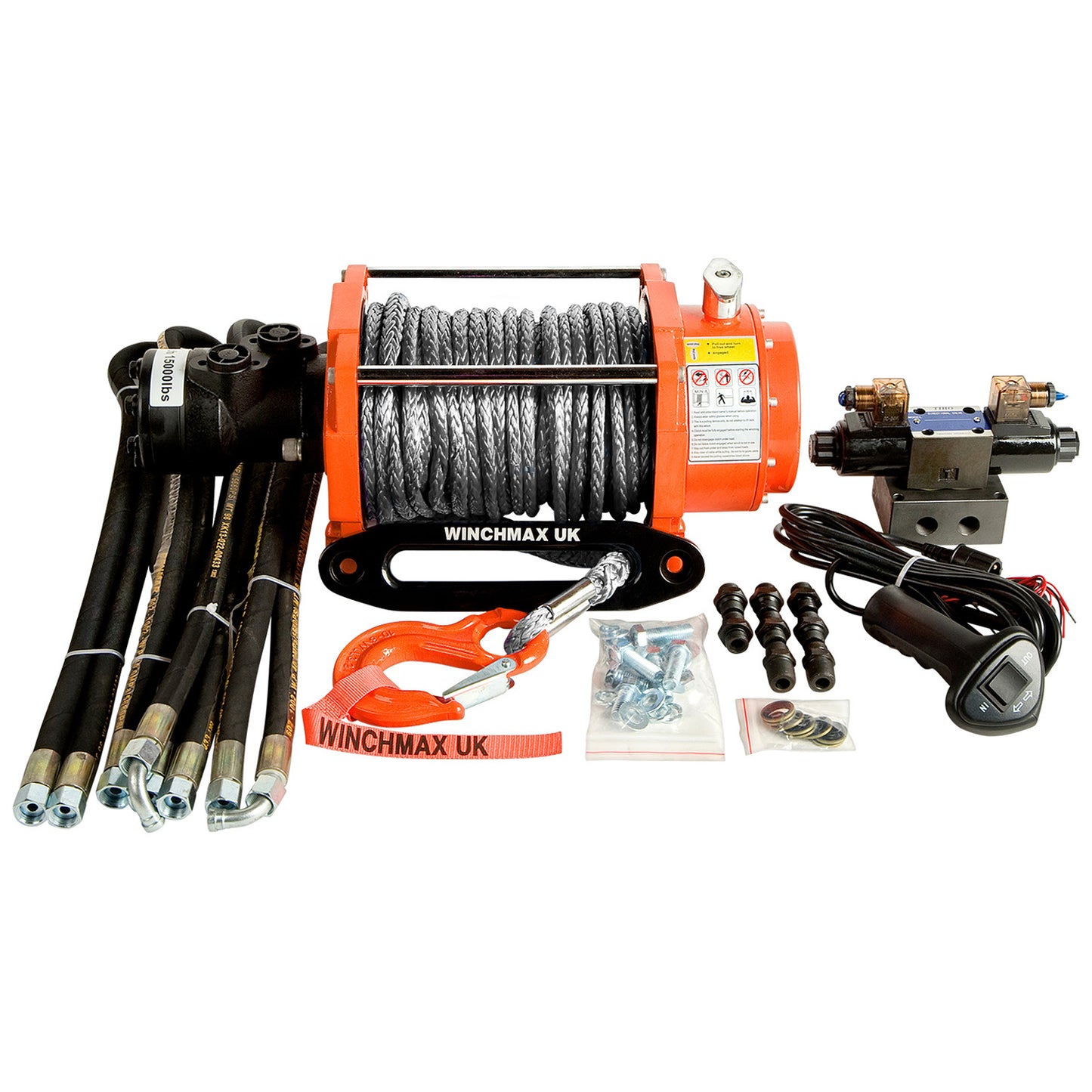

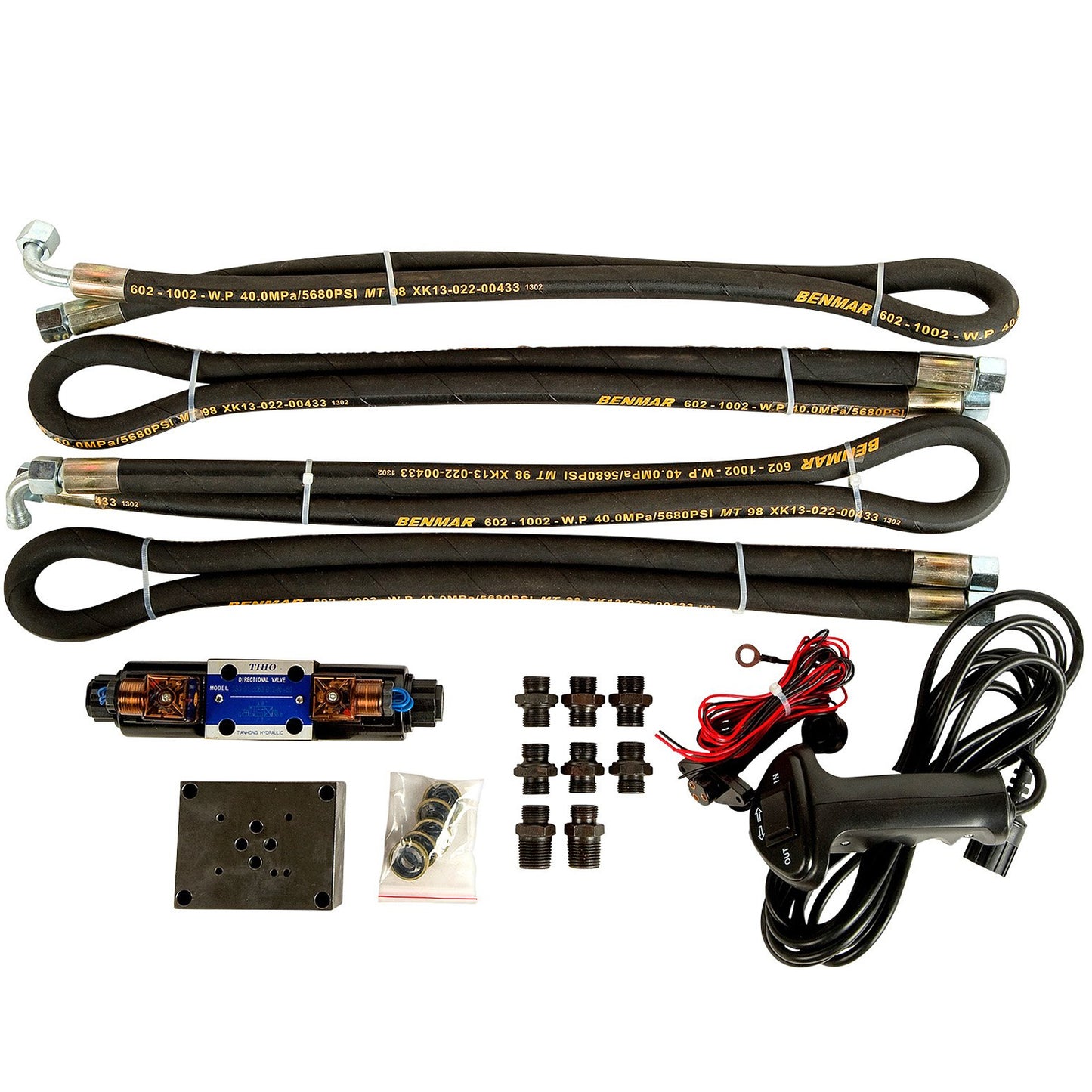

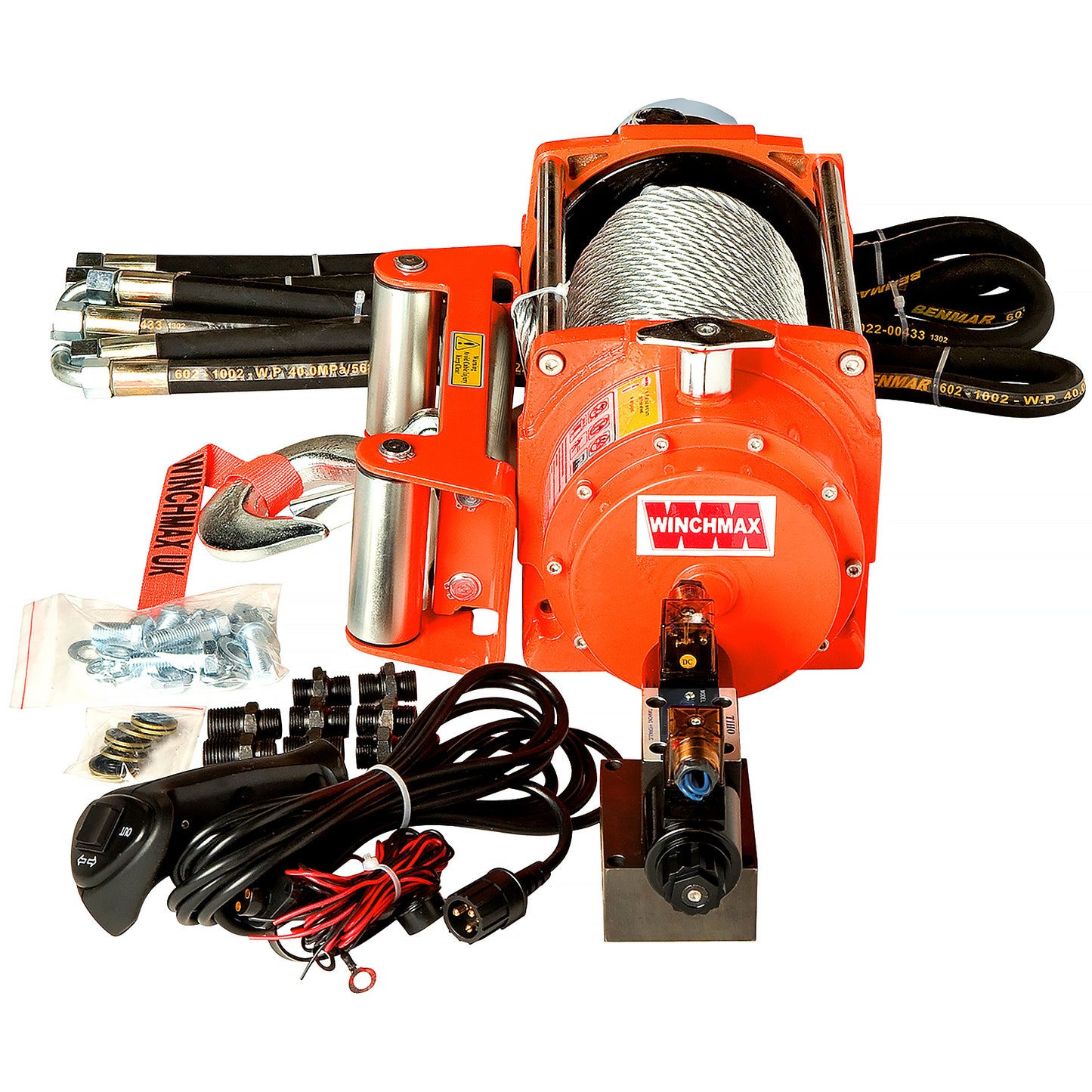

Includes full 24v wired/wireless control system, pipes and connectors

Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural

Features

• 15,000lb (6,804kg) straight-line pull hydraulic winch (24v controls)
• Ultra-tough three-stage gearbox with hardened steel gears.
• Casing machined from billet steel for maximum impact protection
• 25m x 12mm genuine Dyneema synthetic rope
• Through-drum rope attachment with grub screw clamp for maximum security.

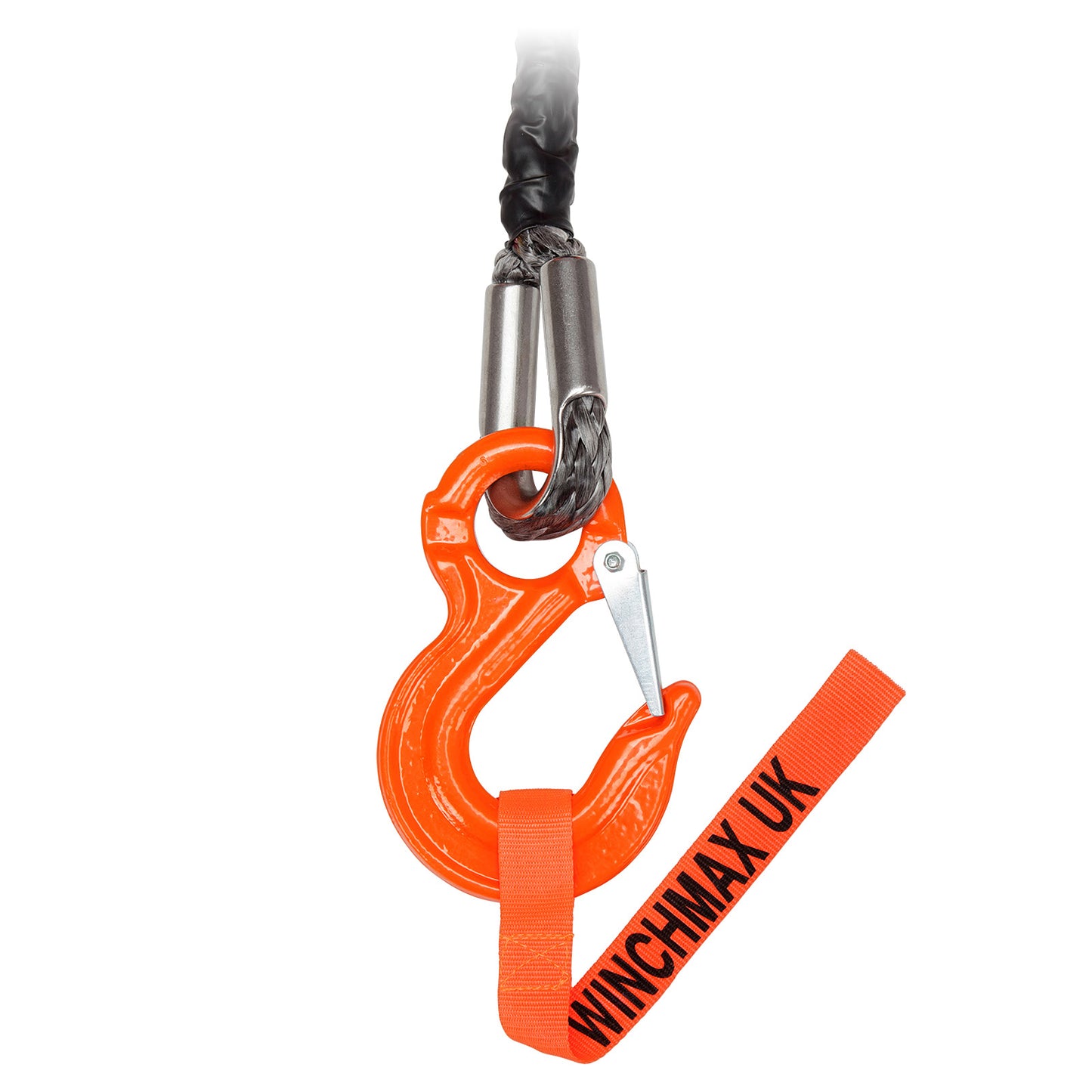

• Orange competition hook with safety catch and hand saver.

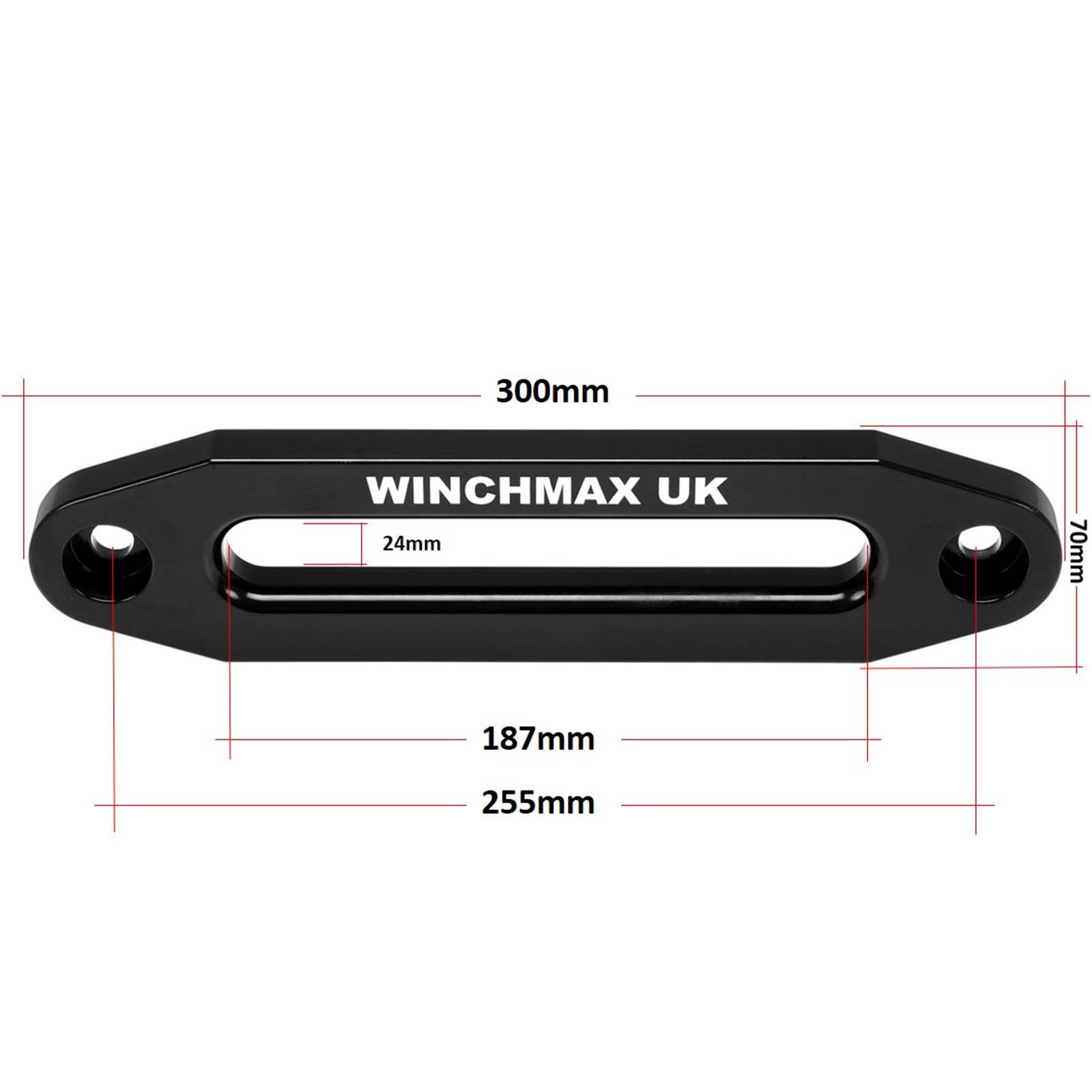

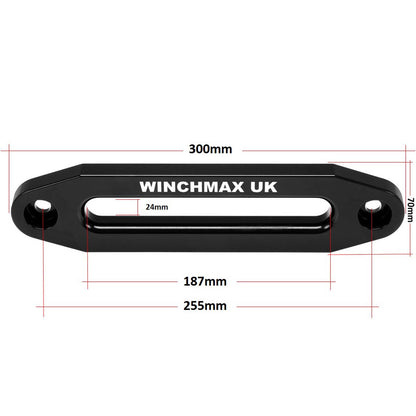

• Aluminium hawse fairlead. Precision CNC milled with laser-etched WINCHMAX branding.
• Sliding ring gear free-wheel clutch.

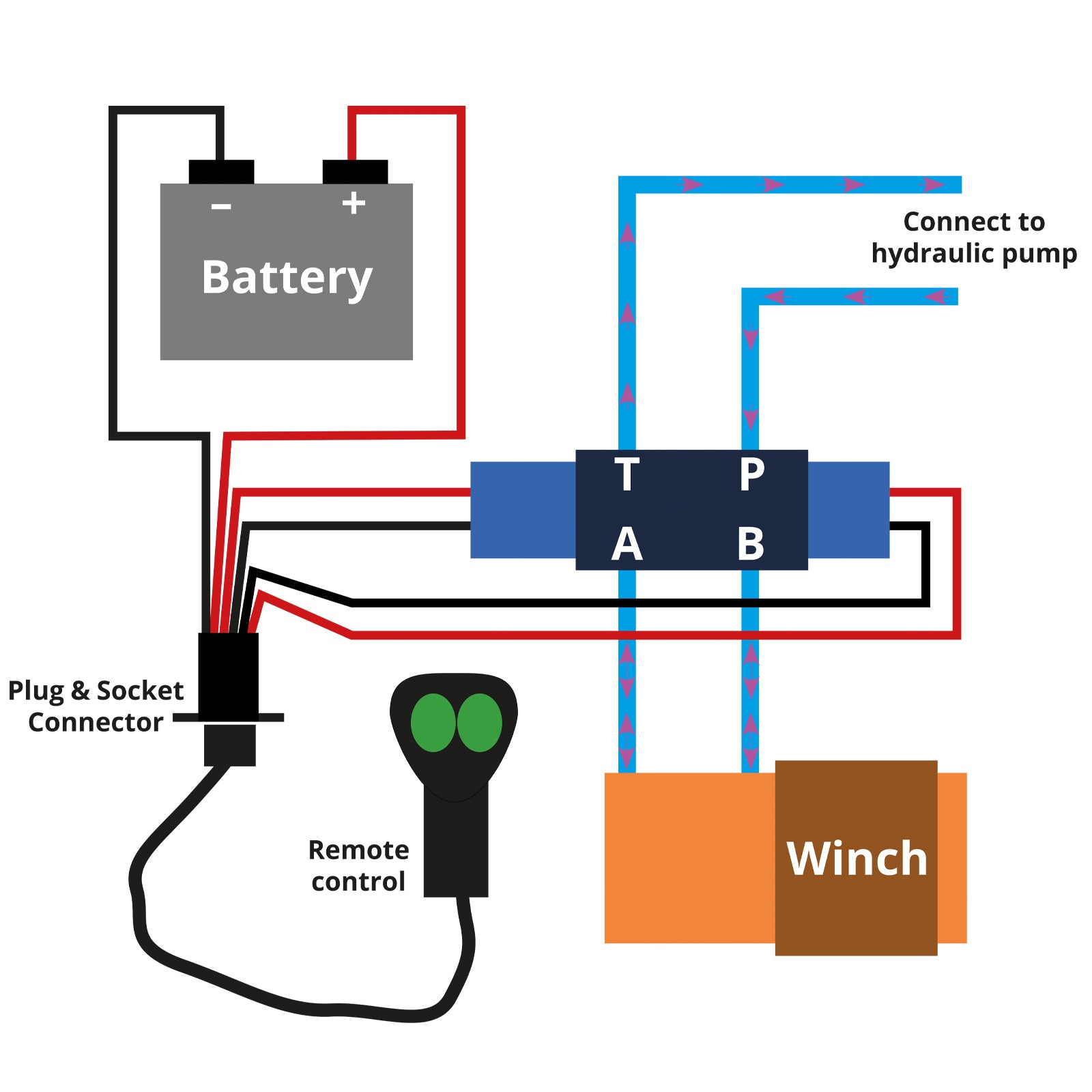

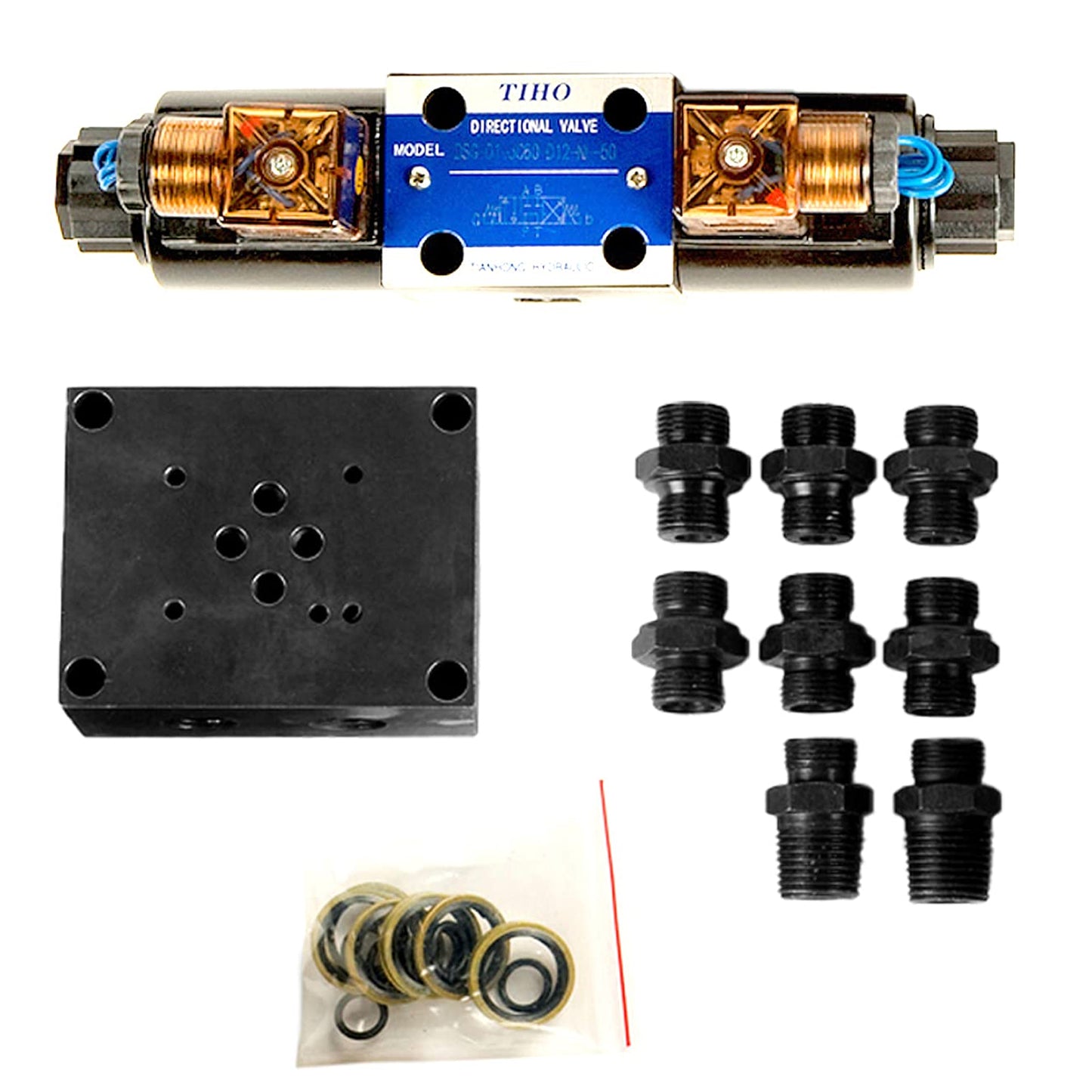

• 24v electrically operated CETOP 3 (NG6) solenoid operated directional valve control.
• Compatible with the full WINCHMAX range of wireless remote controls.
• Big grip controller for power in/out with extra-long 4.5m wander lead.
• Wander lead wiring harness and socket for connection to the solenoid valve.
• Hydraulic hose assemblies 1.25m long (x4) fitted with 18x1.5mm threaded fittings.
• High tensile fixing bolt kit.
• Heavy-duty & built to last - gross weight 55kg.
• CE certified & built to ISO9001 quality management system requirements.

Compatible with the WINCHMAX range of wireless remote controls - see separate listing or enquire for details.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	15,000lb (6,804kg)
Motor	Hydraulic
Control	Remote switch, 4.5m lead, in & out
Gear Train	3 stage planetary
Gear Reduction Ratio	32:1
Clutch	Sliding Ring Gear
Braking Action	Automatic
Drum Size	Diameter 88mm Length 222mm
Drum Finish	Black, painted
Cable	25m x 12mm Dyneema SK75 synthetic rope
Hook	Orange competition hook with safety catch
Fairlead	Aluminium hawse fairlead
Flow	50-60 L/min
Pressure	10.8Mpa (108 Bar)
Winch Finish	Original Orange powder coated
Weight (GW)	55kg (121lb)

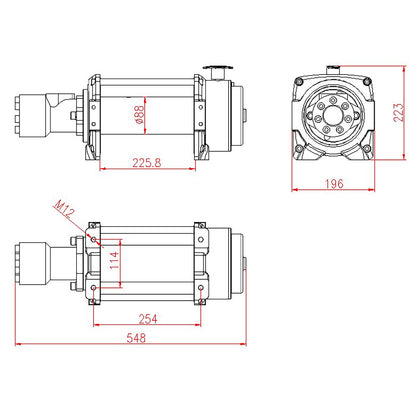

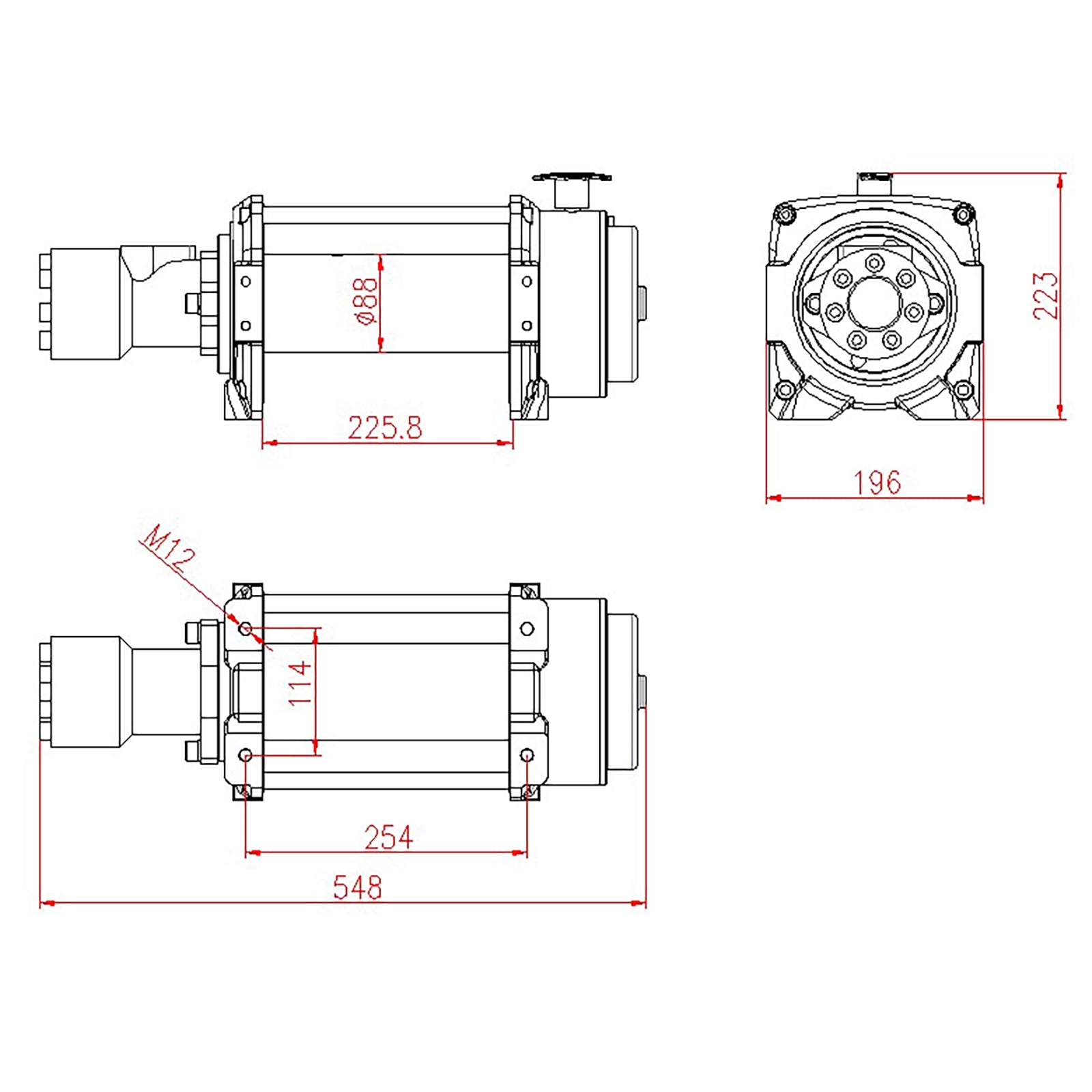

Overall Dimensions (LxWxH)	548 x 196 x 249mm
Mounting Bolt Pattern	10.00”±0.015" x 4.50”±0.010" (254 x 114.3mm)
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Pull per layer (kg)	Line speed m/min
1	15,000	6,780	4.81
2	12,100	5,470	5.96
3	10,100	4,570	7.12
4	8,800	3,980	8.27
