13,500lb (6,123kg) Original Orange 12v Electric Winch. 25m x 10mm Armourline Rope, Twin Wireless Remote Controls.

13,500lb (6,123kg) Original Orange 12v Electric Winch, Armourline Rope, Twin Wireless Remote Control

Ideal for recovery trucks and 4x4s up to 3.5T

Features

WINCHMAX Winch

• 13,500lb (6,123kg) straight-line pull 12v electric winch.
• Latest technology long-range wireless remote controls, twin handsets.
• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 25m x 10mm Armourline double braided synthetic rope. 21,000lb (9,500kg) average breaking load.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

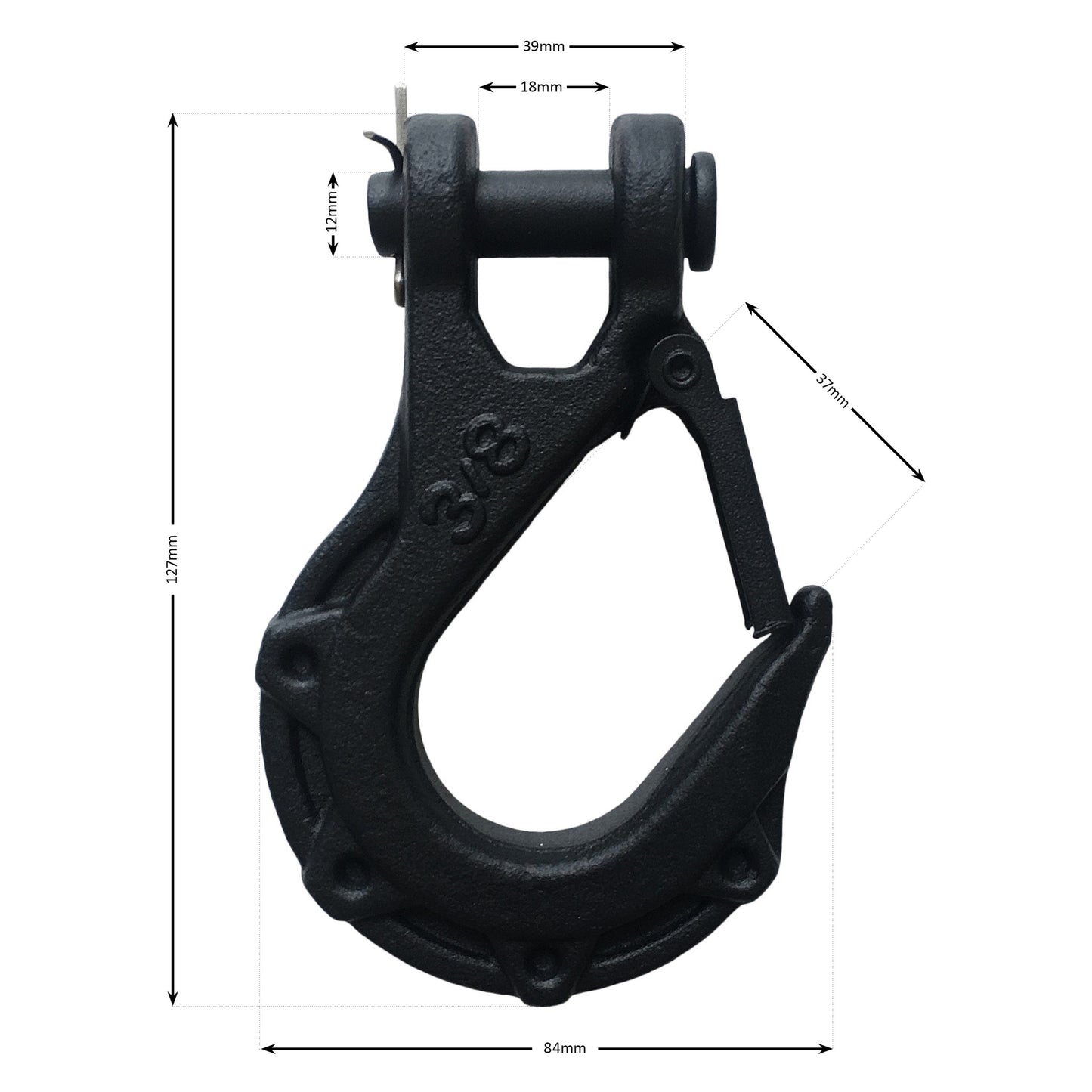

• 3/8 inch Tactical Clevis Hook. G70 grade forged with black coating. Safety catch and hand saver included.
• WINCHMAX Aluminium hawse fairlead. Precision CNC milled, laser-etched.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable and IP67 waterproof.
• Power in/out big grip wander lead with extra-long 4.5m cord.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime.
• Heavy-duty & built to last - gross weight 30kg.
• CE certified & built to ISO9001 quality management system requirements.

Don't forget Your Mounting plate.

WINCHMAX make the best mounting plates for quick and easy installation. Click here for our recommended mounting plates for this winch.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical. VAT invoice provided with every sale.

Single Line Rated Pull	13,500lb (6,123kg)
Motor	12v 6.8hp/5.1kw, series wound
Control	Remote Switch, 4.5m lead, in and out
Gear Train	3 stage planetary
Gear Reduction Ratio	265:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 64mm (2.5") Length 224mm (8.82")
Drum Finish	Black, painted
Cable	25m x 10mm Armourline synthetic rope
Hook	Tactical clevis hook 3/8 inch, black
Fairlead	One-piece billet aluminium hawse fairlead
Battery	Recommended 650CCA minimum for winching
Battery Leads	2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
Winch Finish	Original Orange powder coated
Weight (GW)	30kg (88lb)
Overall Dimensions (LxWxH)	536 x 160 x 218mm (21.3" x 6.3” x 8.6")
Mounting Bolt Pattern	10.00" ±0.015" x 4.50” ±0.010" (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	13,500	6,123	20.4/6.22
2	10,010	4,540	41/12.0
3	8,840	4,009	71/21.0
4	7,410	3,361	85/24.0



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft (7.5m)	70A
3,000 (1,363)	11.48ft (3.5m)	138A
6,000 (2,727)	8.86ft (2.7m)	218A
9,000 (4,090)	7.72ft (2.2m)	260A
13,500 (6,123)	5.58ft (1.7m)	415A
