13,500lb (6,123kg) 12v Military Grade Winch. Defender Bumper, 25m x 10mm Armourline Rope, Remote Controls.

13,500lb (6,123kg 12v) Military Winch, Land Rover Defender Winch Bumper, Armourline Rope, Wiring Kit & Isolator

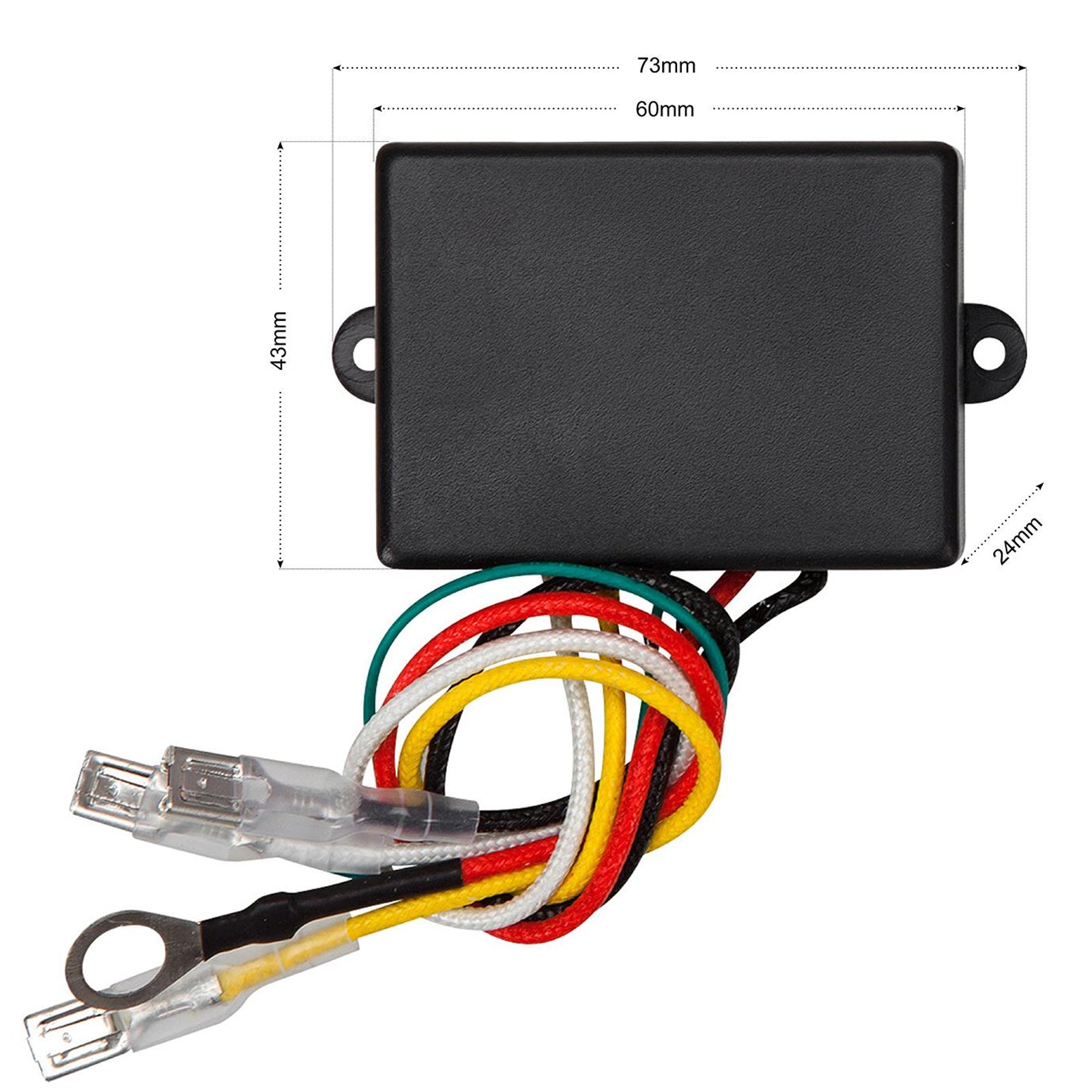

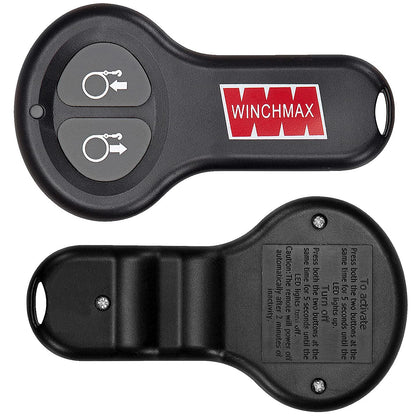

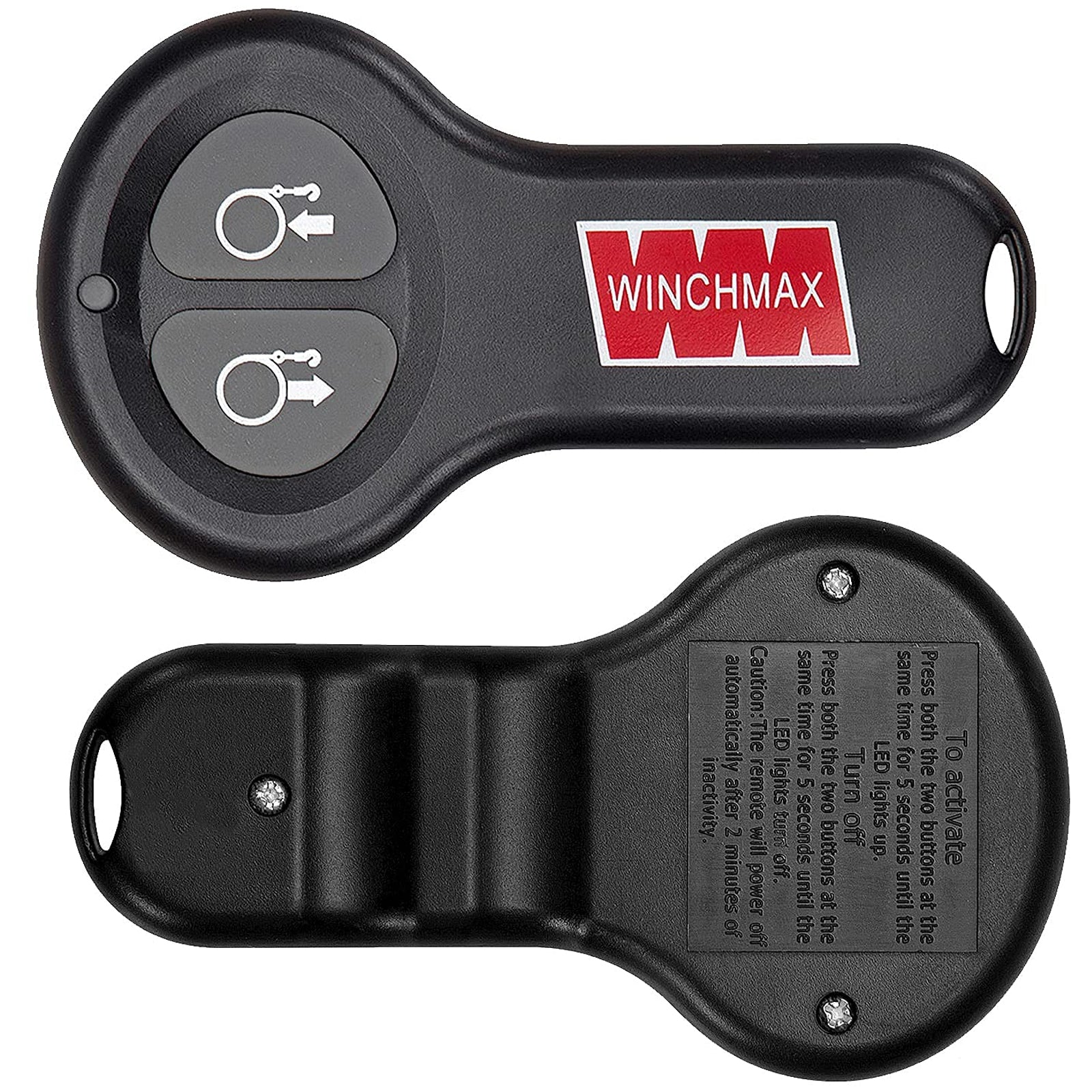

Twin Wireless Remote Control

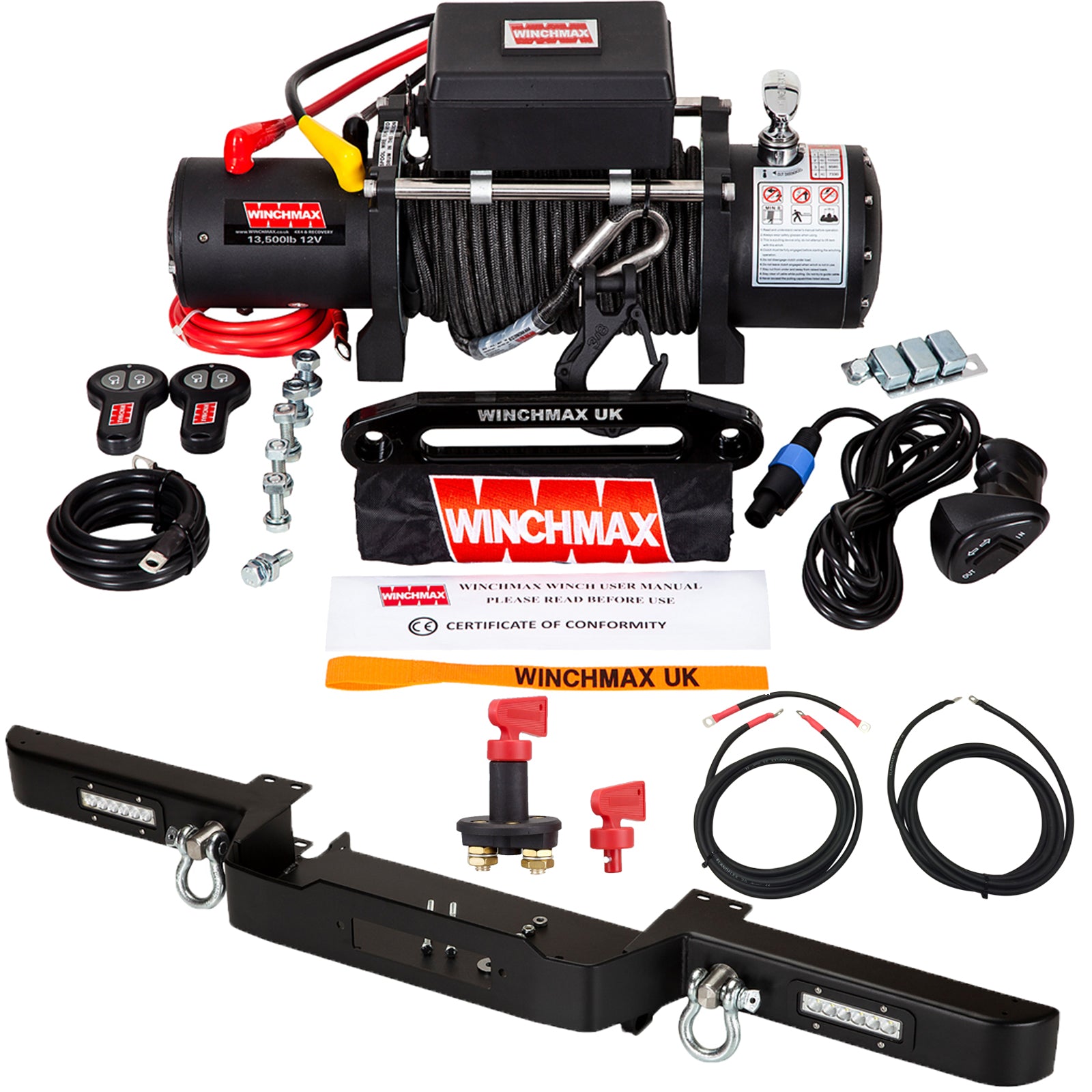

Everything you need to install a tough and powerful electric winch on your Land Rover Defender. Fits Defenders with or without Air con.

Features

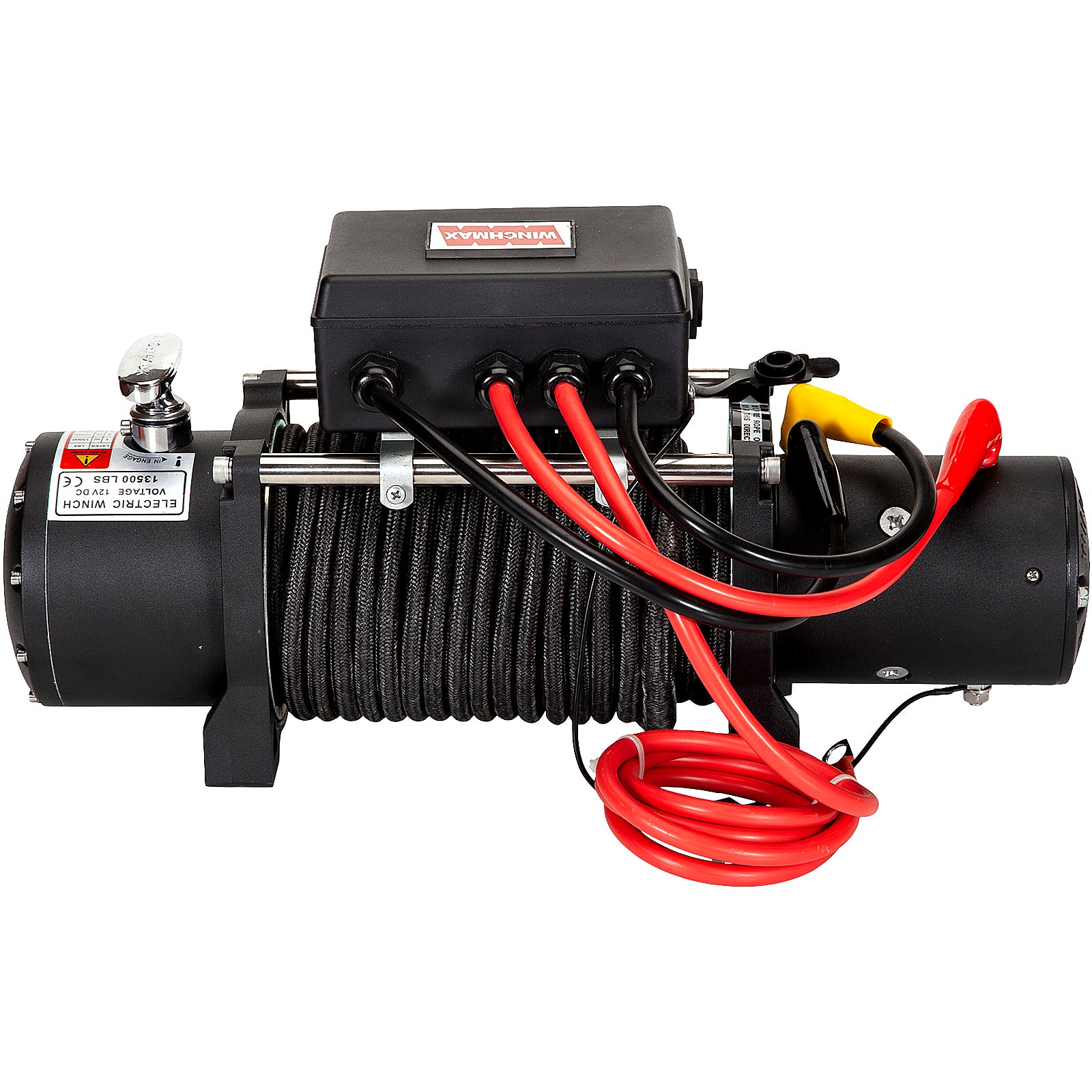

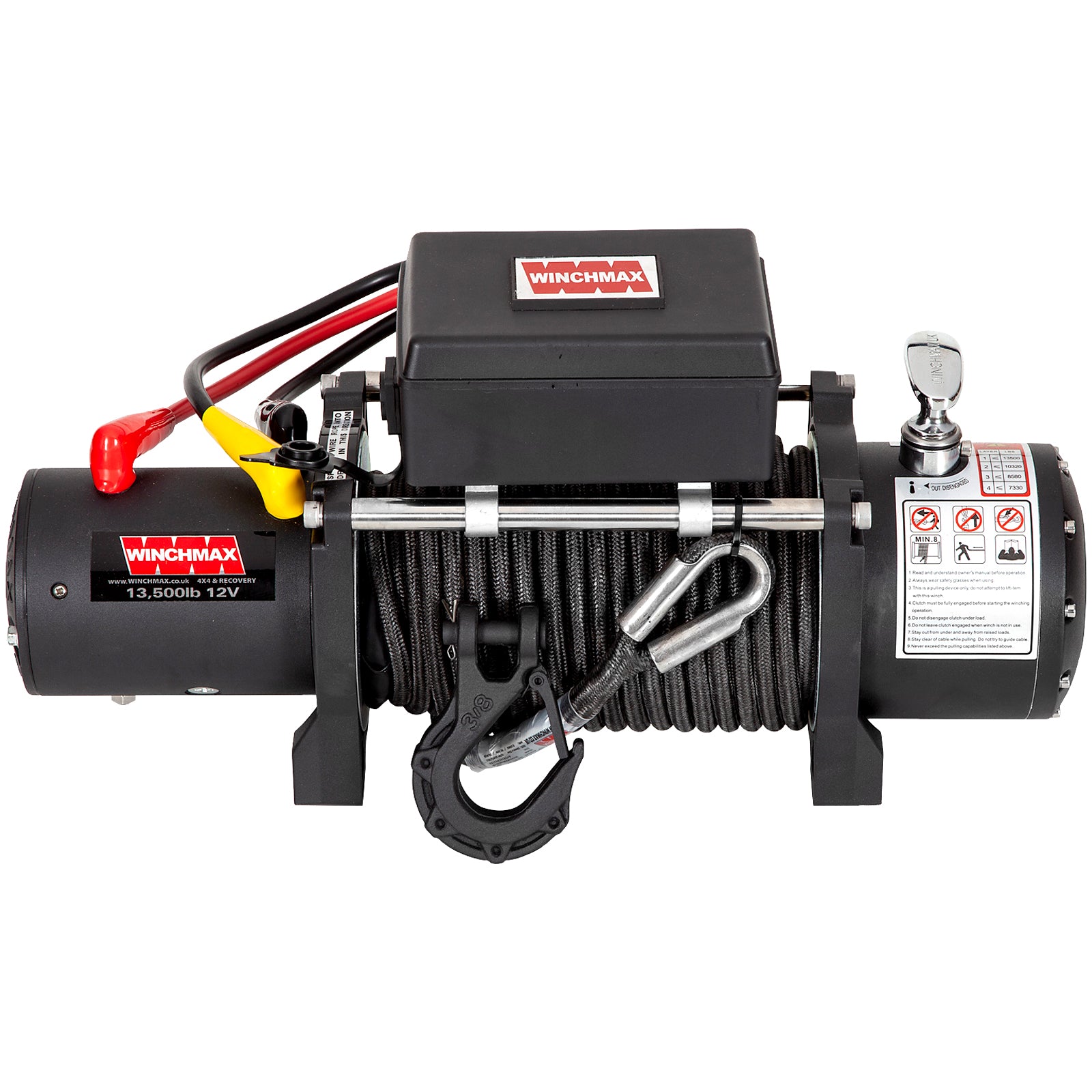

WINCHMAX Winch

• 13,500lb (6,123kg) straight-line pull 12v electric winch.
• Military-grade enhancements with improved anti-corrosion measures.
• Latest technology, long-range wireless remote controls with twin handsets.
• Super powerful 12v 6.8hp/5.1kw series wound electric motor.
• Massive ultra-tough, three-stage gearbox with hardened steel gears.
• The motor and gearbox casing is machined from billet steel for maximum impact protection.
• 25m x 10mm Armourline double braided synthetic rope. 21,000lb (9,500kg) average breaking load.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
• 3/8 Inch grade 70 forged tactical clevis hook powder coated for corrosion resistance with safety catch and hand saver.

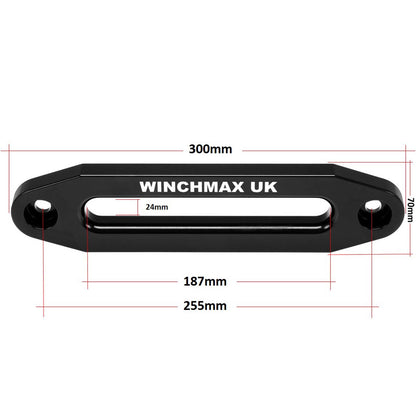

• Aluminium hawse fairlead. Precision CNC milled with laser-etched WINCHMAX branding.
• Stainless steel fixings.
• Heavy-duty one-piece solenoid, latest design specification with upgraded water seals, ultra-reliable and IP67 waterproof.
• Big grip controller for power in/out with extra-long 4.5m wander lead.

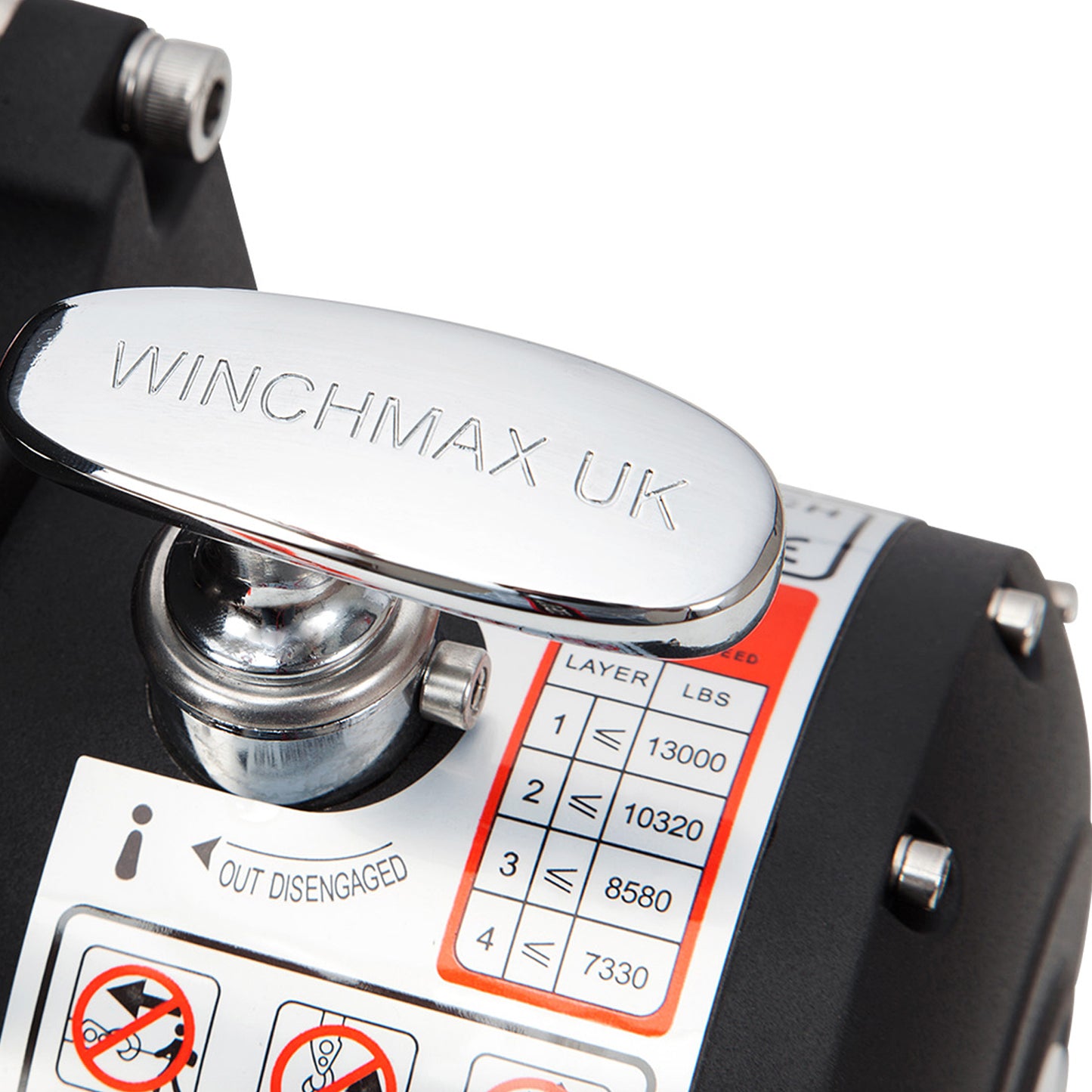

• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime.
• CE certified & built to ISO9001 quality management system requirements.

WINCHMAX Armourline Rope

• Latest UHMWPE synthetic winch rope technology.
• The double-braided outer sheath protects the core from abrasive grit and dirt.
• UV Resistant to prevent sun damage.
• Polyurethane coated for enhanced abrasion resistance.

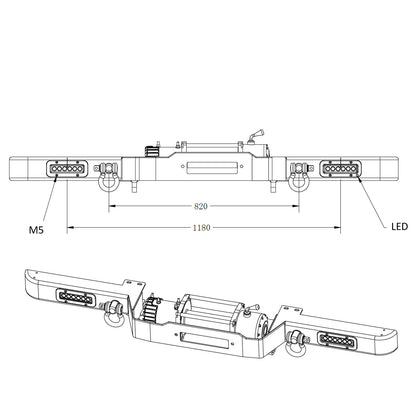

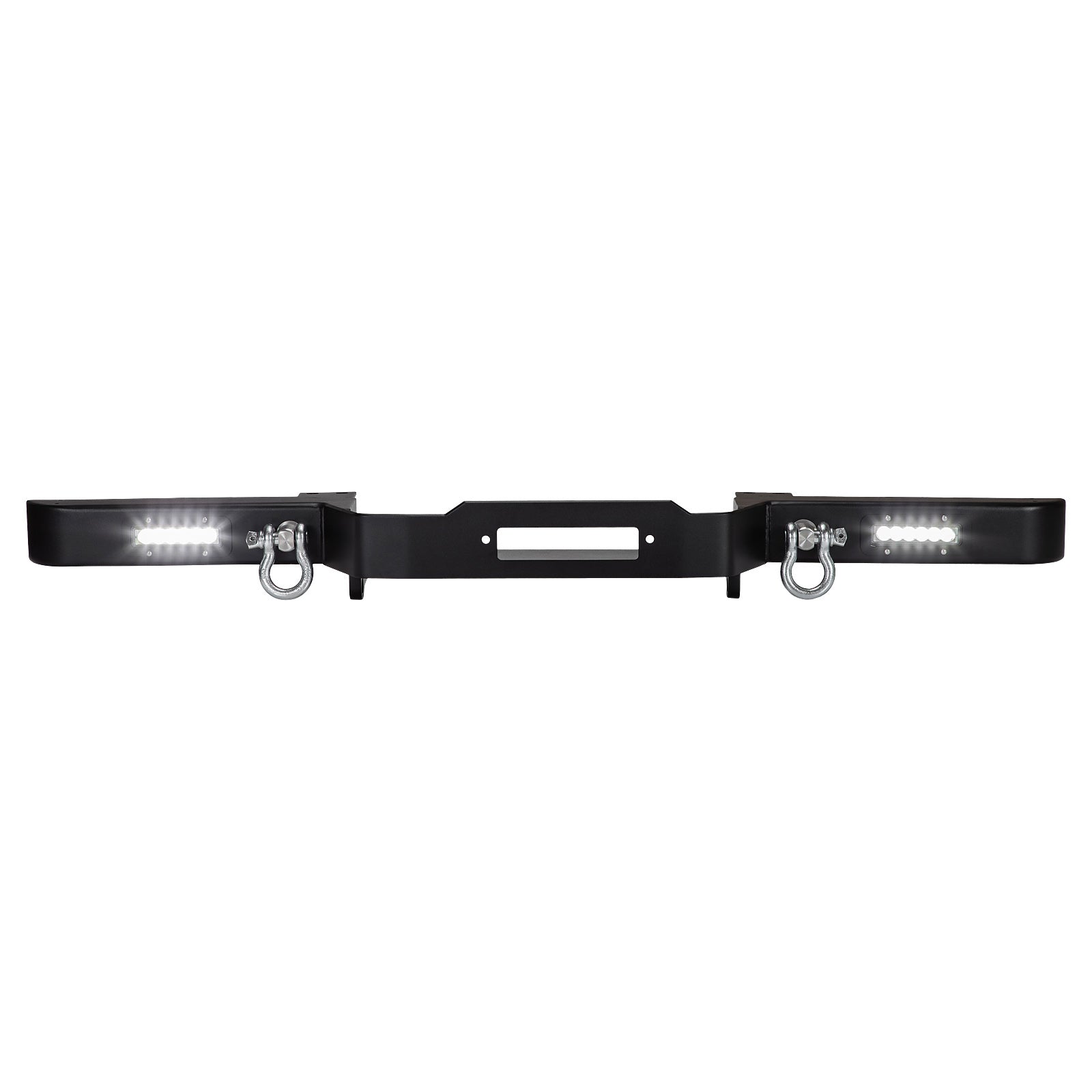

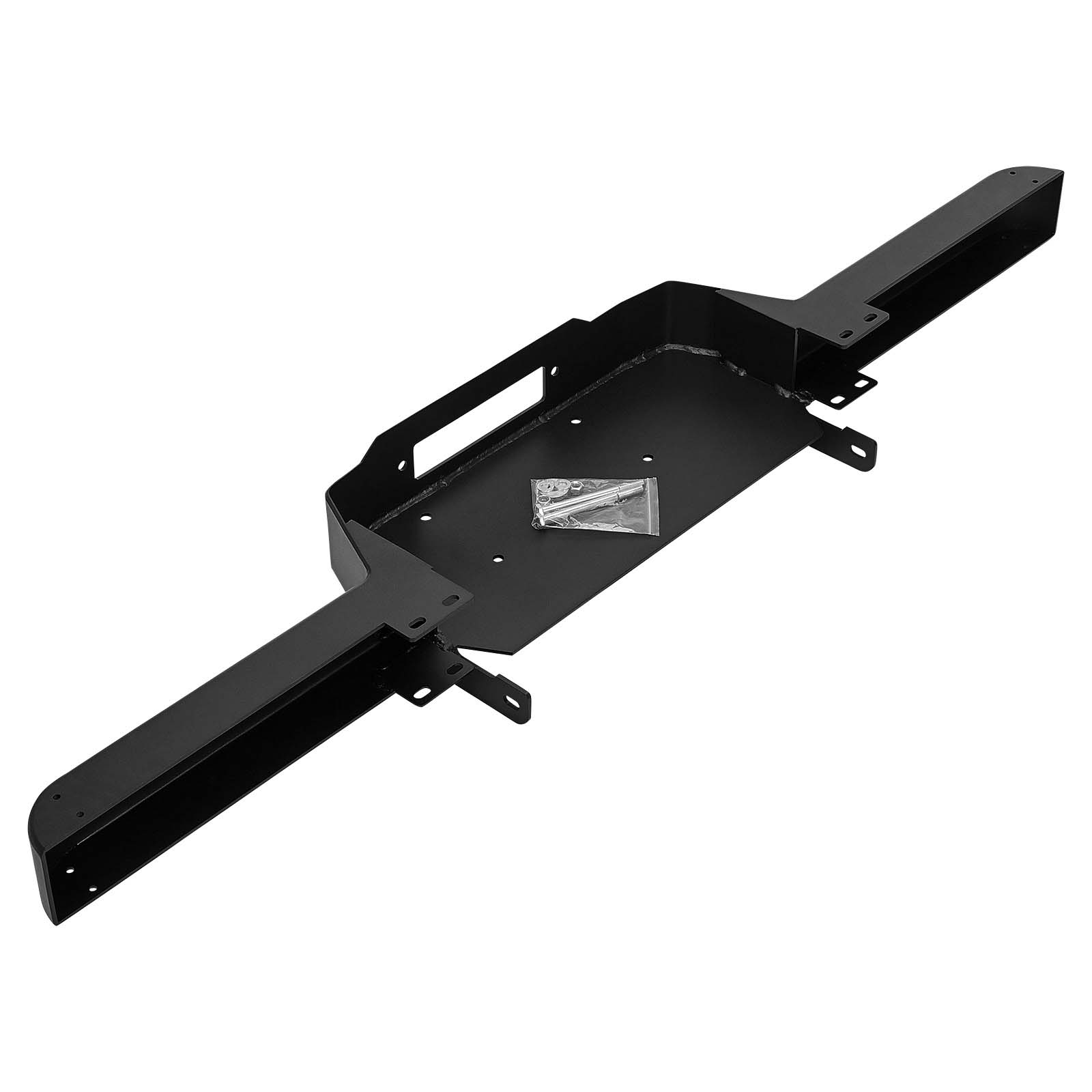

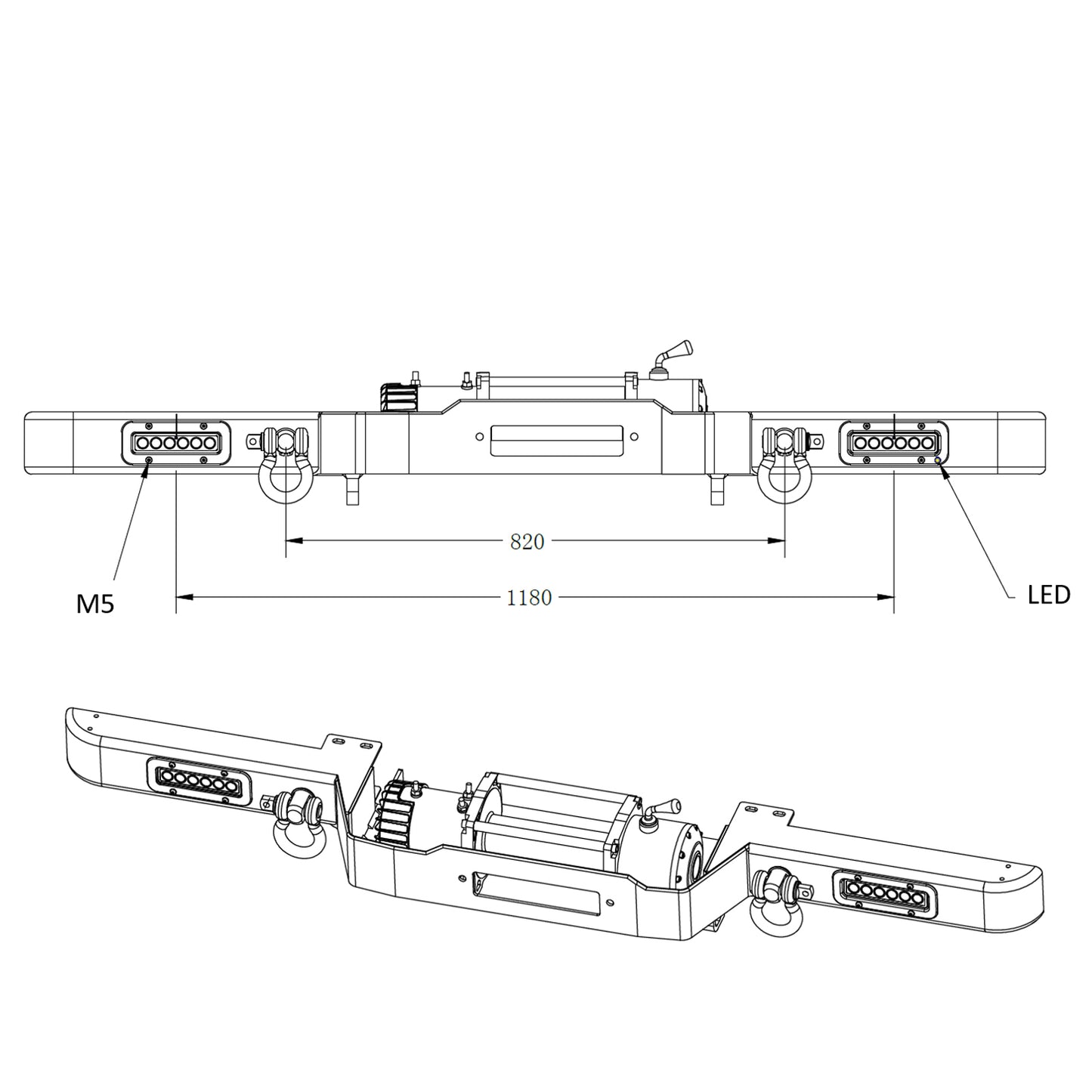

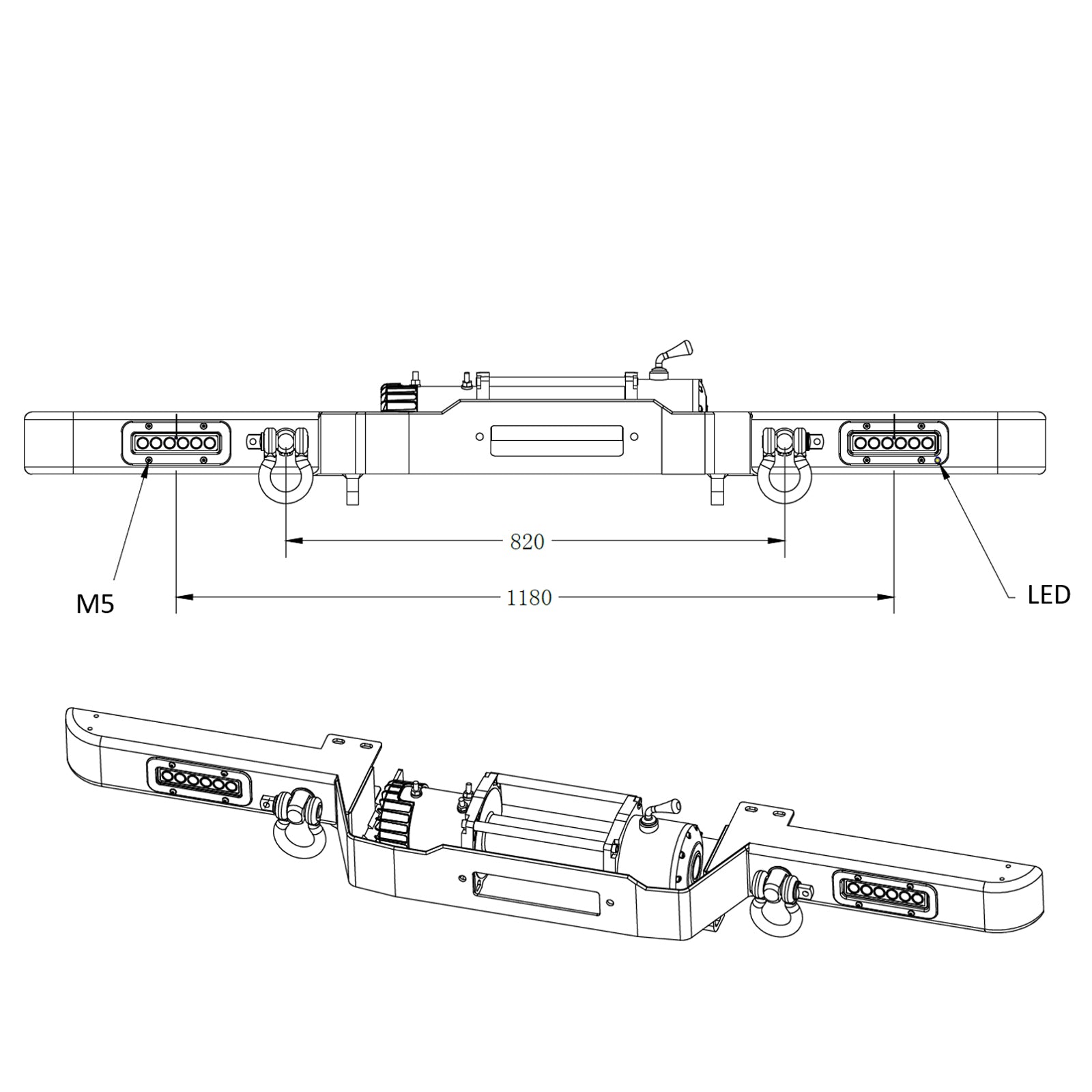

WINCHMAX bumper

• The Winchmax Defender Bumper is based on the Land Rover part VPLDP0105 and is made in 5mm thick steel.
• Durable powder-coated finish.
• Integral powerful LED DLR lights.
• DLR - DC 9-30V

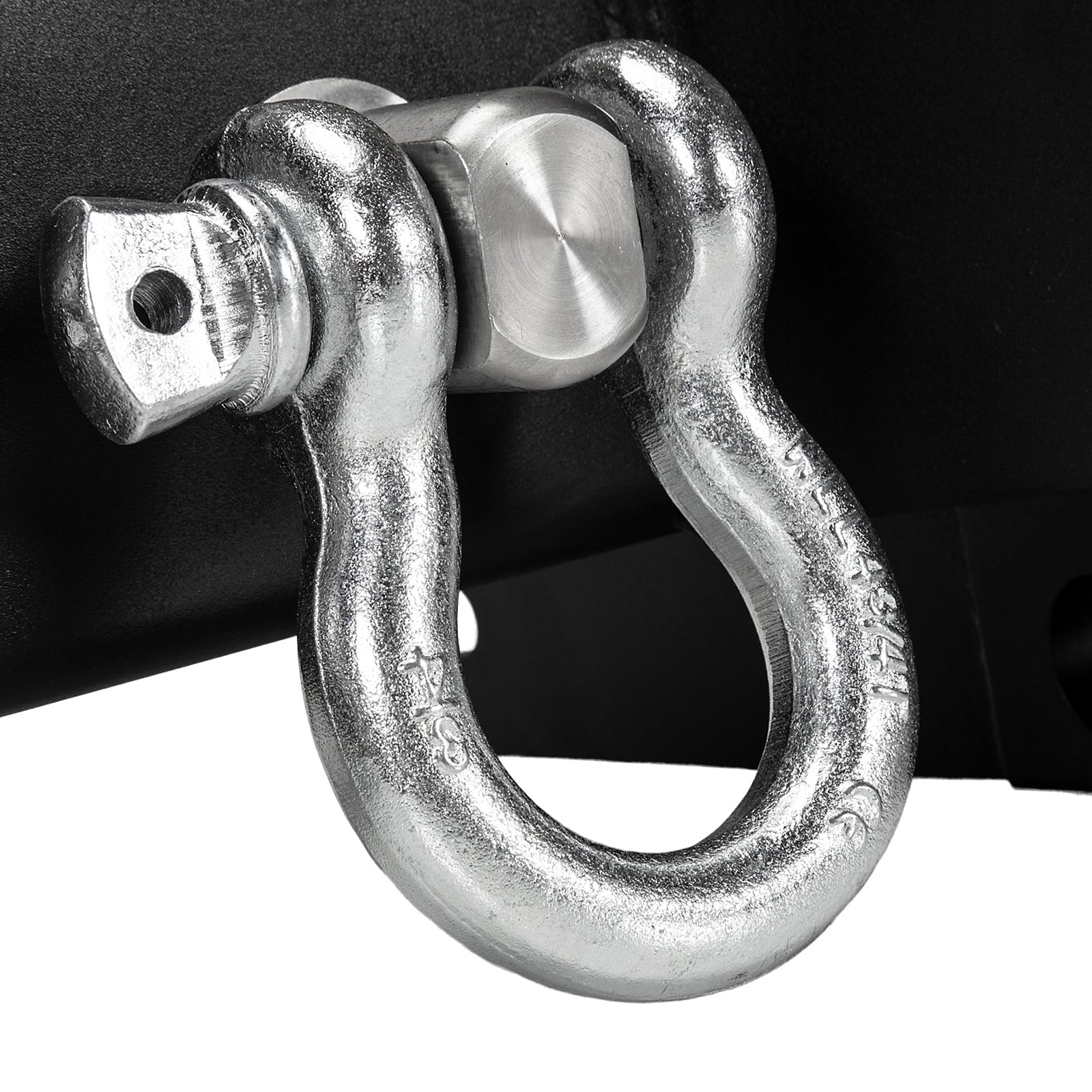

• 2 x swivel eye fixing points complete with large 3/4 inch bow shackles.
• Drilled to allow original bumper end caps to be transferred from your existing winch bumper.
• Attachment bolts included.

WINCHMAX wiring cable kit

• Power cable extension kit designed and made in the UK
• Made to fit Land Rover Defenders.
• Premium quality EN60228 35mm² copper cable with a class 6 extra flexible conductor and heavy PVC flexible insulation.

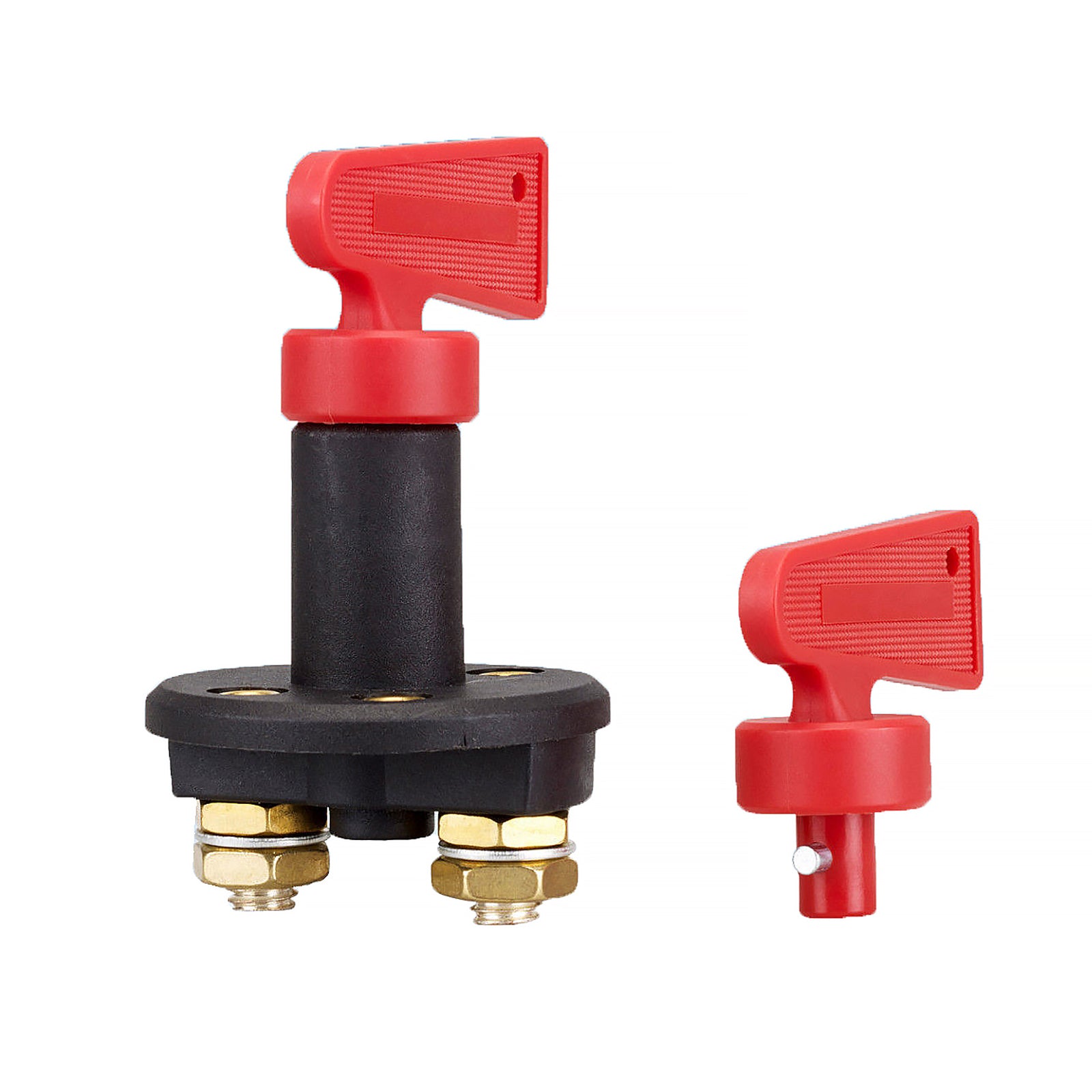

WINCHMAX battery isolator

• Heavy-duty battery isolator switch
• 2 x twist and release keys

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single line rated pull	13,500lb (6,123kg)
Motor	12v 6.8hp Series Wound
Control	Big Grip Remote Switch, 4.5m lead
Gear train	3 Stage Planetary
Gear reduction ratio	265:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In The Drum

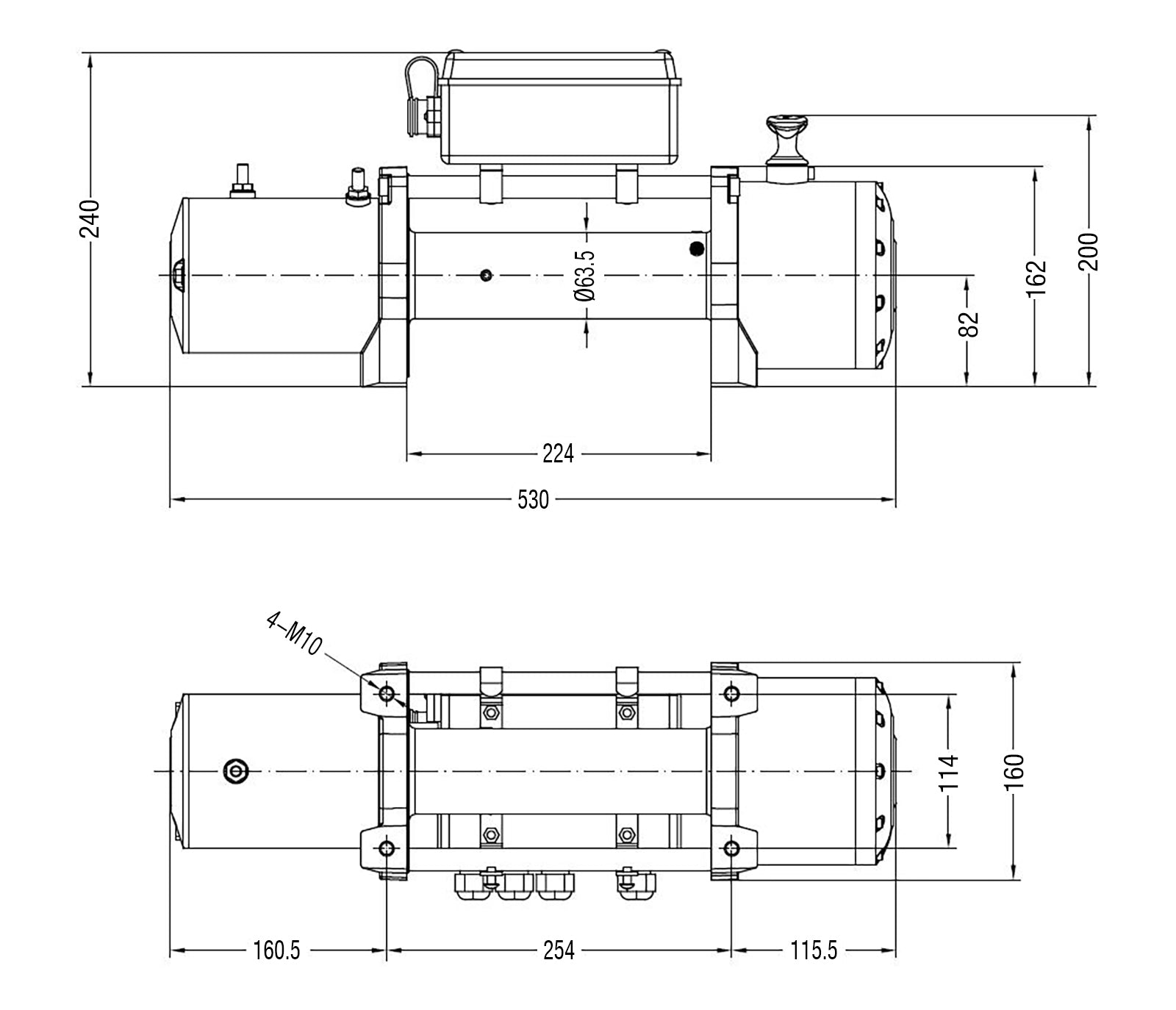

Drum size	Diameter 64mm (2.5") Length 224mm (8.82”)
Drum Finish	Galvanised
Cable	25m x 10mm Armourline Synthetic Rope
Hook	Tactical clevis hook 3/8 inch
Fairlead	One-piece billet aluminum hawse fairlead
Battery	Recommended 650CCA minimum for winching
Battery Leads	2 gauge, 1.83m (72”) 25mmsq - 5.6mm Diameter
Finish	Textured Black (Low Light)
Weight	GW 30kg (66lb)
Overall Dimensions(LxWxH)	536 x 160 x 218mm (21.3" x 6.3" x 8.6")
Mounting Bolt Pattern	10.00”±0.015" x 4.50”±0.010" (254 x 114.3mm)
Motor Current	65-570A
No Load Line Speed	7.5m/min (24.6 ft/min)
Waterproof	IP67 Rating
