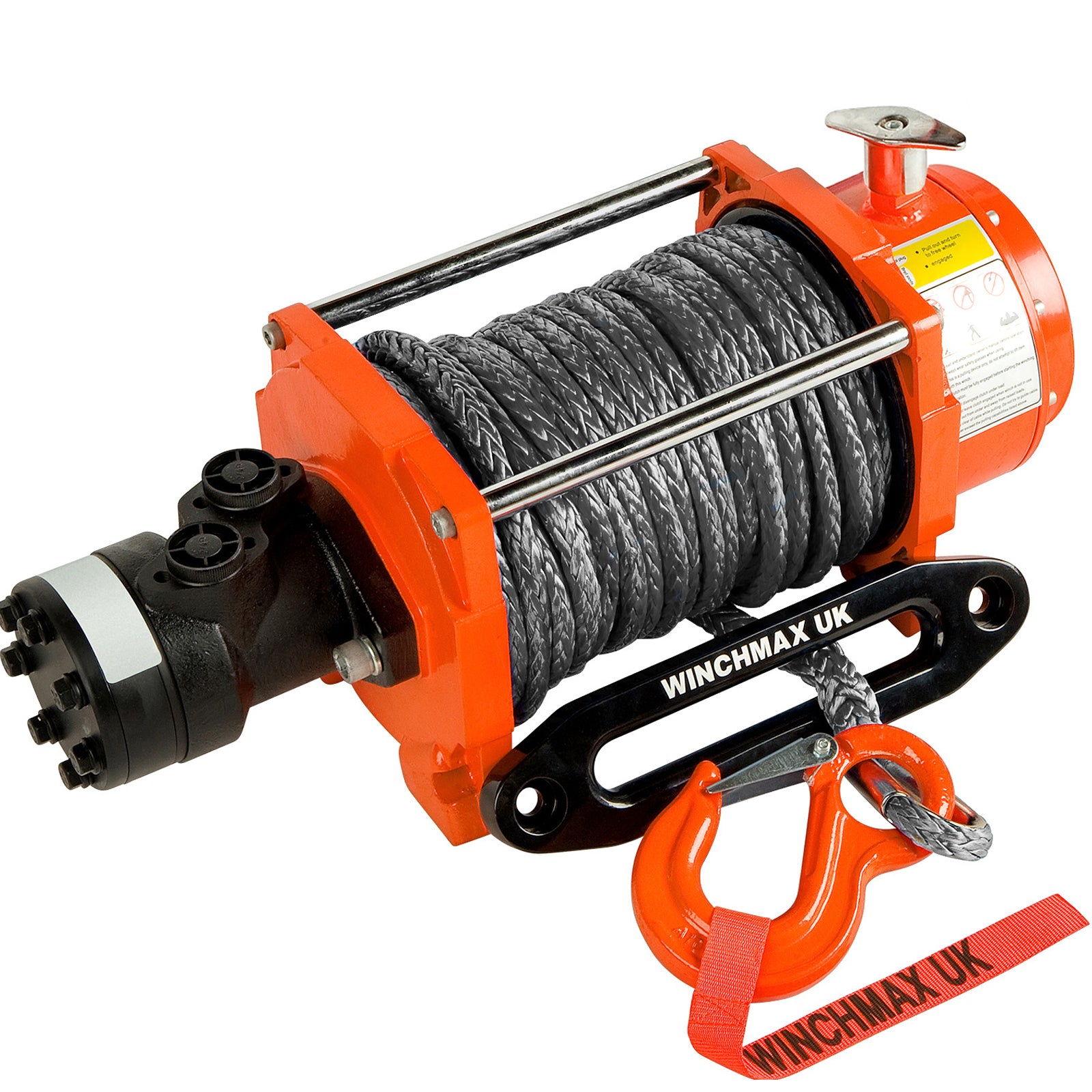

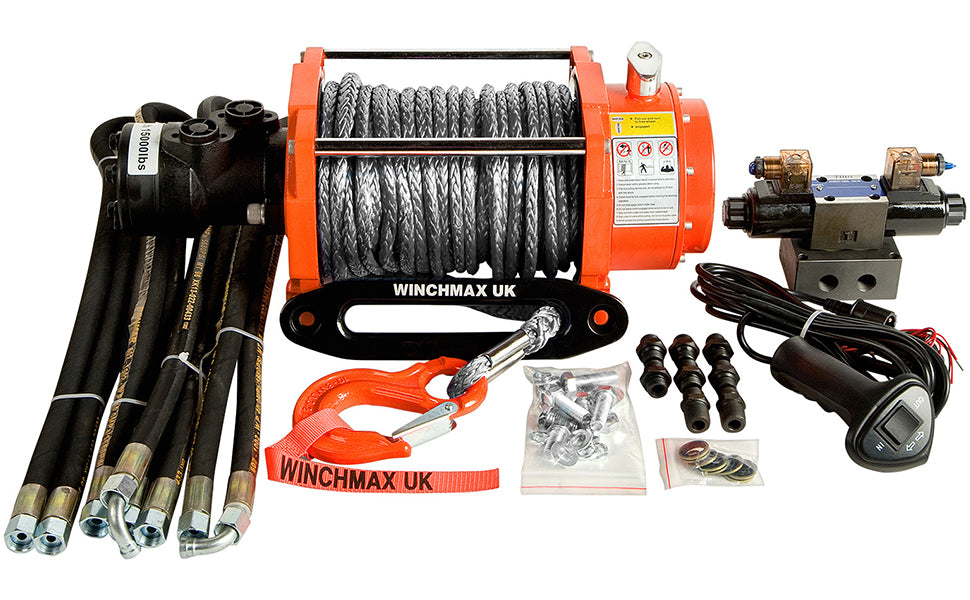

10000lb (4,536kg) Original Orange Hydraulic Winch. 25m x 10mm Dyneema Rope. 24V Control System.

10000lb (4,536kg) Original Orange Hydraulic Winch, Dyneema Rope, 24VControl System

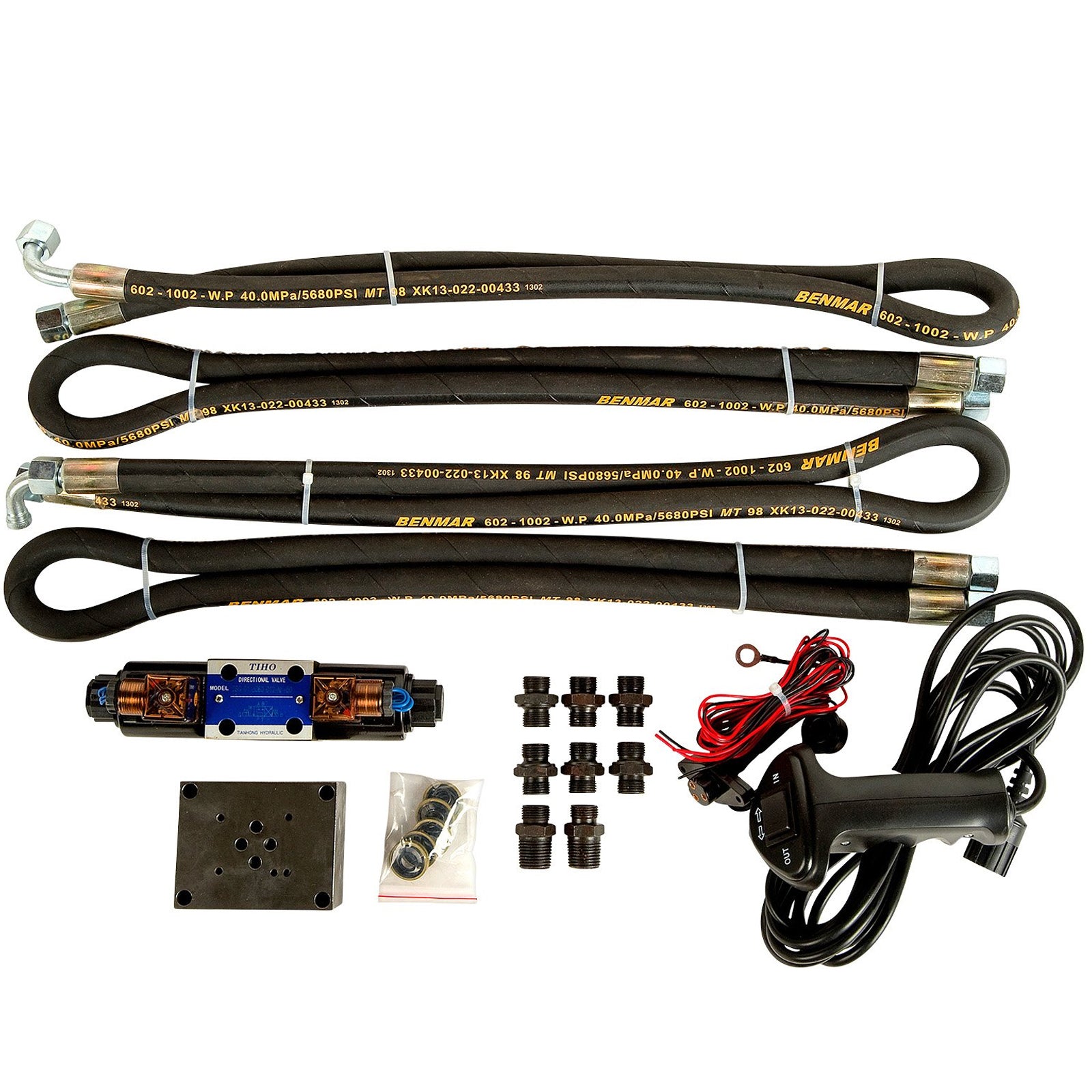

Includes 24v wired full control system, pipes, and connectors

Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural

Features

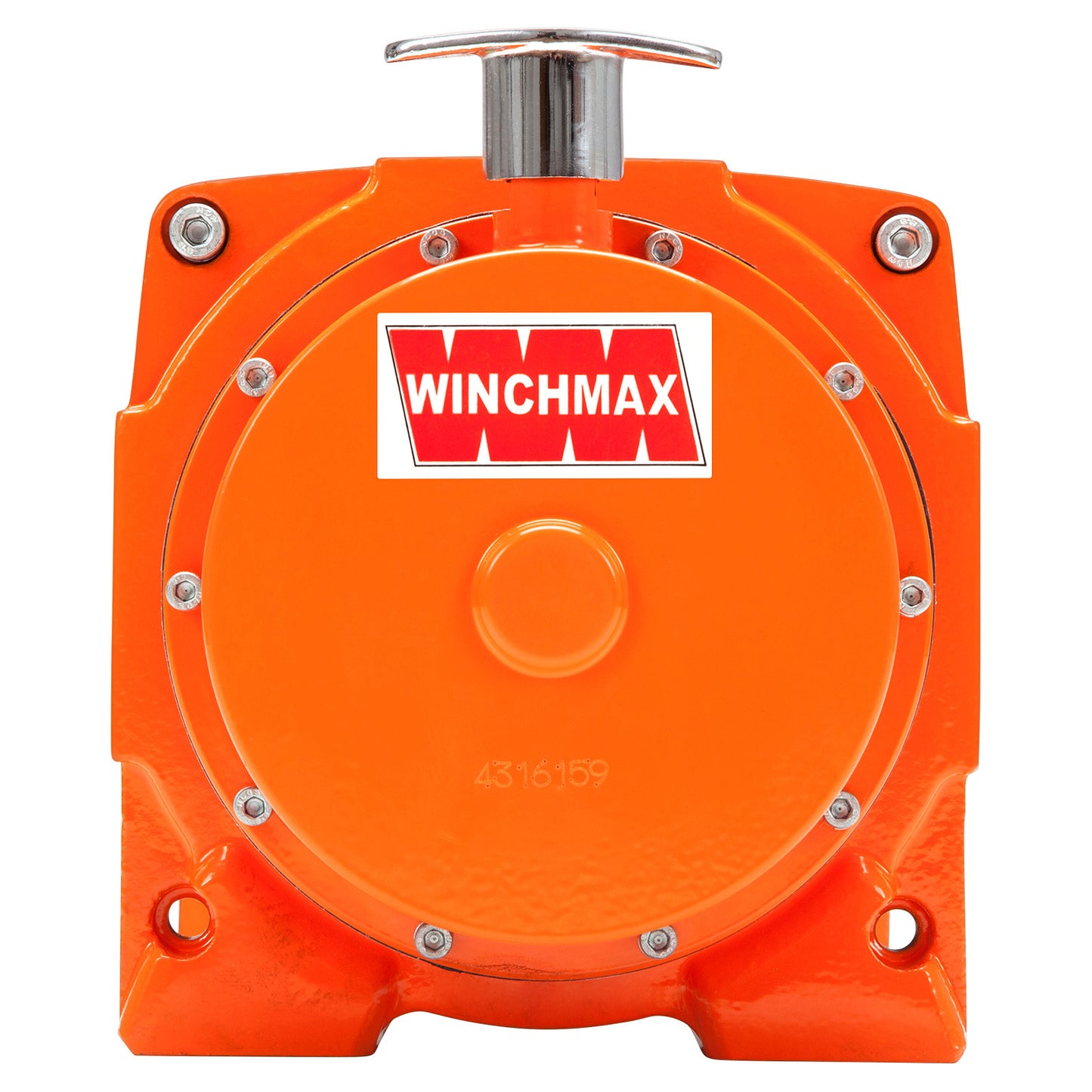

• Hydraulic Winch with 10000lb (4,536kg) straight-line pull.
• Ultra-tough three-stage gearbox with hardened steel gears.
• Winch casing machined from billet steel for maximum impact protection
• 25m x 10mm of genuine Dyneema synthetic rope.
• Through-drum rope attachment with grub screw clamp for maximum security.

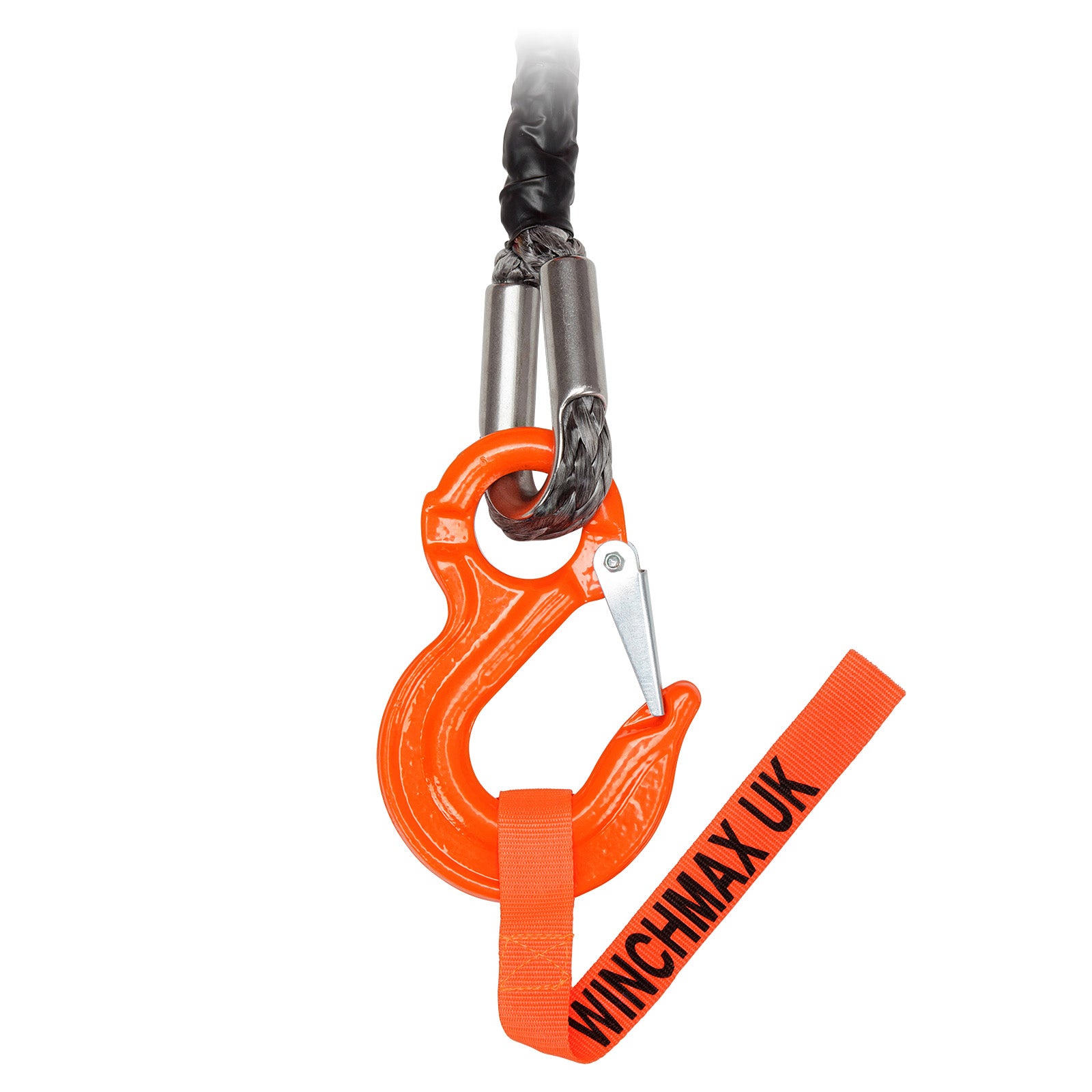

• Orange Competition Hook with safety catch and hand saver.

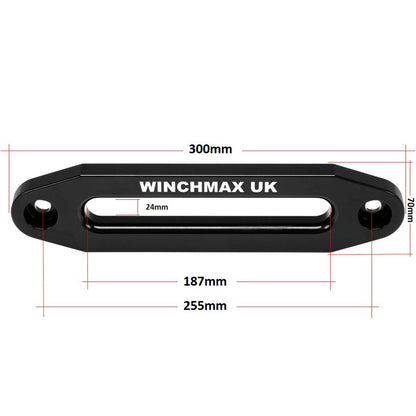

• Aluminium hawse fairlead. Precision CNC milled, laser-etched
• Sliding ring gear free-wheel clutch.

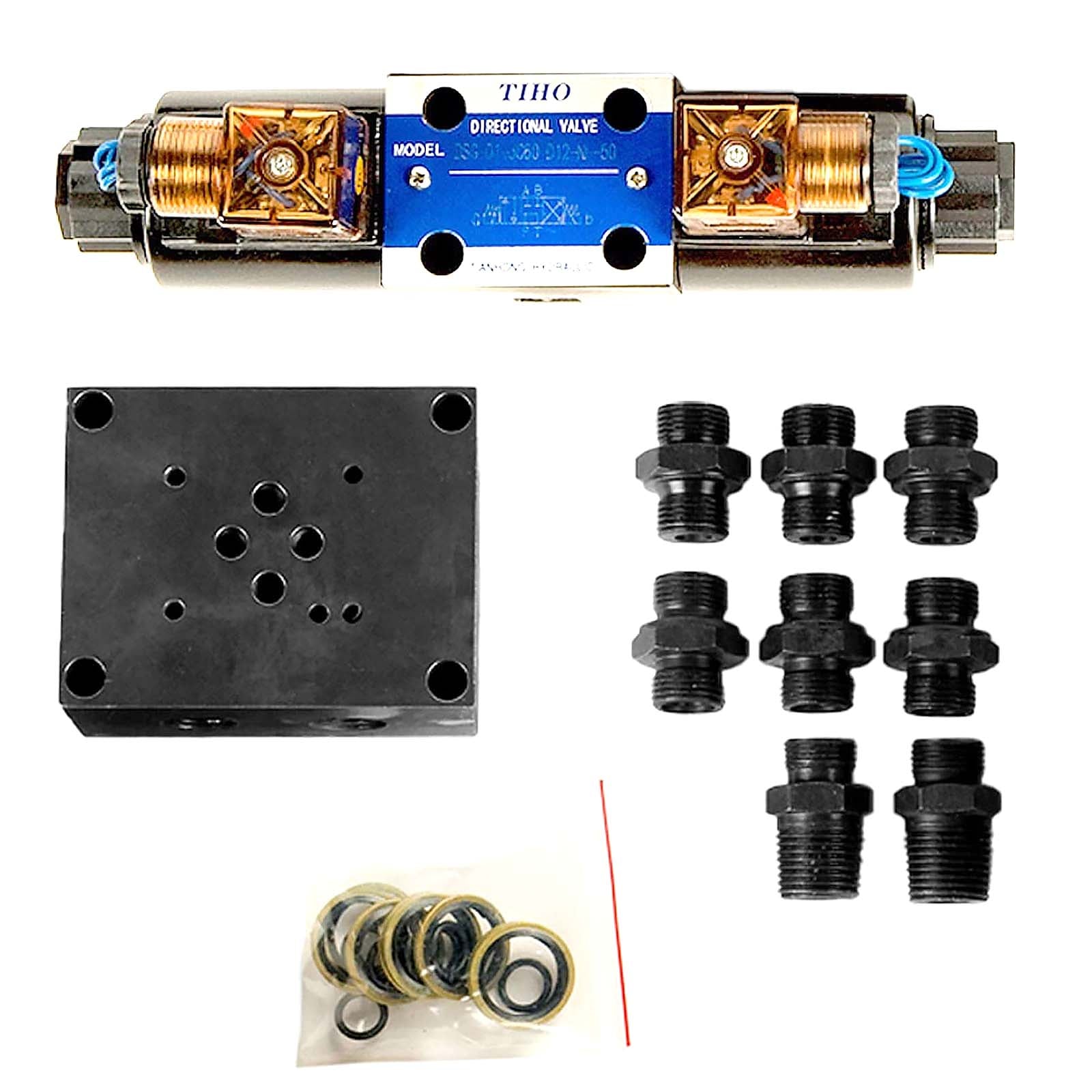

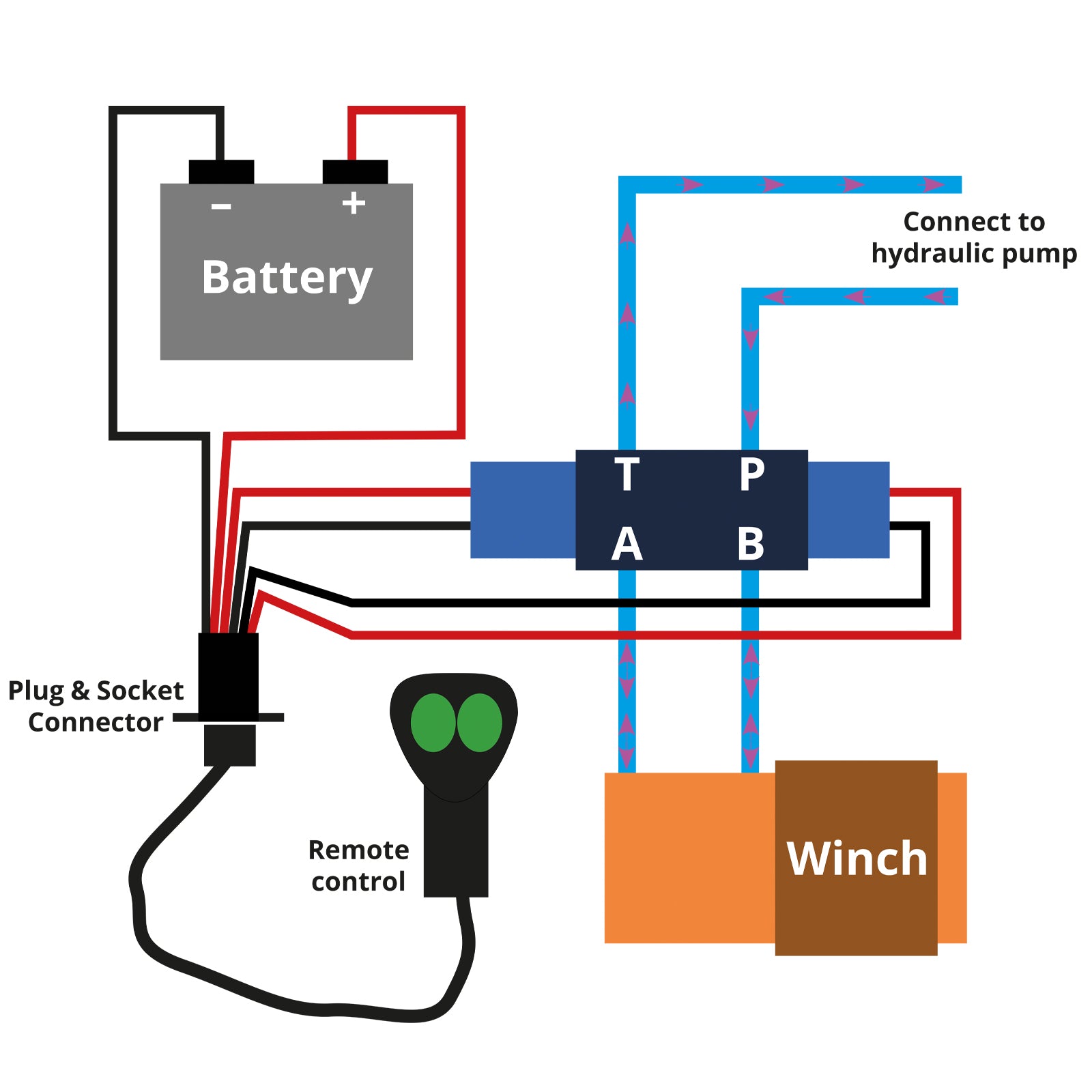

• 24V electrically operated CETOP 3 (NG6) solenoid operated directional valve control system.
• Compatible with the full range of WINCHMAX wireless remote controls.

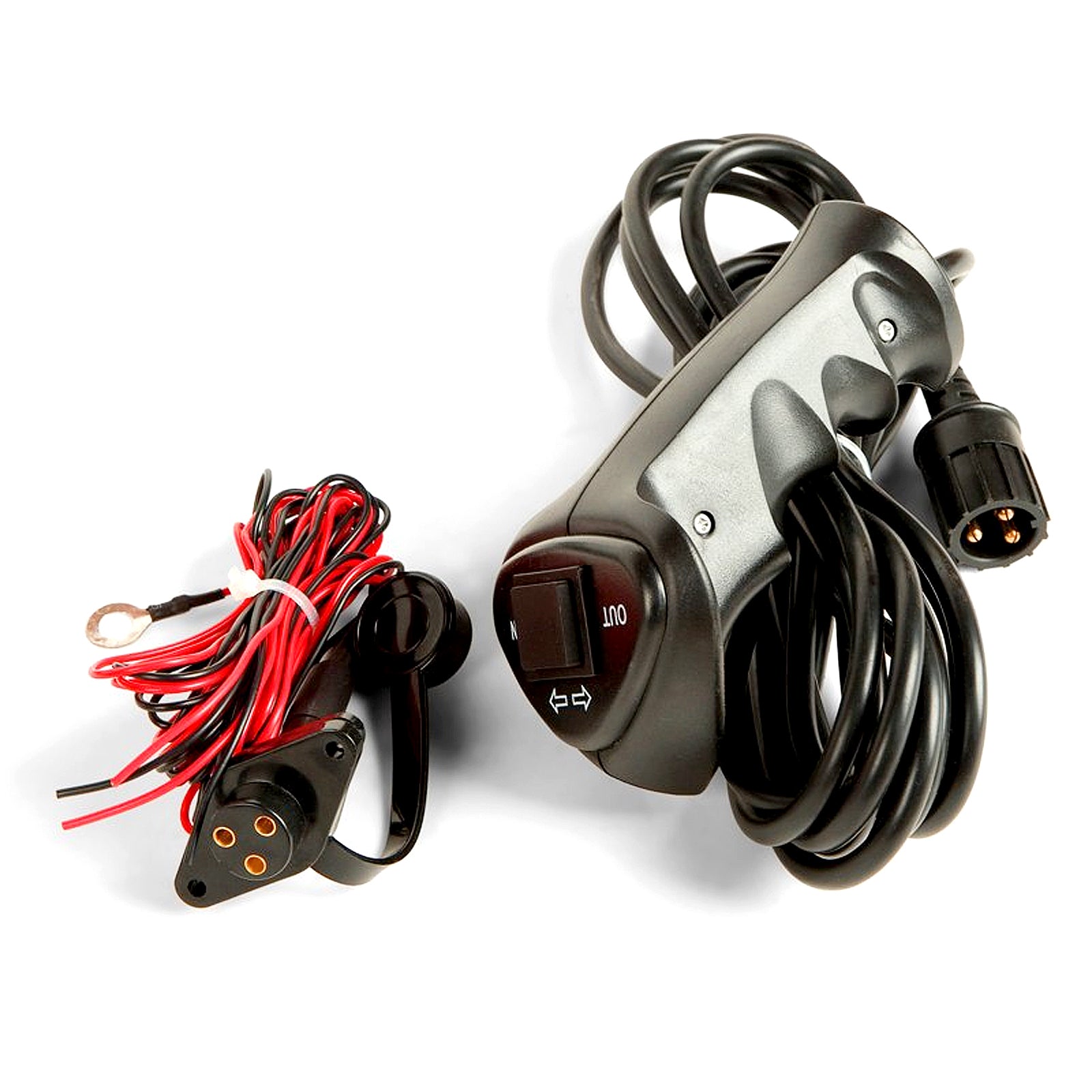

• Power in/out on big grip controller with extra long 4.5m lead.
• Wander lead wiring harness and socket for connection to the solenoid valve.
• Hydraulic hose assemblies 1.25m long (x4) fitted with 18x1.5mm threaded fittings.
• High tensile fixing bolt kit.
• CE certified & built to ISO9001 quality management system requirements.

24v control system available on request

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical. VAT invoice provided with every sale.

Single Line Rated Pull	10,000lb (4,536kg)

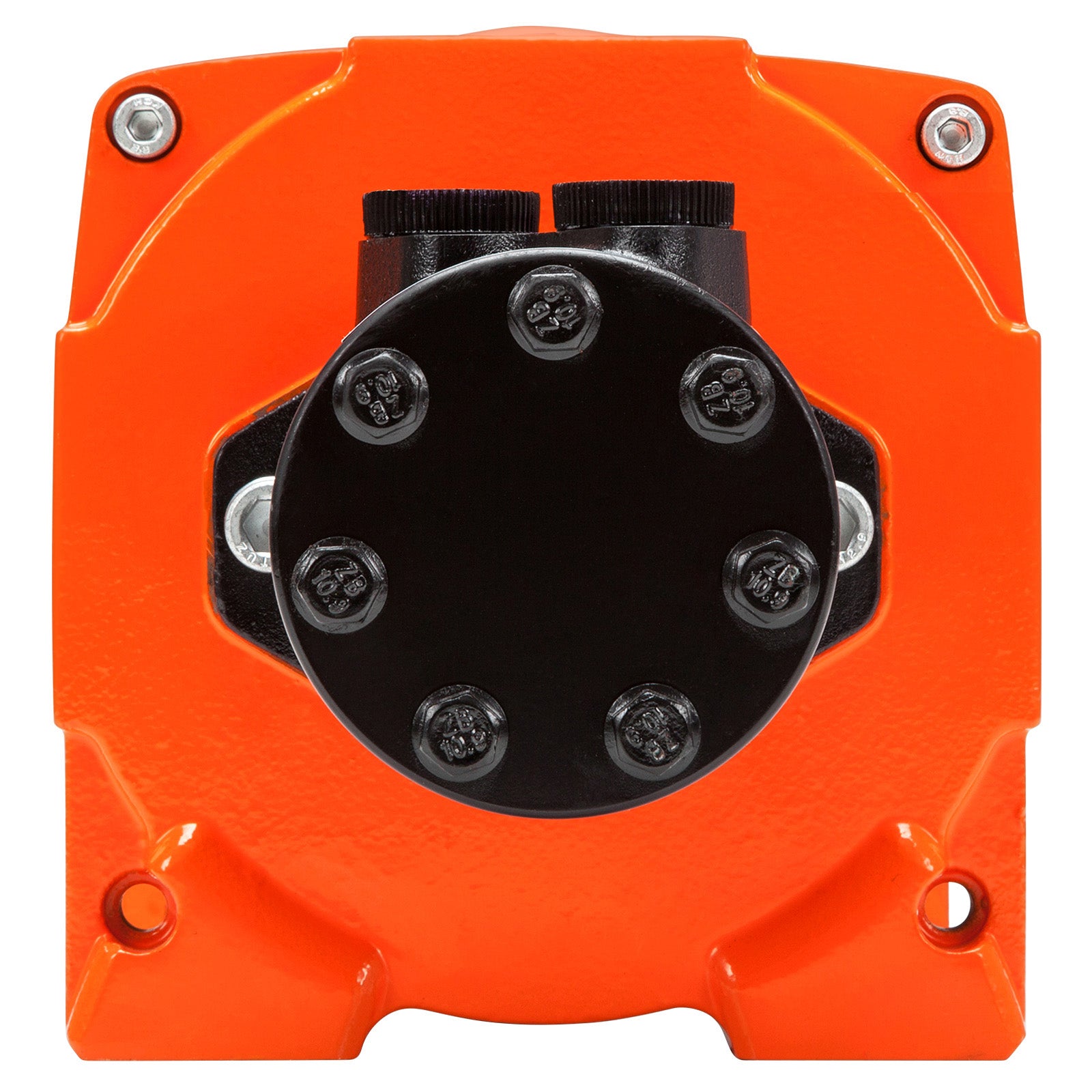

Motor	Hydraulic
Control	Remote switch, 4.5m lead, in and out
Gear Train	3 Stage Planetary
Gear Reduction Ratio	32:1
Clutch	Sliding Ring Gear
Braking Action	Automatic
Drum Size	Diameter 88mm Length 222mm
Drum Finish	Black, Painted.
Cable	25m x 10mm Dyneema SK75 Rope
Hook	Orange Competition Hook with Safety Catch.
Fairlead	Aluminium Hawse Fairlead
Flow	50-60 L/min
Pressure	10.8Mpa (108 Bar)
Pressure Hose Connections	18mm/1.5mm
Winch Finish	Original Orange Powder Coated
Weight (GW)	58kg (103lb)

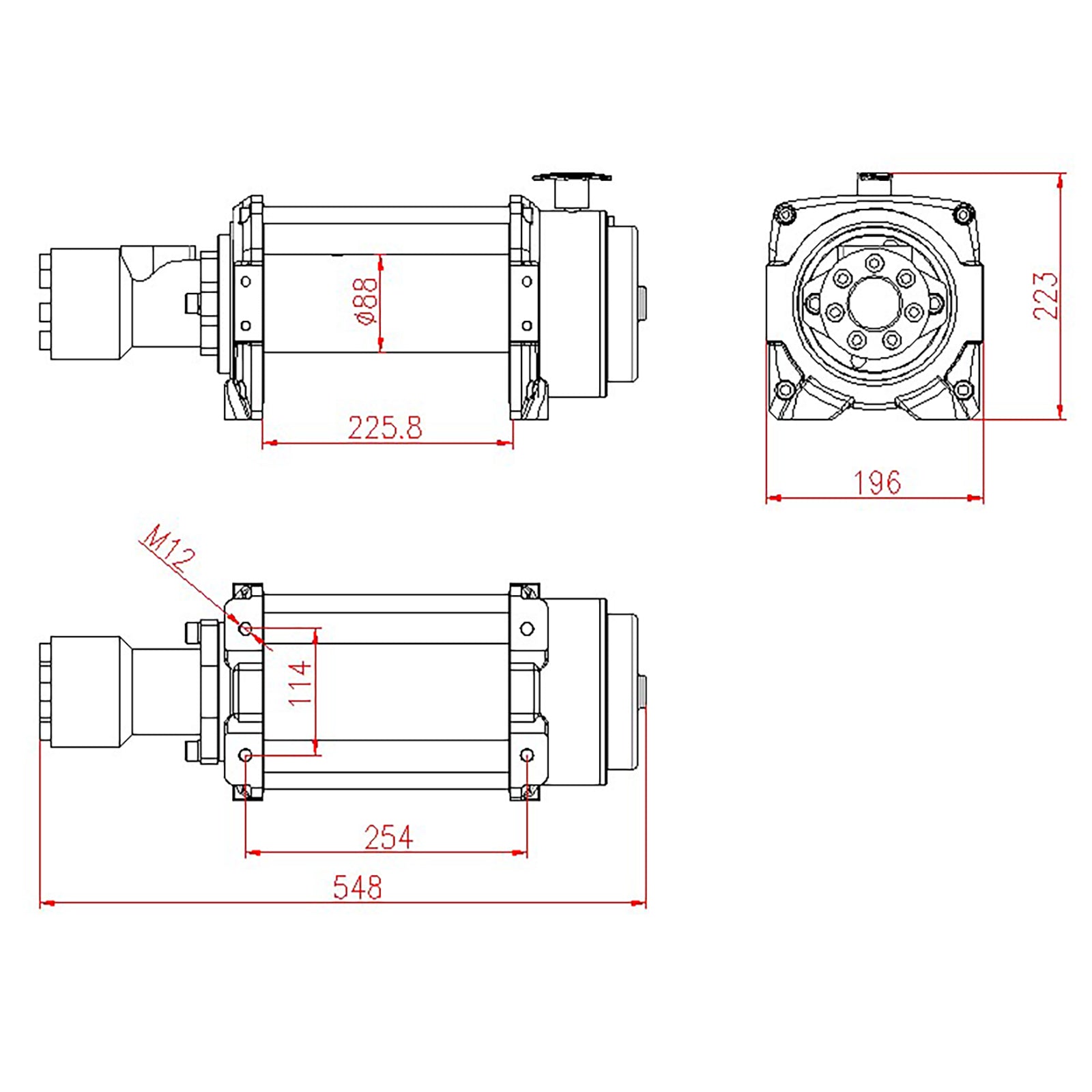

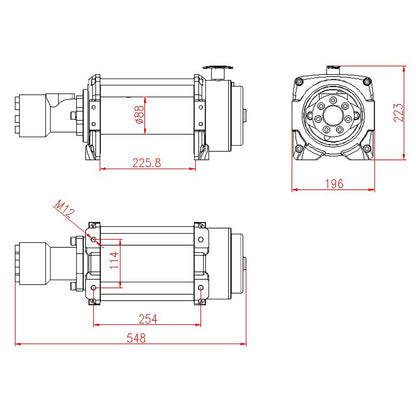

Overall Dimensions (LxWxH)	548 x 196 x 249mm
Mounting Bolt Pattern	10.00” ±0.015" x 4.50” ±0.010" (254 x 114.3mm)
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line Pull (lb)	Pull Per Layer (kg)	Line Speed (m/min)
1	10,000	4,550	4.94
2	9,150	4,159	5.4
3	8,440	3,840	5.86
4	7,280	3550	6.32
