• 13,500lb (6,123kg) Original Orange 24v Winch, 15m (Short) x 9.5mm Steel Rope.
1 12

13,500lb (6,123kg) Original Orange 24v Winch, 15m (Short) x 9.5mm Steel Rope. 3/8 inch Hook.

13,500lb (6,123kg) Original Orange 24v Winch, 15m (Short) x 9.5mm Steel Rope. 3/8 inch Hook.

Quick Code: 1370
SKU: WM1350024V-15M(M)
£379.95Inc VAT£316.63Exc VAT
Inc VAT £0.00Exc VAT
£379.95Inc VAT£316.63Exc VAT
Sale Sold Out

Need Help?

Call us on +44 (0) 1986 899264 and we'll be happy to help.

Certificate of conformity on all products
Order within
Days
:
h
:
m
:
s
for UK Next Working Day delivery on
View full details

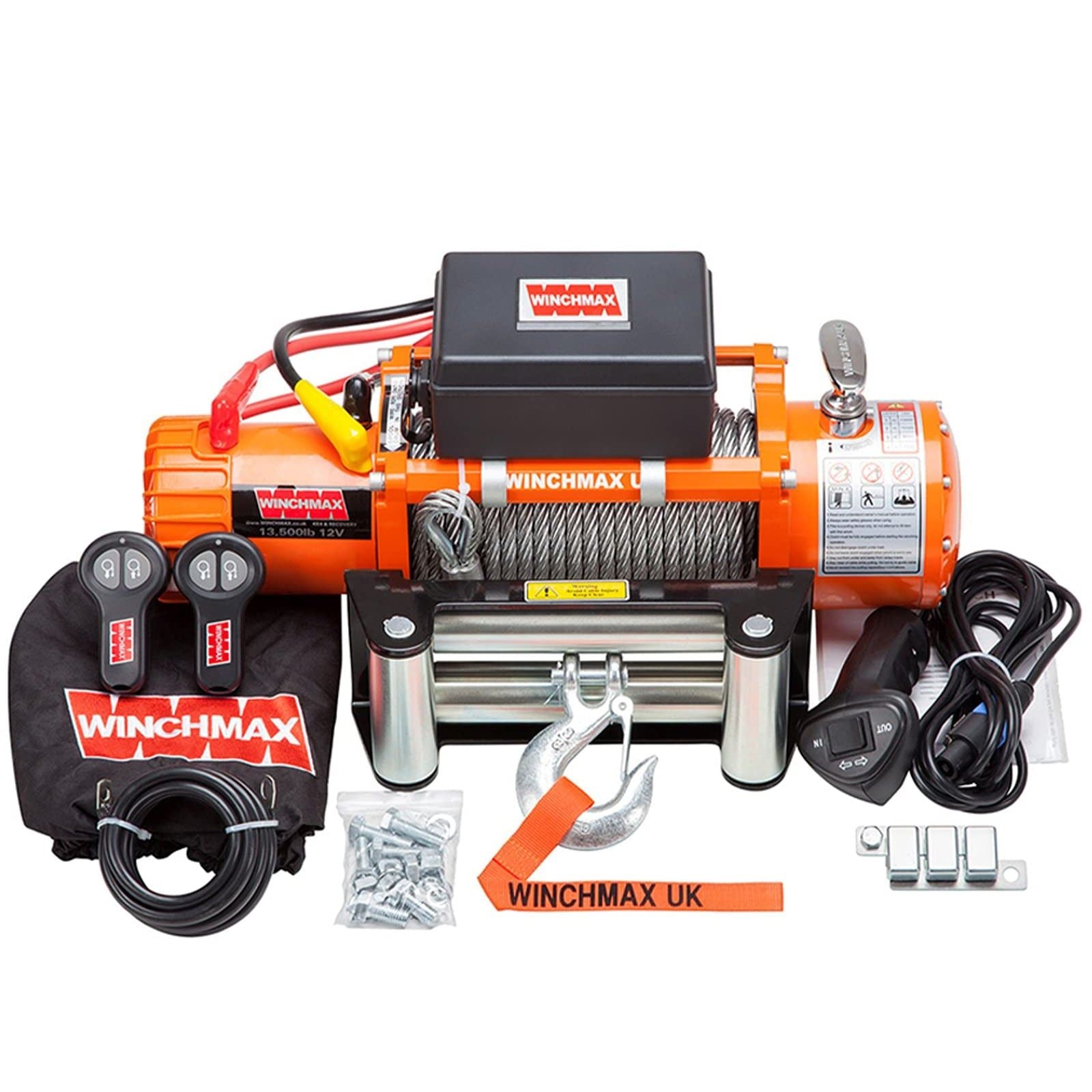

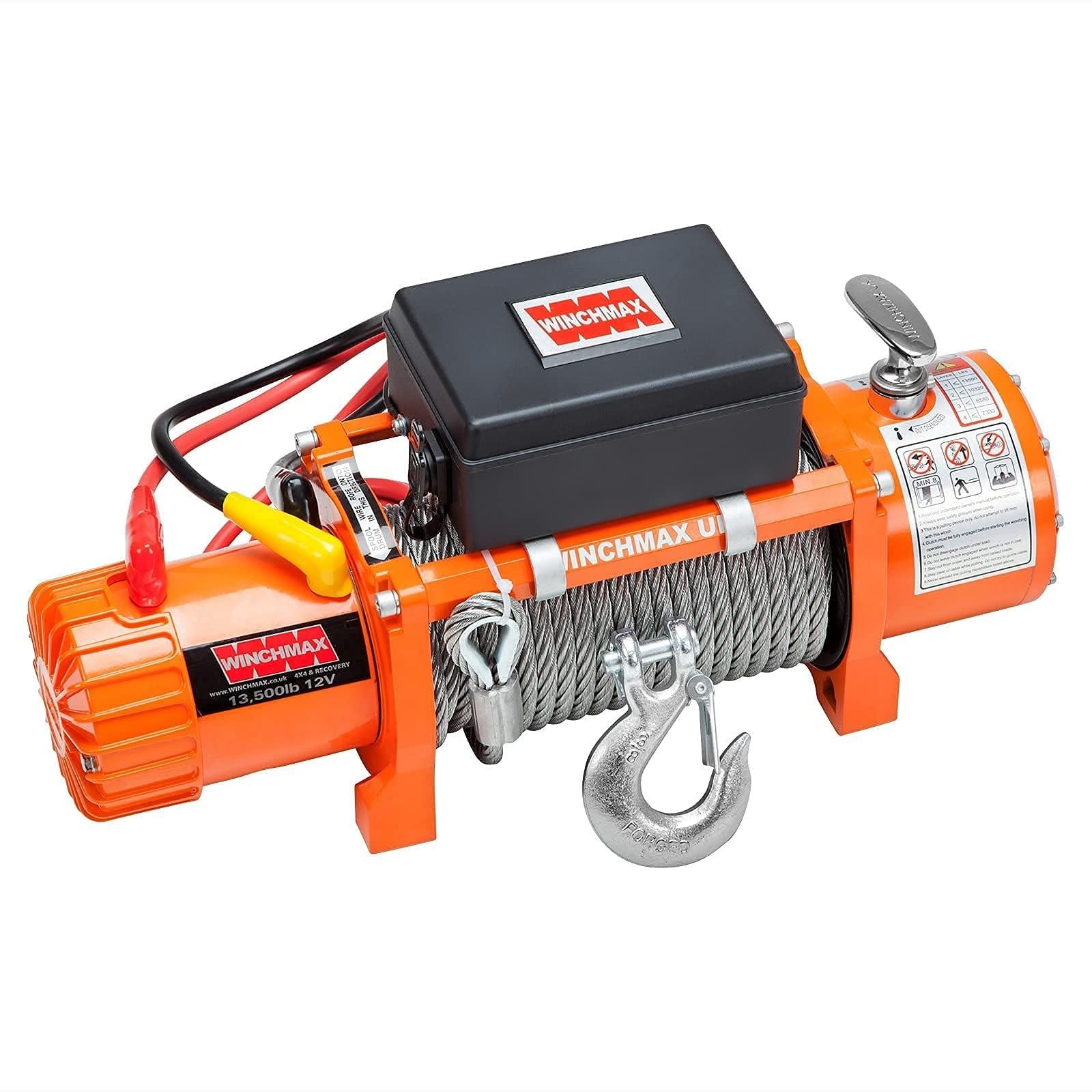

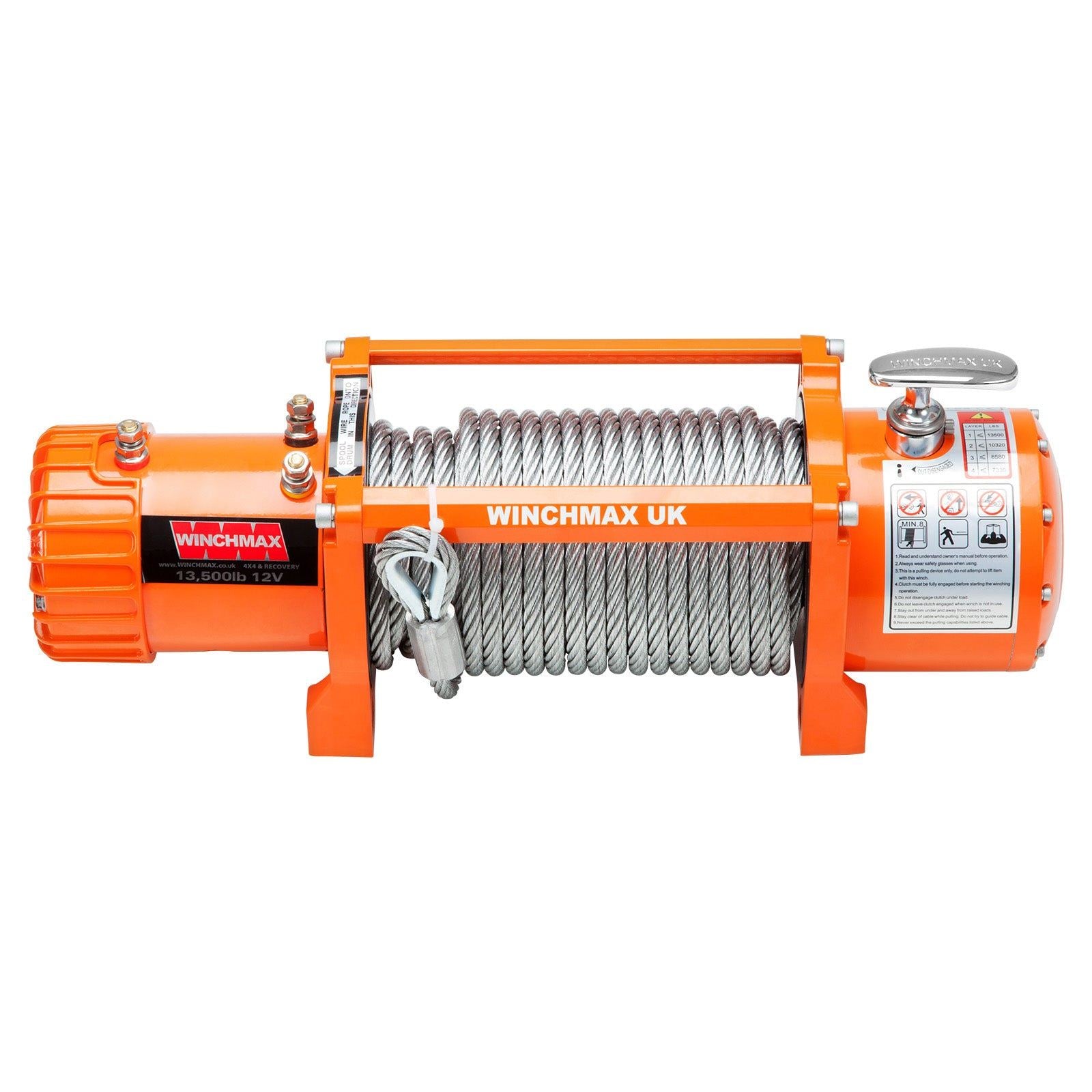

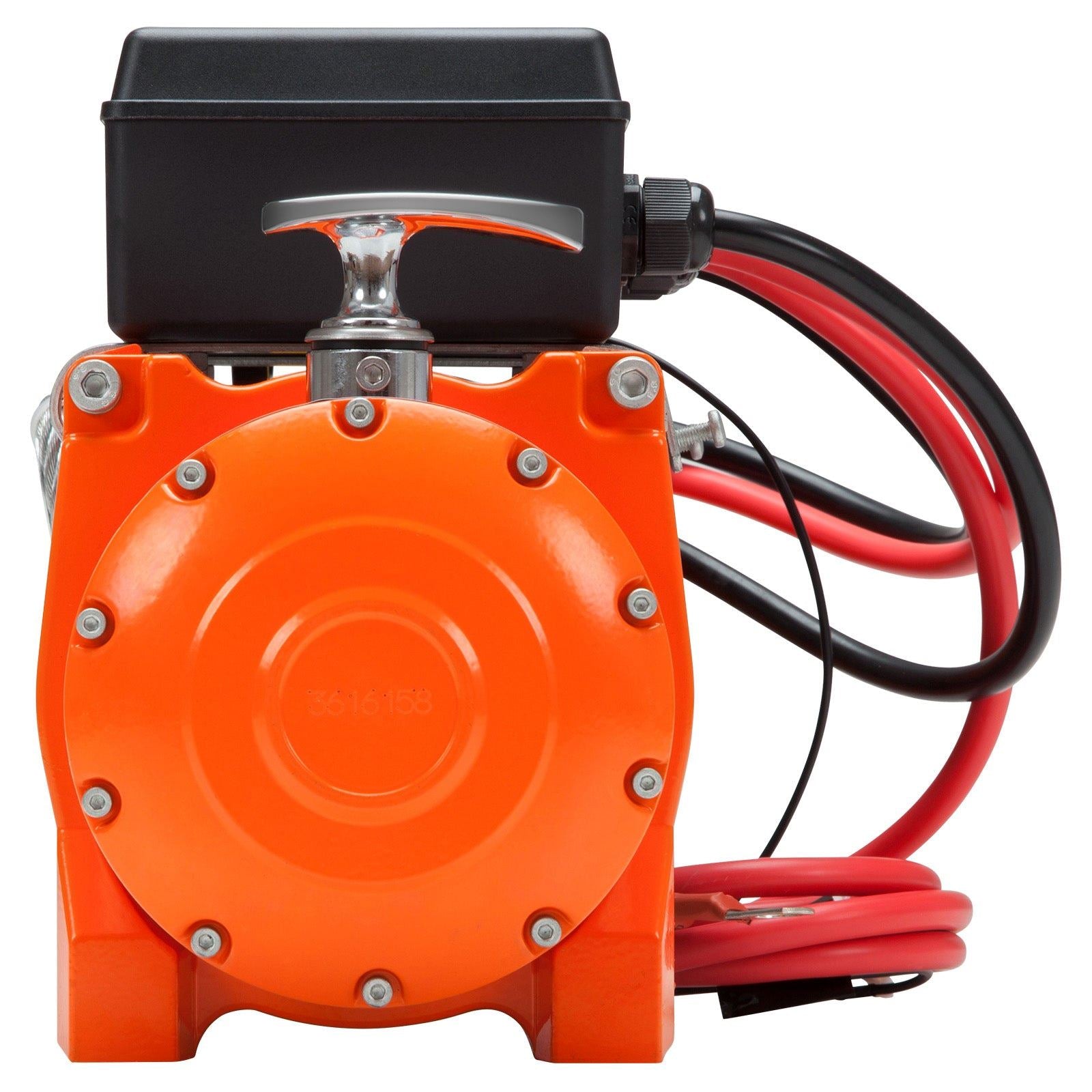

  • 13,500lb (6,123kg) Original Orange 24V Winch, Steel Rope (Short), Twin Wireless Remote Control.

    Features

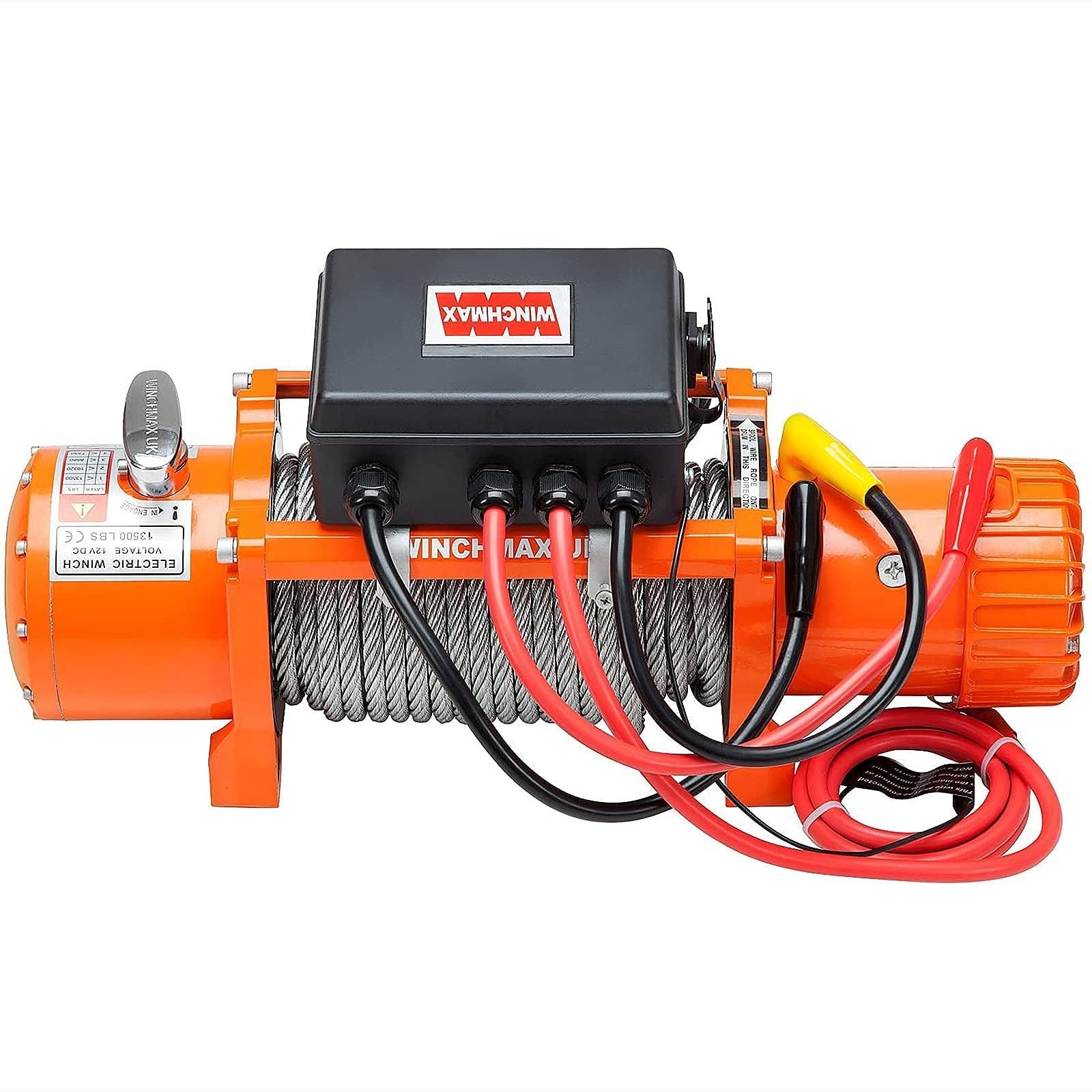

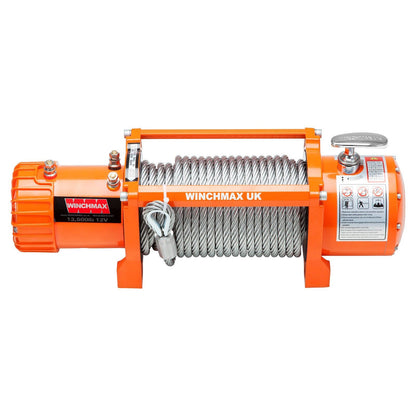

    • 13,500lb (6,123kg) straight-line pull 24V electric winch.

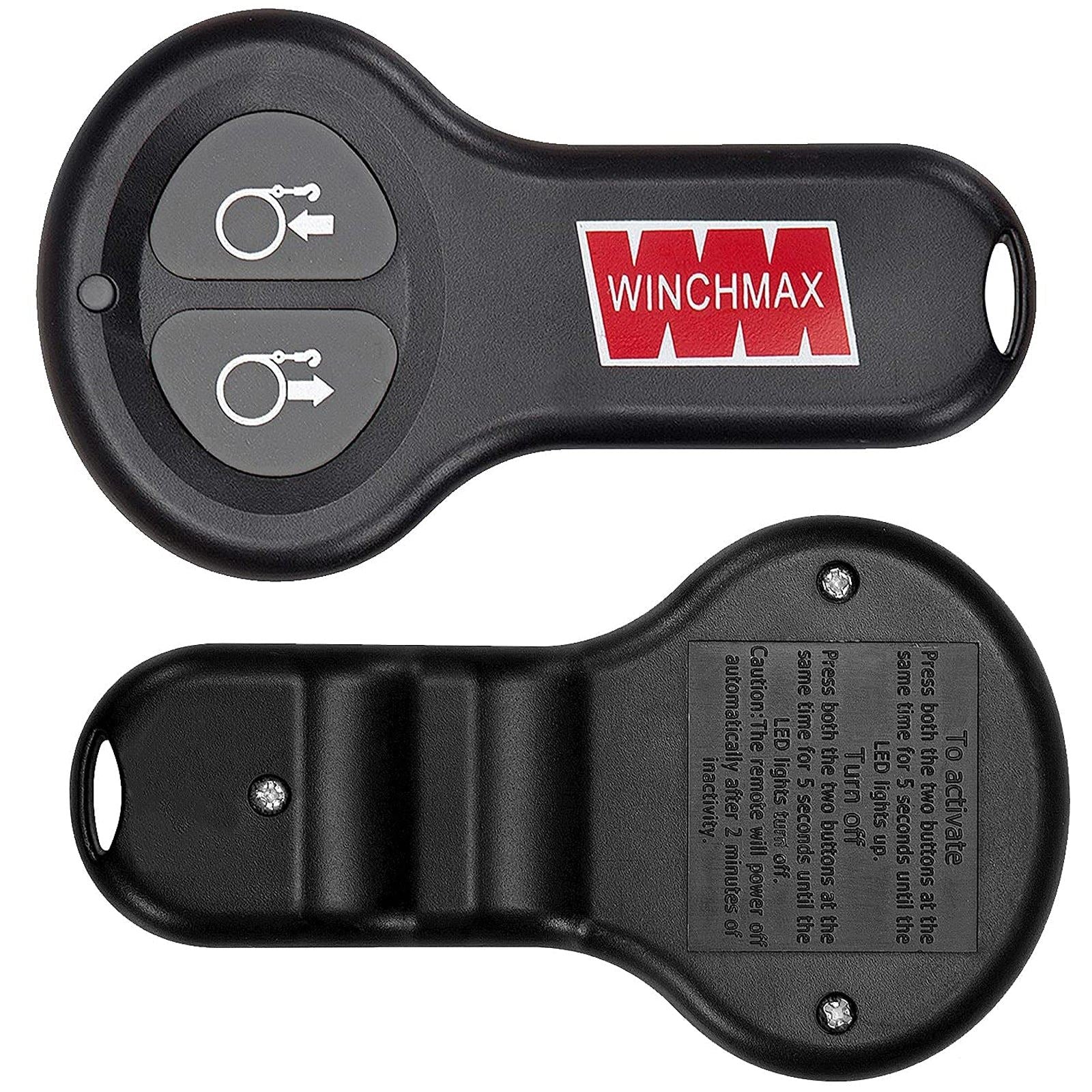

    • Latest technology long-range wireless remote controls, twin handsets.
    • Super powerful 24V 6.8hp/5.1kw series wound electric motor.
    • Massive ultra-tough three-stage gearbox with hardened steel gears.
    • Motor and gearbox casing machined from billet steel for maximum impact protection.
    • 15m x 9.5mm galvanized steel wire rope.
    • New ‘through-drum’ rope connection with grub screw clamp for ultra-secure rope attachment to drum.

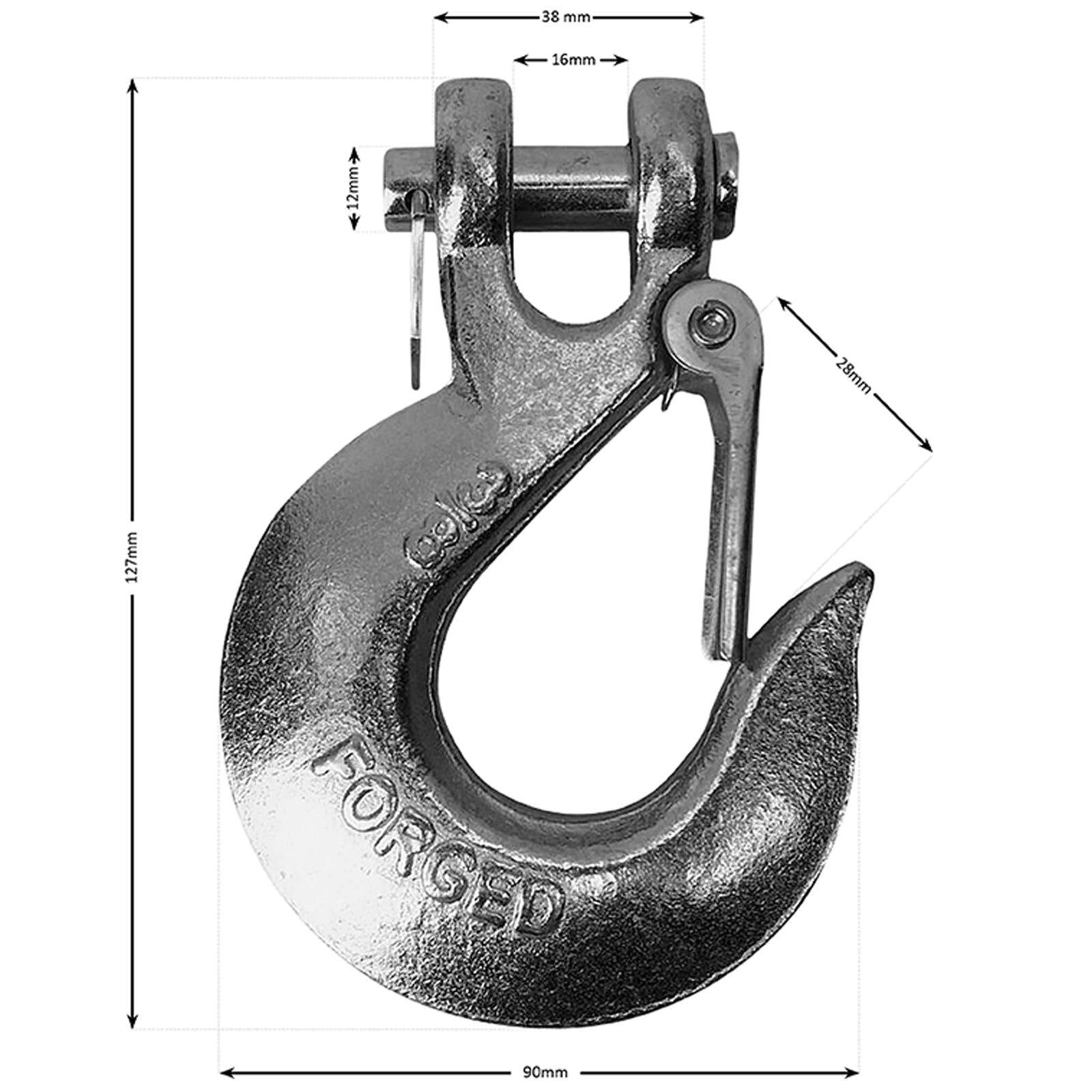

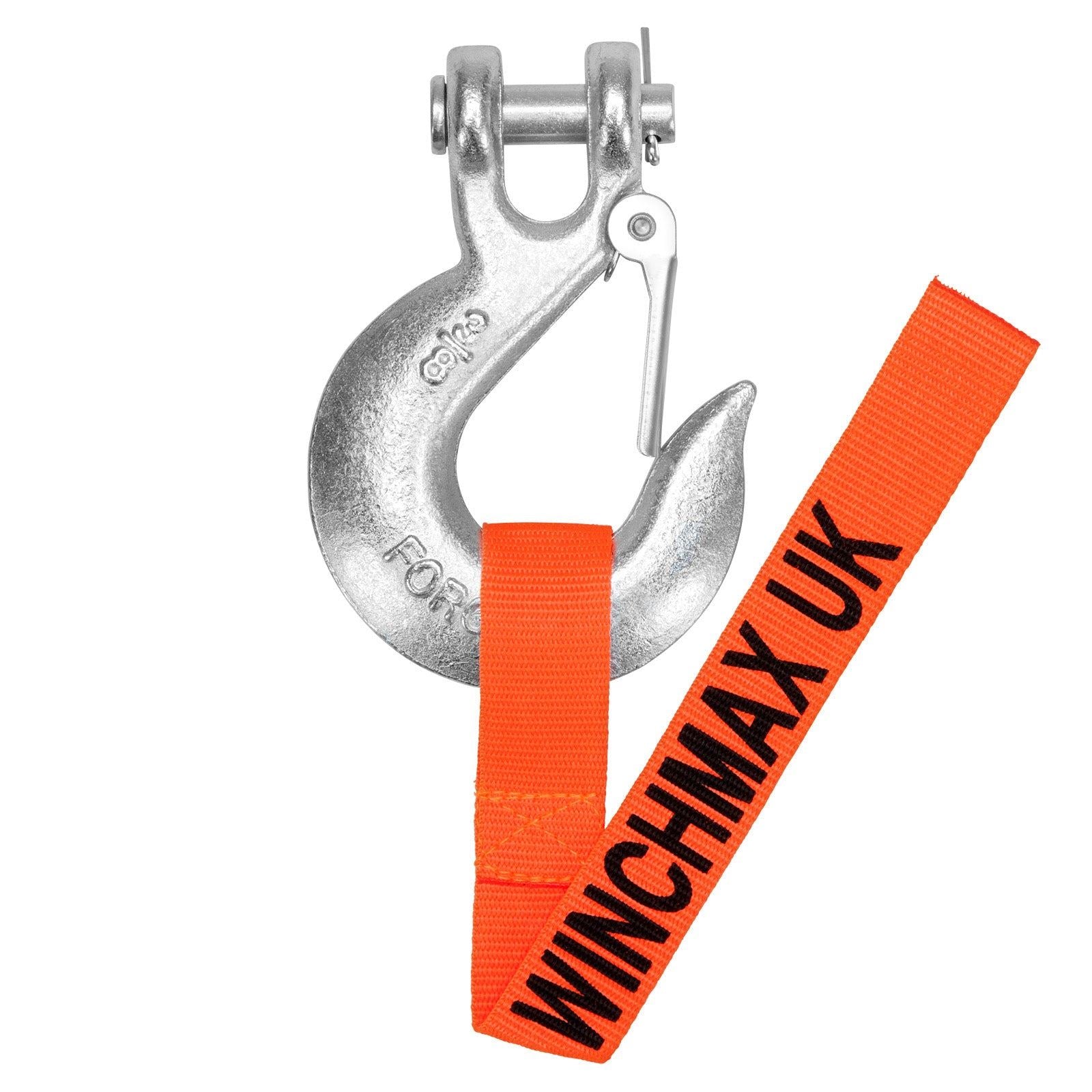

    • Clevis hook 3/8 inch G70 grade forged. Safety catch and hand saver. Zinc plated for corrosion resistance.

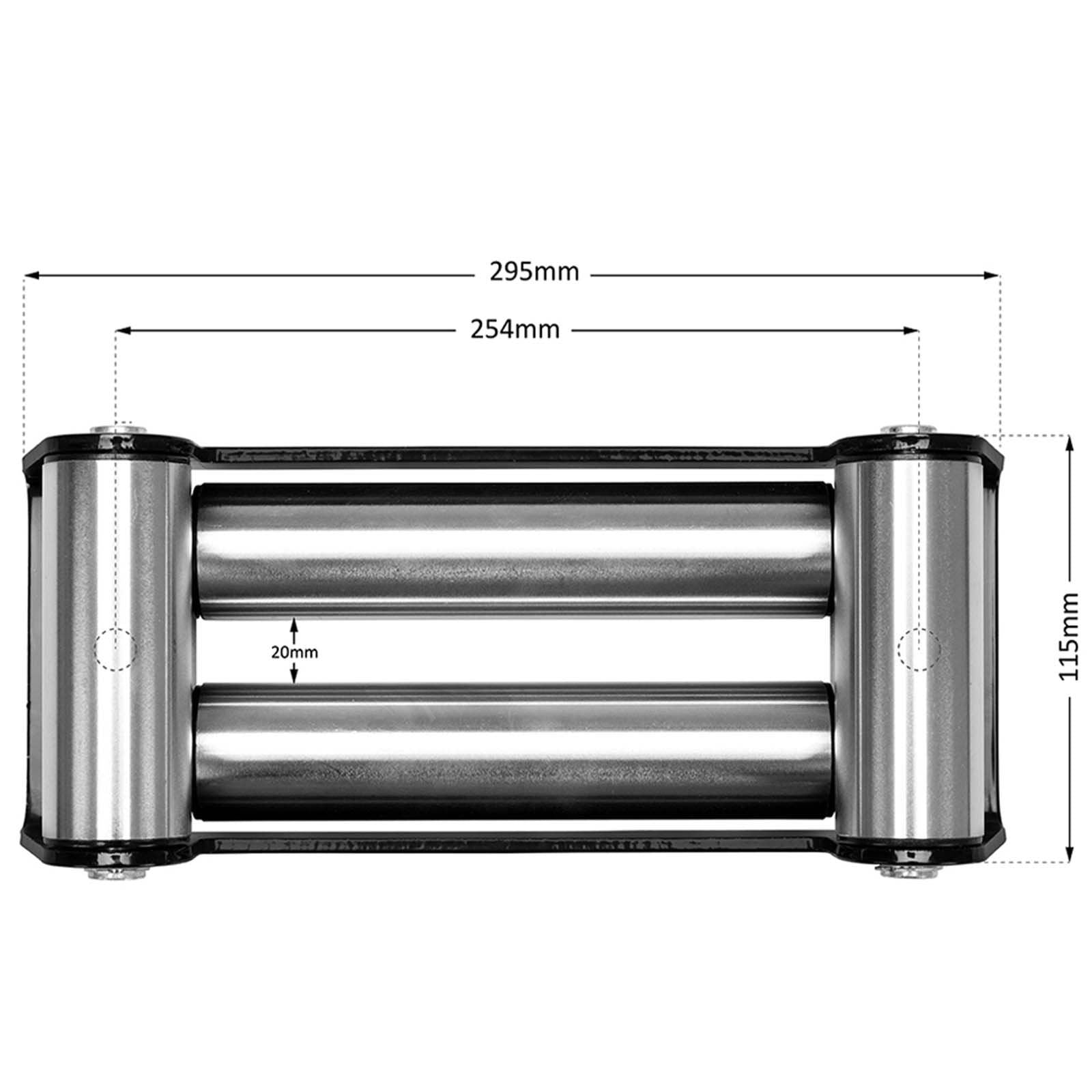

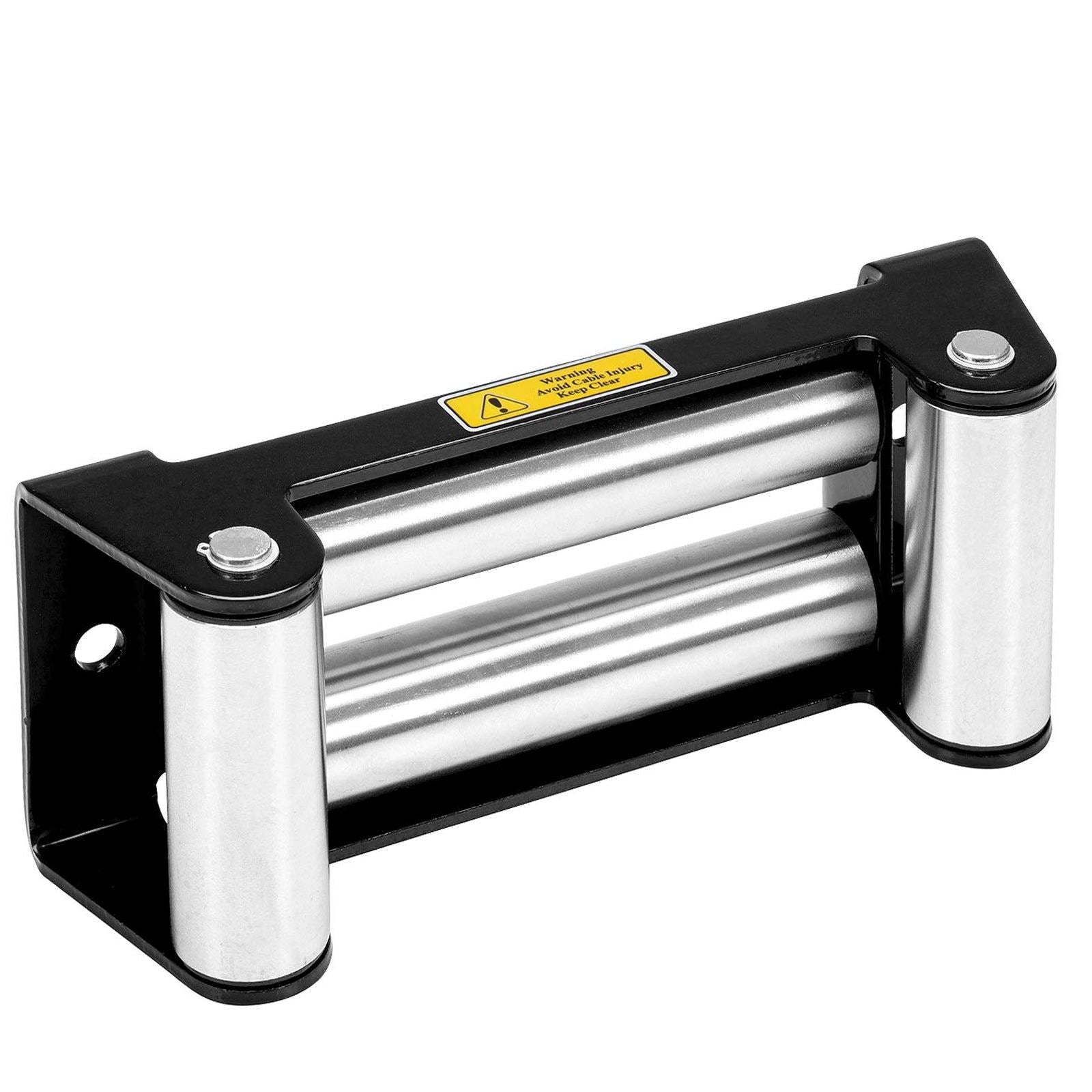

    • Tough four roller fairlead with zinc-plated rollers.
    • Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
    • Power in/out big grip wander lead with extra-long 4.5m cord.
    • Sliding ring gear freewheel clutch.
    • High tensile fixing bolt kit.

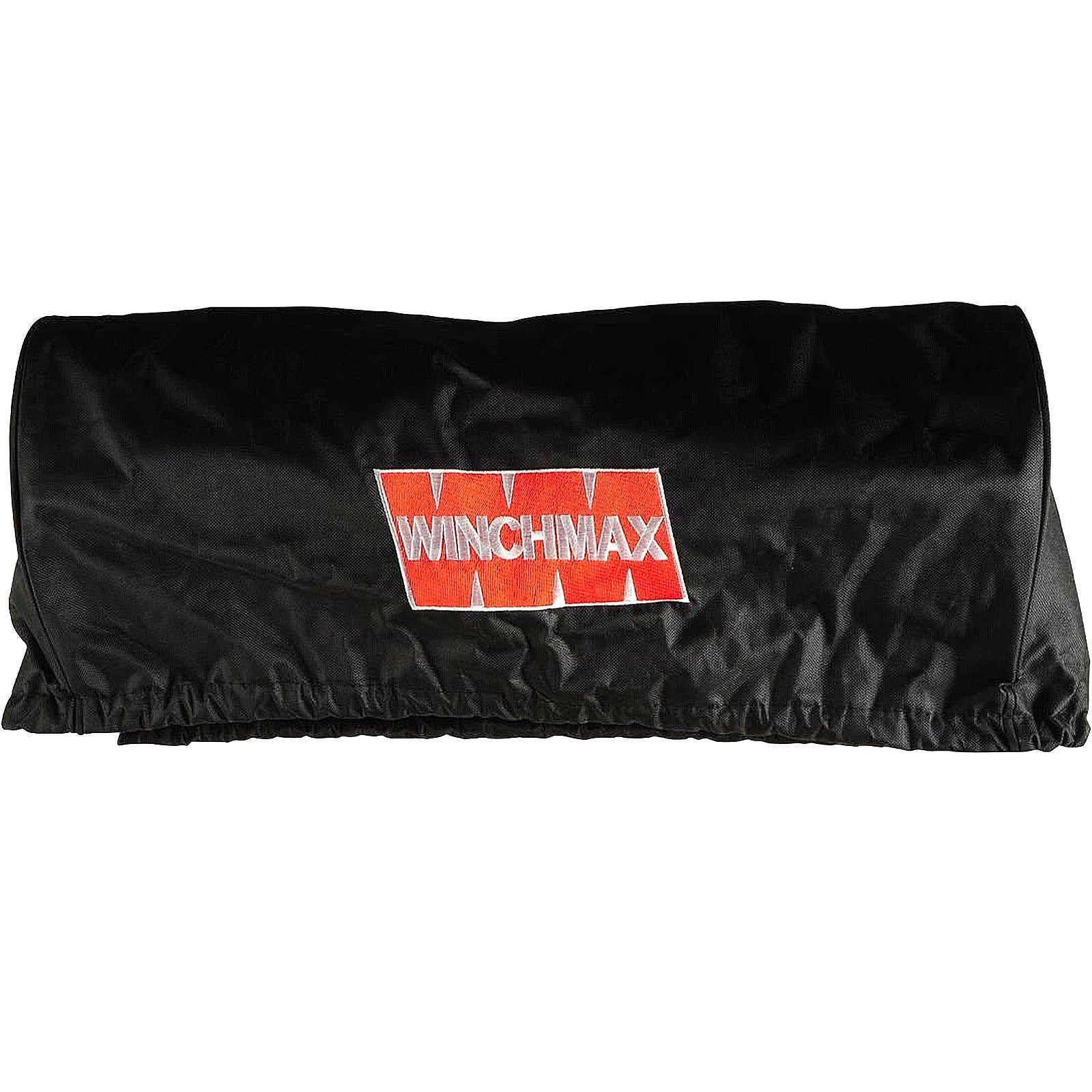

    • Strong WINCHMAX branded cover to protect from water and road grime.
    • Heavy-duty & built to last - gross weight 40kg.
    • CE certified & built to ISO9001 quality management system requirements.

    Don't forget Your Mounting plate.

    WINCHMAX make the best mounting plates for quick and easy installation. Click here for our recommended mounting plates for this winch.

    Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.

  • Single Line Rated Pull13,500lb (6,123kg)
    Motor24V 6.8hp/5.1kw, series wound
    ControlRemote switch, 4.5m lead, in and out
    Gear train3 stage planetary
    Gear reduction ratio265:1
    ClutchSliding ring gear
    Braking ActionAutomatic in the drum
    Drum sizeDiameter 64mm (2.5”) length 224mm (8.82”)
    Drum finishBlack, painted.
    Cable15m x 9.5mm galvanized steel wire rope
    HookClevis hook 3/8 inch, zinc plated.
    Fairlead4-Way Roller Fairlead
    BatteryRecommended 650CCA minimum for winching
    Battery Leads2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
    FinishOriginal Orange powder coated
    Weight (GW)40kg (88lb)

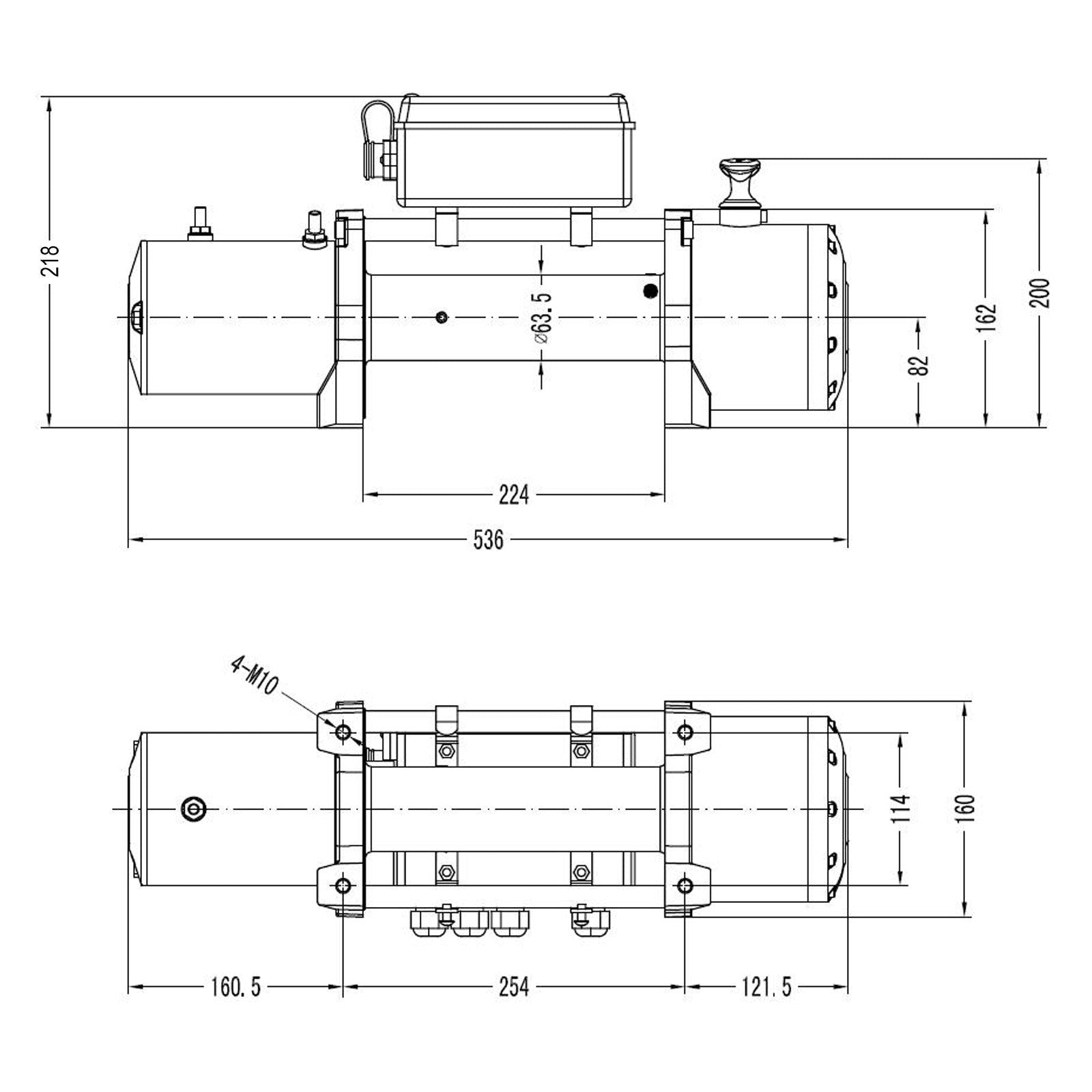

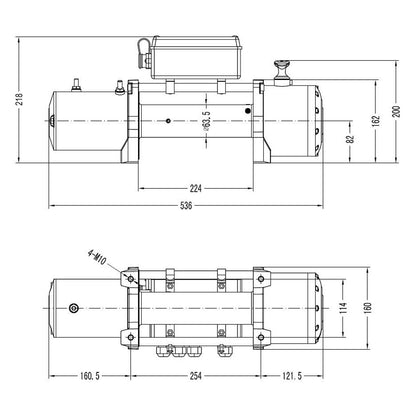

    Overall Dimensions(LxWxH)536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
    Mounting Bolt Pattern10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
    Motor Current65-500A
    No Load Line Speed6.5m/min (21.3 ft/min)



    Layer Rated

     Line pull (lb)

     Line Pull (kg)

     Total Rope On Drum (ft/m)

     1

     13500

     6123

     20.4/6.22

     2

     10010

     4540

     41/12.0

     3

     88
