13,500lb (6,123kg) 12v Winch. 15 m x 10 mm Armourline Rope. 3/8 inch hook.

13,500lb (6,123kg) 12v Winch. 15 m x 10 mm Armourline Rope. 3/8 inch hook.

Quick Code: 1380
SKU: WM1350012V-NRNF,WMARMOURLINE15-10(M)
£469.95Inc VAT£391.63Exc VAT
Inc VAT £0.00Exc VAT
£469.95Inc VAT£391.63Exc VAT
Sale Sold Out

Need Help?

Call us on +44 (0) 1986 899264 and we'll be happy to help.

Certificate of conformity on all products
Order within
Days
:
h
:
m
:
s
for UK Next Working Day delivery on
View full details

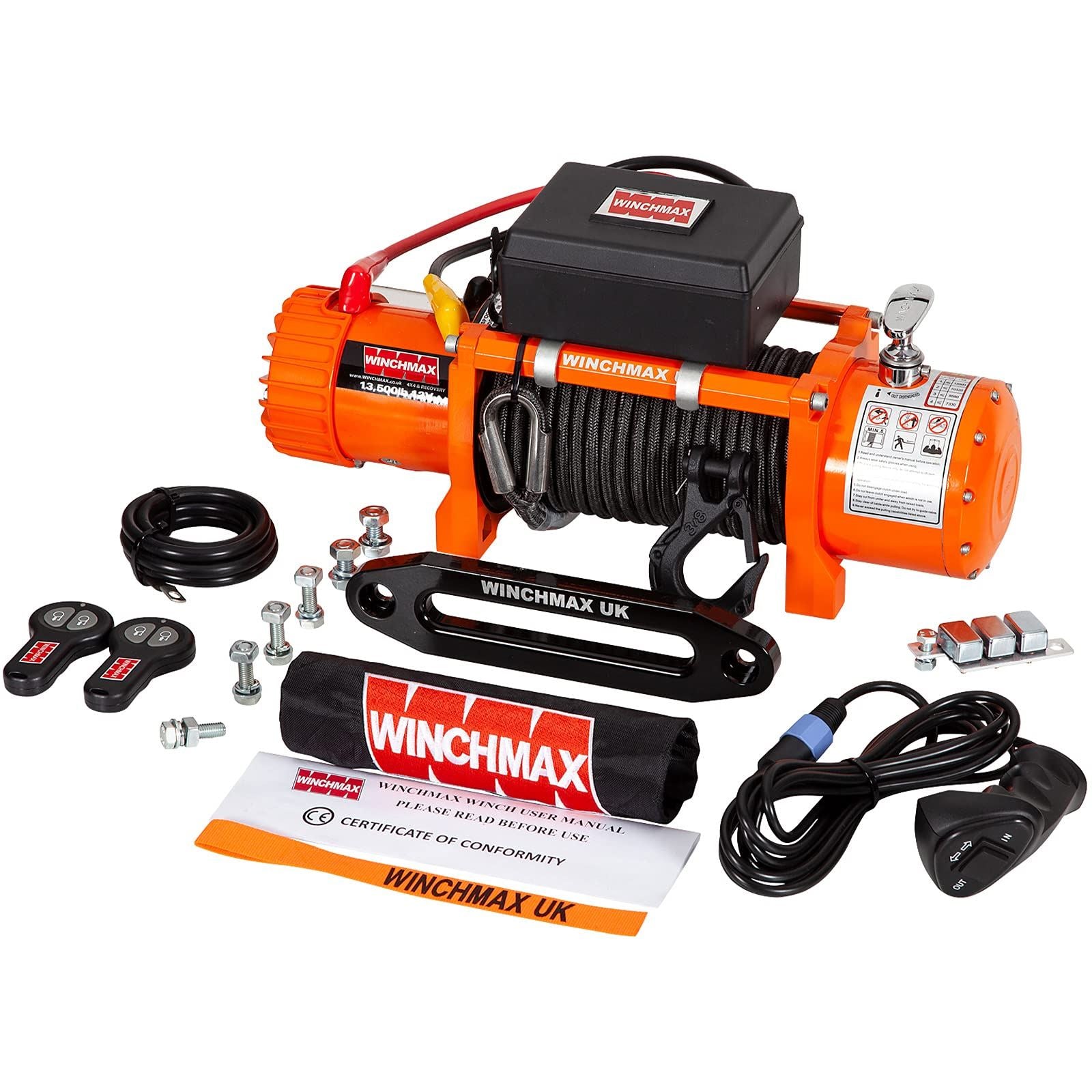

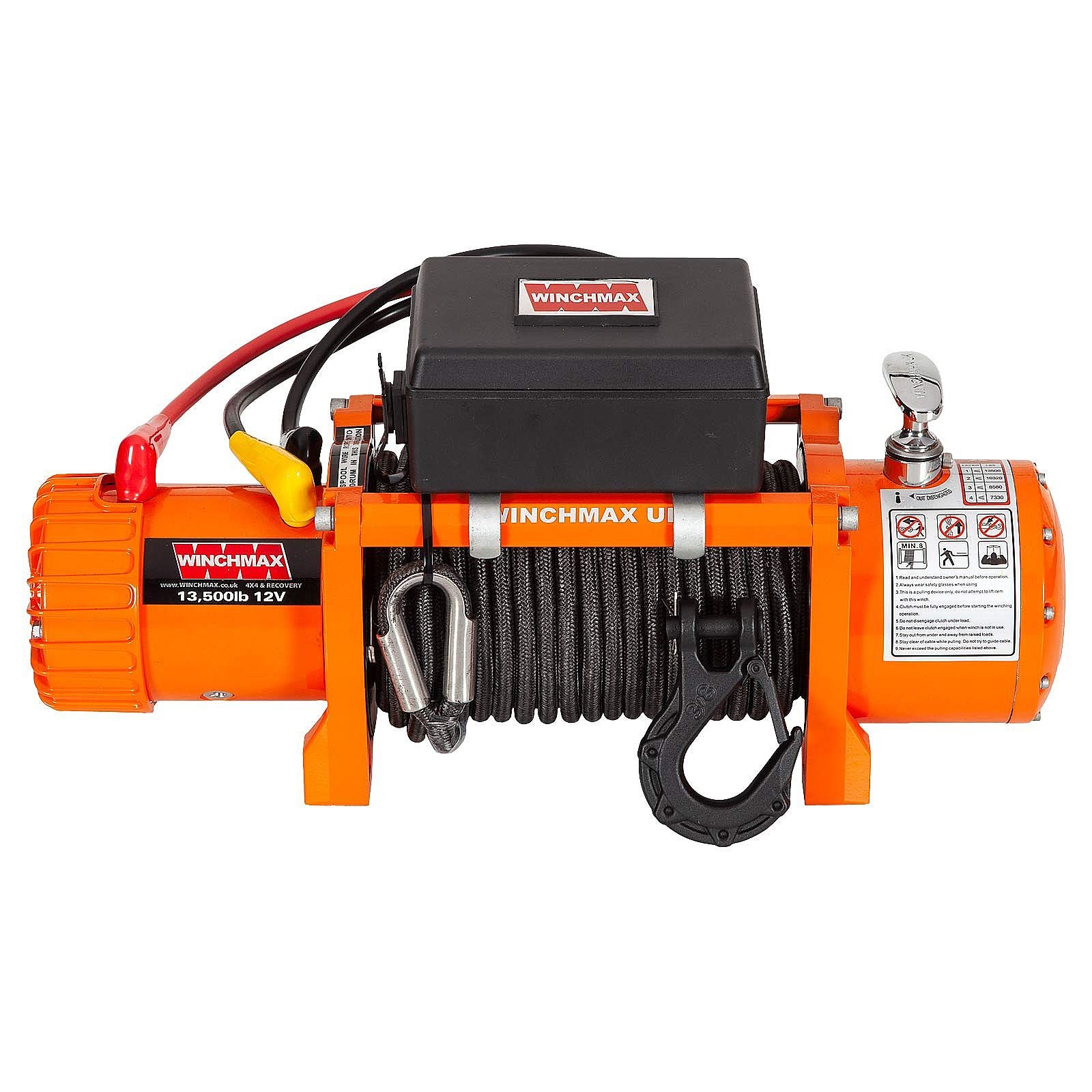

  • 13,500lb (6,123kg) Original Orange 12V Winch. Armourline Rope 15m. Twin Wireless Remote Controls.

    Ideal for recovery trucks and trailers up to 3.5T

    Winch

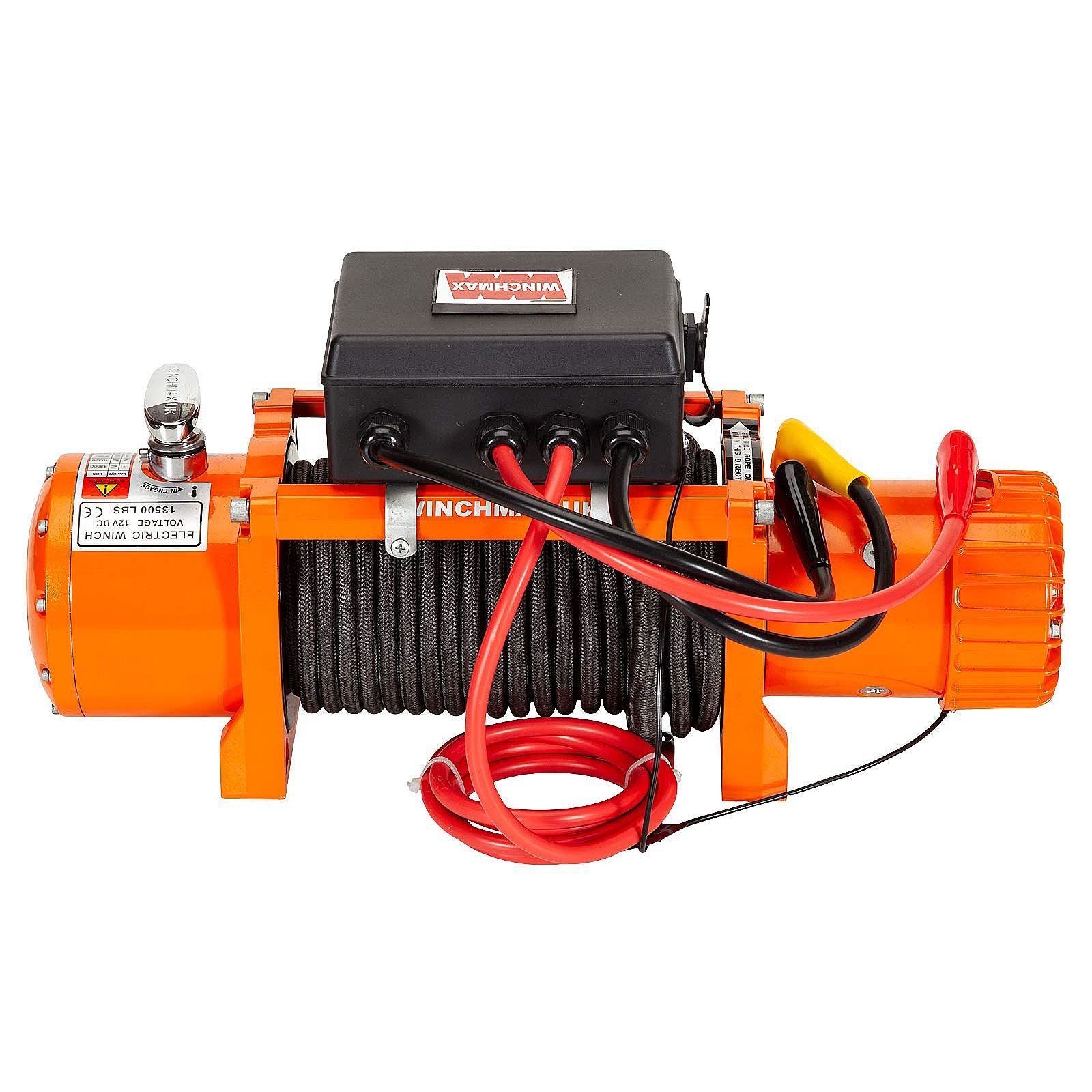

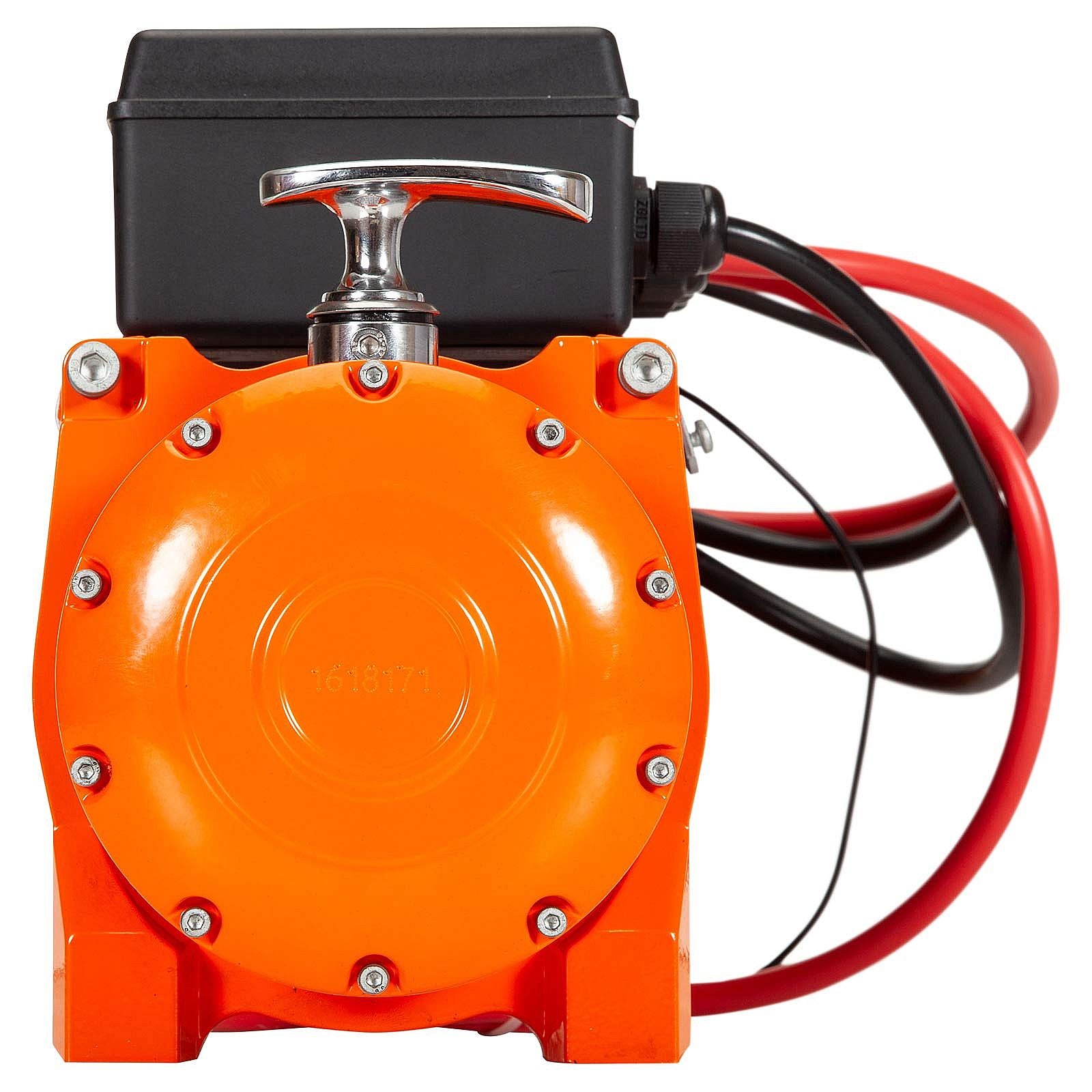

    • 13,500lb (6,123kg) straight-line pull 12V electric winch.
    • Latest technology long-range wireless remote controls, twin handsets.
    • Super powerful 12V 6.8hp/5.1kw series wound electric motor.
    • Massive ultra-tough three-stage gearbox with hardened steel gears.
    • Motor and gearbox casing machined from billet steel for maximum impact protection.
    • 15m x 10mm Armourline double braided synthetic rope. 21,000lb (9,500kg) average breaking load.
    • New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

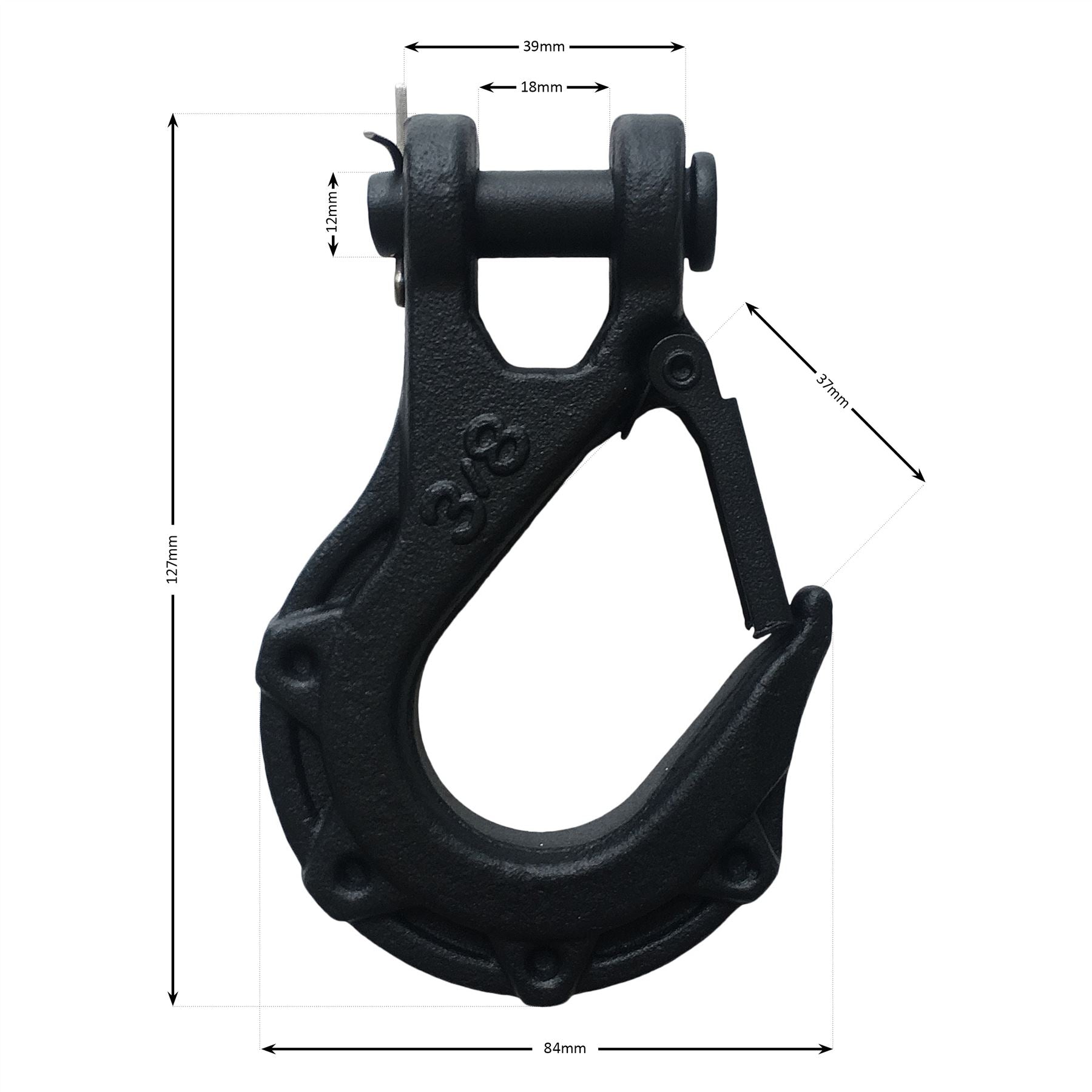

    • Tactical clevis hook 3/8 inch G70 grade forged. Safety catch and hand saver, black.

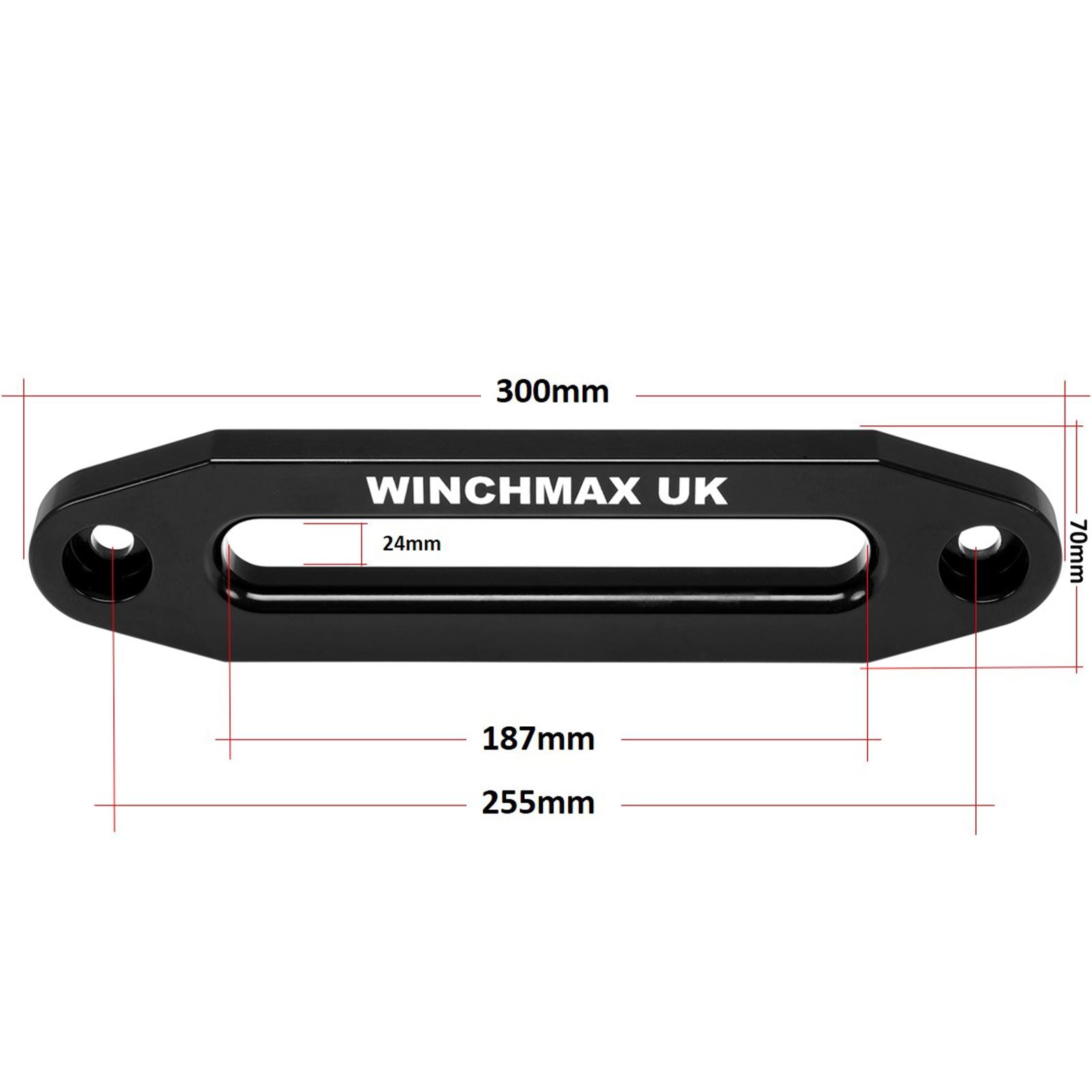

    • WINCHMAX aluminium hawse fairlead. Precision CNC milled, laser-etched.
    • Heavy-duty one-piece solenoid, latest design, ultra-reliable and IP67 waterproof.
    • Power in/out big grip wander lead with 4.5m cord.

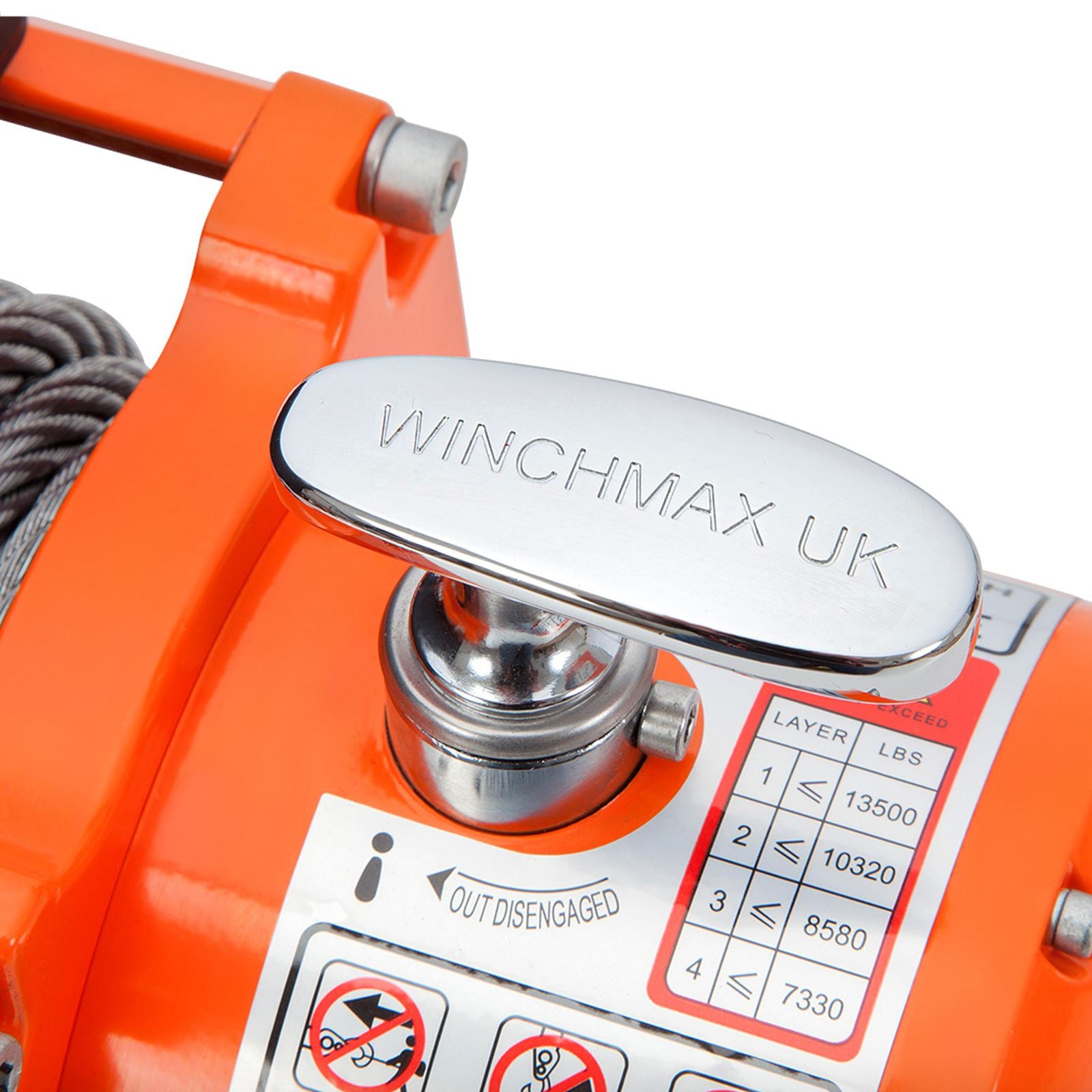

    • Sliding ring gear freewheel clutch.
    • High tensile fixing bolt kit.
    • Strong WINCHMAX branded cover to protect from water and road grime.

    DON'T FORGET YOUR MOUNTING PLATE.
    WINCHMAX make the best mounting plates for quick and easy installation. Click here for our recommended mounting plates for this winch.

      Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
      VAT invoice provided with every sale.

    • Single Line Rated Pull 13,500lb (6,123kg)
      Motor 12V 6.8hp/5.1kw, series wound
      Control Remote Switch, 4.5m lead, in and out
      Gear Train 3 stage planetary
      Gear Reduction Ratio 265:1
      Clutch Sliding ring gear
      Braking Action Automatic in the drum
      Drum Size Diameter 64mm (2.5in) Length 224mm (8.82in)
      Drum Finish Black, painted
      Cable 25m x 10mm Armourline synthetic rope
      Hook  Tactical clevis hook 3/8 inch, black
      Fairlead One-piece billet aluminium hawse fairlead
      Battery Recommended 650CCA minimum for winching
      Battery Leads 2 gauge, 1.83m (72in) 25mmsq - 5.6mm diameter
      Winch Finish Original Orange powder-coated
      Weight (GW) 30kg (88lb)

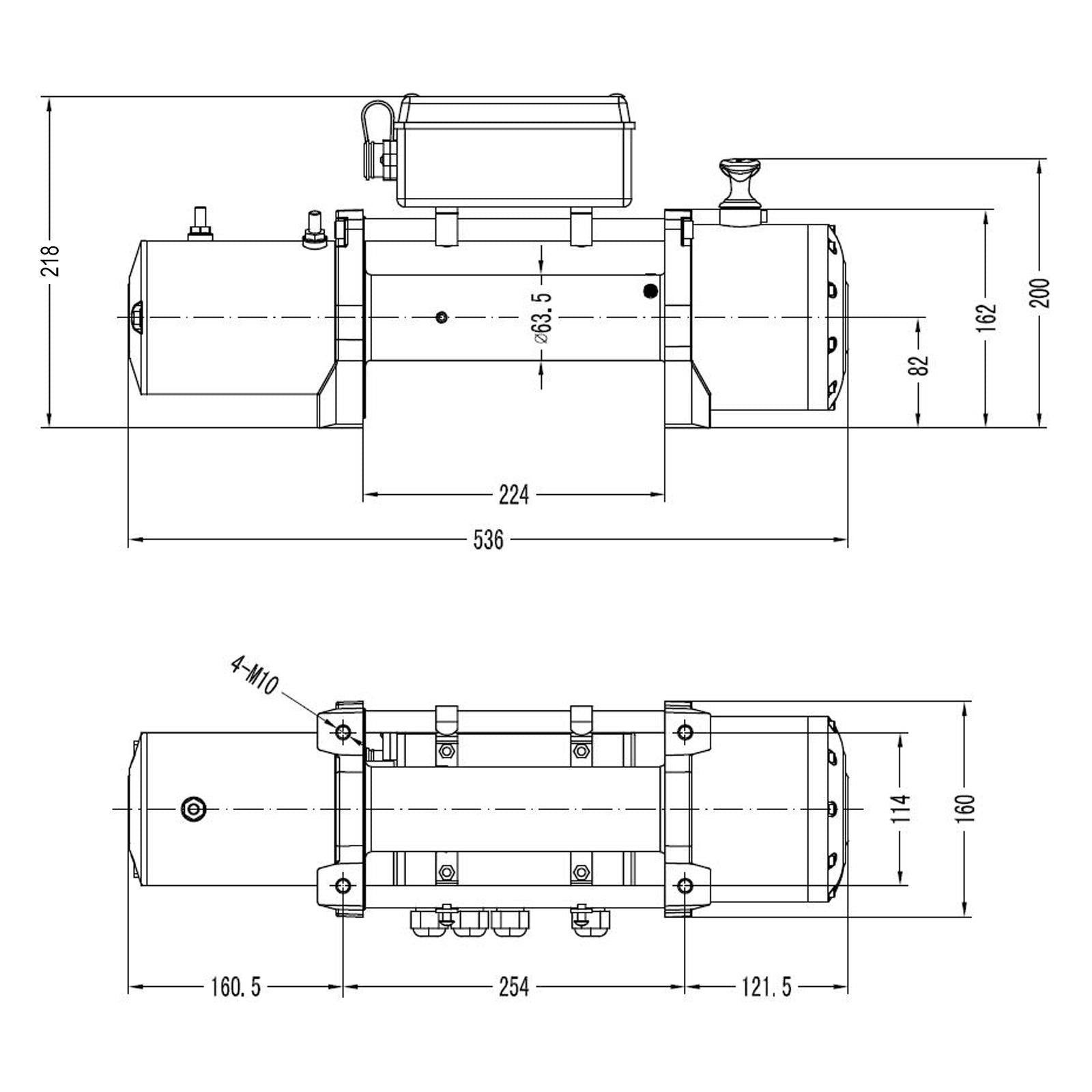

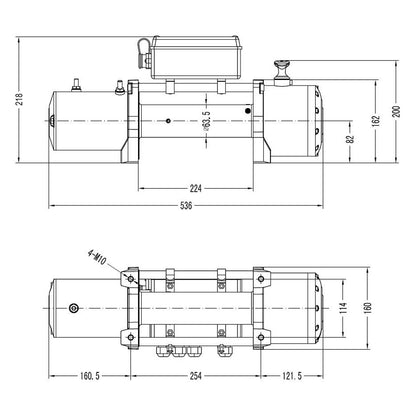

      Overall Dimensions (LxWxH) 536 x 160 x 218mm (21.3in x 6.3in x 8.6in)
      Mounting Bolt Pattern 10.00in ±0.015in x 4.50in ±0.010in (254 x 114.3mm)
      Motor Current 65-500A
      No Load Line Speed 6.5m/min (21.3 ft/min)



      Layer Rated

       Line pull (lb)

       Line Pull (kg)

       Total Rope On Drum (ft/m)

       1

       13500

       6123

       20.4/6.22

       2

       10010

       4540

       41/12.0

       3

       8840

       4009

       71/21.0

       4

       7410

       3361

       85/24.0



      Line Pull (lb/kg)

       Line Speed ft/min (m/min)

       Motor (Amps)

       0 (0)

       24.6ft (7.5m)

       70A

       3000 (1363)

       11.48ft (3.5m)

       138A

       6000 (2727)

       8.86ft (2.7m)

       218A

       9000 (4090)

       7.72ft (2.2m)

       260A

       13500 (6123)

       5.58ft (1.7m)

       415A
